DEWALT D25330K-QS Chipping Hammer Type 1 Parts

SKU: DEWALT D25330K-QS Tipo 1
€62.60
VAT included

DEWALT D25330K-QS Chipping Hammer Type 1 Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for D25330K-QS Chipping Hammer Type 1.
DEWALT D25330K-QS Chipping Hammer Type 1 Parts
  • Online only
  • DEWALT D25330K-QS Chipping Hammer Type 1 Parts

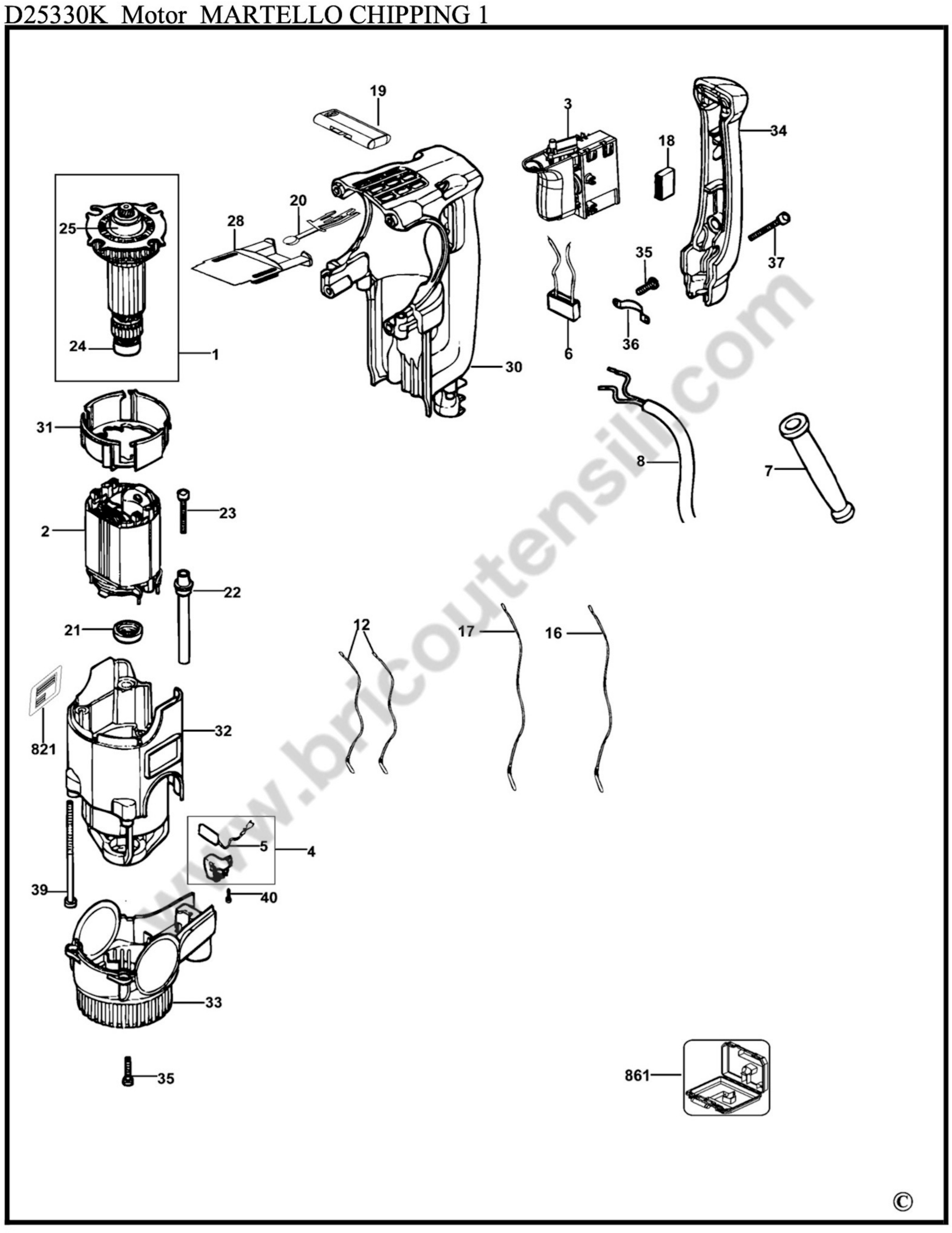

  • DEWALT D25330K-QS Chipping Hammer Type 1 Parts - Motor Drawing

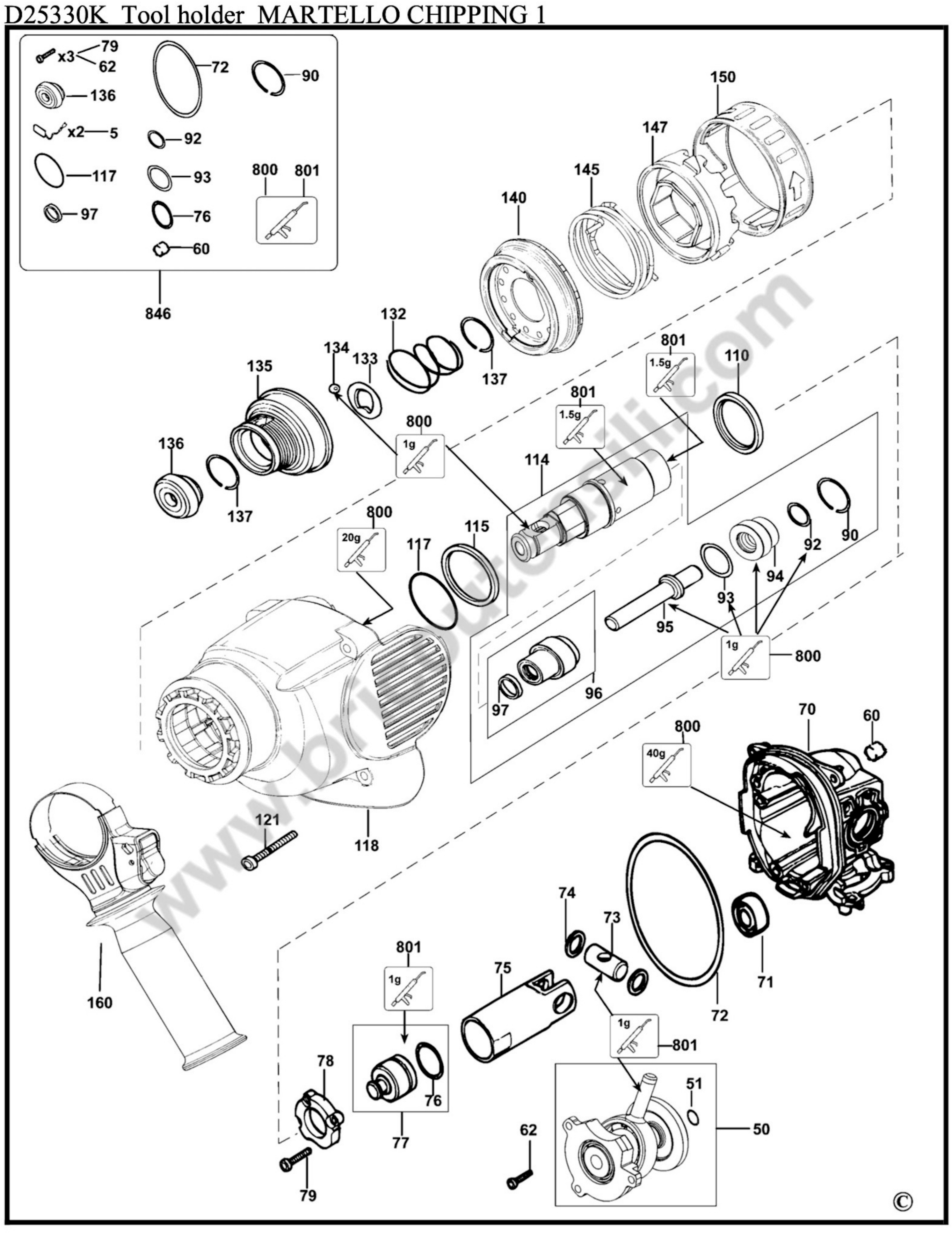

  • DEWALT D25330K-QS Chipping Hammer Type 1 Parts - Tool Holder Drawing

DEWALT D25330K-QS Chipping Hammer Type 1 Parts

SKU: DEWALT D25330K-QS Tipo 1 Condition: New
€62.60
VAT included

DEWALT D25330K-QS Chipping Hammer Type 1 Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for D25330K-QS Chipping Hammer Type 1.
settings 121 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on Demand Only Call Us Before

SHIPPING IN:: ON DEMAND ONLY
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

105 spare parts
Page 1 zoom_in View exploded local_shipping ON DEMAND ONLY
Pos. Item Price Buy
2
photo_cameraImage coming soon 576690-05 FIELD 230V €40.79
2
photo_cameraImage coming soon 576690-06 FIELD 115V €60.78
3
photo_cameraImage coming soon 588724-01 SWITCH 115V €74.99
4
photo_cameraImage coming soon 577805-03 BRUSH HOLDER 230V €22.32
4
photo_cameraImage coming soon 577805-04 BRUSH HOLDER 115V €20.12
5
photo_cameraImage coming soon 584429-00 BRUSH KIT 230V €22.32
5
photo_cameraImage coming soon 584429-01 BRUSH KIT 115V €22.32
6
photo_cameraImage coming soon 320842-19 CAPACITOR €3.00
7
photo_cameraImage coming soon NA073534 CORD GUARD €3.00
12
photo_cameraImage coming soon 584304-10 LEAD BLUE €3.00
16
photo_cameraImage coming soon 582064-16 LEAD BLUE €3.45
18
photo_cameraImage coming soon 930026-01 BUMPER €2.16
19
photo_cameraImage coming soon 588902-00 SLIDER €5.45
20
photo_cameraImage coming soon 578220-00 LEVER €2.16
21
photo_cameraImage coming soon 870052 BEARING COVER €1.88
22
photo_cameraImage coming soon 579720-00 BUSH €6.56
23
photo_cameraImage coming soon 326519-03 SCREW €1.98
24
photo_cameraImage coming soon 330003-19 BEARING €5.91
25
photo_cameraImage coming soon 330003-64 BEARING, BALL €12.11
28
photo_cameraImage coming soon 582877-00 INSERT €3.00
30
photo_cameraImage coming soon 577986-20 HOUSING HANDLE €23.52
31
photo_cameraImage coming soon 581808-00 BAFFLE FANS €5.91
32
photo_cameraImage coming soon 577993-00 FIELD CASE €40.99
34
photo_cameraImage coming soon 588675-00 HANDLE COVER €27.23
35
DeWalt D25481 Screw TX 4x18 330065-08 DeWalt D25481 Screw TX 4x18 €1.94
36
photo_cameraImage coming soon 821070 CORD CLAMP €1.88
37
photo_cameraImage coming soon 330065-09 SCREW €1.98
39
photo_cameraImage coming soon 330065-26 SCREW €1.98
40
photo_cameraImage coming soon 330065-25 SCREW €2.03
51
photo_cameraImage coming soon 580908-00 O RING €1.98
60
DeWalt DCH213 Type 1 Felt Filter 582865-00 DeWalt DCH213 Type 1 Felt Filter €2.23
62
photo_cameraImage coming soon 583981-00 SCREW €1.98
70
photo_cameraImage coming soon 477212-00 HOUSING BEARING €60.78
71
photo_cameraImage coming soon 330003-81 BEARING €8.56
72
photo_cameraImage coming soon 578229-00 SEAL €2.56
73
photo_cameraImage coming soon 577801-00 BEARING BLOCK €8.56
76
photo_cameraImage coming soon 579699-00 O RING €3.00
78
photo_cameraImage coming soon N042808 BEARING BUSH €7.90
79
photo_cameraImage coming soon 324006-15 SCREW €1.88
90
photo_cameraImage coming soon 577793-00 CLIP €1.98
92
photo_cameraImage coming soon 580990-00 RING RAM CATCHER €3.00
93
photo_cameraImage coming soon 577135-00 O RING €3.00
94
photo_cameraImage coming soon 477215-00 BUSH €27.23
95
photo_cameraImage coming soon 584424-01 BEAT PIECE €14.56
96
photo_cameraImage coming soon 477216-00 BEARING & SEAL €40.79
97
photo_cameraImage coming soon 577139-00 SEAL €3.00
110
photo_cameraImage coming soon 577797-00 WASHER €3.45
114
photo_cameraImage coming soon 477217-00 SPINDLE SA €173.66
115
photo_cameraImage coming soon 577814-00 WASHER €5.00
117
photo_cameraImage coming soon 589186-00 O RING €8.56
118
photo_cameraImage coming soon 477218-00 GEARCASE SA €55.89
121
photo_cameraImage coming soon 330065-28 SCREW €1.98
132
DeWALT D25333K Tube Spring 871690 DeWALT D25333K Tube Spring €2.08
133
DeWALT D25033K SDS Ball Plate 578387-00 DeWALT D25033K SDS Ball Plate €3.10
134
DeWalt D27111 Steel Ball 583890-00 DeWalt D27111 Steel Ball €3.08
135
photo_cameraImage coming soon N504215 TUBE €9.90
136
DeWalt DCH333 Housing Front Cap 323489-00 DeWalt DCH333 Housing Front Cap €3.34
137
DeWALT D25033K Ring Snap 21 579212-00 DeWALT D25033K Ring Snap 21 €2.17
140
photo_cameraImage coming soon 586892-00 SLEEVE €16.12
145
photo_cameraImage coming soon 586893-00 SPRING €4.11
147
photo_cameraImage coming soon 586894-00 LOCKING RING €5.45
150
photo_cameraImage coming soon 586891-00 SLEEVE €6.56
160
photo_cameraImage coming soon 589467-00 SIDE HANDLE €13.37
800
DeWalt Grease Renolit Paragon EP 1/2 90Gr. 870889-02 DeWalt Grease Renolit Paragon EP 1/2 90Gr. €21.10
801
photo_cameraImage coming soon 487130-04 GREASE 10 GMS €9.90
821
photo_cameraImage coming soon 569037-00 RATING PLATE €6.56
846
photo_cameraImage coming soon 477245-00 INSERT €69.89
861
photo_cameraImage coming soon 578005-00 KITBOX €55.89
Page 2 zoom_in View exploded local_shipping ON DEMAND ONLY
Pos. Item Price Buy
51
photo_cameraImage coming soon 580908-00 O RING €1.98
60
DeWalt DCH213 Type 1 Felt Filter 582865-00 DeWalt DCH213 Type 1 Felt Filter €2.23
62
photo_cameraImage coming soon 583981-00 SCREW €1.98
70
photo_cameraImage coming soon 477212-00 HOUSING BEARING €60.78
71
photo_cameraImage coming soon 330003-81 BEARING €8.56
72
photo_cameraImage coming soon 578229-00 SEAL €2.56
73
photo_cameraImage coming soon 577801-00 BEARING BLOCK €8.56
76
photo_cameraImage coming soon 579699-00 O RING €3.00
78
photo_cameraImage coming soon N042808 BEARING BUSH €7.90
79
photo_cameraImage coming soon 324006-15 SCREW €1.88
90
photo_cameraImage coming soon 577793-00 CLIP €1.98
92
photo_cameraImage coming soon 580990-00 RING RAM CATCHER €3.00
93
photo_cameraImage coming soon 577135-00 O RING €3.00
94
photo_cameraImage coming soon 477215-00 BUSH €27.23
95
photo_cameraImage coming soon 584424-01 BEAT PIECE €14.56
96
photo_cameraImage coming soon 477216-00 BEARING & SEAL €40.79
97
photo_cameraImage coming soon 577139-00 SEAL €3.00
110
photo_cameraImage coming soon 577797-00 WASHER €3.45
114
photo_cameraImage coming soon 477217-00 SPINDLE SA €173.66
115
photo_cameraImage coming soon 577814-00 WASHER €5.00
117
photo_cameraImage coming soon 589186-00 O RING €8.56
118
photo_cameraImage coming soon 477218-00 GEARCASE SA €55.89
121
photo_cameraImage coming soon 330065-28 SCREW €1.98
132
DeWALT D25333K Tube Spring 871690 DeWALT D25333K Tube Spring €2.08
133
DeWALT D25033K SDS Ball Plate 578387-00 DeWALT D25033K SDS Ball Plate €3.10
134
DeWalt D27111 Steel Ball 583890-00 DeWalt D27111 Steel Ball €3.08
135
photo_cameraImage coming soon N504215 TUBE €9.90
136
DeWalt DCH333 Housing Front Cap 323489-00 DeWalt DCH333 Housing Front Cap €3.34
137
DeWALT D25033K Ring Snap 21 579212-00 DeWALT D25033K Ring Snap 21 €2.17
140
photo_cameraImage coming soon 586892-00 SLEEVE €16.12
145
photo_cameraImage coming soon 586893-00 SPRING €4.11
147
photo_cameraImage coming soon 586894-00 LOCKING RING €5.45
150
photo_cameraImage coming soon 586891-00 SLEEVE €6.56
160
photo_cameraImage coming soon 589467-00 SIDE HANDLE €13.37
800
DeWalt Grease Renolit Paragon EP 1/2 90Gr. 870889-02 DeWalt Grease Renolit Paragon EP 1/2 90Gr. €21.10
801
photo_cameraImage coming soon 487130-04 GREASE 10 GMS €9.90
846
photo_cameraImage coming soon 477245-00 INSERT €69.89

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

DEWALT D25330K-QS Chipping Hammer Type 1 Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for D25330K-QS Chipping Hammer Type 1.

In the following table, look for the model of the hammer and the respective parts of the code.
D25330K-QS Chipping Hammer Type 1
DeWalt D25330K-QS Chipping Hammer Type 1
# Part Num. Description
1 477225-01 ARMATURE 115V
1 477225-00 ARMATURE 230V
2 576690-06 FIELD 115V
2 576690-05 FIELD 230V
3 588724-01 SWITCH 115V
3 588724-00 SWITCH 240V
4 577805-04 BRUSH HOLDER 115V
4 577805-03 BRUSH HOLDER 230V
5 584429-01 BRUSH KIT 115V
5 584429-00 BRUSH KIT 230V
6 320842-19 CAPACITOR
7 NA073534 CORD PROTECTOR
8 582319-17 CORDSET (M/PLUG) QS
12 584304-10 LEAD BLUE
16 582064-16 LEAD BLUE
17 589456-04 LEADWIRE
18 930026-01 BUMPER
19 588902-00 SLIDER
20 578220-00 LEVER
21 870052 BEARING COVER
22 579720-00 BUSH
23 326519-03 SCREW
24 330003-19 BEARING
25 330003-64 BEARING, BALL
28 582877-00 INSERT
30 577986-20 HOUSING HANDLE
31 581808-00 BAFFLE FAN
32 577993-00 FIELD CASE
33 584041-00 END CAP SA
34 588675-00 HANDLE COVER
35 330065-08 SCREW M4X18
36 821070 CLAMP, CORD
37 330065-09 SCREW PLSTC THD FORM M4X25 T20
39 330065-26 SCREW
40 330065-25 SCREW PLSTC THD FORM M3X9 T10
50 1006350-00 INTERSHAFT
51 580908-00 O RING
60 582865-00 FELT FILTER
62 583981-00 SCREW
70 477212-00 HOUSING BEARING
71 330003-81 BEARING
72 578229-00 SEAL
73 577801-00 BEARING BLOCK
74 577802-00 WASHER SHIM
75 477213-00 PISTON
76 579699-00 O RING
77 477214-00 RAM SA
78 N042808 BEARING BUSH
79 324006-15 SCREW ,TAPTITE M4X20 ANU LOCK
90 577793-00 CLIP
92 580990-00 RING RAMCATCHER
93 577135-00 O RING
94 477215-00 BUSH
95 584424-01 BEAT PIECE
96 477216-00 BEARING & SEAL
97 577139-00 SEAL
110 577797-00 WASHER
114 477217-00 SPINDLE SA
115 577814-00 WASHER
117 589186-00 O RING
118 477218-00 GEARCASE SA
121 330065-28 SCREW
132 871690 SPRING BEVEL
133 578387-00 SDS BALL PLATE (WASHER SDS 1.4MM)
134 583890-00 BALL 7.0
135 N504215 TUBE
136 323489-00 CAP
137 579212-00 RING SNAP 21
140 586892-00 SLEEVE
145 586893-00 SPRING
147 586894-00 LOCKING RING
150 586891-00 SLEEVE
160 589467-00 SIDE HANDLE
800 870889-02 RENOLIT PARAGON EP 1/2 90GR
801 487130-04 GREASE,GLK FLUID, 10G SACHET - SERVICE
821 569037-00 RATING PLATE, DeWALT, BLANK
846 477246-00 SERVICE KIT 115V
846 477245-00 SERVICE KIT 230V
861 578005-00 KITBOX
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s DEWALT websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to DEWALT brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
DEWALT D25330K-QS Tipo 1
6 Items

Data sheet

SHIPPING IN:
ON DEMAND ONLY
MORE INFO:
[email protected]
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

DEWALT D25330K-QS Type 1 Drawing

DEWALT D25330K-QS Type 1 Drawing

Download (697.69KB)

You might also like

DeWalt Power Tools SKU: N364920
DeWALT Rotary Hammer D25333K Type 2 Switch 240V Genuine replacement part DeWALT, Switch 240V for Rotary Hammer DeWALT D25333K Type 2. Part for the following products: Rotary Hammer DeWALT D25333K Tipo 2 - Code: N364920
Last items in stock €37.99
DeWalt Power Tools SKU: N544178
DeWALT Rotary Hammer D25333K Type 2 Brush Kit Genuine replacement part DeWALT, Carbon Brush Kit for Rotary Hammer DeWALT D25333K Type 2. Part for the following products: Rotary Hammer DeWALT D25333K Tipo 2 - Code: N544178
on 7/10 Business Days Approx. €11.01
DeWalt Power Tools SKU: N390874
DeWALT Rotary Hammer D25333K Type 2 Con Rod Genuine replacement part DeWALT, Connecting Rod for Rotary Hammer DeWALT D25333K Type 2. Part for the following products: Rotary Hammer DeWALT D25333K Tipo 2 - Code: N390874
Usually Ships in: 15/20 Business Days Approx. €5.59
DeWalt Power Tools SKU: N517447
DeWALT Rotary Hammer D25333K Type 2 Piston Genuine replacement part DeWALT, Piston for Rotary Hammer DeWALT D25333K Type 2. Part for the following products: Rotary Hammer DeWALT D25333K Tipo 2 - Code: NA602332 ex...
Last items in stock €9.52
DeWalt Power Tools SKU: N505552
DeWALT Rotary Hammer D25333K Type 2 Piston Kit Genuine replacement part DeWALT, Piston-Connecting Rod Kit for Rotary Hammer DeWALT D25333K Type 2. Part for the following products: Rotary Hammer DeWALT D25333K Tipo 2 -...
Last items in stock €51.85
DeWalt Power Tools SKU: N394408
DeWALT Rotary Hammer D25333K Type 2 O-Ring 22,76x16,53x2,7MM Genuine replacement part DeWALT, O-Ring 22,76x16,53x2,7MM for Rotary Hammer DeWALT D25333K Type 2. Part for the following products: Rotary Hammer DeWALT...
Usually Ships in: 7/10 Business Days Approx. €3.32
DeWalt Power Tools SKU: N091381-00
DeWALT Rotary Hammer D25333K Type 2 O-Ring 21,56x17,53x1,7MM Genuine replacement part DeWALT, O-Ring 21,56x17,53x1,7MM for Rotary Hammer DeWALT D25333K Type 2. Part for the following products: Rotary Hammer...
on 7/10 Business Days Approx. €1.78
DeWalt Power Tools SKU: N267567
DeWALT Rotary Hammer D25333K Type 2 Selector SA Genuine replacement part DeWALT, Selector SA for Rotary Hammer DeWALT D25333K Type 2. Part for the following products: Rotary Hammer DeWALT D25333K Tipo 2 - Code: N267567
Last items in stock €7.29
DeWalt Power Tools SKU: N168103
DeWalt DCH213 Type 1 Ball Bearing N168103 Genuine replacement part DeWALT, Ball Bearing 1608RS for Dewalt Rotary Hammer DCH213 Tipo 1 - DCH253M2 Tipo 2. Part for the following items: - Rotary Hammer DCH213 Type 1 - Rotary...
AVAILABLE €5.57
DeWalt Power Tools SKU: 330065-08
DeWalt D25481 Demolition Hammer Screw TX 4x18 Genuine replacement part DeWALT, Screw TX 4x18 for Demolition Hammer D25481. Part for the following items: - Demolition Hammer D25481 Modello: D25481-QS - Demolition Hammer D25614K...
on 7/10 Business Days Approx. €1.94
DeWalt Power Tools SKU: 870889-02
DeWalt Grease Renolit Paragon EP 1/2 90Gr. Genuine replacement part DeWALT, Grease Renolit Paragon EP 1/2 90Gr. for Demolition Hammers DeWalt - Black&Decker. Part for the following items: - Demolition Hammer D25481 Modello:...
Last items in stock €21.10
DeWalt Power Tools SKU: 871690
DeWALT D25333K Rotary Hammer Spring Bevel Genuine replacement part DeWALT, Tube Spring Bevel (Chuck Cover Spring) for Rotary Hammer DeWALT D25333K Type 2. Part for the following products: - Rotary Hammer DeWALT D25333K...
Last items in stock €2.08
DeWalt Power Tools SKU: 323489-00
DeWalt DCH333 Housing Front Cap Genuine replacement part DeWALT, Housing Front Cap for Rotary Hammer DCH333. Part for the following items: - DEWALT DCH333 ROTARY HAMMER TYPE 1 - DEWALT D25333K Tipo 2 - DEWALT D25003K Tipo 3...
Last items in stock €3.34
DeWalt Power Tools SKU: 578387-00
DeWALT D25033K SDS Ball Plate Genuine replacement part DeWALT, SDS Ball Plate (WASHER SDS 1.4M™M) for Rotary Hammer D25033K Type 1. Part for the following items: - DEWALT D25333K Tipo 2 - DEWALT D25033K Tipo 1 -...
Last items in stock €3.10
DeWalt Power Tools SKU: 579212-00
DeWALT D25033K Ring Snap 21 Genuine replacement part DeWALT, Ring Snap 21 for Rotary Hammer D25033K Type 1. Part for the following items: - DEWALT D25333K Tipo 2 - DEWALT D25033K Tipo 1 - DEWALT D25012K Tipo 1 -...
Last items in stock €2.17
DeWalt Power Tools SKU: 582865-00
DeWalt DCH213 Type 1 Felt Filter Genuine replacement part DeWALT, Felt Filter for Dewalt Rotary Hammer DCH213 Tipo 1 - DCH253M2 Tipo 2. Part for the following items: - DEWALT DCH253 Tipo 2 - DEWALT DCH213 Tipo 1 -...
Last items in stock €2.23
DeWalt Power Tools SKU: 583890-00
DeWalt D27111 Steel Ball Genuine replacement part DeWALT, Steel Ball D.7 mm for Hammer DCH214 - D25333K. Part for the following items: -  Hammer DEWALT DCH214 Type 1 -  Hammer DEWALT D25333K Type 2...
AVAILABLE €3.08
Comments (0)
