DeWalt Power Tools

Dewalt D27111-QS Type 1 Table Saw Parts

SKU: DEWALT D27111 Tipo 1
€282.84
VAT included

Dewalt D27111-QS Type 1 Table Saw Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Dewalt D27111-QS Type 1 Table Saw Spare Parts.
Dewalt D27111-QS Type 1 Table Saw Parts
  • Online only
  • Dewalt D27111-QS Type 1 Table Saw Parts
  • Dewalt D27111-QS Type 1 Table Saw Parts - Drawing
  • Dewalt D27111-QS Type 1 Table Saw Parts - Drawing 1
DeWalt Power Tools

Dewalt D27111-QS Type 1 Table Saw Parts

SKU: DEWALT D27111 Tipo 1 Condition: New
€282.84
VAT included

Dewalt D27111-QS Type 1 Table Saw Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Dewalt D27111-QS Type 1 Table Saw Spare Parts.
settings 219 spare parts

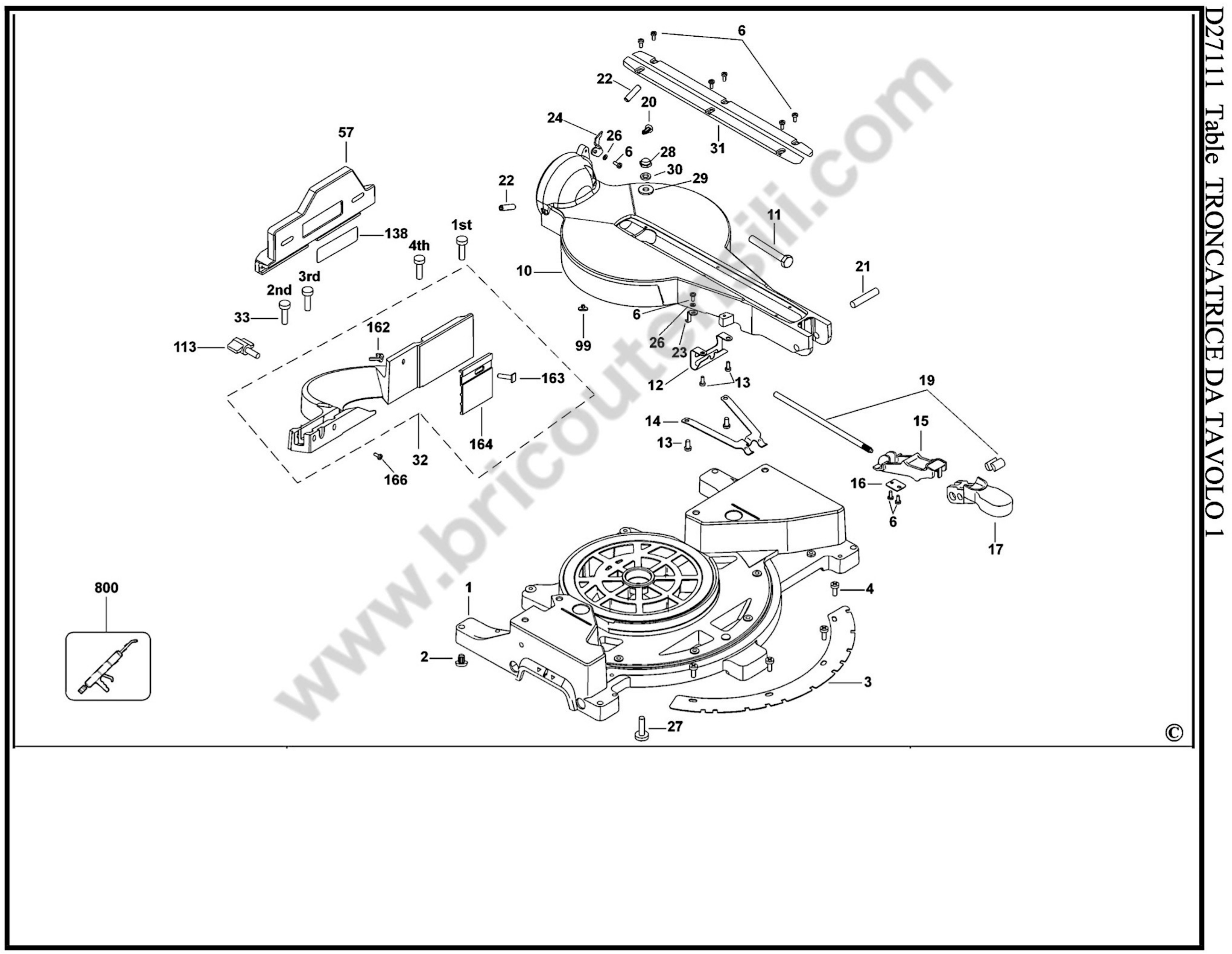

description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on Demand Only Call Us Before

SHIPPING IN:: ON DEMAND ONLY
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
217 spare parts
Page 1 zoom_in View exploded local_shipping ON DEMAND ONLY

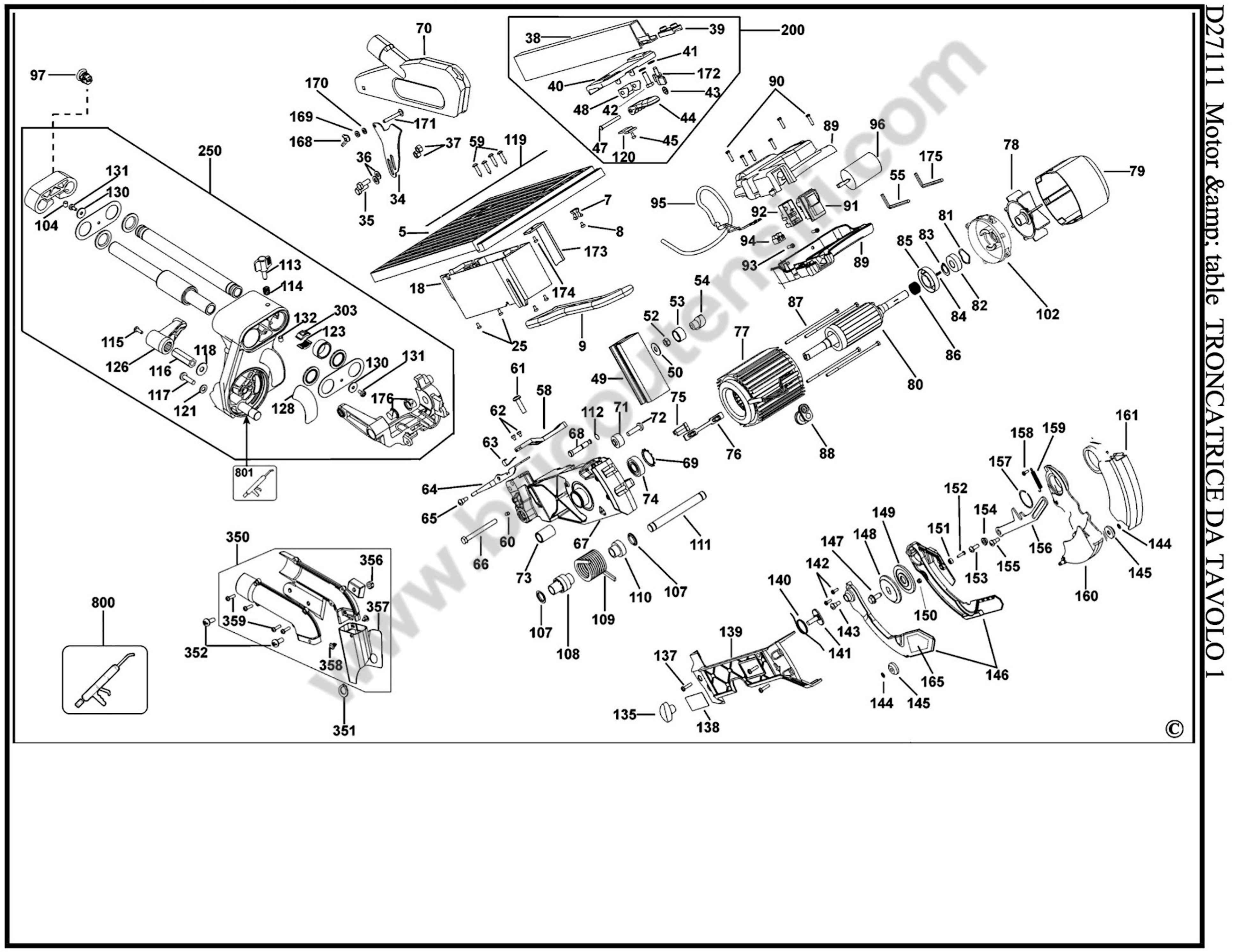

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 869349-00 BASE €274.60
2
 photo_cameraImage coming soon 153612-00 FOOT €1.88
3
 photo_cameraImage coming soon N690033 DETENT €41.76
4
 photo_cameraImage coming soon 604987-00 SCREW €1.88
5
 photo_cameraImage coming soon N114229 TABLE €151.88
6
 photo_cameraImage coming soon 330045-05 SCREW €2.03
7
 photo_cameraImage coming soon 391358-01 HOLDER €3.00
8
 photo_cameraImage coming soon 860094-02 SCREW €2.03
9
 photo_cameraImage coming soon 860610-01 PUSHROD €12.11
10
 photo_cameraImage coming soon 869350-00 TABLE €230.53
11
 photo_cameraImage coming soon 638875-00 BOLT €5.88
12
 photo_cameraImage coming soon 397062-00 PLATE €5.53
13
 photo_cameraImage coming soon 330045-55 SCREW €1.88
14
 photo_cameraImage coming soon 397070-00 SPRING €7.21
15
 photo_cameraImage coming soon 397073-00 ACTUATOR €1.80
16
 photo_cameraImage coming soon 397075-00 CLAMP €4.96
17
 DeWalt D27111 Table Lever 397065-00 DeWalt D27111 Table Lever €9.25
18
 photo_cameraImage coming soon 635045-00 BRACKET €12.25
19
 DeWalt D27111 Lock SA 629395-00 DeWalt D27111 Lock SA €17.42
20
 photo_cameraImage coming soon 638835-00 COVER €1.61
21
 photo_cameraImage coming soon 397063-00 PIN €2.54
22
 photo_cameraImage coming soon 153576-03 SCREW €2.91
23
 photo_cameraImage coming soon 397048-00 POINTER €2.54
24
 photo_cameraImage coming soon 397090-00 POINTER €4.60
25
 photo_cameraImage coming soon 330045-05 SCREW €2.03
26
 photo_cameraImage coming soon 249233-00 WASHER €1.88
27
 photo_cameraImage coming soon 612008-00 SCREW €3.24
28
 photo_cameraImage coming soon 860092-05 NUT €2.03
29
 photo_cameraImage coming soon 153781-00 WASHER €2.76
30
 photo_cameraImage coming soon 613270-00 WASHER €2.27
31
 DeWalt D27111 Table Insert N714363 DeWalt D27111 Table Insert €8.58
32
 photo_cameraImage coming soon 641363-00 FENCE €131.32
33
 photo_cameraImage coming soon 330045-33 SCREW €2.27
34
 DeWalt D27112 Table Top Mitre Saw Disc Guard Kit N102812 DeWalt D27112 Table Top Mitre Saw Disc Guard Kit €86.25
35
 photo_cameraImage coming soon 330045-32 SCREW €2.11
36
 photo_cameraImage coming soon 860073-03 WASHER M8 €1.61
37
 photo_cameraImage coming soon 860083-04 NUT €1.61
38
 DeWalt D27111 Upper Fence 637806-00 DeWalt D27111 Upper Fence €43.01
39
 photo_cameraImage coming soon 637805-00 PLATE €12.11
40
 photo_cameraImage coming soon 634738-00 BRACKET €12.11
41
 photo_cameraImage coming soon 860073-03 WASHER M8 €1.61
42
 photo_cameraImage coming soon 612008-00 SCREW €3.24
43
 photo_cameraImage coming soon 392948-00 WASHER CLAMP €1.88
44
 photo_cameraImage coming soon 605794-00 LEVER LOCK €40.79
45
 photo_cameraImage coming soon 860094-02 SCREW €2.03
47
 photo_cameraImage coming soon 605795-00 CLEVIS PIN €2.56
48
 photo_cameraImage coming soon 605796-00 BRACKET €2.11
49
 photo_cameraImage coming soon 636091-00 SUPPORT €16.91
50
 photo_cameraImage coming soon 153781-00 WASHER €2.76
52
 photo_cameraImage coming soon 860092-05 NUT €2.03
53
 photo_cameraImage coming soon 606362-01 BUSH €2.56
54
 photo_cameraImage coming soon 941756-00 KNOB €3.73
55
 photo_cameraImage coming soon 385567-03 KEY €5.00
55
 photo_cameraImage coming soon 930574-00 HEX KEY 5 MM €1.80
57
 DeWalt D27112 Fence 640349-00 DeWalt D27112 Fence €35.31
58
 DeWalt D27112 Type 1 Lever Lock 637338-00 DeWalt D27112 Type 1 Lever Lock €4.06
59
 photo_cameraImage coming soon 860084-24 SCREW €1.88
60
 photo_cameraImage coming soon 150075-00 SCREW €2.11
61
 photo_cameraImage coming soon 330045-34 SCREW €2.54
62
 photo_cameraImage coming soon 860094-02 SCREW €2.03
63
 photo_cameraImage coming soon 637289-00 SPRING €5.45
64
 photo_cameraImage coming soon 637193-00 LEVER €9.90
65
 photo_cameraImage coming soon 153639-00 SCREW €2.03
66
 photo_cameraImage coming soon 949702-19 SCREW €2.56
67
 photo_cameraImage coming soon 634719-00 ARM €116.83
68
 DeWalt D27112 Table Top Mitre Saw Locking Pin 649653-00 DeWalt D27112 Table Top Mitre Saw Locking Pin €9.52
69
 photo_cameraImage coming soon 860806-00 RING €2.54
70
 DeWalt D27112 Table Top Mitre Saw Disc Guard Kit N102812 DeWalt D27112 Table Top Mitre Saw Disc Guard Kit €86.25
71
 photo_cameraImage coming soon 385756-01 BUSH €3.45
72
 photo_cameraImage coming soon 330045-33 SCREW €2.27
73
 photo_cameraImage coming soon 641029-00 SPACER €7.21
74
 photo_cameraImage coming soon 868768-07 BEARING 6202 €11.13
75
 photo_cameraImage coming soon 640248-00 CONNECTOR €1.61
76
 photo_cameraImage coming soon 637550-00 BRACKET €1.61
77
 photo_cameraImage coming soon 868412-07 STATOR 230V €560.75
78
 photo_cameraImage coming soon 945841-00 FAN €5.53
79
 photo_cameraImage coming soon 642100-00 FAN COVER €7.21
80
 photo_cameraImage coming soon 868411-03 ROTOR €215.78
81
 photo_cameraImage coming soon 860080-02 RING €1.61
82
 DeWalt D27111 Bearing Ball 330003-13 DeWalt D27111 Bearing Ball €12.47
83
 photo_cameraImage coming soon 861349-00 CIRCLIP €1.61
84
 photo_cameraImage coming soon 640614-00 SPRING €1.61
84
 photo_cameraImage coming soon 648132-00 SPRING €1.61
85
 photo_cameraImage coming soon 861336-02 BRAKE €10.19
86
 photo_cameraImage coming soon 861338-00 SPRING €1.61
87
 photo_cameraImage coming soon 860446-01 BOLT €1.80
88
 photo_cameraImage coming soon 637486-00 CABLE CLIP €1.61
89
 DeWalt D27111 Service Kit SA 869283-00 DeWalt D27111 Service Kit SA €32.24
90
 photo_cameraImage coming soon 330019-13 Torx Screw €2.03
91
 DeWalt D27112 Table Top Mitre Saw Switch 640985-00 DeWalt D27112 Table Top Mitre Saw Switch €32.24
92
 photo_cameraImage coming soon 868320-00 COVER €6.56
93
 photo_cameraImage coming soon 330019-13 Torx Screw €2.03
94
 photo_cameraImage coming soon 326057-00 TERMINAL BLOCK €2.56
95
 photo_cameraImage coming soon 868313-13 CABLE WITH PLUG €22.89
96
 photo_cameraImage coming soon 641082-00 CAPACITOR €12.25
97
 photo_cameraImage coming soon 615851-00 BUSHING €7.90
98
 photo_cameraImage coming soon 618142-00 TERMINAL COVER €28.69
99
 photo_cameraImage coming soon 640146-00 PAD €2.56
100
 photo_cameraImage coming soon 860093-05 SCREW.TEMP €1.61
101
 photo_cameraImage coming soon 153576-04 SCREW €4.60
102
 photo_cameraImage coming soon 861345-00 HOUSING SA €22.89
104
 photo_cameraImage coming soon 330022-17 GRUB SCREW €1.61
107
 photo_cameraImage coming soon 639554-00 WASHER €3.47
108
 photo_cameraImage coming soon 639383-00 SPACER €3.45
109
 photo_cameraImage coming soon N476325 TORSION SPRING €34.28
110
 photo_cameraImage coming soon 146732-00 SPACER €1.80
111
 photo_cameraImage coming soon 397128-00 PIVOTED SHAFT €7.90
112
 DeWalt D27112 Table Top Mitre Saw O-Ring 943030-00 DeWalt D27112 Table Top Mitre Saw O-Ring €2.09
113
 photo_cameraImage coming soon 147107-06 KNOB €4.96
114
 photo_cameraImage coming soon 606014-00 SPRING €1.61
115
 photo_cameraImage coming soon 330045-14 SCREW EMS 705 €2.03
116
 photo_cameraImage coming soon 397089-00 NUT €7.90
117
 photo_cameraImage coming soon 612008-00 SCREW €3.24
118
 photo_cameraImage coming soon 153781-00 WASHER €2.76
119
 photo_cameraImage coming soon 637807-00 SCALE €5.45
120
 photo_cameraImage coming soon 605798-00 POINTER €2.56
121
 photo_cameraImage coming soon 613270-00 WASHER €2.27
123
 photo_cameraImage coming soon 397118-00 GUIDE €3.47
125
 photo_cameraImage coming soon 397117-00 GASKET €2.16
126
 photo_cameraImage coming soon 397080-00 HANDLE €5.00
128
 photo_cameraImage coming soon 637334-00 STAIRS €3.47
130
 photo_cameraImage coming soon 153586-00 WASHER €1.80
131
 photo_cameraImage coming soon 616001-00 SCREW €1.61
132
 photo_cameraImage coming soon 613497-00 THRUST PLATE €1.61
134
 photo_cameraImage coming soon 860093-05 SCREW.TEMP €1.61
135
 photo_cameraImage coming soon 941756-00 KNOB €3.73
137
 photo_cameraImage coming soon 330045-15 SCREW €1.88
138
 photo_cameraImage coming soon 621135-00 WARNING LABEL €2.54
139
 photo_cameraImage coming soon 635047-00 COVER €18.77
140
 photo_cameraImage coming soon 637288-00 SPRING €1.80
141
 photo_cameraImage coming soon 625857-00 SCREW.SPECIAL €3.00
142
 DeWalt D27111 Screw 860094-05 DeWalt D27111 Screw €1.66
143
 photo_cameraImage coming soon 153639-00 SCREW €2.03
144
 photo_cameraImage coming soon 604728-00 LOCK RING €1.88
146
 photo_cameraImage coming soon 637998-00 LOWER GUARD €77.80
147
 DeWalt D27111 Blade Bolt 647776-00 DeWalt D27111 Blade Bolt €2.23
148
 DeWalt D27111 Clamp Outer Flange 604765-00 DeWalt D27111 Clamp Outer Flange €9.44
149
 DeWalt D27111 Washer Inner Clamp 616319-00 DeWalt D27111 Washer Inner Clamp €12.62
150
 photo_cameraImage coming soon 861340-00 NUT €1.61
151
 photo_cameraImage coming soon 605040-51 SPACER €5.53
152
 photo_cameraImage coming soon 330024-49 SCREW €1.61
153
 photo_cameraImage coming soon 330045-23 SCREW €2.03
154
 photo_cameraImage coming soon 146740-02 SLEEVE €1.88
155
 photo_cameraImage coming soon 153639-00 SCREW €2.03
156
 photo_cameraImage coming soon 637192-00 CAM €7.21
157
 photo_cameraImage coming soon 629745-00 CIRCLIP €2.56
158
 photo_cameraImage coming soon 330045-05 SCREW €2.03
159
 photo_cameraImage coming soon 640503-00 SPRING €2.16
160
 photo_cameraImage coming soon 634726-00 GUARD €41.76
161
 photo_cameraImage coming soon 635046-00 GUARD €16.91
162
 photo_cameraImage coming soon 720929-00 WING NUT €1.61
163
 photo_cameraImage coming soon 640959-00 BOLT €4.96
164
 DeWalt D27111 Fence 634736-00 DeWalt D27111 Fence €11.47
165
 photo_cameraImage coming soon 645156-00 LABEL €4.96
166
 photo_cameraImage coming soon 860094-02 SCREW €2.03
167
 photo_cameraImage coming soon 860092-00 NUT €1.88
168
 photo_cameraImage coming soon 720929-00 WING NUT €1.61
169
 photo_cameraImage coming soon 931429-00 WASHER €1.61
170
 photo_cameraImage coming soon 720959-00 WASHER €1.61
171
 photo_cameraImage coming soon 931997-00 SCREW €1.61
172
 photo_cameraImage coming soon 862427-00 KNOB €4.60
173
 photo_cameraImage coming soon 634734-00 BRACKET €4.96
174
 photo_cameraImage coming soon 860094-02 SCREW €2.03
175
 photo_cameraImage coming soon 385567-04 KEY €4.11
175
 photo_cameraImage coming soon 860098-04 WRENCH 6 MM €1.80
176
 photo_cameraImage coming soon 645746-00 BUSHING €2.91
200
 photo_cameraImage coming soon 869231-04 FENCE €164.55
250
 photo_cameraImage coming soon N176001 ROD SA €663.75
303
 photo_cameraImage coming soon 397118-00 GUIDE €3.47
350
 DeWalt D27112 Table Top Mitre Saw Dust Port 654313-00 DeWalt D27112 Table Top Mitre Saw Dust Port €24.85
351
 photo_cameraImage coming soon 654787-00 RETAINER €1.61
352
 photo_cameraImage coming soon 330045-23 SCREW €2.03
356
 photo_cameraImage coming soon 860083-12 NUT M6 €1.61
357
 photo_cameraImage coming soon 654312-00 SUPPORT €16.91
358
 photo_cameraImage coming soon 607491-00 RIVET €1.61
359
 photo_cameraImage coming soon 330013-02 SCREW €1.61
400
 photo_cameraImage coming soon N165958 CLAMP SA €34.28
401
 photo_cameraImage coming soon 630068-00 Harness Support €5.88
402
 photo_cameraImage coming soon 630067-00 Clamp €4.96
403
 photo_cameraImage coming soon 630085-00 GRIP INCLUD.48 €2.56
404
 photo_cameraImage coming soon 389750-00 BLADE RETAINER €1.61
405
 photo_cameraImage coming soon 147107-02 KNOB LOWER €3.00
800
 photo_cameraImage coming soon 5140061-28 GREASE €55.89
800
 photo_cameraImage coming soon 93488-00 GREASE €28.69
821
 photo_cameraImage coming soon N049775 NAMEPLATE €4.60
Page 2 zoom_in View exploded local_shipping ON DEMAND ONLY
Esploso pagina 2
Pos. Item Price Buy
1
 photo_cameraImage coming soon 869349-00 BASE €274.60
2
 photo_cameraImage coming soon 153612-00 FOOT €1.88
3
 photo_cameraImage coming soon N690033 DETENT €41.76
4
 photo_cameraImage coming soon 604987-00 SCREW €1.88
6
 photo_cameraImage coming soon 330045-05 SCREW €2.03
10
 photo_cameraImage coming soon 869350-00 TABLE €230.53
11
 photo_cameraImage coming soon 638875-00 BOLT €5.88
12
 photo_cameraImage coming soon 397062-00 PLATE €5.53
13
 photo_cameraImage coming soon 330045-55 SCREW €1.88
14
 photo_cameraImage coming soon 397070-00 SPRING €7.21
15
 photo_cameraImage coming soon 397073-00 ACTUATOR €1.80
16
 photo_cameraImage coming soon 397075-00 CLAMP €4.96
17
 DeWalt D27111 Table Lever 397065-00 DeWalt D27111 Table Lever €9.25
19
 DeWalt D27111 Lock SA 629395-00 DeWalt D27111 Lock SA €17.42
20
 photo_cameraImage coming soon 638835-00 COVER €1.61
21
 photo_cameraImage coming soon 397063-00 PIN €2.54
22
 photo_cameraImage coming soon 153576-03 SCREW €2.91
23
 photo_cameraImage coming soon 397048-00 POINTER €2.54
24
 photo_cameraImage coming soon 397090-00 POINTER €4.60
26
 photo_cameraImage coming soon 249233-00 WASHER €1.88
27
 photo_cameraImage coming soon 612008-00 SCREW €3.24
28
 photo_cameraImage coming soon 860092-05 NUT €2.03
29
 photo_cameraImage coming soon 153781-00 WASHER €2.76
30
 photo_cameraImage coming soon 613270-00 WASHER €2.27
31
 DeWalt D27111 Table Insert N714363 DeWalt D27111 Table Insert €8.58
32
 photo_cameraImage coming soon 641363-00 FENCE €131.32
33
 photo_cameraImage coming soon 330045-33 SCREW €2.27
57
 DeWalt D27112 Fence 640349-00 DeWalt D27112 Fence €35.31
99
 photo_cameraImage coming soon 640146-00 PAD €2.56
162
 photo_cameraImage coming soon 720929-00 WING NUT €1.61
163
 photo_cameraImage coming soon 640959-00 BOLT €4.96
164
 DeWalt D27111 Fence 634736-00 DeWalt D27111 Fence €11.47

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Dewalt D27111-QS Type 1 Table Saw Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Dewalt D27111-QS Type 1 Table Saw Spare Parts.

In the following table, look for the model of the hammer and the respective parts of the code.

Dewalt D27111 Type 1 Table Saw Mitre Saw Spare Parts
DeWalt D27111-QS Type 1 Table Saw Spare Parts
# Paret Num. Description
1 869349-00 BASE SA
2 153612-00 FOOT
3 N690033 SCALE
4 604987-00 SCREW
5 N114229 TABLE
6 330045-05 SCREW
7 391358-01 TOOL HOLDER
8 860094-02 SCREW
9 860610-01 PUSHING ROD
10 869350-00 TABLE SA
11 638875-00 BOLT
12 397062-00 PLATE
13 330045-55 SCREW
14 397070-00 SPRING
15 397073-00 ACTUATOR
16 397075-00 CLAMP
17 397065-00 LEVER
18 635045-00 BRACKET
19 629395-00 LOCK SA
20 638835-00 COVER
21 397063-00 PIN
22 153576-03 SCREW
23 397048-00 POINTER
24 397090-00 POINTER
25 330045-05 SCREW
26 249233-00 WASHER
27 612008-00 SCREW
28 860092-05 NUT,SELF LOCKING M.8
29 153781-00 WASHER
30 613270-00 WASHER
31 N714363 COVER PLATE
32 641363-00 FENCE SA
33 330045-33 SCREW
34 N102812 GUARD KIT
35 330045-32 SCREW
36 860073-03 WASHER M8
37 860083-04 NUT
38 637806-00 FENCE
39 637805-00 PLATE
40 634738-00 BRACKET
41 860073-03 WASHER M8
42 612008-00 SCREW
43 392948-00 WASHER CLAMP
44 605794-00 LEVER LOCK
45 860094-02 SCREW
47 605795-00 CLEVIS PIN
48 605796-00 PAD
49 636091-00 SUPPORT
50 153781-00 WASHER
52 860092-05 NUT,SELF LOCKING M.8
53 606362-01 BUSHING
54 941756-00 WING NUT M8 Black plastic T nut M8
55 930574-00 HEX KEY 5 MM
55 385567-03 WRENCH SPECIAL
57 640349-00 FENCE
58 637338-00 LEVER LOCK
59 860084-24 SCREW
60 150075-00 SCREW
61 330045-34 SCREW
62 860094-02 SCREW
63 637289-00 SPRING
64 637193-00 LEVER
65 153639-00 SHOULDER SCREW
66 949702-19 SCREW
67 634719-00 ARM
68 649653-00 LOCKING PIN
69 860806-00 RING
70 N102812 GUARD KIT
71 385756-01 INSULATING SHEATH
72 330045-33 SCREW, TRIL
73 641029-00 SPACER
74 868768-07 BEARING 6202
75 640248-00 CONNECTOR
76 637550-00 BRACKET
77 868412-07 STATOR 230V
78 945841-00 FAN
79 642100-00 FAN COVER
80 868411-03 ROTOR
81 860080-02 RING
82 330003-13 BEARING BALL
83 861349-00 CIRCLIP
84 640614-00 SPRING
84 648132-00 SPRING
85 861336-02 BRAKE
86 861338-00 SPRING
87 860446-01 BOLT
88 637486-00 CABLE CLIP
89 869283-00 SERVICE KIT
90 330019-13 SCREW
91 640985-00 SWITCH
92 868320-00 COVER
93 330019-13 SCREW
94 326057-00 TERMINAL BLOCK
95 868313-13 CABLE WITH PLUG
96 641082-00 CAPACITOR
97 615851-00 BUSHING
98 618142-00 TERMINAL COVER
99 640146-00 PAD
100 860093-05 SCREW.TEMP
101 153576-04 SCREW
102 861345-00 HOUSING SA
104 330022-17 GRUB SCREW
107 639554-00 WASHER
108 639383-00 SPACER
109 N476325 TORSION SPRING
110 146732-00 SPACER
111 397128-00 PIVOT SHAFT
112 943030-00 O-RING
113 147107-06 KNOB
114 606014-00 SPRING
115 330045-14 SCREW
116 397089-00 NUT
117 612008-00 SCREW
118 153781-00 WASHER
119 637807-00 SCALE
120 605798-00 POINTER
121 613270-00 WASHER
123 397118-00 GUIDE
125 397117-00 GASKET
126 397080-00 HANDLE
127 637332-00 PIN
128 637334-00 SCALE
130 153586-00 WASHER
131 616001-00 SCREW
132 613497-00 THRUST PLATE
134 860093-05 SCREW.TEMP
135 941756-00 WING NUT M8 Black plastic T nut M8
137 330045-15 SCREW Metal
138 621135-00 WARNING LABEL
139 635047-00 COVER
140 637288-00 SPRING
141 625857-00 SCREW.SPECIAL
142 860094-05 SCREW
143 153639-00 SHOULDER SCREW
144 604728-00 SEAL RING
145 146774-00 ROLLER - DISCONTINUED
146 637998-00 LOWER GUARD SA
147 647776-00 BLADE BOLT
148 604765-00 CLAMP OUTER
149 616319-00 WASHER INNER CLAMP
150 861340-00 NUT
151 605040-51 SPACER
152 330024-49 SCREW
153 330045-23 SCREW
154 146740-02 SLEEVE
155 153639-00 SHOULDER SCREW
156 637192-00 CAM
157 629745-00 CIRCLIP
158 330045-05 SCREW
159 640503-00 SPRING
160 634726-00 GUARD
161 635046-00 GUARD
162 720929-00 WING NUT
163 640959-00 BOLT
164 634736-00 FENCE
165 645156-00 LABEL
166 860094-02 SCREW
167 860092-00 NUT,ELAST.STOP M.6 UNI 7474
168 720929-00 WING NUT
169 931429-00 WASHER
170 720959-00 WASHER
171 931997-00 SCREW
172 862427-00 KNOB
173 634734-00 BRACKET
174 860094-02 SCREW
175 860098-04 WRENCH 6 MM
175 385567-04 KEY
176 645746-00 BUSHING
200 869231-04 FENCE SA
250 N176001 ROD SA
303 397118-00 GUIDE
350 654313-00 DUST PORT
351 654787-00 RETAINER
352 330045-23 SCREW
356 860083-12 NUT M6
357 654312-00 SUPPORT
358 607491-00 RIVET
359 330013-02 SCREW
400 N165958 CLAMP SA
401 630068-00 SUPPORT
402 630067-00 CLAMP
403 630085-00 GRIP
404 389750-00 RETAINER
405 147107-02 KNOB LOWER
800 93488-00 GREASE DW704 TYPE 3
800 5140061-28 GREASE
821 N049775 NAMEPLATE
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s DEWALT websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to DEWALT brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
DEWALT D27111 Tipo 1
6 Items

Data sheet

SHIPPING IN:
ON DEMAND ONLY
MORE INFO:
[email protected]
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

DEWALT D27111-QS Tipo 1 Drawing

DEWALT D27111-QS Tipo 1 Drawing

Download (759.7KB)

You might also like

DeWalt D27112 Type 1 End Cap
DeWalt Power Tools SKU: 391933-00
DeWalt D27112 Type 1 End Cap
DeWalt D27112 Type 1 End Cap Genuine replacement part DeWALT, End Cap for Dewalt D27112 Type 1 Table Top Mitre Saw. Part for the following items: -  Dewalt D27112 Type 1 Table Top Mitre Saw -...
on 7/10 Business Days Approx. €6.54
Details
DeWalt D27112 Type 1 Lever Lock
DeWalt Power Tools SKU: 637338-00
DeWalt D27112 Type 1 Lever Lock
DeWalt D27112 Type 1 Lever Lock Genuine replacement part DeWALT, Lever Lock for Dewalt D27112 Type 1 Table Top Mitre Saw. Part for the following items: -  Dewalt D27112 Type 1 Table Top Mitre Saw -...
Last items in stock €4.06
Details
DeWalt D27112 Table Top Mitre Saw Dust Port
DeWalt Power Tools SKU: 654313-00
DeWalt D27112 Table Top Mitre Saw Dust Port
DeWalt D27112 Table Top Mitre Saw Dust Port Genuine replacement part DeWALT, Dust Port for Table Top Mitre Saw D27111 - D27112. Part for the following items: - Table Top Mitre Saw D27112 Tipo 1 - Table Top Mitre Saw D27112...
Last items in stock €24.85
Details
DeWalt D27112 Table Top Mitre Saw Switch
DeWalt Power Tools SKU: 640985-00
DeWalt D27112 Table Top Mitre Saw Switch
DeWalt D27112 Table Top Mitre Saw Switch Genuine replacement part DeWALT, Switch ON-OFF for Table Top Mitre Saw D27111 - D27112. Part for the following items: - Table Top Mitre Saw D27112 Tipo 1 - Table Top Mitre Saw D27112...
Last items in stock €32.24
Details
DeWalt D27112 Table Top Mitre Saw Locking Pin
DeWalt Power Tools SKU: 649653-00
DeWalt D27112 Table Top Mitre Saw Locking Pin
DeWalt D27112 Table Top Mitre Saw Locking Pin Genuine replacement part DeWALT, Locking Pin for Table Top Mitre Saw D27111 - D27112. Part for the following items: - Table Top Mitre Saw D27112 Tipo 1 - Table Top Mitre Saw...
AVAILABLE €9.52
Details
DeWalt D27112 Table Top Mitre Saw O-Ring
DeWalt Power Tools SKU: 943030-00
DeWalt D27112 Table Top Mitre Saw O-Ring
DeWalt D27112 Table Top Mitre Saw Locking Pin O-Ring Genuine replacement part DeWALT, Locking Pin O-Ring for Table Top Mitre Saw D27111 - D27112. Part for the following items: - Table Top Mitre Saw D27112 Tipo 1 - Table...
build View Spare Parts
DeWalt D27112 Table Top Mitre Saw Brush & Lead Set
DeWalt Power Tools SKU: 381028-08
DeWalt D27112 Table Top Mitre Saw Brush & Lead Set
DeWalt D27112 Table Top Mitre Saw Brush & Lead Set Genuine replacement part DeWALT, Carbon Brush & Lead Set for Table Top Mitre Saw D27112. Part for the following items: - Table Top Mitre Saw D27112 Tipo 1 - Table Top Mitre...
Last items in stock €37.17
Details
DeWalt D27112 Table Top Mitre Saw Disc Guard Kit
DeWalt Power Tools SKU: N102812
DeWalt D27112 Table Top Mitre Saw Disc Guard Kit
DeWalt D27112 Table Top Mitre Saw Disc Guard Kit Genuine replacement part DeWALT, Disc Guard Kit for Table Top Mitre Saw D27111 - D27112. Part for the following items: - Table Top Mitre Saw D27112 Tipo 1 - Table Top...
Last items in stock €86.25
Details
DeWalt D27111 Table Insert
DeWalt Power Tools SKU: N714363
DeWalt D27111 Table Insert
DeWalt D27111 Table Insert Genuine replacement part DeWALT, Table Insert for Table Top Mitre Saw D27111 - D27112. Part for the following items: - T able Top Mitre Saw D27111 Tipo 1 - Table Top Mitre Saw D27112 Tipo 1 - Table...
Last items in stock €8.58
Details
DeWalt D27111 Service Kit SA
DeWalt Power Tools SKU: 869283-00
DeWalt D27111 Service Kit SA
DeWalt D27111 Service Kit SA Genuine replacement part DeWALT, Service Kit SA (Handle+Key) for Table Top Mitre Saw D27111 - D27112. Part for the following items: - T able Top Mitre Saw D27111 Tipo 1 Where used...
Last items in stock €32.24
Details
DeWalt D27111 Fence
DeWalt Power Tools SKU: 634736-00
DeWalt D27111 Fence
DeWalt D27111 Fence Genuine replacement part DeWALT, Fence for Table Top Mitre Saw D27111 - D27112. Part for the following items: - T able Top Mitre Saw D27111 Tipo 1 - Table Top Mitre Saw D27112 Tipo 1 - Table Top...
Last items in stock €11.47
Details
DeWalt D27111 Upper Table Guide
DeWalt Power Tools SKU: 637806-00
DeWalt D27111 Upper Fence
DeWalt D27111 Upper Fence Genuine replacement part DeWALT, Upper Working Table Fence for Table Top Mitre Saw D27111 - D27112. Part for the following items: - T able Top Mitre Saw D27111 Tipo 1 - Table Top Mitre Saw D27112 Tipo...
Last items in stock €43.01
Details
DeWalt D27111 Washer Inner Clamp
DeWalt Power Tools SKU: 616319-00
DeWalt D27111 Washer Inner Clamp
DeWalt D27111 Washer Inner Clamp Genuine replacement part DeWALT, Washer Inner Clamp for Table Top Mitre Saw D27111 - D27112. Part for the following items: - T able Top Mitre Saw D27111 Tipo 1 - Table Top Mitre Saw D27112...
Last items in stock €12.62
Details
DeWalt D27111 Clamp Outer Flange
DeWalt Power Tools SKU: 604765-00
DeWalt D27111 Clamp Outer Flange
DeWalt D27111 Clamp Outer Flange Genuine replacement part DeWALT, Washer Inner Clamp for Table Top Mitre Saw D27111 - D27112. Part for the following items: - T able Top Mitre Saw D27111 Tipo 1 - Table Top Mitre Saw D27112...
Last items in stock €9.44
Details
DeWalt D27111 Blade Bolt
DeWalt Power Tools SKU: 647776-00
DeWalt D27111 Blade Bolt
DeWalt D27111 Blade Bolt Genuine replacement part DeWALT, Blade Bolt for Table Top Mitre Saw D27111 - D27112. Part for the following items: - T able Top Mitre Saw D27111 Tipo 1 - Table Top Mitre Saw D27112 Tipo 1 -...
Last items in stock €2.23
Details
DeWalt D27111 Table Lever
DeWalt Power Tools SKU: 397065-00
DeWalt D27111 Table Lever
DeWalt D27111 Table Lever Genuine replacement part DeWALT, Table Lever for Table Top Mitre Saw D27111 - D27112. Part for the following items: - T able Top Mitre Saw D27111 Tipo 1 - Table Top Mitre Saw D27112 Tipo 1 -...
Last items in stock €9.25
Details
DeWalt D27111 Lock SA
DeWalt Power Tools SKU: 629395-00
DeWalt D27111 Lock SA
DeWalt D27111 Lock SA Genuine replacement part DeWALT, Lock SA for Table Top Mitre Saw D27111 - D27112. Part for the following items: - T able Top Mitre Saw D27111 Tipo 1 - Table Top Mitre Saw D27112 Tipo 1 - Table Top Mitre...
Last items in stock €17.42
Details
DeWalt D27111 Screw
DeWalt Power Tools SKU: 860094-05
DeWalt D27111 Screw
DeWalt D27111 Screw Genuine replacement part DeWALT, Screw for Table Top Mitre Saw D27111 - D27112. Part for the following items: - T able Top Mitre Saw D27111 Tipo 1 - Table Top Mitre Saw D27112 Tipo 1 - Table Top...
Last items in stock €1.66
Details
DeWalt D27111 Bearing Ball
DeWalt Power Tools SKU: 330003-13
DeWalt D27111 Bearing Ball
DeWalt D27111 Bearing Ball Genuine replacement part DeWALT, Bearing Ball 6202RS for Table Top Mitre Saw D27111 - D27112 - D27113. Part for the following items: - T able Top Mitre Saw D27111 Tipo 1 - Table Top Mitre Saw...
AVAILABLE €12.47
Details
Comments (0)
