DeWalt DCD985 Type-11 Cordless Drill Parts

SKU: DEWALT DCD985 Tipo 11
€28.18
VAT included

DeWalt DCD985 Type-11 Cordless Drill Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for DCD985 Cordless Drill & Driver Type 11.
DeWalt DCD985 Type-11 Cordless Drill Parts
  • Online only
  • DeWalt DCD985 Type-11 Cordless Drill Parts
  • DeWalt DCD985 Type-11 Cordless Drill Parts - Drawing

DeWalt DCD985 Type-11 Cordless Drill Parts

SKU: DEWALT DCD985 Tipo 11 Condition: New
€28.18
VAT included

DeWalt DCD985 Type-11 Cordless Drill Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for DCD985 Cordless Drill & Driver Type 11.
settings 57 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on Demand Only Call Us Before

SHIPPING IN:: ON DEMAND ONLY
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

54 spare parts
Page 1 zoom_in View exploded local_shipping ON DEMAND ONLY
Pos. Item Price Buy
1
photo_cameraImage coming soon N377757 CLAMSHELL PAIR €27.37
2
photo_cameraImage coming soon N014681 LEATHER SPRING €1.83
3
photo_cameraImage coming soon N012060 BRUSHPLATE €14.22
4
photo_cameraImage coming soon N268001 ARMATURE SA €43.83
5
photo_cameraImage coming soon N012055 MAGNET SA €45.40
6
DeWalt DCD985 Bearing Cap N007948 DeWalt DCD985 Bearing Cap €1.73
7
photo_cameraImage coming soon 330019-52 SCREW €1.68
8
photo_cameraImage coming soon N142938 BAFFLE €3.25
9
photo_cameraImage coming soon 654925-00 WASHER €1.68
10
photo_cameraImage coming soon N266524 GEAR SA €82.66
11
photo_cameraImage coming soon N266525 SLIDER SA €41.68
15
photo_cameraImage coming soon 330021-11 LOCK NUT €1.68
23
photo_cameraImage coming soon N266526 GEAR SA €41.68
24
photo_cameraImage coming soon N016370 LOCKING RING €8.15
25
photo_cameraImage coming soon 654110-00 ROLLER €1.68
26
photo_cameraImage coming soon N016365 ANVIL €4.03
27
photo_cameraImage coming soon 652378-00 PLATE €1.68
28
photo_cameraImage coming soon 650474-00 SNAP RING €1.68
29
photo_cameraImage coming soon N266527 GEAR €6.97
30
photo_cameraImage coming soon 650475-00 SNAP RING €1.68
41
photo_cameraImage coming soon N016369 RATCHET FIXED €4.03
42
photo_cameraImage coming soon N080691 DRILL LOCK HEAT TREATED €6.38
43
photo_cameraImage coming soon 650455-00 SPRING, DRILL LOCK €1.68
44
photo_cameraImage coming soon 650448-00 SPRING, HAMMER RETURN €1.68
45
photo_cameraImage coming soon N107986 GEARCASE €45.40
46
photo_cameraImage coming soon N111054 PINION. MODE €1.68
47
photo_cameraImage coming soon 629085-00 PIN, ROLLER €1.68
48
photo_cameraImage coming soon N021544 CLUTCH PIN €1.68
49
DeWalt Detent for Hammer D25333K 326467-00 DeWalt Detent for Hammer D25333K €4.50
50
photo_cameraImage coming soon N107985 SPINDLE SA €34.23
60
photo_cameraImage coming soon 650460-00 MODE SELECTOR (MOULD) €4.42
61
photo_cameraImage coming soon 655532-00 SPRING, CLUTCH €3.25
62
photo_cameraImage coming soon 652380-00 NUT, CLUTCH ADJUSTING €2.85
63
photo_cameraImage coming soon 650459-00SV CLUTCH COLLAR €8.15
64
photo_cameraImage coming soon N015955 COLLAR WASHER €1.68
65
photo_cameraImage coming soon 650491-00 ENDCAP €5.40
66
photo_cameraImage coming soon 650418-00 SCREW, MAGFORM €1.68
67
DeWalt DCD985 Chuck Keyless N242399 DeWalt DCD985 Chuck Keyless €63.52
68
photo_cameraImage coming soon 330019-52 SCREW €1.68
69
photo_cameraImage coming soon N384405 SWITCH KIT €132.07
70
photo_cameraImage coming soon N091392 FWD/REV BUTTON FOR XRP/ZRP (MOULD) €3.44
75
DeWalt DCD985 Chuck Screw 605256-02 DeWalt DCD985 Chuck Screw €1.94
80
photo_cameraImage coming soon N433408 SIDE HANDLE €14.22
81
photo_cameraImage coming soon 682211-00 SCREW, TORX €1.68
82
photo_cameraImage coming soon N475326 MAGNET HOLDER €7.56
85
photo_cameraImage coming soon N086039 BELT HOOK €4.42
86
photo_cameraImage coming soon N042665 BELT HOOK SCREW M3 €1.68
800
photo_cameraImage coming soon N017298 GREASE €127.36
801
photo_cameraImage coming soon 429698-00 GREASE 4 LB CAN €191.48
817
photo_cameraImage coming soon N096996 LABEL EU 18V €1.68
836
photo_cameraImage coming soon 559661-99 S.T.CHUCK REMOVAL JIG €73.64
836
photo_cameraImage coming soon 596004-99 SERVICE TOOL €42.07
866
photo_cameraImage coming soon N195933 BATTERY 18V - 4.0AH - 72WH DCB182-XE €306.87
871
photo_cameraImage coming soon N450536 BATTERY CHARGER DCS565P2-QW / DCB115 €138.04

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

DeWalt DCD985 Type-11 Cordless Drill Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for DCD985 Cordless Drill & Driver Type 11.

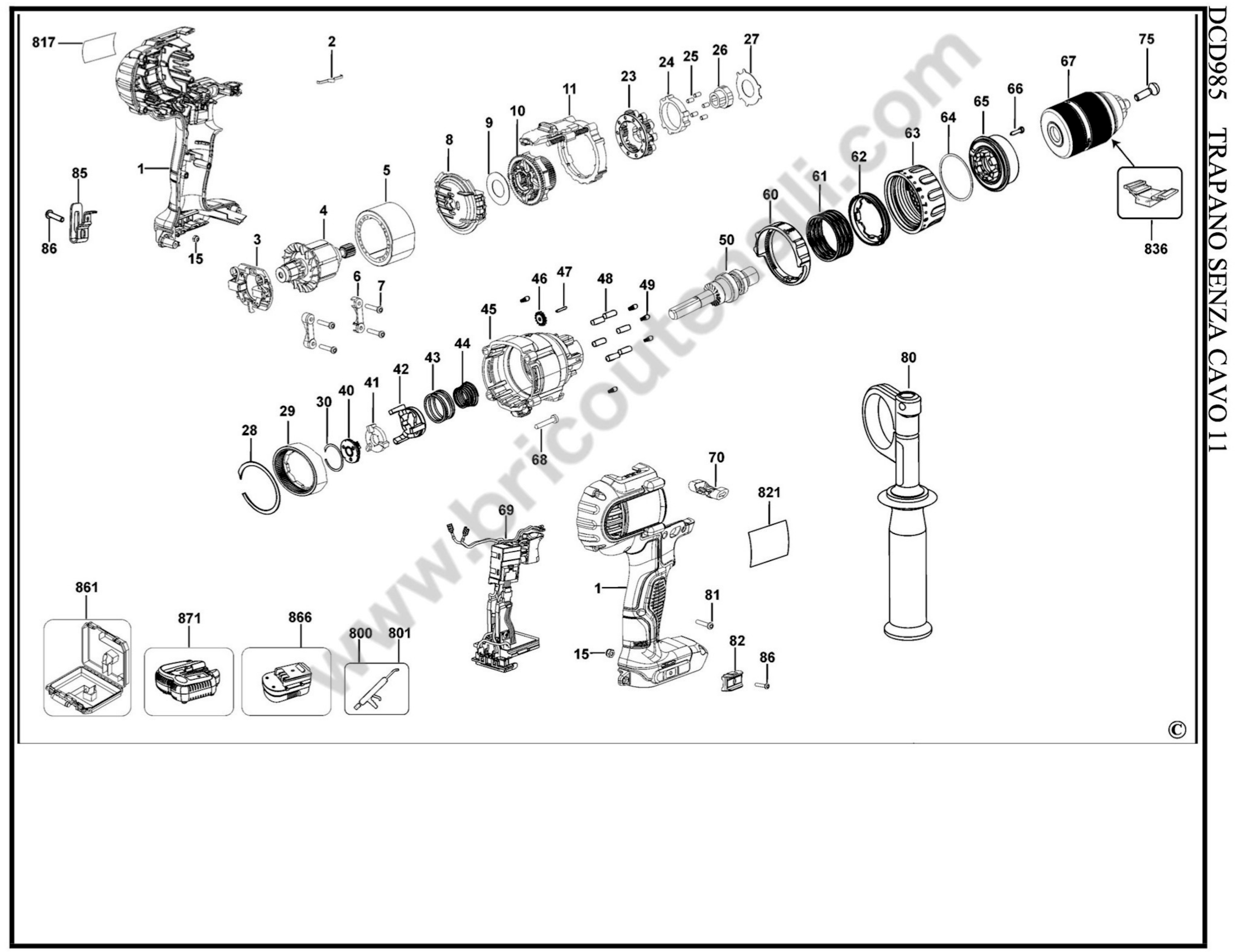

Open PDF Drawing in this page to check spare parts you need.
DCD771C2 Cordless Drill Type 1

DeWalt DCD985 - Cordless Drill Spare Parts TYPE 11
# Part Num. Description
1 N377757 CLAMSHELL PAIR
2 N014681 LEAF SPRING
3 N012060 BRUSHPLATE
4 N268001 ARMATURE SA
5 N012055 MAGNET SA
6 N007948 BEARING CAP (mould)
7 330019-52 SCREW
8 N142938 BAFFLE
9 654925-00 WASHER
10 N266524 GEAR SA
11 N266525 SLIDER SA
15 330021-11 LOCK NUT
23 N266526 GEAR SA
24 N016370 LOCKING RING
25 654110-00 ROLLER
26 N016365 ANVIL
27 652378-00 PLATE
28 650474-00 SNAP RING
29 N266527 GEAR
30 650475-00 SNAP RING
40 N016368 CAM
41 N016369 RATCHET FIXED
42 N080691 DRILL LOCK HEAT TREATED
43 650455-00 SPRING, DRILL LOCK
44 650448-00 SPRING, HAMMER RETURN
45 N107986 GEARCASE
46 N111054 PINION. MODE
47 629085-00 PIN, ROLLER
48 N021544 CLUTCH PIN
49 326467-00 DETENT
50 N107985 SPINDLE SA
60 650460-00 MODE SELECTOR (MOULD)
61 655532-00 SPRING, CLUTCH
62 652380-00 NUT, CLUTCH ADJUSTING
63 650459-00SV CLUTCH COLLAR
64 N015955 COLLAR WASHER
65 650491-00 ENDCAP
66 650418-00 SCREW, MAGFORM
67 N242399 CHUCK KEYLESS
68 330019-52 SCREW
69 N384405 SWITCH KIT
70 N091392 FWD/REV BUTTON FOR XRP/ZRP (MOULD)
75 605256-02 SCREW, CHUCK (1/4-28 UNF-LH)
80 N433408 SIDE HANDLE
81 682211-00 SCREW, PLASTITE
82 N475326 MAGNET HOLDER
85 N086039 BELT HOOK
86 N042665 BELT HOOK SCREW M3
800 N017298 GREASE
801 429698-00 GREASE
817 N096996 LABEL EU 18V
821 N176178 RATING PLATE
836 596004-99 SERVICE TOOL
836 559661-99 S.T.CHUCK REMOVAL JIG
861 N096816 KITBOX
866 N195933 SA ZODIAC BATTERY 18V 4AH (SERVICE)
871 N450536 CHARGER 10.8V - 18V
