DEWALT DW818 TYPE 1 Angle Grinder Spare Parts

SKU: DEWALT DW818 TYPE 1
€13.42
VAT included

DEWALT DW818 TYPE 1 Angle Grinder Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for DW818 TYPE 1 Small Angle Grinder Spare Parts.
DEWALT DW818 TYPE 1 Angle Grinder Spare Parts
  • Online only
  • DEWALT DW818 TYPE 1 Angle Grinder Spare Parts
  • DEWALT DW818 TYPE 1 Angle Grinder Spare Parts - Drawing
DeWalt Power Tools

DEWALT DW818 TYPE 1 Angle Grinder Spare Parts

SKU: DEWALT DW818 TYPE 1 Condition: New
€13.42
VAT included

DEWALT DW818 TYPE 1 Angle Grinder Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for DW818 TYPE 1 Small Angle Grinder Spare Parts.
settings 56 Spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on Demand Only Call Us Before

SHIPPING IN: ON DEMAND ONLY
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
Machine Type: Grinder
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
56 spare parts
Page 1 zoom_in View exploded local_shipping ON DEMAND ONLY

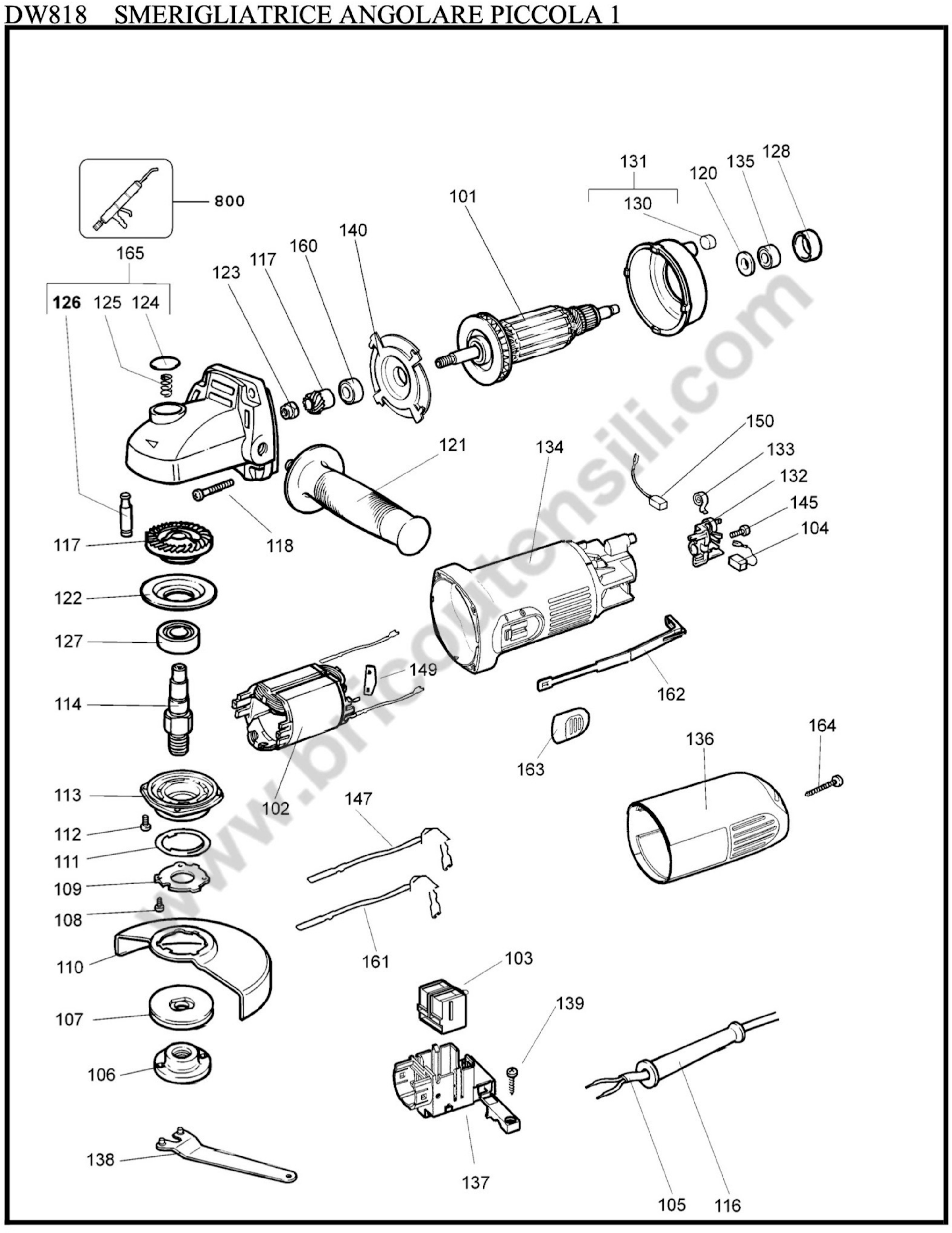

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
101
 photo_cameraImage coming soon 393921-04 ARMATURE SA - DISCONTINUED €0.11 Not available for order
102
 photo_cameraImage coming soon 395991-00 FIELD 230V €0.11 Not available for order
103
 Switch for DW821 Small Angle Grinder 945614-00 Switch for DW821 Small Angle Grinder €15.92 Not available for order
104
 photo_cameraImage coming soon 939539-00 BRUSH CUT OFF 110V €11.71
104
 DeWalt DW816 Type 1 Cut Off Brush 939539-01 DeWalt DW816 Type 1 Cut Off Brush €7.12
105
 photo_cameraImage coming soon 562226-08 CABLE €16.42
106
 Outer Flange for DW821 Small Angle Grinder 622613-02 Outer Flange for DW821 Small Angle Grinder €8.02
107
 Inner Flange for DW821 Small Angle Grinder 391969-00 Inner Flange for DW821 Small Angle Grinder €5.10
107
 photo_cameraImage coming soon 930771-00 INTERNAL FLANGE €0.11 Not available for order
108
 photo_cameraImage coming soon 562160-00 SCREW €0.11 Not available for order
109
 photo_cameraImage coming soon 605415-00 Not Available €0.11 Not available for order
110
 photo_cameraImage coming soon 944685-00 GUARD €0.11 Not available for order
111
 photo_cameraImage coming soon 393576-00 Guard Spring €1.75
112
 photo_cameraImage coming soon 562160-01 Screw For Gear Case Cover (M4 x 10) €1.56
113
 photo_cameraImage coming soon 945298-00 GEARCASE COVER €0.11 Not available for order
114
 photo_cameraImage coming soon 391971-00 SPINDLE €0.11 Not available for order
114
 photo_cameraImage coming soon 393932-01 ASS. SPINDLE €0.11 Not available for order
116
 photo_cameraImage coming soon N542553 CORD PROTECTOR - NO LONGER AVAILABLE €5.31
116
 photo_cameraImage coming soon N918736 CORD GUARD €2.21
117
 DW818 Small Angle Grinder Gear + Pinion 661243-00 DW818 Small Angle Grinder Gear + Pinion €21.68
118
 photo_cameraImage coming soon 562097-01 SCREW €1.56
120
 photo_cameraImage coming soon 945287-00 SPACER €0.11 Not available for order
121
 photo_cameraImage coming soon 573115-00 SIDE HANDLE €3.92
122
 photo_cameraImage coming soon 945299-00 Gear Flange €1.56
123
 photo_cameraImage coming soon 945292-00 Nut (Pinion fixing) €1.56
124
 DeWalt DW821 Angle Grinder Spindle Lock Button 944574-00 DeWalt DW821 Angle Grinder Spindle Lock Button €1.78
125
 DeWalt DW821 Angle Grinder Spindle Lock Spring 562210-00 DeWalt DW821 Angle Grinder Spindle Lock Spring €1.78
126
 DeWalt DW821 Angle Grinder Spindle Lock 944571-00 DeWalt DW821 Angle Grinder Spindle Lock €2.81
127
 photo_cameraImage coming soon 605040-22 BEARING €5.19
128
 DeWalt DW818 Bearing Sleeve 930275-00 DeWalt DW818 Bearing Sleeve €1.78
128
 photo_cameraImage coming soon 949721-02 SLEEVE €0.00 Not available for order
130
 photo_cameraImage coming soon 949638-01 Plug €1.73
131
 photo_cameraImage coming soon 401635-00 BAFFLE SA €0.11 Not available for order
132
 photo_cameraImage coming soon 395985-01 BRUSH HOLDER TYPE 3 €0.11 Not available for order
132
 photo_cameraImage coming soon 569666-00 BRUSH HOLDER SA TYPE 1 €3.74
133
 DeWalt DW821 Angle Grinder Brush Spring 562204-00 DeWalt DW821 Angle Grinder Brush Spring €1.78
134
 photo_cameraImage coming soon 609938-01 FIELD CASE KIT €0.11 Not available for order
135
 DeWalt DW818 Small Angle Grinder Bearing 607LUT 605040-02 DeWalt DW818 Small Angle Grinder Bearing 607LUT €5.57
135
 photo_cameraImage coming soon 949625-01 BEARING 8X19X9 €8.95
136
 photo_cameraImage coming soon 394938-01 END CAP €0.11 Not available for order
137
 photo_cameraImage coming soon 5140000-13 SWITCH SUPPORT €4.28
138
 photo_cameraImage coming soon 401680-00 WRENCH €6.88
139
 photo_cameraImage coming soon 562097-05 Screw DW201,171 €1.56
140
 Electronic Board for Mitre Saws Compa Orange OMS TC10/TC14 401622-01 Electronic Board for Mitre Saws Compa Orange OMS TC10/TC14 €54.29
145
 photo_cameraImage coming soon 562097-00 Screw For Brush Holder Assy.(4.2 x 13) €1.68
147
 photo_cameraImage coming soon 329021-00 WIRE SA €0.11 Not available for order
149
 photo_cameraImage coming soon 402489-00 COMPOUND CUTTING PAD €0.11 Not available for order
150
 Carbon Brush Set for DW816 Type 1 Small Angle Grinder 930151-00 Carbon Brush Set for DW816 Type 1 Small Angle Grinder €12.50
150
 photo_cameraImage coming soon 930897-00 BRUSH 115-120V - NO LONGER AVAILABLE €0.11 Not available for order
160
 DeWalt Ball Bearing 608RS N110359 N110359 DeWalt Ball Bearing 608RS N110359 €3.25
161
 photo_cameraImage coming soon 329021-01 WIRE SA €0.11 Not available for order
162
 DeWalt DW821 Small Angle Grinder Switch Link 611737-01 DeWalt DW821 Small Angle Grinder Switch Link €1.98
163
 DeWalt DW821 Angle Grinder Switch Link Button 569624-01 DeWalt DW821 Angle Grinder Switch Link Button €1.98
164
 photo_cameraImage coming soon 562097-13 Screw €1.56
165
 photo_cameraImage coming soon 610704-01 SERVICE KIT €0.11 Not available for order
800
 photo_cameraImage coming soon 286436-00 RHEOLUBE 380 GREASE, 500GRAMS Stanley Black and Decker DeWalt €177.05

Shipping and delivery information will be available shortly.

DEWALT DW818 TYPE 1 Angle Grinder Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for DW818 TYPE 1 Small Angle Grinder Spare Parts.

In the following table, look for the model of the hammer and the respective parts of the code.
DW818 TYPE 1 Small Angle Grinder Spare Parts

DW818 TYPE 1 - SMALL ANGLE GRINDER SPARE PARTS
# Part Num. Description
101 393921-04 ARMATURE - DISCONTINUED
102 395991-00 FIELD 230V
103 945614-00 SWITCH - DISCONTINUED
104 939539-00 BRUSH CUT OFF XW 115V
104 939539-01 BRUSH CUT OFF GB 230V
105 562226-08 CABLE
106 622613-02 EXTERNAL FLANGE
107 391969-00 INTERNAL FLANGE
107 930771-00 INTERNAL FLANGE
108 562160-00 SCREW
109 605415-00 RETAINING PLATE
110 944685-00 GUARD
111 393576-00 RING
112 562160-01 SCREW
113 945298-00 GEARCASE COVER
114 391971-00 SPINDLE >9930
114 393932-01 ASS. SPINDLE
116 N542553 CORD PROTECTOR
116 N918736 CORD PROTECTOR
117 661243-00 GEAR + PINION
118 562097-01 SCREW
120 945287-00 SPACER
121 573115-00 SIDE HANDLE
122 945299-00 FLANGE
123 945292-00 NUT
124 944574-00 BUTTON GB
125 562210-00 SPRING
126 944571-00 SPINDLE LOCK
127 605040-22 BEARING
128 930275-00 SLEEVE >9930
128 949721-02 SLEEVE <9930
130 949638-01 BUFFER
131 401635-00 BAFFLE SA
132 569666-00 BRUSH HOLDER SA TYPE 1
132 395985-01 BRUSH HOLDER TYPE 3
133 562204-00 BRUSH SPRING
134 609938-01 FIELD CASE KIT
135 605040-02 BEARING >9930
135 949625-01 BEARING 8X19X9
136 394938-01 END CAP GB
137 5140000-13 SWITCH SUPPORT
138 401680-00 WRENCH
139 562097-05 SCREW
140 401622-01 FLANGE
145 562097-00 SCREW
147 329021-00 WIRE SA
149 402489-00 PAD
150 930151-00 BRUSH 220V GB1PC.
150 930897-00 BRUSH 115-120V XW
160 N110359 BEARING
161 329021-01 WIRE SA
162 611737-01 SWITCH LINK
163 569624-01 SWITCH LINK BUTTON
164 562097-13 SCREW
165 610704-01 SERVICE KIT
800 286436-00 GREASE
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
