DeWalt Belt Sander DW433 Spare Parts

SKU: DEWALT DW433
€1.78
VAT included

DeWalt Belt Sander DW433 Type 1 Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for DeWalt DW433 Type 1 Belt Sander.
DeWalt Belt Sander DW433 Spare Parts
  • Online only
  • DeWalt Belt Sander DW433 Spare Parts
  • DeWalt Belt Sander DW433 Spare Parts - Drawing
DeWalt Power Tools

DeWalt Belt Sander DW433 Spare Parts

SKU: DEWALT DW433 Condition: New
€1.78
VAT included

DeWalt Belt Sander DW433 Type 1 Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for DeWalt DW433 Type 1 Belt Sander.
settings 91 Spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on Demand Only

SHIPPING IN: ON DEMAND ONLY
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
Machine Type: Sander
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
91 spare parts

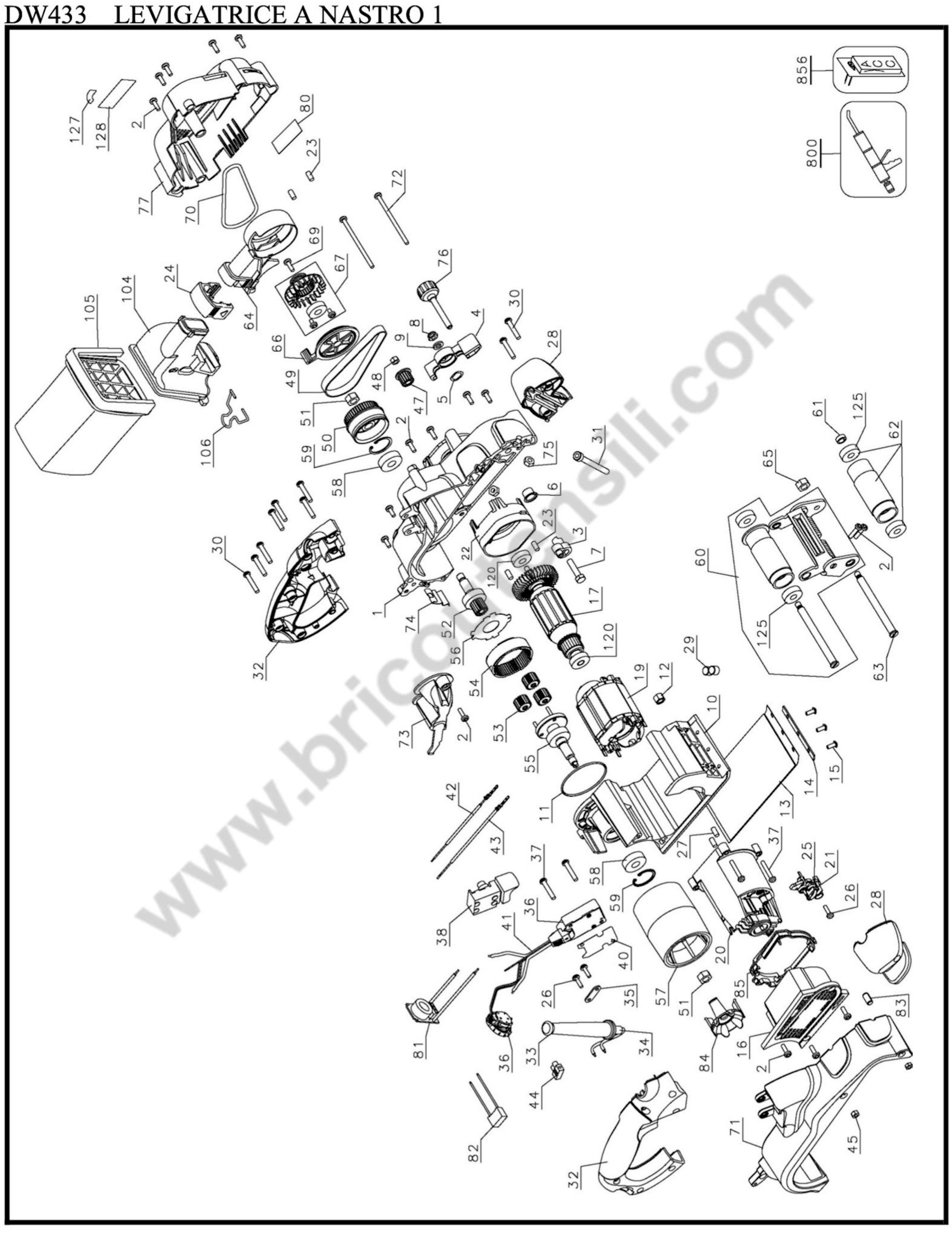

Page 1 zoom_in View exploded local_shipping ON DEMAND ONLY
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 398028-00SV GEAR CASE INCL. 120, 121 €0.11 Not available for order
2
 photo_cameraImage coming soon 330045-06 SCREW €1.72
3
 photo_cameraImage coming soon 398097-00SV SHAFT ASSEMBLY €0.11 Not available for order
4
 photo_cameraImage coming soon 398050-00 LEVER €0.11 Not available for order
5
 photo_cameraImage coming soon 398074-00 SPRING €0.11 Not available for order
6
 photo_cameraImage coming soon 398064-00 BUSHING €0.11 Not available for order
7
 photo_cameraImage coming soon 098023-25 SCREW €0.11 Not available for order
8
 photo_cameraImage coming soon 330021-07 NUT €1.56
9
 photo_cameraImage coming soon 330016-02 WASHER €1.56
10
 photo_cameraImage coming soon 393745-00 PLATE €0.11 Not available for order
11
 photo_cameraImage coming soon 393758-00 O-RING €0.11 Not available for order
12
 photo_cameraImage coming soon 398094-00 NUT €0.11 Not available for order
13
 photo_cameraImage coming soon 398080-00SV BASE & CORK PLATE DW432 & DW433 €0.11 Not available for order
14
 photo_cameraImage coming soon 398049-00 CLAMP €0.11 Not available for order
15
 photo_cameraImage coming soon 153637-04 SCREW €0.11 Not available for order
16
 photo_cameraImage coming soon 398065-00 COVER €0.11 Not available for order
17
 photo_cameraImage coming soon 398076-01SV 240v ARMATURE & FAN €0.11 Not available for order
19
 photo_cameraImage coming soon 402051-04SV FIELD €31.66
20
 photo_cameraImage coming soon 393742-00 FIELD CASE €0.11 Not available for order
21
 DeWalt DW433 Belt Sander Brush Set 398045-01 DeWalt DW433 Belt Sander Brush Set €15.95
22
 photo_cameraImage coming soon 393747-00 BAFFLE €0.11 Not available for order
23
 photo_cameraImage coming soon 949638-02 DAMPER €1.56
24
 photo_cameraImage coming soon 398105-00 COLLAR €0.11 Not available for order
25
 photo_cameraImage coming soon 398108-00 BRUSH HOLDER €0.11 Not available for order
26
 photo_cameraImage coming soon 176951-00 SCREW €1.73
27
 photo_cameraImage coming soon 072412-00 PLUG €0.11 Not available for order
28
 photo_cameraImage coming soon 398036-00 HANDLE €0.11 Not available for order
29
 photo_cameraImage coming soon 615509-00 ROLLER €0.11 Not available for order
30
 photo_cameraImage coming soon 330019-14 SCREW €1.72
31
 photo_cameraImage coming soon 398098-00 LOCKING SCREW €0.11 Not available for order
32
 photo_cameraImage coming soon 398117-00 HANDLE & COVER €0.11 Not available for order
33
 photo_cameraImage coming soon N918736 CORD GUARD €2.21
34
 photo_cameraImage coming soon N409399 CORDSET LH (EURO) €28.57
35
 photo_cameraImage coming soon 380414-00 CORD CLAMP €0.11 Not available for order
36
 photo_cameraImage coming soon N033987 CONTROL MODULE SA €80.97
37
 photo_cameraImage coming soon 330045-07 SCREW €1.56
38
 DeWalt DW433 Belt Sander Switch 619242-00 DeWalt DW433 Belt Sander Switch €34.30
40
 photo_cameraImage coming soon 609468-00 PAD €3.25
41
 photo_cameraImage coming soon 612653-00 WIRE €0.11 Not available for order
41
 photo_cameraImage coming soon 619714-00 WIRE LATE 2004 DATE CODES AND LATER €0.11 Not available for order
42
 photo_cameraImage coming soon 398078-00 LEAD WHITE €0.11 Not available for order
43
 photo_cameraImage coming soon 398078-01 LEAD WHITE €0.11 Not available for order
44
 photo_cameraImage coming soon 398100-00 TERMINAL BLOCK €0.11 Not available for order
45
 photo_cameraImage coming soon 330015-01 NUT €1.56
47
 photo_cameraImage coming soon 393741-00 DRIVE PULLEY €0.11 Not available for order
48
 photo_cameraImage coming soon 330015-04 NUT €1.56
49
 DeWalt Belt Sander DW433 Drive Belt 398029-00 DeWalt Belt Sander DW433 Drive Belt €13.65
50
 photo_cameraImage coming soon 398030-00 PULLEY €27.86
51
 photo_cameraImage coming soon 330015-09 NUT €0.11 Not available for order
52
 photo_cameraImage coming soon 398096-00SV SHAFT ASSEMBLY €0.11 Not available for order
53
 photo_cameraImage coming soon 393753-00 GEAR €2.53
54
 photo_cameraImage coming soon 393755-00 GEAR €0.11 Not available for order
55
 photo_cameraImage coming soon N174784 REPAIR KIT Includes 55, 57 €0.11 Not available for order
56
 photo_cameraImage coming soon 393759-00 PLATE €0.11 Not available for order
57
 photo_cameraImage coming soon N174784 REPAIR KIT Includes 55, 57 €0.11 Not available for order
58
 photo_cameraImage coming soon 605040-17 BEARING,BALL €13.13
59
 photo_cameraImage coming soon 385244-00 LOCKING RING €0.11 Not available for order
60
 photo_cameraImage coming soon 640257-00 YOKE SA INCL. (2) 125 €65.59
61
 photo_cameraImage coming soon 398068-00 SPACER €0.11 Not available for order
62
 photo_cameraImage coming soon 614545-00 ROLLER INCL. 125 €0.11 Not available for order
63
 photo_cameraImage coming soon 398039-00 SHAFT ASSEMBLY €0.11 Not available for order
64
 photo_cameraImage coming soon 393752-01 SHROUD €0.11 Not available for order
65
 photo_cameraImage coming soon 606899-00 NUT €0.11 Not available for order
66
 photo_cameraImage coming soon 393746-00 BAFFLE €5.55
67
 photo_cameraImage coming soon 393743-00SV FAN €0.11 Not available for order
69
 photo_cameraImage coming soon 330045-13 SCREW €1.88
70
 DeWalt DW433 Belt Sander O-Ring 393749-01 DeWalt DW433 Belt Sander O-Ring €7.39
71
 photo_cameraImage coming soon 398027-01 FRAME €0.11 Not available for order
72
 photo_cameraImage coming soon 613099-00 SCREW €0.11 Not available for order
73
 photo_cameraImage coming soon 398083-00 BAFFLE €0.11 Not available for order
74
 photo_cameraImage coming soon 398079-00 CLIP €0.11 Not available for order
75
 photo_cameraImage coming soon 330015-02 NUT €0.11 Not available for order
76
 photo_cameraImage coming soon 398070-00 KNOB €0.11 Not available for order
77
 photo_cameraImage coming soon 398071-01SV BELT COVER INC. 23, 127, 128 €0.11 Not available for order
80
 photo_cameraImage coming soon N055169 RATING PLATE €2.28
81
 photo_cameraImage coming soon 398107-00 POTENTIOMETER SA €0.11 Not available for order
82
 photo_cameraImage coming soon 398111-00 CAPACITOR €0.11 Not available for order
83
 photo_cameraImage coming soon 617084-00 PIN €0.11 Not available for order
84
 photo_cameraImage coming soon 606902-00 CAP €4.39
85
 photo_cameraImage coming soon 636658-00 BAFFLE €0.11 Not available for order
104
 photo_cameraImage coming soon 398082-00 HOLDER €0.11 Not available for order
105
 photo_cameraImage coming soon 398072-00 DUSTBAG & FRAME €0.11 Not available for order
106
 photo_cameraImage coming soon 617085-00 CLIP €0.11 Not available for order
120
 DeWalt Ball Bearing 608RS N110359 N110359 DeWalt Ball Bearing 608RS N110359 €3.25
125
 DeWalt Ball Bearing 608RS N110359 N110359 DeWalt Ball Bearing 608RS N110359 €3.25
127
 photo_cameraImage coming soon 398115-00 LABEL €0.11 Not available for order
128
 photo_cameraImage coming soon 616067-00 RATING PLATE €0.11 Not available for order
800
 photo_cameraImage coming soon 283484-01 GREASE, 32 OZ. €0.11 Not available for order
800
 photo_cameraImage coming soon 761995-01 GREASE, 6 OZ. €0.11 Not available for order
821
 photo_cameraImage coming soon N055167 RATING PLATE €1.56
836
 photo_cameraImage coming soon 559648-99 S.T.ROLLER REMOVER €17.34
837
 photo_cameraImage coming soon 559649-99 S.T.ROLLER REMOVER €34.92
856
 photo_cameraImage coming soon 340608-01 BELT 80 GRIT €0.11 Not available for order

Shipping and delivery information will be available shortly.

DeWalt Belt Sander DW433 Type 1 Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for DeWalt DW433 Type 1 Belt Sander.

In the following table, look for the model of the hammer and the respective parts of the code.
DeWalt DW433 Type 1 Belt Sander

DeWalt DW433 Type 1 Belt Sander Spare Parts
# Part Num. Description
1 398028-00SV GEAR CASE INCL. 120, 121
2 330045-06 SCREW
3 398097-00SV SHAFT ASSEMBLY
4 398050-00 LEVER
5 398074-00 SPRING
6 398064-00 BUSHING
7 098023-25 SCREW
8 330021-07 NUT
9 330016-02 WASHER
10 393745-00 PLATE
11 393758-00 O-RING
12 398094-00 NUT
13 398080-00SV BASE & CORK PLATE DW432 & DW433
14 398049-00 CLAMP
15 153637-04 SCREW
16 398065-00 COVER
17 398076-01SV 240v ARMATURE & FAN
19 402051-04SV FIELD
20 393742-00 FIELD CASE
21 398045-01 BRUSH SET 230V
22 393747-00 BAFFLE
23 949638-02 DAMPER
24 398105-00 COLLAR
25 398108-00 BRUSH HOLDER
26 176951-00 SCREW
27 072412-00 PLUG
28 398036-00 HANDLE
29 615509-00 ROLLER
30 330019-14 SCREW
31 398098-00 LOCKING SCREW
32 398117-00 HANDLE & COVER
33 N918736 CORD PROTECTOR
34 N409399 CORDSET (EURO)
35 380414-00 CORD CLAMP
36 N033987 CONTROL MODULE SA
37 330045-07 SCREW
38 619242-00 SWITCH
40 609468-00 PAD
41 619714-00 WIRE LATE 2004 DATE CODES AND LATER
41 612653-00 WIRE
42 398078-00 LEAD WHITE
43 398078-01 LEAD WHITE
44 398100-00 TERMINAL BLOCK
45 330015-01 NUT
47 393741-00 DRIVE PULLEY
48 330015-04 NUT
49 398029-00 DRIVE BELT
50 398030-00 PULLEY
51 330015-09 NUT
52 398096-00SV SHAFT ASSEMBLY
53 393753-00 GEAR
54 393755-00 GEAR
55 N174784 REPAIR KIT Includes 55, 57
56 393759-00 PLATE
57 N174784 REPAIR KIT Includes 55, 57
58 605040-17 BEARING,BALL
59 385244-00 LOCKING RING
60 640257-00 YOKE SA INCL. (2) 125
61 398068-00 SPACER
62 614545-00 ROLLER INCL. 125
63 398039-00 SHAFT ASSEMBLY
64 393752-01 SHROUD
65 606899-00 NUT
66 393746-00 BAFFLE
67 393743-00SV FAN
69 330045-13 SCREW
70 393749-01 O-RING
71 398027-01 FRAME
72 613099-00 SCREW
73 398083-00 BAFFLE
74 398079-00 CLIP
75 330015-02 NUT
76 398070-00 KNOB
77 398071-01SV BELT COVER INC. 23, 127, 128
80 N055169 RATING PLATE
81 398107-00 POTENTIOMETER SA
82 398111-00 CAPACITOR
83 617084-00 PIN
84 606902-00 CAP
85 636658-00 BAFFLE
104 398082-00 HOLDER
105 398072-00 DUSTBAG & FRAME
106 617085-00 CLIP
120 N110359 BEARING
125 N110359 BEARING
127 398115-00 LABEL
128 616067-00 RATING PLATE
800 761995-01 GREASE 180 Grams
800 283484-01 GREASE 32oz, EXXON CVJ
821 N055167 RATING PLATE
836 559648-99 S.T.ROLLER REMOVER
837 559649-99 S.T.ROLLER REMOVER
856 340608-01 BELT 80 GRIT
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
DEWALT DW433
6 Items

Data sheet

SHIPPING IN
ON DEMAND ONLY
CHECK ITEM CODE OR S/N
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
Machine Type
Sander
MORE INFO:
[email protected]

Specific References

New

Download

DEWALT DW433 Drawing

DEWALT DW433 Drawing

Download (424.98KB)

You might also like

DeWalt DW433 Belt Sander Switch
DeWalt Power Tools SKU: 619242-00
DeWalt DW433 Belt Sander Switch
DeWalt DW433 Belt Sander Switch Genuine replacement part DeWALT, Switch for Belt Sander DW433 Tipo 1. Part for the following items: - Belt Sander DW433 Tipo 1 - Code: 619242-00
on 7/10 Business Days Approx. €34.30
Details
DeWalt DW433 Belt Sander Brush Set
DeWalt Power Tools SKU: 398045-01
DeWalt DW433 Belt Sander Brush Set
DeWalt DW433 Belt Sander Brush Set Genuine replacement part DeWALT, Carbon Brush Set for Belt Sander DW433 Tipo 1-2. Part for the following items: - Belt Sander DW433 Tipo 1 - Code: 398045-01
on 7/10 Business Days Approx. €15.95
Details
DeWalt Belt Sander DW433 Belt
DeWalt Power Tools SKU: 398029-00
DeWalt Belt Sander DW433 Drive Belt
DeWalt Belt Sander DW433 Drive Belt Genuine replacement part DeWALT, Drive Belt for Belt Sander DW433 Tipo 1-2. Part for the following items: - Belt Sander DW433 Tipo 1 - Code: 398029-00
on 7/10 Business Days Approx. €13.65
Details
DeWalt Ball Bearing 608RS N110359
DeWalt Power Tools SKU: N110359
DeWalt Ball Bearing 608RS N110359
DeWalt Ball Bearing 608RS N110359 Genuine replacement part DeWALT, Ball Bearing 608RS for Demolition Hammer D25733K - D25614K - D25831K. Part for the following items: - DEWALT DW433 - DEWALT D27112 TIPO 1 - DEWALT D27112 TIPO 3...
on 7/10 Business Days Approx. €3.25
Details
DeWalt DW433 Belt Sander O-Ring
DeWalt Power Tools SKU: 393749-01
DeWalt DW433 Belt Sander O-Ring
DeWalt DW433 Belt Sander O-Ring Genuine replacement part DeWALT, O-Ring for Belt Sander DW433 Tipo 1. Part for the following items: - Belt Sander DW433 Tipo 1 - Code: 393749-01
on 7/10 Business Days Approx. €7.39
Details
Comments (0)
No customer reviews for the moment.
