DeWalt D25601-QS Type 1 Spare Parts

SKU: DEWALT D25601-QS Tipo 1
€152.38
VAT included

DeWalt D25601-QS Type 1 Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for DEWALT D25601 Type 1 Model: D25601-QS Combination Hammer.
DeWalt D25601-QS Type 1 Spare Parts
  • Online only
  • DeWalt D25601-QS Type 1 Spare Parts
  • DeWalt D25601-QS Type 1 Spare Parts - Motor Drawing
  • DeWalt D25601-QS Type 1 Spare Parts - Tool Holder Drawing
DeWalt Power Tools

DeWalt D25601-QS Type 1 Spare Parts

SKU: DEWALT D25601-QS Tipo 1 Condition: New
€152.38
VAT included

DeWalt D25601-QS Type 1 Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for DEWALT D25601 Type 1 Model: D25601-QS Combination Hammer.
settings 200 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on Demand Only

SHIPPING IN:: ON DEMAND ONLY
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
191 spare parts
Page 1 zoom_in View exploded local_shipping ON DEMAND ONLY

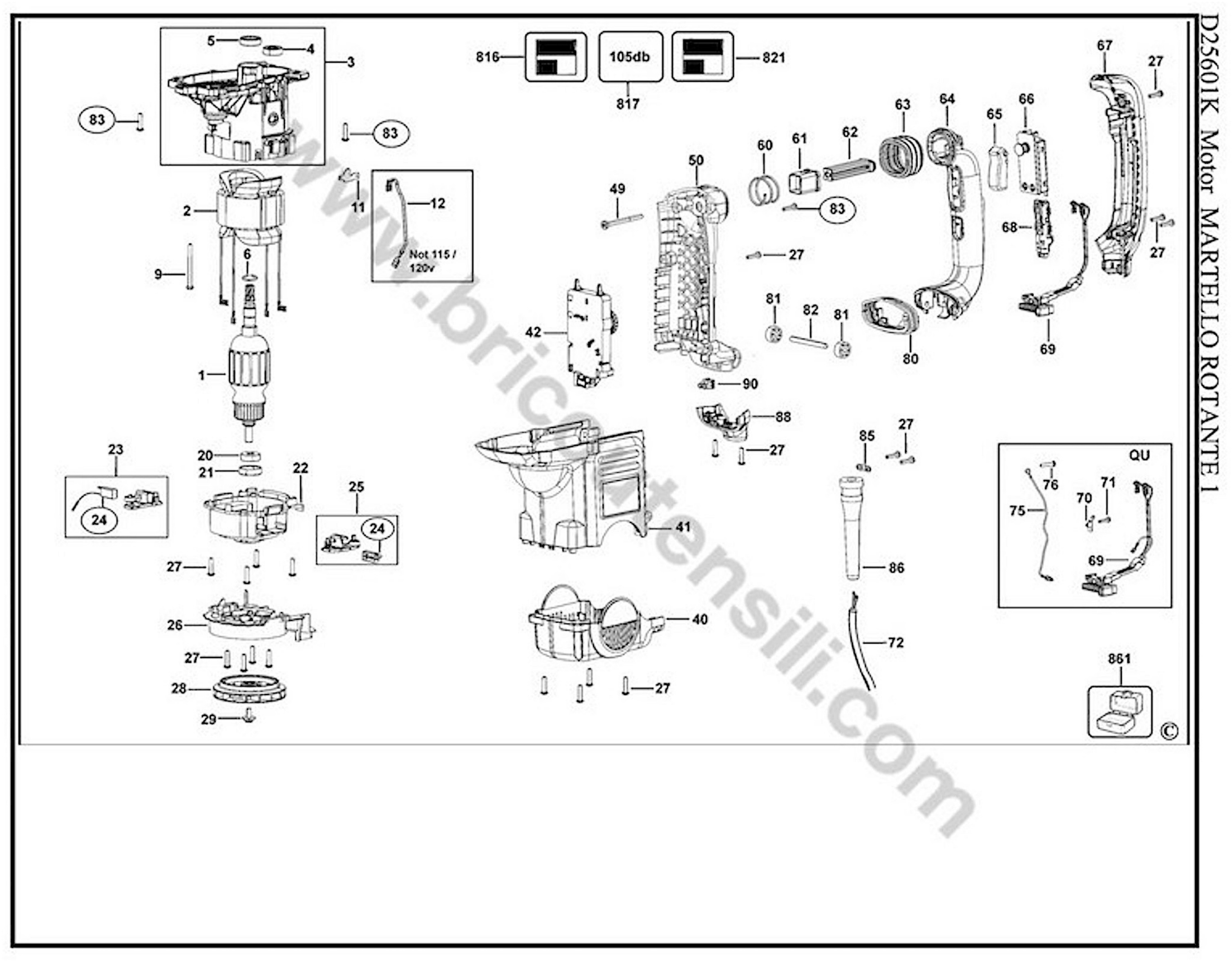

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon N046419 ARMATURE 120V €143.64
1
 photo_cameraImage coming soon N046420 ARMATURE 230V €140.10
2
 photo_cameraImage coming soon N041826 FIELD 120V €78.93
2
 DeWalt D25601K Field 230V N041827 DeWalt D25601K Field 230V €105.37
3
 photo_cameraImage coming soon N047284 HOUSING SA €41.09
4
 photo_cameraImage coming soon 330003-39 BEARING €5.80
5
 photo_cameraImage coming soon 327141-03 SEAL €19.71
6
 photo_cameraImage coming soon 577746-00 RING €2.26
9
 photo_cameraImage coming soon 330065-21 SCREW €1.68
11
 photo_cameraImage coming soon 1007970-00 CONNECTOR €1.88
12
 photo_cameraImage coming soon N020117 CABLE €1.68
20
 DeWalt D25601K Demolition Hammer Bearing 608DW 330003-60 DeWalt D25601K Demolition Hammer Bearing 608DW €6.54
21
 photo_cameraImage coming soon 1007732-00 MANIC SLEEVE OTTO €1.68
22
 DeWalt D25601K Demolition Hammer Bridge 1007798-00 DeWalt D25601K Demolition Hammer Bridge €8.64
23
 photo_cameraImage coming soon N047304 BRUSH HOLDER 115V €34.23
23
 DeWalt D25831K-QS Type 1 SA Brush Card 230V N047446 DeWalt D25831K-QS Type 1 SA Brush Card 230V €15.09
24
 photo_cameraImage coming soon N047286 BRUSH PAIR 120V €25.21
24
 DeWalt D25601K Demolition Hammer Brush Pair 230V N047424 DeWalt D25601K Demolition Hammer Brush Pair 230V €21.05
26
 DeWalt D25601K Demolition Hammer Baffle Fan N016920 DeWalt D25601K Demolition Hammer Baffle Fan €10.21
27
 DeWalt D25481 Screw TX 4x18 330065-08 DeWalt D25481 Screw TX 4x18 €1.94
28
 DeWalt D25601K Demolition Hammer Fan Assy 1006592-01 DeWalt D25601K Demolition Hammer Fan Assy €28.85
29
 DeWalt D25500K-QS Screw M5x12 324119-02 DeWalt D25500K-QS Screw M5x12 €2.40
41
 photo_cameraImage coming soon 1006576-02 MOTOR COVER €13.25
42
 photo_cameraImage coming soon N041751 GACC MODULE 230V €118.53
49
 photo_cameraImage coming soon 1005672-00 SCREW €2.66
50
 photo_cameraImage coming soon 1007939-00 COVER PLATE €16.38
60
 photo_cameraImage coming soon 1007569-00 SPRING €1.88
61
 photo_cameraImage coming soon 1007567-00 BUSH €2.66
62
 photo_cameraImage coming soon 1007566-00 STOP €10.69
63
 DeWalt D25601K Demolition Hammer Upper Bellows 1007565-00 DeWalt D25601K Demolition Hammer Upper Bellows €6.77
64
 photo_cameraImage coming soon 1008681-00 HOUSING HANDLE €10.69
65
 photo_cameraImage coming soon 587114-01 TRIGGER €2.08
66
 Dewalt Switch for D25601K 587274-00 Dewalt Switch for D25601K €20.90
67
 photo_cameraImage coming soon 1008682-00 HANDLE COVER €17.75
68
 photo_cameraImage coming soon N019514 TRIGGER LOCK-ON €25.21
69
 photo_cameraImage coming soon N046423 SET OF LEAD WIRES LH €19.13
72
 photo_cameraImage coming soon 582319-02 CORDSET GB €38.55
72
 photo_cameraImage coming soon 582319-41 CORDSET LH (EURO) €35.99
80
 DeWalt D25601K Demolition Hammer Lower Bellows 1008678-00 DeWalt D25601K Demolition Hammer Lower Bellows €6.94
81
 photo_cameraImage coming soon N038214 BUSH €1.68
82
 photo_cameraImage coming soon N062047 PIN €1.88
83
 photo_cameraImage coming soon 324007-11 SCREW TORX €1.68
85
 photo_cameraImage coming soon 821070 CORD CLAMP €1.88
86
 photo_cameraImage coming soon 323091-01 PROTECTOR CORD 8.9 €2.66
88
 photo_cameraImage coming soon 1008391-00 COVER €4.43
90
 photo_cameraImage coming soon 1007896-00 GUIDE €1.88
100
 DeWalt D25500K-QS Lip Seal 329816-00 DeWalt D25500K-QS Lip Seal €7.39
101
 DeWalt D25481 Demolition Hammer Collar 326575-01 DeWalt D25481 Demolition Hammer Collar €8.01
102
 DeWalt D25500K-QS Sleeve SA 479247-00 DeWalt D25500K-QS Sleeve SA €11.34
103
 photo_cameraImage coming soon 918825-02 SCREW €1.83
104
 photo_cameraImage coming soon 1006572-00 COVER €9.72
105
 DeWalt D25481 Roller 8x20 325878-00 DeWalt D25481 Roller 8x20 €32.35
106
 photo_cameraImage coming soon 325929-00 HALF WASHER €1.88
107
 photo_cameraImage coming soon 327208-00 GUIDE €1.68
108
 photo_cameraImage coming soon 323395-06 SPRING €1.68
109
 photo_cameraImage coming soon 487118-00 SPRING €2.26
110
 photo_cameraImage coming soon 325930-00 SPRING GUIDE €6.58
110
 photo_cameraImage coming soon N313860 GUIDE €6.58
116
 photo_cameraImage coming soon N040996 DEPTH ROD €6.97
119
 photo_cameraImage coming soon N038151 FELT €2.66
120
 photo_cameraImage coming soon N045793 BUSH €2.46
122
 photo_cameraImage coming soon 1007828-00 SEAL €14.23
123
 photo_cameraImage coming soon N041835 HOUSING €64.22
127
 photo_cameraImage coming soon 496191-00 DAMPER €2.86
128
 photo_cameraImage coming soon N041834 SPINDLE €127.36
129
 photo_cameraImage coming soon N455684 DAMPER €89.71
131
 photo_cameraImage coming soon 323711-10 O RING €3.05
135
 photo_cameraImage coming soon N064329 WASHER €1.68
140
 photo_cameraImage coming soon 494857-00 BUSH €4.03
141
 photo_cameraImage coming soon 1006283-00 GASKET €4.43
142
 photo_cameraImage coming soon 1005748-00 SPRING €2.46
143
 DeWalt D25500K-QS Cap O-Ring N210233 DeWalt D25500K-QS Cap O-Ring €2.82
144
 photo_cameraImage coming soon 1006778-00 BUSH €2.46
145
 photo_cameraImage coming soon N041846 CYLINDER €49.33
146
 DeWalt D25500K-QS O-Ring 26x2 577744-00 DeWalt D25500K-QS O-Ring 26x2 €3.86
147
 photo_cameraImage coming soon N041845 RAM €49.33
148
 DeWalt D25601K Demolition Hammer O-Ring 23x4MM 576232-01 DeWalt D25601K Demolition Hammer O-Ring 23x4MM €8.02
149
 photo_cameraImage coming soon N041844 SLEEVE €22.07
150
 photo_cameraImage coming soon 1005749-00 SELECTOR FORK €2.46
160
 photo_cameraImage coming soon N551764 BEVEL GEAR €38.55
161
 DeWalt D25500K Retainer Ring D.25,6 325905-00 DeWalt D25500K Retainer Ring D.25,6 €2.82
162
 DeWalt D25500K-QS Piston Pin 330041-22 DeWalt D25500K-QS Piston Pin €3.07
163
 DeWalt D25500K-QS Piston N041843 DeWalt D25500K-QS Piston €24.10
164
 photo_cameraImage coming soon 494724-00 CON ROD €6.97
165
 photo_cameraImage coming soon 1006721-00 GEARCASE COVER RH €11.88
166
 photo_cameraImage coming soon 1006786-00 SELECTOR €2.86
167
 DeWalt Detent for Hammer D25333K 326467-00 DeWalt Detent for Hammer D25333K €4.50
168
 photo_cameraImage coming soon 1006575-00 COVER-TOP €6.97
169
 photo_cameraImage coming soon 323711-57 O RING €1.68
170
 photo_cameraImage coming soon N019533 MICRO SWITCH €16.38
172
 photo_cameraImage coming soon 496856-00 ECCENTRIC €1.68
180
 DeWalt D25601K Demolition Hammer Slider 1006784-00 DeWalt D25601K Demolition Hammer Slider €2.60
181
 DeWalt D25601K Demolition Hammer Spring 323395-32 DeWalt D25601K Demolition Hammer Spring €1.78
182
 DeWalt D25601K Demolition Hammer Connector 1006783-00 DeWalt D25601K Demolition Hammer Connector €1.94
183
 DeWalt D25601K Demolition Hammer Cover 496857-00 DeWalt D25601K Demolition Hammer Cover €5.72
184
 photo_cameraImage coming soon 323711-59 O RING €1.68
185
 photo_cameraImage coming soon 1006785-00 PLATE €2.46
186
 photo_cameraImage coming soon N041841 CRANKSHAFT inc 65,66,67 €89.52
187
 DeWalt Hammer D25481 O-Ring 323711-26 DeWalt Hammer D25481 O-Ring €2.57
188
 photo_cameraImage coming soon N041840 HOUSING SA €109.12
190
 DeWalt D25601K Demolition Hammer Bearing 6001DW 577745-01 DeWalt D25601K Demolition Hammer Bearing 6001DW €9.27
191
 DeWalt D25601K Demolition Hammer Bearing, Needle 586301-00 DeWalt D25601K Demolition Hammer Bearing, Needle €8.01
192
 photo_cameraImage coming soon 323711-57 O RING €1.68
193
 photo_cameraImage coming soon 1008427-00 SCREW.SPECIAL €2.46
201
 photo_cameraImage coming soon 1006720-00 GEARCASE COVER LH €11.88
202
 photo_cameraImage coming soon N041839 CHAIN €11.68
203
 photo_cameraImage coming soon N041837 GEAR €6.39
204
 DeWalt D25601K Demolition Hammer Guide 1006280-00 DeWalt D25601K Demolition Hammer Guide €3.66
205
 photo_cameraImage coming soon N551770 CLUTCH SA €116.18
206
 photo_cameraImage coming soon 1006282-00 GASKET €5.80
800
 DeWalt Grease Renolit Paragon EP 1/2 90Gr. 870889-02 DeWalt Grease Renolit Paragon EP 1/2 90Gr. €21.10
800
 photo_cameraImage coming soon 870889-03 GREASE , 90 ML €12.11
810
 photo_cameraImage coming soon N040237 TUBE OIL €35.99
816
 photo_cameraImage coming soon N064908 BRAND LABEL €1.68
817
 photo_cameraImage coming soon 487395-01 LABEL €1.88
821
 photo_cameraImage coming soon N029853 NAME PALTE €2.46
836
 photo_cameraImage coming soon 1003938-99 SERVICE TOOL €112.86
837
 photo_cameraImage coming soon 559645-99 S.T.SEAL FITTING TOOL €45.41
847
 photo_cameraImage coming soon N081427 SERVICE KIT 230V GB €145.20
847
 photo_cameraImage coming soon N095940 INSERT €134.26
861
 photo_cameraImage coming soon 574931-22 KITBOX €90.31
Page 2 zoom_in View exploded local_shipping ON DEMAND ONLY

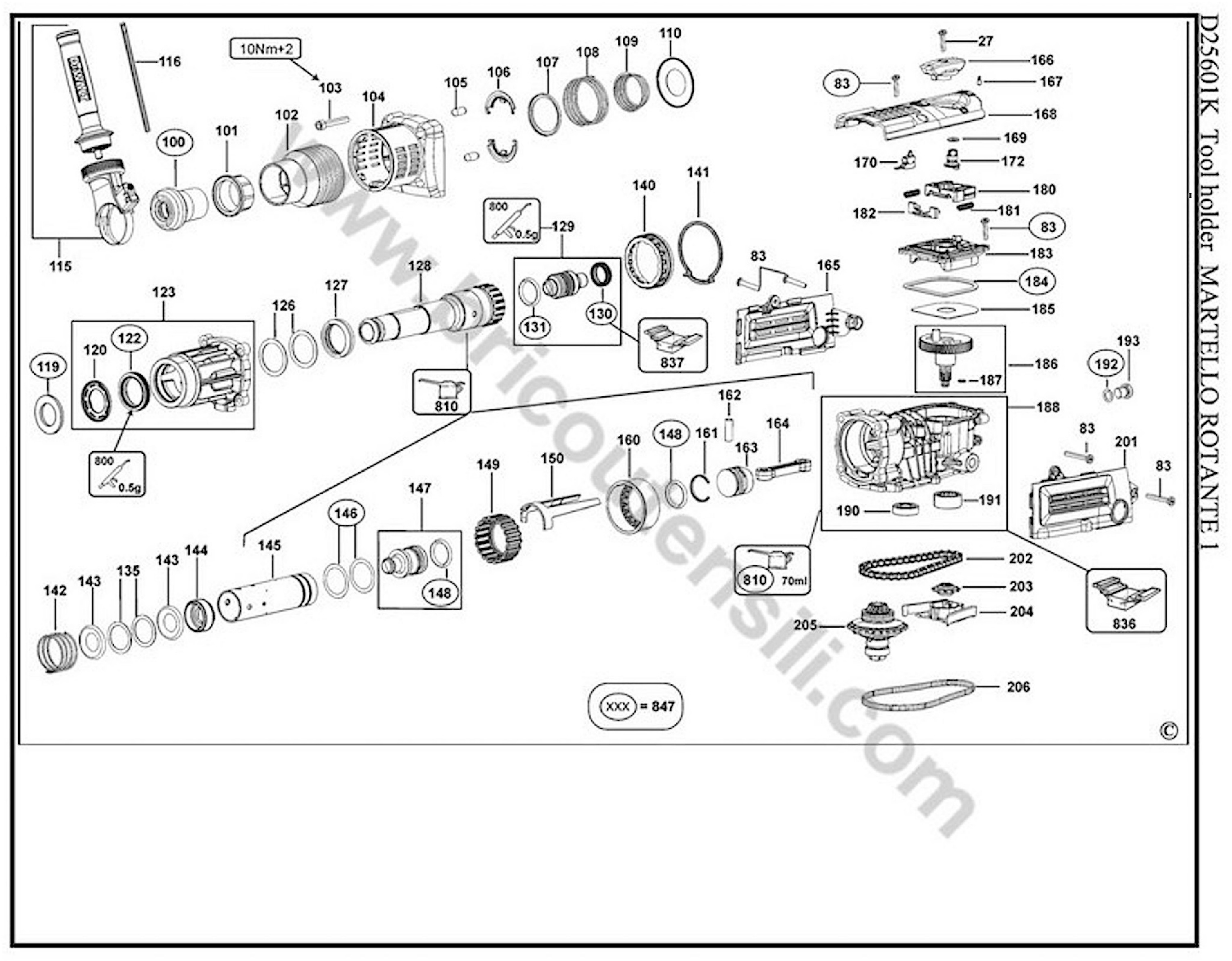

Esploso pagina 2
Pos. Item Price Buy
100
 DeWalt D25500K-QS Lip Seal 329816-00 DeWalt D25500K-QS Lip Seal €7.39
101
 DeWalt D25481 Demolition Hammer Collar 326575-01 DeWalt D25481 Demolition Hammer Collar €8.01
102
 DeWalt D25500K-QS Sleeve SA 479247-00 DeWalt D25500K-QS Sleeve SA €11.34
103
 photo_cameraImage coming soon 918825-02 SCREW €1.83
104
 photo_cameraImage coming soon 1006572-00 COVER €9.72
105
 DeWalt D25481 Roller 8x20 325878-00 DeWalt D25481 Roller 8x20 €32.35
106
 photo_cameraImage coming soon 325929-00 HALF WASHER €1.88
107
 photo_cameraImage coming soon 327208-00 GUIDE €1.68
108
 photo_cameraImage coming soon 323395-06 SPRING €1.68
109
 photo_cameraImage coming soon 487118-00 SPRING €2.26
110
 photo_cameraImage coming soon 325930-00 SPRING GUIDE €6.58
110
 photo_cameraImage coming soon N313860 GUIDE €6.58
116
 photo_cameraImage coming soon N040996 DEPTH ROD €6.97
119
 photo_cameraImage coming soon N038151 FELT €2.66
120
 photo_cameraImage coming soon N045793 BUSH €2.46
122
 photo_cameraImage coming soon 1007828-00 SEAL €14.23
123
 photo_cameraImage coming soon N041835 HOUSING €64.22
127
 photo_cameraImage coming soon 496191-00 DAMPER €2.86
128
 photo_cameraImage coming soon N041834 SPINDLE €127.36
129
 photo_cameraImage coming soon N455684 DAMPER €89.71
131
 photo_cameraImage coming soon 323711-10 O RING €3.05
135
 photo_cameraImage coming soon N064329 WASHER €1.68
140
 photo_cameraImage coming soon 494857-00 BUSH €4.03
141
 photo_cameraImage coming soon 1006283-00 GASKET €4.43
142
 photo_cameraImage coming soon 1005748-00 SPRING €2.46
143
 DeWalt D25500K-QS Cap O-Ring N210233 DeWalt D25500K-QS Cap O-Ring €2.82
144
 photo_cameraImage coming soon 1006778-00 BUSH €2.46
145
 photo_cameraImage coming soon N041846 CYLINDER €49.33
146
 DeWalt D25500K-QS O-Ring 26x2 577744-00 DeWalt D25500K-QS O-Ring 26x2 €3.86
147
 photo_cameraImage coming soon N041845 RAM €49.33
148
 DeWalt D25601K Demolition Hammer O-Ring 23x4MM 576232-01 DeWalt D25601K Demolition Hammer O-Ring 23x4MM €8.02
149
 photo_cameraImage coming soon N041844 SLEEVE €22.07
150
 photo_cameraImage coming soon 1005749-00 SELECTOR FORK €2.46
160
 photo_cameraImage coming soon N551764 BEVEL GEAR €38.55
161
 DeWalt D25500K Retainer Ring D.25,6 325905-00 DeWalt D25500K Retainer Ring D.25,6 €2.82
162
 DeWalt D25500K-QS Piston Pin 330041-22 DeWalt D25500K-QS Piston Pin €3.07
163
 DeWalt D25500K-QS Piston N041843 DeWalt D25500K-QS Piston €24.10
164
 photo_cameraImage coming soon 494724-00 CON ROD €6.97
165
 photo_cameraImage coming soon 1006721-00 GEARCASE COVER RH €11.88
166
 photo_cameraImage coming soon 1006786-00 SELECTOR €2.86
167
 DeWalt Detent for Hammer D25333K 326467-00 DeWalt Detent for Hammer D25333K €4.50
168
 photo_cameraImage coming soon 1006575-00 COVER-TOP €6.97
169
 photo_cameraImage coming soon 323711-57 O RING €1.68
170
 photo_cameraImage coming soon N019533 MICRO SWITCH €16.38
172
 photo_cameraImage coming soon 496856-00 ECCENTRIC €1.68
180
 DeWalt D25601K Demolition Hammer Slider 1006784-00 DeWalt D25601K Demolition Hammer Slider €2.60
181
 DeWalt D25601K Demolition Hammer Spring 323395-32 DeWalt D25601K Demolition Hammer Spring €1.78
182
 DeWalt D25601K Demolition Hammer Connector 1006783-00 DeWalt D25601K Demolition Hammer Connector €1.94
183
 DeWalt D25601K Demolition Hammer Cover 496857-00 DeWalt D25601K Demolition Hammer Cover €5.72
184
 photo_cameraImage coming soon 323711-59 O RING €1.68
185
 photo_cameraImage coming soon 1006785-00 PLATE €2.46
186
 photo_cameraImage coming soon N041841 CRANKSHAFT inc 65,66,67 €89.52
187
 DeWalt Hammer D25481 O-Ring 323711-26 DeWalt Hammer D25481 O-Ring €2.57
188
 photo_cameraImage coming soon N041840 HOUSING SA €109.12
190
 DeWalt D25601K Demolition Hammer Bearing 6001DW 577745-01 DeWalt D25601K Demolition Hammer Bearing 6001DW €9.27
191
 DeWalt D25601K Demolition Hammer Bearing, Needle 586301-00 DeWalt D25601K Demolition Hammer Bearing, Needle €8.01
193
 photo_cameraImage coming soon 1008427-00 SCREW.SPECIAL €2.46
201
 photo_cameraImage coming soon 1006720-00 GEARCASE COVER LH €11.88
202
 photo_cameraImage coming soon N041839 CHAIN €11.68
203
 photo_cameraImage coming soon N041837 GEAR €6.39
204
 DeWalt D25601K Demolition Hammer Guide 1006280-00 DeWalt D25601K Demolition Hammer Guide €3.66
205
 photo_cameraImage coming soon N551770 CLUTCH SA €116.18
206
 photo_cameraImage coming soon 1006282-00 GASKET €5.80
800
 DeWalt Grease Renolit Paragon EP 1/2 90Gr. 870889-02 DeWalt Grease Renolit Paragon EP 1/2 90Gr. €21.10
800
 photo_cameraImage coming soon 870889-03 GREASE , 90 ML €12.11
810
 photo_cameraImage coming soon N040237 TUBE OIL €35.99
836
 photo_cameraImage coming soon 1003938-99 SERVICE TOOL €112.86
837
 photo_cameraImage coming soon 559645-99 S.T.SEAL FITTING TOOL €45.41
847
 photo_cameraImage coming soon N081427 SERVICE KIT 230V GB €145.20
847
 photo_cameraImage coming soon N095940 INSERT €134.26

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

DeWalt D25601-QS Type 1 Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for DEWALT D25601 Type 1 Model: D25601-QS Combination Hammer.

In the following table, look for the model of the hammer and the respective parts of the code.
DEWALT D25601 Type 1 Model: D25601-QS Combination Hammer Spare Parts

KOMBI HAMMER SDS-MAX 45MM D25601-QS TIPO 1
Tool Code: D25601K
Tool Type : D25601K-QS
# Part Num. Description
1 N046419 ARMATURE 120V
1 N046420 ARMATURE 230V
2 N041827 FIELD 230V
2 N041826 FIELD 120V
3 N047284 HOUSING SA
4 330003-39 BEARING
5 327141-03 SEAL
6 577746-00 RING
9 330065-21 SCREW
11 1007970-00 CONNECTOR
12 N020117 CABLE
20 330003-60 BEARING
21 1007732-00 MANIC SLEEVE OTTO
22 1007798-00 BRIDGE
23 N047446 BRUSH HOLDER 230V
23 N047304 BRUSH HOLDER 115V LX
24 N047424 BRUSH PAIR 230V
24 N047286 BRUSH PAIR 120V LX
25 N047444 SA BRUSH HOLDER 230V SENSOR
26 N016920 BAFFLE FAN
27 330065-08 SCREW M4x18 T20
28 1006592-01 FAN SA
29 324119-02 SCREW
40 1008683-00 END CAP
41 1006576-02 MOTOR COVER
42 N041751 GACC MODULE 230V
42 N041754 GACC MODULE 115V LX
49 1005672-00 SCREW
50 1007939-00 COVER PLATE
60 1007569-00 SPRING
61 1007567-00 BUSH
62 1007566-00 STOP
63 1007565-00 BELLOWS
64 1008681-00 HOUSING HANDLE
65 587114-01 TRIGGER
66 587274-00 SWITCH
67 1008682-00 HANDLE COVER
68 N019514 TRIGGER LOCK-ON
69 N046423 SET OF LEAD WIRES
72 582319-41 CORDSET (EURO)
72 582319-02 CORDSET GB
80 1008678-00 BELLOWS
81 N038214 BUSH
82 N062047 PIN
83 324007-11 SCREW TORX M5 X 18
85 821070 CORD CLAMP
86 323091-01 CORD PROTECTOR
88 1008391-00 COVER
90 1007896-00 GUIDE
100 329816-00 LIP SEAL
101 326575-01 COLLAR
102 479247-00 SLEEVE SA
103 918825-02 SCREW
104 1006572-00 COVER
105 325878-00 ROLLER
106 325929-00 HALF WASHER
107 327208-00 GUIDE
108 323395-06 SPRING
109 487118-00 SPRING
110 N313860 GUIDE
110 325930-00 SPRING GUIDE
115 N501145 SIDE HANDLE inc 112 - DISCONTINUED
116 N040996 DEPTH ROD
119 N038151 FELT
120 N045793 BUSH
122 1007828-00 SEAL
123 N041835 HOUSING
126 1005982-00 WASHER
127 496191-00 DAMPER
128 N041834 SPINDLE
129 N455684 DAMPER
130 577484-00 SEAL
131 323711-10 O RING
135 N064329 WASHER
140 494857-00 BUSH
141 1006283-00 GASKET
142 1005748-00 SPRING
143 N210233 O RING
144 1006778-00 BUSH
145 N041846 CYLINDER
146 577744-00 O RING
147 N041845 RAM
148 576232-01 O RING
149 N041844 SLEEVE
150 1005749-00 SELECTOR FORK
160 N551764 BEVEL GEAR <WK 16 2018
161 325905-00 RETAINER
162 330041-22 PISTON PIN
163 N041843 PISTON
164 494724-00 CON ROD
165 1006721-00 GEARCASE COVER RH
166 1006786-00 SELECTOR
167 326467-00 DETENT
168 1006575-00 COVER-TOP
169 323711-57 O RING
170 N019533 MICRO SWITCH
172 496856-00 ECCENTRIC
180 1006784-00 SLIDER
181 323395-32 SPRING
182 1006783-00 CONNECTOR
183 496857-00 COVER
184 323711-59 O RING
185 1006785-00 PLATE
186 N041841 CRANKSHAFT
187 323711-26 O RING
188 N041840 HOUSING SA
190 577745-01 BEARING, BALL
191 586301-00 BEARING, NEEDLE
192 323711-57 O RING
193 1008427-00 SCREW.SPECIAL
201 1006720-00 GEARCASE COVER LH
202 N041839 CHAIN
203 N041837 GEAR
204 1006280-00 GUIDE
205 N551770 CLUTCH SA
206 1006282-00 GASKET
800 870889-02 GREASE RENOLIT PARAGON EP ½ - 90 GRAMS
800 870889-03 GREASE, 90 ML
810 N040237 TUBE OIL
816 N064908 BRAND LABEL
817 487395-01 LABEL
821 N029853 NAME PALTE
836 1003938-99 SERVICE TOOL
837 559645-99 S.T.SEAL FITTING TOOL
847 N095940 SERVICE KIT 230V
847 N081427 SERVICE KIT 230V GB
861 574931-22 KITBOX
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s DEWALT websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to DEWALT brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
DEWALT D25601-QS Tipo 1
6 Items

Data sheet

SHIPPING IN:
ON DEMAND ONLY
MORE INFO:
[email protected]
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

DEWALT D25601-QS Tipo 1 Drawing

DEWALT D25601-QS Tipo 1 Drawing

Download (781.51KB)

You might also like

DeWalt D25831K-QS Type 1 SA Brush Card 230V Sensor
DeWalt Power Tools SKU: N047444
DeWalt D25831K-QS Type 1 SA Brush Card 230V Sensor
DeWalt D25831K-QS Type 1 SA Brush Card 230V Sensor Genuine replacement part DeWALT, SA Brush Card 230V Sensor Assy for Dewalt D25831K-QS Type 1 Demolition Hammer. Part for the following items: - DeWalt D25831K-QS Type 1...
Last items in stock €31.94
Details
DeWalt D25831K-QS Type 1 SA Brush Card 230V
DeWalt Power Tools SKU: N047446
DeWalt D25831K-QS Type 1 SA Brush Card 230V
DeWalt D25831K-QS Type 1 SA Brush Card 230V Genuine replacement part DeWALT, SA Brush Card 230V Assy for Dewalt D25831K-QS Type 1 Demolition Hammer. Part for the following items: - DeWalt D25831K-QS Type 1 Demolition Hammer -...
Last items in stock €15.09
Details
DeWalt D25601K Demolition Hammer Bridge
DeWalt Power Tools SKU: 1007798-00
DeWalt D25601K Demolition Hammer Bridge
DeWalt D25601K Demolition Hammer Bridge Genuine replacement part DeWALT, Bridge for Demolition Hammer D25601K - D25831K. Part for the following items: - Demolition Hammer D25601K tipo 1 Modello: D25601K-QS - Demolition...
Last items in stock €8.64
Details
DeWalt D25601K Demolition Hammer Cover
DeWalt Power Tools SKU: 496857-00
DeWalt D25601K Demolition Hammer Cover
DeWalt D25601K Demolition Hammer Cover Genuine replacement part DeWALT, Cover for Demolition Hammer D25601K - D25831K. Part for the following items: - Demolition Hammer D25601K tipo 1 Modello: D25601K-QS -...
Last items in stock €5.72
Details
DeWalt D25601K Demolition Hammer Slider
DeWalt Power Tools SKU: 1006784-00
DeWalt D25601K Demolition Hammer Slider
DeWalt D25601K Demolition Hammer Slider Genuine replacement part DeWALT, Slider for Demolition Hammer D25601K - D25831K. Part for the following items: - Demolition Hammer D25601K tipo 1 Modello: D25601K-QS -...
Last items in stock €2.60
Details
DeWalt D25601K Demolition Hammer Connector
DeWalt Power Tools SKU: 1006783-00
DeWalt D25601K Demolition Hammer Connector
DeWalt D25601K Demolition Hammer Connector Genuine replacement part DeWALT, Connector for Demolition Hammer D25601K - D25831K. Part for the following items: - Demolition Hammer D25601K tipo 1 Modello: D25601K-QS -...
Last items in stock €1.94
Details
DeWalt D25601K Demolition Hammer Spring
DeWalt Power Tools SKU: 323395-32
DeWalt D25601K Demolition Hammer Spring
DeWalt D25601K Demolition Hammer Compression Spring Genuine replacement part DeWALT, Compression Spring for Demolition Hammer D25601K - D25831K. Part for the following items: - Demolition Hammer D25601K tipo 1...
on 7/10 Business Days Approx. €1.78
Details
DeWalt D25601K Demolition Hammer Bearing 608DW
DeWalt Power Tools SKU: 330003-60
DeWalt D25601K Demolition Hammer Bearing 608DW
DeWalt D25601K Demolition Hammer Bearing 608DW Genuine replacement part DeWALT, Ball Bearing 608DW for Demolition Hammer D25601K - D25831K. Part for the following items: - Demolition Hammer D25601K tipo 1 Modello:...
Last items in stock €6.54
Details
DeWalt D25601K Demolition Hammer O-Ring
DeWalt Power Tools SKU: 576232-01
DeWalt D25601K Demolition Hammer O-Ring 23x4MM
DeWalt D25601K Demolition Hammer O-Ring 23x4MM Genuine replacement part DeWALT, O-Ring for Demolition Hammer D25601K - D25831K. Part for the following items: - Demolition Hammer D25601K tipo 1 Modello: D25601K-QS -...
on 7/10 Business Days Approx. €8.02
Details
DeWalt D25601K Demolition Hammer Upper Bellow
DeWalt Power Tools SKU: 1007565-00
DeWalt D25601K Demolition Hammer Upper Bellows
DeWalt D25601K Demolition Hammer Upper Bellows Genuine replacement part DeWALT, Upper Handle Grip Bellows  for Demolition Hammer D25601K - D25831K. Part for the following items: - Demolition Hammer D25601K tipo 1...
Last items in stock €6.77
Details
DeWalt D25601K Demolition Hammer Lower Bellow
DeWalt Power Tools SKU: 1008678-00
DeWalt D25601K Demolition Hammer Lower Bellows
DeWalt D25601K Demolition Hammer Lower Bellows Genuine replacement part DeWALT, Lower Handle Grip Bellows for Demolition Hammer D25601K - D25831K. Part for the following items: - Demolition Hammer D25601K...
Last items in stock €6.94
Details
DeWalt D25601K Demolition Hammer Baffle Fan
DeWalt Power Tools SKU: N016920
DeWalt D25601K Demolition Hammer Baffle Fan
DeWalt D25601K Demolition Hammer Baffle Fan Genuine replacement part DeWALT, Baffle Fan for Demolition Hammer D25601K - D25831K. Part for the following items: - Demolition Hammer D25601K tipo 1 Modello: D25601K-QS -...
Last items in stock €10.21
Details
DeWalt D25601K Demolition Hammer Fan Assy
DeWalt Power Tools SKU: 1006592-01
DeWalt D25601K Demolition Hammer Fan Assy
DeWalt D25601K Demolition Hammer Fan Assembly Genuine replacement part DeWALT, Fan Assembly for Demolition Hammer D25601K - D25831K. Part for the following items: - Demolition Hammer D25601K tipo 1 Modello: D25601K-QS...
Last items in stock €28.85
Details
DeWalt D25601K Demolition Hammer Brush Pair 230V
DeWalt Power Tools SKU: N047424
DeWalt D25601K Demolition Hammer Brush Pair 230V
DeWalt D25601K Demolition Hammer Brush Pair 230V Genuine replacement part DeWALT, Brush Pair 230V for Demolition Hammer D25601K - D25831K. Part for the following items: - Demolition Hammer D25601K tipo 1 Modello:...
Last items in stock €21.05
Details
DeWalt D25500K-QS Sleeve SA
DeWalt Power Tools SKU: 479247-00
DeWalt D25500K-QS Sleeve SA
DeWalt D25500K-QS Sleeve SA Genuine replacement part DeWALT, Sleeve SA for Demolition Hammer D25601K - D25831K. Part for the following items: - Demolition Hammer D25500K tipo 1 Modello: D25500K-QS - Demolition Hammer...
build View Spare Parts
DeWalt D25500K-QS Lip Seal
DeWalt Power Tools SKU: 329816-00
DeWalt D25500K-QS Lip Seal
DeWalt D25500K-QS Lip Seal Genuine replacement part DeWALT, Lip Seal for Demolition Hammer D25601K - D25831K. Part for the following items: - Demolition Hammer D25500K tipo 1 Modello: D25500K-QS - Demolition Hammer...
Last items in stock €7.39
Details
DeWalt D25500K-QS Piston
DeWalt Power Tools SKU: N041843
DeWalt D25500K-QS Piston
DeWalt D25500K-QS Piston Genuine replacement part DeWALT, Piston for Demolition Hammer D25500K - D25601K - D25831K. Part for the following items: - Demolition Hammer D25500K tipo 1 Modello: D25500K-QS - Demolition Hammer...
Last items in stock €24.10
Details
DeWalt D25500K-QS Cap O-Ring
DeWalt Power Tools SKU: N210233
DeWalt D25500K-QS Cap O-Ring
DeWalt D25500K-QS Cap O-Ring 27,67x15,63x5,79 Genuine replacement part DeWALT, Cap O-Ring 27,67x15,63x5,79 for Demolition Hammer D25500K - D25601K - D25831K. Part for the following items: - Demolition Hammer D25500K...
build View Spare Parts
DeWalt D25500K Retainer Ring D.25,6
DeWalt Power Tools SKU: 325905-00
DeWalt D25500K Retainer Ring D.25,6
DeWalt D25500K-QS Retainer Ring D.25,6 Genuine replacement part DeWALT, Retainer Ring D.25,6 for Demolition Hammer D25601K - D25831K. Part for the following items: - Demolition Hammer D25500K tipo 1 Modello: D25500K-QS -...
Last items in stock €2.82
Details
DeWalt D25500K-QS O-Ring 26x2
DeWalt Power Tools SKU: 577744-00
DeWalt D25500K-QS O-Ring 26x2
DeWalt D25500K-QS O-Ring 26x2 Genuine replacement part DeWALT, O-Ring 26x2 for Demolition Hammer D25601K - D25831K. Part for the following items: - Demolition Hammer D25500K tipo 1 Modello: D25500K-QS - Demolition Hammer...
Last items in stock €3.86
Details
DeWalt D25500K-QS Screw M5x12
DeWalt Power Tools SKU: 324119-02
DeWalt D25500K-QS Screw M5x12
DeWalt D25500K-QS Screw M5x12 Genuine replacement part DeWALT, Screw M5x12 for Demolition Hammer D25601K - D25831K. Part for the following items: - Demolition Hammer D25500K tipo 1 Modello: D25500K-QS - Demolition Hammer...
Last items in stock €2.40
Details
DeWalt D25500K-QS Piston Pin
DeWalt Power Tools SKU: 330041-22
DeWalt D25500K-QS Piston Pin
DeWalt D25500K-QS Piston Pin Genuine replacement part DeWALT, Piston Pin 8x24 for Demolition Hammer D25500K - D25601K - D25831K. Part for the following items: - Demolition Hammer D25500K tipo 1 Modello: D25500K-QS -...
build View Spare Parts
DeWalt Grease Renolit Paragon EP 1/2 90Gr.
DeWalt Power Tools SKU: 870889-02
DeWalt Grease Renolit Paragon EP 1/2 90Gr.
DeWalt Grease Renolit Paragon EP 1/2 90Gr. Genuine replacement part DeWALT, Grease Renolit Paragon EP 1/2 90Gr. for Demolition Hammers DeWalt - Black&Decker. Part for the following items: - Demolition Hammer D25481 Modello:...
Last items in stock €21.10
Details
DeWalt D25481 Roller 8x20
DeWalt Power Tools SKU: 325878-00
DeWalt D25481 Roller 8x20
DeWalt D25481 Roller 8x20 Genuine replacement part DeWALT, Roller 8x20. for Demolition Hammers DeWalt. Part for the following items: - DEWALT D25614K TYPE 1 - DEWALT D25481 TYPE 1 - DEWALT D25500K TYPE 1 - DEWALT D25601-QS...
build View Spare Parts
DeWalt D25601K Field 230V
DeWalt Power Tools SKU: N041827
DeWalt D25601K Field 230V
DeWalt D25601K Demolition Hammer Field 230V Genuine replacement part DeWALT, Field 230V for Demolition Hammer D25601K. Part for the following items: - Demolition Hammer D25601K tipo 1 Modello: D25601K-QS - Code:...
Last items in stock €105.37
Details
DeWalt D25481 Demolition Hammer Collar
DeWalt Power Tools SKU: 326575-01
DeWalt D25481 Demolition Hammer Collar
DeWalt D25481 Demolition Hammer Collar Genuine replacement part DeWALT, Collar for Demolition Hammer D25481. Part for the following items: - Demolition Hammer D25481 Modello: D25481-QS - Demolition Hammer D25614K tipo 1 Modello:...
Last items in stock €8.01
Details
DeWalt D25601K Demolition Hammer Guide
DeWalt Power Tools SKU: 1006280-00
DeWalt D25601K Demolition Hammer Guide
DeWalt D25601K Demolition Hammer Guide Genuine replacement part DeWALT, Guide for Demolition Hammer - D25601K. Part for the following items: - Demolition Hammer D25601K tipo 1 Modello: D25601K-QS - Code: 1006280-00
Last items in stock €3.66
Details
DeWalt Detent for Hammer D25333K
DeWalt Power Tools SKU: 326467-00
DeWalt Detent for Hammer D25333K
DeWalt Detent for Rotary Hammer D25333K Genuine replacement part DeWALT, Detent for Hammer D25333K - D25003K - D25601-QS. Part for the following items: -  Rotary Hammer DEWALT D25333K Tipo 2...
AVAILABLE €4.50
Details
Dewalt Switch for D25601K
Metabo SKU: 587274-00
Dewalt Switch for D25601K
Dewalt Switch for Demolition Hammer D25601K Genuine part Metabo, Switch for Demolition Hammers D25601K. Parts for the following products: -  DEWALT Demolition Hammer D25601-QS Tipo 1 -...
Last items in stock €20.90
Details
Comments (0)
