DEWALT D25500K Type 1 Rotary Hammer Spare Parts

SKU: DEWALT D25500K Tipo 1
€27.57
VAT included

DEWALT D25500K Type 1 Rotary Hammer Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for DEWALT D25500K Type 1 Model: D25500K-QS Rotary Hammer.
DEWALT D25500K Type 1 Rotary Hammer Spare Parts
  • Online only
  • DEWALT D25500K Type 1 Rotary Hammer Spare Parts

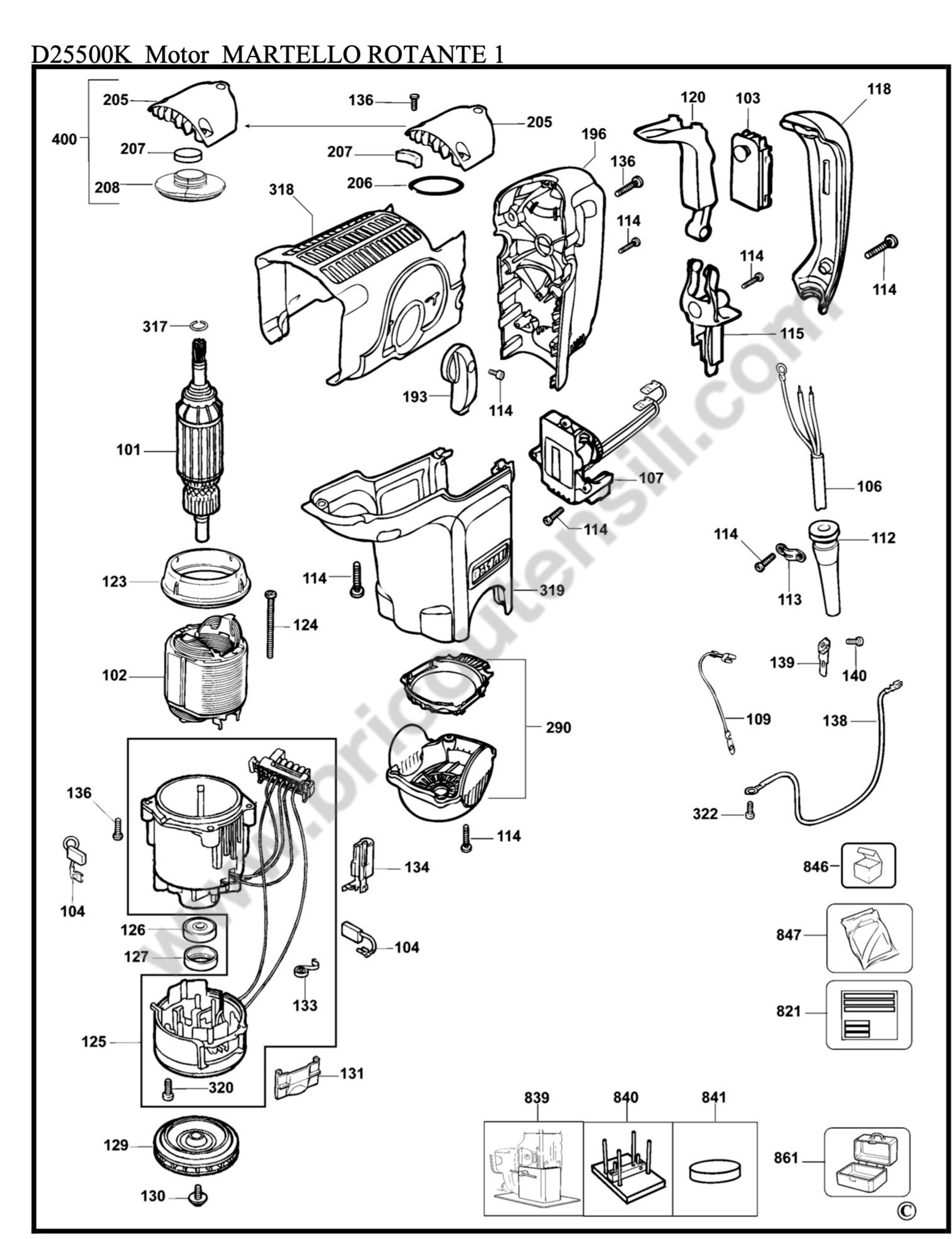

  • DEWALT D25500K Type 1 Rotary Hammer Spare Parts - Motor

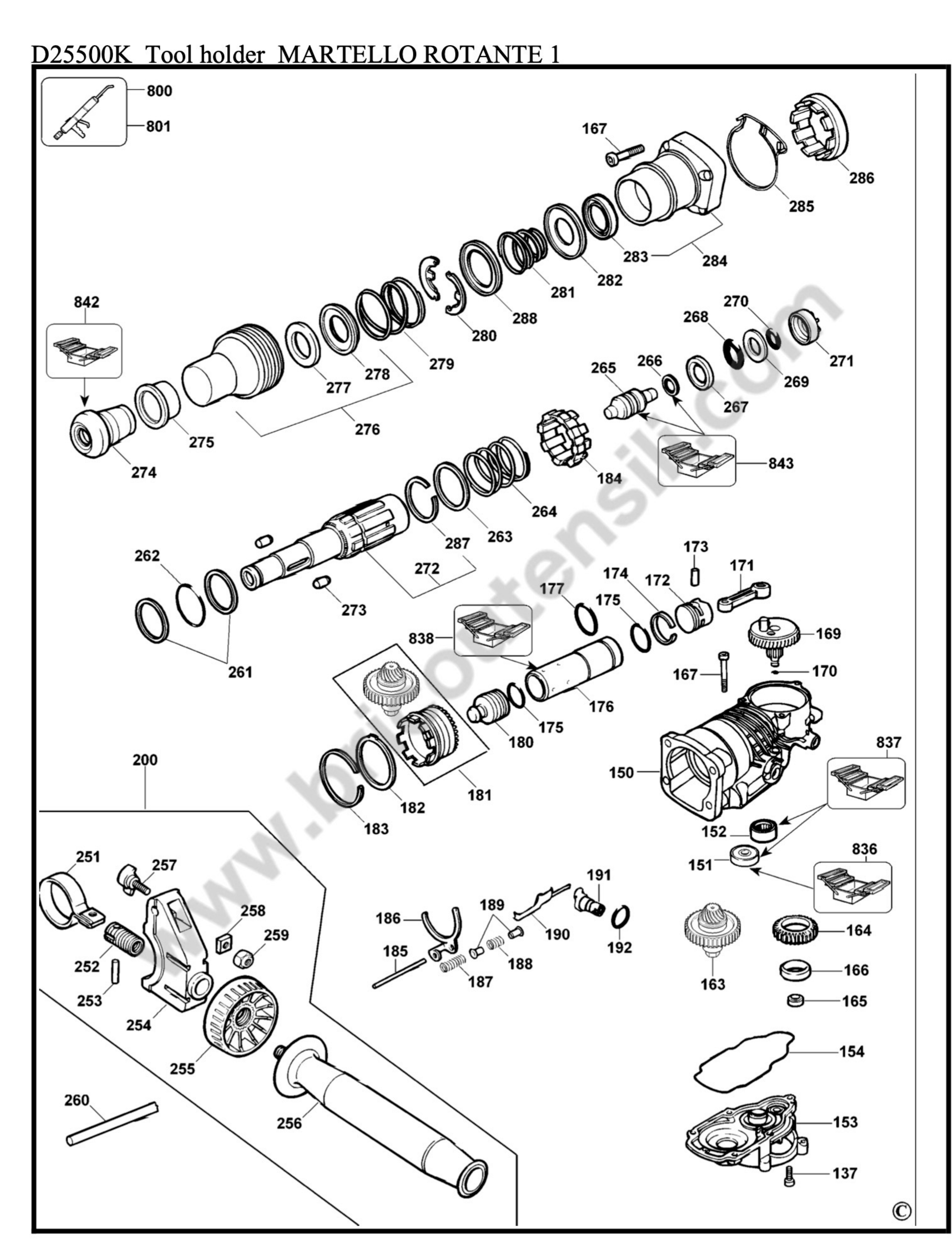

  • DEWALT D25500K Type 1 Rotary Hammer Spare Parts - Tool Holder

DEWALT D25500K Type 1 Rotary Hammer Spare Parts

SKU: DEWALT D25500K Tipo 1 Condition: New
€27.57
VAT included

DEWALT D25500K Type 1 Rotary Hammer Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for DEWALT D25500K Type 1 Model: D25500K-QS Rotary Hammer.
settings 144 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on Demand Only

SHIPPING IN:: ON DEMAND ONLY
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

119 spare parts
Page 1 zoom_in View exploded local_shipping ON DEMAND ONLY
Pos. Item Price Buy
103
photo_cameraImage coming soon 581070-00 SWITCH €26.00
106
photo_cameraImage coming soon 582319-00 CORDSET D25980 QS €28.74
112
photo_cameraImage coming soon 323091-01 PROTECTOR CORD 8.9 €2.66
113
photo_cameraImage coming soon 821070 CORD CLAMP €1.88
114
DeWalt D25481 Screw TX 4x18 330065-08 DeWalt D25481 Screw TX 4x18 €1.94
124
photo_cameraImage coming soon 330065-11 SCREW €1.68
126
photo_cameraImage coming soon 577745-00 BEARING 6000 T1XDDW €8.74
130
DeWalt D25500K-QS Screw M5x12 324119-02 DeWalt D25500K-QS Screw M5x12 €2.40
131
photo_cameraImage coming soon 326579-00 SHUTTER €2.08
133
photo_cameraImage coming soon 326667-00 BRUSH SPRING €2.26
136
photo_cameraImage coming soon 324007-11 SCREW TORX €1.68
137
photo_cameraImage coming soon 324007-11 SCREW TORX €1.68
151
DeWalt D25601K Demolition Hammer Bearing 6001DW 577745-01 DeWalt D25601K Demolition Hammer Bearing 6001DW €9.27
165
photo_cameraImage coming soon 327141-05 SEAL €8.35
167
photo_cameraImage coming soon 918825-02 SCREW €1.83
169
photo_cameraImage coming soon 582431-00 CRANKSHAFT €89.52
170
DeWalt Hammer D25481 O-Ring 323711-26 DeWalt Hammer D25481 O-Ring €2.57
171
DeWalt D25500K-QS Conrod 325002-00 DeWalt D25500K-QS Conrod €8.38
172
DeWalt D25500K-QS Piston N041843 DeWalt D25500K-QS Piston €24.10
173
DeWalt D25500K-QS Piston Pin 330041-22 DeWalt D25500K-QS Piston Pin €3.07
174
DeWalt D25500K Retainer Ring D.25,6 325905-00 DeWalt D25500K Retainer Ring D.25,6 €2.82
175
DeWalt D25601K Demolition Hammer O-Ring 23x4MM 576232-01 DeWalt D25601K Demolition Hammer O-Ring 23x4MM €8.02
177
DeWalt D25500K-QS O-Ring 26x2 577744-00 DeWalt D25500K-QS O-Ring 26x2 €3.86
185
photo_cameraImage coming soon 325880-02 SHAFT,CIL. 4,75X82,5 €3.45
187
photo_cameraImage coming soon 323395-08 SPRING 1.25/5.2 €1.68
189
photo_cameraImage coming soon 326093-00 SPACER €1.88
190
photo_cameraImage coming soon 577731-00 LINK €4.23
191
photo_cameraImage coming soon 577718-00 ECCENTRIC SA €2.46
192
photo_cameraImage coming soon 323711-07 O-RING, O 11.5X2.4 €1.68
200
photo_cameraImage coming soon N021271 HANDLE SA €58.51
207
photo_cameraImage coming soon 487229-00 FILTER €1.88
251
DeWalt D25481 Hammer Collar, SDS 326555-00 DeWalt D25481 Hammer Collar, SDS €8.85
252
photo_cameraImage coming soon 326552-01 BUSH €7.17
253
photo_cameraImage coming soon N079374 PIN €1.68
255
photo_cameraImage coming soon 326553-00 LOCKING RING, SW €11.68
257
photo_cameraImage coming soon 326573-00 SCREW WING M6 €1.68
258
photo_cameraImage coming soon 326556-00 NUT M6 €2.08
259
photo_cameraImage coming soon 330021-01 NUT, 6KT M6ISO7040 €5.80
261
photo_cameraImage coming soon 323753-11 WASHER 41X48 €2.86
264
photo_cameraImage coming soon 323395-07 SPRING 2.2/44.2 €1.88
266
DeWalt D25481 Demolition Hammer Seal N244259 DeWalt D25481 Demolition Hammer Seal €11.33
267
photo_cameraImage coming soon 582381-00 WASHER €8.35
268
O-RING 577744-02 O-RING €4.14
269
photo_cameraImage coming soon 323753-16 WASHER,18.5X35X1.6 , 5098-99 €2.86
270
DeWalt D25500K-QS Cap O-Ring N210233 DeWalt D25500K-QS Cap O-Ring €2.82
271
photo_cameraImage coming soon 326044-01 BUSH €3.45
273
DeWalt D25481 Roller 8x20 325878-00 DeWalt D25481 Roller 8x20 €32.35
274
DeWalt D25500K-QS Lip Seal 329816-00 DeWalt D25500K-QS Lip Seal €7.39
275
DeWalt D25500K-QS Collar SDS 326575-02 DeWalt D25500K-QS Collar SDS €4.47
276
DeWalt D25500K-QS Sleeve SA 479247-00 DeWalt D25500K-QS Sleeve SA €11.34
279
photo_cameraImage coming soon 323395-06 SPRING €1.68
280
photo_cameraImage coming soon 325929-00 HALF WASHER €1.88
281
photo_cameraImage coming soon 487118-00 SPRING €2.26
282
photo_cameraImage coming soon 325930-00 SPRING GUIDE €6.58
282
photo_cameraImage coming soon N313860 GUIDE €6.58
283
DeWalt D25481 Demolition Hammer Seal, Lip 327141-00 DeWalt D25481 Demolition Hammer Seal, Lip €5.20
285
DeWalt D25500K-QS Housing SA Gasket 577727-01 DeWalt D25500K-QS Housing SA Gasket €4.70
288
photo_cameraImage coming soon 327208-00 GUIDE €1.68
290
photo_cameraImage coming soon 578493-00 END CAP €13.64
317
photo_cameraImage coming soon 577746-00 RING €2.26
318
photo_cameraImage coming soon 577708-00 COVER-TOP €11.09
320
photo_cameraImage coming soon 323924-08 SCREW, PLASTIC 5X12 €1.73
322
photo_cameraImage coming soon 326619-00 SCREW M4X8 €1.68
801
photo_cameraImage coming soon 328771-07 BIT GREASE 50G €8.74
830
photo_cameraImage coming soon 487395-01 LABEL €1.88
837
photo_cameraImage coming soon 559633-99 S.T.MANDREL €38.55
839
photo_cameraImage coming soon 559656-99 S.T.SUPPORT JIG €119.90
840
photo_cameraImage coming soon 559597-99 S.T.ASSEMBLY JIG €53.05
842
photo_cameraImage coming soon 559644-99 S.T.LIP SEAL REMOVER €41.67
843
photo_cameraImage coming soon 559645-99 S.T.SEAL FITTING TOOL €45.41
Page 2 zoom_in View exploded local_shipping ON DEMAND ONLY
Pos. Item Price Buy
151
DeWalt D25601K Demolition Hammer Bearing 6001DW 577745-01 DeWalt D25601K Demolition Hammer Bearing 6001DW €9.27
165
photo_cameraImage coming soon 327141-05 SEAL €8.35
167
photo_cameraImage coming soon 918825-02 SCREW €1.83
169
photo_cameraImage coming soon 582431-00 CRANKSHAFT €89.52
170
DeWalt Hammer D25481 O-Ring 323711-26 DeWalt Hammer D25481 O-Ring €2.57
171
DeWalt D25500K-QS Conrod 325002-00 DeWalt D25500K-QS Conrod €8.38
172
DeWalt D25500K-QS Piston N041843 DeWalt D25500K-QS Piston €24.10
173
DeWalt D25500K-QS Piston Pin 330041-22 DeWalt D25500K-QS Piston Pin €3.07
174
DeWalt D25500K Retainer Ring D.25,6 325905-00 DeWalt D25500K Retainer Ring D.25,6 €2.82
175
DeWalt D25601K Demolition Hammer O-Ring 23x4MM 576232-01 DeWalt D25601K Demolition Hammer O-Ring 23x4MM €8.02
177
DeWalt D25500K-QS O-Ring 26x2 577744-00 DeWalt D25500K-QS O-Ring 26x2 €3.86
185
photo_cameraImage coming soon 325880-02 SHAFT,CIL. 4,75X82,5 €3.45
187
photo_cameraImage coming soon 323395-08 SPRING 1.25/5.2 €1.68
189
photo_cameraImage coming soon 326093-00 SPACER €1.88
190
photo_cameraImage coming soon 577731-00 LINK €4.23
191
photo_cameraImage coming soon 577718-00 ECCENTRIC SA €2.46
192
photo_cameraImage coming soon 323711-07 O-RING, O 11.5X2.4 €1.68
200
photo_cameraImage coming soon N021271 HANDLE SA €58.51
251
DeWalt D25481 Hammer Collar, SDS 326555-00 DeWalt D25481 Hammer Collar, SDS €8.85
252
photo_cameraImage coming soon 326552-01 BUSH €7.17
253
photo_cameraImage coming soon N079374 PIN €1.68
255
photo_cameraImage coming soon 326553-00 LOCKING RING, SW €11.68
257
photo_cameraImage coming soon 326573-00 SCREW WING M6 €1.68
258
photo_cameraImage coming soon 326556-00 NUT M6 €2.08
259
photo_cameraImage coming soon 330021-01 NUT, 6KT M6ISO7040 €5.80
261
photo_cameraImage coming soon 323753-11 WASHER 41X48 €2.86
264
photo_cameraImage coming soon 323395-07 SPRING 2.2/44.2 €1.88
266
DeWalt D25481 Demolition Hammer Seal N244259 DeWalt D25481 Demolition Hammer Seal €11.33
267
photo_cameraImage coming soon 582381-00 WASHER €8.35
268
O-RING 577744-02 O-RING €4.14
269
photo_cameraImage coming soon 323753-16 WASHER,18.5X35X1.6 , 5098-99 €2.86
270
DeWalt D25500K-QS Cap O-Ring N210233 DeWalt D25500K-QS Cap O-Ring €2.82
271
photo_cameraImage coming soon 326044-01 BUSH €3.45
273
DeWalt D25481 Roller 8x20 325878-00 DeWalt D25481 Roller 8x20 €32.35
274
DeWalt D25500K-QS Lip Seal 329816-00 DeWalt D25500K-QS Lip Seal €7.39
275
DeWalt D25500K-QS Collar SDS 326575-02 DeWalt D25500K-QS Collar SDS €4.47
276
DeWalt D25500K-QS Sleeve SA 479247-00 DeWalt D25500K-QS Sleeve SA €11.34
279
photo_cameraImage coming soon 323395-06 SPRING €1.68
280
photo_cameraImage coming soon 325929-00 HALF WASHER €1.88
281
photo_cameraImage coming soon 487118-00 SPRING €2.26
282
photo_cameraImage coming soon 325930-00 SPRING GUIDE €6.58
282
photo_cameraImage coming soon N313860 GUIDE €6.58
283
DeWalt D25481 Demolition Hammer Seal, Lip 327141-00 DeWalt D25481 Demolition Hammer Seal, Lip €5.20
285
DeWalt D25500K-QS Housing SA Gasket 577727-01 DeWalt D25500K-QS Housing SA Gasket €4.70
288
photo_cameraImage coming soon 327208-00 GUIDE €1.68
801
photo_cameraImage coming soon 328771-07 BIT GREASE 50G €8.74
837
photo_cameraImage coming soon 559633-99 S.T.MANDREL €38.55
842
photo_cameraImage coming soon 559644-99 S.T.LIP SEAL REMOVER €41.67
843
photo_cameraImage coming soon 559645-99 S.T.SEAL FITTING TOOL €45.41

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

DEWALT D25500K Type 1 Rotary Hammer Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for DEWALT D25500K Type 1 Model: D25500K-QS Rotary Hammer.

In the following table, look for the model of the hammer and the respective parts of the code.
DEWALT D25500K Type 1 Model: D25500K-QS Combination Hammer Spare Parts

DeWalt D25500K Rotary Hammer 40 MM SDS MAX - Type 1 Spare Parts
Model D25500K-QS
# Part Num Description
103 581070-00 SWITCH
106 582319-00 CORDSET D25980 QS
112 323091-01 CORD PROTECTOR, 8.9
113 821070 CLAMP, CORD
114 330065-08 SCREW, ART.4X18
118 577712-00 HANDLE COVER
124 330065-11 VITE,ART.4X65
126 577745-00 BEARING 6000 T1XDDW
127 325279-00 SLEEVE MM 26
129 577736-00 FAN - Discontinued
130 324119-02 SCREW, M5X12
131 326579-00 SHUTTER
133 326667-00 BRUSH SPRING
134 326933-01 HOLDER
136 324007-11 SCREW, TORX, SELF. 5X18
137 324007-11 SCREW, TORX,SELF. 5X18
150 578487-02 GEARCASE SA
151 577745-01 BEARING,BALL
153 578486-01 GEARCASE COVER SA
165 327141-05 SEAL
167 918825-02 SCREW, CIL.M6X40/12.9
169 582431-00 CRANKSHAFT
170 323711-26 O-RING
171 325002-00 CON ROD
172 N041843 PISTON 8.60 NEW N041843
173 330041-22 PISTON PIN, 8X24
174 325905-00 RETAINER D=25.6
175 576232-01 O-RING
177 577744-00 O-RING
181 496440-00 REPAIR KIT
183 323763-03 CIRCLIP 58X61
185 325880-02 SHAFT,CIL. 4,75X82,5
187 323395-08 SPRING 1.25/5.2
189 326093-00 SPACER
190 577731-00 LINK
191 577718-00 ECCENTRIC SA
192 323711-07 O-RING, O 11.5X2.4
200 N021271 HANDLE SA
207 487229-00 FILTER
208 491348-01 CAP + GASKET
251 326555-00 COLLAR, SDS
252 326552-01 BUSH
253 N079374 PIN
254 N021108 CLAMP
255 326553-00 LOCKING RING, SW
257 326573-00 SCREW WING M6
258 326556-00 NUT M6
259 330021-01 NUT, 6KT M6ISO7040
260 326205-00 DEPTH ROD, METALLO
261 323753-11 WASHER 41X48
263 323753-14 WASHER 44.4X50
264 323395-07 SPRING 2.2/44.2
265 582432-01 BEAT PIECE
266 N244259 SEAL 5.40 old 577484-00
267 582381-00 WASHER
268 577744-02 O-RING
269 323753-16 WASHER,18.5X35X1.6 , 5098-99
270 N210233 O-RING
271 326044-01 CAP
273 325878-00 ROLLER ,8X20
274 329816-00 LIP SEAL
275 326575-02 COLLAR, SDS
276 479247-00 SLEEVE SA
279 323395-06 SPRING 2.2/47.8
280 325929-00 HALF WASHER
281 487118-00 SPRING
282 325930-00 GUIDA,PIASTRA
282 N313860 GUIDE
283 327141-00 SEAL
284 578489-00 HOUSING SA
285 577727-01 GASKET
288 327208-00 GUIDE
290 578493-00 END CAP
317 577746-00 RING
318 577708-00 COVER-TOP
319 577709-00 HOUSING LOWER
320 323924-08 SCREW, PLASTIC 5X12
322 326619-00 SCREW M4X8
400 493136-00 COVER SA
801 328771-07 BIT GREASE 50G
830 487395-01 CARTELLO
837 559633-99 S.T.MANDREL
839 559656-99 S.T.SUPPORT JIG
840 559597-99 S.T.ASSEMBLY JIG
842 559644-99 S.T.LIP SEAL REMOVER
843 559645-99 S.T.SEAL FITTING TOOL
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s DEWALT websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to DEWALT brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
DEWALT D25500K Tipo 1
6 Items

Data sheet

SHIPPING IN:
ON DEMAND ONLY
MORE INFO:
[email protected]
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

DEWALT D25500K Tipo 1 Drawing

DEWALT D25500K Tipo 1 Drawing

Download (743.63KB)

You might also like

DeWalt Power Tools SKU: N244259
DeWalt D25481 Demolition Hammer Seal Genuine replacement part DeWALT, Seal 5.40 for Demolition Hammer D25481 - D25500K - D25831K. Part for the following items: - Demolition Hammer D25481 Modello: D25481-QS - Demolition Hammer...
on 7/10 Business Days Approx. €11.33
DeWalt Power Tools SKU: 576232-01
DeWalt D25601K Demolition Hammer O-Ring 23x4MM Genuine replacement part DeWALT, O-Ring for Demolition Hammer D25601K - D25831K. Part for the following items: - Demolition Hammer D25601K tipo 1 Modello: D25601K-QS -...
on 7/10 Business Days Approx. €8.02
DeWalt Power Tools SKU: 479247-00
DeWalt D25500K-QS Sleeve SA Genuine replacement part DeWALT, Sleeve SA for Demolition Hammer D25601K - D25831K. Part for the following items: - Demolition Hammer D25500K tipo 1 Modello: D25500K-QS - Demolition Hammer...
DeWalt Power Tools SKU: 329816-00
DeWalt D25500K-QS Lip Seal Genuine replacement part DeWALT, Lip Seal for Demolition Hammer D25601K - D25831K. Part for the following items: - Demolition Hammer D25500K tipo 1 Modello: D25500K-QS - Demolition Hammer...
Last items in stock €7.39
DeWalt Power Tools SKU: N041843
DeWalt D25500K-QS Piston Genuine replacement part DeWALT, Piston for Demolition Hammer D25500K - D25601K - D25831K. Part for the following items: - Demolition Hammer D25500K tipo 1 Modello: D25500K-QS - Demolition Hammer...
Last items in stock €24.10
DeWalt Power Tools SKU: N210233
DeWalt D25500K-QS Cap O-Ring 27,67x15,63x5,79 Genuine replacement part DeWALT, Cap O-Ring 27,67x15,63x5,79 for Demolition Hammer D25500K - D25601K - D25831K. Part for the following items: - Demolition Hammer D25500K...
DeWalt Power Tools SKU: 325002-00
DeWalt D25500K-QS Conrod Genuine replacement part DeWALT, Connecting Rod for Demolition Hammer D25500K. Part for the following items: - Demolition Hammer D25500K tipo 1 Modello: D25500K-QS - Code: 325002-00
Last items in stock €8.38
DeWalt Power Tools SKU: 577727-01
DeWalt D25500K-QS Housing SA Gasket Genuine replacement part DeWALT, Housing SA Gasket for Demolition Hammer D25500K. Part for the following items: - Demolition Hammer D25500K tipo 1 Modello: D25500K-QS - Code: 325002-00
Last items in stock €4.70
DeWalt Power Tools SKU: 325905-00
DeWalt D25500K-QS Retainer Ring D.25,6 Genuine replacement part DeWALT, Retainer Ring D.25,6 for Demolition Hammer D25601K - D25831K. Part for the following items: - Demolition Hammer D25500K tipo 1 Modello: D25500K-QS -...
Last items in stock €2.82
DeWalt Power Tools SKU: 577744-00
DeWalt D25500K-QS O-Ring 26x2 Genuine replacement part DeWALT, O-Ring 26x2 for Demolition Hammer D25601K - D25831K. Part for the following items: - Demolition Hammer D25500K tipo 1 Modello: D25500K-QS - Demolition Hammer...
Last items in stock €3.86
DeWalt Power Tools SKU: 326575-02
DeWalt D25500K-QS Collar SDS Genuine replacement part DeWALT, Collar, SDS for Demolition Hammer D25500K. Part for the following items: - Demolition Hammer D25500K tipo 1 Modello: D25500K-QS - Code: 326575-02
DeWalt Power Tools SKU: 324119-02
DeWalt D25500K-QS Screw M5x12 Genuine replacement part DeWALT, Screw M5x12 for Demolition Hammer D25601K - D25831K. Part for the following items: - Demolition Hammer D25500K tipo 1 Modello: D25500K-QS - Demolition Hammer...
Last items in stock €2.40
DeWalt Power Tools SKU: 330041-22
DeWalt D25500K-QS Piston Pin Genuine replacement part DeWALT, Piston Pin 8x24 for Demolition Hammer D25500K - D25601K - D25831K. Part for the following items: - Demolition Hammer D25500K tipo 1 Modello: D25500K-QS -...
DeWalt Power Tools SKU: 327141-00
DeWalt D25481 Demolition Hammer Seal, Lip Genuine replacement part DeWALT, Seal, Lip for Demolition Hammer D25481 - D25500K. Part for the following items: - Demolition Hammer D25481 Modello: D25481-QS - Demolition Hammer D25500K...
on 7/10 Business Days Approx. €5.20
DeWalt Power Tools SKU: 577744-02
DeWalt D25500K-QS O-Ring 577744-02 Genuine replacement part DeWALT, O-Ring for Demolition Hammer D25500K. Part for the following items: - Demolition Hammer D25500K tipo 1 Modello: D25500K-QS - Code: 577744-02
Last items in stock €4.14
DeWalt Power Tools SKU: 330065-08
DeWalt D25481 Demolition Hammer Screw TX 4x18 Genuine replacement part DeWALT, Screw TX 4x18 for Demolition Hammer D25481. Part for the following items: - Demolition Hammer D25481 Modello: D25481-QS - Demolition Hammer D25614K...
on 7/10 Business Days Approx. €1.94
DeWalt Power Tools SKU: 325878-00
DeWalt D25481 Roller 8x20 Genuine replacement part DeWALT, Roller 8x20. for Demolition Hammers DeWalt. Part for the following items: - DEWALT D25614K TYPE 1 - DEWALT D25481 TYPE 1 - DEWALT D25500K TYPE 1 - DEWALT D25601-QS...
DeWalt Power Tools SKU: 326555-00
DeWalt D25481 Demolition Hammer Collar, SDS Genuine replacement part DeWALT, Collar, SDS for Demolition Hammer D25500K. Part for the following items: - Demolition Hammer D25500K Modello: D25500K-QS - Code: 326555-00
Last items in stock €8.85
Comments (0)
