DEWALT D25481 Type 1 Rotary Hammer Spare Parts

Name: DEWALT D25481 Type 1 Rotary Hammer Spare Parts
Brand: DeWalt Power Tools
SKU: DEWALT D25481 Tipo 1
Availability: InStock

SKU: DEWALT D25481 Tipo 1

€87.68

VAT included

DEWALT D25481 Type 1 Rotary Hammer Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for DEWALT D25481 Type 1 Model: D25481-QS Rotary Hammer Spare Parts.

214 spare parts

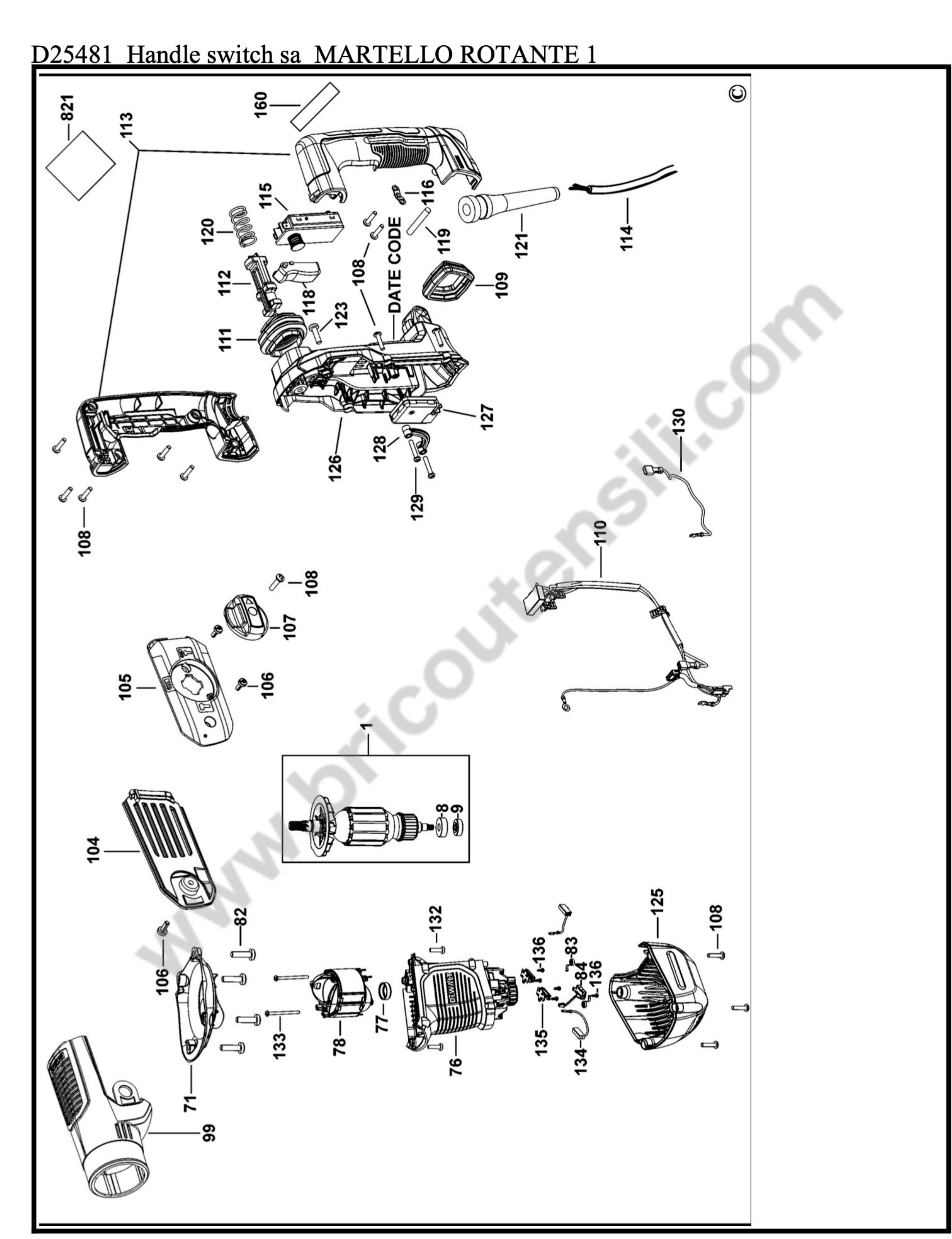

Page 1 View exploded ON DEMAND ONLY

Pos.		Item	Price
1	Image coming soon	N491963 ARMATURES 230V	€89.71
1	Image coming soon	N491976 ARMATURES 120V	€82.66
2	Image coming soon	N491979 PISTON ASSEMBLY	€26.00
8		330003-60 DeWalt D25601K Demolition Hammer Bearing 608DW	€6.54
9		N466979 DeWalt Hammer D25733K Magnet	€7.72
11	Image coming soon	327575-00 SLEEVE	€1.88
12	Image coming soon	N110358 BEARING 608	€6.56
13		N495599 DeWalt Hammer D25481 Seal	€6.17
14		577745-01 DeWalt D25601K Demolition Hammer Bearing 6001DW	€9.27
15		488147-01 DeWalt D25733K Snap Ring 30	€1.78
23	Image coming soon	N406776 PISTON	€10.69
25	Image coming soon	N446699 PIN	€2.08
27	Image coming soon	N487314 O-RING	€6.58
28	Image coming soon	N491986 RAM SA	€19.71
29	Image coming soon	N487314 O-RING	€6.58
30	Image coming soon	N571895 SPINDLE - FROM CODE WK01 2018	€138.34
30	Image coming soon	N571916 SPINDLE - TO CODE WK52 2017	€215.79
31	Image coming soon	N410350 O-RING	€2.46
32	Image coming soon	N431706 BUSH	€4.62
33	Image coming soon	N410349 O-RING	€5.60
34	Image coming soon	N431708 WASHER	€5.60
35	Image coming soon	N440708 WASHER - TO CODE WK52 2017	€2.08
35	Image coming soon	N545367 SPACER - FROM CODE WK01 2018	€3.45
36	Image coming soon	N504457 DAMPER - FROM CODE WK01 2018	€7.17
37	Image coming soon	N446368 BEARING - TO CODE WK52 2017	€19.71
37	Image coming soon	N536109 BEARING - FROM CODE WK01 2018	€19.71
38	Image coming soon	N492498 BEAT PIECE	€39.13
39		N244259 DeWalt D25481 Demolition Hammer Seal	€11.33
40	Image coming soon	N487314 O-RING	€6.58
41	Image coming soon	N571895 SPINDLE - FROM CODE WK01 2018	€138.34
41	Image coming soon	N571916 SPINDLE - TO CODE WK52 2017	€215.79
42	Image coming soon	N506088 HOUSING SA	€77.76
44	Image coming soon	N410187 GEAR PANEL	€77.76
45	Image coming soon	N410188 SLEEVE	€11.09
46	Image coming soon	N433094 SLEEVE	€5.02
47	Image coming soon	N437808 SPRING	€1.88
48	Image coming soon	N437814 SPRING	€2.46
49	Image coming soon	N460603 SUPPORT	€1.88
51	Image coming soon	N432556 O-RING	€5.60
52	Image coming soon	N526257 SLEEVE	€2.46
53		327141-00 DeWalt D25481 Demolition Hammer Seal, Lip	€5.20
54	Image coming soon	N532870 CIRCLIP	€1.88
55	Image coming soon	N439579 CAP	€2.46
56	Image coming soon	N492496 CRANKSHAFT inc 65,66,67	€41.67
57		323711-26 DeWalt Hammer D25481 O-Ring	€2.57
59	Image coming soon	N432869 CIRCLIP	€1.88
60	Image coming soon	N571701 SPRING	€1.68
61	Image coming soon	N406228 SLEEVE	€39.13
62	Image coming soon	N450900 PIN	€1.68
63	Image coming soon	N422799 SELECTOR FORK	€6.58
64	Image coming soon	N553858 O-RING	€1.68
65	Image coming soon	N435997 ECCENTRIC	€2.46
66	Image coming soon	N422798 PLATE	€2.46
67	Image coming soon	N422797 PLATE	€1.88
68	Image coming soon	N445171 SCREW	€1.83
70	Image coming soon	N492837 CLUTCH ASSEMBLY	€72.85
71	Image coming soon	N435623 BAFFLE FANS	€2.86
76	Image coming soon	N433780 HOUSING MOTOR	€26.00
77	Image coming soon	N449094 BEARING COVER	€1.68
78	Image coming soon	N492847 FIELD 230V	€46.98
78	Image coming soon	N492848 FIELD 120V LX	€53.05
79	Image coming soon	N492874 GEAR	€34.23
80		N422796 DeWalt Hammer D25481 Gasket	€3.09
81	Image coming soon	N491766 HOUSING GEAR SA	€46.98
82	Image coming soon	324007-11 SCREW TORX	€1.68
83	Image coming soon	N444425 BRUSHE SPRING	€1.68
84	Image coming soon	N448156 COIL	€16.97
85	Image coming soon	N504436 O-RING	€1.68
86	Image coming soon	N452721 CAP	€2.46
87	Image coming soon	N395554 FELT	€2.08
89		325878-00 DeWalt D25481 Roller 8x20	€32.35
90	Image coming soon	N038151 FELT	€2.66
91	Image coming soon	N465749 WASHER	€2.66
92	Image coming soon	323395-06 SPRING	€1.68
93	Image coming soon	487118-00 SPRING	€2.26
94		N464690 DeWalt D25481 Guide	€1.78
95		N468172 DeWalt D25481 Locking Pin	€3.06
96	Image coming soon	N464913 SLEEVE	€14.23
97		326575-01 DeWalt D25481 Demolition Hammer Collar	€8.01
98	Image coming soon	N465586 LIP SEAL	€27.37
99	Image coming soon	N429783 COVER	€10.11
104	Image coming soon	N431333 SIDE RH	€2.86
105	Image coming soon	N877353 SIDE LH	€4.43
106	Image coming soon	N445171 SCREW	€1.83
107	Image coming soon	N464282 SELECTOR ASSEMBLY	€4.62
108		330065-08 DeWalt D25481 Screw TX 4x18	€1.94
109	Image coming soon	N452043 BELLOWS	€2.46
110	Image coming soon	N452385 SET OF LEAD WIRES LH	€26.00
111	Image coming soon	N452042 BELLOWS	€3.45
112		N152623 DeWALT D25733K Stop	€10.19
113	Image coming soon	N492860 CLAMSHELL SET	€22.46
114	Image coming soon	1005752-00 CORDSET LH (EURO)	€19.71
115		N862131 DeWalt D25481 Switch	€27.78
116	Image coming soon	821070 CORD CLAMP	€1.88
118	Image coming soon	587114-01 TRIGGER	€2.08
119	Image coming soon	N159443 AXIS	€2.56
120		N106188 DeWALT D25614K Spring Compression	€2.64
121	Image coming soon	323091-01 PROTECTOR CORD 8.9	€2.66
123	Image coming soon	324007-11 SCREW TORX	€1.68
125	Image coming soon	N438602 END CAP	€11.09
126	Image coming soon	N438601 CLAMSHELL	€24.45
127		N492852 DeWalt D25481 Control Module SA	€56.27
127	Image coming soon	N492859 S/G CONTROL MODULE LX	€53.05
128	Image coming soon	N449848 BRACKET	€1.68
129	Image coming soon	N371839 SCREW	€1.68
130	Image coming soon	N450546 LEAD SA	€5.02
132	Image coming soon	324007-11 SCREW TORX	€1.68
133	Image coming soon	330065-10 SCREW	€1.68
134		N492849 DeWalt D25481 Brush Pair 230V	€16.98
134	Image coming soon	N492850 BRUSH PAIR 120V	€16.21
135	Image coming soon	N450097 BRUSH BOX	€2.46
136	Image coming soon	N086775 SCREW	€1.83
150	Image coming soon	N466680 HANDLE SIDE SA	€43.84
151	Image coming soon	N466673 CLAMP	€8.15
152	Image coming soon	N533870 HANDLE SA	€19.71
153	Image coming soon	N466679 CLAMP	€10.69
154	Image coming soon	N466678 BOLT	€2.08
155	Image coming soon	N466677 WASHER CLAMP	€1.68
160	Image coming soon	N196274 LABEL	€1.73
200	Image coming soon	N571916 SPINDLE - TO CODE WK52 2017	€215.79
800	Image coming soon	578970-04 GREASE,GLK 249NLGI 00-80G TUBE (SERVICE) 22.30	€52.15
821	Image coming soon	N495320 RATING PLATE GB	€1.68
837	Image coming soon	1003961-99 S.T.SUPPORT PLATE	€120.10
837	Image coming soon	1003962-99 S.T.DIS-ASSEMBLY JIG	€91.48
837	Image coming soon	1003964-99 S.T.SEAL FITTING TOOL	€45.79
837	Image coming soon	1003965-99 S.T.SEAL FITTING TOOL	€28.74
837	Image coming soon	1003966-99 S.T.LIP SEAL REMOVER	€28.74
847	Image coming soon	N513606 SERVICE KIT 230V TO D CODE WK52-2017	€53.05
847	Image coming soon	N513641 SERVICE KIT 115V LX	€53.05
847	Image coming soon	N680320 SERVICE KIT 230V FROM DCODE WK01-2018	€53.05
848	Image coming soon	1004727-66 SERVICE KIT 230V TO D CODE WK52-2017	€101.67
848	Image coming soon	1004727-67 SERVICE KIT 115V LX	€109.12
861	Image coming soon	N469730 KITBOX	€77.76

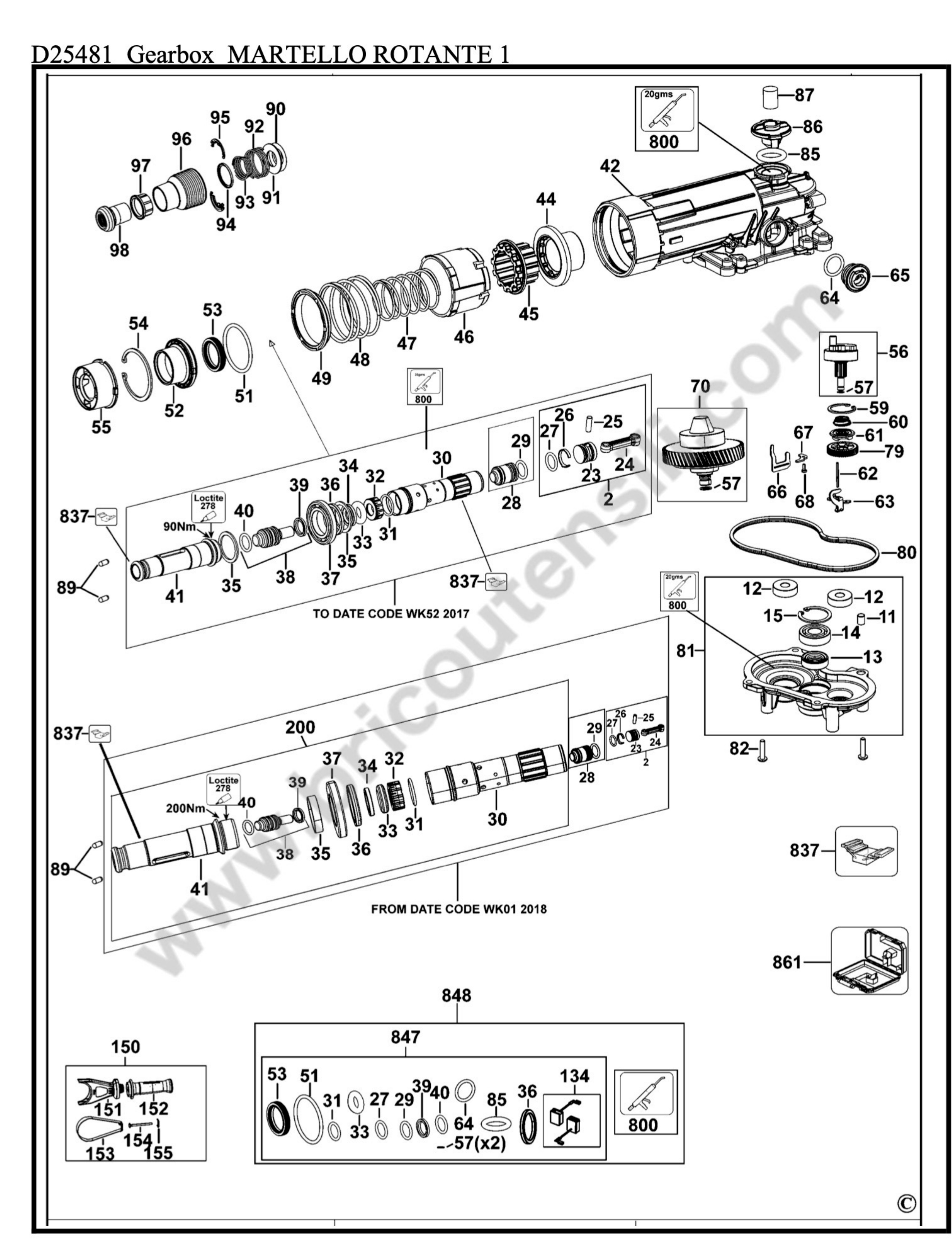

Page 2 View exploded ON DEMAND ONLY

Pos.		Item	Price
11	Image coming soon	327575-00 SLEEVE	€1.88
12	Image coming soon	N110358 BEARING 608	€6.56
13		N495599 DeWalt Hammer D25481 Seal	€6.17
14		577745-01 DeWalt D25601K Demolition Hammer Bearing 6001DW	€9.27
15		488147-01 DeWalt D25733K Snap Ring 30	€1.78
23	Image coming soon	N406776 PISTON	€10.69
25	Image coming soon	N446699 PIN	€2.08
27	Image coming soon	N487314 O-RING	€6.58
28	Image coming soon	N491986 RAM SA	€19.71
30	Image coming soon	N571895 SPINDLE - FROM CODE WK01 2018	€138.34
30	Image coming soon	N571916 SPINDLE - TO CODE WK52 2017	€215.79
31	Image coming soon	N410350 O-RING	€2.46
32	Image coming soon	N431706 BUSH	€4.62
33	Image coming soon	N410349 O-RING	€5.60
34	Image coming soon	N431708 WASHER	€5.60
35	Image coming soon	N440708 WASHER - TO CODE WK52 2017	€2.08
35	Image coming soon	N545367 SPACER - FROM CODE WK01 2018	€3.45
36	Image coming soon	N504457 DAMPER - FROM CODE WK01 2018	€7.17
37	Image coming soon	N446368 BEARING - TO CODE WK52 2017	€19.71
37	Image coming soon	N536109 BEARING - FROM CODE WK01 2018	€19.71
38	Image coming soon	N492498 BEAT PIECE	€39.13
39		N244259 DeWalt D25481 Demolition Hammer Seal	€11.33
42	Image coming soon	N506088 HOUSING SA	€77.76
44	Image coming soon	N410187 GEAR PANEL	€77.76
45	Image coming soon	N410188 SLEEVE	€11.09
46	Image coming soon	N433094 SLEEVE	€5.02
47	Image coming soon	N437808 SPRING	€1.88
48	Image coming soon	N437814 SPRING	€2.46
49	Image coming soon	N460603 SUPPORT	€1.88
51	Image coming soon	N432556 O-RING	€5.60
52	Image coming soon	N526257 SLEEVE	€2.46
53		327141-00 DeWalt D25481 Demolition Hammer Seal, Lip	€5.20
54	Image coming soon	N532870 CIRCLIP	€1.88
55	Image coming soon	N439579 CAP	€2.46
56	Image coming soon	N492496 CRANKSHAFT inc 65,66,67	€41.67
57		323711-26 DeWalt Hammer D25481 O-Ring	€2.57
59	Image coming soon	N432869 CIRCLIP	€1.88
60	Image coming soon	N571701 SPRING	€1.68
61	Image coming soon	N406228 SLEEVE	€39.13
62	Image coming soon	N450900 PIN	€1.68
63	Image coming soon	N422799 SELECTOR FORK	€6.58
64	Image coming soon	N553858 O-RING	€1.68
65	Image coming soon	N435997 ECCENTRIC	€2.46
66	Image coming soon	N422798 PLATE	€2.46
67	Image coming soon	N422797 PLATE	€1.88
68	Image coming soon	N445171 SCREW	€1.83
70	Image coming soon	N492837 CLUTCH ASSEMBLY	€72.85
79	Image coming soon	N492874 GEAR	€34.23
80		N422796 DeWalt Hammer D25481 Gasket	€3.09
81	Image coming soon	N491766 HOUSING GEAR SA	€46.98
85	Image coming soon	N504436 O-RING	€1.68
86	Image coming soon	N452721 CAP	€2.46
87	Image coming soon	N395554 FELT	€2.08
89		325878-00 DeWalt D25481 Roller 8x20	€32.35
90	Image coming soon	N038151 FELT	€2.66
91	Image coming soon	N465749 WASHER	€2.66
92	Image coming soon	323395-06 SPRING	€1.68
93	Image coming soon	487118-00 SPRING	€2.26
94		N464690 DeWalt D25481 Guide	€1.78
95		N468172 DeWalt D25481 Locking Pin	€3.06
96	Image coming soon	N464913 SLEEVE	€14.23
97		326575-01 DeWalt D25481 Demolition Hammer Collar	€8.01
98	Image coming soon	N465586 LIP SEAL	€27.37
150	Image coming soon	N466680 HANDLE SIDE SA	€43.84
151	Image coming soon	N466673 CLAMP	€8.15
152	Image coming soon	N533870 HANDLE SA	€19.71
153	Image coming soon	N466679 CLAMP	€10.69
154	Image coming soon	N466678 BOLT	€2.08
155	Image coming soon	N466677 WASHER CLAMP	€1.68
800	Image coming soon	578970-04 GREASE,GLK 249NLGI 00-80G TUBE (SERVICE) 22.30	€52.15
837	Image coming soon	1003961-99 S.T.SUPPORT PLATE	€120.10
837	Image coming soon	1003962-99 S.T.DIS-ASSEMBLY JIG	€91.48
837	Image coming soon	1003964-99 S.T.SEAL FITTING TOOL	€45.79
837	Image coming soon	1003965-99 S.T.SEAL FITTING TOOL	€28.74
837	Image coming soon	1003966-99 S.T.LIP SEAL REMOVER	€28.74
847	Image coming soon	N513606 SERVICE KIT 230V TO D CODE WK52-2017	€53.05
847	Image coming soon	N513641 SERVICE KIT 115V LX	€53.05
847	Image coming soon	N680320 SERVICE KIT 230V FROM DCODE WK01-2018	€53.05
848	Image coming soon	1004727-66 SERVICE KIT 230V TO D CODE WK52-2017	€101.67
848	Image coming soon	1004727-67 SERVICE KIT 115V LX	€109.12
861	Image coming soon	N469730 KITBOX	€77.76

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

DEWALT D25481 Type 1 Rotary Hammer Spare Parts

DeWalt D25481 TYPE 1 Rotary Hammer Spare Parts
#	Part Num.	Description
1	N491976	ARMATURES 120V
1	N491963	ARMATURES 230V
2	N491979	PISTON ASSEMBLY
8	330003-60	BEARING
9	N466979	MAGNET
11	327575-00	SLEEVE
12	N110358	BEARING 608
13	N495599	SEAL
14	577745-01	BEARING, BALL
15	488147-01	CIRCLIP
23	N406776	PISTON
24	N406775	CON ROD
25	N446699	PIN
26	N446701	PISTON RING
27	N487314	O-RING
28	N491986	RAM SA
29	N487314	O-RING
30	N571916	SPINDLE - TO CODE WK52 2017
30	N571895	SPINDLE - FROM CODE WK01 2018
31	N410350	O-RING
32	N431706	BUSH
33	N410349	O-RING
34	N431708	WASHER
35	N545367	SPACER - FROM CODE WK01 2018
35	N440708	WASHER - TO CODE WK52 2017
36	N504457	DAMPER - FROM CODE WK01 2018
36	N504457	DAMPER - TO DCODE WK52 2017
37	N536109	BEARING - FROM CODE WK01 2018
37	N446368	BEARING - TO CODE WK52 2017
38	N492498	BEAT PIECE
39	N244259	SEAL
40	N487314	O-RING
41	N571916	SPINDLE - TO DCODE WK52 2017
41	N571895	SPINDLE - FROM DCODE WK01 2018
42	N506088	HOUSING SA
44	N410187	GEAR PANEL
45	N410188	SLEEVE
46	N433094	SLEEVE
47	N437808	SPRING
48	N437814	SPRING
49	N460603	SUPPORT
51	N432556	O-RING
52	N526257	SLEEVE
53	327141-00	SEAL
54	N532870	CIRCLIP
55	N439579	CAP
56	N492496	CRANKSHAFT
57	323711-26	O-RING
59	N432869	CIRCLIP
60	N571701	SPRING
61	N406228	SLEEVE
62	N450900	PIN
63	N422799	SELECTOR FORK
64	N553858	O-RING
65	N435997	ECCENTRIC
66	N422798	PLATE
67	N422797	PLATE
68	N445171	SCREW
70	N492837	CLUTCH ASSEMBLY
71	N435623	BAFFLE FAN
76	N433780	HOUSING MOTOR
77	N449094	COVER BEARING
78	N492848	FIELD 120V LX
78	N492847	FIELD 230V
79	N492874	GEAR
80	N422796	GASKET
81	N491766	HOUSING GEAR SA
82	324007-11	SCREW TORX
83	N444425	BRUSHE SPRING
84	N448156	COIL
85	N504436	O-RING
86	N452721	CAP
87	N395554	FELT
89	325878-00	ROLLER
90	N038151	FELT
91	N465749	WASHER
92	323395-06	SPRING
93	487118-00	SPRING
94	N464690	GUIDE
95	N468172	LOCKING PIN
96	N464913	SLEEVE
97	326575-01	COLLAR
98	N465586	LIP SEAL
99	N429783	COVER
104	N431333	SIDE RH
105	N877353	SIDE LH
106	N445171	SCREW
107	N464282	SELECTOR ASSEMBLY
108	330065-08	SCREW
109	N452043	BELLOWS
110	N452385	SET OF LEAD WIRES LH
110	N452385	SET OF LEAD WIRES
111	N452042	BELLOWS
112	N152623	STOP
113	N492860	CLAMSHELL SET
114	1005752-00	CORDSET LH (EURO)
115	N862131	SWITCH
116	821070	CORD CLAMP
118	587114-01	TRIGGER
119	N159443	AXIS
120	N106188	COMPRESSION SPRING
121	323091-01	CORD PROTECTOR
123	324007-11	SCREW TORX
125	N438602	END CAP
126	N438601	CLAMSHELL
127	N492859	S/G CONTROL MODULE LX
127	N492852	CONTROL MODULE SA GB
128	N449848	BRACKET
129	N371839	SCREW
130	N450546	LEAD SA
132	324007-11	SCREW TORX
133	330065-10	SCREW
134	N492849	BRUSH PAIR 230V GB
134	N492850	BRUSH PAIR 120V LX
135	N450097	BRUSH BOX
136	N086775	SCREW
150	N466680	HANDLE SIDE SA
151	N466673	CLAMP
152	N533870	HANDLE SA
153	N466679	CLAMP
154	N466678	BOLT
155	N466677	WASHER CLAMP
160	N196274	LABEL
200	N571916	SPINDLE ASSEMBLY - FROM DCODE WK01 2018
800	578970-04	GREASE 80 GMS
821	NA130658	RATING PLATE LX
821	N495320	RATING PLATE GB
837	1003961-99	S.T.SUPPORT PLATE
837	1003965-99	S.T.SEAL FITTING TOOL
837	1003966-99	S.T.LIP SEAL REMOVER
837	1003964-99	S.T.SEAL FITTING TOOL
837	1003962-99	S.T.DIS-ASSEMBLY JIG
847	N513641	SERVICE KIT 115V LX
847	N513606	SERVICE KIT 230V TO D CODE WK52-2017
847	N680320	SERVICE KIT 230V FROM DCODE WK01-2018
848	1004727-66	SERVICE KIT 230V TO D CODE WK52-2017
848	1004727-67	SERVICE KIT 115V LX
861	N469730	KITBOX

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s DEWALT websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to DEWALT brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Reference DEWALT D25481 Tipo 1

Available 6 Items

Data sheet

SHIPPING IN:: ON DEMAND ONLY
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

Condition New

Download

DEWALT D25481 Type 1 Drawing

Download (707.67KB)

DeWalt Power Tools SKU: N244259

DeWalt D25481 Demolition Hammer Seal

DeWalt D25481 Demolition Hammer Seal Genuine replacement part DeWALT, Seal 5.40 for Demolition Hammer D25481 - D25500K - D25831K. Part for the following items: - Demolition Hammer D25481 Modello: D25481-QS - Demolition Hammer...

on 7/10 Business Days Approx. €11.33

Details

DeWalt Power Tools SKU: 330003-60

DeWalt D25601K Demolition Hammer Bearing 608DW

DeWalt D25601K Demolition Hammer Bearing 608DW Genuine replacement part DeWALT, Ball Bearing 608DW for Demolition Hammer D25601K - D25831K. Part for the following items: - Demolition Hammer D25601K tipo 1 Modello:...

Last items in stock €6.54

Details

DeWalt Power Tools SKU: 577745-01

DeWalt D25601K Demolition Hammer Bearing 6001DW

DeWalt D25601K Demolition Hammer Bearing 6001DW Genuine replacement part DeWALT, Ball Bearing 6001DW for Demolition Hammer D25601K - D25831K. Part for the following items: - Demolition Hammer D25601K tipo 1 Modello:...

View Spare Parts

DeWalt Power Tools SKU: 327141-00

DeWalt D25481 Demolition Hammer Seal, Lip

DeWalt D25481 Demolition Hammer Seal, Lip Genuine replacement part DeWALT, Seal, Lip for Demolition Hammer D25481 - D25500K. Part for the following items: - Demolition Hammer D25481 Modello: D25481-QS - Demolition Hammer D25500K...

on 7/10 Business Days Approx. €5.20

Details

DeWalt Power Tools SKU: N492849

DeWalt D25481 Brush Pair 230V

DeWalt D25481 Demolition Hammer Brush Pair 230V Genuine replacement part DeWALT, Brush Pair 230V for Demolition Hammer D25481. Part for the following items: - Demolition Hammer D25481 Modello: D25481-QS - D25481 ...

on 7/10 Business Days Approx. €16.98

Details

DeWalt Power Tools SKU: N468172

DeWalt D25481 Locking Pin

DeWalt D25481 Demolition Hammer Locking Pin Genuine replacement part DeWALT, Locking Pin for Demolition Hammer D25481. Part for the following items: - Demolition Hammer D25481 Modello: D25481-QS - Demolition Hammer D25614K...

Last items in stock €3.06

Details

DeWalt Power Tools SKU: 330065-08

DeWalt D25481 Screw TX 4x18

DeWalt D25481 Demolition Hammer Screw TX 4x18 Genuine replacement part DeWALT, Screw TX 4x18 for Demolition Hammer D25481. Part for the following items: - Demolition Hammer D25481 Modello: D25481-QS - Demolition Hammer D25614K...

on 7/10 Business Days Approx. €1.94

Details

DeWalt Power Tools SKU: N464690

DeWalt D25481 Guide

DeWalt D25481 Demolition Hammer Guide Genuine replacement part DeWALT, Guide for Demolition Hammer D25481. Part for the following items: - Demolition Hammer D25481 Modello: D25481-QS - Demolition Hammer D25614K tipo 1...

Last items in stock €1.78

Details

DeWalt Power Tools SKU: 488147-01

DeWalt D25733K Snap Ring 30

DeWalt D25733K Snap Ring 30 Genuine replacement part DeWALT, Snap Ring 30 for Demolition Hammer D25733K Tipo 1. Part for the following items: - Demolition Hammer D25733K Tipo 1 - DEWALT D25481 TIPO 1 - DEWALT D25614K...

AVAILABLE €1.78

Details

DeWalt Power Tools SKU: N152623

DeWALT D25733K Stop

DeWALT D25733K Stop Genuine replacement part DeWALT, Stop for Rotary Hammer D25733K. Part for the following items: - DEWALT D25733K - DEWALT D25481 Type 1 - DeWalt D25334K Type 2 - DEWALT D25333K Type 2 -...

Last items in stock €10.19

Details

DeWalt Power Tools SKU: N106188

DeWALT D25614K Spring Compression

DeWALT D25614K Spring Compression Genuine replacement part DeWALT, Spring Compression for Rotary Hammer D25614K. Part for the following items: - DEWALT D25614K Type 1 - DEWALT D25481 Type 1 - DeWalt D25334K Type 2 -...

Last items in stock €2.64

Details

DeWalt Power Tools SKU: 325878-00

DeWalt D25481 Roller 8x20

DeWalt D25481 Roller 8x20 Genuine replacement part DeWALT, Roller 8x20. for Demolition Hammers DeWalt. Part for the following items: - DEWALT D25614K TYPE 1 - DEWALT D25481 TYPE 1 - DEWALT D25500K TYPE 1 - DEWALT D25601-QS...

View Spare Parts

DeWalt Power Tools SKU: 326575-01

DeWalt D25481 Demolition Hammer Collar

DeWalt D25481 Demolition Hammer Collar Genuine replacement part DeWALT, Collar for Demolition Hammer D25481. Part for the following items: - Demolition Hammer D25481 Modello: D25481-QS - Demolition Hammer D25614K tipo 1 Modello:...

Last items in stock €8.01

Details

DeWalt Power Tools SKU: N492852

DeWalt D25481 Control Module SA

DeWalt D25481 Demolition Hammer Control Module SA Genuine replacement part DeWALT, Control Module SA 230V for Demolition Hammer D25481. Part for the following items: - Demolition Hammer D25481 Modello: D25481-QS - D25481...

Last items in stock €56.27

Details

DeWalt Power Tools SKU: N495599

DeWalt Hammer D25481 Seal

DeWalt Seal for Hammer D25481 Genuine replacement part DeWALT, Seal for Hammer D25481 - D25614K. Part for the following items: - Hammer DEWALT D25481 Type 1 - Hammer DEWALT D25614K Type 1 - Code: N495599

Last items in stock €6.17

Details

DeWalt Power Tools SKU: N466979

DeWalt Hammer D25733K Magnet

DeWalt Magnet for Hammer D25733K Genuine replacement part DeWALT, Magnet for Hammer D25733K - D25481. Part for the following items: - Hammer DEWALT D25733K - Hammer DEWALT D25481 Tipo 1...

Last items in stock €7.73

Details

DeWalt Power Tools SKU: N422796

DeWalt Hammer D25481 Gasket

DeWalt Gasket for Hammer D25481 Genuine replacement part DeWALT, Gear Case Gasket for Hammer D25481 Type 1. Part for the following items: - Hammer DEWALT D25481 Tipo 1 - Code: N422796

View Spare Parts

Comments (0)

Cart (0)

Subcategories

Subcategories

Subcategories

Power Tools Spare Parts

Garden Spare Parts

Air Compressor Spare Parts

Protezione & Edilizia

Impianti & Utensili

Casa & Giardino

DEWALT D25481 Type 1 Rotary Hammer Spare Parts

DEWALT D25481 Type 1 Rotary Hammer Spare Parts

DEWALT D25481 Type 1 Rotary Hammer Spare Parts

DEWALT D25481 Type 1 Rotary Hammer Spare Parts

DEWALT D25481 Type 1 Rotary Hammer Spare Parts

Data sheet

Specific References

Download

DEWALT D25481 Type 1 Drawing

You might also like

Products

News

Notes

Our company
