DeWalt Power Tools

DEWALT DCD701D2 Cordless Drill Type 2 Spare Parts

SKU: DEWALT DCD701D2 Tipo 2
€117.93
VAT included

DEWALT DCD701D2 Cordless Drill Type 2 Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for DCD701D2 Cordless Drill Type 2 Spare Parts.
DEWALT DCD701D2 Cordless Drill Type 2 Spare Parts
  • Online only
  • DEWALT DCD701D2 Cordless Drill Type 2 Spare Parts
  • DEWALT DCD701D2 Cordless Drill Type 2 Spare Parts - Drawing
DeWalt Power Tools

DEWALT DCD701D2 Cordless Drill Type 2 Spare Parts

SKU: DEWALT DCD701D2 Tipo 2 Condition: New
€117.93
VAT included

DEWALT DCD701D2 Cordless Drill Type 2 Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for DCD701D2 Cordless Drill Type 2 Spare Parts.
settings 52 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on Demand Only

SHIPPING IN:: ON DEMAND ONLY
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
52 spare parts

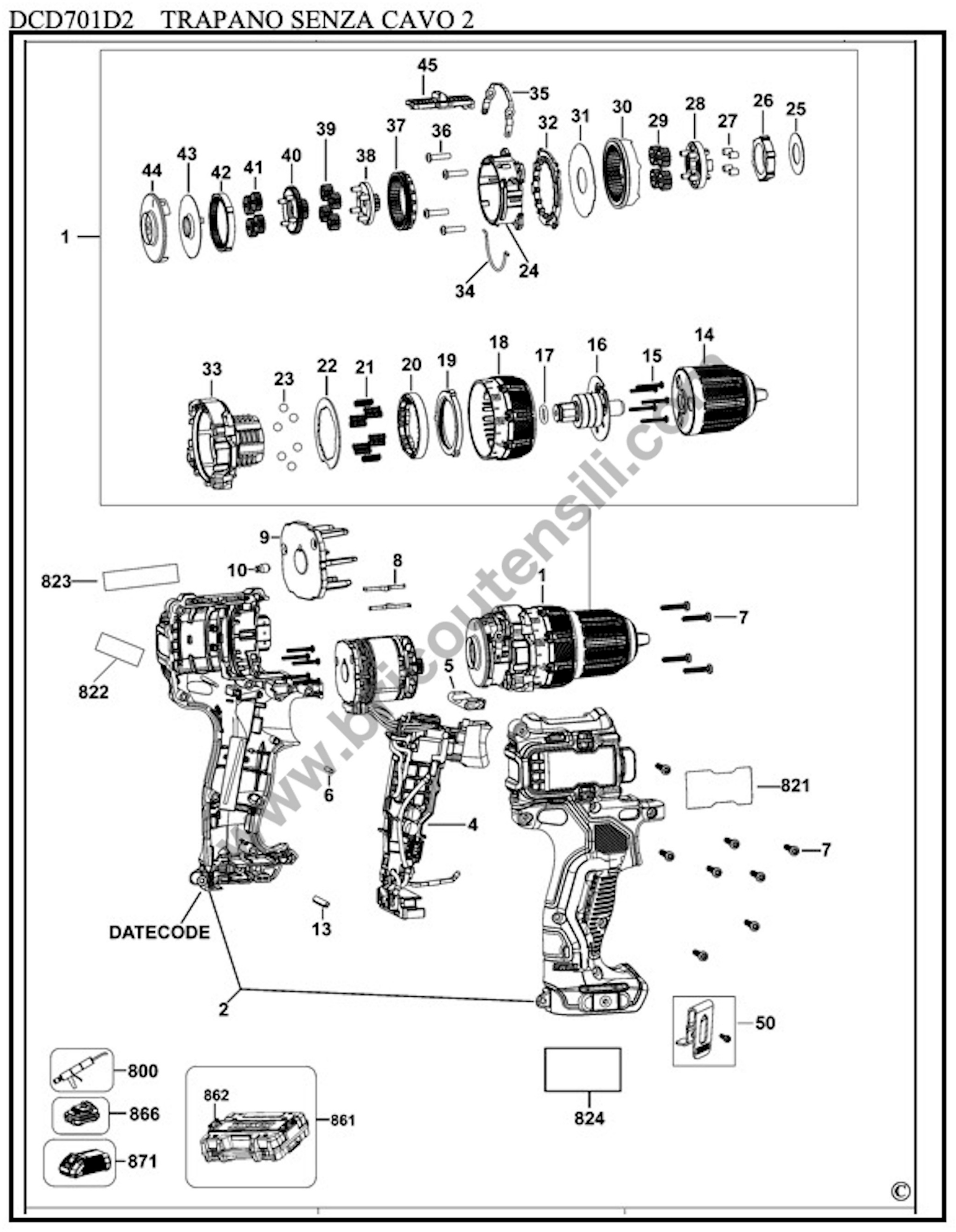

Page 1 zoom_in View exploded local_shipping ON DEMAND ONLY
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon N681261 TRANSMISSION €102.80
2
 photo_cameraImage coming soon N569260 BODY €15.01
4
 photo_cameraImage coming soon NA069432 SG ENGINE €140.34
5
 photo_cameraImage coming soon N399342 FORWARD/REVERSE BAR €1.83
6
 photo_cameraImage coming soon N071836 SCREW €1.83
7
 photo_cameraImage coming soon N463678 SCREW €1.83
8
 photo_cameraImage coming soon N014681 LEATHER SPRING €1.83
9
 photo_cameraImage coming soon N552144 PLASTIC ADAPTER €1.83
10
 photo_cameraImage coming soon N593131 PLUG €1.83
13
 photo_cameraImage coming soon N660916 PIN €1.83
14
 photo_cameraImage coming soon N607312 CHUCK KEYLESS €36.14
15
 photo_cameraImage coming soon N039795 SCREW €1.83
16
 photo_cameraImage coming soon N681262 SPINDLE SA €25.13
17
 photo_cameraImage coming soon N638045 O-RING €1.83
18
 photo_cameraImage coming soon N529547 COLLAR €5.08
19
 photo_cameraImage coming soon N527880 ADJUSTER TORQUE €3.77
20
 photo_cameraImage coming soon N527879 SPRING €1.83
21
 photo_cameraImage coming soon N527878 SPRING €1.83
22
 photo_cameraImage coming soon N527877 WASHER €1.83
23
 photo_cameraImage coming soon N510716 BALL €1.83
24
 photo_cameraImage coming soon N531638 HOUSING €2.05
25
 photo_cameraImage coming soon N527659 WASHER LOCK €1.83
26
 photo_cameraImage coming soon N543525 LOCK RING €6.15
27
 photo_cameraImage coming soon N647513 PIN €1.83
28
 photo_cameraImage coming soon N681264 CARRIER SA €7.24
29
 photo_cameraImage coming soon N532276 GEARS €1.83
30
 photo_cameraImage coming soon N531435 GEARS €6.15
31
 photo_cameraImage coming soon N531627 WASHER €1.83
32
 photo_cameraImage coming soon N531634 RING €3.14
33
 photo_cameraImage coming soon N527876 HOUSING €2.70
34
 photo_cameraImage coming soon N552206 STEEL WIRE €1.83
35
 photo_cameraImage coming soon N551526 LINK €2.05
36
 photo_cameraImage coming soon N075506 SCREW €1.83
37
 photo_cameraImage coming soon N531632 GEARS €4.65
38
 photo_cameraImage coming soon N681265 CARRIER SA €7.87
39
 photo_cameraImage coming soon N531633 GEAR €1.83
40
 photo_cameraImage coming soon N681266 CARRIER SA €5.08
41
 photo_cameraImage coming soon N531637 GEAR €1.83
42
 photo_cameraImage coming soon N549298 GEAR €2.70
43
 photo_cameraImage coming soon N550764 WASHER €2.05
44
 photo_cameraImage coming soon N549069 PLATE €2.70
45
 photo_cameraImage coming soon N702960 SELECTOR SA €3.14
50
 photo_cameraImage coming soon N702958 HOOK SA €19.53
800
 DeWalt Grease Renolit Paragon EP 1/2 90Gr. 870889-02 DeWalt Grease Renolit Paragon EP 1/2 90Gr. €21.10
821
 photo_cameraImage coming soon NA092105 RATING PLATE €1.83
822
 photo_cameraImage coming soon N658202 LABEL PLATE €1.83
823
 photo_cameraImage coming soon N658203 BRAND LABEL €1.83
824
 photo_cameraImage coming soon N665614 LABEL €1.83
861
 photo_cameraImage coming soon N614791 KIT BOX €89.86
862
 photo_cameraImage coming soon N409477 BOLT €3.45
866
 photo_cameraImage coming soon N752771 BATTERY 12V-3AH-36WH €146.82
866
 photo_cameraImage coming soon N757624 BATTERY 12V-2AH-24WH €102.80

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

DEWALT DCD701D2 Cordless Drill Type 2 Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for DCD701D2 Cordless Drill Type 2 Spare Parts.

Open PDF Drawing in this page to check spare parts you need.
DCD701D2 Cordless Drill Type 2
DEWALT DCD701D2 Cordless Drill Type 2 Spare Parts
# Part Num. Description
1 N681261 TRANSMISSION
2 N569260 BODY
4 NA069432 SG ENGINE
5 N399342 FORWARD/REVERSE BAR
6 N071836 SCREW
7 N463678 SCREW
8 N014681 LEATHER SPRING
9 N552144 PLASTIC ADAPTER
10 N593131 PLUG
13 N660916 PIN
14 N607312 CHUCK KEYLESS
15 N039795 SCREW
16 N681262 SPINDLE SA
17 N638045 O-RING
18 N529547 COLLAR
19 N527880 ADJUSTER TORQUE
20 N527879 SPRING
21 N527878 SPRING
22 N527877 WASHER
23 N510716 BALL
24 N531638 HOUSING
25 N527659 WASHER LOCK
26 N543525 LOCK RING
27 N647513 PIN
28 N681264 CARRIER SA
29 N532276 GEARS
30 N531435 GEARS
31 N531627 WASHER
32 N531634 RING
33 N527876 HOUSING
34 N552206 STEEL WIRE
35 N551526 LINK
36 N075506 SCREW
37 N531632 GEARS
38 N681265 CARRIER SA
39 N531633 GEAR
40 N681266 CARRIER SA
41 N531637 GEAR
42 N549298 GEAR
43 N550764 WASHER
44 N549069 PLATE
45 N702960 SELECTOR SA
50 N702958 HOOK SA
800 870889-02 GREASE 90 GMS
821 NA092105 RATING PLATE
822 N658202 LABEL PLATE
823 N658203 BRAND LABEL
824 N665614 LABEL
861 N614791 KIT BOX
862 N409477 BOLT
866 N757624 BATTERY 12V-2AH-24WH
866 N752771 BATTERY 12V-3AH-36WH
871 NA010209 CHARGER 10.8V - 18V
