DeWalt Power Tools

DEWALT D25733K Type 1 Combination Hammer Spare Parts

SKU: DEWALT D25733K
€6.77
VAT included

DEWALT D25733K Type 1 Combination Hammer Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for DEWALT D25733K Type 1 Model: D25733K-QS Combination Hammer Spare Parts.
DEWALT D25733K Type 1 Combination Hammer Spare Parts
  • Online only
  • DEWALT D25733K Type 1 Combination Hammer Spare Parts
  • DEWALT D25733K Type 1 Combination Hammer Spare Parts -Drawing 1
  • DEWALT D25733K Type 1 Combination Hammer Spare Parts
DeWalt Power Tools

DEWALT D25733K Type 1 Combination Hammer Spare Parts

SKU: DEWALT D25733K Condition: New
€6.77
VAT included

DEWALT D25733K Type 1 Combination Hammer Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for DEWALT D25733K Type 1 Model: D25733K-QS Combination Hammer Spare Parts.
settings 105 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on Demand Only

SHIPPING IN:: ON DEMAND ONLY
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
105 spare parts
Page 1 zoom_in View exploded local_shipping ON DEMAND ONLY

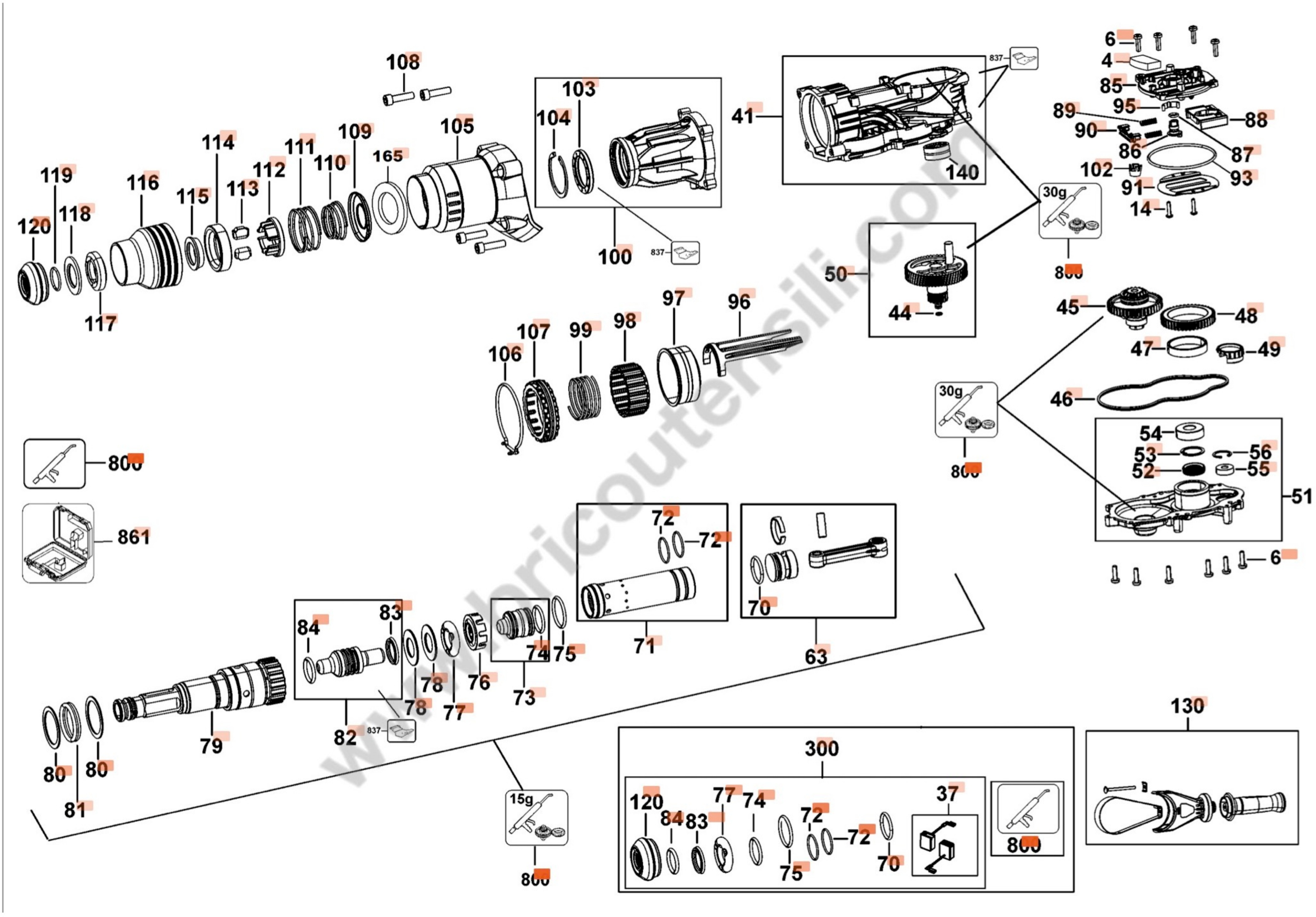

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
2
 photo_cameraImage coming soon N513078 SIDE COVER €5.92
3
 photo_cameraImage coming soon N513079 SIDE COVER €4.47
4
 photo_cameraImage coming soon N481045 FELT €1.75
5
 photo_cameraImage coming soon N410170 TOP COVER €7.54
6
 photo_cameraImage coming soon N548557 SCREW €1.56
7
 photo_cameraImage coming soon N463694 MODE KNOB €2.28
9
 photo_cameraImage coming soon N519469 LIGHT PIPE €1.56
11
 photo_cameraImage coming soon N453525 DOWEL PIN €2.65
12
 photo_cameraImage coming soon 323091-01 PROTECTOR CORD 8.9 €2.66
13
 photo_cameraImage coming soon 821070 CORD CLAMP €1.88
14
 DeWalt D25481 Screw TX 4x18 330065-08 DeWalt D25481 Screw TX 4x18 €1.94
15
 photo_cameraImage coming soon N467530 SWITCH €25.32
16
 photo_cameraImage coming soon N453629 BELLOWS €3.74
17
 photo_cameraImage coming soon N453630 BELLOWS €3.20
18
 photo_cameraImage coming soon N501559 SPRING €1.56
19
 DeWALT D25733K Stop N152623 DeWALT D25733K Stop €10.19
27
 photo_cameraImage coming soon N389340 END CAP €9.90
31
 photo_cameraImage coming soon N449094 BEARING COVER €1.68
32
 photo_cameraImage coming soon N585928 FIELD 120V €63.02
33
 photo_cameraImage coming soon N580536 MOTOR HOUSING €31.66
34
 photo_cameraImage coming soon N580542 CARBON BRUSH SET 230V €25.32
35
 photo_cameraImage coming soon N425665 BRUSH HOLDER €2.65
37
 photo_cameraImage coming soon N580542 CARBON BRUSH SET 230V €25.32
41
 photo_cameraImage coming soon N582955 HOUSING ASSY €224.19
44
 photo_cameraImage coming soon N537973 O RING €1.56
45
 photo_cameraImage coming soon N580503 CLUTCH ASSY €82.78
46
 photo_cameraImage coming soon N447147 GASKET €2.08
47
 photo_cameraImage coming soon N398520 SINTERED BEARING €7.73
48
 photo_cameraImage coming soon N580506 TRANSMISSION €12.62
49
 photo_cameraImage coming soon N537281 SPACER €1.93
50
 photo_cameraImage coming soon N580511 CRANKSHAFT €71.91
52
 DeWalt D25733K Seal Ring N422626 DeWalt D25733K Seal Ring €10.72
53
 DeWalt D25733K Snap Ring 30 488147-01 DeWalt D25733K Snap Ring 30 €1.78
54
 photo_cameraImage coming soon N110363 BEARING 6202RS €10.99
55
 DeWalt Ball Bearing 608RS N110359 N110359 DeWalt Ball Bearing 608RS N110359 €3.84
56
 DeWalt D25733K Snap Ring 24 N362699 DeWalt D25733K Snap Ring 24 €1.78
63
 photo_cameraImage coming soon N580550 PISTON ASSY €40.54
70
 photo_cameraImage coming soon N612854 O RING €4.10
71
 photo_cameraImage coming soon N580553 CYLINDER €71.91
72
 photo_cameraImage coming soon N481377 O RING €1.56
73
 photo_cameraImage coming soon N580554 PUSHER ASSY €36.19
74
 photo_cameraImage coming soon N612854 O RING €4.10
75
 photo_cameraImage coming soon N493644 O RING €2.83
76
 photo_cameraImage coming soon N413144 RIFLE €1.75
77
 photo_cameraImage coming soon N400500 DAMPER €10.26
78
 photo_cameraImage coming soon N389366 WASHER €1.93
79
 photo_cameraImage coming soon N580555 SPINDLE €231.99
80
 photo_cameraImage coming soon N392234 WASHER €1.75
81
 photo_cameraImage coming soon 589223-00 DAMPER €2.28
82
 photo_cameraImage coming soon N580556 STRUCK €57.76
83
 photo_cameraImage coming soon N594490 POETRY €4.82
84
 photo_cameraImage coming soon N432561 O RING €2.83
85
 photo_cameraImage coming soon N409943 COVER €4.65
86
 photo_cameraImage coming soon N504016 ECCENTRIC €1.56
87
 photo_cameraImage coming soon N515556 O RING €2.46
88
 photo_cameraImage coming soon N410143 PUSH €1.75
89
 photo_cameraImage coming soon N520791 FEATHER €1.68
90
 photo_cameraImage coming soon N410898 INTERCONNECTS €1.56
91
 photo_cameraImage coming soon N427022 PLATE €2.28
93
 photo_cameraImage coming soon N455140 O RING €2.65
95
 photo_cameraImage coming soon N520790 LATCH €1.68
96
 photo_cameraImage coming soon N409698 PUSH €2.28
97
 photo_cameraImage coming soon N580526 FRONT TRANSMISSION €111.06
98
 photo_cameraImage coming soon N580533 SLEEVE €26.59
99
 photo_cameraImage coming soon N497938 FEATHER €2.28
100
 photo_cameraImage coming soon N580559 FRONT HOUSING €91.84
102
 photo_cameraImage coming soon N607940 BUSH €1.56
103
 photo_cameraImage coming soon N392582 SEAL RING €9.36
104
 photo_cameraImage coming soon N181847 LOCKING RING €1.93
105
 photo_cameraImage coming soon N416525 HOUSING COVER €11.35
106
 photo_cameraImage coming soon N431324 POETRY €2.65
107
 photo_cameraImage coming soon N420195 RIFLE €7.01
108
 photo_cameraImage coming soon 949886-32 SCREW €2.05
109
 photo_cameraImage coming soon N516486 GUIDE €5.19
110
 photo_cameraImage coming soon N520784 CONICAL SPRING €1.56
111
 photo_cameraImage coming soon N520782 SPRING €1.93
112
 photo_cameraImage coming soon N408040 GUIDE BUSHING €6.64
113
 photo_cameraImage coming soon N511836 LOCKING PIECE €11.35
114
 photo_cameraImage coming soon N511834 BUSH €7.73
115
 photo_cameraImage coming soon N511805 DAMPER €12.62
116
 photo_cameraImage coming soon N468816 SLEEVE €6.64
117
 photo_cameraImage coming soon 487244-00 RUBBER €6.15
118
 photo_cameraImage coming soon N516487 WASHER €2.28
119
 photo_cameraImage coming soon N522784 SNAP RING €1.56
120
 photo_cameraImage coming soon 487238-01 SEAL €11.76
122
 photo_cameraImage coming soon N448156 COIL €16.97
123
 photo_cameraImage coming soon N086775 SCREW €1.83
125
 photo_cameraImage coming soon N640362 TRIGGER €1.75
126
 photo_cameraImage coming soon N518647 SWITCH, LOCK-ON €53.05
132
 photo_cameraImage coming soon 620051-00 COMPOUND CUTTING PAD €1.56
133
 photo_cameraImage coming soon N516505 MICRO SWITCH €19.71
140
 photo_cameraImage coming soon N408073 NEEDLE BEARING €24.05
145
 photo_cameraImage coming soon N602345 WIRE COVER €2.28
150
 photo_cameraImage coming soon N585926 ARMATURE 120V €114.33
152
 DeWalt Hammer D25733K Magnet N466979 DeWalt Hammer D25733K Magnet €7.72
165
 photo_cameraImage coming soon N578605 FELT €6.64
300
 photo_cameraImage coming soon N593927 CARBON KIT €52.51
800
 photo_cameraImage coming soon 578970-04 GREASE,GLK 249NLGI 00-80G TUBE (SERVICE) 22.30 €52.15
800
 photo_cameraImage coming soon 578970-06 GREASE 150 GMS €61.68
837
 photo_cameraImage coming soon 1003972-99 SERVICE TOOL €31.66
837
 photo_cameraImage coming soon 1003973-99 SERVICE TOOL €47.42
837
 photo_cameraImage coming soon 1003974-99 SERVICE TOOL €50.51
837
 photo_cameraImage coming soon 1003975-99 SERVICE TOOL €20.41
839
 photo_cameraImage coming soon 1003979-99 S.T. BEARING INSERTOR €20.41
840
 photo_cameraImage coming soon 1003978-99 S.T. INSERTION TOOL €12.80
841
 photo_cameraImage coming soon 1003977-99 S.T. PULLER €25.67
861
 photo_cameraImage coming soon N508182 KIT BOX €104.36
Page 2 zoom_in View exploded local_shipping ON DEMAND ONLY
Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
2
 photo_cameraImage coming soon N513078 SIDE COVER €5.92
3
 photo_cameraImage coming soon N513079 SIDE COVER €4.47
5
 photo_cameraImage coming soon N410170 TOP COVER €7.54
7
 photo_cameraImage coming soon N463694 MODE KNOB €2.28
11
 photo_cameraImage coming soon N453525 DOWEL PIN €2.65
12
 photo_cameraImage coming soon 323091-01 PROTECTOR CORD 8.9 €2.66
13
 photo_cameraImage coming soon 821070 CORD CLAMP €1.88
15
 photo_cameraImage coming soon N467530 SWITCH €25.32
16
 photo_cameraImage coming soon N453629 BELLOWS €3.74
17
 photo_cameraImage coming soon N453630 BELLOWS €3.20
18
 photo_cameraImage coming soon N501559 SPRING €1.56
19
 DeWALT D25733K Stop N152623 DeWALT D25733K Stop €10.19
27
 photo_cameraImage coming soon N389340 END CAP €9.90
31
 photo_cameraImage coming soon N449094 BEARING COVER €1.68
32
 photo_cameraImage coming soon N585928 FIELD 120V €63.02
33
 photo_cameraImage coming soon N580536 MOTOR HOUSING €31.66
34
 photo_cameraImage coming soon N580542 CARBON BRUSH SET 230V €25.32
35
 photo_cameraImage coming soon N425665 BRUSH HOLDER €2.65
122
 photo_cameraImage coming soon N448156 COIL €16.97
123
 photo_cameraImage coming soon N086775 SCREW €1.83
125
 photo_cameraImage coming soon N640362 TRIGGER €1.75
126
 photo_cameraImage coming soon N518647 SWITCH, LOCK-ON €53.05
150
 photo_cameraImage coming soon N585926 ARMATURE 120V €114.33
152
 DeWalt Hammer D25733K Magnet N466979 DeWalt Hammer D25733K Magnet €7.72

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

DEWALT D25733K Type 1 Combination Hammer Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for DEWALT D25733K Type 1 Model: D25733K-QS Combination Hammer Spare Parts.

In the following table, look for the model of the hammer and the respective parts of the code.
DEWALT D25733K Type 1 Model: D25733K-QS Combination Hammer Spare Parts

Combination Hammer SDS-max 48mm 1600Watt UTC Type 1
Codice articolo: D25733K
Model: D25733K-QS
# Part Num. Description
2 N513078 SIDE COVER
3 N513079 SIDE COVER
4 N481045 FELT
5 N410170 TOP COVER
6 N548557 SCREW
7 N463694 MODE KNOB
9 N519469 LIGHT PIPE
11 N453525 DOWEL PIN
12 323091-01 PROTECTOR CORD 8.9
13 821070 CORD CLAMP
14 330065-08 SCREW,ART.4X18
15 N467530 SWITCH
16 N453629 BELLOWS
17 N453630 BELLOWS
18 N501559 SPRING
19 N152623 STOP
20 N551725 HANDLE PLATE
21 N551948 REAR HANDLE
23 N592374 MODULE ASSEMBLY
27 N389340 END CAP
30 N518935 CORDSET
31 330019-50 SCREW, PLASTITE
32 N585928 FIELD 120V
33 N580536 MOTOR HOUSING
34 N449094 BEARING COVER
35 N425665 BRUSH HOLDER
37 N580542 CARBON BRUSH SET 230V
38 N523745 BRUSH SPRING
39 N405298 FAN BAFFLE
41 N582955 HOUSING ASSY
44 N537973 O RING
45 N580503 CLUTCH ASSY
46 N447147 GASKET
47 N398520 SINTERED BEARING
48 N580506 TRANSMISSION
49 N537281 SPACER
50 N580511 CRANKSHAFT
51 N580507 GEAR HOUSING
52 N422626 SEAL RING
53 488147-01 SNAP RING
54 N110363 BEARING 6202RS
55 N110359 BALL BEARING 608
56 N362699 SNAP RING
63 N580550 PISTON ASSY
70 N612854 O RING
71 N580553 CYLINDER
72 N481377 O RING
73 N580554 PUSHER ASSY
74 N612854 O-RING
75 N493644 O RING
76 N413144 RIFLE
77 N400500 DAMPER
78 N389366 WASHER
79 N580555 SPINDLE
80 N392234 WASHER
81 589223-00 DAMPER
82 N580556 STRUCK
83 N594490 POETRY
84 N432561 O RING
85 N409943 COVER
86 N504016 ECCENTRIC
87 N515556 O RING
88 N410143 PUSH
89 N520791 FEATHER
90 N410898 INTERCONNECTS
91 N427022 PLATE
93 N455140 O RING
95 N520790 LATCH
96 N409698 PUSH
97 N580526 FRONT TRANSMISSION
98 N580533 SLEEVE
99 N497938 FEATHER
100 N580559 FRONT HOUSING
102 N607940 CAP
103 N392582 SEAL RING
104 N181847 LOCKING RING
105 N416525 HOUSING COVER
106 N431324 POETRY
107 N420195 RIFLE
108 949886-32 SCREW
109 N516486 GUIDE
110 N520784 CONICAL SPRING
111 N520782 SPRING
112 N408040 GUIDE BUSHING
113 N511836 LOCKING PIECE
114 N511834 BUSH
115 N511805 DAMPER
116 N468816 SLEEVE
117 487244-00 RUBBER
118 N516487 WASHER
119 N522784 SNAP RING
120 487238-01 SEAL
122 N448156 COIL
123 N086775 SCREW
125 N640362 TRIGGER
126 N518647 SWITCH, LOCK-ON
130 N593983 SIDE HANDLE
132 620051-00 PAD
133 N516505 MICRO SWITCH
140 N408073 NEEDLE BEARING
145 N602345 WIRE COVER
150 N585926 ARMATURE 120V
152 N466979 MAGNET
165 N578605 FELT
201 N551366 INFORMATION LABEL
300 N593927 CARBON KIT
800 578970-04 GREASE,GLK 249NLGI 00-80G TUBE (SERVICE) 22.30
800 578970-06 GREASE 150 GMS
821 N551320 RATING LABEL
837 1003974-99 SERVICE TOOL
837 1003975-99 SERVICE TOOL
837 1003972-99 SERVICE TOOL
837 1003973-99 SERVICE TOOL
839 1003979-99 S.T. BEARING INSERTOR
840 1003978-99 S.T. INSERTION TOOL
841 1003977-99 S.T. PULLER
861 N508182 KIT BOX
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s DEWALT websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to DEWALT brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
DEWALT D25733K
6 Items

Data sheet

SHIPPING IN:
ON DEMAND ONLY
MORE INFO:
[email protected]
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

DEWALT D25733K Type 1 Drawing

DEWALT D25733K Type 1 Drawing

Download (700.81KB)

You might also like

DeWalt D25481 Screw TX 4x18
DeWalt Power Tools SKU: 330065-08
DeWalt D25481 Screw TX 4x18
DeWalt D25481 Demolition Hammer Screw TX 4x18 Genuine replacement part DeWALT, Screw TX 4x18 for Demolition Hammer D25481. Part for the following items: - Demolition Hammer D25481 Modello: D25481-QS - Demolition Hammer D25614K...
on 7/10 Business Days Approx. €1.94
Details
DeWalt Ball Bearing 608RS N110359
DeWalt Power Tools SKU: N110359
DeWalt Ball Bearing 608RS N110359
DeWalt Ball Bearing 608RS N110359 Genuine replacement part DeWALT, Ball Bearing 608RS for Demolition Hammer D25733K - D25614K - D25831K. Part for the following items: - DEWALT DW433 - DEWALT D27112 TIPO 1 - DEWALT D27112 TIPO 3...
on 7/10 Business Days Approx. €3.84
Details
DeWalt D25733K Seal Ring 17x28x7
DeWalt Power Tools SKU: N422626
DeWalt D25733K Seal Ring
DeWalt D25733K Seal Ring Genuine replacement part DeWALT, Seal Ring 17x28x7 for Demolition Hammer D25733K Tipo 1. Part for the following items: - Demolition Hammer D25733K Tipo 1 - Code: N422626
AVAILABLE €10.72
Details
DeWalt D25733K Snap Ring 24
DeWalt Power Tools SKU: N362699
DeWalt D25733K Snap Ring 24
DeWalt D25733K Snap Ring 24 Genuine replacement part DeWALT, Snap Ring 24 for Demolition Hammer D25733K Tipo 1. Part for the following items: - Demolition Hammer D25733K Tipo 1 - Code: N362699
build View Spare Parts
DeWalt D25733K Snap Ring 30
DeWalt Power Tools SKU: 488147-01
DeWalt D25733K Snap Ring 30
DeWalt D25733K Snap Ring 30 Genuine replacement part DeWALT, Snap Ring 30 for Demolition Hammer D25733K Tipo 1. Part for the following items: - Demolition Hammer D25733K Tipo 1 - DEWALT D25481 TIPO 1 - DEWALT D25614K...
AVAILABLE €1.78
Details
DeWALT D25733K Stop
DeWalt Power Tools SKU: N152623
DeWALT D25733K Stop
DeWALT D25733K Stop Genuine replacement part DeWALT, Stop for Rotary Hammer D25733K. Part for the following items: - DEWALT D25733K - DEWALT D25481 Type 1 - DeWalt D25334K Type 2 - DEWALT D25333K Type 2 -...
AVAILABLE €10.19
Details
DeWalt Hammer D25733K Magnet
DeWalt Power Tools SKU: N466979
DeWalt Hammer D25733K Magnet
DeWalt Magnet for Hammer D25733K Genuine replacement part DeWALT, Magnet for Hammer D25733K - D25481. Part for the following items: -  Hammer DEWALT D25733K -  Hammer DEWALT D25481 Tipo 1...
Last items in stock €7.73
Details
Comments (0)
