DEWALT DW821 Type 1 Angle Grinder Spare Parts

SKU: DEWALT DW821 Type 1
€5.11
VAT included

DEWALT DW821 Type 1 Angle Grinder Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for DW821 Type 1 Angle Grinder Spare Parts.
DEWALT DW821 Type 1 Angle Grinder Spare Parts
  • Online only
  • DEWALT DW821 Type 1 Angle Grinder Spare Parts
  • DEWALT DW821 Type 1 Angle Grinder Spare Parts - Drawing

DEWALT DW821 Type 1 Angle Grinder Spare Parts

SKU: DEWALT DW821 Type 1 Condition: New
€5.11
VAT included

DEWALT DW821 Type 1 Angle Grinder Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for DW821 Type 1 Angle Grinder Spare Parts.
settings 37 spare parts

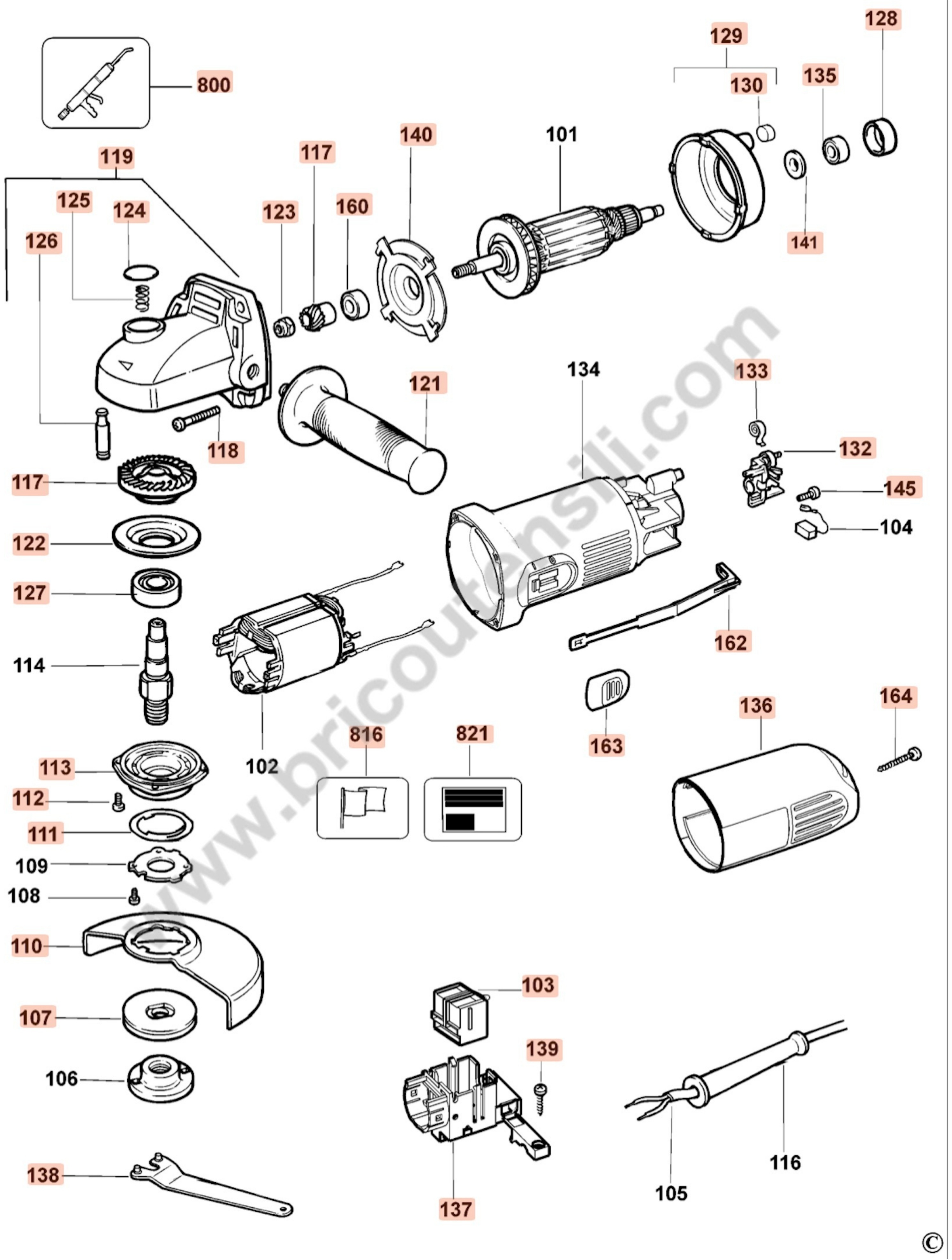

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on Demand Only

SHIPPING IN:: ON DEMAND ONLY
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

33 spare parts
Page 1 zoom_in View exploded local_shipping ON DEMAND ONLY
Pos. Item Price Buy
103
Switch for DW821 Small Angle Grinder 945614-00 Switch for DW821 Small Angle Grinder €15.92 Not available for order
106
Outer Flange for DW821 Small Angle Grinder 622613-02 Outer Flange for DW821 Small Angle Grinder €8.02
107
Inner Flange for DW821 Small Angle Grinder 391969-00 Inner Flange for DW821 Small Angle Grinder €5.10
110
photo_cameraImage coming soon 944586-00 GUARD €6.09
111
photo_cameraImage coming soon 393576-00 Guard Spring €1.75
112
photo_cameraImage coming soon 562160-01 Screw For Gear Case Cover (M4 x 10) €1.56
117
photo_cameraImage coming soon 945295-01 GEAR & PINION €23.32
118
photo_cameraImage coming soon 562097-01 SCREW €1.56
121
photo_cameraImage coming soon 573115-00 SIDE HANDLE €3.92
122
photo_cameraImage coming soon 945299-00 Gear Flange €1.56
123
photo_cameraImage coming soon 945292-00 Nut (Pinion fixing) €1.56
124
DeWalt DW821 Angle Grinder Spindle Lock Button 944574-00 DeWalt DW821 Angle Grinder Spindle Lock Button €1.78
125
DeWalt DW821 Angle Grinder Spindle Lock Spring 562210-00 DeWalt DW821 Angle Grinder Spindle Lock Spring €1.78
126
DeWalt DW821 Angle Grinder Spindle Lock 944571-00 DeWalt DW821 Angle Grinder Spindle Lock €2.81
127
photo_cameraImage coming soon 605040-22 BEARING €5.19
128
photo_cameraImage coming soon 641823-00 Sleeve €1.97
130
photo_cameraImage coming soon 949638-01 Plug €1.73
132
photo_cameraImage coming soon 606574-01 BRUSH HOLDER €3.74
133
DeWalt DW821 Angle Grinder Brush Spring 562204-00 DeWalt DW821 Angle Grinder Brush Spring €1.78
135
DeWalt DW818 Small Angle Grinder Bearing 607LUT 605040-02 DeWalt DW818 Small Angle Grinder Bearing 607LUT €5.57
137
photo_cameraImage coming soon 611540-00 SUPPORT €1.93
138
photo_cameraImage coming soon 401253-00 WRENCH ROUND-PINS €3.20
139
photo_cameraImage coming soon 562097-05 Screw DW201,171 €1.56
140
Electronic Board for Mitre Saws Compa Orange OMS TC10/TC14 401622-01 Electronic Board for Mitre Saws Compa Orange OMS TC10/TC14 €54.29
141
photo_cameraImage coming soon 398906-00 SPACER INSULATING €1.56
145
photo_cameraImage coming soon 562097-00 Screw For Brush Holder Assy.(4.2 x 13) €1.68
160
DeWalt Ball Bearing 608RS N110359 N110359 DeWalt Ball Bearing 608RS N110359 €3.84
162
DeWalt DW821 Small Angle Grinder Switch Link 611737-01 DeWalt DW821 Small Angle Grinder Switch Link €1.98
163
DeWalt DW821 Angle Grinder Switch Link Button 569624-01 DeWalt DW821 Angle Grinder Switch Link Button €1.98
164
photo_cameraImage coming soon 562097-13 Screw €1.56
800
photo_cameraImage coming soon 286436-00 RHEOLUBE 380 GREASE, 500GRAMS Stanley Black and Decker DeWalt €177.05
816
photo_cameraImage coming soon 569037-00 RATING PLATE €6.56
821
photo_cameraImage coming soon 946194-00 BRAND LABEL €1.56

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

DEWALT DW821 Type 1 Angle Grinder Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for DW821 Type 1 Angle Grinder Spare Parts.

In the following table, look for the model of the hammer and the respective parts of the code.
DW821 Type 1 Angle Grinder Spare Parts

DEWALT DW821 ANGLE GRINDER TYPE 1
# Part NUm. Description
103 945614-00 SWITCH - DISCONTINUED
106 622613-02 OUTER FLANGE
107 391969-00 INNER FLANGE
110 944586-00 GUARD
111 393576-00 RING
112 562160-01 SCREW
113 945298-00 GEARCASE COVER
117 945295-01 BEVEL GEAR & PINION ASSY TYPE 1
118 562097-01 VITE
119 562304-02 GEARCASE ASSY
121 573115-00 SIDE HANDLE
122 945299-00 FLANGE
123 945292-00 NUT M7 0,80
124 944574-00 BUTTON SW
125 562210-00 SPRING
126 944571-00 SPINDLE LOCK
127 605040-22 BEARING
128 641823-00 SLEEVE
129 401635-00 BAFFLE SA
130 949638-01 BUFFER
132 606574-01 BRUSH HOLDER
133 562204-00 BRUSH SPRING
135 605040-02 BEARING
136 394938-01 END CAP
137 611540-00 SUPPORT
138 401253-00 WRENCH
139 562097-05 SCREW
140 401622-01 FLANGE
141 398906-00 SPACER INSULATING
145 562097-00 SCREW
160 N110359 BEARING 608
162 611737-01 SWITCH LINK
163 569624-01 SWITCH LINK BUTTON
164 562097-13 SCREW
800 286436-00 GREASE
816 569037-00 RATING PLATE
821 946194-00 BRAND LABEL
