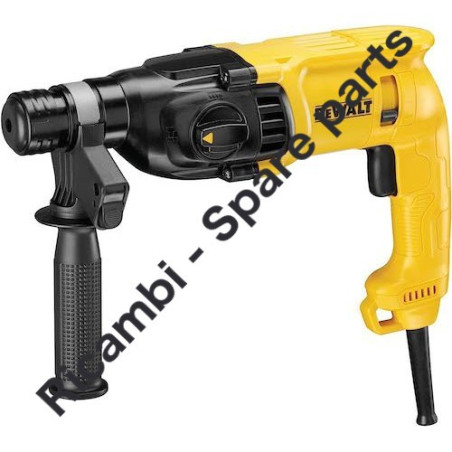

DEWALT D25033K Rotary Hammer Spare Parts
DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for DEWALT D25033K Rotary Hammer Spare Parts.

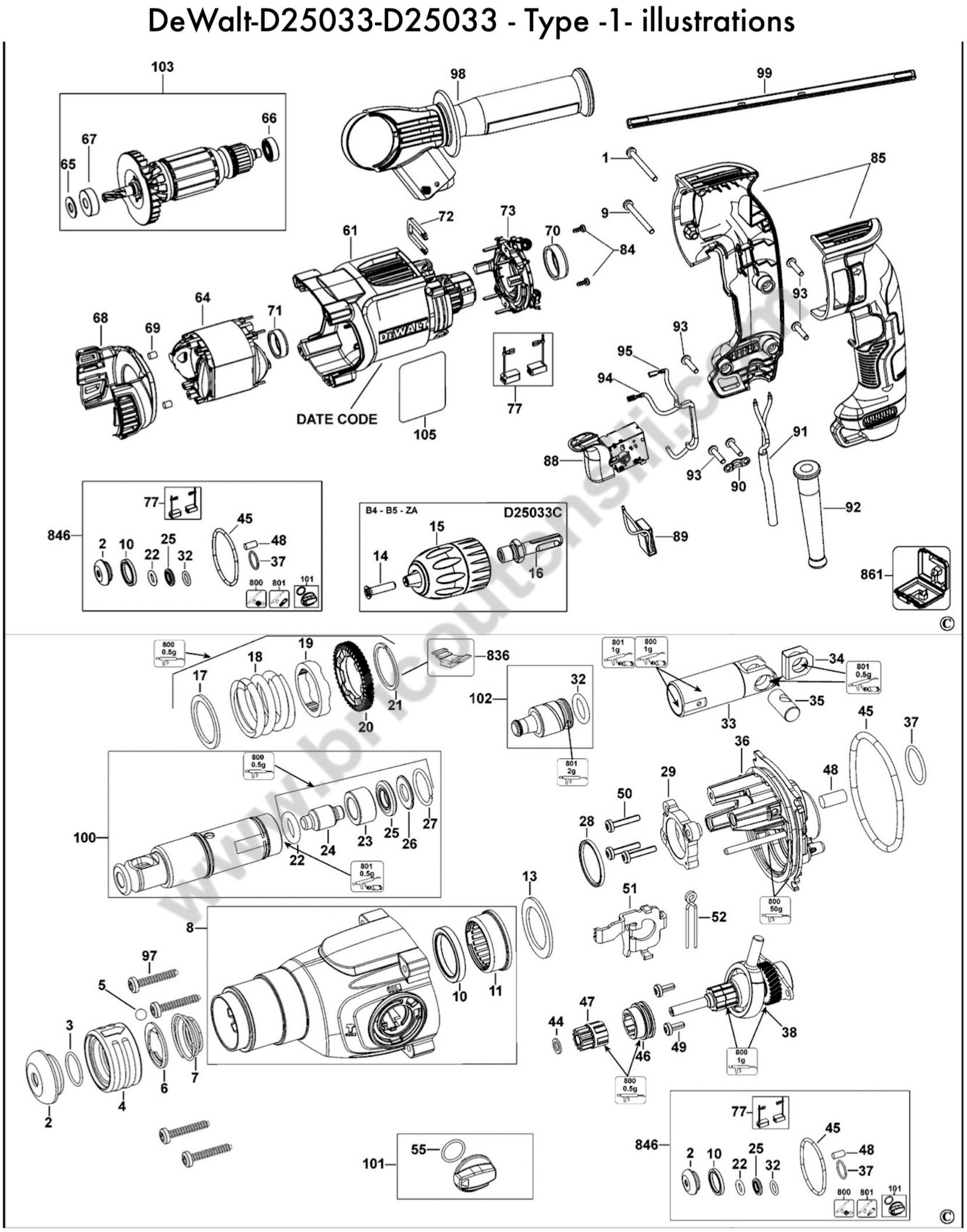

In the following table, look for the model of the hammer and the respective parts of the code.
| Rotary Hammer SDS-PLUS 22MM 710WATT- D25033K |
| # |
Part Num. |
Description |
| 1 |
N325879 |
SCREW |
| 2 |
323489-00 |
CAP |
| 3 |
579212-00 |
RING |
| 4 |
N163578 |
TUBE |
| 5 |
583890-00 |
BALL 7,0 |
| 6 |
578387-00 |
SDS BALL PLATE (WASHER SDS 1.4MM) |
| 7 |
871690 |
SPRING BEVEL |
| 8 |
N417731 |
HOUSING SA |
| 9 |
330065-16 |
SCREW |
| 10 |
327141-06 |
SEAL |
| 11 |
N020023 |
BEARING SPINDLE |
| 13 |
1005788-00 |
WASHER |
| 14 |
945013-00 |
VITE SINISTRA 6X25 |
| 15 |
582512-02 |
MANDRINO PER TRAPANO |
| 16 |
352065 |
ADATTATORE |
| 17 |
589350-00 |
WASHER |
| 18 |
N264677 |
SPRING |
| 19 |
N417735 |
LOCKING RING |
| 20 |
N417737 |
GEAR |
| 21 |
N406151 |
LOCKING RING |
| 22 |
N394276 |
O-RING |
| 23 |
1005804-00 |
TUBE GUIDE - DISCONTINUD |
| 24 |
N417744 |
RING |
| 25 |
1005808-00 |
RING |
| 25 |
580990-00 |
O-RING |
| 26 |
327087-00 |
WASHER |
| 27 |
N294259 |
RING |
| 28 |
N267565 |
RING |
| 29 |
N417745 |
BEARING |
| 32 |
N264642 |
O-RING |
| 33 |
N417749 |
PISTON |
| 34 |
1005842-00 |
WASHER |
| 35 |
N325041 |
BEARING SPINDLE |
| 36 |
N417752 |
HOUSING BEARING |
| 37 |
N264673 |
O-RING |
| 38 |
N418019 |
INTERSHAFT SA |
| 44 |
1005844-00 |
WASHGER |
| 45 |
N264672 |
O-RING 68X4 |
| 46 |
N417853 |
COLLAR |
| 47 |
N417859 |
GEAR |
| 48 |
1005812-00 |
FELT |
| 49 |
324006-14 |
SCREW |
| 50 |
324006-15 |
SCREW |
| 51 |
N264652 |
PLATE |
| 52 |
1005795-00 |
SPRING |
| 55 |
N091381-00 |
O-RING |
| 61 |
N481043 |
MOTOR HOUSING |
| 64 |
64N418020 |
FIELD 240V |
| 64 |
N418021 |
FIELD 120V |
| 65 |
N245239 |
WASHER |
| 66 |
1005895-00 |
BALL BEARING |
| 67 |
330003-60 |
BEARING |
| 68 |
N356759 |
BAFFLE |
| 69 |
N476768 |
RUBBER PAD |
| 70 |
N442577 |
RING |
| 71 |
N442578 |
VOVER BEARING |
| 72 |
1005894-00 |
CLIP |
| 73 |
N418033 |
BRUSH HOLDER SA |
| 73 |
N418034 |
BRUSH HOLDER SA |
| 77 |
N418039 |
BRUSH PAIR 230V |
| 77 |
N418040 |
BRUSH PAIR 120V |
| 84 |
N475466 |
SCREW |
| 85 |
N418011 |
HANDLE SA |
| 88 |
N166238 |
SWITCH 240V |
| 88 |
N364921 |
SWITCH 115V |
| 89 |
320842-19 |
CAPACITOR |
| 90 |
329301-00 |
CLAMP, CORD |
| 91 |
1005757-00 |
CORDSET |
| 92 |
403395-00 |
PASSACAVI |
| 93 |
330065-08 |
SCREW.4X18 |
| 94 |
N425379 |
LEAD BLUE |
| 95 |
1005879-01 |
LEAD RED |
| 97 |
330065-13 |
SCREW |
| 98 |
1005896-00 |
SIDE HANDLE |
| 99 |
798846-02 |
SOSTA PROFONDA |
| 100 |
N424934 |
SPINDLE SA |
| 101 |
N417861 |
SELECTOR ZSB |
| 102 |
N418035 |
RAM SA |
| 103 |
N418026 |
ARMATURE 230V |
| 103 |
N418027 |
ARMATURE 115/120V |
| 105 |
N586834 |
RATING PLATE |
| 105 |
N393567 |
RATING PLATE |
| 800 |
870889-02 |
RENOLIT PARAGON EP 1/2 , 90 GR |
| 801 |
487130-04 |
GREASE 10 GMS |
| 836 |
596005-99 |
S.T.CIRCLIP REMOVER |
| 836 |
1003959-99 |
S.T.CIRCLIP REMOVER |
| 836 |
1003960-99 |
S.T.CIRCLIP REMOVER |
| 846 |
N418448 |
SERVICE KIT 230V |
| 846 |
N418466 |
SERVICE KIT 120V |
| 861 |
N390353 |
KITBOX |
