DeWalt Power Tools

DEWALT DWE490 Angle Grinder Spare Parts

SKU: DEWALT DWE490
€1.65
VAT included

DEWALT DWE490 Angle Grinder Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for DWE490 Angle Grinder Spare Parts.

DEWALT DWE490 Angle Grinder Spare Parts
  • Online only
  • DEWALT DWE490 Angle Grinder Spare Parts
  • DEWALT DWE490 Angle Grinder Spare Parts
DeWalt Power Tools

DEWALT DWE490 Angle Grinder Spare Parts

SKU: DEWALT DWE490 Condition: New
€1.65
VAT included

DEWALT DWE490 Angle Grinder Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for DWE490 Angle Grinder Spare Parts.

settings 58 Spare parts

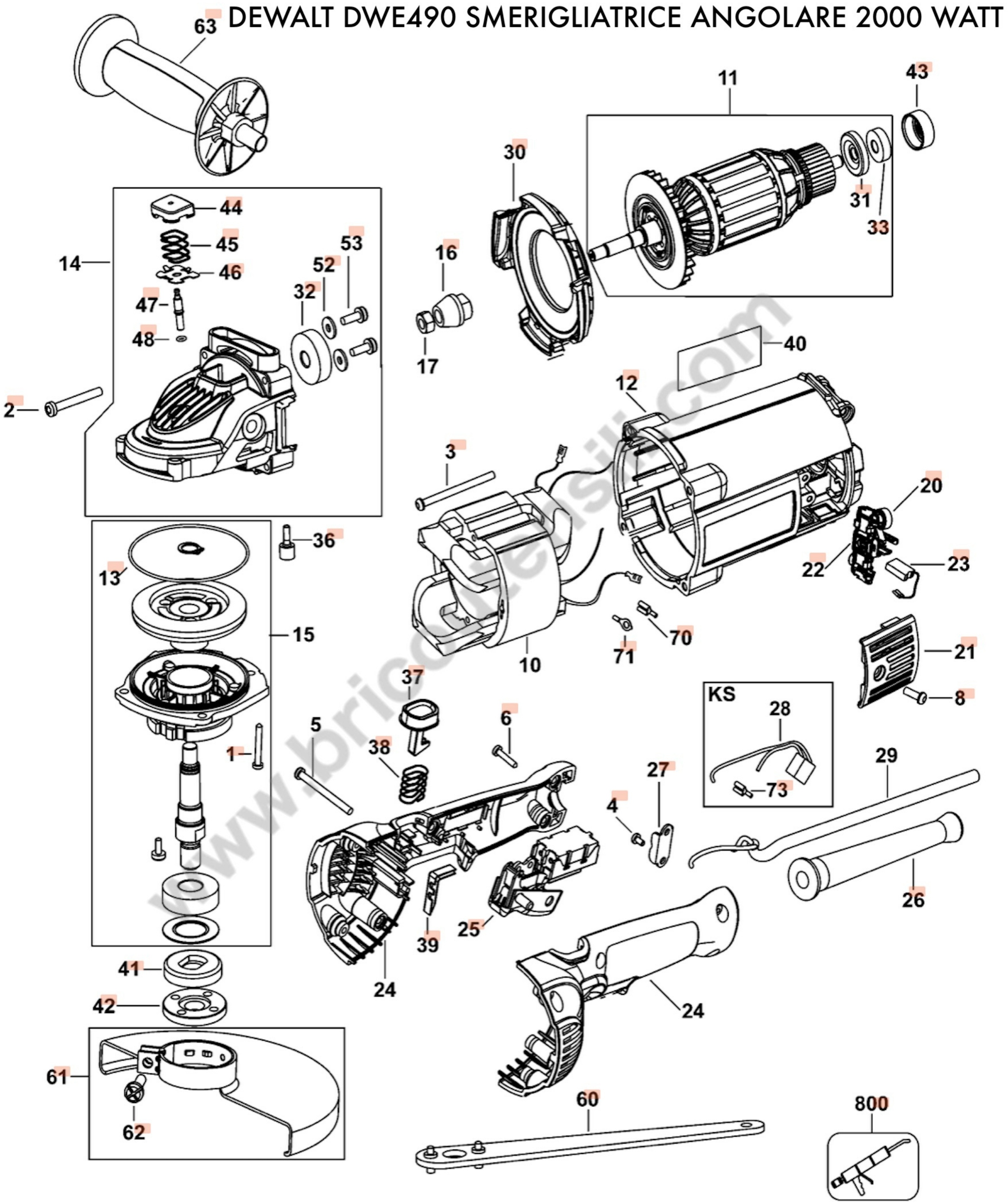

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on Demand Only

SHIPPING IN:: ON DEMAND ONLY
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
Machine Type: Grinder
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
58 spare parts
Page 1 zoom_in View exploded local_shipping ON DEMAND ONLY
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 330045-14 SCREW EMS 705 €2.03
2
 photo_cameraImage coming soon 330019-26 SCREW €1.73
3
 photo_cameraImage coming soon 330019-19 SCREW €2.27
4
 photo_cameraImage coming soon 330019-11 SCREW, FOR PLASTIC 4.55 X 13 T20 €1.73
5
 photo_cameraImage coming soon 330019-50 SCREW €1.88
6
 photo_cameraImage coming soon 330019-32 SCREW €1.88
8
 photo_cameraImage coming soon 176951-00 SCREW €1.73
10
 photo_cameraImage coming soon N310019 FIELD SA €52.62
10
 photo_cameraImage coming soon N411251 FIELD 115V €58.48
11
 photo_cameraImage coming soon N089617 ARMATURE 115V €104.72
12
 DeWalt DWE490 Field Case 393239-01 DeWalt DWE490 Field Case €27.57
13
 photo_cameraImage coming soon 397031-00 O-RINGS €1.73
14
 photo_cameraImage coming soon N442319 GEARCASE SA €42.92
15
 photo_cameraImage coming soon N442320 GEARCASE COVER SA €54.62
16
 photo_cameraImage coming soon N407625 PINION €11.42
20
 photo_cameraImage coming soon 645650-00 BRUSH SPRING €1.93
21
 photo_cameraImage coming soon 394387-01 BRUSH COVER €4.35
22
 DeWalt DWE490 Type 1 Grinder Carbon Brush Holder N410308 DeWalt DWE490 Type 1 Grinder Carbon Brush Holder €5.93
23
 photo_cameraImage coming soon N084455 BRUSH PAIR 120V €13.65
23
 Carbon Brush Set for DWE490 Type 1 Angle Grinder N404514 Carbon Brush Set for DWE490 Type 1 Angle Grinder €13.00
24
 photo_cameraImage coming soon 636499-01 HANDLE AND COVER €20.29
25
 photo_cameraImage coming soon N015071 SWITCH SA X TYPE 20 €16.87
25
 DeWalt Angle Grinder DWE490 Type 1 Switch Assembly N035342 DeWalt Angle Grinder DWE490 Type 1 Switch Assembly €25.12
26
 photo_cameraImage coming soon 330005-11 CORD PROTECTOR €5.88
26
 photo_cameraImage coming soon N219433 CORD PROTECTOR €2.53
27
 photo_cameraImage coming soon 604119-00 CORD CLAMP €1.73
28
 DeWalt DWE490 Capacitor 632218-00 DeWalt DWE490 Capacitor €1.77
29
 photo_cameraImage coming soon 562226-68 CORDSET €28.58
29
 photo_cameraImage coming soon N409119 CORDSET (M/PLUG) GB €22.73
30
 photo_cameraImage coming soon 631350-00 BAFFLE FAN €3.55
31
 DeWalt DWE490 Shield Dust 393238-00 DeWalt DWE490 Shield Dust €1.99
32
 photo_cameraImage coming soon N389509 BALL BEARING €6.77
33
 DeWalt Ball Bearing 608RS N110359 N110359 DeWalt Ball Bearing 608RS N110359 €3.84
34
 Suppressor for DWE490 Angle Grinder N423473 Suppressor for DWE490 Angle Grinder €5.93
36
 photo_cameraImage coming soon N033051 SCREW €1.93
37
 Button Lock-Off for DWE490 Angle Grinder 636503-00 Button Lock-Off for DWE490 Angle Grinder €1.78
38
 photo_cameraImage coming soon 636502-00 SPRING €1.73
39
 photo_cameraImage coming soon N391190 COVER €1.73
40
 photo_cameraImage coming soon N427097 RATING PLATE €1.73
40
 photo_cameraImage coming soon N427104 RATING PLATE €1.73
41
 photo_cameraImage coming soon 403150-01 INNER FLANGE €7.79
42
 photo_cameraImage coming soon 401678-05 OUTER FLANGE €7.79
43
 photo_cameraImage coming soon 609970-00 SLEEVE INSULATING €1.73
44
 photo_cameraImage coming soon 630553-00 CAPACITOR €1.73
45
 photo_cameraImage coming soon 638328-00 SPRING €1.73
46
 photo_cameraImage coming soon 635908-00 RETAINER €1.73
47
 photo_cameraImage coming soon 634589-00 PIN €3.55
48
 photo_cameraImage coming soon 750831 O RING €1.73
52
 photo_cameraImage coming soon 640591-00 WASHER €1.73
53
 photo_cameraImage coming soon 330045-67 SCREW €1.73
60
 photo_cameraImage coming soon 635261-00 WRENCH PIN €6.77
61
 DeWalt DWE490 Type 1 Guard SA N419366 DeWalt DWE490 Type 1 Guard SA €22.83
62
 DeWalt DWE490 Type 1 Screw M8x35 N082712 DeWalt DWE490 Type 1 Screw M8x35 €1.78
63
 DeWalt DWE490 Type 1 Side Handle 651858-01 DeWalt DWE490 Type 1 Side Handle €13.65
70
 photo_cameraImage coming soon 612273-00 TERMINAL €1.73
71
 photo_cameraImage coming soon 610057-00 TERMINAL €1.73
73
 photo_cameraImage coming soon 053650-00 TERMINAL €1.73
800
 photo_cameraImage coming soon 583534-00 Grease 50 Gms €319.29

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

DEWALT DWE490 Angle Grinder Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for DWE490 Angle Grinder Spare Parts.

In the following table, look for the model of the hammer and the respective parts of the code.
DWE490 Angle Grinder Spare Parts

DEWALT DWE490 ANGLE GRINDER 2000 WATT
# Part Num. Description
1 330045-14 SCREW EMS 705
2 330019-26 SCREW
3 330019-19 SCREW
4 330019-11 SCREW, FOR PLASTIC 4.55 X 13 T20
5 330019-50 SCREW
6 330019-32 SCREW
8 176951-00 SCREW
10 N310019 FIELD SA
10 N411251 FIELD 115V
11 N332479 ARMATURE SA
11 N089617 ARMATURE 115V
12 393239-01 FIELD CASE MH286
13 397031-00 O-RINGS
14 N442319 GEARCASE SA
15 N442320 GEARCASE COVER SA
16 N407625 PINION
17 330015-03 NUT
20 645650-00 BRUSH SPRING
21 394387-01 BRUSH COVER
22 N410308 BRUSH HOLDER ASSY
23 N404514 BRUSH PAIR
23 N084455 BRUSH PAIR 120V
24 636499-01 HANDLE AND COVER
25 N015071 SWITCH SA X TYPE 20
25 N035342 SWITCH SA X TYPE 1
26 N219433 CORD PROTECTOR
26 330005-11 CORD PROTECTOR
27 604119-00 CORD CLAMP
28 632218-00 CAPACITOR
29 562226-68 CORDSET
29 N409119 CORDSET (M/PLUG) GB
30 631350-00 BAFFLE FAN
31 393238-00 SHIELD
32 N389509 BALL BEARING 6300LU
33 N110359 BALL BEARING 608
34 N423473 SUPPRESSOR
36 N033051 SCREW
37 636503-00 BUTTON LOCK-OFF
38 636502-00 SPRING
39 N391190 COVER
40 N427097 RATING PLATE
40 N427104 RATING PLATE
41 403150-01 INNER FLANGE
42 401678-05 OUTER FLANGE
43 609970-00 SLEEVE INSULATING
44 630553-00 CAPACITOR
45 638328-00 SPRING
46 635908-00 RETAINER
47 634589-00 PIN
48 750831 O-RING
52 640591-00 WASHER
53 330045-67 SCREW
60 635261-00 WRENCH PIN
61 N419366 GUARD SA
62 N082712 SCREW
63 651858-01 SIDE HANDLE
70 612273-00 TERMINAL
71 610057-00 TERMINAL
73 053650-00 TERMINAL
800 583534-00 GREASE RHEOLUBE 380-G1
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
DEWALT DWE490
6 Items

Data sheet

Machine Type
Grinder
SHIPPING IN:
ON DEMAND ONLY
MORE INFO:
[email protected]
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

DEWALT DWE490 Drawing

DEWALT DWE490 Drawing

Download (572.97KB)
