DEWALT DW819 Type 3 Angle Grinder Spare Parts

SKU: DEWALT DW819 Tipo 3
€9.52
VAT included

DEWALT DW819 Type 3 Angle Grinder Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for DW819 Type 3 Angle Grinder Spare Parts.
DEWALT DW819 Type 3 Angle Grinder Spare Parts
  • Online only
  • DEWALT DW819 Type 3 Angle Grinder Spare Parts
  • DEWALT DW819 Type 3 Angle Grinder Spare Parts - Drawing
DeWalt Power Tools

DEWALT DW819 Type 3 Angle Grinder Spare Parts

SKU: DEWALT DW819 Tipo 3 Condition: New
€9.52
VAT included

DEWALT DW819 Type 3 Angle Grinder Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for DW819 Type 3 Angle Grinder Spare Parts.
settings 42 Spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on Demand Only Call Us Before

SHIPPING IN: ON DEMAND ONLY
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
Machine Type: Grinder
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
42 spare parts

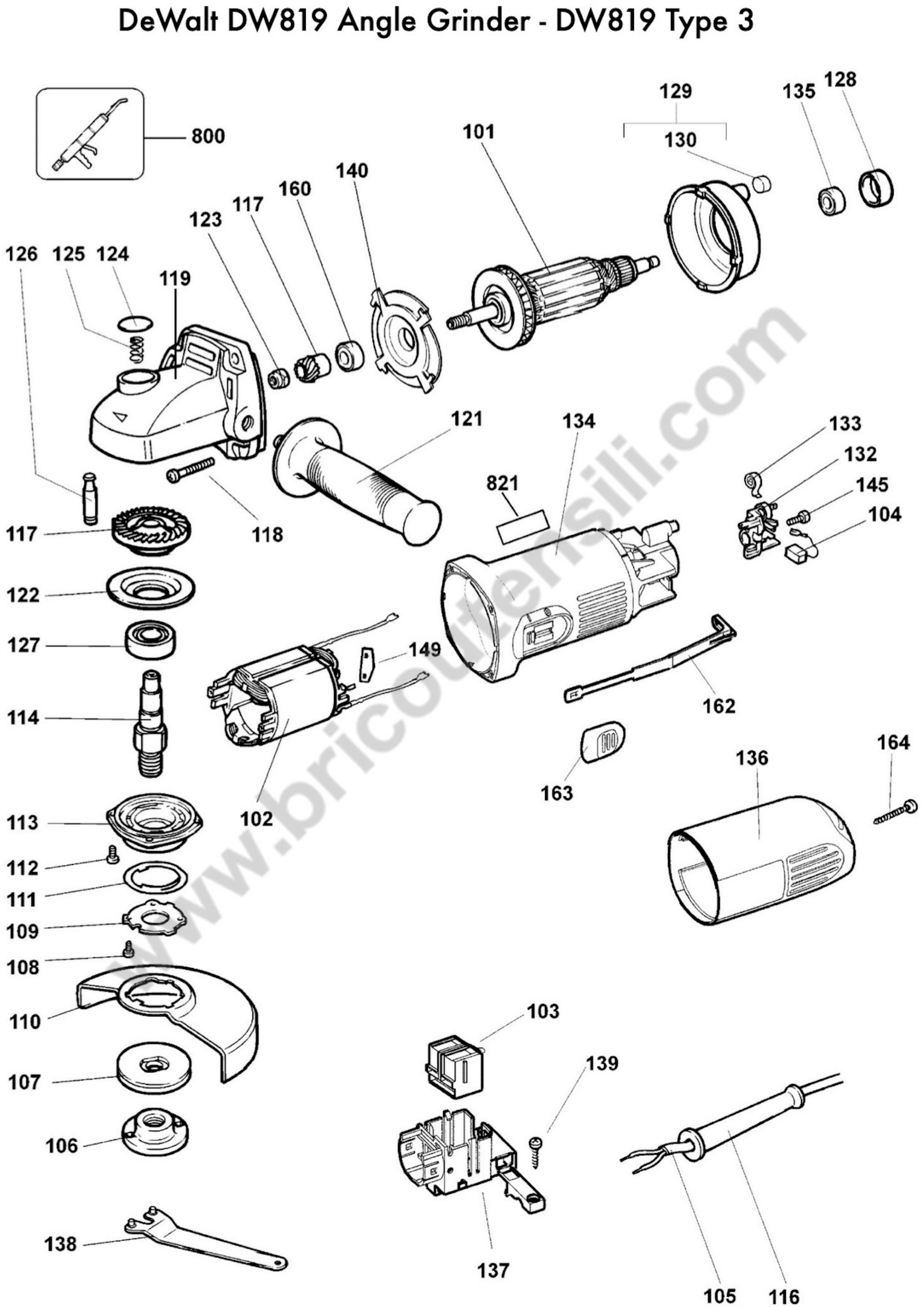

Page 1 zoom_in View exploded local_shipping ON DEMAND ONLY
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
101
 photo_cameraImage coming soon 393921-04 ARMATURE SA - DISCONTINUED €0.11 Not available for order
103
 Switch for DW821 Small Angle Grinder 945614-00 Switch for DW821 Small Angle Grinder €15.92 Not available for order
104
 DeWalt DW816 Type 1 Cut Off Brush 939539-01 DeWalt DW816 Type 1 Cut Off Brush €7.12
106
 Outer Flange for DW821 Small Angle Grinder 622613-02 Outer Flange for DW821 Small Angle Grinder €8.02
107
 Inner Flange for DW821 Small Angle Grinder 391969-00 Inner Flange for DW821 Small Angle Grinder €5.10
108
 photo_cameraImage coming soon 000000-00 XXXXXXX €0.11 Not available for order
109
 photo_cameraImage coming soon 605415-00 Not Available €0.11 Not available for order
110
 photo_cameraImage coming soon 944685-00 GUARD €0.11 Not available for order
111
 photo_cameraImage coming soon 393576-00 Guard Spring €1.75
112
 photo_cameraImage coming soon 562160-01 Screw For Gear Case Cover (M4 x 10) €1.56
113
 photo_cameraImage coming soon 945298-00 GEARCASE COVER €0.11 Not available for order
114
 photo_cameraImage coming soon 391971-00 SPINDLE €0.11 Not available for order
116
 photo_cameraImage coming soon 330005-01 PROTECTOR, CORD €0.11 Not available for order
117
 photo_cameraImage coming soon 945295-01 GEAR & PINION €23.32
118
 photo_cameraImage coming soon 562097-01 SCREW €1.56
119
 photo_cameraImage coming soon 569599-00 GEARCASE €0.11 Not available for order
121
 photo_cameraImage coming soon 573115-00 SIDE HANDLE €3.92
122
 photo_cameraImage coming soon 945299-00 Gear Flange €1.56
123
 photo_cameraImage coming soon 945292-00 Nut (Pinion fixing) €1.56
124
 DeWalt DW821 Angle Grinder Spindle Lock Button 944574-00 DeWalt DW821 Angle Grinder Spindle Lock Button €1.78
125
 DeWalt DW821 Angle Grinder Spindle Lock Spring 562210-00 DeWalt DW821 Angle Grinder Spindle Lock Spring €1.78
126
 DeWalt DW821 Angle Grinder Spindle Lock 944571-00 DeWalt DW821 Angle Grinder Spindle Lock €2.81
127
 photo_cameraImage coming soon 605040-22 BEARING €5.19
128
 DeWalt DW818 Bearing Sleeve 930275-00 DeWalt DW818 Bearing Sleeve €1.78
129
 photo_cameraImage coming soon 401635-00 BAFFLE SA €0.11 Not available for order
130
 photo_cameraImage coming soon 949638-01 Plug €1.73
132
 photo_cameraImage coming soon 395985-00 BRUSH HOLDER €0.11 Not available for order
133
 DeWalt DW821 Angle Grinder Brush Spring 562204-00 DeWalt DW821 Angle Grinder Brush Spring €1.78
134
 photo_cameraImage coming soon 609938-01 FIELD CASE KIT €0.11 Not available for order
135
 DeWalt DW818 Small Angle Grinder Bearing 607LUT 605040-02 DeWalt DW818 Small Angle Grinder Bearing 607LUT €5.57
136
 photo_cameraImage coming soon 394938-01 END CAP €0.11 Not available for order
137
 photo_cameraImage coming soon 5140000-13 SWITCH SUPPORT €4.28
138
 photo_cameraImage coming soon 401680-00 WRENCH €6.88
139
 photo_cameraImage coming soon 562097-05 Screw DW201,171 €1.56
140
 Electronic Board for Mitre Saws Compa Orange OMS TC10/TC14 401622-01 Electronic Board for Mitre Saws Compa Orange OMS TC10/TC14 €54.29
145
 photo_cameraImage coming soon 562097-00 Screw For Brush Holder Assy.(4.2 x 13) €1.68
149
 photo_cameraImage coming soon 402489-00 COMPOUND CUTTING PAD €0.11 Not available for order
160
 photo_cameraImage coming soon 390821-01 BEARING €0.11 Not available for order
162
 DeWalt DW821 Small Angle Grinder Switch Link 611737-01 DeWalt DW821 Small Angle Grinder Switch Link €1.98
163
 DeWalt DW821 Angle Grinder Switch Link Button 569624-01 DeWalt DW821 Angle Grinder Switch Link Button €1.98
164
 photo_cameraImage coming soon 562097-13 Screw €1.56
800
 photo_cameraImage coming soon 286436-00 RHEOLUBE 380 GREASE, 500GRAMS Stanley Black and Decker DeWalt €177.05
821
 photo_cameraImage coming soon 000000-00 XXXXXXX €0.11 Not available for order

Shipping and delivery information will be available shortly.

DEWALT DW819 Type 3 Angle Grinder Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for DW819 Type 3 Angle Grinder Spare Parts.

In the following table, look for the model of the hammer and the respective parts of the code.
DW819 Type 3 Angle Grinder Spare Parts

DeWalt DW819 Angle Grinder Type 3 Spare Parts
# Part Num. Description
101 393921-04 ARMATURE SA - DISCONTINUED
103 945614-00 SWITCH - DISCONTINUED
104 939539-01 Carbon Brush - Cutt Off
106 622613-02 OUTER FLANGE
107 391969-00 INNER FLANGE
108 000000-00 Not Available
109 605415-00 Not Available
110 944685-00 GUARD
111 393576-00 Guard Spring
112 562160-01 Screw For Gear Case Cover (M4 x 10)
113 945298-00 GEARCASE COVER
114 391971-00 SPINDLE
116 330005-01 PROTECTOR, CORD
117 945295-01 GEAR & PINION
118 562097-01 SCREW
119 569599-00 GEARCASE
121 573115-00 SIDE HANDLE
122 945299-00 Gear Flange
123 945292-00 Nut (Pinion fixing)
124 944574-00 BUTTON
125 562210-00 SPRING
126 944571-00 SPINDLE LOCK
127 605040-22 BEARING
128 930275-00 SLEEVE BEARING
129 401635-00 BAFFLE SA
130 949638-01 Plug
132 395985-00 BRUSH HOLDER
133 562204-00 BRUSH SPRING
134 609938-01 FIELD CASE KIT
135 605040-02 BEARING
136 394938-01 END CAP
137 5140000-13 SWITCH SUPPORT
138 401680-00 WRENCH
139 562097-05 Screw DW201,171
140 401622-01 Fan Flange
145 562097-00 Screw For Brush Holder Assy.(4.2 x 13)
149 402489-00 PAD
160 390821-01 BEARING
162 611737-01 SWITCH LINK
163 569624-01 SWITCH LINK BUTTON
164 562097-13 Screw
800 286436-00 RHEOLUBE 380 GREASE, 500GRAMS Stanley Black and Decker DeWalt
821 000000-00 Not Available
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
DEWALT DW819 Tipo 3
6 Items

Data sheet

SHIPPING IN
ON DEMAND ONLY
CHECK ITEM CODE OR S/N
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
Machine Type
Grinder
MORE INFO:
[email protected]

Specific References

New

Download

DEWALT DW819 Tipe 3 Drawing

DEWALT DW819 Tipe 3 Drawing

Download (358.92KB)
