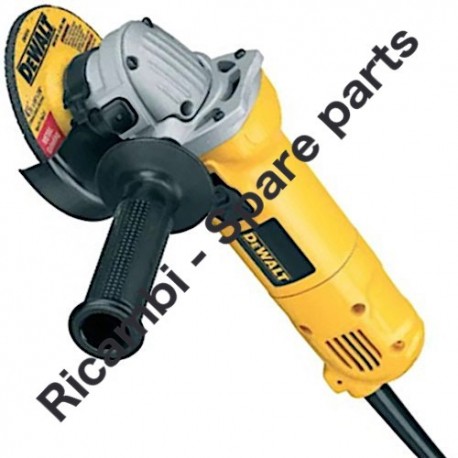

DEWALT DW816 Type 1 Angle Grinder Spare Parts

SKU: DEWALT DW816 Tipo 1
€12.50
VAT included

DEWALT DW816 Type 1 Angle Grinder Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for DW816 Type 1 Angle Grinder Spare Parts.
DEWALT DW816 Type 1 Angle Grinder Spare Parts
  • Online only
  • DEWALT DW816 Type 1 Angle Grinder Spare Parts
  • DEWALT DW816 Type 1 Angle Grinder Spare Parts - Drawing
DeWalt Power Tools

DEWALT DW816 Type 1 Angle Grinder Spare Parts

SKU: DEWALT DW816 Tipo 1 Condition: New
€12.50
VAT included

DEWALT DW816 Type 1 Angle Grinder Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for DW816 Type 1 Angle Grinder Spare Parts.
settings 13 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on Demand Only

SHIPPING IN:: ON DEMAND ONLY
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
13 spare parts
Page 1 zoom_in View exploded local_shipping ON DEMAND ONLY

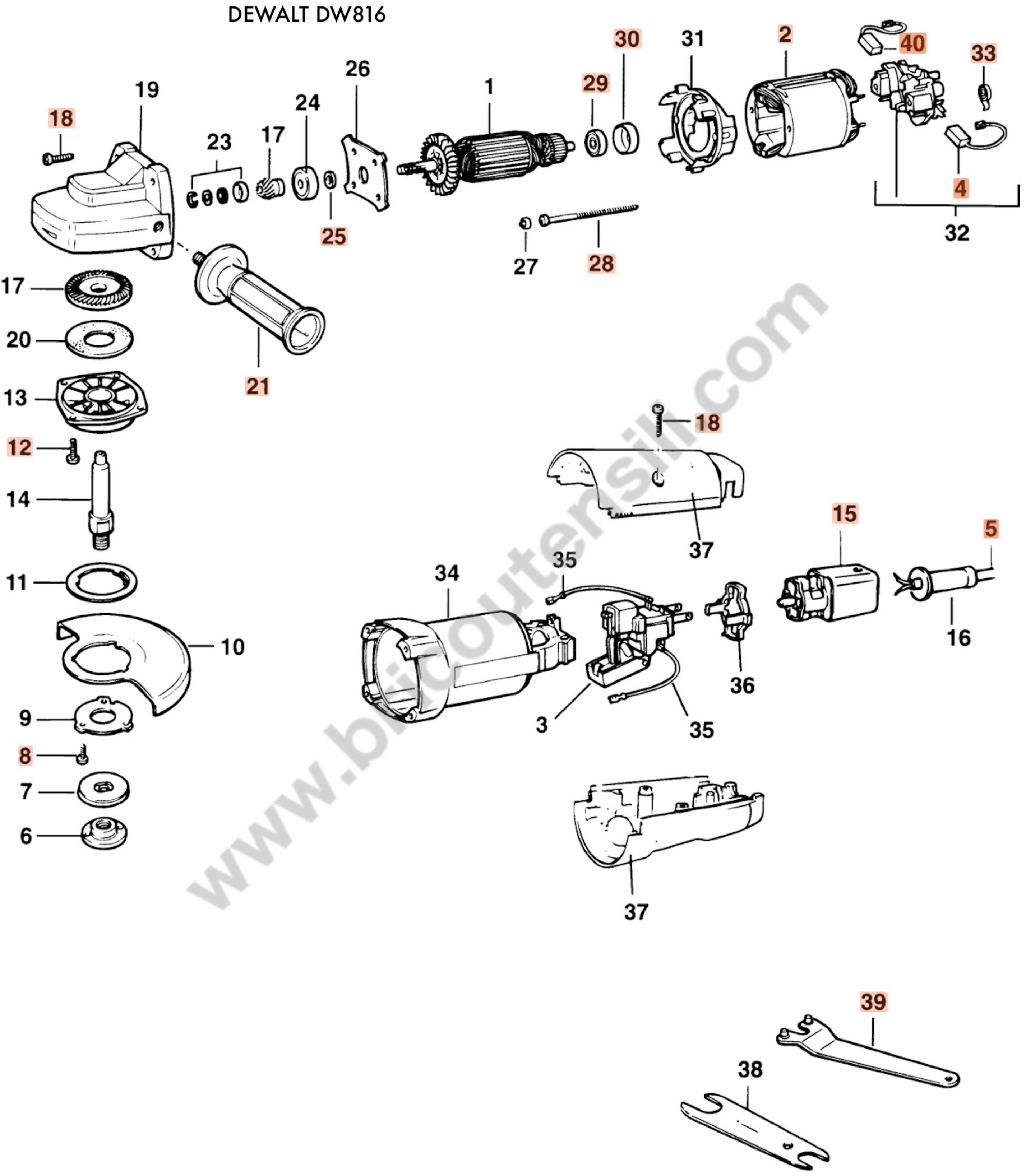

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
4
 Carbon Brush Set for DW816 Type 1 Small Angle Grinder 930151-00 Carbon Brush Set for DW816 Type 1 Small Angle Grinder €12.50
5
 photo_cameraImage coming soon 330061-14 CORDSET €38.54
5
 photo_cameraImage coming soon 949770-06 CABLE & PLUG €36.19
15
 photo_cameraImage coming soon 869067-00 PLUG €23.32
16
 photo_cameraImage coming soon N542553 CORD PROTECTOR - NO LONGER AVAILABLE €5.31
21
 photo_cameraImage coming soon 573115-00 SIDE HANDLE €3.92
29
 photo_cameraImage coming soon 330003-34 BEARING €7.54
30
 photo_cameraImage coming soon 930029-00 HOLDER BEARING €1.56
33
 photo_cameraImage coming soon 930090-00 BRUSH SPRING €1.56
39
 photo_cameraImage coming soon 401253-00 WRENCH ROUND-PINS €3.20
40
 photo_cameraImage coming soon 939539-00 BRUSH CUT OFF 110V €11.71
40
 DeWalt DW816 Type 1 Cut Off Brush 939539-01 DeWalt DW816 Type 1 Cut Off Brush €7.12
500
 photo_cameraImage coming soon 330120-86 CORD €22.23

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

DEWALT DW816 Type 1 Angle Grinder Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for DW816 Type 1 Angle Grinder Spare Parts.

In the following table, look for the model of the hammer and the respective parts of the code.
DW816 Type 1 Angle Grinder Spare Parts
DEWALT DW816 ANGLE GRINDER (TYPE 1) Spare Parts
# Part Num. Description
1 000000-00 NO LONGER AVAILABLE
2 000000-00 NO LONGER AVAILABLE
2 868629-02 FIELD - NO LONGER AVAILABLE
3 949822-03 SWITCH - NO LONGER AVAILABLE
3 000000-00 NO LONGER AVAILABLE
4 930897-00 BRUSH 115-120V - NO LONGER AVAILABLE
4 930151-00 CARBON BRUSH SET 220V - 1003923-00
5 330061-14 CORDSET
5 949770-06 CABLE & PLUG
6 403430-00 OUTER FLANGE - NO LONGER AVAILABLE
7 000000-00 NO LONGER AVAILABLE
8 930251-00 SCREW - NO LONGER AVAILABLE
10 000000-00 NO LONGER AVAILABLE
11 000000-00 NO LONGER AVAILABLE
12 930770-00 SCREW - NO LONGER AVAILABLE
13 944055 GEARCASE COVER SA - NO LONGER AVAILABLE
14 000000-00 NO LONGER AVAILABLE
15 000000-00 NO LONGER AVAILABLE
15 869067-00 PLUG
16 N542553 CORD PROTECTOR - NO LONGER AVAILABLE
17 000000-00 NO LONGER AVAILABLE
18 930079-01 SCREW - NO LONGER AVAILABLE
19 000000-00 NO LONGER AVAILABLE
20 000000-00 NO LONGER AVAILABLE
21 573115-00 SIDE HANDLE
23 937668 CIRCLIP SA - NO LONGER AVAILABLE
24 330003-36 BEARING - NO LONGER AVAILABLE
25 930753-00 WASHER
27 933657-00 CAP - NO LONGER AVAILABLE
28 930077-00 SCREW - NO LONGER AVAILABLE
29 330003-34 BEARING
30 930029-00 HOLDER BEARING
31 000000-00 NO LONGER AVAILABLE
32 000000-00 NO LONGER AVAILABLE
33 930090-00 BRUSH SPRING
34 000000-00 NO LONGER AVAILABLE
35 930728-00 LEAD - NO LONGER AVAILABLE
36 000000-00 NO LONGER AVAILABLE
37 000000-00 NO LONGER AVAILABLE
38 000000-00 NO LONGER AVAILABLE
39 401253-00 WRENCH ROUND-PINS
40 939539-01 1 x Cut Off Brush 240v
40 939539-00 BRUSH CUT OFF 110V
500 330120-86 CORD
