DEWALT D25003K Rotary Hammer Type 3 Spare Parts

SKU: DEWALT D25003K Tipo 3
€36.31
VAT included

DEWALT D25003K Rotary Hammer Type 3 Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for D25003K Rotary Hammer Type 3 Spare Parts.
DEWALT D25003K Rotary Hammer Type 3 Spare Parts
  • Online only
  • DEWALT D25003K Rotary Hammer Type 3 Spare Parts
  • DEWALT D25003K Rotary Hammer Type 3 Spare Parts - Drawing
DeWalt Power Tools

DEWALT D25003K Rotary Hammer Type 3 Spare Parts

SKU: DEWALT D25003K Tipo 3 Condition: New
€36.31
VAT included

DEWALT D25003K Rotary Hammer Type 3 Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for D25003K Rotary Hammer Type 3 Spare Parts.
settings 79 Spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on Demand Only Call Us Before

SHIPPING IN: ON DEMAND ONLY
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
Machine Type: Rotary Hammer
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
79 spare parts
Page 1 zoom_in View exploded local_shipping ON DEMAND ONLY

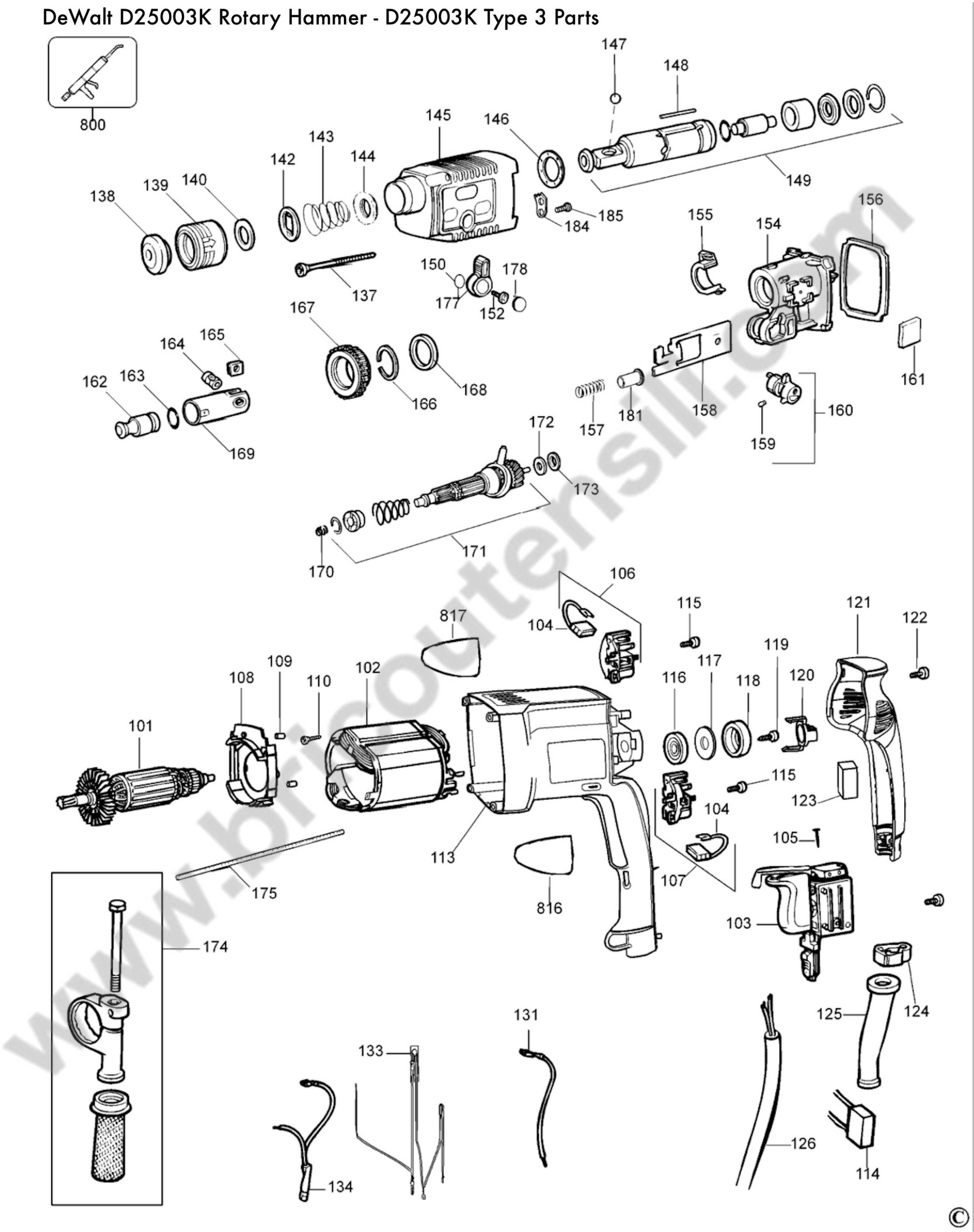

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
101
 photo_cameraImage coming soon 585289-03 ARMATURE SA €0.11 Not available for order
102
 photo_cameraImage coming soon 585290-04 FIELD 115V €0.11 Not available for order
102
 photo_cameraImage coming soon 585290-10 FIELD SA €0.11 Not available for order
103
 Switch for Rotary Hammer DeWALT D25003K 1006250-00 Switch for Rotary Hammer DeWALT D25003K €36.31
103
 Switch for Hammer DeWalt D25003K 176830-19 Switch for Hammer DeWalt D25003K €0.00 Not available for order
104
 photo_cameraImage coming soon 401853-00 BRUSH 115V €5.56
104
 DeWALT D25003K Carbon Brush 401853-01 DeWALT D25003K Carbon Brush €11.33
105
 photo_cameraImage coming soon 402760-01 PIN €0.11 Not available for order
106
 photo_cameraImage coming soon 401845-00 BRUSH HOLDER SA €0.11 Not available for order
106
 photo_cameraImage coming soon 403222-02 BRUSH HOLDER €0.11 Not available for order
107
 photo_cameraImage coming soon 401845-04 BRUSH HOLDER 240V €0.11 Not available for order
107
 photo_cameraImage coming soon 403222-05 BRUSH HOLDER €0.11 Not available for order
108
 photo_cameraImage coming soon 327293-00 BAFFLE FAN €0.11 Not available for order
109
 photo_cameraImage coming soon 949638-01 Plug €1.73
110
 photo_cameraImage coming soon 747329 SCREW €1.72
113
 photo_cameraImage coming soon 327290-05 HOUSING SA €0.11 Not available for order
114
 photo_cameraImage coming soon 939794-02 HANDLE SIDE SA €20.12
114
 photo_cameraImage coming soon 949877-01 CAPACITOR €2.74
115
 photo_cameraImage coming soon 330065-06 SCREW €1.83
116
 photo_cameraImage coming soon 330003-19 BEARING €5.91
117
 photo_cameraImage coming soon 949876-25 WASHER €0.11 Not available for order
118
 photo_cameraImage coming soon 870052 BEARING COVER €1.88
119
 photo_cameraImage coming soon 329794-00 SCREW COLLER 8MM €1.73
120
 photo_cameraImage coming soon 327296-00 CAP €0.11 Not available for order
121
 photo_cameraImage coming soon 327298-01 SWITCH COVER €0.11 Not available for order
122
 photo_cameraImage coming soon 330065-07 SCREW €1.73
123
 photo_cameraImage coming soon 930026-01 BUMPER €2.16
124
 photo_cameraImage coming soon 402649-00 CORD CLAMP €1.73
125
 photo_cameraImage coming soon 403395-00 CORD PROTECTOR €5.45
126
 photo_cameraImage coming soon 000000-00 XXXXXXX €0.11 Not available for order
126
 photo_cameraImage coming soon 330060-46 CORDSET €0.11 Not available for order
127
 photo_cameraImage coming soon 949801-86 LEAD BLACK 90MM €0.11 Not available for order
128
 photo_cameraImage coming soon 949801-85 LEAD BLACK 90MM €0.11 Not available for order
130
 photo_cameraImage coming soon 578984-00 LEAD SA €0.11 Not available for order
130
 photo_cameraImage coming soon 578984-02 LEAD SA €0.11 Not available for order
133
 photo_cameraImage coming soon 578985-00 CHOKE SA €0.11 Not available for order
134
 photo_cameraImage coming soon 945402-40 CHOKE SA €0.11 Not available for order
137
 photo_cameraImage coming soon 324044-02 SCREW 4X65 MM €0.11 Not available for order
138
 DeWalt DCH333 Housing Front Cap 323489-00 DeWalt DCH333 Housing Front Cap on Demand Only Call Us Before €2.81
139
 photo_cameraImage coming soon 576756-00 COLLAR €0.11 Not available for order
140
 photo_cameraImage coming soon 323480-00 7150, WASHER €4.35
142
 DeWALT D25033K SDS Ball Plate 578387-00 DeWALT D25033K SDS Ball Plate €2.81
143
 DeWALT D25333K Tube Spring 871690 DeWALT D25333K Tube Spring €1.72
144
 photo_cameraImage coming soon 324432-00 SEAL. DUST €4.56
145
 photo_cameraImage coming soon 329968-01 GEARCASE SA €0.11 Not available for order
146
 DeWALT D25003K Washer 329907-00 DeWALT D25003K Washer on Demand Only : Call us Before €8.02
147
 DeWalt D27111 Steel Ball 583890-00 DeWalt D27111 Steel Ball €1.94
148
 photo_cameraImage coming soon 325880-05 PIN €0.11 Not available for order
149
 photo_cameraImage coming soon 577080-01 SPINDLE SA €0.11 Not available for order
150
 photo_cameraImage coming soon 916323 O-RING 10,5X1,5 €0.11 Not available for order
152
 photo_cameraImage coming soon 323924-08 SCREW, PLASTIC 5X12 €1.73
154
 photo_cameraImage coming soon 327100-00 CASTING SA €35.26 Not available for order
155
 photo_cameraImage coming soon 328507-00 SHIELD €0.11 Not available for order
156
 photo_cameraImage coming soon 000000-00 XXXXXXX €0.11 Not available for order
157
 photo_cameraImage coming soon 323395-17 SPRING €0.11 Not available for order
158
 photo_cameraImage coming soon 327081-01 PLATE €0.11 Not available for order
159
 DeWalt Detent for Hammer D25333K 326467-00 DeWalt Detent for Hammer D25333K €1.72
160
 photo_cameraImage coming soon 327094-01 CAM €7.18
161
 photo_cameraImage coming soon 327093-00 FILTER €0.11 Not available for order
162
 photo_cameraImage coming soon NO32136 RAM SA €0.11 Not available for order
163
 photo_cameraImage coming soon 577168-00 RING O DYNAMIC 13X3 €2.16
164
 photo_cameraImage coming soon 487143-00 BOLT, BEARING €9.00 Not available for order
165
 photo_cameraImage coming soon 327072-00 SHIM €1.93 Not available for order
166
 photo_cameraImage coming soon 323762-02 CIRCLIP €1.83
167
 photo_cameraImage coming soon 487401-00 CLUTCH SA €0.11 Not available for order
168
 photo_cameraImage coming soon 327074-00 RING €0.11 Not available for order
169
 photo_cameraImage coming soon 487067-00 PISTON €37.06 Not available for order
170
 photo_cameraImage coming soon 323395-33 SPRING €0.11 Not available for order
171
 photo_cameraImage coming soon 327101-01 INTERSHAFT SA €56.46 Not available for order
172
 photo_cameraImage coming soon 324430-03 THRUST BEARING €0.11 Not available for order
173
 photo_cameraImage coming soon 324431-03 THRUST BEARING WASHER €0.11 Not available for order
175
 photo_cameraImage coming soon 580787-00 DEPTH STOP €2.80
177
 photo_cameraImage coming soon 327119-00 LEVER €1.93 Not available for order
178
 photo_cameraImage coming soon 328809-00 COVER €0.11 Not available for order
181
 photo_cameraImage coming soon 329211-00 SLEEVE €0.11 Not available for order
184
 photo_cameraImage coming soon 577058-00 PLATE €0.11 Not available for order
185
 photo_cameraImage coming soon 930553 SCREW €0.11 Not available for order
800
 DeWalt Grease Renolit Paragon EP 1/2 90Gr. 870889-02 DeWalt Grease Renolit Paragon EP 1/2 90Gr. €19.42
816
 photo_cameraImage coming soon 395047-00 BRAND LABEL €1.73
817
 photo_cameraImage coming soon 1007999-00 RATING PLATE €0.11 Not available for order

Shipping and delivery information will be available shortly.

DEWALT D25003K Rotary Hammer Type 3 Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for D25003K Rotary Hammer Type 3 Spare Parts.

In the following table, look for the model of the hammer and the respective parts of the code.
D25003K Rotary Hammer Type 3 Spare Parts

DeWalt D25003K Rotary Hammer - D25003K Type 3
# Part Numb. Description
101 585289-03 ARMATURE SA
102 585290-04 FIELD 115V
102 585290-10 FIELD SA
103 176830-19 SWITCH
103 1006250-00 SWITCH SA
104 401853-01 BRUSH 230V
104 401853-00 BRUSH 115V
105 402760-01 PIN
106 401845-00 BRUSH HOLDER SA
106 403222-02 BRUSH HOLDER
107 401845-04 BRUSH HOLDER 240V
107 403222-05 BRUSH HOLDER
108 327293-00 BAFFLE FAN
109 949638-01 Plug
110 747329 SCREW
113 327290-05 HOUSING SA
114 949877-01 CAPACITOR
115 330065-06 SCREW
116 330003-19 BEARING
117 949876-25 WASHER
118 870052 BEARING COVER
119 329794-00 SCREW COLLER 8MM
120 327296-00 CAP
121 327298-01 SWITCH COVER
122 330065-07 SCREW
123 930026-01 BUMPER
124 402649-00 CORD CLAMP
125 403395-00 CORD PROTECTOR
126 330060-46 CORDSET
126 000000-00 XXXXXXX
127 949801-86 LEAD BLACK 90MM
128 949801-85 LEAD BLACK 90MM
130 578984-00 LEAD SA
130 578984-02 LEAD SA
133 578985-00 CHOKE SA
134 945402-40 CHOKE SA
137 324044-02 SCREW 4X65 MM
138 323489-00 CAP
139 576756-00 COLLAR
140 323480-00 7150, WASHER
142 578387-00 SDS BALL PLATE (WASHER SDS 1.4M™M)
143 871690 SPRING BEVEL
144 324432-00 SEAL. DUST
145 329968-01 GEARCASE SA
146 329907-00 WASHER
147 583890-00 BALL 7.0
148 325880-05 PIN
149 577080-01 SPINDLE SA
150 916323 O RING
152 323924-08 SCREW, PLASTIC 5X12
154 327100-00 CASTING SA
155 328507-00 SHIELD
156 000000-00 XXXXXXX
156 000000-00 XXXXXXX
157 323395-17 SPRING
158 327081-01 PLATE
159 326467-00 DETENT
160 327094-01 CAM
161 327093-00 FILTER
162 No32136 RAM SA
163 577168-00 RING O DYNAMIC 13X3
164 487143-00 BOLT, BEARING
165 327072-00 SHIM
166 323762-02 CIRCLIP
167 487401-00 CLUTCH SA
168 327074-00 RING
169 487067-00 PISTON
170 323395-33 SPRING
171 327101-01 INTERSHAFT SA
172 324430-03 THRUST BEARING
173 324431-03 THRUST BEARING WASHER
114 939794-02 HANDLE SIDE SA
175 580787-00 DEPTH STOP
177 327119-00 LEVER
178 328809-00 COVER
181 329211-00 SLEEVE
184 577058-00 PLATE
185 930553 SCREW
800 870889-02 GREASE RENOLIT PARAGON EP 1/2 90GR
816 395047-00 BRAND LABEL
817 1007999-00 RATING PLATE
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s DEWALT websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to DEWALT brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
DEWALT D25003K Tipo 3
6 Items

Data sheet

SHIPPING IN
ON DEMAND ONLY
CHECK ITEM CODE OR S/N
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
Machine Type
Rotary Hammer
MORE INFO:
[email protected]

Specific References

New

Download

D25003K Type 3 Drawing

D25003K Type 3 Drawing

Download (694.68KB)

You might also like

DeWalt Grease Renolit Paragon EP 1/2 90Gr.
DeWalt Power Tools SKU: 870889-02
DeWalt Grease Renolit Paragon EP 1/2 90Gr.
DeWalt Grease Renolit Paragon EP 1/2 90Gr. Genuine replacement part DeWALT, Grease Renolit Paragon EP 1/2 90Gr. for Demolition Hammers DeWalt - Black&Decker. Part for the following items: - Demolition Hammer D25481 Modello:...
on 7/10 Business Days Approx. €19.42
Details
DeWALT D25333K Tube Spring
DeWalt Power Tools SKU: 871690
DeWALT D25333K Tube Spring
DeWALT D25333K Rotary Hammer Spring Bevel Genuine replacement part DeWALT, Tube Spring Bevel (Chuck Cover Spring) for Rotary Hammer DeWALT D25333K Type 2. Part for the following products: - Rotary Hammer DeWALT D25333K...
AVAILABLE €1.72
Details
DeWalt DCH333 Housing Front Cap
DeWalt Power Tools SKU: 323489-00
DeWalt DCH333 Housing Front Cap
DeWalt DCH333 Housing Front Cap Genuine replacement part DeWALT, Housing Front Cap for Rotary Hammer DCH333. Part for the following items: - DEWALT DCH333 ROTARY HAMMER TYPE 1 - DEWALT D25333K Tipo 2 - DEWALT D25003K Tipo 3...
on Demand Only Call Us Before €2.81
Details
DeWALT D25003K Washer
DeWalt Power Tools SKU: 329907-00
DeWALT D25003K Washer
DeWALT Rotary Hammer D25003K Washer Genuine replacement part DeWALT, Washer for Rotary Hammer DeWALT D25003K Type 3. Part for the following products: - Rotary Hammer DeWALT D25003K - Code: 329907-00
on Demand Only : Call us Before €8.02
Details
DeWALT D25033K SDS Ball Plate
DeWalt Power Tools SKU: 578387-00
DeWALT D25033K SDS Ball Plate
DeWALT D25033K SDS Ball Plate Genuine replacement part DeWALT, SDS Ball Plate (WASHER SDS 1.4M™M) for Rotary Hammer D25033K Type 1. Part for the following items: - DEWALT D25333K Tipo 2 - DEWALT D25033K Tipo 1 - DEWALT D25012K...
AVAILABLE €2.81
Details
DeWALT D25003K Carbon Brush
DeWalt Power Tools SKU: 401853-01
DeWALT D25003K Carbon Brush
DeWALT D25003K Carbon Brush Genuine replacement part DeWALT, Carbon Brush 230V for Rotary Hammer DeWALT D25003K Type 3. Part for the following products: - Rotary Hammer DeWALT D25003K -...
AVAILABLE €11.33
Details
DeWalt D27111 Steel Ball
DeWalt Power Tools SKU: 583890-00
DeWalt D27111 Steel Ball
DeWalt D27111 Steel Ball Genuine replacement part DeWALT, Steel Ball D.7 mm for Hammer DCH214 - D25333K. Part for the following items: -  Hammer DEWALT DCH214 Type 1 -  Hammer DEWALT D25333K Type 2 -  Hammer DEWALT D25003K Type 3...
AVAILABLE €1.94
Details
DeWalt Detent for Hammer D25333K
DeWalt Power Tools SKU: 326467-00
DeWalt Detent for Hammer D25333K
DeWalt Detent for Rotary Hammer D25333K Genuine replacement part DeWALT, Detent for Hammer D25333K - D25003K - D25601-QS. Part for the following items: -  Rotary Hammer DEWALT D25333K Tipo 2...
AVAILABLE €1.72
Details
Comments (0)
No customer reviews for the moment.
