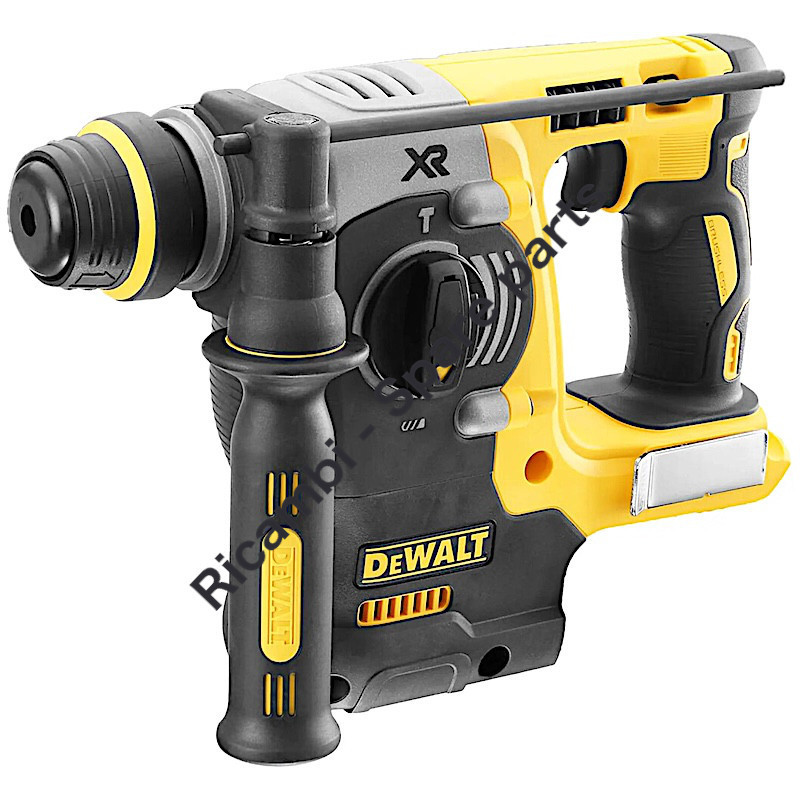

DeWalt DCH273N-XJ Type 20 Rotary Hammer Parts

SKU: DCH273N-XJ
€0.11
VAT included

DeWalt DCH273N-XJ Type 20 Rotary Hammer Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for DCH273N-XJ Type 20 Rotary Hammer.

DeWalt DCH273NT-XJ Type 1 Hammer Drill Parts
  • Online only
  • New
  • Out-of-Stock
  • DeWalt DCH273NT-XJ Type 1 Hammer Drill Parts
  • DeWalt DCH273N-XJ Type 20 Rotary Hammer Parts
DeWalt Power Tools

DeWalt DCH273N-XJ Type 20 Rotary Hammer Parts

SKU: DCH273N-XJ Condition: New
€0.11
VAT included

DeWalt DCH273N-XJ Type 20 Rotary Hammer Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for DCH273N-XJ Type 20 Rotary Hammer.

settings 80 Spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
Quantity
Out-of-Stock

SHIPPING IN: ON DEMAND ONLY
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
Machine Type: Drill
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
80 spare parts
Page 1 zoom_in View exploded local_shipping ON DEMAND ONLY
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 DeWalt DCH333 Housing Front Cap 323489-00 DeWalt DCH333 Housing Front Cap on Demand Only Call Us Before €2.81
2
 DeWALT D25033K Ring Snap 21 579212-00 DeWALT D25033K Ring Snap 21 €1.94
3
 photo_cameraImage coming soon NA289480 TUBE SA €19.42
4
 photo_cameraImage coming soon N629539 BALL €1.72
5
 DeWALT D25033K SDS Ball Plate 578387-00 DeWALT D25033K SDS Ball Plate €2.81
6
 DeWALT D25333K Tube Spring 871690 DeWALT D25333K Tube Spring €1.72
7
 DeWalt DCH213 Type 1 Felt Seal 590306-00 DeWalt DCH213 Type 1 Felt Seal €1.94
8
 photo_cameraImage coming soon N339199 GEARCASE COVER €26.33
10
 photo_cameraImage coming soon N190510 SELECTOR €3.88
11
 photo_cameraImage coming soon 324006-16 SCREW €5.60
12
 photo_cameraImage coming soon N034134 COVER €2.81
13
 photo_cameraImage coming soon N074923 SPRING €1.72
14
 photo_cameraImage coming soon N190511 RELEASE BUTTON €1.94
19
 photo_cameraImage coming soon N149956 NEEDLE BEARING €9.50
20
 photo_cameraImage coming soon 488105-00 CLIP €1.72
21
 photo_cameraImage coming soon NA278327 WASHER €5.19
30
 photo_cameraImage coming soon 589346-00 SPRING €7.56
31
 photo_cameraImage coming soon N410822 SLEEVE €7.56
32
 photo_cameraImage coming soon NA336834 GEAR & PINION SA €147.35
33
 photo_cameraImage coming soon 479478-00 BEARING, BALL €12.72
34
 photo_cameraImage coming soon NA203073 NA203073 €5.19
34
 photo_cameraImage coming soon NA336834 GEAR & PINION SA €147.35
35
 photo_cameraImage coming soon NA203071 SERVICE KIT €1.72
36
 photo_cameraImage coming soon NA203069 NA203069 €58.90
36
 photo_cameraImage coming soon NA336834 GEAR & PINION SA €147.35
37
 photo_cameraImage coming soon N394276 0-RING €2.81
38
 photo_cameraImage coming soon NA289484 BEAT PIECE €14.03
39
 photo_cameraImage coming soon N470388 TUBE GUIDE €5.19
40
 photo_cameraImage coming soon N531681 WASHER FROM wk32-2017 €5.60
41
 photo_cameraImage coming soon 580990-00 RING RAM CATCHER €3.25
42
 photo_cameraImage coming soon N294259 RING €1.72
43
 photo_cameraImage coming soon NA289482 RAM SA €19.42
44
 O-RING N114827 O-RING €1.99
45
 photo_cameraImage coming soon NA289483 PISTON €26.33
46
 photo_cameraImage coming soon NA289488 BALL SPINDLE €19.42
47
 photo_cameraImage coming soon NA289489 CRANKSHAFT €45.09
48
 DeWalt DCH213 Type 1 Ball Bearing N168103 N168103 DeWalt DCH213 Type 1 Ball Bearing N168103 €4.75
50
 photo_cameraImage coming soon NA395846 COLLAR €7.56
51
 photo_cameraImage coming soon N382169 MOTOR COVER €11.65
52
 photo_cameraImage coming soon N108992 WASHER €1.72
53
 photo_cameraImage coming soon 490286-00 SPRING €1.72
54
 photo_cameraImage coming soon N323159 SEAL €2.81
55
 photo_cameraImage coming soon 330019-81 SCREW €1.72
56
 photo_cameraImage coming soon NA323572 SERVICE KIT €72.70
60
 photo_cameraImage coming soon 323763-10 LOCKING RING €1.72
61
 photo_cameraImage coming soon NA334265 GEAR SA €26.33
62
 BEARING, BALL 6292Z N621023 BEARING, BALL 6292Z €5.19
63
 photo_cameraImage coming soon 590312-00 PIN €1.72
64
 DeWalt DCH213 Plate, Transmission 575022-00 DeWalt DCH213 Plate, Transmission €5.19
66
 DeWalt DCH213 Type 1 Pin MM7,34 575032-00 DeWalt DCH213 Type 1 Pin MM7,34 €2.38
68
 photo_cameraImage coming soon N416466 SPRING €2.38
69
 photo_cameraImage coming soon NA289497 HANDLE SA €39.49
70
 photo_cameraImage coming soon 330019-80 SCREW €1.72
71
 photo_cameraImage coming soon NA289498 HOUSING GEARBOX €75.08
72
 photo_cameraImage coming soon N051450 LED LIGHT €11.65
73
 PLATE N094649 PLATE on Demand Only : Call us Before €2.81
74
 photo_cameraImage coming soon N122099 BLOCK €1.72
75
 photo_cameraImage coming soon NA289499 MOTOR & SWITCH SA €327.70
76
 LEVER N072124 LEVER on Demand Only : Call us Before €1.94
77
 DeWalt DCH213 Type 1 Felt Filter 582865-00 DeWalt DCH213 Type 1 Felt Filter €1.94
78
 photo_cameraImage coming soon 1006725-00 SHIM WASHER €1.72
79
 photo_cameraImage coming soon 323711-34 O-RING €1.72
80
 photo_cameraImage coming soon 575025-00 LEVER €9.50
81
 photo_cameraImage coming soon 330065-04 SCREW €1.72
85
 photo_cameraImage coming soon N119679 SPRING €1.72
90
 photo_cameraImage coming soon N376306 SPRING SA €9.50
91
 photo_cameraImage coming soon N389213 CLIP €3.25
92
 photo_cameraImage coming soon N400088 CAP €2.38
93
 photo_cameraImage coming soon N461541 HOOK €15.54
94
 photo_cameraImage coming soon N400082 SPRING €6.56
95
 photo_cameraImage coming soon N400130 Screw €1.72
100
 photo_cameraImage coming soon N112156 SIDE HANDLE ASSEMBLY €36.03
101
 photo_cameraImage coming soon N290613 DEPTH STOP €2.81
106
 photo_cameraImage coming soon N415919 LABEL €1.72
800
 photo_cameraImage coming soon 870889-03 GREASE €11.65
801
 photo_cameraImage coming soon 487130-04 GREASE 10 GMS €9.50
821
 photo_cameraImage coming soon NA325306 RATING LABEL €1.72
826
 photo_cameraImage coming soon N196274 LABEL €1.72
836
 photo_cameraImage coming soon 596005-99 SERVICE TOOLING KIT €146.71
837
 photo_cameraImage coming soon 596006-99 S.T.CIRCLIP REMOVER €23.73
838
 photo_cameraImage coming soon 596007-99 S.T.CIRCLIP REMOVER €84.14
861
 photo_cameraImage coming soon 576657-05 KITBOX €45.09

Shipping and delivery information will be available shortly.

DeWalt DCH273N-XJ Type 20 Rotary Hammer Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for DCH273N-XJ Type 20 Rotary Hammer.

Open PDF Drawing in this page to check spare parts you need.
Hammer Drill DCH273N-XJ

Dewalt Hammer Drill DCH273N-XJ
# Part Num. Description
1 323489-00 CAP
2 579212-00 RING
3 NA289480 TUBE SA
4 N629539 BALL
5 578387-00 WASHER
6 871690 SPRING
7 590306-00 FELT SEAL
8 N339199 GEARCASE COVER
10 N190510 SELECTOR
11 324006-16 SCREW
12 N034134 COVER
13 N074923 SPRING
14 N190511 BUTTON RELEASE
19 N149956 BEARING NEEDLE
20 488105-00 CLIP
21 NA278327 WASHER
30 589346-00 SPRING
31 N410822 SLEEVE
32 NA323572 GEAR & PINION SA
32 NA336834 SERVICE KIT
33 479478-00 BEARING,BALL
34 NA203073 WASHER
34 NA336834 SERVICE KIT
35 NA203071 RING
35 NA336834 SERVICE KIT
36 NA336834 SERVICE KIT
36 NA203069 SPINDLE
37 N394276 O RING
38 NA289484 BEAT PIECE
39 N470388 TUBE GUIDE
40 N531681 WASHER
41 580990-00 O RING
42 N294259 RING
43 NA289482 RAM SA
44 N114827 O RING
45 NA289483 PISTON
46 NA289488 BALL SPINDLE
47 NA289489 CRANKSHAFT
48 N168103 BEARING
49 N466046 SPRING COMPRESSION
50 NA395846 COLLAR
51 N382169 MOTOR COVER
52 N108992 WASHER
53 490286-00 SPRING
54 N323159 SEAL
55 330019-81 SCREW
56 NA336834 SERVICE KIT
56 NA323572 GEAR & PINION SA
60 323763-10 LOCKING RING
61 NA334265 GEAR SA
62 N621023 BEARING
63 590312-00 PIN
64 575022-00 PLATE
66 575032-00 PIN
68 N416466 SPRING
69 NA289497 HANDLE SA
70 330019-80 SCREW
71 NA289498 HOUSING GEARBOX
72 N051450 LED
73 N094649 PLATE
74 N122099 BLOCK
75 NA289499 MOTOR & SWITCH SA
76 N072124 LEVER
77 582865-00 FILTER
78 1006725-00 WASHER SHIM
79 323711-34 O RING
80 575025-00 LEVER
81 330065-04 SCREW
85 N119679 SPRING
90 N376306 SPRING SA
91 N389213 CLIP
92 N400088 CAP
93 N461541 HOOK
94 N400082 SPRING
95 N400130 SCREW
100 N112156 HANDLE SIDE SA
101 N290613 DEPTH STOP
106 N415919 LABEL
800 870889-03 GREASE
801 487130-04 GREASE
821 NA325306 RATING LABEL
826 N196274 LABEL
836 596005-99 S.T.CIRCLIP REMOVER
837 596006-99 S.T.CIRCLIP REMOVER
838 596007-99 S.T.CIRCLIP INSERTER
861 576657-05 KITBOX
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s DEWALT websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to DEWALT brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
DCH273N-XJ

Data sheet

SHIPPING IN
ON DEMAND ONLY
CHECK ITEM CODE OR S/N
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
Machine Type
Drill
MORE INFO:
[email protected]

Specific References

New

Download

Dewalt DCH273N-XJ Drawing

Dewalt DCH273N-XJ Drawing

Download (470.73KB)

You might also like

DeWalt DCH213 Ball Spindle
DeWalt Power Tools SKU: 492823-00
DeWalt DCH213 Ball Spindle
DeWalt DCH213 Type 1 Ball Spindle Genuine replacement part DeWALT, Ball Spindle for Dewalt Rotary Hammer DCH213 Tipo 1 - DCH253M2 Tipo 2. Part for the following items: - Rotary Hammer DCH213 Type 1 - Rotary Hammer DCH253M2...
on 7/10 Business Days Approx. €12.39
Details
DeWalt DCH213 Plate, Transmission
DeWalt Power Tools SKU: 575022-00
DeWalt DCH213 Plate, Transmission
DeWalt DCH213 Plate, Transmission Genuine replacement part DeWALT, Plate, Transmission for Dewalt Rotary Hammer DCH213 Tipo 1 - DCH253M2 Tipo 2. Part for the following items: - Rotary Hammer DCH213 Type 1 - Rotary Hammer...
on 7/10 Business Days Approx. €5.19
Details
DeWalt DCH213 Type 1 Ball Bearing N168103
DeWalt Power Tools SKU: N168103
DeWalt DCH213 Type 1 Ball Bearing N168103
DeWalt DCH213 Type 1 Ball Bearing N168103 Genuine replacement part DeWALT, Ball Bearing 1608RS for Dewalt Rotary Hammer DCH213 Tipo 1 - DCH253M2 Tipo 2. Part for the following items: - Rotary Hammer DCH213 Type 1 - Rotary...
AVAILABLE €4.75
Details
DeWalt Grease Renolit Paragon EP 1/2 90Gr.
DeWalt Power Tools SKU: 870889-02
DeWalt Grease Renolit Paragon EP 1/2 90Gr.
DeWalt Grease Renolit Paragon EP 1/2 90Gr. Genuine replacement part DeWALT, Grease Renolit Paragon EP 1/2 90Gr. for Demolition Hammers DeWalt - Black&Decker. Part for the following items: - Demolition Hammer D25481 Modello:...
on 7/10 Business Days Approx. €19.42
Details
DeWALT D25333K Rotary Hammer Tube
DeWalt Power Tools SKU: N910599
DeWALT D25333K Rotary Hammer Tube
DeWALT D25333K Rotary Hammer Tube Genuine replacement part DeWALT, Tube (Chuck Cover) for Rotary Hammer DeWALT D25333K Type 2. Part for the following products: - Rotary Hammer DeWALT D25333K Tipo 2 - Rotary Hammer DeWALT...
Usually Ships in: 10/15 Business Days Approx. €15.54
Details
DeWALT D25333K Tube Spring
DeWalt Power Tools SKU: 871690
DeWALT D25333K Tube Spring
DeWALT D25333K Rotary Hammer Spring Bevel Genuine replacement part DeWALT, Tube Spring Bevel (Chuck Cover Spring) for Rotary Hammer DeWALT D25333K Type 2. Part for the following products: - Rotary Hammer DeWALT D25333K...
AVAILABLE €1.72
Details
DeWalt DCH333 Housing Front
DeWalt Power Tools SKU: N606738
DeWalt DCH333 Housing Front
DeWalt DCH333 Housing Front Genuine replacement part DeWALT, Housing Front for Rotary Hammer DCH333. Part for the following items: - DEWALT DCH333 ROTARY HAMMER TYPE 1 - Code: N606738
on Demand Only Call Us Before €40.31
Details
DeWalt DCH333 Housing Front Cap
DeWalt Power Tools SKU: 323489-00
DeWalt DCH333 Housing Front Cap
DeWalt DCH333 Housing Front Cap Genuine replacement part DeWALT, Housing Front Cap for Rotary Hammer DCH333. Part for the following items: - DEWALT DCH333 ROTARY HAMMER TYPE 1 - DEWALT D25333K Tipo 2 - DEWALT D25003K Tipo 3...
on Demand Only Call Us Before €2.81
Details
DeWALT D25033K SDS Ball Plate
DeWalt Power Tools SKU: 578387-00
DeWALT D25033K SDS Ball Plate
DeWALT D25033K SDS Ball Plate Genuine replacement part DeWALT, SDS Ball Plate (WASHER SDS 1.4M™M) for Rotary Hammer D25033K Type 1. Part for the following items: - DEWALT D25333K Tipo 2 - DEWALT D25033K Tipo 1 - DEWALT D25012K...
AVAILABLE €2.81
Details
DeWALT D25033K Ring Snap 21
DeWalt Power Tools SKU: 579212-00
DeWALT D25033K Ring Snap 21
DeWALT D25033K Ring Snap 21 Genuine replacement part DeWALT, Ring Snap 21 for Rotary Hammer D25033K Type 1. Part for the following items: - DEWALT D25333K Tipo 2 - DEWALT D25033K Tipo 1 - DEWALT D25012K Tipo 1 -...
AVAILABLE €1.94
Details
DeWALT D25733K Stop
DeWalt Power Tools SKU: N152623
DeWALT D25733K Stop
DeWALT D25733K Stop Genuine replacement part DeWALT, Stop for Rotary Hammer D25733K. Part for the following items: - DEWALT D25733K - DEWALT D25481 Type 1 - DeWalt D25334K Type 2 - DEWALT D25333K Type 2 -...
AVAILABLE €9.50
Details
DeWALT D25614K Spring Compression
DeWalt Power Tools SKU: N106188
DeWALT D25614K Spring Compression
DeWALT D25614K Spring Compression Genuine replacement part DeWALT, Spring Compression for Rotary Hammer D25614K. Part for the following items: - DEWALT D25614K Type 1 - DEWALT D25481 Type 1 - DeWalt D25334K Type 2 -...
AVAILABLE €2.38
Details
DeWalt D27111 Steel Ball
DeWalt Power Tools SKU: 583890-00
DeWalt D27111 Steel Ball
DeWalt D27111 Steel Ball Genuine replacement part DeWALT, Steel Ball D.7 mm for Hammer DCH214 - D25333K. Part for the following items: -  Hammer DEWALT DCH214 Type 1 -  Hammer DEWALT D25333K Type 2 -  Hammer DEWALT D25003K Type 3...
AVAILABLE €1.94
Details
DeWalt Spindle for DCH333
DeWalt Power Tools SKU: N783458
DeWalt Spindle for DCH333
DeWalt Spindle for DCH333 Genuine replacement part DeWALT, Spindle for Rotary Hammer DCH333. Part for the following items: - DEWALT DCH333 ROTARY HAMMER TYPE 1 - DEWALT D25333K Tipo 2 -  DeWalt D25334K Type 2 -...
AVAILABLE €36.03
Details
Comments (0)
No customer reviews for the moment.
