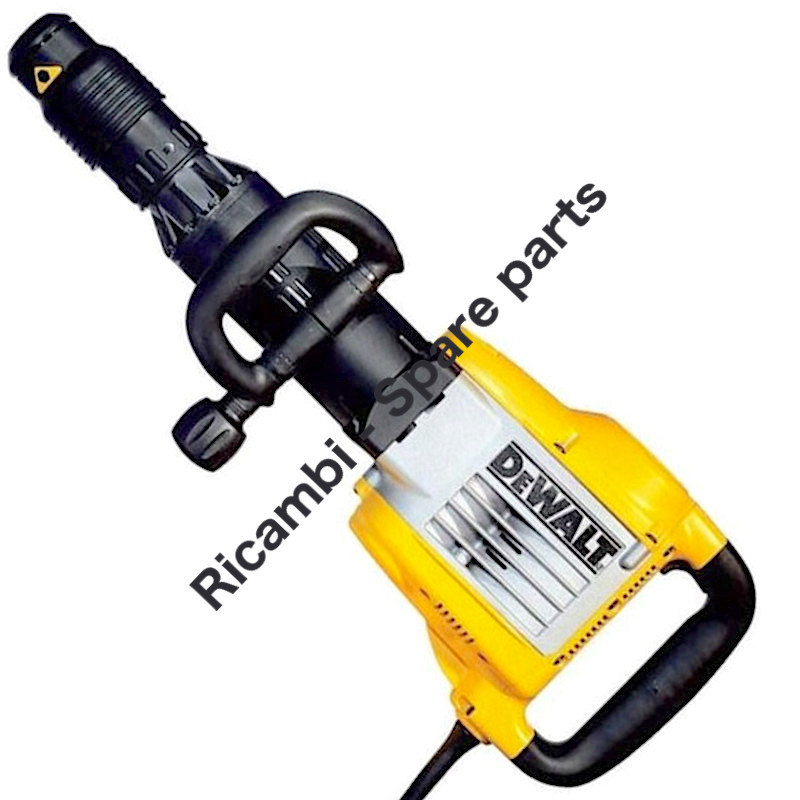

DEWALT D25940K TYPE 1 GB Demolition Hammer Parts

SKU: DEWALT D25940K TIPO 1 QS
€0.10
VAT included

DEWALT D25940K TYPE 1 GB Demolition Hammer Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for DEWALT D25940K TYPE 1 GB Demolition Hammer Spare Parts.

DEWALT

DEWALT D25940K TYPE 1 GB Demolition Hammer Parts
  • Online only
  • New
  • Out-of-Stock
  • DEWALT D25940K TYPE 1 GB Demolition Hammer Parts
  • DEWALT D25940K TYPE 1 GB Demolition Hammer Parts Diagram
  • DEWALT D25940K TYPE 1 GB Demolition Hammer Parts Diagram - 1
  • DEWALT D25940K TYPE 1 GB Demolition Hammer Parts Diagram - 2

DEWALT D25940K TYPE 1 GB Demolition Hammer Parts

SKU: DEWALT D25940K TIPO 1 QS Condition: New
€0.10
VAT included

DEWALT D25940K TYPE 1 GB Demolition Hammer Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for DEWALT D25940K TYPE 1 GB Demolition Hammer Spare Parts.

DEWALT

settings 98 Spare parts
description 3 exploded views
picture_as_pdf Download Exploded PDF
Quantity
Out-of-Stock

SHIPPING IN:: ON DEMAND ONLY
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

98 spare parts
Page 1 zoom_in View exploded local_shipping ON DEMAND ONLY
Pos. Item Price Buy
1
photo_cameraImage coming soon NA246449 ARMATURE 230V €176.25
3
photo_cameraImage coming soon NA299448 BRUSH HOLDER 230V €84.14
4
photo_cameraImage coming soon 590191-00 SLEEVE INSULATING €2.38
5
photo_cameraImage coming soon 577745-00 BEARING 6000 T1XDDW €9.50
8
DeWalt D25900K Type 2 Hammer Brush Pair 230V 588698-00 DeWalt D25900K Type 2 Hammer Brush Pair 230V €36.03
9
photo_cameraImage coming soon 487377-00 BRUSH SPRING €3.20
10
photo_cameraImage coming soon 487252-00 FAN SA €19.42
11
DeWalt D25500K-QS Screw M5x12 324119-02 DeWalt D25500K-QS Screw M5x12 €2.38
12
photo_cameraImage coming soon 377374 PIN €1.72
13
photo_cameraImage coming soon 487276-00 TRIGGER €3.88
14
photo_cameraImage coming soon N893314 ROD €8.20
15
photo_cameraImage coming soon 487286-00 ACTUATOR €3.25
17
DeWalt Detent for Hammer D25333K 326467-00 DeWalt Detent for Hammer D25333K €1.72
21
photo_cameraImage coming soon 487388-00 COVER €3.88
22
photo_cameraImage coming soon N485853 SWITCH €36.03
23
photo_cameraImage coming soon 579093-01 CABLE TIE €1.72
24
photo_cameraImage coming soon 487378-00 BRACKET €2.81
25
photo_cameraImage coming soon 821070 CORD CLAMP €1.72
26
DeWalt D25481 Screw TX 4x18 330065-08 DeWalt D25481 Screw TX 4x18 €1.72
28
photo_cameraImage coming soon 323091-01 PROTECTOR CORD 8.9 €2.81
29
photo_cameraImage coming soon 582319-00 CORDSET D25980 QS €36.03
32
photo_cameraImage coming soon 487224-00 SEAL €7.56
33
photo_cameraImage coming soon 576387-00 SEAL €8.20
34
photo_cameraImage coming soon 324821-04 CIRCLIP €2.38
35
DeWalt D25900K Demolition Hammer Bearing 6202RS1 N570313 DeWalt D25900K Demolition Hammer Bearing 6202RS1 €7.56
36
photo_cameraImage coming soon 487209-01 SEAL €7.56
37
photo_cameraImage coming soon 324821-03 CIRCLIP €1.72
38
photo_cameraImage coming soon N533907 CON ROD €12.72
39
photo_cameraImage coming soon 578452-00 SPACER €5.19
40
photo_cameraImage coming soon 578451-00 SPACER €3.88
41
DeWalt D25900K Demolition Hammer Bearing 6002Z 605040-26 DeWalt D25900K Demolition Hammer Bearing 6002Z €7.56
42
photo_cameraImage coming soon 582108-00 GEAR SA €107.87
43
photo_cameraImage coming soon 582109-00 GEAR €54.16
44
photo_cameraImage coming soon 582110-00 GEARBOX SA €432.12
45
photo_cameraImage coming soon 582111-00 CRANKSHAFT €112.18
46
DeWalt D25900K Demolition Hammer Crankshaft Ring 576451-00 DeWalt D25900K Demolition Hammer Crankshaft Ring €2.81
47
photo_cameraImage coming soon 582387-00 PIN €33.01
48
photo_cameraImage coming soon 581656-00 KNOB €1.72
50
photo_cameraImage coming soon 582112-00 PISTON €19.42
51
photo_cameraImage coming soon 582113-01 PISTON KIT €58.90
52
photo_cameraImage coming soon 323711-47 O RING €2.38
53
photo_cameraImage coming soon N147098 COVER SA €11.65
57
photo_cameraImage coming soon 487386-00 MOTOR COVER €21.56
58
photo_cameraImage coming soon 324007-11 SCREW TORX €1.94
59
photo_cameraImage coming soon 584240-01 HANDLE SIDE SA Side handle assembly - include 56, 60, 61, 62, 63, 64) €84.14
63
photo_cameraImage coming soon 487393-00 CLAMP €21.56
66
photo_cameraImage coming soon 487283-00 COVER HOUSING €33.01
67
photo_cameraImage coming soon 582369-00 BEAT PIECE €78.53
68
photo_cameraImage coming soon 582388-00 BUSH €39.49
70
photo_cameraImage coming soon 582114-00 BUSH €48.12
74
photo_cameraImage coming soon 323711-46 O RING €1.94
75
photo_cameraImage coming soon N075953 CYLINDER €140.01
76
photo_cameraImage coming soon 582115-00 RAM €78.53
77
photo_cameraImage coming soon 487287-00 O RING €12.72
78
photo_cameraImage coming soon 323711-56 O RING €2.81
79
photo_cameraImage coming soon 323711-55 O RING €1.94
80
photo_cameraImage coming soon 582372-00 HOUSING FRONT €168.49
81
photo_cameraImage coming soon 487317-00 SPRING €12.72
82
photo_cameraImage coming soon 578784-00 GUIDE €2.81
83
photo_cameraImage coming soon 582373-00 COUNTERWEIGHT €36.03
84
photo_cameraImage coming soon 487316-00 SPRING GUIDE €3.88
90
photo_cameraImage coming soon 582374-00 BEARING €48.12
92
photo_cameraImage coming soon N014013 SEAL €15.54
96
photo_cameraImage coming soon 487302-00 DAMPER €3.88
97
photo_cameraImage coming soon 582375-00 FLANGE €317.14
99
photo_cameraImage coming soon 487372-00 SLEEVE €14.03
100
photo_cameraImage coming soon 487366-00 SLEEVE SA €15.54
102
photo_cameraImage coming soon 487365-00 BUSHING €5.19
103
photo_cameraImage coming soon 487369-00 LOCKING DEVICE €89.74
105
photo_cameraImage coming soon 582383-00 DAMPER €75.08
106
photo_cameraImage coming soon 487309-00 SPRING €8.20
107
photo_cameraImage coming soon N542444 SLEEVE SA €145.19
108
photo_cameraImage coming soon 487373-00 DAMPER €6.26
109
photo_cameraImage coming soon 487301-00 WASHER €12.72
110
photo_cameraImage coming soon 579399-00 RING €2.81
111
photo_cameraImage coming soon 487375-00 RUBBER SEAL €26.33
112
photo_cameraImage coming soon 487392-00 LABEL €2.81
120
photo_cameraImage coming soon 330003-68 BEARING €21.56
130
photo_cameraImage coming soon 330003-69 BEARING €12.72
800
photo_cameraImage coming soon 578970-06 GREASE 150 GMS €67.75
802
DeWalt Grease Renolit Paragon EP 1/2 90Gr. 870889-02 DeWalt Grease Renolit Paragon EP 1/2 90Gr. €19.42
821
photo_cameraImage coming soon 569037-00 RATING PLATE €6.26
836
photo_cameraImage coming soon 559617-99 S.T.SUPPORT JIG €159.65
837
photo_cameraImage coming soon 559618-99 S.T.SUPPORT JIG €241.62
838
photo_cameraImage coming soon 559621-99 SERVICE TOOL €28.05
840
photo_cameraImage coming soon 559629-99 S.T.CIRCLIP REMOVER Snap ring SA kit €289.09
845
photo_cameraImage coming soon 559630-99 SERVICE TOOLING KIT Unique Kit parts, €228.68
846
photo_cameraImage coming soon 559628-99 S.T.MANDREL Seal insert tool €43.15
Page 2 zoom_in View exploded local_shipping ON DEMAND ONLY
Pos. Item Price Buy
56
photo_cameraImage coming soon 487284-00 WASHER CLAMP €3.25
60
photo_cameraImage coming soon 487343-00 BOLT €5.60
61
DeWalt D25831K Demolition Hammer Handle 487277-00 DeWalt D25831K Demolition Hammer Handle €33.01
62
photo_cameraImage coming soon 487287-00 O RING €12.72
64
photo_cameraImage coming soon 487291-00 KNOB SA €9.50
65
photo_cameraImage coming soon 949886-32 SCREW €1.94
71
photo_cameraImage coming soon 487298-00 O RING €5.19
77
photo_cameraImage coming soon 487287-00 O RING €12.72
800
photo_cameraImage coming soon 578970-06 GREASE 150 GMS €67.75
Page 3 zoom_in View exploded local_shipping ON DEMAND ONLY
Pos. Item Price Buy
67
photo_cameraImage coming soon 582369-00 BEAT PIECE €78.53
68
photo_cameraImage coming soon 582388-00 BUSH €39.49
77
photo_cameraImage coming soon 487287-00 O RING €12.72
95
DeWalt O-Ring for Hammer D25902K 323711-41 DeWalt O-Ring for Hammer D25902K €1.72
98
photo_cameraImage coming soon 918825-02 SCREW €1.72
800
photo_cameraImage coming soon 578970-06 GREASE 150 GMS €67.75
801
photo_cameraImage coming soon 328771-07 BIT GREASE 50G €11.65
802
DeWalt Grease Renolit Paragon EP 1/2 90Gr. 870889-02 DeWalt Grease Renolit Paragon EP 1/2 90Gr. €19.42
821
photo_cameraImage coming soon 569037-00 RATING PLATE €6.26
836
photo_cameraImage coming soon 559617-99 S.T.SUPPORT JIG €159.65
837
photo_cameraImage coming soon 559618-99 S.T.SUPPORT JIG €241.62
838
photo_cameraImage coming soon 559621-99 SERVICE TOOL €28.05
861
photo_cameraImage coming soon 487353-03 KITBOX €249.19

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

DEWALT D25940K TYPE 1 GB Demolition Hammer Spare Parts

DEWALT, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for DEWALT D25940K TYPE 1 GB Demolition Hammer Spare Parts.

In the following table, look for the model of the hammer and the respective parts of the code.
DEWALT D25940K TYPE 1 GB Demolition Hammer

DEMOLITION HAMMER D25940K TYPE 1 GB
Motor Pag.1
# Part Num. Description
1 NA246449 ARMATURE 230V
2 579827-00 FIELD 230V
3 NA299448 BRUSH HOLDER 230V
4 590191-00 SLEEVE INSULATING
5 577745-00 BEARING
8 588698-00 BRUSH PAIR 230V
9 487377-00 BRUSH SPRING
10 487252-00 FAN SA
11 324119-02 SCREW
12 377374 PIN
13 487276-00 TRIGGER
14 N893314 ROD
15 487286-00 ACTUATOR
17 326467-00 DETENT
18 487326-00 LEAD SWITCH SA
19 487387-00 HANDLE & COVER
21 487388-00 COVER
22 N485853 SWITCH
23 579093-01 CABLE TIE
23 579093-01 CABLE TIE
24 487378-00 BRACKET
25 821070 CORD CLAMP
26 330065-08 SCREW M4x18 T20
28 323091-01 CORD PROTECTOR
29 582319-02 CORDSET
30 487385-00 COVER GEARCASE
32 487224-00 SEAL
33 576387-00 SEAL
34 324821-04 CIRCLIP
35 N570313 BEARING
36 487209-01 SEAL
37 324821-03 CIRCLIP
38 N533907 CON ROD
39 578452-00 SPACER
40 578451-00 SPACER
41 605040-26 BEARING
42 582108-00 GEAR SA
43 582109-00 GEAR
44 582110-00 GEARBOX SA
45 582111-00 CRANKSHAFT
46 576451-00 RING
47 582387-00 PIN
48 581656-00 PIN
50 582112-00 PISTON
51 582113-01 PISTON KIT
52 323711-47 O RING
53 N147098 COVER SA
54 584376-06 ELECTRONIC 230V
57 487386-00 MOTOR COVER
58 324007-11 SCREW M5x18
67 582369-00 BEAT PIECE
68 582388-00 BUSH
69 487321-00 DAMPER
77 487287-00 O RING
79 323711-55 O RING
112 487392-00 LABEL
120 330003-68 BEARING
130 330003-69 BEARING
800 578970-06 GREASE 150 GMS
802 870889-02 GREASE RENOLIT PARAGON EP 1
821 569037-00 RATING PLATE
826 487395-00 LABEL
836 559617-99 S.T.SUPPORT JIG S.T.SUPPORT JIG
837 559618-99 S.T.SUPPORT JIG Motor assembly jig
838 559621-99 SERVICE TOOL Armature brg tool
847 588720-02 SERVICE KIT
Cylinder Pag.2
56 487284-00 WASHER CLAMP
59 584240-01 HANDLE SIDE SA Side handle assembly - include 56, 60, 61, 62, 63, 64)
60 487343-00 BOLT
61 487277-00 HANDLE
62 487278-00 WASHER
63 487393-00 CLAMP
64 487291-00 KNOB SA
65 949886-32 SCREW
66 487283-00 COVER HOUSING
71 487298-00 O RING
72 487376-00 BUSH
74 323711-46 O RING
75 N075953 CYLINDER
76 582115-00 RAM
77 487287-00 O RING
78 323711-56 O RING
80 582372-00 HOUSING FRONT
81 487317-00 SPRING
82 578784-00 GUIDE
83 582373-00 COUNTERWEIGHT
84 487316-00 SPRING GUIDE
800 578970-06 GREASE 150 GMS
847 588720-02 SERVICE KIT
Tool Holder Pag.3
67 582369-00 BEAT PIECE
68 582388-00 BUSH
69 487321-00 DAMPER
70 582114-00 BUSH
77 487287-00 O RING
90 582374-00 BEARING
92 N014013 SEAL
93 487319-00 SUPPORT
94 582277-00 SPINDLE SA
95 323711-41 O RING
96 487302-00 DAMPER
97 582375-00 FLANGE
98 918825-02 SCREW
99 487372-00 SLEEVE
100 487366-00 SLEEVE SA
101 487370-00 SPRING
102 487365-00 BUSHING
103 487369-00 LOCKING DEVICE
105 582383-00 DAMPER
106 487309-00 SPRING
107 N542444 SLEEVE SA
108 487373-00 DAMPER
109 487301-00 WASHER
110 579399-00 RING
111 487375-00 RUBBER SEAL
800 578970-06 GREASE 150 GMS
801 328771-07 GREASE 50G, BIT GREASE
802 870889-02 GREASE RENOLIT PARAGON EP 1
821 569037-00 RATING PLATE
826 487395-00 LABEL
836 559617-99 S.T.SUPPORT JIG S.T.SUPPORT JIG
837 559618-99 S.T.SUPPORT JIG Motor assembly jig
838 559621-99 SERVICE TOOL Armature brg tool
840 559629-99 S.T.CIRCLIP REMOVER Snap ring SA kit
845 559630-99 SERVICE TOOLING KIT Unique Kit parts,
846 559628-99 S.T.MANDREL Seal insert tool
847 588720-02 SERVICE KIT
847 588713-00 SERVICE KIT 230V
855 351091-01 BIT
861 487353-03 KITBOX
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s DEWALT websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to DEWALT brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
DEWALT D25940K TIPO 1 QS

Data sheet

SHIPPING IN:
ON DEMAND ONLY
MORE INFO:
[email protected]
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

DEWALT D25940K TYPE 1 GB

DEWALT D25940K TYPE 1 GB

Download (1.26MB)

You might also like

DeWalt Power Tools SKU: 487277-00
DeWalt D25831K Demolition Hammer Handle Grip Genuine replacement part DeWALT, Handle Grip for Demolition Hammer D25831K - D25902K Tipo 1. Part for the following items: - Demolition Hammer D25831K tipo 1 Modello: D25831K-QS -...
on 7/10 Business Days Approx. €33.01
DeWalt Power Tools SKU: 579782-00
DeWalt D25902K Type 1 Demolition Hammer Double Gear Genuine replacement part DeWALT, Double Gear for Demolition Hammer D25902K Type 1. Part for the following items: - Demolition Hammer D25902K Type 1 - Code: 579782-00
on 7/10 Business Days Approx. €79.06
DeWalt Power Tools SKU: 579774-00
DeWalt D25900K Type 2 Demolition Hammer Piston Genuine replacement part DeWALT, Piston for Demolition Hammer D25900K-QS Type 2 - D25902K Type 1. Part for the following items: - Demolition Hammer D25902K Type 1 - Demolition...
on 7/10 Business Days Approx. €13.65
DeWalt Power Tools SKU: N542565
DeWalt D25900K Type 2 Demolition Hammer Conrod Genuine replacement part DeWALT, Con Rod for Demolition Hammer D25900K-QS Type 2 - D25902K Type 1. Part for the following items: - Demolition Hammer D25902K Type 1 -...
on 7/10 Business Days Approx. €15.09
DeWalt Power Tools SKU: 487213-00
DeWalt D25900K Type 2 Demolition Hammer Piston O-Ring Genuine replacement part DeWALT, Piston O-Ring for Demolition Hammer D25900K-QS Type 2 - D25902K Type 1. Part for the following items: - Demolition Hammer D25902K Type 1 -...
on 7/10 Business Days Approx. €6.15
DeWalt Power Tools SKU: 588698-00
DeWalt D25900K Type 2 Demolition Hammer Brush Pair 230V Genuine replacement part DeWALT, Brush Pair 230V for Demolition Hammer D25900K-QS Type 2. Part for the following items: - Demolition Hammer D25900K-QS Type 2 - Code:...
on 7/10 Business Days Approx. €36.03
DeWalt Power Tools SKU: 579779-01
DeWalt D25900K Type 2 Demolition Hammer Piston Kit Genuine replacement part DeWALT, Con Rod Piston Kit for Demolition Hammer D25900K-QS Type 2 - D25902K Type 1. Part for the following items: - Demolition Hammer D25902K Type 1 -...
on Demand Only Call Us Before €56.90
DeWalt Power Tools SKU: 576451-00
DeWalt D25900K Type 2 Demolition Hammer Crankshaft Ring Genuine replacement part DeWALT, Crankshaft Ring for Demolition Hammer D25900K-QS Type 2 - D25902K Type 1. Part for the following items: - Demolition Hammer D25902K...
on 7/10 Business Days Approx. €2.81
DeWalt Power Tools SKU: 605040-26
DeWalt D25900K Type 2 Demolition Hammer Ball Bearing 6002Z Genuine replacement part DeWALT, Ball Bearing 6002Z for Demolition Hammer D25900K-QS Type 2 - D25902K Type 1. Part for the following items: - Demolition Hammer...
on 7/10 Business Days Approx. €7.56
DeWalt Power Tools SKU: N570313
DeWalt D25900K Type 2 Demolition Hammer Ball Bearing 6202RS1 Genuine replacement part DeWALT, Ball Bearing 6202RS1 for Demolition Hammer D25900K-QS Type 2. Part for the following items: - Demolition Hammer...
on 7/10 Business Days Approx. €7.56
DeWalt Power Tools SKU: N542567
DeWalt D25900K Sleeve SA Genuine replacement part DeWALT, Sleeve SA for Demolition Hammer D25900K-QS Type 2 - D25902K Type 1. Part for the following items: - Demolition Hammer D25902K Type 1 - Demolition Hammer D25900K-QS...
DeWalt Power Tools SKU: 324119-02
DeWalt D25500K-QS Screw M5x12 Genuine replacement part DeWALT, Screw M5x12 for Demolition Hammer D25601K - D25831K. Part for the following items: - Demolition Hammer D25500K tipo 1 Modello: D25500K-QS - Demolition Hammer...
AVAILABLE €2.38
DeWalt Power Tools SKU: 330065-08
DeWalt D25481 Demolition Hammer Screw TX 4x18 Genuine replacement part DeWALT, Screw TX 4x18 for Demolition Hammer D25481. Part for the following items: - Demolition Hammer D25481 Modello: D25481-QS - Demolition Hammer D25614K...
on 7/10 Business Days Approx. €1.72
DeWalt Power Tools SKU: 870889-02
DeWalt Grease Renolit Paragon EP 1/2 90Gr. Genuine replacement part DeWALT, Grease Renolit Paragon EP 1/2 90Gr. for Demolition Hammers DeWalt - Black&Decker. Part for the following items: - Demolition Hammer D25481 Modello:...
on 7/10 Business Days Approx. €19.42
DeWalt Power Tools SKU: 487240-00
DeWalt D25900K Type 2 Demolition Hammer Bushing Genuine replacement part DeWALT, Bushing for Demolition Hammer D25900K-QS Type 2 - D25902K Type 1. Part for the following items: - Demolition Hammer D25902K Type 1 -...
AVAILABLE €2.82
DeWalt Power Tools SKU: 487268-00
DeWalt D25900K Type 2 Demolition Hammer Spring Guide Genuine replacement part DeWALT, Spring Guide for Demolition Hammer D25900K-QS Type 2 - D25902K Type 1. Part for the following items: - Demolition Hammer D25902K Type 1...
AVAILABLE €4.57
DeWalt Power Tools SKU: 323711-41
DeWalt O-Ring for Hammer D25902K Genuine replacement part DeWALT, O-Ring Spindle 38 X 2,5 for Hammer D25902K Type 1. Part for the following items: -  Hammer D25902K - 1 -  Hammer D25900K-QS...
Usually Ships in: 10/15 Business Days Approx. €1.72
DeWalt Power Tools SKU: 326467-00
DeWalt Detent for Rotary Hammer D25333K Genuine replacement part DeWALT, Detent for Hammer D25333K - D25003K - D25601-QS. Part for the following items: -  Rotary Hammer DEWALT D25333K Tipo 2...
AVAILABLE €1.72
Comments (0)
No customer reviews for the moment.
