Annovi Reverberi S.p.A.

DeWalt Pressure Cleaner DXPW002CE Parts

SKU: DeWalt DXPW002CE - 26773
€8.87
VAT included

DeWalt Spare Parts for Pressure Washer DXPW002CE

DeWalt original replacement parts for to replace broken parts for to fix Pressure Washer DXPW002CE - 26773.
DeWalt Pressure Cleaner DXPW002CE Parts
  • DeWalt Pressure Cleaner DXPW002CE Parts
  • DeWalt Pressure Cleaner DXPW002CE Parts Drawing
  • DeWalt Pressure Cleaner DXPW002CE Parts Drawing - 1
  • DeWalt Pressure Cleaner DXPW002CE Parts Drawing - 2
  • DeWalt Pressure Cleaner DXPW002CE Parts Drawing - 3
Annovi Reverberi S.p.A.

DeWalt Pressure Cleaner DXPW002CE Parts

SKU: DeWalt DXPW002CE - 26773 Condition: New
€8.87
VAT included

DeWalt Spare Parts for Pressure Washer DXPW002CE

DeWalt original replacement parts for to replace broken parts for to fix Pressure Washer DXPW002CE - 26773.
settings 138 spare parts
description 4 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:: AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
113 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

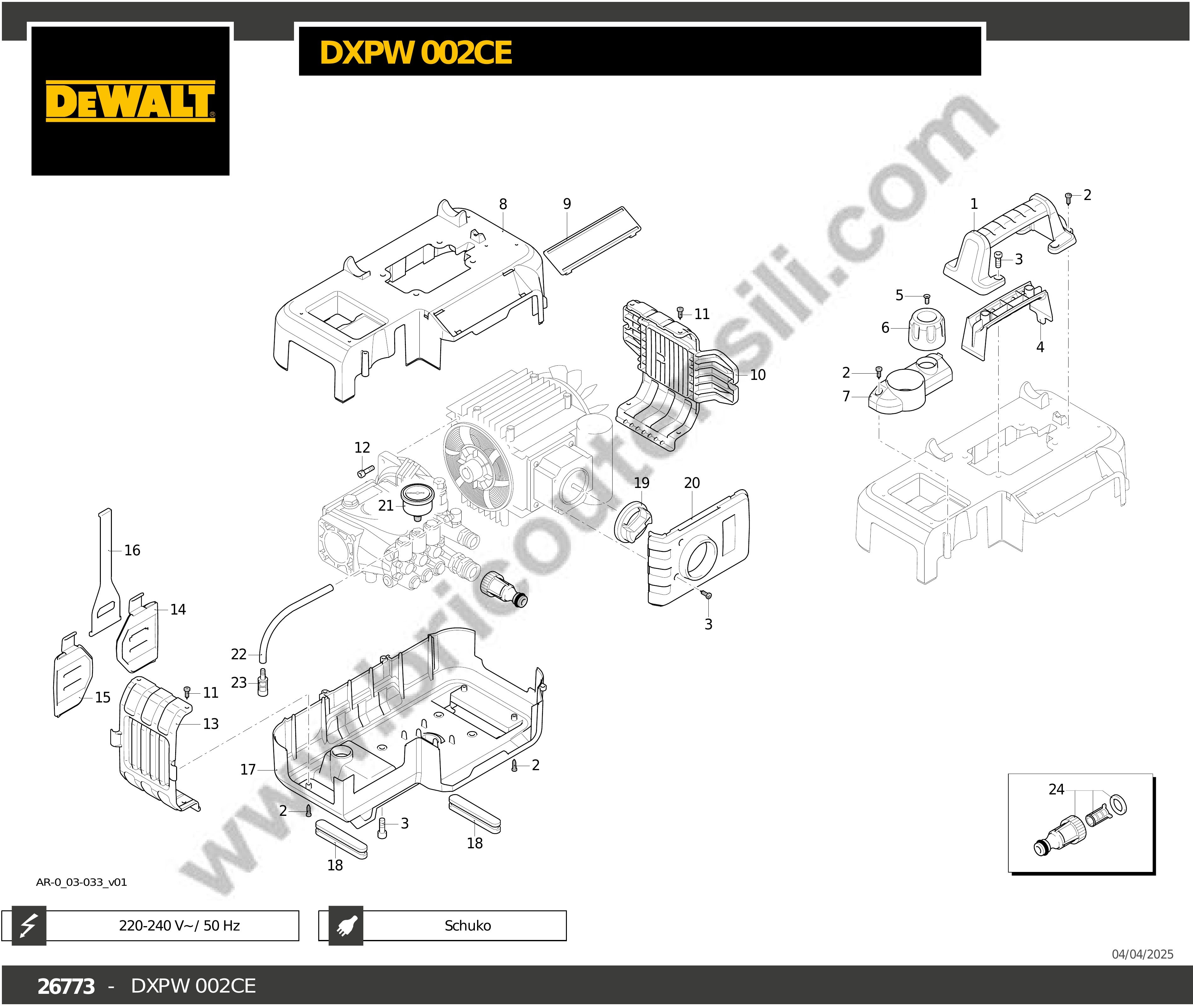

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 3961200 Handle €8.78
2
 screw 2100300 screw €4.72
3
 photo_cameraImage coming soon 880280 screw €2.03
4
 photo_cameraImage coming soon 3961210 Guard €7.17
6
 photo_cameraImage coming soon 3961260 Knob €5.29
7
 photo_cameraImage coming soon 3961290 Guard €7.78
8
 photo_cameraImage coming soon 3961160 Casing €21.59
9
 photo_cameraImage coming soon 3960830 GUARD €11.41
10
 photo_cameraImage coming soon 3961230 Guard €11.08
12
 photo_cameraImage coming soon 1260780 Screw €4.81
13
 photo_cameraImage coming soon 3961220 Guard €9.93
14
 photo_cameraImage coming soon 3961240 Support €5.64
15
 photo_cameraImage coming soon 3961180 Support €5.64
16
 photo_cameraImage coming soon 3961250 Clamp €8.19
17
 photo_cameraImage coming soon 3961170 base €21.59
18
 photo_cameraImage coming soon 4240540 FOOT €8.05
19
 photo_cameraImage coming soon 3960260 KNOB €4.89
20
 photo_cameraImage coming soon 3961190 Guard €9.99
21
 photo_cameraImage coming soon 41851 Pressure gauge €25.45
22
 photo_cameraImage coming soon 1270960 pipe cleaner €4.41
23
 Detergent Filter for Pressure Washer Annovi Reverberi 1341030 Detergent Filter for Pressure Washer Annovi Reverberi €14.06
24
 Kit Water Inlet for Pressure Washer Blue Clean AR395-490-588-590 3082130 Kit Water Inlet for Pressure Washer Blue Clean AR395-490-588-590 €4.95
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

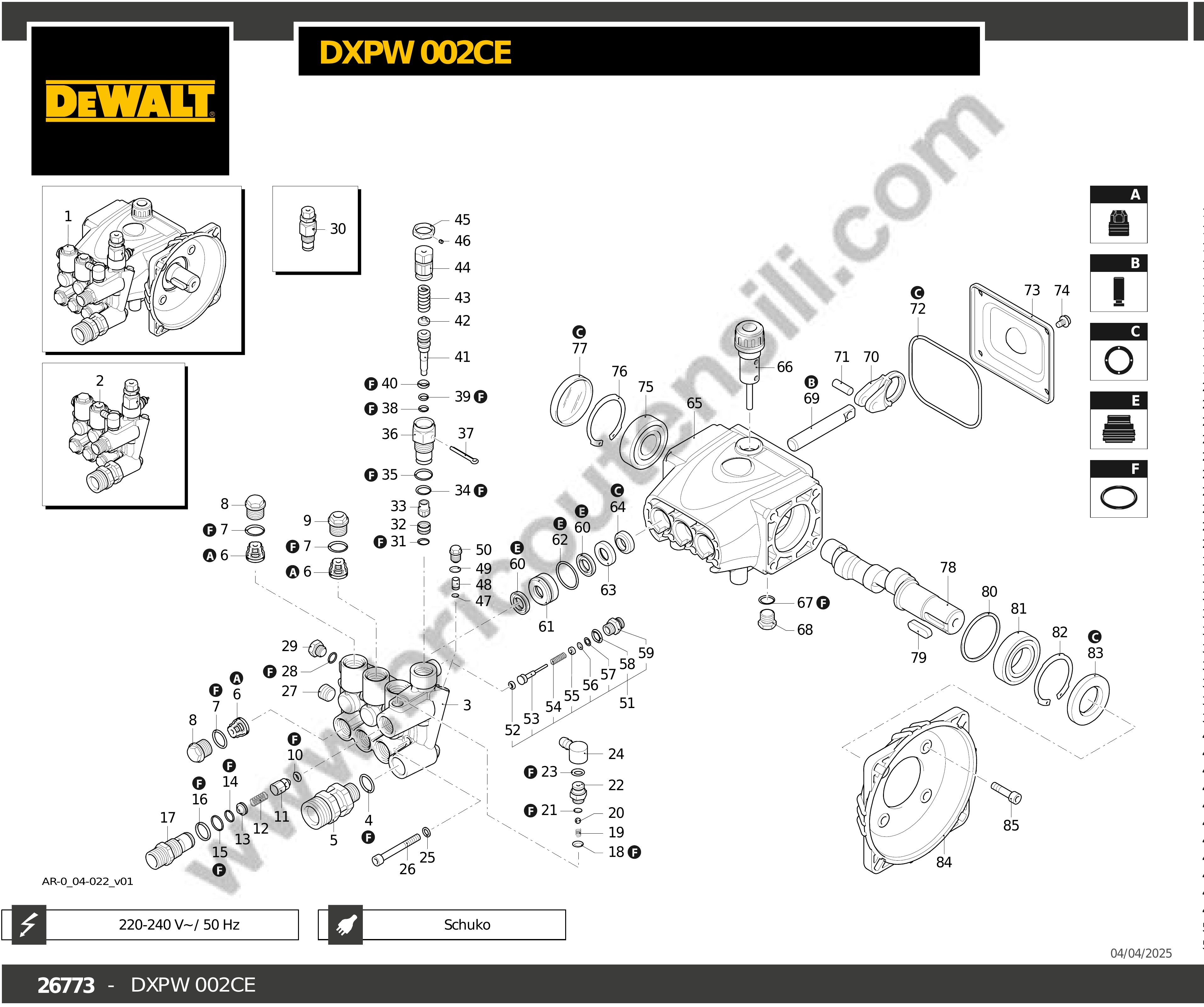

Esploso pagina 2
Pos. Item Price Buy
A
 photo_cameraImage coming soon 43478 Valve kit €7.84
B
 photo_cameraImage coming soon 43479 Piston Kit €52.81
C
 photo_cameraImage coming soon 43480 Oil seal kit €9.52
F
 photo_cameraImage coming soon 43482 Gasket kit €5.90
E
 photo_cameraImage coming soon 47536 Water Seal Kit €12.88
1
 photo_cameraImage coming soon 26854 Pump assembly €300.92
2
 photo_cameraImage coming soon 46065 Head assembly €198.04
3
 photo_cameraImage coming soon 4140650 Head €76.80
4
 photo_cameraImage coming soon 740290 O-ring €2.67
5
 photo_cameraImage coming soon 4140570 Fitting €13.53
6
 photo_cameraImage coming soon 2849051 Complete Valve €2.99
7
 photo_cameraImage coming soon 2841520 O-ring €1.47
8
 photo_cameraImage coming soon 2840130 stopper €4.71
9
 ARSG HOT 1309 Plug 2900350 ARSG HOT 1309 Plug €12.36
11
 photo_cameraImage coming soon 2761511 Shutter €10.61
13
 photo_cameraImage coming soon 2761550 Injector €3.79
14
 photo_cameraImage coming soon 1470210 O-ring €1.58
16
 O-Ring 12,42x1,78 for Pressure Washers AR BC 210 - 333 - 353 394280 O-Ring 12,42x1,78 for Pressure Washers AR BC 210 - 333 - 353 €0.53
17
 photo_cameraImage coming soon 2761150 Fitting €18.91
19
 Annovi Reverberi Spring for AR747 1560520 Annovi Reverberi Spring for AR747 €1.02
20
 photo_cameraImage coming soon 1250280 sphere €2.67
21
 photo_cameraImage coming soon 480480 O-ring €5.63
22
 photo_cameraImage coming soon 1344620 CONNECTOR €11.81
24
 photo_cameraImage coming soon 2320180 Hose €1.55
27
 photo_cameraImage coming soon 2760260 Stopper €3.41
29
 photo_cameraImage coming soon 2841800 Plug €5.23
30
 photo_cameraImage coming soon 46935 Valve kit adjustment €23.94
31
 photo_cameraImage coming soon 1470210 O-ring €1.58
32
 photo_cameraImage coming soon 2841080 Seat €2.42
33
 photo_cameraImage coming soon 3800230 Piston €5.35
34
 photo_cameraImage coming soon 820510 O-ring €5.63
35
 photo_cameraImage coming soon 740290 O-ring €2.67
36
 photo_cameraImage coming soon 3800970 Piston guide €18.91
38
 photo_cameraImage coming soon 2760210 Ring €1.58
39
 photo_cameraImage coming soon 660190 O-ring €4.40
40
 photo_cameraImage coming soon 2260100 O-Ring €1.29
41
 photo_cameraImage coming soon 4140170 Piston €6.84
42
 photo_cameraImage coming soon 1980220 disk €2.13
44
 photo_cameraImage coming soon 3800960 Screw €4.89
45
 photo_cameraImage coming soon 3800200 Nut €4.56
48
 photo_cameraImage coming soon 3721210 Seat €4.23
49
 photo_cameraImage coming soon 1682800 O-ring €1.47
50
 photo_cameraImage coming soon 3720730 Plug €4.37
51
 photo_cameraImage coming soon 46936 TSS Retrofit kit €12.87
53
 photo_cameraImage coming soon 4140420 Pin €4.69
55
 photo_cameraImage coming soon 2021650 Washer €1.74
56
 photo_cameraImage coming soon 1260820 O-ring €1.59
57
 photo_cameraImage coming soon 3740050 RING €3.55
58
 O-Ring mm 7,66x1,78 for Pressure Washers Black & Decker 600180 O-Ring mm 7,66x1,78 for Pressure Washers Black & Decker €0.38
59
 photo_cameraImage coming soon 4140640 Plug €5.77
60
 photo_cameraImage coming soon 2841910 Water seal €2.92
61
 photo_cameraImage coming soon 2840550 bushing €7.80
62
 O-Ring mm 21.75x1.78 for Pressure Washers Annovi & Reverberi Series 5 770590 O-Ring mm 21.75x1.78 for Pressure Washers Annovi & Reverberi Series 5 €0.34
63
 photo_cameraImage coming soon 2841390 Bushing €1.74
64
 Oil Seal mm 12x2x5/7" for Pressure Washers ARSG 1683500 Oil Seal mm 12x2x5/7" for Pressure Washers ARSG €2.54
65
 photo_cameraImage coming soon 4140010 Pump body €51.22
66
 photo_cameraImage coming soon 4140210 Plug €5.03
68
 photo_cameraImage coming soon 2841800 Plug €5.23
69
 photo_cameraImage coming soon 4140060 Piston €21.15
70
 DeWalt DXPW001CE Connecting Rod 4140080 DeWalt DXPW001CE Connecting Rod €13.93
73
 photo_cameraImage coming soon 4140030 Cover €12.42
75
 photo_cameraImage coming soon 4140110 Bearing €10.26
77
 photo_cameraImage coming soon 4140150 Cover €4.36
78
 photo_cameraImage coming soon 4140310 Shaft €49.88
80
 photo_cameraImage coming soon 4140190 Ring €7.99
81
 photo_cameraImage coming soon 4140100 Bearing €10.26
83
 photo_cameraImage coming soon 4140200 Oil seal €4.89
84
 photo_cameraImage coming soon 3201960 Flange €23.04
85
 photo_cameraImage coming soon 880280 screw €2.03
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

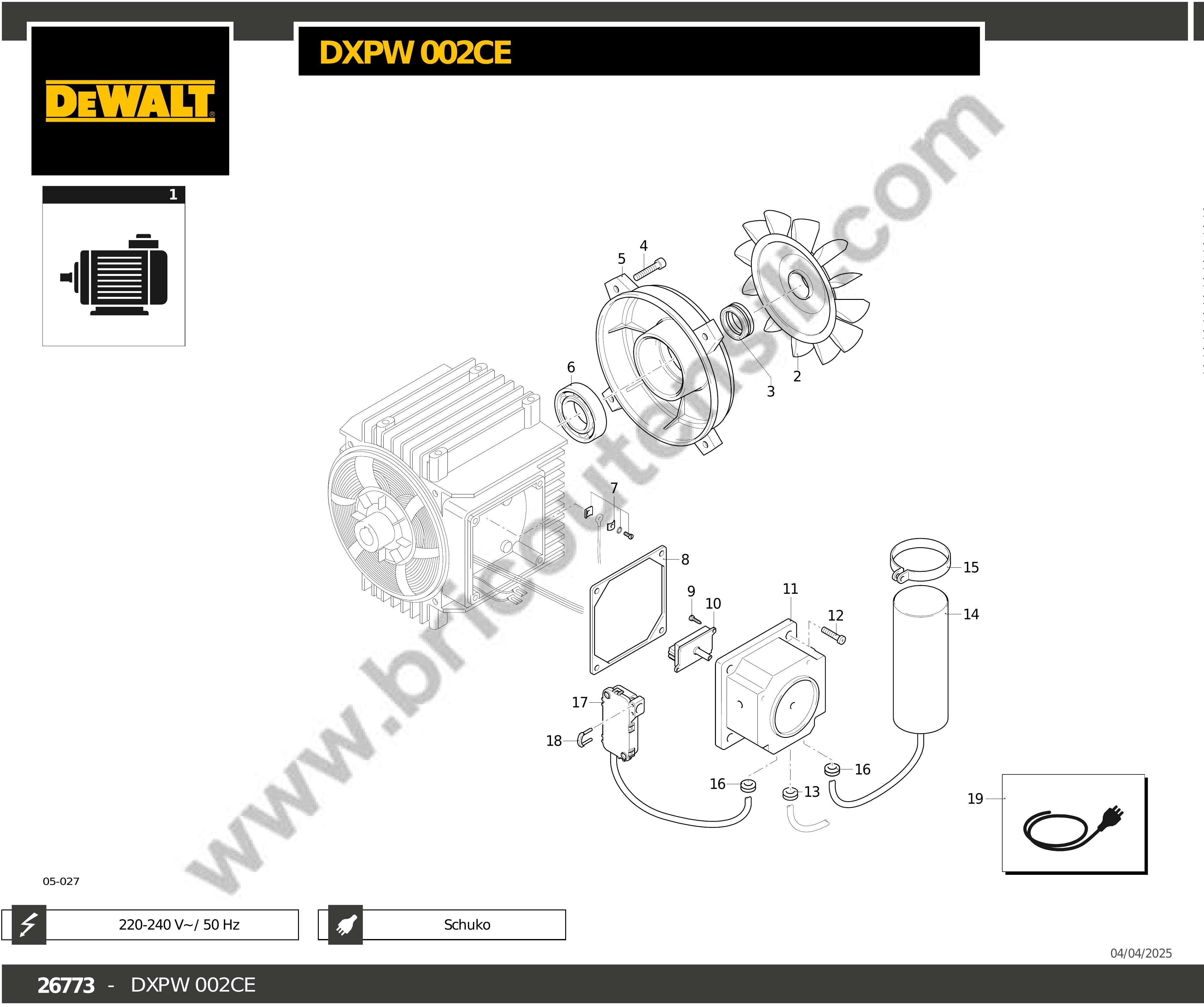

Esploso pagina 3
Pos. Item Price Buy
1
 photo_cameraImage coming soon 45074 Motor €384.59
2
 photo_cameraImage coming soon 1260300 Fan €6.15
3
 Seal for Pressure Washers FRESH FOG-HOT 1308-EVENT 131 N TSS 1340350 Seal for Pressure Washers FRESH FOG-HOT 1308-EVENT 131 N TSS €3.57
5
 photo_cameraImage coming soon 1345140 SHIELD €20.36
6
 photo_cameraImage coming soon 1340340 Bearing €7.38
7
 Clamp 1269100 Clamp €4.00
8
 photo_cameraImage coming soon 1340780 Gasket €2.85
10
 photo_cameraImage coming soon 2901920 Switch €16.12
11
 photo_cameraImage coming soon 3780170 BOX €7.41
12
 photo_cameraImage coming soon 1261560 Screw €4.67
13
 photo_cameraImage coming soon 2021480 Grommet €4.16
14
 Capacitor for Pressure Washers Annovi & Reverberi AR747 1982190 Capacitor for Pressure Washers Annovi & Reverberi AR747 €28.62
15
 photo_cameraImage coming soon 1982550 CLAMP €2.36
16
 photo_cameraImage coming soon 1462900 Cable Sleeve €2.19
17
 photo_cameraImage coming soon 2029803 TSS box assembly €21.59
18
 photo_cameraImage coming soon 2022201 fork €3.36
19
 photo_cameraImage coming soon 3780630 CORDSET €23.04
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

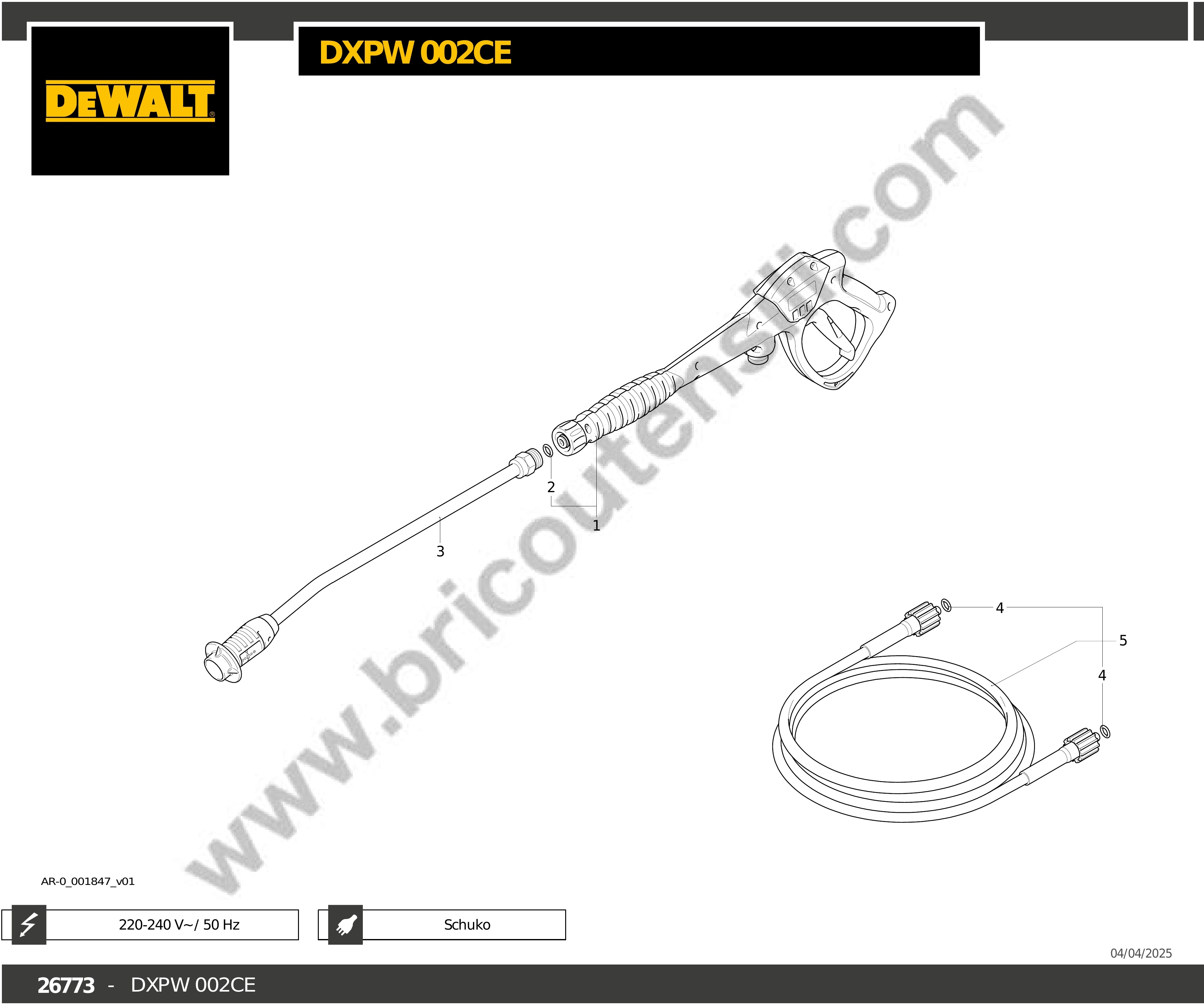

Esploso pagina 4
Pos. Item Price Buy
1
 Trigger Gun for Pressure Washer DeWalt DXPW001E 41842 Trigger Gun for Pressure Washer DeWalt DXPW001E €39.07
2
 photo_cameraImage coming soon 391000 O-Ring €4.73
3
 photo_cameraImage coming soon 43955 Lance (Adjustable jet) €28.59
4
 OR 10x2 for Pressure Washer Annovi & Reverberi AR-ARSG HOT 2000570 OR 10x2 for Pressure Washer Annovi & Reverberi AR-ARSG HOT €1.78
5
 photo_cameraImage coming soon 3960920 HOSE €61.88

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

DeWalt Spare Parts for Pressure Washer DXPW002CE

DeWalt original replacement parts for to replace broken parts for to fix Pressure Washer DXPW002CE - 26773.

In the following table, look for the model of the Pressure Washer and the respective parts of the code.
DeWalt DXPW002CE - 26773

Cofano DXPW 002CE -26773
Pag.1
# Part Num Description
1 3961200 Handle
2 2100300 Screw
3 880280 Screw
4 3961210 Protection
5 3800250 Screw
6 3961260 Knob
7 3961290 Protection
8 3961160 Hood
9 3960830 Protection
10 3961230 Protection
11 4240590 Screw
12 1260780 Screw
13 3961220 Protection
14 3961240 Support
15 3961180 Support
16 3961250 Clamp
17 3961170 Base
18 4240540 Rubber
19 3960260 Black Knob
20 3961190 Protection
21 41851 Pressure Gauge
22 1270960 Detergent Tube
23 1341030 Filter
24 3082130 Water Connection Kit
Pump Pag.2
1 26854 Pump pre-assembly
2 46065 Head pre-assembly
3 4140650 Head
4 740290 OR-seal
5 4140570 Connection
6 2849051 Complete valve
7 2841520 OR-seal
8 2840130 Cap
9 2900350 Cap
10 2101770 OR-seal
11 2761511 Shutter
12 2760200 Spring
13 2761550 Injector
14 1470210 OR-seal
15 2760270 OR-seal
16 394280 OR-seal
17 2761150 Connection
18 3700250 OR-seal
19 1560520 Spring
20 1250280 Ball
21 480480 OR-seal
22 1344620 Connection
23 480560 OR-seal
24 2320180 Hose holder
25 4140140 Washer
26 1345180 Screw
27 2760260 Cap
28 3700250 OR-seal
29 2841800 Cap
30 46935 Regulation valve kit
31 1470210 OR-seal
32 2841080 Seat
33 3800230 Piston
34 820510 OR-seal
35 740290 OR-seal
36 3800970 Piston guide
37 2500550 Cotter pin
38 2760210 Ring
39 660190 OR-seal
40 2260100 OR-seal
41 4140170 Piston
42 1980220 Plate
43 4140620 Spring
44 3800960 Screw
45 3800200 Nut
46 3961360 Screw
47 3720750 OR-seal
48 3721210 Seat
49 1682800 OR-seal
50 3720730 Cap
51 46936 TSS Retrofit Kit
52 1120681 Gasket OR
53 4140420 Rod
54 2260460 Spring
55 2021650 Washer
56 1260820 OR Seal
57 3740050 Ring
58 600180 OR Seal
59 4140640 Cap
60 2841910 Water Seal
61 2840550 Bushing
62 770590 OR Seal
63 2841390 Bushing
64 1683500 Oil Seal
65 4140010 Pump Body
66 4140210 Cap
67 3700250 OR Seal
68 2841800 Cap
69 4140060 Piston
70 4140080 Connecting Rod
71 4140070 Pin
72 4140090 OR Seal
73 4140030 Cover
74 4140270 Screw
75 4140110 Bearing
76 4140360 Ring
77 4140150 Cover
78 4140310 Shaft
79 1380520 Key
80 4140190 Ring
81 4140100 Bearing
82 4140360 Ring
83 4140200 Oil Seal
84 3201960 Flange
85 880280 Screw
A 43478 Valve Kit
B 43479 Piston Kit
C 43480 Oil Seal Kit
E 47536 Water Seal Kit
F 43482 Gasket Kit
Motor Pag.3
1 45074 Motor
2 1260300 Fan
3 1340350 Seal
4 1345180 Screw
5 1345140 Shield
6 1340340 Bearing
7 1269100 Clamp
8 1340780 Gasket
9 2000210 Screw
10 2901920 Switch
11 3780170 Box
12 1261560 Screw
13 2021480 Cable gland
14 1982190 Capacitor
15 1982550 Clamp
16 1462900 Cable gland
17 2029803 TSS box pre-assembly
18 2022201 Fork
19 3780630 Cable
Accessories Pag.4
1 41842 Gun
2 391000 OR gasket
3 43955 Lance (Adjustable jet)
4 2000570 OR gasket
5 3960920 Hose
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s DeWalt websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to DeWalt brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
DeWalt DXPW002CE - 26773
5 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:
AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS

Specific References

New

Download

DeWalt DXPW002CE Drawing

DeWalt DXPW002CE Drawing

Download (567.43KB)

You might also like

Kit Water Inlet for Pressure Washer Blue Clean AR395-490-588-590
Annovi Reverberi S.p.A. SKU: 3082130
Kit Water Inlet for Pressure Washer Blue Clean AR395-490-588-590
Kit Water Inlet for Pressure Washer Blue Clean AR395-490-588-590 Kit for water inlet with impurities filter, original spare Annovi Reverberi for repair or replacement of damaged parts, for models Blue Clean AR395 - AR490 - AR588 -...
Last items in stock €4.95
Details
Capacitor for Pressure Washers Annovi & Reverberi AR747
Annovi Reverberi S.p.A. SKU: 1982190
Capacitor for Pressure Washers Annovi & Reverberi AR747
Capacitor for Pressure Washers Annovi & Reverberi AR747 Original part Annovi & Reverberi, high pressure Capacitor for pressure washers models Blue Clean AR 747 - EXTREME 9.160 Z TSS - EXTREME 150 TSS REG...
Last items in stock €28.62
Details
OR 10x2 for Pressure Washer Annovi & Reverberi AR-ARSG HOT
Annovi Reverberi S.p.A. SKU: 2000570
OR 10x2 for Pressure Washer Annovi & Reverberi AR-ARSG HOT
OR 10x2 for Pressure Washer Annovi & Reverberi AR-ARSG HOT Original spare part Annovi & Reverberi, OR mm 10x2 Parker V1 1010 P5008 for Pressure Washers ARSG HOT 120-1106-1308-1309-1490N-1713-2015N-2021N-K-PRO 1508. Part for the...
AVAILABLE €1.78
Details
O-Ring mm 7,66x1,78 for Pressure Washers Black & Decker
Annovi Reverberi S.p.A. SKU: 600180
O-Ring mm 7,66x1,78 for Pressure Washers Black & Decker
O-Ring mm 7,66x1,78 for Pressure Washers Black & Decker Original Spare Parts Annovi & Rverberi, O-Ring mm 7,66x1,78 For the Following Products: - Black & Decker - PW 1700 WB - 12344 - Black & Decker - PW 1700 WB - 2007...
AVAILABLE €0.38
Details
Oil Seal mm 12x2x5/7" for Pressure Washers ARSG
Annovi Reverberi S.p.A. SKU: 1683500
Oil Seal mm 12x2x5/7" for Pressure Washers ARSG
Oil Seal mm 12x2x5/7" for Pressure Washers ARSG Genuine Part for Annovi & Reverberi, Oil Seal mm 12x2x5/7" for Pressure Washers ARSG EVENT - EXTREME - MR CLEAN - NRG - PRO CLEAN...
AVAILABLE €2.54
Details
Plate for Pressure Washer DeWalt DXPW001E
Annovi Reverberi S.p.A. SKU: 2901490
Plate for Pressure Washer DeWalt DXPW001E
Plate for Pressure Washer DeWalt DXPW001E Genuine spare part DeWalt, Plate for Pressure Washer DeWalt DXPW001E - DXPW002E - DXPW002(A)E Part for the following products: -  Pressure Washer DeWalt DXPW001E - 13674 -  Pressure Washer...
Last items in stock €17.95
Details
Thrust Bearing for Pressure Washer DeWalt DXPW001E
Annovi Reverberi S.p.A. SKU: 2900170
Thrust Bearing for Pressure Washer DeWalt DXPW001E
Thrust Bearing for Pressure Washer DeWalt DXPW001E Genuine spare part DeWalt, Thrust Bearing for Pressure Washer DeWalt DXPW001E - DXPW002E - DXPW002(A)E Part for the following products: -  Pressure Washer DeWalt DXPW001E - 13674 -...
on 7/10 Business Days Approx €20.36
Details
Ball Bearing for Pressure Washer DeWalt DXPW001E
Annovi Reverberi S.p.A. SKU: 1780490
Ball Bearing for Pressure Washer DeWalt DXPW001E
Ball Bearing for Pressure Washer DeWalt DXPW001E Genuine spare part DeWalt, Ball Bearing for Pressure Washer DeWalt DXPW001E - DXPW002E - DXPW002(A)E Part for the following products: -  Pressure Washer DeWalt DXPW001E - 13674 -...
on 7/10 Business Days Approx €20.36
Details
Oil Seal 25x42x7 for Pressure Washer DeWalt DXPW001E
Annovi Reverberi S.p.A. SKU: 1460530
Oil Seal 25x42x7 for Pressure Washer DeWalt DXPW001E
Oil Seal 25x42x7 for Pressure Washer DeWalt DXPW001E Genuine spare part DeWalt, Oil Seal 25x42x7 for Pressure Washer DeWalt DXPW001E - DXPW002E - DXPW002(A)E Part for the following products: -  Pressure Washer DeWalt DXPW001E - 13674...
on 7/10 Business Days Approx €7.93
Details
Trigger Gun for Pressure Washer DeWalt DXPW001E
Annovi Reverberi S.p.A. SKU: 41842
Trigger Gun for Pressure Washer DeWalt DXPW001E
Trigger Gun for Pressure Washer DeWalt DXPW001E Genuine spare part DeWalt, Trigger Gun for Pressure Washer DeWalt DXPW001E - DXPW002E - DXPW002(A)E Part for the following products: -  Pressure Washer DeWalt DXPW001E -  Pressure...
Last items in stock €39.07
Details
Detergent Filter for Pressure Washer Annovi Reverberi
Annovi Reverberi S.p.A. SKU: 1341030
Detergent Filter for Pressure Washer Annovi Reverberi
Detergent Filter for Pressure Washer Annovi Reverberi Genuine part Annovi Reverberi, Detergent Suction Filter Model F for Pressure Washers Annovi Reverberi. Parts For the Following Products: - AR BC - Models 50 Hz - Serie 6 - 613 -...
on 7/10 Business Days Approx. €14.06
Details
ARSG HOT 1309 Plug
Annovi Reverberi S.p.A. SKU: 2900350
ARSG HOT 1309 Plug
ARSG Plug for Pressure Washer HOT 1309 Original parts ANNOVI & REVERBERI, Plug for pressure washers ARSG HOT 1309 - HOT 1408 - MPX 140HL. Part for the following products: - Pressure Washer ARSG HOT 1309 - 23112 - Pressure...
build View Spare Parts
Comments (0)
