DeWalt Spare Parts for Pressure Washer DXPW010E

SKU: DeWalt DXPW010E - 25162
€294.76
VAT included

DeWalt Spare Parts for Pressure Washer DXPW010E

DeWalt genuine spare parts for to repair Pressure Washer DXPW010E - 25162.
DeWalt Spare Parts for Pressure Washer DXPW010E
  • DeWalt Spare Parts for Pressure Washer DXPW010E
  • DeWalt Spare Parts for Pressure Washer DXPW010E
  • DeWalt Spare Parts for Pressure Washer DXPW010E
  • DeWalt Spare Parts for Pressure Washer DXPW010E
  • DeWalt Spare Parts for Pressure Washer DXPW010E
  • DeWalt Spare Parts for Pressure Washer DXPW010E

DeWalt Spare Parts for Pressure Washer DXPW010E

SKU: DeWalt DXPW010E - 25162 Condition: New
€294.76
VAT included

DeWalt Spare Parts for Pressure Washer DXPW010E

DeWalt genuine spare parts for to repair Pressure Washer DXPW010E - 25162.
settings 161 spare parts
description 6 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
AVAILABLE

verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

150 spare parts
Pos. Item Price Buy
5
photo_cameraImage coming soon 3960330 GUARD €21.59
Pos. Item Price Buy
2
photo_cameraImage coming soon 2100300 screw €4.72
3
photo_cameraImage coming soon 2360760 Knob €4.14
4
photo_cameraImage coming soon 3960500 SUPPORT €47.65
6
photo_cameraImage coming soon 200230 Screw €4.81
7
photo_cameraImage coming soon 320620 Washer €4.67
8
photo_cameraImage coming soon 2240110 Nut €5.68
9
photo_cameraImage coming soon 2180150 Pipe Cleaner €4.47
10
photo_cameraImage coming soon 1270960 pipe cleaner €4.41
11
Detergent Filter for Pressure Washer Annovi Reverberi 1341030 Detergent Filter for Pressure Washer Annovi Reverberi €14.06
12
photo_cameraImage coming soon 1269114 HOSE SA €11.10
13
photo_cameraImage coming soon 3120110 NUT €4.60
14
Water Filter for Pressure Washers AR Blue Clean and Farmer's Division 1340260 Water Filter for Pressure Washers AR Blue Clean and Farmer's Division €1.52
15
photo_cameraImage coming soon 3960300 GUARD €21.65
16
photo_cameraImage coming soon 3960280 HANDLE €49.26
17
photo_cameraImage coming soon 3960150 GUARD €7.88
18
photo_cameraImage coming soon 3960160 GUARD €7.88
19
photo_cameraImage coming soon 3960490 CARRIER €16.25
20
photo_cameraImage coming soon 3960290 GUARD €21.27
21
photo_cameraImage coming soon 3969004 KNOB €14.57
22
photo_cameraImage coming soon 3960830 GUARD €11.41
23
photo_cameraImage coming soon 4554 Engine €2,031.65
24
photo_cameraImage coming soon 50016 Stopper €8.16
25
photo_cameraImage coming soon 3960530 WHEEL €55.76
26
photo_cameraImage coming soon 3960510 FRAME €115.11
27
photo_cameraImage coming soon 1060120 Nut €1.54
28
photo_cameraImage coming soon 3960350 GUARD €8.78
29
photo_cameraImage coming soon 3960340 GUARD €9.42
30
photo_cameraImage coming soon 3960360 DAMPER €18.30
31
photo_cameraImage coming soon 380250 Screw €5.21
32
photo_cameraImage coming soon 3960540 SPACER €7.43
33
photo_cameraImage coming soon 380210 SCREW €7.04
34
photo_cameraImage coming soon 3960520 FRAME €38.96

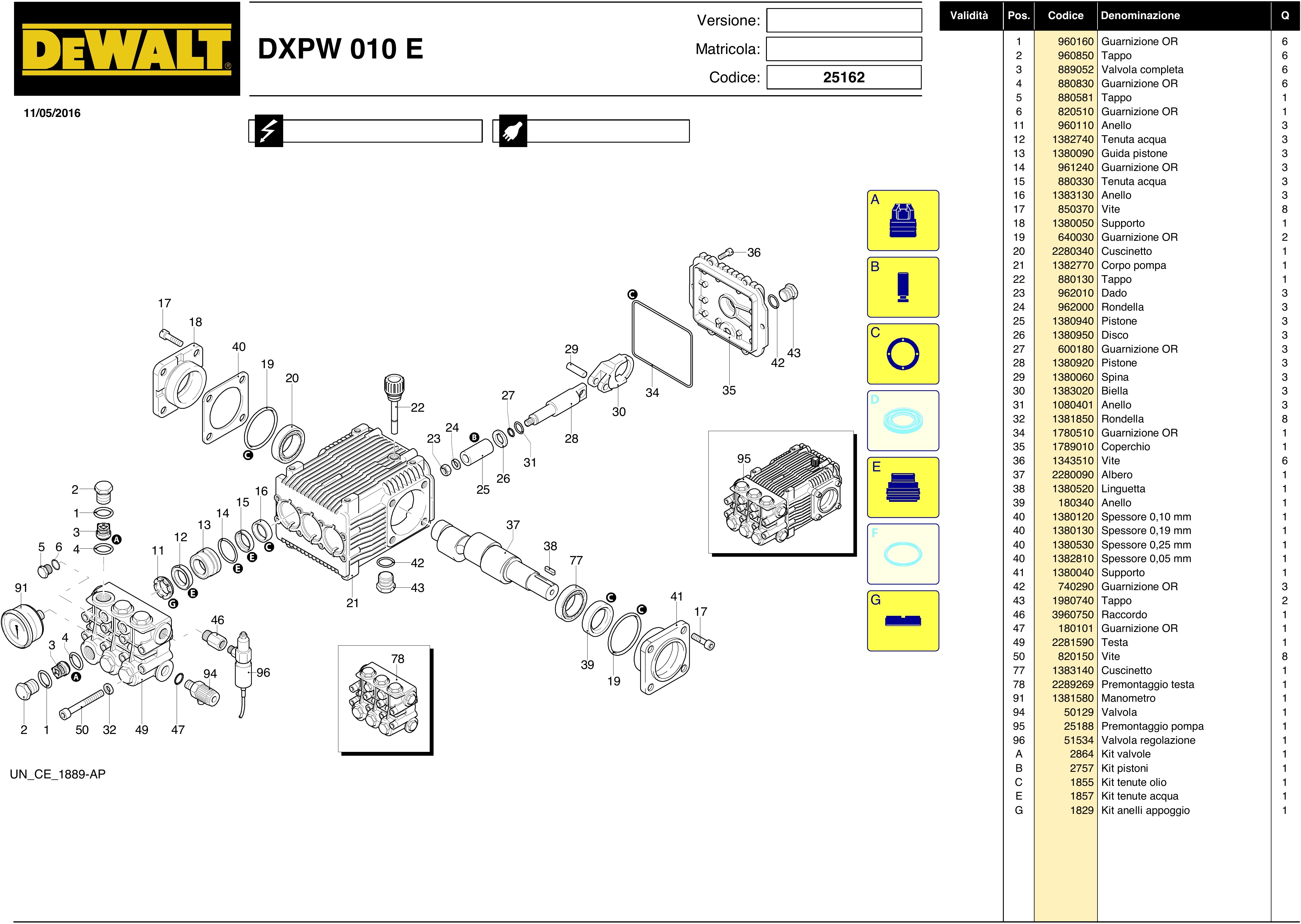

Pos. Item Price Buy
G
photo_cameraImage coming soon 1829 Kit Support Rings €11.93
C
photo_cameraImage coming soon 1855 Kit Oil Seals €35.52
E
Water Seal Kit for Pressure Washer Annovi & Reverberi AR1010 1857 Water Seal Kit for Pressure Washer Annovi & Reverberi AR1010 €60.64
B
photo_cameraImage coming soon 2757 Piston Kit €88.44
A
photo_cameraImage coming soon 2864 Kit Valves €18.08
1
O-Ring 17,86x2,62 for Pressure Washers AR-AR Farmer's Division 960160 O-Ring 17,86x2,62 for Pressure Washers AR-AR Farmer's Division €0.38
2
photo_cameraImage coming soon 960850 Cork €14.81
3
photo_cameraImage coming soon 889052 Valve Complete €8.50
4
O-Ring 15,54x2,62 for Pressure Washers AR-AR Farmer's Division 880830 O-Ring 15,54x2,62 for Pressure Washers AR-AR Farmer's Division €0.38
5
photo_cameraImage coming soon 880581 stopper €7.73
6
photo_cameraImage coming soon 820510 O-ring €5.63
11
photo_cameraImage coming soon 960110 Ring €2.41
12
photo_cameraImage coming soon 1382740 Tenuta Water €16.70
13
photo_cameraImage coming soon 1380090 Piston Guide €12.55
14
photo_cameraImage coming soon 961240 O-Ring €4.80
15
photo_cameraImage coming soon 880330 Tenuta Water €8.14
16
photo_cameraImage coming soon 1383130 Ring €10.75
17
photo_cameraImage coming soon 850370 screw €2.26
18
photo_cameraImage coming soon 1380050 Support €20.71
19
photo_cameraImage coming soon 640030 O-Ring €5.01
20
photo_cameraImage coming soon 2280340 Bearing €26.80
21
photo_cameraImage coming soon 1382770 Pump Housing €112.58
22
photo_cameraImage coming soon 880130 Stopper €6.67
23
photo_cameraImage coming soon 962010 Nut €6.12
24
photo_cameraImage coming soon 962000 Washer €4.87
25
photo_cameraImage coming soon 1380940 Piston €31.99
26
photo_cameraImage coming soon 1380950 Disk €4.94
27
O-Ring mm 7,66x1,78 for Pressure Washers Black & Decker 600180 O-Ring mm 7,66x1,78 for Pressure Washers Black & Decker €0.38
28
photo_cameraImage coming soon 1380920 Piston €26.73
29
photo_cameraImage coming soon 1380060 Plug €6.39
30
photo_cameraImage coming soon 1383020 Piston Rod €30.80
31
photo_cameraImage coming soon 1080401 ring €2.13
34
photo_cameraImage coming soon 1780510 O-Ring €5.35
35
photo_cameraImage coming soon 1789010 Cover €24.45
37
photo_cameraImage coming soon 2280090 Shaft €101.98
39
photo_cameraImage coming soon 180340 Ring €10.20
40
photo_cameraImage coming soon 1380120 Thickness 0.10 Mm €5.22
40
photo_cameraImage coming soon 1380130 Thickness 0.20 Mm €5.22
40
photo_cameraImage coming soon 1380530 Thickness 0.25 Mm €6.05
40
photo_cameraImage coming soon 1382810 Thickness 0.05 Mm €5.08
41
photo_cameraImage coming soon 1380040 Support €22.03
42
photo_cameraImage coming soon 740290 O-ring €2.67
43
Plug 3/8'' Gas for Pressure Washers AR Blue Clean and Farmer's Division 1980740 Plug 3/8'' Gas for Pressure Washers AR Blue Clean and Farmer's Division €2.77
46
photo_cameraImage coming soon 3960750 COUPLING €11.61
47
photo_cameraImage coming soon 180101 O-Ring €4.73
49
photo_cameraImage coming soon 2281590 Head €179.17
50
photo_cameraImage coming soon 820150 Screw €5.42
77
photo_cameraImage coming soon 1383140 Bearing €19.05
78
photo_cameraImage coming soon 2289269 HEAD SA €360.84
91
Gauge for Pressure Washers Annovi & Reverberi AR 820-830-840-850 1381580 Gauge for Pressure Washers Annovi & Reverberi AR 820-830-840-850 €41.57
94
photo_cameraImage coming soon 50129 POINTER €40.60
95
photo_cameraImage coming soon 25188 PUMP SA €754.73
96
photo_cameraImage coming soon 51534 VALVE €68.03

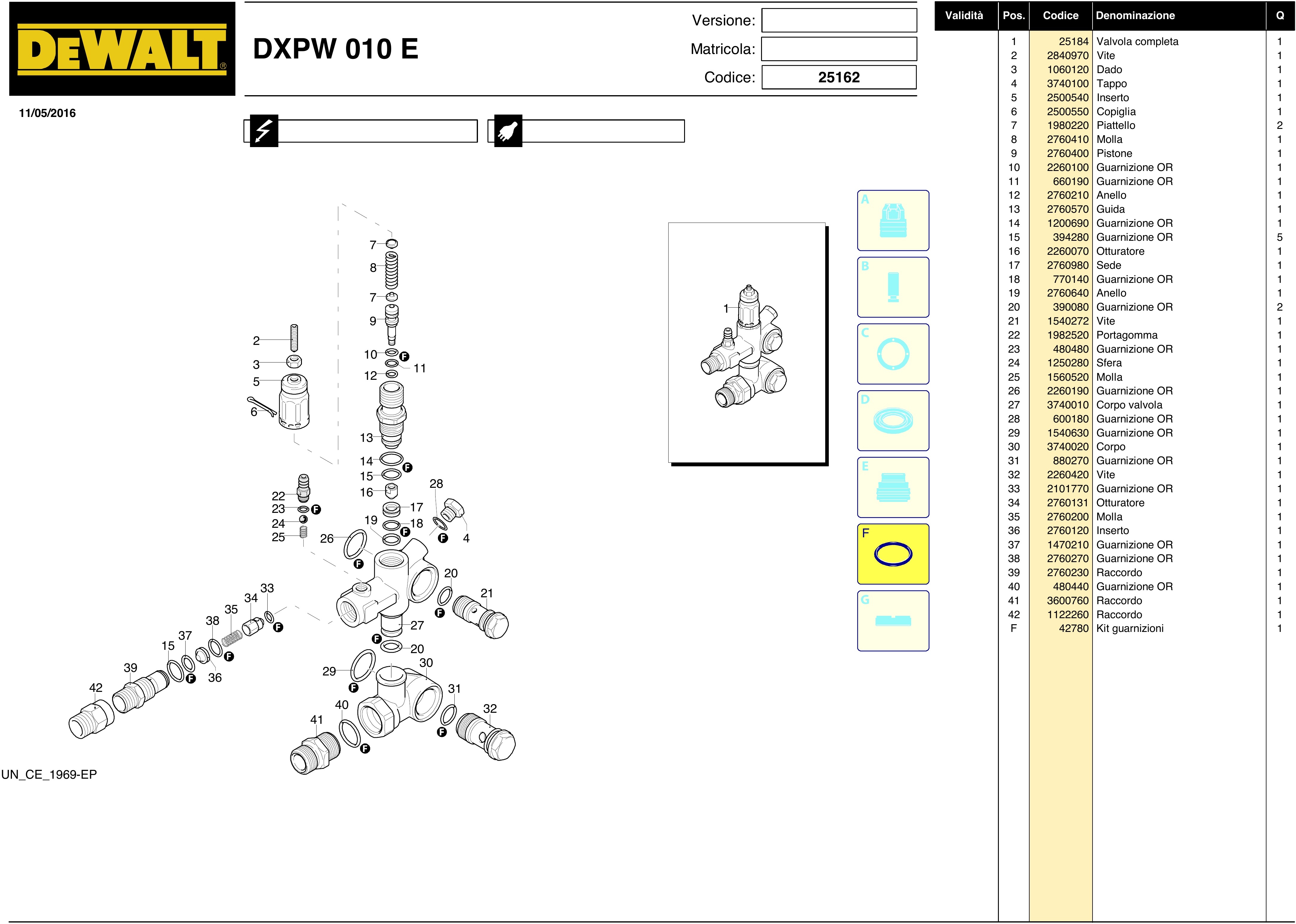

Pos. Item Price Buy
F
photo_cameraImage coming soon 42780 GASKET SET €17.03
1
photo_cameraImage coming soon 25184 VALVE CPL €118.84
4
photo_cameraImage coming soon 3740100 PLUG €13.35
5
photo_cameraImage coming soon 2500540 Insert €14.20
7
photo_cameraImage coming soon 1980220 disk €2.13
8
photo_cameraImage coming soon 2760410 Spring €3.54
9
photo_cameraImage coming soon 2760400 Piston €12.80
10
photo_cameraImage coming soon 2260100 O-Ring €1.29
11
photo_cameraImage coming soon 660190 O-ring €4.40
12
photo_cameraImage coming soon 2760210 Ring €1.58
13
photo_cameraImage coming soon 2760570 Driving €18.43
14
photo_cameraImage coming soon 1200690 O-ring €4.26
15
O-Ring 12,42x1,78 for Pressure Washers AR BC 210 - 333 - 353 394280 O-Ring 12,42x1,78 for Pressure Washers AR BC 210 - 333 - 353 €0.53
16
photo_cameraImage coming soon 2260070 Shutter €15.62
17
photo_cameraImage coming soon 2760980 SEAT €7.81
18
O-Ring mm 11,11x1,78 for Pressure Washers Annovi & Reverberi AR780-797 770140 O-Ring mm 11,11x1,78 for Pressure Washers Annovi & Reverberi AR780-797 €0.27
19
photo_cameraImage coming soon 2760640 RING €1.46
20
O-Ring for Pressure Washers AR Proliner SV 390080 O-Ring for Pressure Washers AR Proliner SV €0.49
21
Valve Screw for Pressure Washers Annovi & Reverberi 1540272 Valve Screw for Pressure Washers Annovi & Reverberi €9.30
22
photo_cameraImage coming soon 1982520 Hose €6.27
23
photo_cameraImage coming soon 480480 O-ring €5.63
24
photo_cameraImage coming soon 1250280 sphere €2.67
25
Annovi Reverberi Spring for AR747 1560520 Annovi Reverberi Spring for AR747 €1.02
26
O-Ring mm 20.29x2.62 for Pressure Washers Annovi & Reverberi 2260190 O-Ring mm 20.29x2.62 for Pressure Washers Annovi & Reverberi €0.35
27
photo_cameraImage coming soon 3740010 VALVE BODY €41.10
30
photo_cameraImage coming soon 3740020 BODY €17.03
31
O-Ring for Pressure Washers AR6640 880270 O-Ring for Pressure Washers AR6640 €0.42
32
Collector Screw for Pressure Washers Annovi & Reverberi 2260420 Collector Screw for Pressure Washers Annovi & Reverberi €8.09
34
photo_cameraImage coming soon 2760131 SHUTTER €14.20
36
AR780 Injector Insert 2760120 AR780 Injector Insert €3.41
37
photo_cameraImage coming soon 1470210 O-ring €1.58
39
photo_cameraImage coming soon 2760230 Junction €11.62
40
O-Ring 17,13x2,62 for Pressure Washers AR 780-787-797-945-6670-7850 480440 O-Ring 17,13x2,62 for Pressure Washers AR 780-787-797-945-6670-7850 €0.45
41
photo_cameraImage coming soon 3600760 COUPLING €19.92
42
photo_cameraImage coming soon 1122260 Junction €9.61

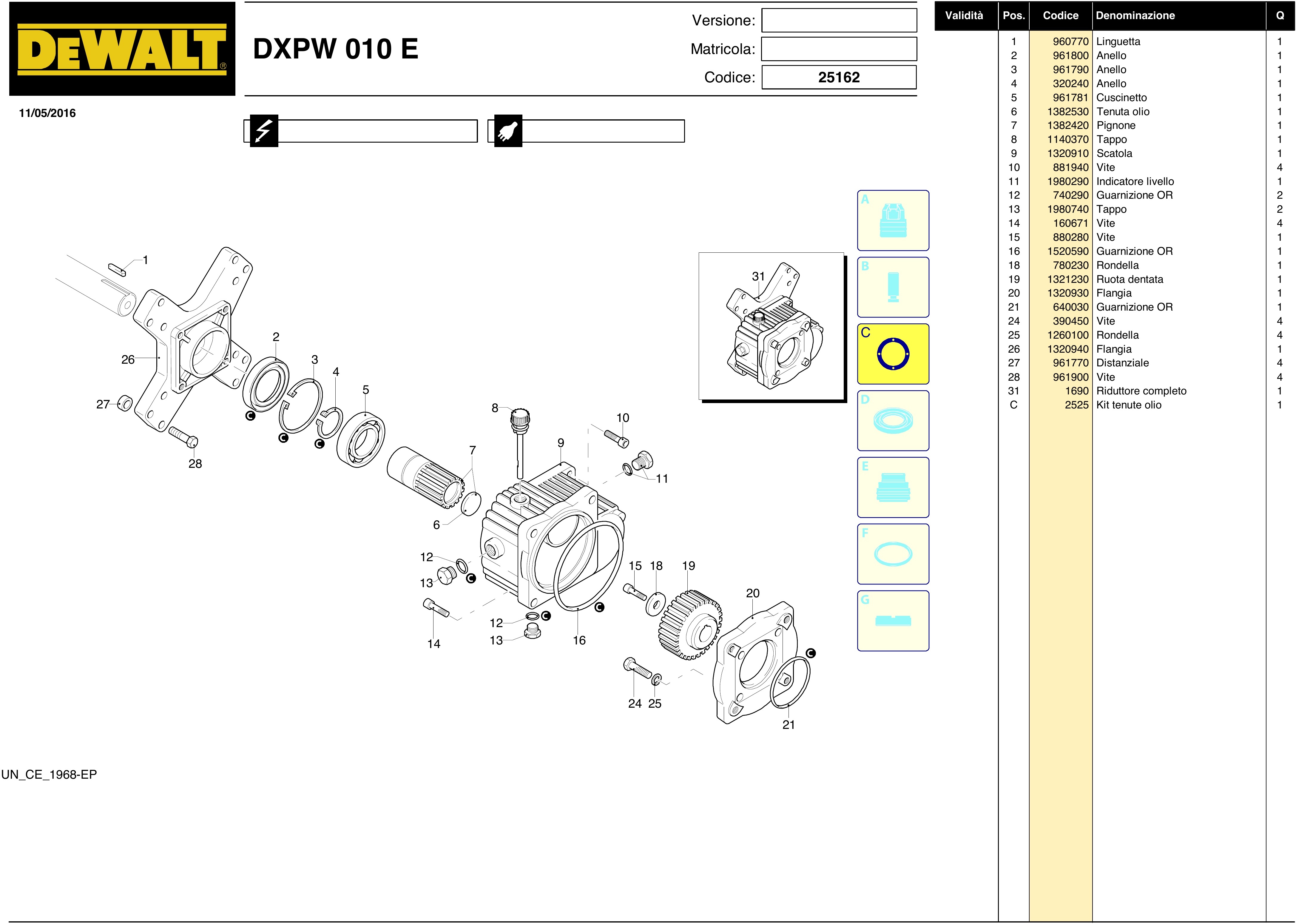

Pos. Item Price Buy
C
photo_cameraImage coming soon 2525 Oil Seals Kit €17.15
1
photo_cameraImage coming soon 960770 Tab €6.01
2
photo_cameraImage coming soon 961800 Ring €11.42
3
photo_cameraImage coming soon 961790 Ring €6.40
4
photo_cameraImage coming soon 320240 Ring €5.24
5
Brushe Cap for Mixers Hitachi D13 - D13SA 961781 Brushe Cap for Mixers Hitachi D13 - D13SA €4.18
6
photo_cameraImage coming soon 1382530 Oil Seal €8.46
7
photo_cameraImage coming soon 1382420 Pinion €97.92
8
photo_cameraImage coming soon 1140370 Stopper €6.17
9
photo_cameraImage coming soon 1320910 Box €43.60
10
photo_cameraImage coming soon 881940 Screw €7.62
11
photo_cameraImage coming soon 1980290 stopper €5.84
14
photo_cameraImage coming soon 160671 Screw €5.37
15
photo_cameraImage coming soon 880280 screw €2.03
16
photo_cameraImage coming soon 1520590 O-Ring €4.98
18
photo_cameraImage coming soon 780230 Washer €5.11
19
photo_cameraImage coming soon 1321230 Cogwheel €102.94
20
photo_cameraImage coming soon 1320930 Flange €33.88
24
photo_cameraImage coming soon 390450 Screw €5.05
26
ARSG Pressure Washer 850 H4S Flange 1320940 ARSG Pressure Washer 850 H4S Flange €34.04
27
photo_cameraImage coming soon 961770 Spacer €7.17
28
photo_cameraImage coming soon 961900 Screw €5.54
31
photo_cameraImage coming soon 1690 Reducer Complete €286.18

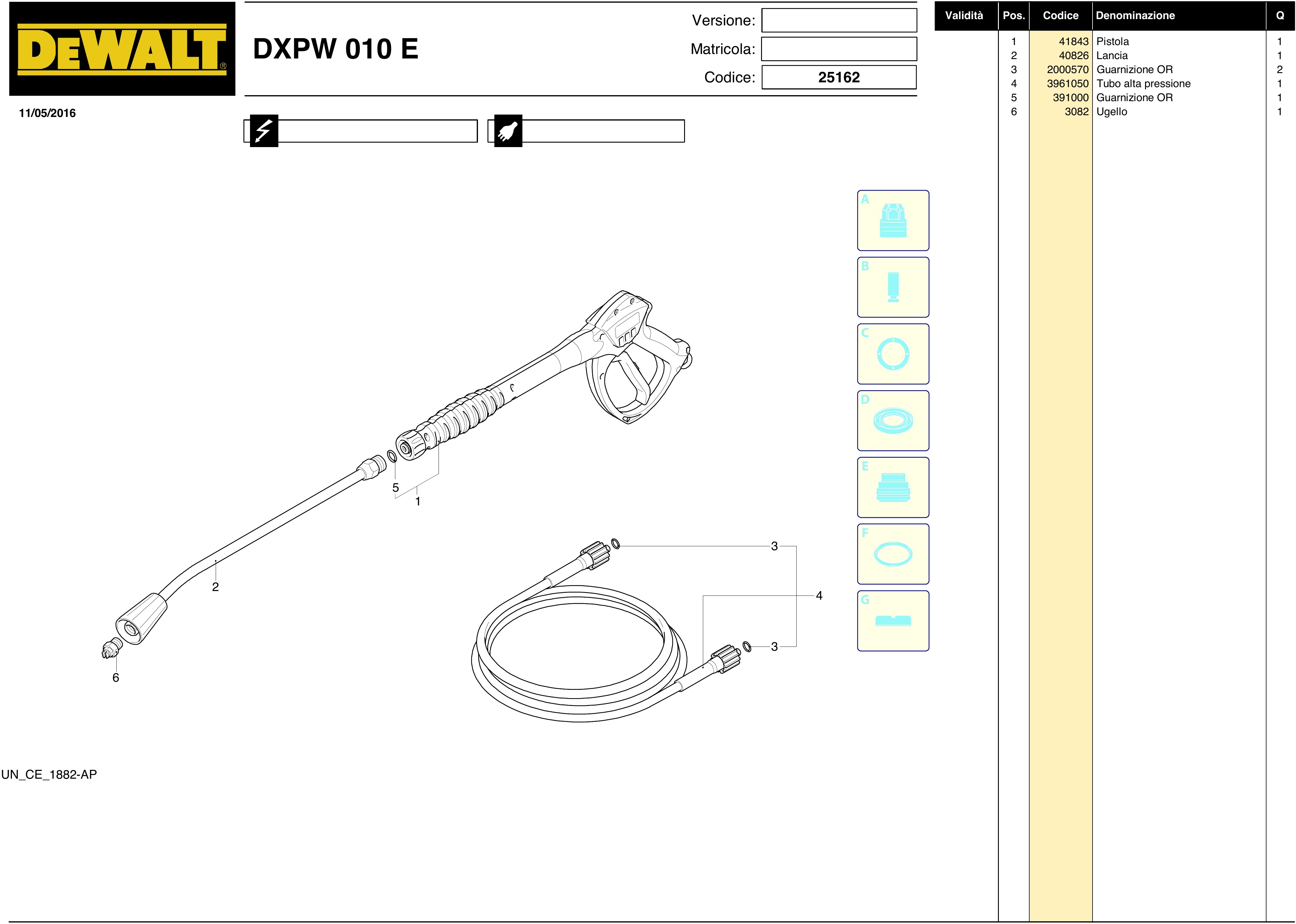

Pos. Item Price Buy
1
photo_cameraImage coming soon 41843 HANDLE SA €53.96
2
Lance for Pressure Washer Annovi & Reverberi AR1380 40826 Lance for Pressure Washer Annovi & Reverberi AR1380 €37.00
3
OR 10x2 for Pressure Washer Annovi & Reverberi AR-ARSG HOT 2000570 OR 10x2 for Pressure Washer Annovi & Reverberi AR-ARSG HOT €1.78
4
photo_cameraImage coming soon 3961050 HOSE €137.50
5
photo_cameraImage coming soon 391000 O-Ring €4.73
6
photo_cameraImage coming soon 3082 Nozzle €24.68

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

DeWalt Spare Parts for Pressure Washer DXPW010E

DeWalt genuine spare parts for to repair Pressure Washer DXPW010E - 25162.

In the following table, look for the model of the Pressure Washer and the respective parts of the code.
Pressure Washer DXPW010E - 25162

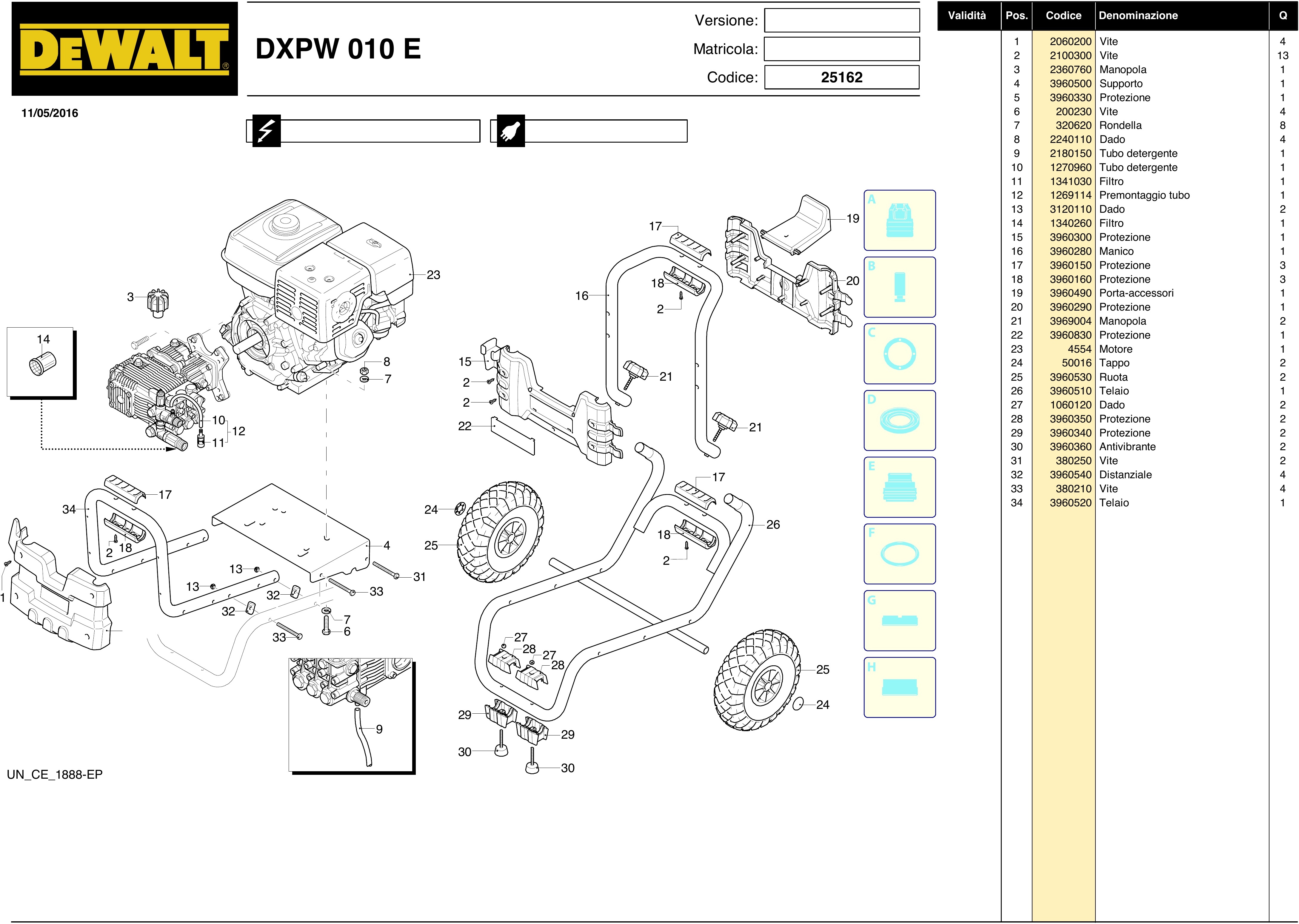

Casing DXPW010E - 25162 Pag.1
# Part Num. Description
1 2060200 SCREW
2 2100300 SCREW
3 2360760 KNOB
4 3960500 SUPPORT
5 3960330 GUARD
6 200230 SCREW
7 320620 WASHER
8 2240110 NUT
9 2180150 DETERGENT HOSE
10 1270960 DETERGENT HOSE
11 1341030 FILTER
12 1269114 PRE ASSEMBLY HOSE SA
13 3120110 NUT
14 1340260 FILTER
15 3960300 GUARD
16 3960280 HANDLE
17 3960150 GUARD
18 3960160 GUARD
19 3960490 CARRIER
20 3960290 GUARD
21 3969004 KNOB
22 3960830 GUARD
23 4554 MOTOR SA
24 50016 CAP
25 3960530 WHEEL
26 3960510 FRAME
27 1060120 NUT
28 3960350 GUARD
29 3960340 GUARD
30 3960360 DAMPER
31 380250 SCREW
32 3960540 SPACER
33 380210 SCREW
34 3960520 FRAME
Pump DXPW010E - 25162 Pag.2
1 960160 O RING
2 960850 PLUG
3 889052 VALVE
4 880830 O RING
5 880581 PLUG
6 820510 O RING
11 960110 RING
12 1382740 SEAL
13 1380090 GUIDE
14 961240 O RING
15 880330 SEAL
16 1383130 RING
17 850370 SCREW
18 1380050 SUPPORT
19 640030 O RING
20 2280340 BEARING
21 1382770 PUMP SA
22 880130 PLUG
23 962010 NUT
24 962000 WASHER
25 1380940 PISTON
26 1380950 PLATE
27 600180 O RING
28 1380920 PISTON
29 1380060 PIN
30 1383020 CON ROD
31 1080401 RING
32 1381850 WASHER
34 1780510 O RING
35 1789010 COVER
36 1343510 SCREW
37 2280090 CRANKSHAFT
38 1380520 KEY
39 180340 RING
40 1380120 SHIM 0,10 mm
40 1380130 SHIM 0,19 mm
40 1380530 SHIM 0,25 mm
40 1382810 SHIM 0,05 mm
41 1380040 SUPPORT
42 740290 O RING
43 1980740 PLUG
46 3960750 COUPLING
47 180101 O RING
49 2281590 HEAD SA
50 820150 SCREW
77 1383140 BEARING
78 2289269 HEAD SA
91 1381580 PRESSURE GAUGE
94 50129 VALVE
95 25188 PUMP SA
96 51534 VALVE
A 2864 VALVE KIT
B 2757 PISTON KIT
C 1855 SEALS KIT
E 1857 WATER SEALS KIT
G 1829 RING SA KIT
Pump DXPW010E - 25162 Pag.3
1 25184 VALVE CPL
2 2840970 SCREW
3 1060120 NUT
4 3740100 PLUG
5 2500540 INSERT
6 2500550 PIN
7 1980220 PLATE
8 2760410 SPRING
9 2760400 PISTON
10 2260100 O RING
11 660190 O RING
12 2760210 RING
13 2760570 GUIDE
14 1200690 O RING
15 394280 O RING
16 2260070 SHUTTER
17 2760980 SEAT
18 770140 O RING
19 2760640 RING
20 390080 O RING
21 1540272 SCREW
22 1982520 COUPLING
23 480480 O RING
24 1250280 BALL
25 1560520 SPRING
26 2260190 O RING
27 3740010 VALVE BODY
28 600180 O RING
29 1540630 O RING
30 3740020 BODY
31 880270 O RING
32 2260420 SCREW
33 2101770 O RING
34 2760131 SHUTTER
35 2760200 SPRING
36 2760120 INSERT
37 1470210 O RING
38 2760270 O RING
39 2760230 COUPLING
40 480440 O RING
41 3600760 COUPLING
42 1122260 COUPLING
F 42780 GASKET SET
Pump DXPW010E - 25162 Pag.4
1 960770 CIRCLIP
2 961800 RING
3 961790 RING
4 320240 RING
5 961781 BEARING
6 1382530 SEAL
7 1382420 PINION
8 1140370 PLUG
9 1320910 GEARBOX
10 881940 SCREW
11 1980290 GAUGE
12 740290 O RING
13 1980740 PLUG
14 160671 SCREW
15 880280 SCREW
16 1520590 O RING
18 780230 WASHER
19 1321230 GEAR
20 1320930 FLANGE
21 640030 O RING
24 390450 SCREW
25 1260100 WASHER
26 1320940 FLANGE
27 961770 SPACER
28 961900 SCREW
31 1690 GEARBOX SA
C 2525 SEALS KIT
Accessories DXPW010E - 25162 Pag.5
1 41843 HANDLE SA
2 40826 EXTENSION
3 2000570 O RING
4 3961050 HOSE
5 391000 O RING
6 3082 NOZZLE

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s DeWalt websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to DeWalt brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
DeWalt DXPW010E - 25162
12 Items

Specific References

New

Download

Diagram DeWalt DXPW010E

Diagram DeWalt DXPW010E

Download (713.68KB)

You might also like

Annovi Reverberi S.p.A. SKU: 1857
Water Seal Kit for Pressure Washer Annovi & Reverberi AR1010 Genuine Part Annovi & Reverberi, Water Seal Kit for Pressure Washers AR1010 - AR1015 - AR1007 - AR1380 - AR6970. Part for the Following Items: -  Pressure Washer...
AVAILABLE €60.64
Annovi Reverberi S.p.A. SKU: 2760120
Annovi Reverberi Injector Insert for Pressure Washer AR780 Genuine part Annovi Reverberi, Injector Insert D.2 for Pressure Washers AR780 - AR797 - DXPW 006 E - MPX 160HDC. Part for the Following Products: - AR Blue Clean...
AVAILABLE €3.41
Comments (0)
