DeWalt Spare Parts for Pressure Washer DXPW009E

SKU: DeWalt DXPW009E - 25161
€30.47
VAT included

DeWalt Spare Parts for Pressure Washer DXPW009E

DeWalt genuine spare parts for to fix Pressure Washer DXPW009E - 25161.
DeWalt Spare Parts for Pressure Washer DXPW009E
  • DeWalt Spare Parts for Pressure Washer DXPW009E
  • DeWalt Spare Parts for Pressure Washer DXPW009E
  • DeWalt Spare Parts for Pressure Washer DXPW009E
  • DeWalt Spare Parts for Pressure Washer DXPW009E
  • DeWalt Spare Parts for Pressure Washer DXPW009E

DeWalt Spare Parts for Pressure Washer DXPW009E

SKU: DeWalt DXPW009E - 25161 Condition: New
€30.47
VAT included

DeWalt Spare Parts for Pressure Washer DXPW009E

DeWalt genuine spare parts for to fix Pressure Washer DXPW009E - 25161.
settings 145 spare parts

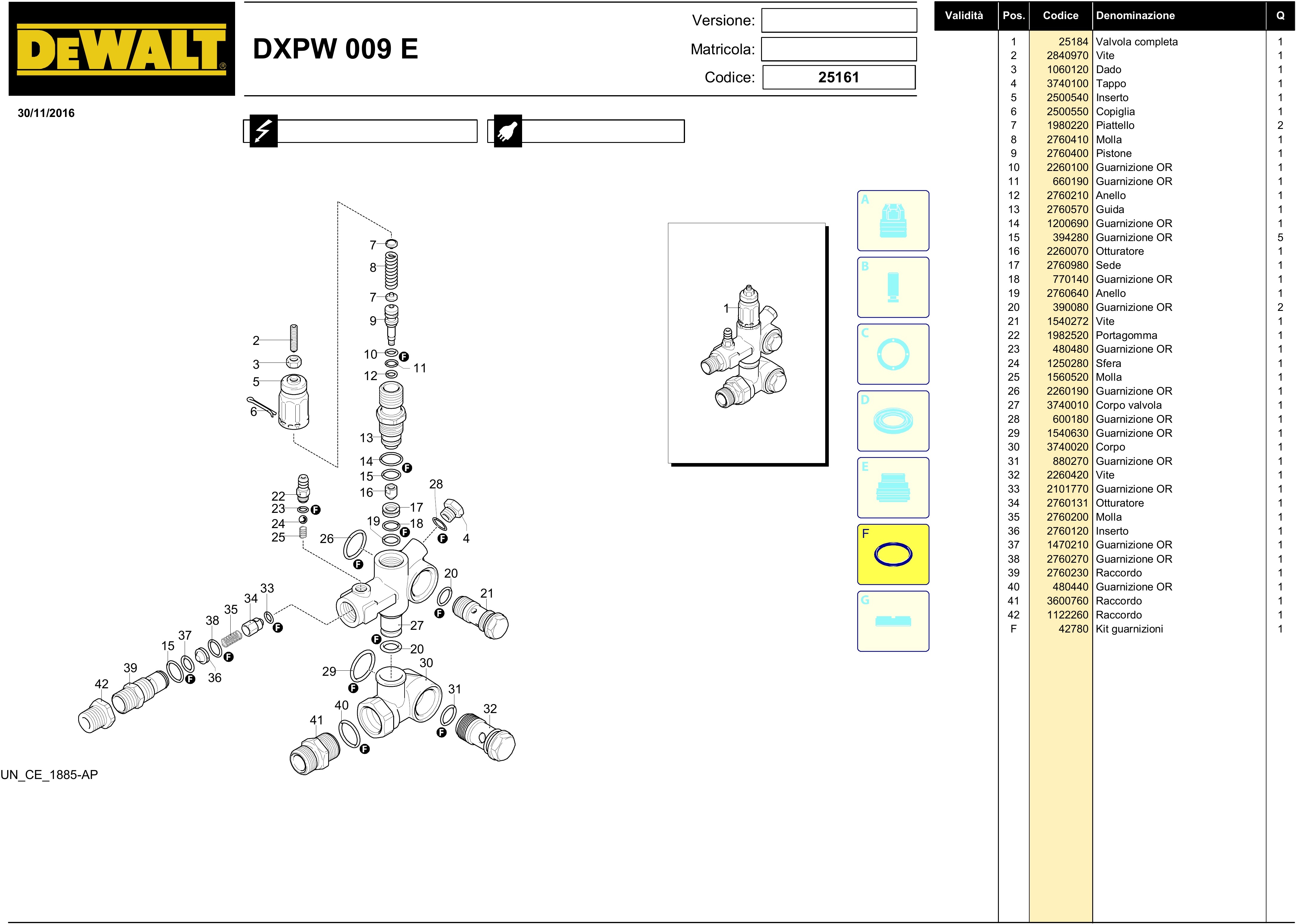

description 4 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
AVAILABLE

verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

130 spare parts
Pos. Item Price Buy
2
photo_cameraImage coming soon 2100300 screw €4.72
3
photo_cameraImage coming soon 2360760 Knob €4.14
4
photo_cameraImage coming soon 3960500 SUPPORT €47.65
5
photo_cameraImage coming soon 3960330 GUARD €21.59
6
photo_cameraImage coming soon 200230 Screw €4.81
7
photo_cameraImage coming soon 320620 Washer €4.67
8
photo_cameraImage coming soon 2240110 Nut €5.68
9
photo_cameraImage coming soon 961900 Screw €5.54
10
photo_cameraImage coming soon 1270960 pipe cleaner €4.41
11
Detergent Filter for Pressure Washer Annovi Reverberi 1341030 Detergent Filter for Pressure Washer Annovi Reverberi €14.06
12
photo_cameraImage coming soon 1269114 HOSE SA €11.10
13
photo_cameraImage coming soon 3120110 NUT €4.60
14
Water Filter for Pressure Washers AR Blue Clean and Farmer's Division 1340260 Water Filter for Pressure Washers AR Blue Clean and Farmer's Division €1.52
15
photo_cameraImage coming soon 3960300 GUARD €21.65
16
photo_cameraImage coming soon 3960280 HANDLE €49.26
17
photo_cameraImage coming soon 3960150 GUARD €7.88
18
photo_cameraImage coming soon 3960160 GUARD €7.88
19
photo_cameraImage coming soon 3960490 CARRIER €16.25
20
photo_cameraImage coming soon 3960290 GUARD €21.27
21
photo_cameraImage coming soon 3969004 KNOB €14.57
22
photo_cameraImage coming soon 3960830 GUARD €11.41
23
photo_cameraImage coming soon 4925 Engine €1,769.13
24
photo_cameraImage coming soon 50016 Stopper €8.16
25
photo_cameraImage coming soon 3960530 WHEEL €55.76
26
photo_cameraImage coming soon 3960510 FRAME €115.11
27
photo_cameraImage coming soon 1060120 Nut €1.54
28
photo_cameraImage coming soon 3960350 GUARD €8.78
29
photo_cameraImage coming soon 3960340 GUARD €9.42
30
photo_cameraImage coming soon 3960360 DAMPER €18.30
31
photo_cameraImage coming soon 380250 Screw €5.21
32
photo_cameraImage coming soon 3960540 SPACER €7.43
33
photo_cameraImage coming soon 380210 SCREW €7.04
34
photo_cameraImage coming soon 3960520 FRAME €38.96
35
photo_cameraImage coming soon 2180150 Pipe Cleaner €4.47
Pos. Item Price Buy
A
photo_cameraImage coming soon 1828 Valve Kit €29.59
G
photo_cameraImage coming soon 2191 Kit Support Rings €6.22
B
photo_cameraImage coming soon 2739 PISTON KIT €62.55
F
photo_cameraImage coming soon 42550 GASKET SET €9.71
C
photo_cameraImage coming soon 42555 SEALS KIT €10.58
E
photo_cameraImage coming soon 42556 SEALS KIT €30.15
F
photo_cameraImage coming soon 42780 GASKET SET €17.03
1
photo_cameraImage coming soon 960090 Stopper €5.85
2
O-Ring 17,86x2,62 for Pressure Washers AR-AR Farmer's Division 960160 O-Ring 17,86x2,62 for Pressure Washers AR-AR Farmer's Division €0.38
3
photo_cameraImage coming soon 889052 Valve Complete €8.50
6
photo_cameraImage coming soon 3220090 HEAD €121.70
7
photo_cameraImage coming soon 180101 O-Ring €4.73
8
photo_cameraImage coming soon 50129 POINTER €40.60
9
photo_cameraImage coming soon 740290 O-ring €2.67
10
Plug 3/8'' Gas for Pressure Washers AR Blue Clean and Farmer's Division 1980740 Plug 3/8'' Gas for Pressure Washers AR Blue Clean and Farmer's Division €2.77
11
Gauge for Pressure Washers Annovi & Reverberi AR 820-830-840-850 1381580 Gauge for Pressure Washers Annovi & Reverberi AR 820-830-840-850 €41.57
12
photo_cameraImage coming soon 3220780 RING €5.05
13
photo_cameraImage coming soon 2760220 Ring €4.94
14
photo_cameraImage coming soon 1342761 Tenuta Water €10.92
15
photo_cameraImage coming soon 3200680 RING €4.60
16
photo_cameraImage coming soon 3220150 GUIDE €23.13
17
photo_cameraImage coming soon 3200690 GASKET €2.12
19
O-Ring 23,52x1,78 for Pressure Washers AR 610-757-810-935 770260 O-Ring 23,52x1,78 for Pressure Washers AR 610-757-810-935 €0.39
20
photo_cameraImage coming soon 3220140 GUIDE €25.13
21
photo_cameraImage coming soon 1260110 Nut €1.65
23
photo_cameraImage coming soon 1780070 PISTON €23.58
25
photo_cameraImage coming soon 1260460 oil seal €4.47
26
photo_cameraImage coming soon 3220010 BODY PUMP SA €61.18
27
photo_cameraImage coming soon 880130 Stopper €6.67
28
photo_cameraImage coming soon 480480 O-ring €5.63
29
photo_cameraImage coming soon 3220060 PISTON €19.84
30
photo_cameraImage coming soon 3220070 PIN €2.86
31
photo_cameraImage coming soon 3220040 CON ROD €9.30
33
photo_cameraImage coming soon 3220030 COVER €17.03
35
photo_cameraImage coming soon 820510 O-ring €5.63
36
photo_cameraImage coming soon 880581 stopper €7.73
37
photo_cameraImage coming soon 1200430 Screw €4.64
38
photo_cameraImage coming soon 3200070 Support €6.38
39
O-Ring 15,54x2,62 for Pressure Washers AR-AR Farmer's Division 880830 O-Ring 15,54x2,62 for Pressure Washers AR-AR Farmer's Division €0.38
40
photo_cameraImage coming soon 1260770 Ring €4.74
41
photo_cameraImage coming soon 3229603 PRE ASSEMBLY LEVEL €17.34
43
photo_cameraImage coming soon 200390 RING €6.90
44
photo_cameraImage coming soon 1981210 bearing €17.05
45
photo_cameraImage coming soon 1080550 Ring €5.42
46
photo_cameraImage coming soon 3229201 PRE ASSEMBLY HEAD SA €203.85
47
photo_cameraImage coming soon 23791 PUMP SA €567.51
48
photo_cameraImage coming soon 3220450 SHAFT €78.97
49
photo_cameraImage coming soon 820440 Screw €4.74
50
photo_cameraImage coming soon 3220260 BEARING €49.33
51
photo_cameraImage coming soon 3220430 O RING €6.33
52
photo_cameraImage coming soon 3220270 RING €5.18
53
photo_cameraImage coming soon 3220250 FLANGE €27.44
54
photo_cameraImage coming soon 780330 SCREW €4.85
Pos. Item Price Buy
F
photo_cameraImage coming soon 42780 GASKET SET €17.03
1
photo_cameraImage coming soon 25184 VALVE CPL €118.84
3
photo_cameraImage coming soon 1060120 Nut €1.54
4
photo_cameraImage coming soon 3740100 PLUG €13.35
5
photo_cameraImage coming soon 2500540 Insert €14.20
7
photo_cameraImage coming soon 1980220 disk €2.13
8
photo_cameraImage coming soon 2760410 Spring €3.54
9
photo_cameraImage coming soon 2760400 Piston €12.80
10
photo_cameraImage coming soon 2260100 O-Ring €1.29
11
photo_cameraImage coming soon 660190 O-ring €4.40
12
photo_cameraImage coming soon 2760210 Ring €1.58
13
photo_cameraImage coming soon 2760570 Driving €18.43
14
photo_cameraImage coming soon 1200690 O-ring €4.26
15
O-Ring 12,42x1,78 for Pressure Washers AR BC 210 - 333 - 353 394280 O-Ring 12,42x1,78 for Pressure Washers AR BC 210 - 333 - 353 €0.53
16
photo_cameraImage coming soon 2260070 Shutter €15.62
17
photo_cameraImage coming soon 2760980 SEAT €7.81
18
O-Ring mm 11,11x1,78 for Pressure Washers Annovi & Reverberi AR780-797 770140 O-Ring mm 11,11x1,78 for Pressure Washers Annovi & Reverberi AR780-797 €0.27
19
photo_cameraImage coming soon 2760640 RING €1.46
20
O-Ring for Pressure Washers AR Proliner SV 390080 O-Ring for Pressure Washers AR Proliner SV €0.49
21
Valve Screw for Pressure Washers Annovi & Reverberi 1540272 Valve Screw for Pressure Washers Annovi & Reverberi €9.30
22
photo_cameraImage coming soon 1982520 Hose €6.27
23
photo_cameraImage coming soon 480480 O-ring €5.63
24
photo_cameraImage coming soon 1250280 sphere €2.67
25
Annovi Reverberi Spring for AR747 1560520 Annovi Reverberi Spring for AR747 €1.02
26
O-Ring mm 20.29x2.62 for Pressure Washers Annovi & Reverberi 2260190 O-Ring mm 20.29x2.62 for Pressure Washers Annovi & Reverberi €0.35
27
photo_cameraImage coming soon 3740010 VALVE BODY €41.10
28
O-Ring mm 7,66x1,78 for Pressure Washers Black & Decker 600180 O-Ring mm 7,66x1,78 for Pressure Washers Black & Decker €0.38
30
photo_cameraImage coming soon 3740020 BODY €17.03
31
O-Ring for Pressure Washers AR6640 880270 O-Ring for Pressure Washers AR6640 €0.42
32
Collector Screw for Pressure Washers Annovi & Reverberi 2260420 Collector Screw for Pressure Washers Annovi & Reverberi €8.09
34
photo_cameraImage coming soon 2760131 SHUTTER €14.20
36
AR780 Injector Insert 2760120 AR780 Injector Insert €3.41
37
photo_cameraImage coming soon 1470210 O-ring €1.58
39
photo_cameraImage coming soon 2760230 Junction €11.62
40
O-Ring 17,13x2,62 for Pressure Washers AR 780-787-797-945-6670-7850 480440 O-Ring 17,13x2,62 for Pressure Washers AR 780-787-797-945-6670-7850 €0.45
41
photo_cameraImage coming soon 3600760 COUPLING €19.92
42
photo_cameraImage coming soon 1122260 Junction €9.61

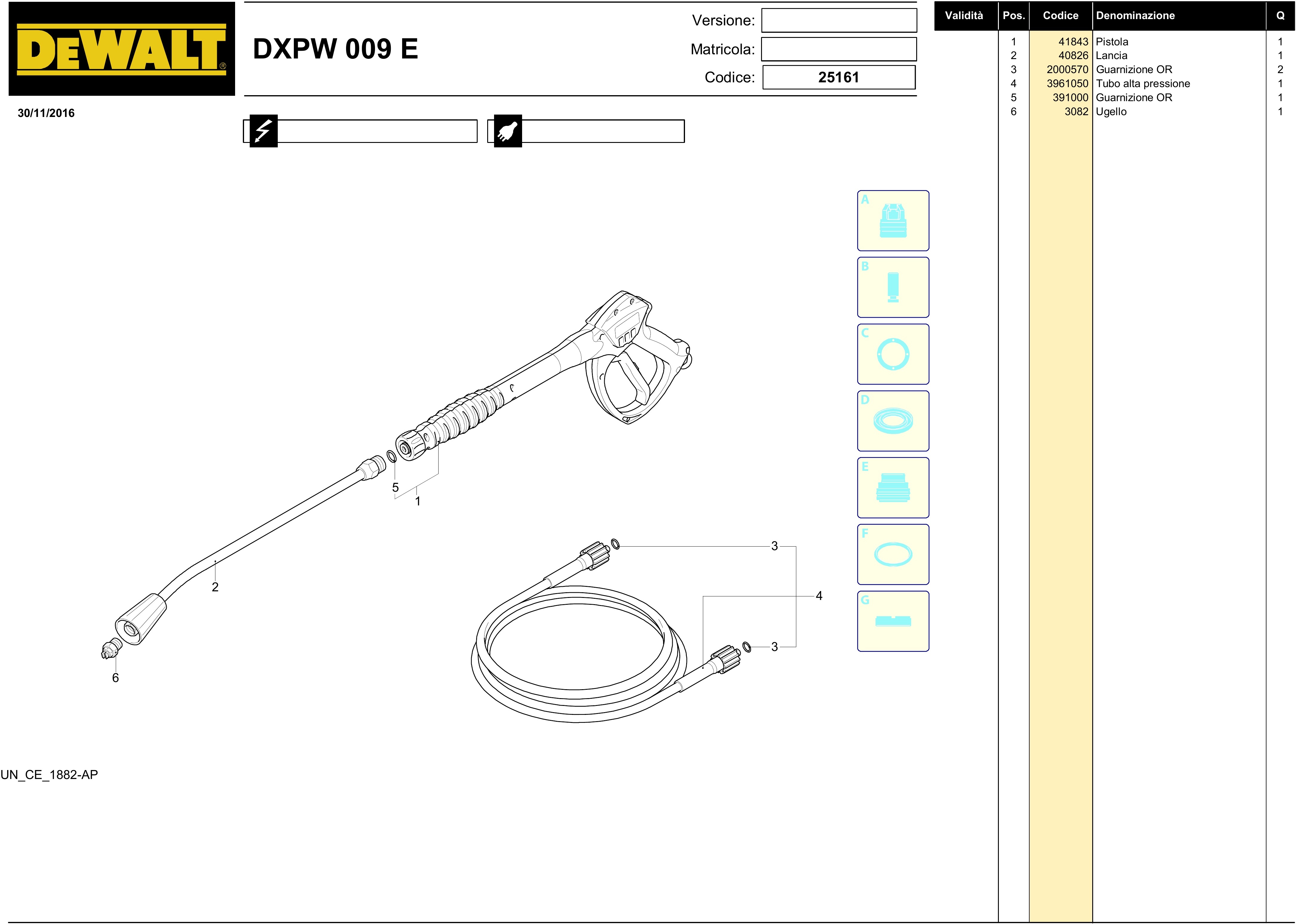

Pos. Item Price Buy
1
photo_cameraImage coming soon 41843 HANDLE SA €53.96
2
Lance for Pressure Washer Annovi & Reverberi AR1380 40826 Lance for Pressure Washer Annovi & Reverberi AR1380 €37.00
3
OR 10x2 for Pressure Washer Annovi & Reverberi AR-ARSG HOT 2000570 OR 10x2 for Pressure Washer Annovi & Reverberi AR-ARSG HOT €1.78
4
photo_cameraImage coming soon 3961050 HOSE €137.50
5
photo_cameraImage coming soon 391000 O-Ring €4.73
6
photo_cameraImage coming soon 3082 Nozzle €24.68

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

DeWalt Spare Parts for Pressure Washer DXPW009E

DeWalt genuine spare parts for to fix Pressure Washer DXPW009E - 25161.

In the following table, look for the model of the Pressure Washer and the respective parts of the code.
DeWalt DXPW009E - 25161

DeWalt Pressure Washer DXPW009E - 25161 spare parts

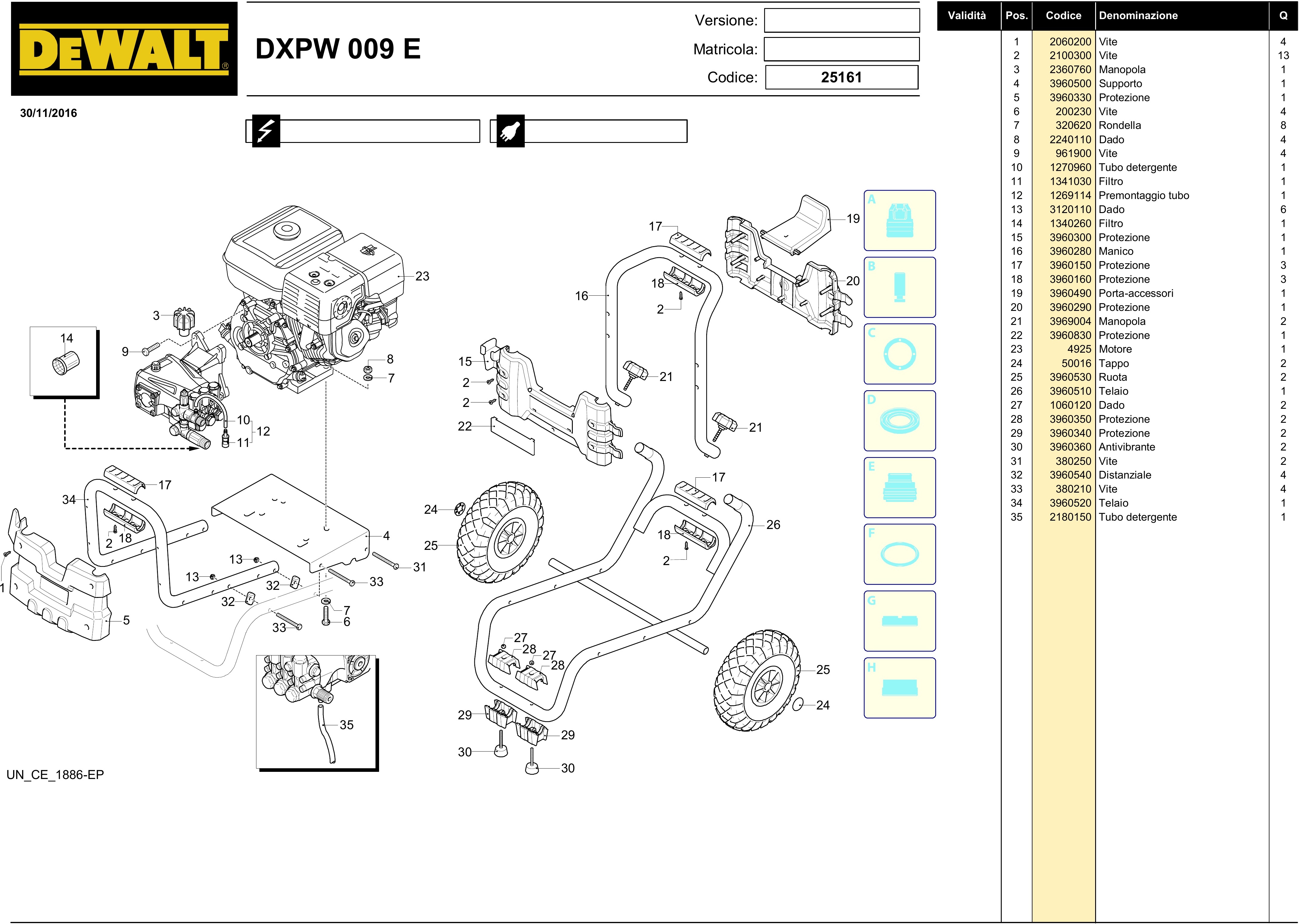

Casing DXPW009E - 25161 Pag.1
# Part Num. Description
1 2060200 SCREW
2 2100300 SCREW
3 2360760 KNOB
4 3960500 SUPPORT
5 3960330 GUARD
6 200230 SCREW
7 320620 WASHER
8 2240110 NUT
9 961900 SCREW
10 1270960 DETERGENT HOSE
11 1341030 FILTER
12 1269114 PRE ASSEMBLY HOSE SA
13 3120110 NUT
14 1340260 FILTER
15 3960300 GUARD
16 3960280 HANDLE
17 3960150 GUARD
18 3960160 GUARD
19 3960490 CARRIER
20 3960290 GUARD
21 3969004 KNOB
22 3960830 GUARD
23 4925 MOTOR
24 50016 CAP
25 3960530 WHEEL
26 3960510 FRAME
27 1060120 NUT
28 3960350 GUARD
29 3960340 GUARD
30 3960360 DAMPER
31 380250 SCREW
32 3960540 SPACER
33 380210 SCREW
34 3960520 FRAME
35 2180150 DETERGENT HOSE

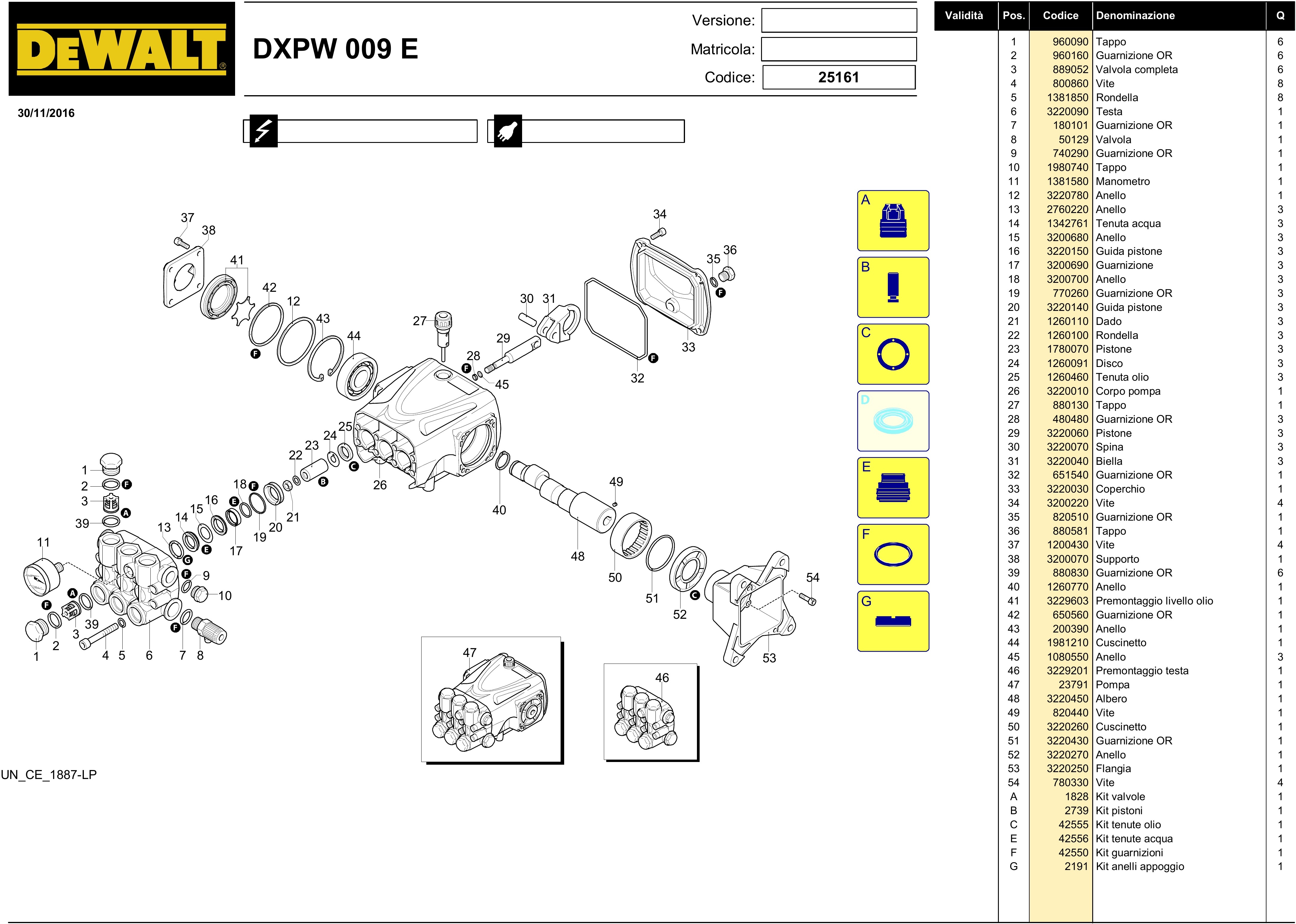

Pump DXPW009E - 25161 Pag.2
1 960090 PLUG
2 960160 O RING
3 889052 VALVE CPL
4 800860 SCREW
5 1381850 WASHER
6 3220090 HEAD
7 180101 WASHER
8 50129 VALVE
9 740290 O RING
10 1980740 PLUG
11 1381580 PRESSURE GAUGE
12 3220780 RING
13 2760220 RING
14 1342761 SEAL
15 3200680 RING
16 3220150 GUIDE
17 3200690 GASKET
18 3200700 RING
19 770260 O RING
20 3220140 GUIDE
21 1260110 NUT
22 1260100 WASHER
23 1780070 PISTON
24 1260091 PLATE
25 1260460 SEAL
26 3220010 PUMP SA
27 880130 PLUG
28 480480 O RING
29 3220060 PISTON
30 3220070 PIN
31 3220040 CON ROD
32 651540 O RING
33 3220030 COVER
34 3200220 SCREW
35 820510 O RING
36 880581 PLUG
37 1200430 SCREW
38 3200070 SUPPORT
39 880830 O RING
40 1260770 RING
41 3229603 PRE ASSEMBLY LEVEL OIL
42 650560 O RING
43 200390 RING
44 1981210 BEARING
45 1080550 RING
46 3229201 PRE ASSEMBLY HEAD SA
47 23791 PUMP SA
48 3220450 SHAFT
49 820440 SCREW
50 3220260 BEARING
51 3220430 O RING
52 3220270 RING
53 3220250 FLANGE
54 780330 SCREW
A 1828 RING
B 2739 VALVE KIT
C 42555 PISTON KIT
E 42556 SEALS KIT
F 42550 SEALS KIT
G 2191 GASKET SET
Pump DXPW009E - 25161 Pag.3
1 25184 VALVE CPL
2 2840970 SCREW
3 1060120 NUT
4 3740100 PLUG
5 2500540 INSERT
6 2500550 PIN
7 1980220 PLATE
8 2760410 SPRING
9 2760400 PISTON
10 2260100 O RING
11 660190 O RING
12 2760210 RING
13 2760570 GUIDE
14 1200690 O RING
15 394280 O RING
16 2260070 SHUTTER
17 2760980 SEAT
18 770140 O RING
19 2760640 RING
20 390080 RING
21 1540272 SCREW
22 1982520 COUPLING
23 480480 O RING
24 1250280 BALL
25 1560520 SPRING
26 2260190 O RING
27 3740010 VALVE BODY
28 600180 O RING
29 1540630 O RING
30 3740020 BODY
31 880270 O RING
32 2260420 SCREW
33 2101770 O RING
34 2760131 SHUTTER
35 2760200 SPRING
36 2760120 INSERT
37 1470210 O RING
38 2760270 O RING
39 2760230 COUPLING
40 480440 O RING
41 3600760 COUPLING
42 1122260 COUPLING
F 42780 GASKET SET
Accessories DXPW009E - 25161 Pag.4
1 41843 HANDLE SA
2 40826 EXTENSION
3 2000570 O RING
4 3961050 HOSE
5 391000 O RING
6 3082 NOZZLE

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s DeWalt websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to DeWalt brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
DeWalt DXPW009E - 25161
6 Items

Specific References

New

Download

Diagram DeWalt DXPW009E

Diagram DeWalt DXPW009E

Download (793.04KB)

You might also like

Annovi Reverberi S.p.A. SKU: 2760120
Annovi Reverberi Injector Insert for Pressure Washer AR780 Genuine part Annovi Reverberi, Injector Insert D.2 for Pressure Washers AR780 - AR797 - DXPW 006 E - MPX 160HDC. Part for the Following Products: - AR Blue Clean...
AVAILABLE €3.41
Comments (0)
