DeWalt Spare Parts for Pressure Washer DXPW008E

SKU: DeWalt DXPW008E - 25160
€27.93
VAT included

DeWalt Spare Parts for Pressure Washer DXPW008E

DeWalt genuine spare parts for to repair Pressure Washer DXPW008E - 25160.

DeWalt Spare Parts for Pressure Washer DXPW008E
  • DeWalt Spare Parts for Pressure Washer DXPW008E
  • DeWalt Spare Parts for Pressure Washer DXPW008E
  • DeWalt Spare Parts for Pressure Washer DXPW008E
  • DeWalt Spare Parts for Pressure Washer DXPW008E
  • DeWalt Spare Parts for Pressure Washer DXPW008E
  • DeWalt Spare Parts for Pressure Washer DXPW008E

DeWalt Spare Parts for Pressure Washer DXPW008E

SKU: DeWalt DXPW008E - 25160 Condition: New
€27.93
VAT included

DeWalt Spare Parts for Pressure Washer DXPW008E

DeWalt genuine spare parts for to repair Pressure Washer DXPW008E - 25160.

settings 175 Spare parts
description 6 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
AVAILABLE

SHIPPING IN: Usually Ships in 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR: AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS
Machine Type: Pressure Washer
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

175 spare parts

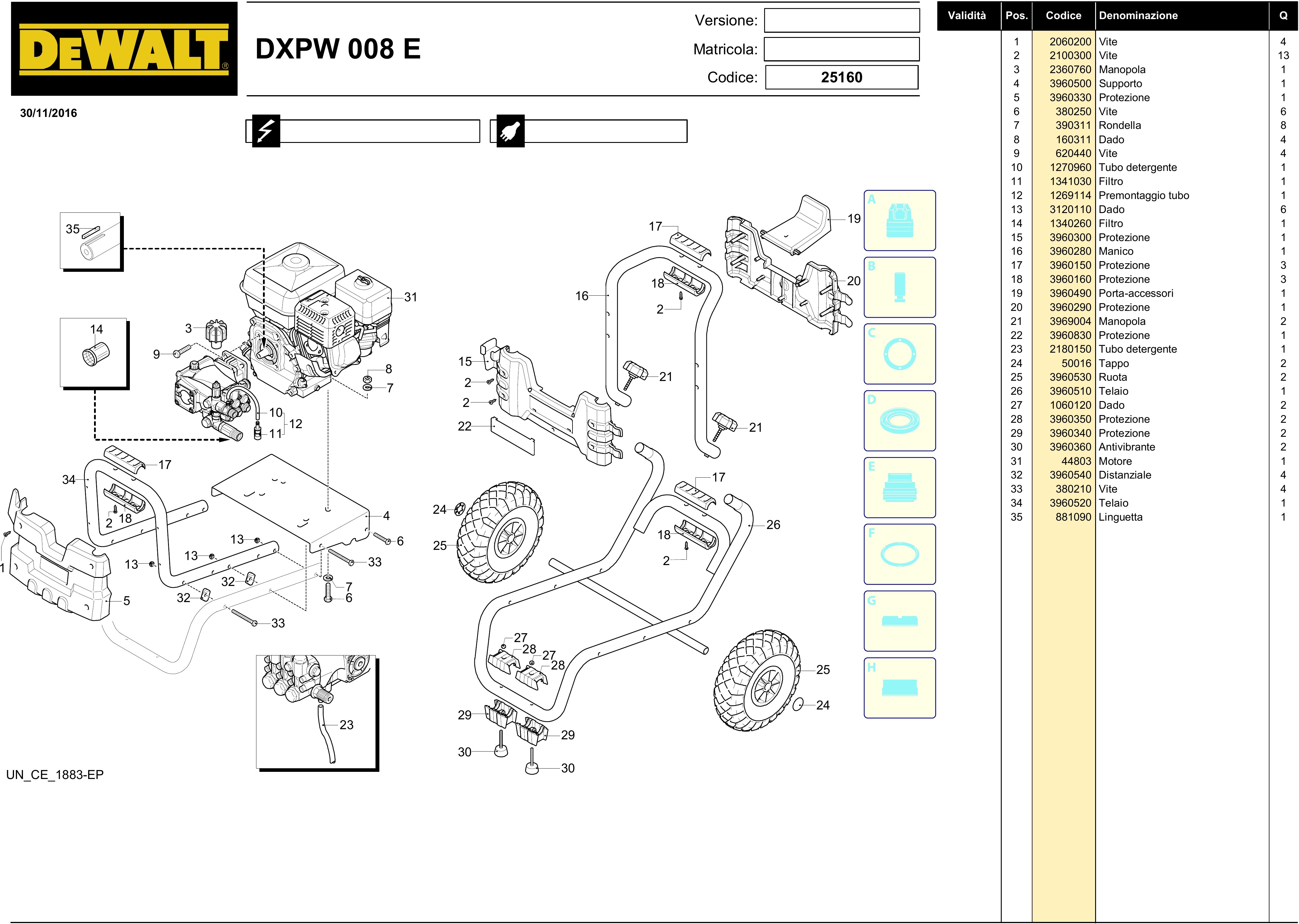

Page 1 zoom_in View exploded local_shipping Usually Ships in 10 BUSYNESS DAYS
Pos. Item Price Buy
1
Image coming soon 2060200 Screw €0.00
2
screw 2100300 screw €4.72
3
Image coming soon 2360760 Knob €4.14
4
Image coming soon 3960500 SUPPORT €47.65
5
Image coming soon 3960330 GUARD €21.59
6
Image coming soon 380250 Screw €5.21
7
Image coming soon 390311 Washer €4.60
8
Image coming soon 160311 Nut €6.22
10
Image coming soon 1270960 pipe cleaner €4.41
11
Detergent Filter for Pressure Washer Annovi Reverberi 1341030 Detergent Filter for Pressure Washer Annovi Reverberi €14.06
12
Image coming soon 1269114 HOSE SA €11.10
13
Image coming soon 3120110 NUT €4.60
14
Water Filter for Pressure Washers AR Blue Clean and Farmer's Division 1340260 Water Filter for Pressure Washers AR Blue Clean and Farmer's Division €1.52
15
Image coming soon 3960300 GUARD €21.65
16
Image coming soon 3960280 HANDLE €49.26
17
Image coming soon 3960150 GUARD €7.88
18
Image coming soon 3960160 GUARD €7.88
19
Image coming soon 3960490 CARRIER €16.25
20
Image coming soon 3960290 GUARD €21.27
21
Image coming soon 3969004 KNOB €14.57
22
Image coming soon 3960830 GUARD €11.41
23
Image coming soon 2180150 Pipe Cleaner €4.47
24
Image coming soon 50016 Stopper €8.16
25
Image coming soon 3960530 WHEEL €55.76
26
Image coming soon 3960510 FRAME €115.11
27
Image coming soon 1060120 Nut €0.27
28
Image coming soon 3960350 GUARD €8.78
29
Image coming soon 3960340 GUARD €9.42
30
Image coming soon 3960360 DAMPER €18.30
32
Image coming soon 3960540 SPACER €7.43
33
Image coming soon 380210 SCREW €7.04
34
Image coming soon 3960520 FRAME €38.96
35
Image coming soon 881090 KEY €6.98

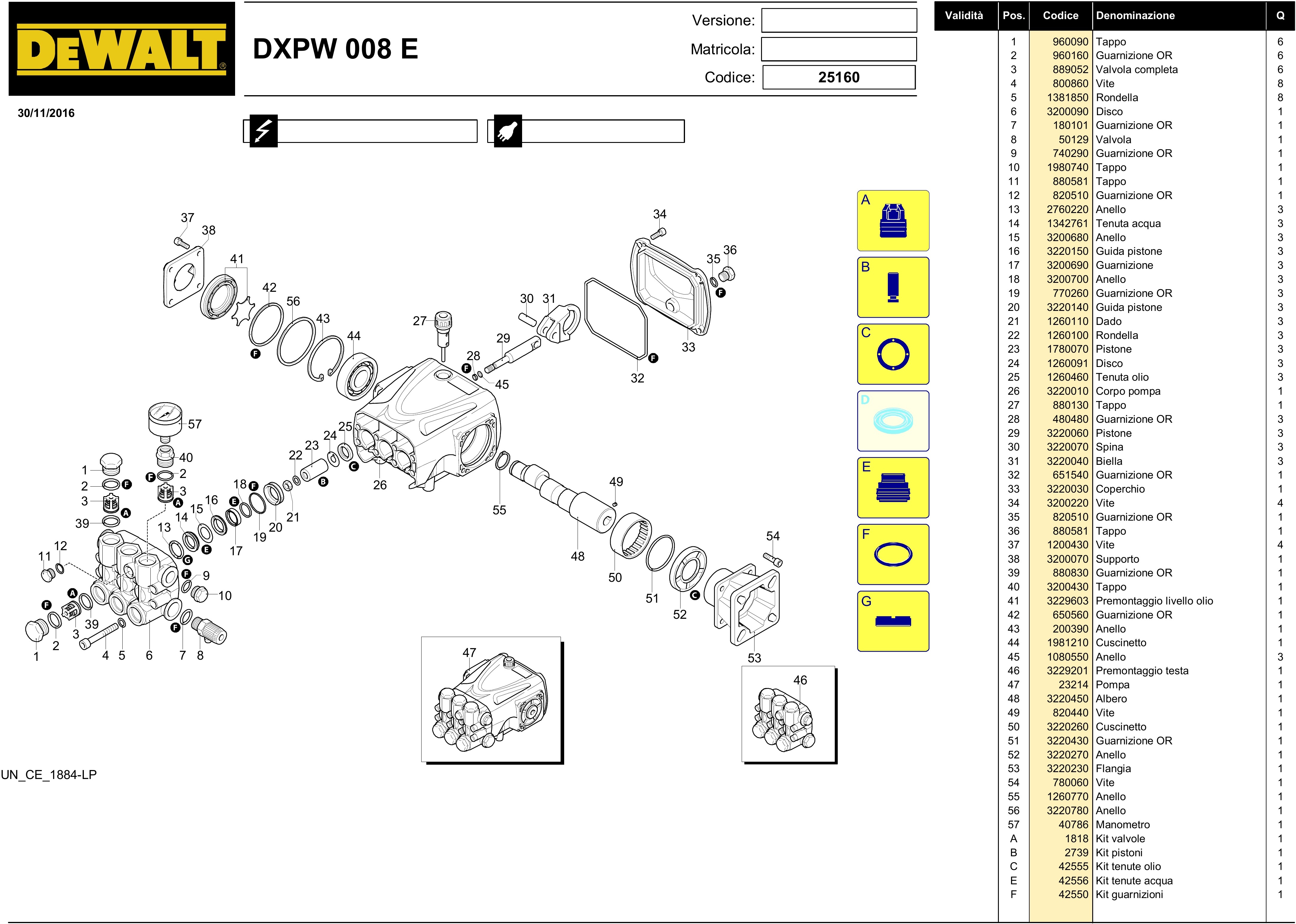

Page 2 zoom_in View exploded local_shipping Usually Ships in 10 BUSYNESS DAYS
Pos. Item Price Buy
A
Image coming soon 1818 VALVE KIT €27.12
A
Image coming soon 2186 Kit Valves €21.37
G
Image coming soon 2191 Kit Support Rings €6.22
B
Image coming soon 2739 PISTON KIT €62.55
F
Image coming soon 42470 Gasket Kit €9.15
C
Image coming soon 42474 Oil seal kit €20.14
B
Image coming soon 42475 Piston kit €58.80
E
Image coming soon 42476 Water seal kit €22.98
F
Image coming soon 42550 GASKET SET €9.71
C
SEALS KIT 42555 SEALS KIT €10.58
E
SEALS KIT 42556 SEALS KIT €30.15
1
Image coming soon 23214 PUMP SA €411.04
1
Image coming soon 960090 Stopper €5.85
2
O-Ring 17,86x2,62 for Pressure Washers AR-AR Farmer's Division 960160 O-Ring 17,86x2,62 for Pressure Washers AR-AR Farmer's Division €0.38
3
Image coming soon 889052 Valve Complete €8.50
4
Image coming soon 800860 SCREW €0.00 Not available for order
4
Image coming soon 820361 Stopper €4.41
5
Image coming soon 1381850 Washer €0.00
5
Image coming soon 180101 O-Ring €4.73
6
Plug 3/8'' Gas for Pressure Washers AR Blue Clean and Farmer's Division 1980740 Plug 3/8'' Gas for Pressure Washers AR Blue Clean and Farmer's Division €2.77
6
Image coming soon 3200090 Disk €1.88
7
Image coming soon 180101 O-Ring €4.73
7
O-ring 740290 O-ring €0.27
8
Image coming soon 3200110 Stopper €8.03
8
Image coming soon 50129 POINTER €40.60
9
O-ring 1200690 O-ring €0.27
9
O-ring 740290 O-ring €0.27
10
Plug 3/8'' Gas for Pressure Washers AR Blue Clean and Farmer's Division 1980740 Plug 3/8'' Gas for Pressure Washers AR Blue Clean and Farmer's Division €2.77
10
Valve for Pressure Washers AR 780-787-797-810-820-830-840 2769050 Valve for Pressure Washers AR 780-787-797-810-820-830-840 €6.46
11
Valve for Pressure Washers AR 780-787-797-810-820-830-840 2769050 Valve for Pressure Washers AR 780-787-797-810-820-830-840 €6.46
11
Image coming soon 880581 stopper €7.73
12
Image coming soon 1381550 Washer €0.00 Not available for order
12
Image coming soon 820510 O-ring €5.63
13
Image coming soon 2760220 Ring €4.94
13
Image coming soon 800410 Screw €4.60
14
Image coming soon 1342761 Tenuta Water €10.92
14
Image coming soon 2760220 Ring €4.94
15
Image coming soon 1342761 Tenuta Water €10.92
15
Image coming soon 3200680 RING €4.60
16
Image coming soon 3200160 Piston guide €8.99
16
Image coming soon 3220150 GUIDE €23.13
17
Image coming soon 3200690 GASKET €2.12
18
Image coming soon 3200700 RING €0.00 Not available for order
19
O-Ring 23,52x1,78 for Pressure Washers AR 610-757-810-935 770260 O-Ring 23,52x1,78 for Pressure Washers AR 610-757-810-935 €0.39
19
O-Ring mm 21.75x1.78 for Pressure Washers Annovi & Reverberi Series 5 770590 O-Ring mm 21.75x1.78 for Pressure Washers Annovi & Reverberi Series 5 €0.34
20
Image coming soon 3200150 Piston guide €7.84
20
Image coming soon 3220140 GUIDE €25.13
21
Image coming soon 1260110 Nut €1.65
21
oil seal 1260460 oil seal €4.47
22
Image coming soon 1260100 Washer €0.00 Not available for order
22
Image coming soon 3200010 Pump Housing €71.98
23
Image coming soon 1780070 PISTON €23.58
23
Image coming soon 3201890 Plug €14.57
24
Image coming soon 1260091 Disk €0.00 Not available for order
24
Image coming soon 1260110 Nut €1.65
25
Image coming soon 1260100 Washer €0.00 Not available for order
25
oil seal 1260460 oil seal €4.47
26
Ceramic Piston for Pressure Washers Farmer's Division BLITZ 8:13-8:15 1260120 Ceramic Piston for Pressure Washers Farmer's Division BLITZ 8:13-8:15 €23.59
26
Image coming soon 3220010 BODY PUMP SA €61.18
27
Image coming soon 1260091 Disk €0.00 Not available for order
27
Image coming soon 880130 Stopper €6.67
28
O-ring 480480 O-ring €5.63
29
Piston for Pressure Wahers Annovi & Reverberi AR1003 - AR1005 3200060 Piston for Pressure Wahers Annovi & Reverberi AR1003 - AR1005 €16.12
29
Image coming soon 3220060 PISTON €19.84
30
Conrod for Pressure Wahers Annovi & Reverberi AR1003 - AR1005 3200040 Conrod for Pressure Wahers Annovi & Reverberi AR1003 - AR1005 €9.34
30
Image coming soon 3220070 PIN €2.86
31
Image coming soon 1780050 Plug €6.18
31
CON ROD 3220040 CON ROD €9.30
32
Image coming soon 2760280 O-Ring €5.06
32
Image coming soon 651540 O RING €0.00 Not available for order
33
Image coming soon 3200030 Cover €12.79
33
Image coming soon 3220030 COVER €17.03
34
Image coming soon 3200220 Screw €0.00 Not available for order
35
Image coming soon 820510 O-ring €5.63
36
Image coming soon 880581 stopper €7.73
37
Image coming soon 1200430 Screw €4.64
37
Ball Bearing for Pressure Washer DeWalt DXPW001E 1780490 Ball Bearing for Pressure Washer DeWalt DXPW001E €20.36
38
Image coming soon 1260790 Ring €1.36 Not available for order
38
Image coming soon 3200070 Support €6.38
39
Image coming soon 1780550 Ring €4.87
39
O-Ring 15,54x2,62 for Pressure Washers AR-AR Farmer's Division 880830 O-Ring 15,54x2,62 for Pressure Washers AR-AR Farmer's Division €0.38
40
Image coming soon 3200430 Stopper €17.49
40
Image coming soon 395081 O-Ring €5.72
41
Image coming soon 3209615 LEVEL €15.89
41
Image coming soon 3229603 PRE ASSEMBLY LEVEL €17.34
42
Image coming soon 3200070 Support €6.38
42
Image coming soon 650560 O RING €0.00 Not available for order
43
Image coming soon 1200430 Screw €4.64
43
Image coming soon 200390 RING €6.90
44
Image coming soon 1981210 bearing €17.05
45
Image coming soon 1080550 Ring €5.42
45
Image coming soon 1321190 Bearing €14.57
46
Image coming soon 3229201 PRE ASSEMBLY HEAD SA €203.85
46
Image coming soon 480671 Ring €11.25
47
Image coming soon 1320050 Flange €22.03
47
Image coming soon 23214 PUMP SA €411.04
48
Image coming soon 1200430 Screw €4.64
48
Image coming soon 3220450 SHAFT €78.97
49
Image coming soon 820440 Screw €4.74
50
Image coming soon 3220260 BEARING €49.33
51
Image coming soon 3220430 O RING €6.33
52
Image coming soon 3220270 RING €5.18
53
Image coming soon 3220230 FLANGE €23.84
54
Image coming soon 780060 SCREW €4.85
55
Image coming soon 1260770 Ring €4.74
56
Image coming soon 3220780 RING €5.05
57
Gauge for Pressure Washers Annovi & Reverberi AR 1003-1003 RLW 40786 Gauge for Pressure Washers Annovi & Reverberi AR 1003-1003 RLW €27.18

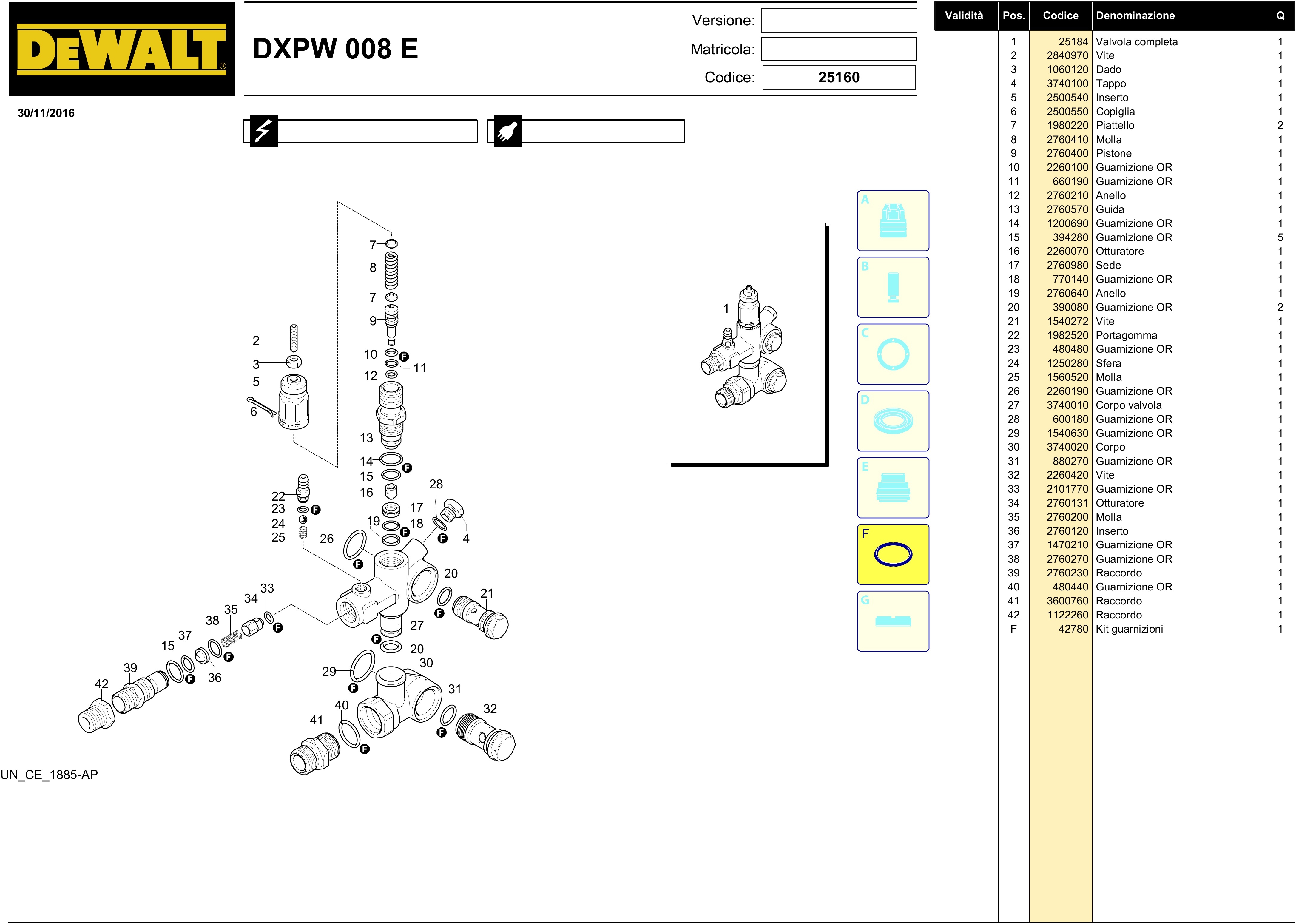

Page 3 zoom_in View exploded local_shipping Usually Ships in 10 BUSYNESS DAYS
Pos. Item Price Buy
F
Image coming soon 42780 GASKET SET €17.03
1
VALVE CPL 25184 VALVE CPL €118.84
2
Image coming soon 2840970 SCREW €0.00 Not available for order
3
Image coming soon 1060120 Nut €0.27
4
Image coming soon 3740100 PLUG €13.35
5
Image coming soon 2500540 Insert €14.20
6
Image coming soon 2500550 Cotter Pin €0.00 Not available for order
7
disk 1980220 disk €0.73
8
Spring 2760410 Spring €3.54
9
Image coming soon 2760400 Piston €12.80
10
Image coming soon 2260100 O-Ring €1.29
11
O-ring 660190 O-ring €4.40
12
Image coming soon 2760210 Ring €1.58
13
Image coming soon 2760570 Driving €18.43
14
O-ring 1200690 O-ring €0.27
15
O-Ring 12,42x1,78 for Pressure Washers AR BC 210 - 333 - 353 394280 O-Ring 12,42x1,78 for Pressure Washers AR BC 210 - 333 - 353 €0.53
16
Image coming soon 2260070 Shutter €15.62
17
Image coming soon 2760980 SEAT €7.81
18
O-Ring mm 11,11x1,78 for Pressure Washers Annovi & Reverberi AR780-797 770140 O-Ring mm 11,11x1,78 for Pressure Washers Annovi & Reverberi AR780-797 €0.27
19
Image coming soon 2760640 RING €1.46
20
O-Ring for Pressure Washers AR Proliner SV 390080 O-Ring for Pressure Washers AR Proliner SV €0.49
21
Valve Screw for Pressure Washers Annovi & Reverberi 1540272 Valve Screw for Pressure Washers Annovi & Reverberi €9.30
22
Image coming soon 1982520 Hose €6.27
23
O-ring 480480 O-ring €5.63
24
sphere 1250280 sphere €2.67
25
Annovi Reverberi Spring for AR747 1560520 Annovi Reverberi Spring for AR747 €1.02
26
O-Ring mm 20.29x2.62 for Pressure Washers Annovi & Reverberi 2260190 O-Ring mm 20.29x2.62 for Pressure Washers Annovi & Reverberi €0.35
27
Image coming soon 3740010 VALVE BODY €41.10
28
O-Ring mm 7,66x1,78 for Pressure Washers Black & Decker 600180 O-Ring mm 7,66x1,78 for Pressure Washers Black & Decker €0.27
29
Image coming soon 1540630 O-Ring €0.00
30
Image coming soon 3740020 BODY €17.03
31
O-Ring for Pressure Washers AR6640 880270 O-Ring for Pressure Washers AR6640 €0.42
32
Collector Screw for Pressure Washers Annovi & Reverberi 2260420 Collector Screw for Pressure Washers Annovi & Reverberi €8.09
33
Image coming soon 2101770 O-Ring €0.00 Not available for order
34
Image coming soon 2760131 SHUTTER €14.20
35
Image coming soon 2760200 Spring €0.00 Not available for order
36
AR780 Injector Insert 2760120 AR780 Injector Insert €3.41
37
Image coming soon 1470210 O-ring €1.58
38
Image coming soon 2760270 O-Ring €0.00 Not available for order
39
Image coming soon 2760230 Junction €11.62
40
O-Ring 17,13x2,62 for Pressure Washers AR 780-787-797-945-6670-7850 480440 O-Ring 17,13x2,62 for Pressure Washers AR 780-787-797-945-6670-7850 €0.45
41
Image coming soon 3600760 COUPLING €19.92
42
Image coming soon 1122260 Junction €9.61
Page 4 zoom_in View exploded local_shipping Usually Ships in 10 BUSYNESS DAYS
Pos. Item Price Buy
1
Image coming soon 44803 MOTOR €815.23
2
Image coming soon 52582 Start €0.00 Not available for order
3
Image coming soon 52583 Coil €0.00 Not available for order
4
Image coming soon 52581 Filter €0.00 Not available for order
5
Image coming soon 52127 Carburetor €0.00 Not available for order
Page 5 zoom_in View exploded local_shipping Usually Ships in 10 BUSYNESS DAYS
Pos. Item Price Buy
2
O-Ring 17,13x2,62 for Pressure Washers AR 780-787-797-945-6670-7850 480440 O-Ring 17,13x2,62 for Pressure Washers AR 780-787-797-945-6670-7850 €0.45
3
Image coming soon 3600760 COUPLING €19.92
4
Water Filter for Pressure Washers AR Blue Clean and Farmer's Division 1340260 Water Filter for Pressure Washers AR Blue Clean and Farmer's Division €1.52
5
Image coming soon 1122260 Junction €9.61
6
Image coming soon 1269114 HOSE SA €11.10
7
Image coming soon 2360760 Knob €4.14
8
Image coming soon 1270960 pipe cleaner €4.41
9
Detergent Filter for Pressure Washer Annovi Reverberi 1341030 Detergent Filter for Pressure Washer Annovi Reverberi €14.06
10
Image coming soon 3200430 Stopper €17.49
12
Gauge for Pressure Washers Annovi & Reverberi AR 1003-1003 RLW 40786 Gauge for Pressure Washers Annovi & Reverberi AR 1003-1003 RLW €27.18
19
Image coming soon 50129 POINTER €40.60
20
Image coming soon 2180150 Pipe Cleaner €4.47
Page 6 zoom_in View exploded local_shipping Usually Ships in 10 BUSYNESS DAYS
Pos. Item Price Buy
1
Image coming soon 41843 HANDLE SA €53.96
2
Lance for Pressure Washer Annovi & Reverberi AR1380 40826 Lance for Pressure Washer Annovi & Reverberi AR1380 €37.00
3
OR 10x2 for Pressure Washer Annovi & Reverberi AR-ARSG HOT 2000570 OR 10x2 for Pressure Washer Annovi & Reverberi AR-ARSG HOT €1.78
4
Image coming soon 3961050 HOSE €137.50
5
Image coming soon 391000 O-Ring €0.27
6
Image coming soon 3195 Nozzle €22.16

Shipping and delivery information will be available shortly.

DeWalt Spare Parts for Pressure Washer DXPW008E

DeWalt genuine spare parts for to repair Pressure Washer DXPW008E - 25160.

In the following table, look for the model of the Pressure Washer and the respective parts of the code.
Pressure Washer DXPW008E - 25160

Casing DXPW008E - 25160 Pag.1
# Part Num. Description
1 2060200 SCREW
2 2100300 SCREW
3 2360760 KNOB
4 3960500 SUPPORT
5 3960330 GUARD
6 380250 SCREW
7 390311 WASHER
8 160311 NUT
9 620440 SCREW
10 1270960 DETERGENT HOSE
11 1341030 FILTER
12 1269114 PRE ASSEMBLY HOSE SA
13 3120110 NUT
14 1340260 FILTER
15 3960300 GUARD
16 3960280 HANDLE
17 3960150 GUARD
18 3960160 GUARD
19 3960490 CARRIER
20 3960290 GUARD
21 3969004 KNOB
22 3960830 GUARD
23 2180150 DETERGENT HOSE
24 50016 CAP
25 3960530 WHEEL
26 3960510 FRAME
27 1060120 NUT
28 3960350 GUARD
29 3960340 GUARD
30 3960360 DAMPER
31 44803 MOTOR
32 3960540 SPACER
33 380210 SCREW
34 3960520 FRAME
35 881090 KEY
Pump DXPW008E - 25160 Pag.2
1 23214 Pump
2 3209201 Head assembly
3 3200100 Head
4 820361 Plug
5 180101 O-ring
6 1980740 Plug
7 740290 O-ring
8 3200110 Plug
9 1200690 O-ring
10 2769050 Complete valve
11 2769050 Complete valve
12 1381550 Washer
13 800410 Screw
14 2760220 Ring
15 1342761 Water seal
16 3200160 Piston guide
17 3200690 Gasket
18 3200700 Ring
19 770590 O-ring
20 3200150 Piston guide
21 1260460 Oil seal
22 3200010 Pump body
23 3201890 Plug
24 1260110 Nut
25 1260100 Washer
26 1260120 Piston
27 1260091 Plate
28 480480 O-ring
29 3200060 Piston
30 3200040 Connecting-rod
31 1780050 Pin
32 2760280 O-ring
33 3200030 Cover
34 3200220 Screw
35 820510 O-ring
36 880581 Plug
37 1780490 Bearing
38 1260790 Ring
39 1780550 Ring
40 395081 O-ring
41 3209615 Oil level assembly
42 3200070 Support
43 1200430 Screw
44 3201170 Shaft
45 1321190 Bearing
46 480671 Ring
47 1320050 Flange
48 1200430 Screw
A 2186 Valve kit
B 42475 Piston kit
C 42474 Oil seal kit
E 42476 Water seal kit
F 42470 Gasket kit
G 2191 Support ring kit
Pump DXPW008E - 25160 Pag.3
1 25184 VALVE CPL
2 2840970 SCREW
3 1060120 NUT
4 3740100 PLUG
5 2500540 INSERT
6 2500550 PIN
7 1980220 PLATE
8 2760410 SPRING
9 2760400 PISTON
10 2260100 O RING
11 660190 O RING
12 2760210 RING
13 2760570 GUIDE
14 1200690 O RING
15 394280 O RING
16 2260070 SHUTTER
17 2760980 SEAT
18 770140 O RING
19 2760640 RING
20 390080 O RING
21 1540272 SCREW
22 1982520 COUPLING
23 480480 O RING
24 1250280 BALL
25 1560520 SPRING
26 2260190 O RING
27 3740010 VALVE BODY
28 600180 O RING
29 1540630 O RING
30 3740020 BODY
31 880270 O RING
32 2260420 SCREW
33 2101770 O RING
34 2760131 SHUTTER
35 2760200 SPRING
36 2760120 INSERT
37 1470210 O RING
38 2760270 O RING
39 2760230 COUPLING
40 480440 O RING
41 3600760 COUPLING
42 1122260 COUPLING
F 42780 GASKET SET
Motor Pag.4
1 44803 Motor
2 52582 Start
3 52583 Coil
4 52581 Filter
5 52127 Carburetor
Installation Pag.5
2 480440 O-ring
3 3600760 Fitting
4 1340260 Filter
5 1122260 Fitting
6 1269114 Hose assembly
7 2360760 Knob
8 1270960 Detergent hose
9 1341030 Filter
10 3200430 Plug
12 40786 Pressure gauge
19 50129 Valve
20 2180150 Detergent hose

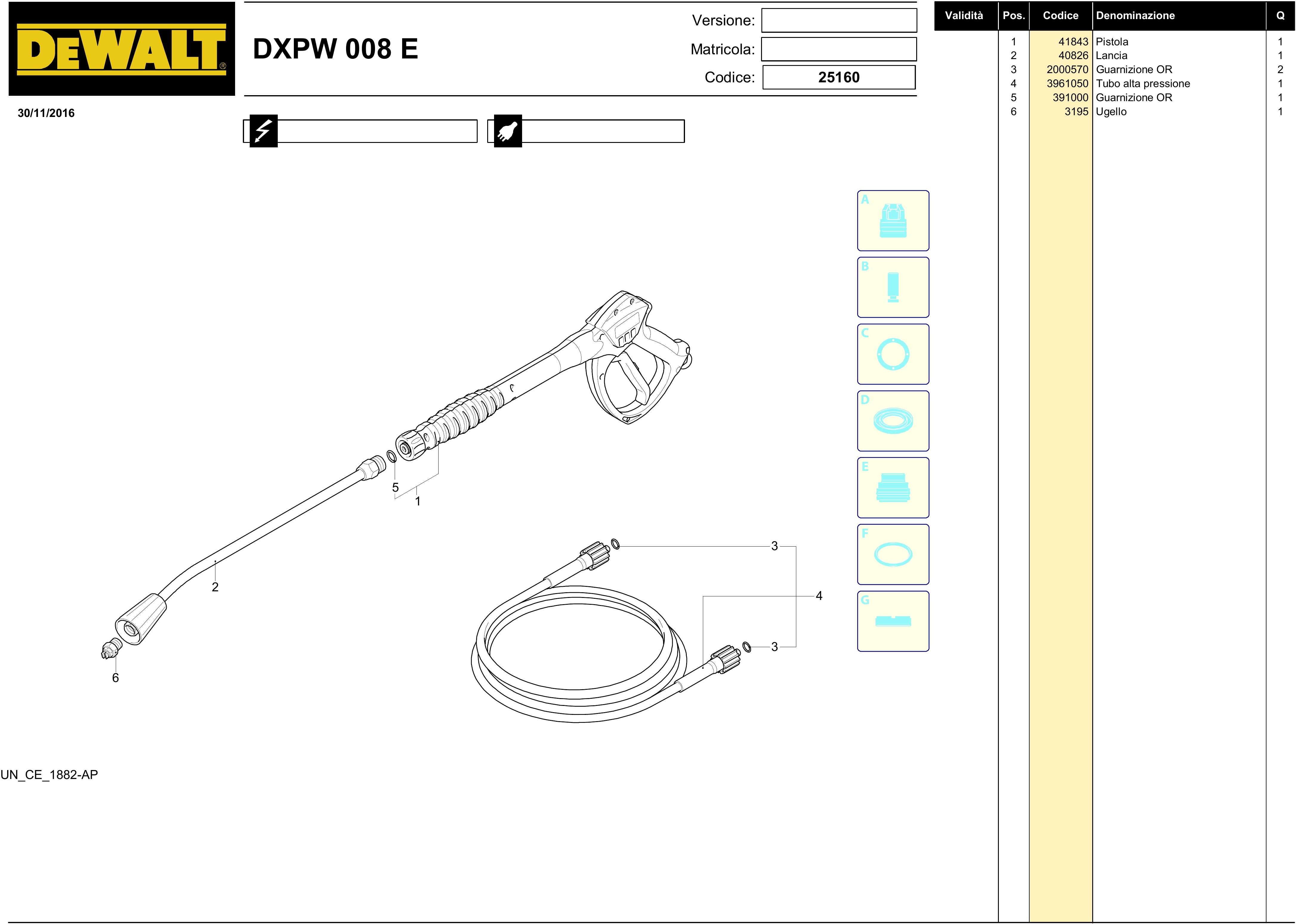

Accessories DXPW008E - 25160 Pag.6
1 41843 HANDLE SA
2 40826 EXTENSION
3 2000570 O RING
4 3961050 HOSE
5 391000 O RING
6 3195 NOZZLE

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s DeWalt websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to DeWalt brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
DeWalt DXPW008E - 25160
12 Items

Data sheet

Machine Type
Pressure Washer
CHECK S/N AR
AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS
SHIPPING IN
Usually Ships in 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

Diagram DeWalt DXPW008E

Diagram DeWalt DXPW008E

Download (650.5KB)

You might also like

Annovi Reverberi S.p.A. SKU: 2760120
Annovi Reverberi Injector Insert for Pressure Washer AR780 Genuine part Annovi Reverberi, Injector Insert D.2 for Pressure Washers AR780 - AR797 - DXPW 006 E - MPX 160HDC. Part for the Following Products: - AR Blue Clean...
AVAILABLE €3.41
Comments (0)
No customer reviews for the moment.
