DeWalt Spare Parts for Pressure Washer DXPW006E

SKU: DeWalt DXPW006E - 25158
€78.73
VAT included

DeWalt Spare Parts for Pressure Washer DXPW006E

DeWalt genuine spare parts for to repair Pressure Washer DXPW006E - 25158.
DeWalt Spare Parts for Pressure Washer DXPW006E
  • DeWalt Spare Parts for Pressure Washer DXPW006E
  • DeWalt Spare Parts for Pressure Washer DXPW006E
  • DeWalt Spare Parts for Pressure Washer DXPW006E
  • DeWalt Spare Parts for Pressure Washer DXPW006E
  • DeWalt Spare Parts for Pressure Washer DXPW006E
  • DeWalt Spare Parts for Pressure Washer DXPW006E

DeWalt Spare Parts for Pressure Washer DXPW006E

SKU: DeWalt DXPW006E - 25158 Condition: New
€78.73
VAT included

DeWalt Spare Parts for Pressure Washer DXPW006E

DeWalt genuine spare parts for to repair Pressure Washer DXPW006E - 25158.
settings 157 spare parts
description 5 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:: AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

136 spare parts

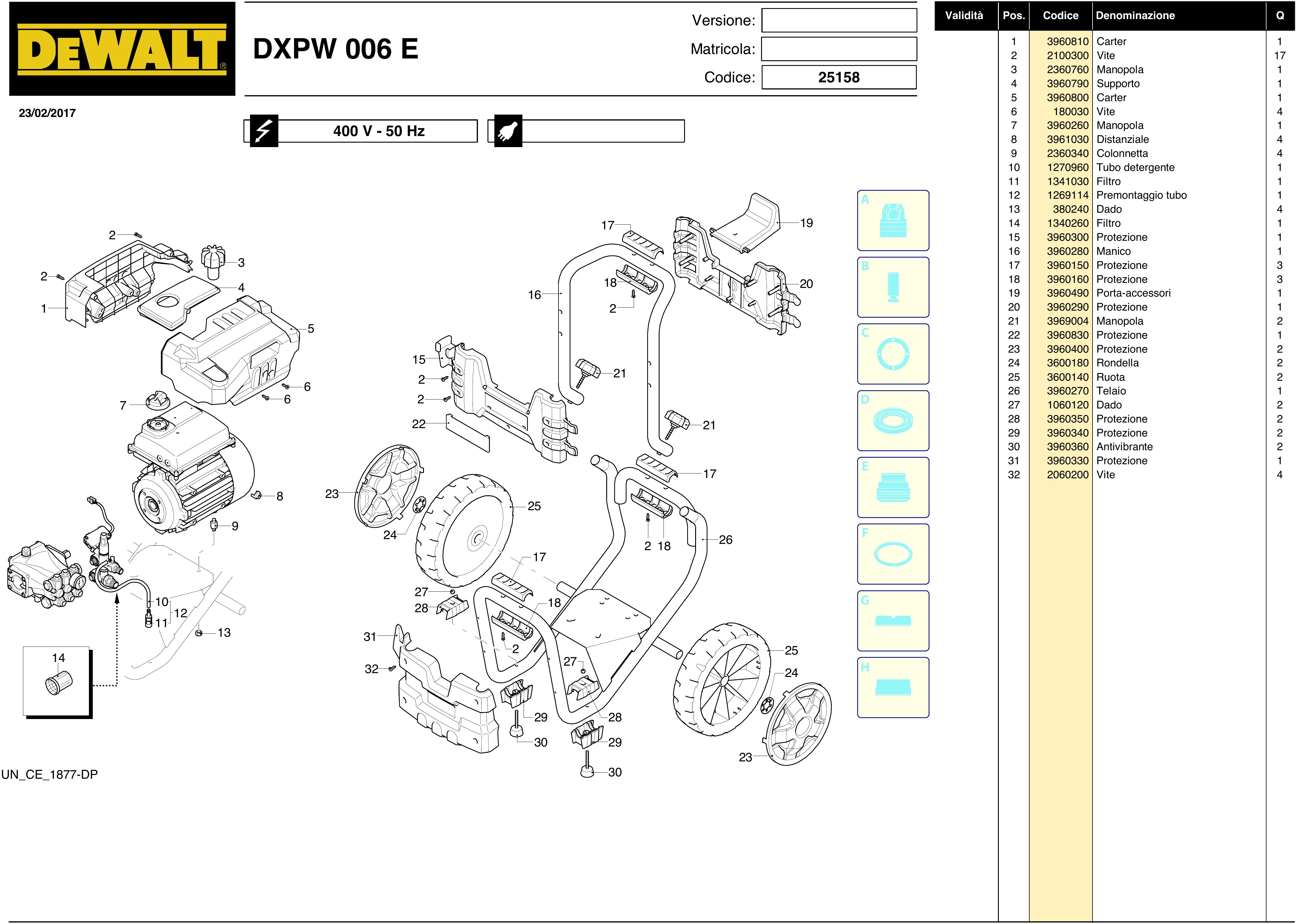

Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 3960810 CASING €22.29
2
photo_cameraImage coming soon 2100300 screw €4.72
3
photo_cameraImage coming soon 2360760 Knob €4.14
4
photo_cameraImage coming soon 3960790 SUPPORT €15.28
5
photo_cameraImage coming soon 3960800 CASING €23.32
6
photo_cameraImage coming soon 180030 screw €2.03
7
photo_cameraImage coming soon 3960260 KNOB €4.89
8
photo_cameraImage coming soon 3961030 SPACER €7.88
9
photo_cameraImage coming soon 2360340 BOLT €6.85
10
photo_cameraImage coming soon 1270960 pipe cleaner €4.41
11
Detergent Filter for Pressure Washer Annovi Reverberi 1341030 Detergent Filter for Pressure Washer Annovi Reverberi €14.06
12
photo_cameraImage coming soon 1269114 HOSE SA €11.10
14
Water Filter for Pressure Washers AR Blue Clean and Farmer's Division 1340260 Water Filter for Pressure Washers AR Blue Clean and Farmer's Division €1.52
15
photo_cameraImage coming soon 3960300 GUARD €21.65
16
photo_cameraImage coming soon 3960280 HANDLE €49.26
17
photo_cameraImage coming soon 3960150 GUARD €7.88
18
photo_cameraImage coming soon 3960160 GUARD €7.88
19
photo_cameraImage coming soon 3960490 CARRIER €16.25
20
photo_cameraImage coming soon 3960290 GUARD €21.27
21
photo_cameraImage coming soon 3969004 KNOB €14.57
22
photo_cameraImage coming soon 3960830 GUARD €11.41
23
photo_cameraImage coming soon 3960400 GUARD €15.73
24
photo_cameraImage coming soon 3600180 Washer €2.37
25
photo_cameraImage coming soon 3600140 Wheel €29.14
26
photo_cameraImage coming soon 3960270 FRAME €148.45
27
photo_cameraImage coming soon 1060120 Nut €1.54
28
photo_cameraImage coming soon 3960350 GUARD €8.78
29
photo_cameraImage coming soon 3960340 GUARD €9.42
30
photo_cameraImage coming soon 3960360 DAMPER €18.30
31
photo_cameraImage coming soon 3960330 GUARD €21.59

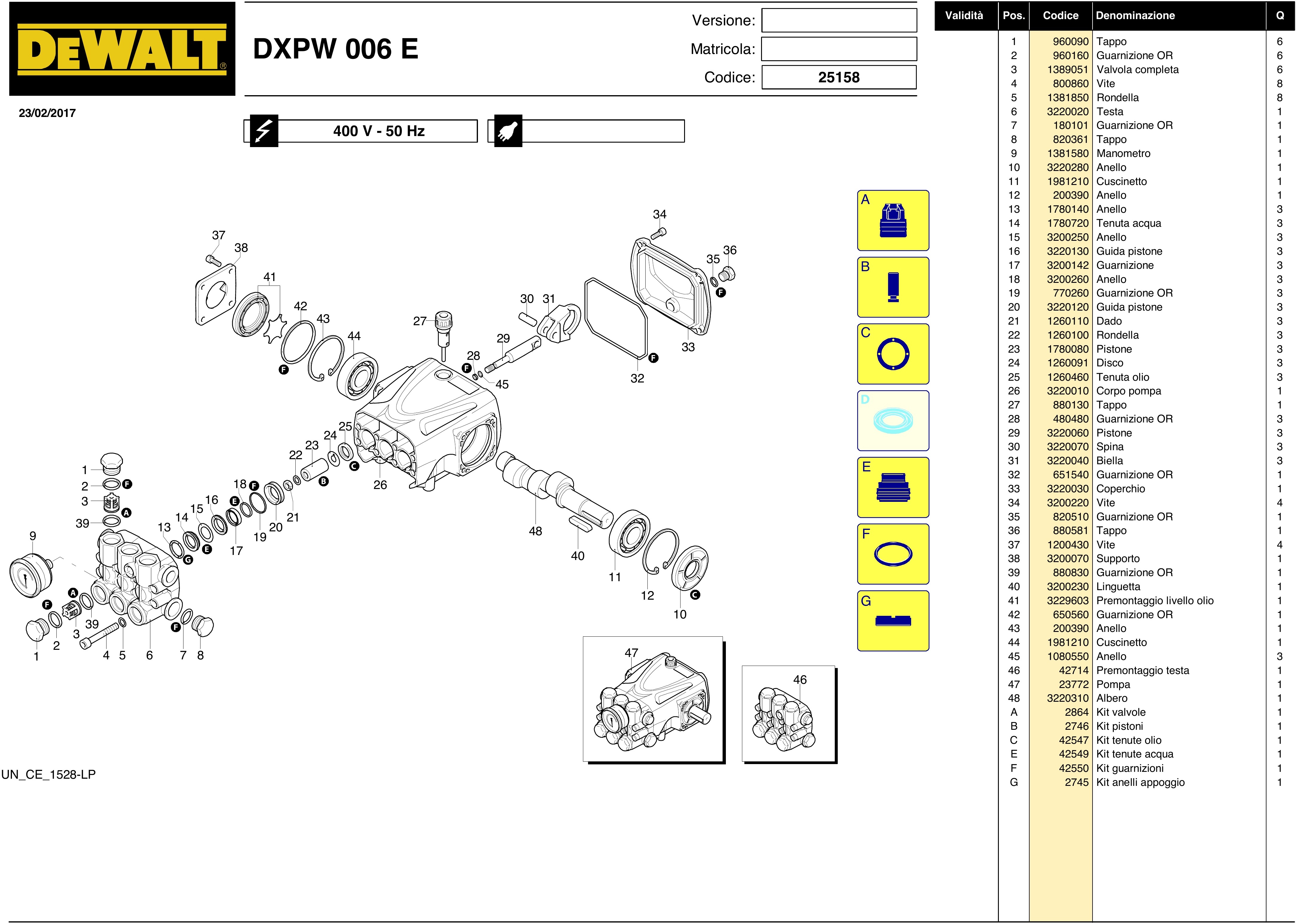

Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
G
AR Seal Support Ring Kit 2745 AR Seal Support Ring Kit €3.00
B
photo_cameraImage coming soon 2746 Piston Kit €76.44
A
photo_cameraImage coming soon 2864 Kit Valves €18.08
C
photo_cameraImage coming soon 42547 SEALS KIT €14.20
E
photo_cameraImage coming soon 42549 SEALS KIT €26.89
F
photo_cameraImage coming soon 42550 GASKET SET €9.71
F
photo_cameraImage coming soon 42780 GASKET SET €17.03
1
photo_cameraImage coming soon 960090 Stopper €5.85
2
O-Ring 17,86x2,62 for Pressure Washers AR-AR Farmer's Division 960160 O-Ring 17,86x2,62 for Pressure Washers AR-AR Farmer's Division €0.38
3
photo_cameraImage coming soon 1389051 Complete Valve €4.82
6
photo_cameraImage coming soon 3220020 HEAD SA €121.05
7
photo_cameraImage coming soon 180101 O-Ring €4.73
8
photo_cameraImage coming soon 820361 Stopper €4.41
9
Gauge for Pressure Washers Annovi & Reverberi AR 820-830-840-850 1381580 Gauge for Pressure Washers Annovi & Reverberi AR 820-830-840-850 €41.57
10
photo_cameraImage coming soon 3220280 Ring €2.86
11
photo_cameraImage coming soon 1981210 bearing €17.05
12
photo_cameraImage coming soon 200390 RING €6.90
13
Ring Support for Pressure Washers AR 780-787-797-945-6670-7850 1780140 Ring Support for Pressure Washers AR 780-787-797-945-6670-7850 €0.96
14
photo_cameraImage coming soon 1780720 Tenuta Water €10.97
15
photo_cameraImage coming soon 3200250 Ring €1.81
16
photo_cameraImage coming soon 3220130 PISTON GUIDE €11.39
17
photo_cameraImage coming soon 3200142 Gasket €2.03
19
O-Ring 23,52x1,78 for Pressure Washers AR 610-757-810-935 770260 O-Ring 23,52x1,78 for Pressure Washers AR 610-757-810-935 €0.39
20
photo_cameraImage coming soon 3220120 PISTON GUIDE €13.04
21
photo_cameraImage coming soon 1260110 Nut €1.65
23
photo_cameraImage coming soon 1780080 Piston €25.49
25
photo_cameraImage coming soon 1260460 oil seal €4.47
26
photo_cameraImage coming soon 3220010 BODY PUMP SA €61.18
27
photo_cameraImage coming soon 880130 Stopper €6.67
28
photo_cameraImage coming soon 480480 O-ring €5.63
29
photo_cameraImage coming soon 3220060 PISTON €19.84
30
photo_cameraImage coming soon 3220070 PIN €2.86
31
photo_cameraImage coming soon 3220040 CON ROD €9.30
33
photo_cameraImage coming soon 3220030 COVER €17.03
35
photo_cameraImage coming soon 820510 O-ring €5.63
36
photo_cameraImage coming soon 880581 stopper €7.73
37
photo_cameraImage coming soon 1200430 Screw €4.64
38
photo_cameraImage coming soon 3200070 Support €6.38
39
O-Ring 15,54x2,62 for Pressure Washers AR-AR Farmer's Division 880830 O-Ring 15,54x2,62 for Pressure Washers AR-AR Farmer's Division €0.38
41
photo_cameraImage coming soon 3229603 PRE ASSEMBLY LEVEL €17.34
45
photo_cameraImage coming soon 1080550 Ring €5.42
46
photo_cameraImage coming soon 42714 PRE ASSEMBLY HEAD SA €156.17
47
photo_cameraImage coming soon 23772 PUMP SA €507.59
48
photo_cameraImage coming soon 3220310 Shaft €84.66

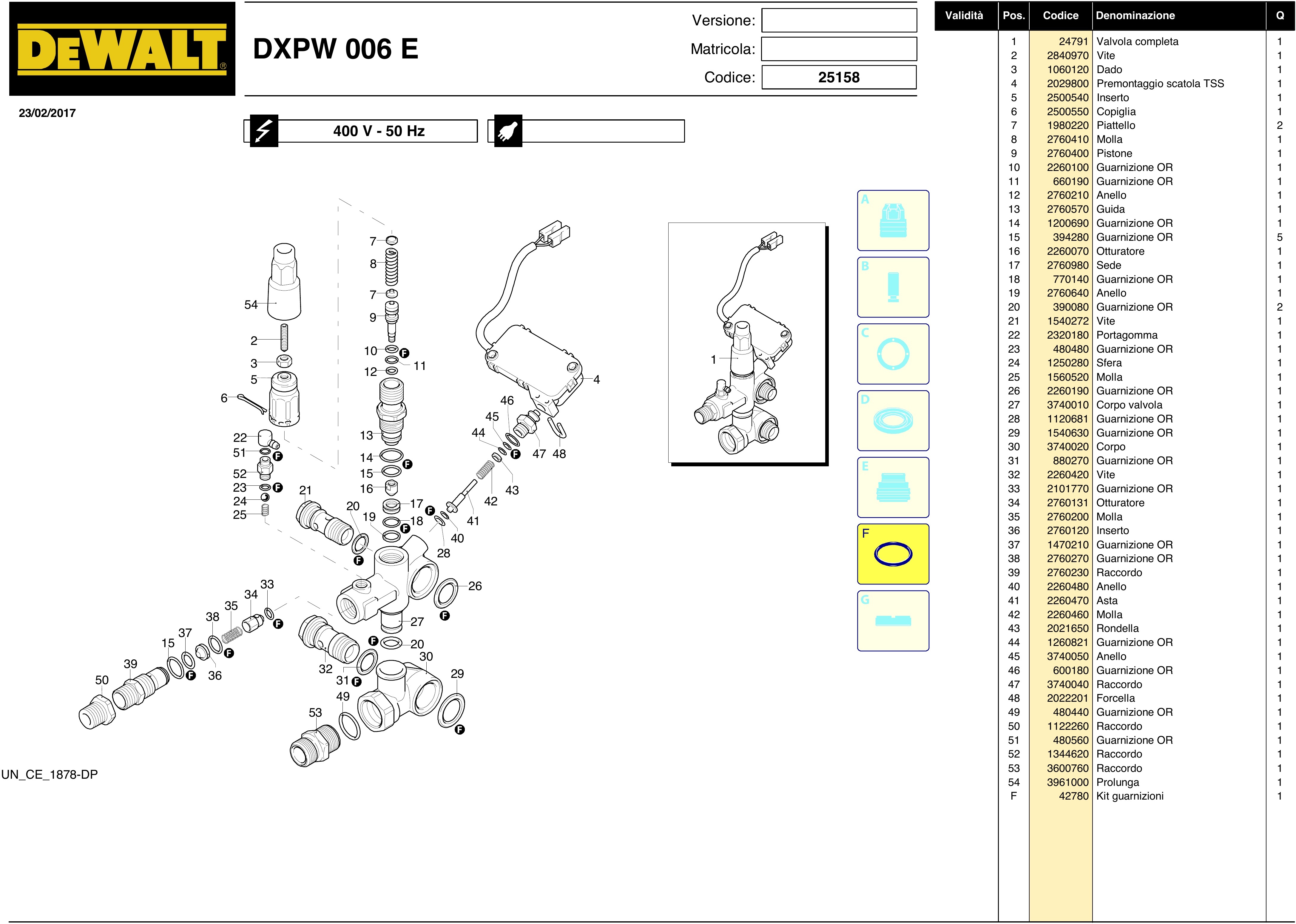

Page 3 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 24791 VALVE CPL €123.41
4
photo_cameraImage coming soon 2029800 BOX €21.78
5
photo_cameraImage coming soon 2500540 Insert €14.20
7
photo_cameraImage coming soon 1980220 disk €2.13
8
photo_cameraImage coming soon 2760410 Spring €3.54
9
photo_cameraImage coming soon 2760400 Piston €12.80
10
photo_cameraImage coming soon 2260100 O-Ring €1.29
11
photo_cameraImage coming soon 660190 O-ring €4.40
12
photo_cameraImage coming soon 2760210 Ring €1.58
13
photo_cameraImage coming soon 2760570 Driving €18.43
14
photo_cameraImage coming soon 1200690 O-ring €4.26
15
O-Ring 12,42x1,78 for Pressure Washers AR BC 210 - 333 - 353 394280 O-Ring 12,42x1,78 for Pressure Washers AR BC 210 - 333 - 353 €0.53
16
photo_cameraImage coming soon 2260070 Shutter €15.62
17
photo_cameraImage coming soon 2760980 SEAT €7.81
18
O-Ring mm 11,11x1,78 for Pressure Washers Annovi & Reverberi AR780-797 770140 O-Ring mm 11,11x1,78 for Pressure Washers Annovi & Reverberi AR780-797 €0.27
19
photo_cameraImage coming soon 2760640 RING €1.46
20
O-Ring for Pressure Washers AR Proliner SV 390080 O-Ring for Pressure Washers AR Proliner SV €0.49
21
Valve Screw for Pressure Washers Annovi & Reverberi 1540272 Valve Screw for Pressure Washers Annovi & Reverberi €9.30
22
photo_cameraImage coming soon 2320180 Hose €1.55
24
photo_cameraImage coming soon 1250280 sphere €2.67
25
Annovi Reverberi Spring for AR747 1560520 Annovi Reverberi Spring for AR747 €1.02
26
O-Ring mm 20.29x2.62 for Pressure Washers Annovi & Reverberi 2260190 O-Ring mm 20.29x2.62 for Pressure Washers Annovi & Reverberi €0.35
27
photo_cameraImage coming soon 3740010 VALVE BODY €41.10
30
photo_cameraImage coming soon 3740020 BODY €17.03
31
O-Ring for Pressure Washers AR6640 880270 O-Ring for Pressure Washers AR6640 €0.42
32
Collector Screw for Pressure Washers Annovi & Reverberi 2260420 Collector Screw for Pressure Washers Annovi & Reverberi €8.09
34
photo_cameraImage coming soon 2760131 SHUTTER €14.20
36
AR780 Injector Insert 2760120 AR780 Injector Insert €3.41
37
photo_cameraImage coming soon 1470210 O-ring €1.58
39
photo_cameraImage coming soon 2760230 Junction €11.62
40
photo_cameraImage coming soon 2260480 RING €1.53
41
photo_cameraImage coming soon 2260470 PIN €4.57
43
photo_cameraImage coming soon 2021650 Washer €1.74
44
photo_cameraImage coming soon 1260821 O RING €2.26
45
photo_cameraImage coming soon 3740050 RING €3.55
46
O-Ring mm 7,66x1,78 for Pressure Washers Black & Decker 600180 O-Ring mm 7,66x1,78 for Pressure Washers Black & Decker €0.38
47
photo_cameraImage coming soon 3740040 CONNECTOR €6.38
48
photo_cameraImage coming soon 2022201 fork €3.36
49
O-Ring 17,13x2,62 for Pressure Washers AR 780-787-797-945-6670-7850 480440 O-Ring 17,13x2,62 for Pressure Washers AR 780-787-797-945-6670-7850 €0.45
50
photo_cameraImage coming soon 1122260 Junction €9.61
52
photo_cameraImage coming soon 1344620 CONNECTOR €11.81
53
photo_cameraImage coming soon 3600760 COUPLING €19.92
54
photo_cameraImage coming soon 3961000 EXTENSION €10.13

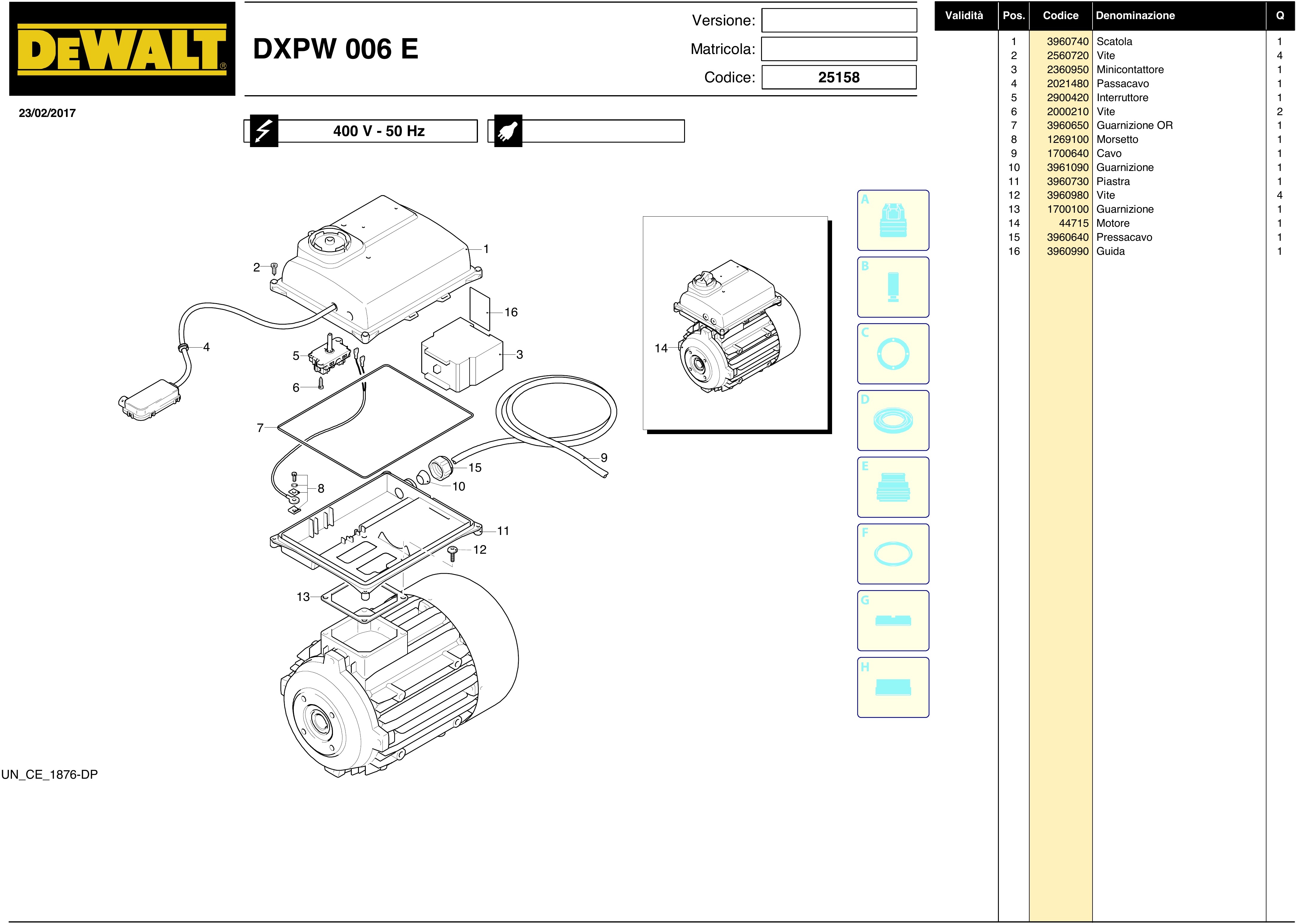

Page 4 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 3960740 BOX €16.73
2
photo_cameraImage coming soon 2560720 Lives €4.72
3
photo_cameraImage coming soon 2360950 CONTACT €62.35
4
photo_cameraImage coming soon 2021480 Grommet €4.16
5
photo_cameraImage coming soon 2900420 Switch €15.10
7
photo_cameraImage coming soon 3960650 O RING €4.71
8
photo_cameraImage coming soon 1269100 Clamp €4.00
9
photo_cameraImage coming soon 1700640 Cable €47.79
10
photo_cameraImage coming soon 3961090 GASKET €4.79
11
photo_cameraImage coming soon 3960730 PLATE €15.86
12
photo_cameraImage coming soon 3960980 SCREW €15.72
13
photo_cameraImage coming soon 1700100 GASKET €6.91
14
photo_cameraImage coming soon 44715 MOTOR €695.52
15
photo_cameraImage coming soon 3960640 GLAND €5.59
16
photo_cameraImage coming soon 3960990 GUIDE €5.82

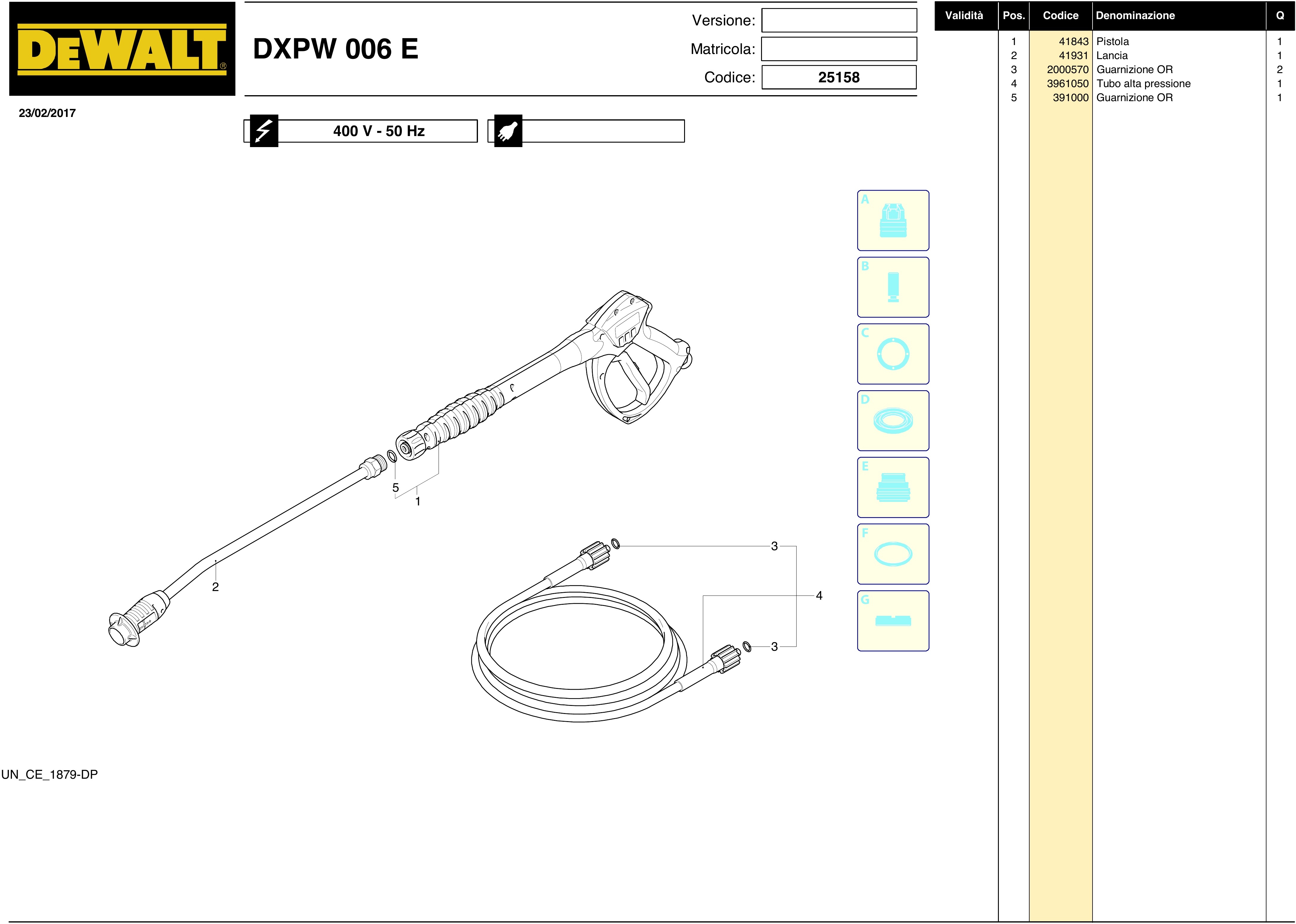

Page 5 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 41843 HANDLE SA €53.96
3
OR 10x2 for Pressure Washer Annovi & Reverberi AR-ARSG HOT 2000570 OR 10x2 for Pressure Washer Annovi & Reverberi AR-ARSG HOT €1.78
4
photo_cameraImage coming soon 3961050 HOSE €137.50
5
photo_cameraImage coming soon 391000 O-Ring €4.73

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

DeWalt Spare Parts for Pressure Washer DXPW006E

DeWalt genuine spare parts for to repair Pressure Washer DXPW006E - 25158.

In the following table, look for the model of the Pressure Washer and the respective parts of the code.
DeWalt

Casing DXPW006E - 25158 Pag.1
1 3960810 CASING
2 2100300 SCREW
3 2360760 KNOB
4 3960790 SUPPORT
5 3960800 CASING
6 180030 SCREW
7 3960260 KNOB
8 3961030 SPACER
9 2360340 COLUMN
10 1270960 DETERGENT HOSE
11 1341030 FILTER
12 1269114 PRE ASSEMBLY HOSE SA
13 380240 NUT
14 1340260 FILTER
15 3960300 GUARD
16 3960280 HANDLE
17 3960150 GUARD
18 3960160 GUARD
19 3960490 CARRIER
20 3960290 GUARD
21 3969004 KNOB
22 3960830 GUARD
23 3960400 GUARD
24 3600180 WASHER
25 3600140 WHEEL
26 3960270 FRAME
27 1060120 NUT
28 3960350 GUARD
29 3960340 GUARD
30 3960360 DAMPER
31 3960330 GUARD
32 2060200 SCREW
Pump DXPW006E - 25158 Pag.2
1 960090 PLUG
2 960160 O RING
3 1389051 VALVE
4 800860 SCREW
5 1381850 WASHER
6 3220020 HEAD SA
7 180101 O RING
8 820361 PLUG
9 1381580 PRESSURE GAUGE
10 3220280 RING
11 1981210 BEARING
12 200390 RING
13 1780140 RING
14 1780720 SEAL
15 3200250 RING
16 3220130 GUIDE
17 3200142 GASKET
18 3200260 RING
19 770260 O RING
20 3220120 GUIDE
21 1260110 NUT
22 1260100 WASHER
23 1780080 PISTON
24 1260091 PLATE
25 1260460 SEAL
26 3220010 BODY PUMP SA
27 880130 PLUG
28 480480 O RING
29 3220060 PISTON
30 3220070 PIN
31 3220040 CON ROD
32 651540 O RING
33 3220030 COVER
34 3200220 SCREW
35 820510 O RING
36 880581 PLUG
37 1200430 SCREW
38 3200070 SUPPORT
39 880830 O RING
40 3200230 KEY
41 3229603 PRE ASSEMBLY LEVEL
42 650560 O RING
43 200390 RING
44 1981210 BEARING
45 1080550 RING
46 42714 PRE ASSEMBLY HEAD SA
47 23772 PUMP SA
48 3220310 CRANKSHAFT
A 2864 VALVE KIT
B 2746 PISTON KIT
C 42547 SEALS KIT
E 42549 SEALS KIT
F 42550 GASKET SET
G 2745 SET RING
Pump DXPW006E - 25158 Pag.3
1 24791 VALVE CPL
2 2840970 SCREW
3 1060120 NUT
4 2029800 BOX
5 2500540 INSERT
6 2500550 PIN
7 1980220 PLATE
8 2760410 SPRING
9 2760400 PISTON
10 2260100 O RING
11 660190 O RING
12 2760210 RING
13 2760570 GUIDE
14 1200690 O RING
15 394280 O RING
16 2260070 SHUTTER
17 2760980 SEAT
18 770140 O RING
19 2760640 RING
20 390080 O RING
21 1540272 SCREW
22 2320180 CONNECTOR
23 480480 O RING
24 1250280 BALL
25 1560520 SPRING
26 2260190 O RING
27 3740010 VALVE BODY
28 1120681 O RING
29 1540630 O RING
30 3740020 BODY
31 880270 O RING
32 2260420 SCREW
33 2101770 O RING
34 2760131 SHUTTER
35 2760200 SPRING
36 2760120 INSERT
37 1470210 O RING
38 2760270 O RING
39 2760230 COUPLING
40 2260480 RING
41 2260470 PIN
42 2260460 SPRING
43 2021650 WASHER
44 1260821 O RING
45 3740050 RING
46 600180 O RING
47 3740040 CONNECTOR
48 2022201 FORK
49 480440 O RING
50 1122260 COUPLING
51 480560 O RING
52 1344620 CONNECTOR
53 3600760 COUPLING
54 3961000 EXTENSION
F 42780 GASKET SET
Motor DXPW006E - 25158 Pag.4
1 3960740 BOX
2 2560720 SCREW
3 2360950 CONTACT
4 2021480 GLAND
5 2900420 SWITCH
6 2000210 SCREW
7 3960650 O RING
8 1269100 CLAMP
9 1700640 CABLE
10 3961090 GASKET
11 3960730 PLATE
12 3960980 SCREW
13 1700100 GASKET
14 44715 MOTOR
15 3960640 GLAND
16 3960990 GUIDE
Accessories DXPW006E - 25158 Pag.5
1 41843 HANDLE SA
2 41931 EXTENSION
3 2000570 O RING
4 3961050 HOSE
5 391000 O RING

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s DeWalt websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to DeWalt brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
DeWalt DXPW006E - 25158
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:
AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS

Specific References

New

Download

Diagram DeWalt DXPW006E

Diagram DeWalt DXPW006E

Download (683.21KB)

You might also like

Annovi Reverberi S.p.A. SKU: 2760120
Annovi Reverberi Injector Insert for Pressure Washer AR780 Genuine part Annovi Reverberi, Injector Insert D.2 for Pressure Washers AR780 - AR797 - DXPW 006 E - MPX 160HDC. Part for the Following Products: - AR Blue Clean...
AVAILABLE €3.41
Comments (0)
