DeWalt Spare Parts for Pressure Washer DXPW005E

SKU: DeWalt DXPW005E - 25157
€22.01
VAT included

DeWalt Spare Parts for Pressure Washer DXPW005E

DeWalt genuine spare parts for to repair Pressure Washer DXPW005E - 25157.
DeWalt Spare Parts for Pressure Washer DXPW004E
  • DeWalt Spare Parts for Pressure Washer DXPW004E
  • DeWalt Spare Parts for Pressure Washer DXPW004E
  • DeWalt Spare Parts for Pressure Washer DXPW004E
  • DeWalt Spare Parts for Pressure Washer DXPW004E
  • DeWalt Spare Parts for Pressure Washer DXPW004E
  • DeWalt Spare Parts for Pressure Washer DXPW004E

DeWalt Spare Parts for Pressure Washer DXPW005E

SKU: DeWalt DXPW005E - 25157 Condition: New
€22.01
VAT included

DeWalt Spare Parts for Pressure Washer DXPW005E

DeWalt genuine spare parts for to repair Pressure Washer DXPW005E - 25157.
settings 164 spare parts
description 5 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:: AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

146 spare parts

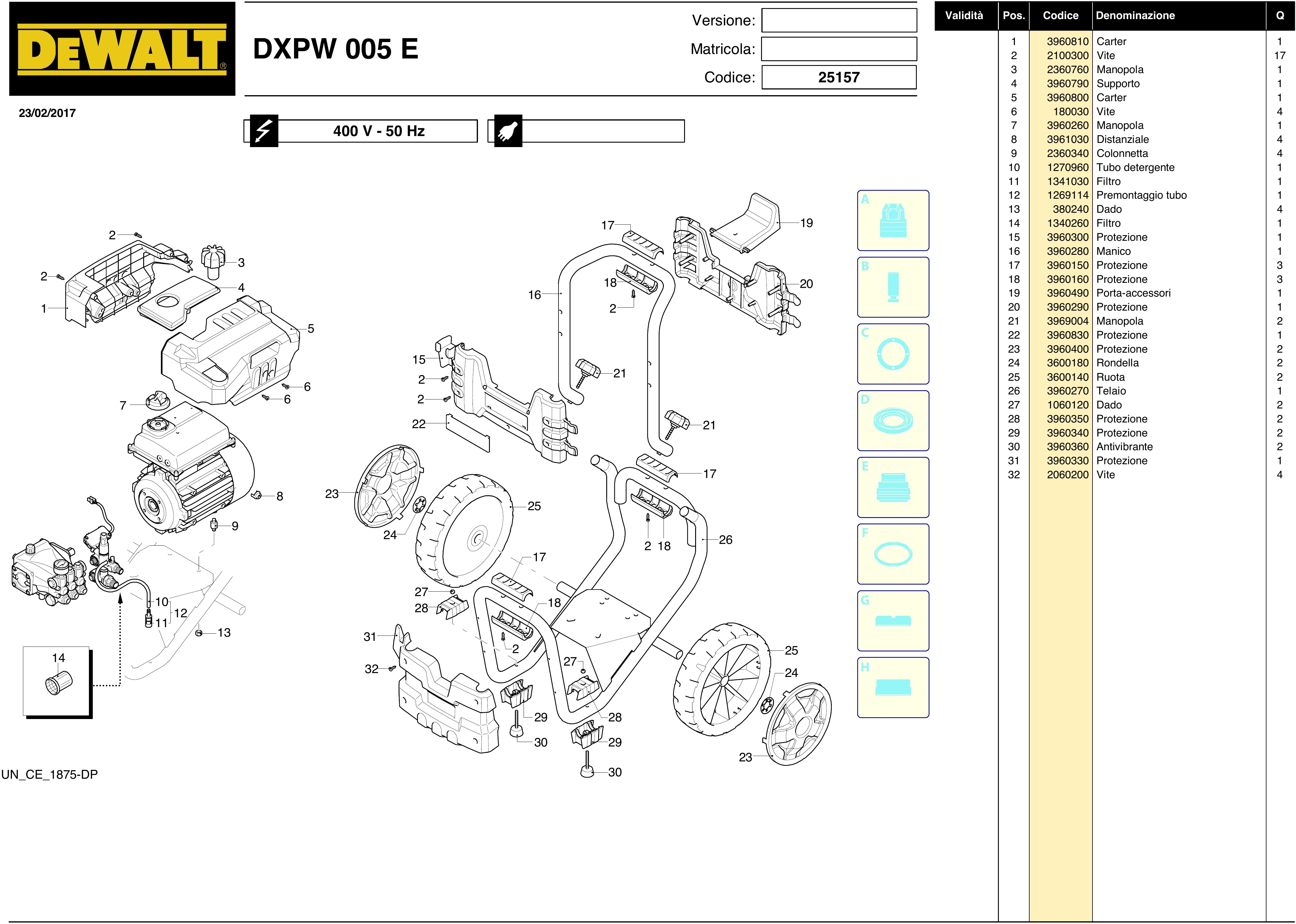

Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 3960810 CASING €22.29
2
photo_cameraImage coming soon 2100300 screw €4.72
3
photo_cameraImage coming soon 2360760 Knob €4.14
4
photo_cameraImage coming soon 3960790 SUPPORT €15.28
5
photo_cameraImage coming soon 3960800 CASING €23.32
6
photo_cameraImage coming soon 180030 screw €2.03
7
photo_cameraImage coming soon 3960260 KNOB €4.89
8
photo_cameraImage coming soon 3961030 SPACER €7.88
9
photo_cameraImage coming soon 2360340 BOLT €6.85
10
photo_cameraImage coming soon 1270960 pipe cleaner €4.41
11
Detergent Filter for Pressure Washer Annovi Reverberi 1341030 Detergent Filter for Pressure Washer Annovi Reverberi €14.06
12
photo_cameraImage coming soon 1269114 HOSE SA €11.10
14
Water Filter for Pressure Washers AR Blue Clean and Farmer's Division 1340260 Water Filter for Pressure Washers AR Blue Clean and Farmer's Division €1.52
15
photo_cameraImage coming soon 3960300 GUARD €21.65
16
photo_cameraImage coming soon 3960280 HANDLE €49.26
17
photo_cameraImage coming soon 3960150 GUARD €7.88
18
photo_cameraImage coming soon 3960160 GUARD €7.88
19
photo_cameraImage coming soon 3960490 CARRIER €16.25
20
photo_cameraImage coming soon 3960290 GUARD €21.27
21
photo_cameraImage coming soon 3969004 KNOB €14.57
22
photo_cameraImage coming soon 3960830 GUARD €11.41
23
photo_cameraImage coming soon 3960400 GUARD €15.73
24
photo_cameraImage coming soon 3600180 Washer €2.37
25
photo_cameraImage coming soon 3600140 Wheel €29.14
26
photo_cameraImage coming soon 3960270 FRAME €148.45
27
photo_cameraImage coming soon 1060120 Nut €1.54
28
photo_cameraImage coming soon 3960350 GUARD €8.78
29
photo_cameraImage coming soon 3960340 GUARD €9.42
30
photo_cameraImage coming soon 3960360 DAMPER €18.30
31
photo_cameraImage coming soon 3960330 GUARD €21.59

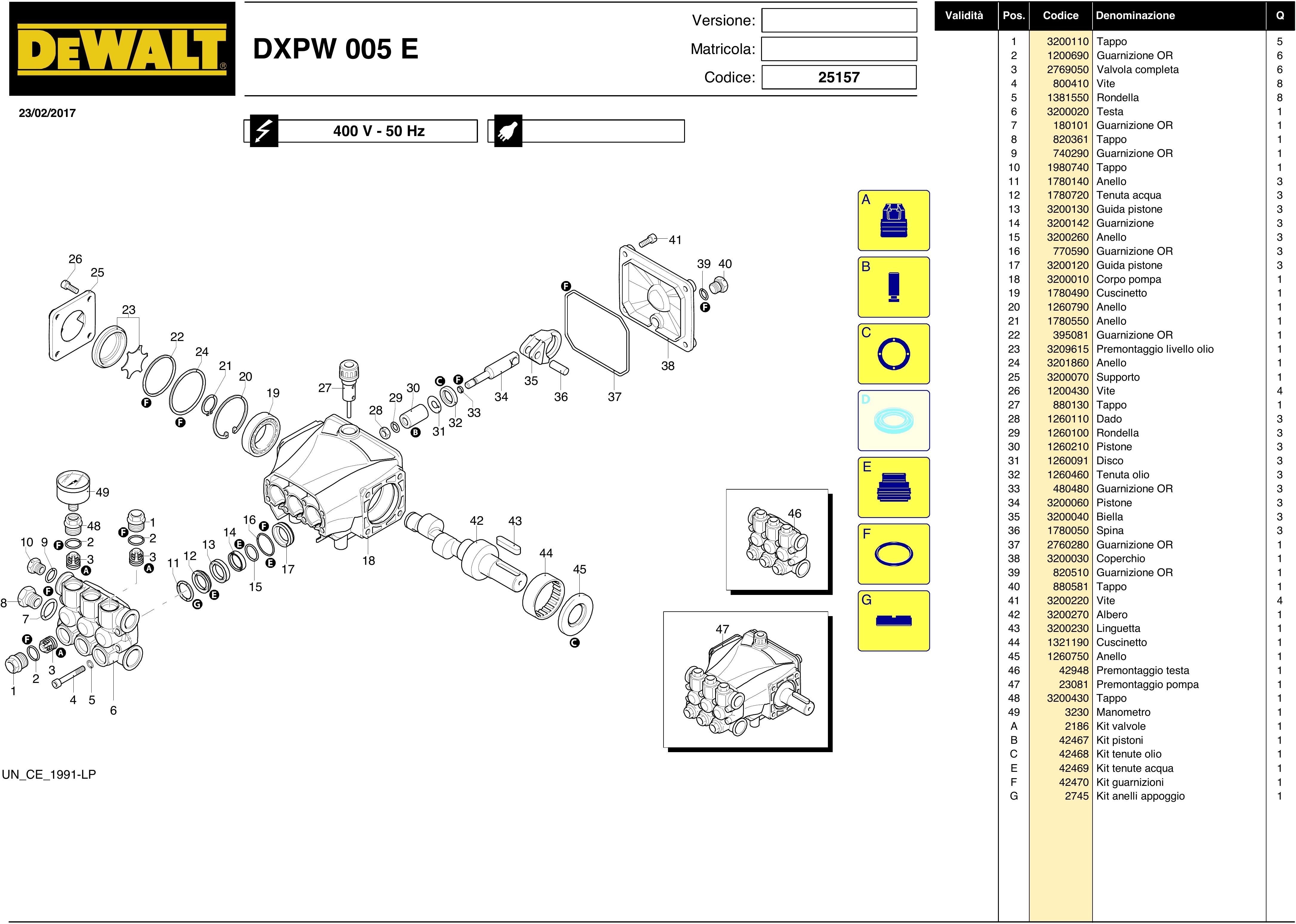

Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
A
photo_cameraImage coming soon 2186 Kit Valves €21.37
G
AR Seal Support Ring Kit 2745 AR Seal Support Ring Kit €3.00
B
photo_cameraImage coming soon 42467 Piston Kit €28.92
C
photo_cameraImage coming soon 42468 Kit Oil Seals €11.58
E
photo_cameraImage coming soon 42469 Kit Kept Water €26.05
F
photo_cameraImage coming soon 42470 Gasket Kit €9.15
F
photo_cameraImage coming soon 42780 GASKET SET €17.03
1
photo_cameraImage coming soon 3200110 Stopper €8.03
2
photo_cameraImage coming soon 1200690 O-ring €4.26
3
Valve for Pressure Washers AR 780-787-797-810-820-830-840 2769050 Valve for Pressure Washers AR 780-787-797-810-820-830-840 €6.46
4
photo_cameraImage coming soon 800410 Screw €4.60
6
photo_cameraImage coming soon 3200020 Head €68.36
7
photo_cameraImage coming soon 180101 O-Ring €4.73
8
photo_cameraImage coming soon 820361 Stopper €4.41
9
photo_cameraImage coming soon 740290 O-ring €2.67
10
Plug 3/8'' Gas for Pressure Washers AR Blue Clean and Farmer's Division 1980740 Plug 3/8'' Gas for Pressure Washers AR Blue Clean and Farmer's Division €2.77
11
Ring Support for Pressure Washers AR 780-787-797-945-6670-7850 1780140 Ring Support for Pressure Washers AR 780-787-797-945-6670-7850 €0.96
12
photo_cameraImage coming soon 1780720 Tenuta Water €10.97
13
photo_cameraImage coming soon 3200130 Piston Guide €7.86
14
photo_cameraImage coming soon 3200142 Gasket €2.03
16
O-Ring mm 21.75x1.78 for Pressure Washers Annovi & Reverberi Series 5 770590 O-Ring mm 21.75x1.78 for Pressure Washers Annovi & Reverberi Series 5 €0.34
17
photo_cameraImage coming soon 3200120 Piston Guide €7.00
18
photo_cameraImage coming soon 3200010 Pump Housing €71.98
19
Ball Bearing for Pressure Washer DeWalt DXPW001E 1780490 Ball Bearing for Pressure Washer DeWalt DXPW001E €20.36
20
photo_cameraImage coming soon 1260790 Ring €1.36
21
photo_cameraImage coming soon 1780550 Ring €4.87
22
photo_cameraImage coming soon 395081 O-Ring €5.72
23
photo_cameraImage coming soon 3209615 LEVEL €15.89
24
photo_cameraImage coming soon 3201860 RING €4.67
25
photo_cameraImage coming soon 3200070 Support €6.38
26
photo_cameraImage coming soon 1200430 Screw €4.64
27
photo_cameraImage coming soon 880130 Stopper €6.67
28
photo_cameraImage coming soon 1260110 Nut €1.65
30
photo_cameraImage coming soon 1260210 Piston €16.88
32
photo_cameraImage coming soon 1260460 oil seal €4.47
33
photo_cameraImage coming soon 480480 O-ring €5.63
34
Piston for Pressure Wahers Annovi & Reverberi AR1003 - AR1005 3200060 Piston for Pressure Wahers Annovi & Reverberi AR1003 - AR1005 €16.12
35
Conrod for Pressure Wahers Annovi & Reverberi AR1003 - AR1005 3200040 Conrod for Pressure Wahers Annovi & Reverberi AR1003 - AR1005 €9.34
36
photo_cameraImage coming soon 1780050 Plug €6.18
37
photo_cameraImage coming soon 2760280 O-Ring €5.06
38
photo_cameraImage coming soon 3200030 Cover €12.79
39
photo_cameraImage coming soon 820510 O-ring €5.63
40
photo_cameraImage coming soon 880581 stopper €7.73
42
photo_cameraImage coming soon 3200270 Tree €75.99
44
photo_cameraImage coming soon 1321190 Bearing €14.57
45
Sealing Ring 25x52x7 for Pressure Washers AR Blue Clean 737-747 1260750 Sealing Ring 25x52x7 for Pressure Washers AR Blue Clean 737-747 €16.90
46
photo_cameraImage coming soon 42948 PRE ASSEMBLY HEAD SA €129.57
47
photo_cameraImage coming soon 23081 Pre-Assembly Pump €359.73
48
photo_cameraImage coming soon 3200430 Stopper €17.49
49
Gauge for Pressure Washers Annovi & Reverberi AR747-780 3230 Gauge for Pressure Washers Annovi & Reverberi AR747-780 €27.18

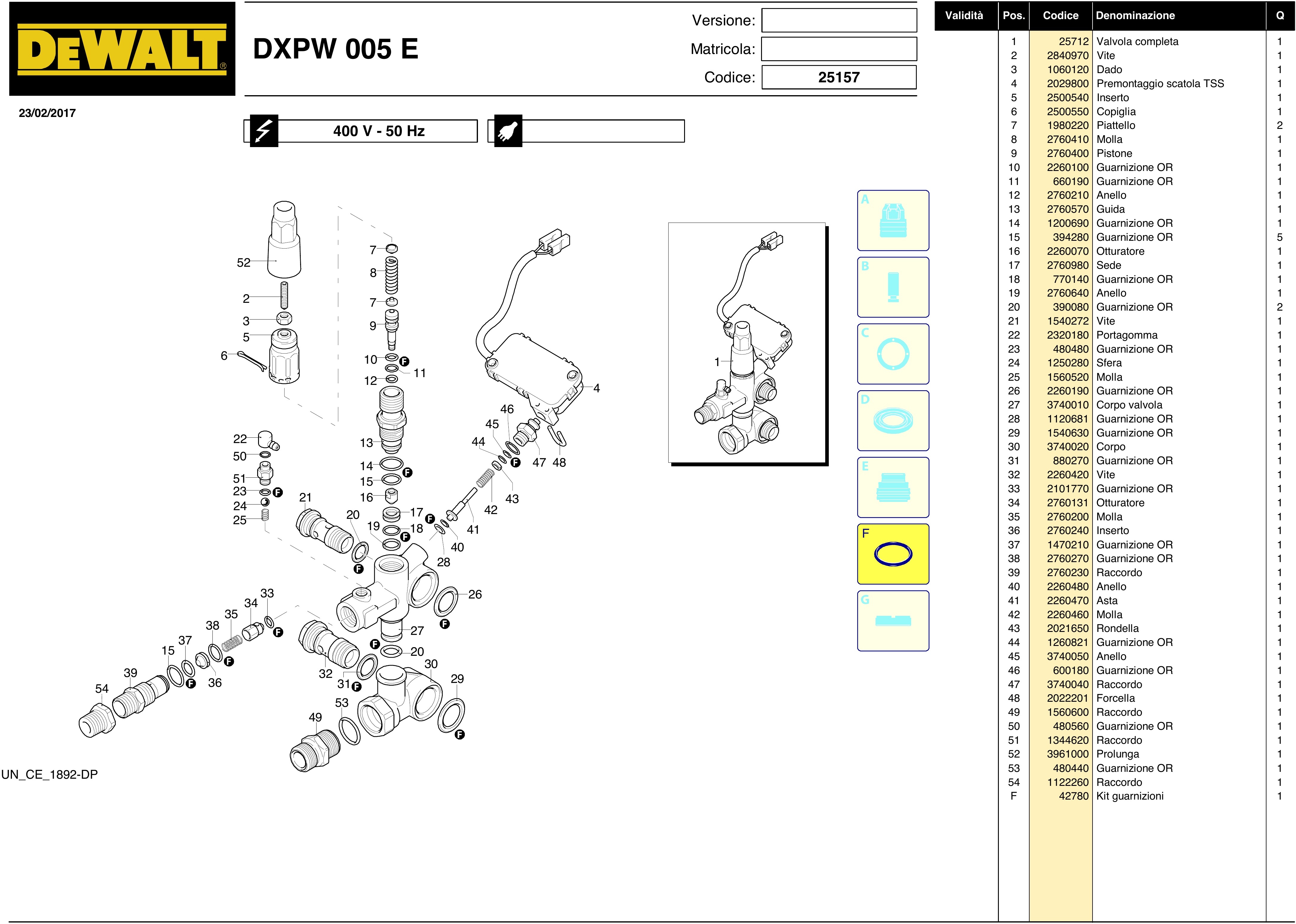

Page 3 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
F
photo_cameraImage coming soon 42780 GASKET SET €17.03
1
photo_cameraImage coming soon 25712 VALVE CPL €107.61
3
photo_cameraImage coming soon 1060120 Nut €1.54
4
photo_cameraImage coming soon 2029800 BOX €21.78
5
photo_cameraImage coming soon 2500540 Insert €14.20
7
photo_cameraImage coming soon 1980220 disk €2.13
8
photo_cameraImage coming soon 2760410 Spring €3.54
9
photo_cameraImage coming soon 2760400 Piston €12.80
10
photo_cameraImage coming soon 2260100 O-Ring €1.29
11
photo_cameraImage coming soon 660190 O-ring €4.40
12
photo_cameraImage coming soon 2760210 Ring €1.58
13
photo_cameraImage coming soon 2760570 Driving €18.43
14
photo_cameraImage coming soon 1200690 O-ring €4.26
15
O-Ring 12,42x1,78 for Pressure Washers AR BC 210 - 333 - 353 394280 O-Ring 12,42x1,78 for Pressure Washers AR BC 210 - 333 - 353 €0.53
16
photo_cameraImage coming soon 2260070 Shutter €15.62
17
photo_cameraImage coming soon 2760980 SEAT €7.81
18
O-Ring mm 11,11x1,78 for Pressure Washers Annovi & Reverberi AR780-797 770140 O-Ring mm 11,11x1,78 for Pressure Washers Annovi & Reverberi AR780-797 €0.27
19
photo_cameraImage coming soon 2760640 RING €1.46
20
O-Ring for Pressure Washers AR Proliner SV 390080 O-Ring for Pressure Washers AR Proliner SV €0.49
21
Valve Screw for Pressure Washers Annovi & Reverberi 1540272 Valve Screw for Pressure Washers Annovi & Reverberi €9.30
22
photo_cameraImage coming soon 2320180 Hose €1.55
23
photo_cameraImage coming soon 480480 O-ring €5.63
24
photo_cameraImage coming soon 1250280 sphere €2.67
25
Annovi Reverberi Spring for AR747 1560520 Annovi Reverberi Spring for AR747 €1.02
26
O-Ring mm 20.29x2.62 for Pressure Washers Annovi & Reverberi 2260190 O-Ring mm 20.29x2.62 for Pressure Washers Annovi & Reverberi €0.35
27
photo_cameraImage coming soon 3740010 VALVE BODY €41.10
30
photo_cameraImage coming soon 3740020 BODY €17.03
31
O-Ring for Pressure Washers AR6640 880270 O-Ring for Pressure Washers AR6640 €0.42
32
Collector Screw for Pressure Washers Annovi & Reverberi 2260420 Collector Screw for Pressure Washers Annovi & Reverberi €8.09
34
photo_cameraImage coming soon 2760131 SHUTTER €14.20
36
photo_cameraImage coming soon 2760240 INSERT €9.76
37
photo_cameraImage coming soon 1470210 O-ring €1.58
39
photo_cameraImage coming soon 2760230 Junction €11.62
40
photo_cameraImage coming soon 2260480 RING €1.53
41
photo_cameraImage coming soon 2260470 PIN €4.57
43
photo_cameraImage coming soon 2021650 Washer €1.74
44
photo_cameraImage coming soon 1260821 O RING €2.26
45
photo_cameraImage coming soon 3740050 RING €3.55
46
O-Ring mm 7,66x1,78 for Pressure Washers Black & Decker 600180 O-Ring mm 7,66x1,78 for Pressure Washers Black & Decker €0.38
47
photo_cameraImage coming soon 3740040 CONNECTOR €6.38
48
photo_cameraImage coming soon 2022201 fork €3.36
49
photo_cameraImage coming soon 1560600 Junction €19.94
51
photo_cameraImage coming soon 1344620 CONNECTOR €11.81
52
photo_cameraImage coming soon 3961000 EXTENSION €10.13
53
O-Ring 17,13x2,62 for Pressure Washers AR 780-787-797-945-6670-7850 480440 O-Ring 17,13x2,62 for Pressure Washers AR 780-787-797-945-6670-7850 €0.45
54
photo_cameraImage coming soon 1122260 Junction €9.61

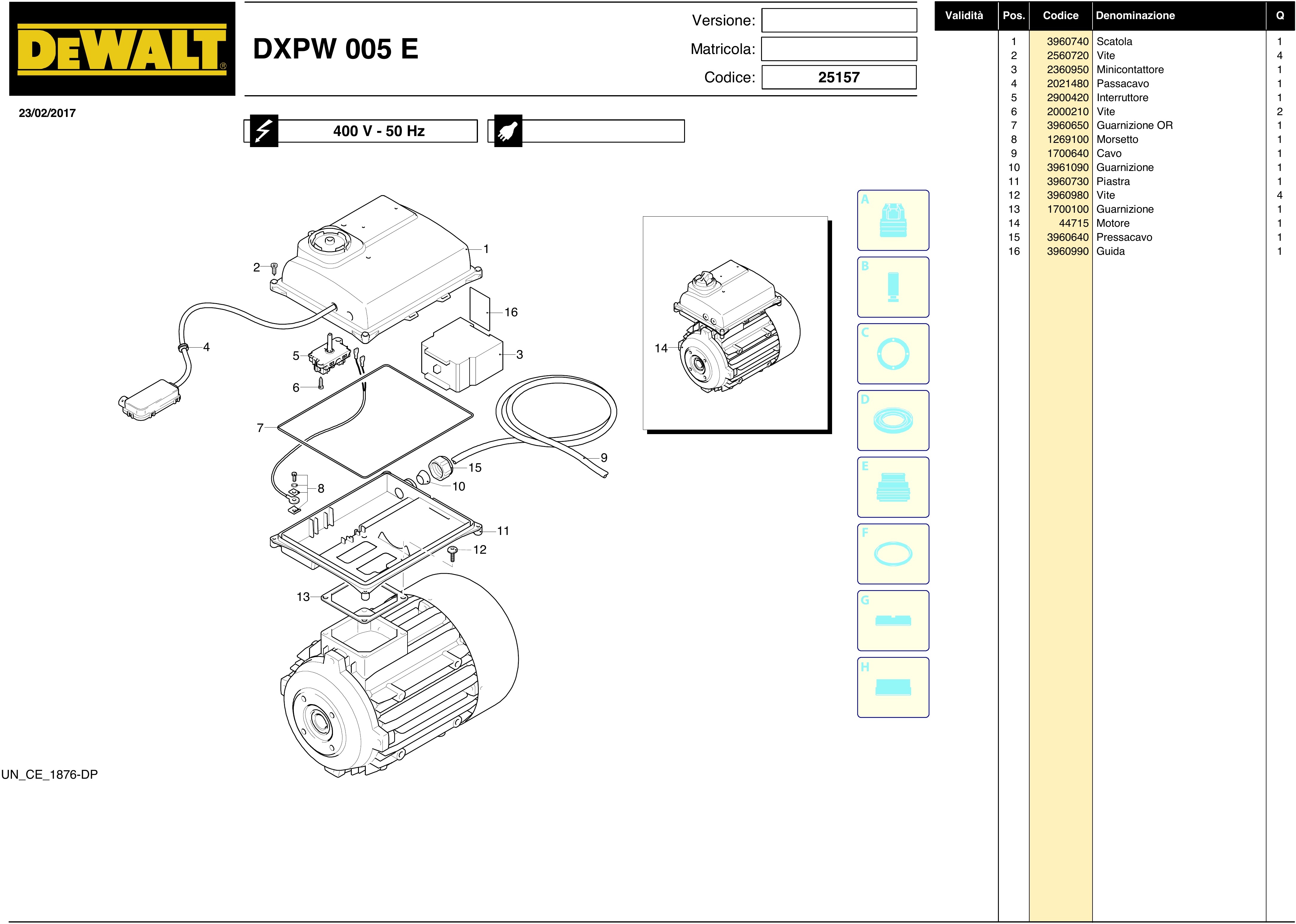

Page 4 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 3960740 BOX €16.73
2
photo_cameraImage coming soon 2560720 Lives €4.72
3
photo_cameraImage coming soon 2360950 CONTACT €62.35
4
photo_cameraImage coming soon 2021480 Grommet €4.16
5
photo_cameraImage coming soon 2900420 Switch €15.10
7
photo_cameraImage coming soon 3960650 O RING €4.71
8
photo_cameraImage coming soon 1269100 Clamp €4.00
9
photo_cameraImage coming soon 1700640 Cable €47.79
10
photo_cameraImage coming soon 3961090 GASKET €4.79
11
photo_cameraImage coming soon 3960730 PLATE €15.86
12
photo_cameraImage coming soon 3960980 SCREW €15.72
13
photo_cameraImage coming soon 1700100 GASKET €6.91
14
photo_cameraImage coming soon 44715 MOTOR €695.52
15
photo_cameraImage coming soon 3960640 GLAND €5.59
16
photo_cameraImage coming soon 3960990 GUIDE €5.82

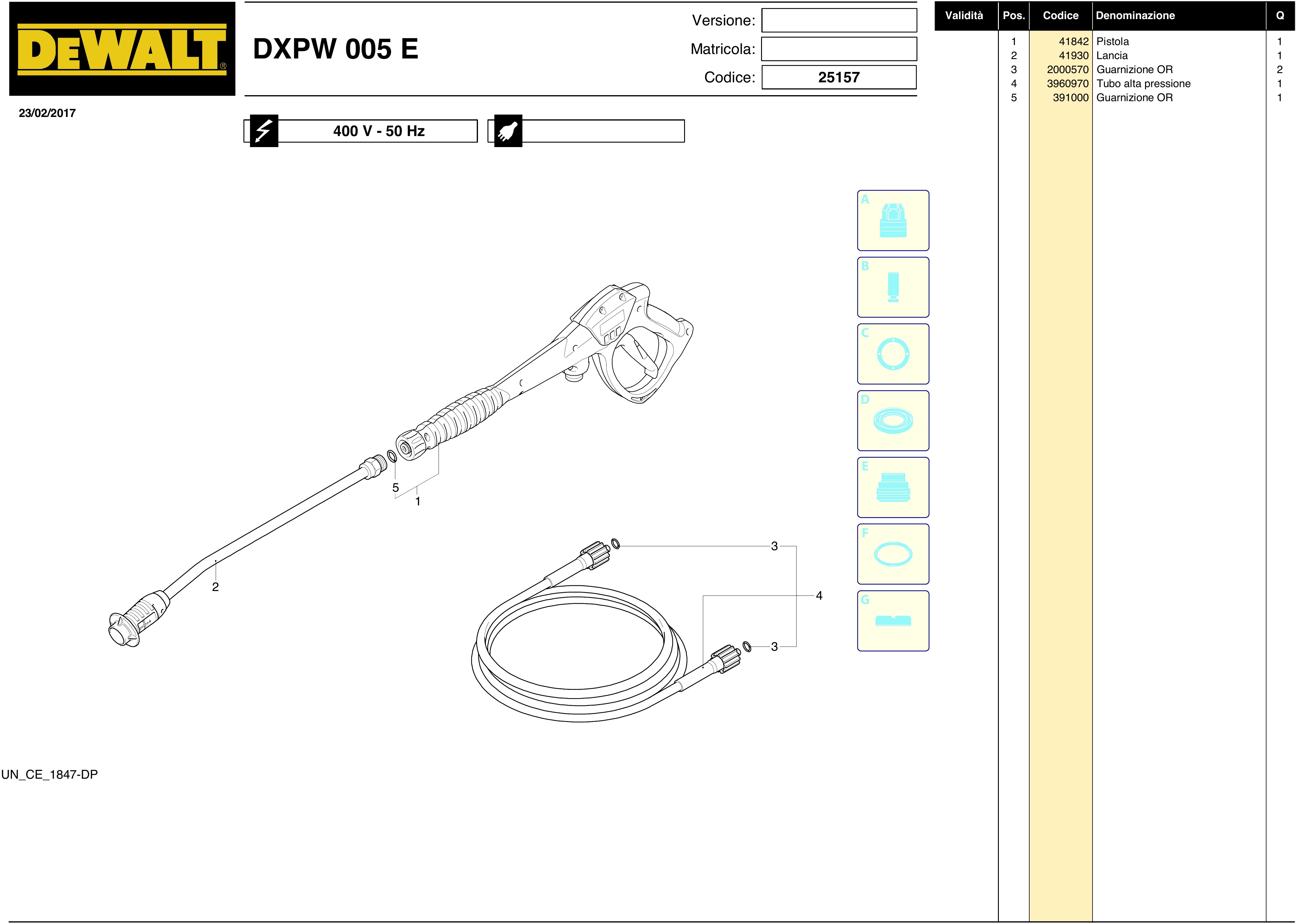

Page 5 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
Trigger Gun for Pressure Washer DeWalt DXPW001E 41842 Trigger Gun for Pressure Washer DeWalt DXPW001E €39.07
2
photo_cameraImage coming soon 41930 EXTENSION €27.15
3
OR 10x2 for Pressure Washer Annovi & Reverberi AR-ARSG HOT 2000570 OR 10x2 for Pressure Washer Annovi & Reverberi AR-ARSG HOT €1.78
4
photo_cameraImage coming soon 3960970 HOSE €67.75
5
photo_cameraImage coming soon 391000 O-Ring €4.73

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

DeWalt Spare Parts for Pressure Washer DXPW005E

DeWalt genuine spare parts for to repair Pressure Washer DXPW005E - 25157.

In the following table, look for the model of the Pressure Washer and the respective parts of the code.
DeWalt DXPW005E - 25157

Pressure Washer DXPW005E - 25157 Spare Parts List
Casing DXPW005E - 25157 Pag.1
# Part Num. Description
1 3960810 CASING
2 2100300 SCREW
3 2360760 KNOB
4 3960790 SUPPORT
5 3960800 CASING
6 180030 SCREW
7 3960260 KNOB
8 3961030 SPACER
9 2360340 COLUMN
10 1270960 HOSE DEGETERGENT
11 1341030 FILTER
12 1269114 PRE ASSEMBLY HOSE SA
13 380240 NUT
14 1340260 FILTER
15 3960300 GUARD
16 3960280 HANDLE
17 3960150 GUARD
18 3960160 GUARD
19 3960490 CARRIER
20 3960290 GUARD
21 3969004 KNOB
22 3960830 GUARD
23 3960400 GUARD
24 3600180 WASHER
25 3600140 WHEEL
26 3960270 FRAME
27 1060120 NUT
28 3960350 GUARD
29 3960340 GUARD
30 3960360 DAMPER
31 3960330 GUARD
32 2060200 SCREW
Pump DXPW005E - 25157 Pag.2
1 3200110 PLUG
2 1200690 O RING
3 2769050 VALVE
4 800410 SCREW
5 1381550 WASHER
6 3200020 HEAD
7 180101 O RING
8 820361 PLUG
9 740290 O RING
10 1980740 PLUG
11 1780140 RING
12 1780720 SEAL
13 3200130 GUIDE
14 3200142 GASKET
15 3200260 RING
16 770590 O RING
17 3200120 GUIDE
18 3200010 BODY
19 1780490 BEARING
20 1260790 RING
21 1780550 RING
22 395081 O RING
23 3209615 PRE ASSEMBLY LEVEL
24 3201860 RING
25 3200070 SUPPORT
26 1200430 SCREW
27 880130 PLUG
28 1260110 NUT
29 1260100 WASHER
30 1260210 PISTON
31 1260091 PLATE
32 1260460 SEAL
33 480480 O RING
34 3200060 PISTON
35 3200040 CON ROD
36 1780050 PIN
37 2760280 O RING
38 3200030 COVER
39 820510 O RING
40 880581 PLUG
41 3200220 SCREW
42 3200270 CRANKSHAFT
43 3200230 KEY
44 1321190 BEARING
45 1260750 RING
46 42948 PRE ASSEMBLY HEAD SA
47 23081 PRE ASSEMBLY PUMP SA
48 3200430 PLUG
49 3230 PRESSURE GAUGE
A 2186 VALVE KIT
B 42467 PISTON KIT
C 42468 SEALS KIT
E 42469 SEALS KIT
F 42470 GASKET SET
G 2745 KIT RING
Pomp DXPW005E - 25157 Pag.3
1 25712 VALVE CPL
2 2840970 SCREW
3 1060120 NUT
4 2029800 PRE ASSEMBLY TSS BOX
5 2500540 INSERT
6 2500550 PIN
7 1980220 PLATE
8 2760410 SPRING
9 2760400 PISTON
10 2260100 O RING
11 660190 O RING
12 2760210 RING
13 2760570 GUIDE
14 1200690 O RING
15 394280 O RING
16 2260070 SHUTTER
17 2760980 SEAT
18 770140 O RING
19 2760640 RING
20 390080 O RING
21 1540272 SCREW
22 2320180 CONNECTOR
23 480480 O RING
24 1250280 BALL
25 1560520 SPRING
26 2260190 O RING
27 3740010 VALVE BODY
28 1120681 O RING
29 1540630 O RING
30 3740020 BODY
31 880270 O RING
32 2260420 SCREW
33 2101770 O RING
34 2760131 SHUTTER
35 2760200 SPRING
36 2760240 INSERT
37 1470210 O RING
38 2760270 O RING
39 2760230 COUPLING
40 2260480 RING
41 2260470 PIN
42 2260460 SPRING
43 2021650 WASHER
44 1260821 O RING
45 3740050 RING
46 600180 O RING
47 3740040 CONNECTOR
48 2022201 FORK
49 1560600 CONNECTOR
50 480560 O RING
51 1344620 CONNECTOR
52 3961000 EXTENSION
53 480440 O RING
54 1122260 COUPLING
F 42780 GASKET SET
Motor DXPW005E - 25157 Pag.4
1 3960740 BOX
2 2560720 SCREW
3 2360950 CONTACT
4 2021480 GLAND
5 2900420 SCREW
6 2000210 O RING
7 3960650 CLAMP
8 1269100 CABLE
9 1700640 POWER CABLE
10 3961090 GASKET
11 3960730 PLATE
12 3960980 SCREW
13 1700100 GASKET
14 44715 MOTOR
15 3960640 GLAND
16 3960990 GUIDE
Accessories DXPW005E - 25157 Pag.5
1 41842 HANDLE SA
2 41930 EXTENSION
3 2000570 O RING
4 3960970 HOSE
5 391000 O RING
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s DeWalt websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to DeWalt brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
DeWalt DXPW005E - 25157
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:
AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS

Specific References

New

Download

Diagram DeWalt DXPW005E

Diagram DeWalt DXPW005E

Download (674.53KB)

You might also like

Annovi Reverberi S.p.A. SKU: 2000570
OR 10x2 for Pressure Washer Annovi & Reverberi AR-ARSG HOT Original spare part Annovi & Reverberi, OR mm 10x2 Parker V1 1010 P5008 for Pressure Washers ARSG HOT 120-1106-1308-1309-1490N-1713-2015N-2021N-K-PRO 1508. Part for the...
AVAILABLE €1.78
Annovi Reverberi S.p.A. SKU: 41842
Trigger Gun for Pressure Washer DeWalt DXPW001E Genuine spare part DeWalt, Trigger Gun for Pressure Washer DeWalt DXPW001E - DXPW002E - DXPW002(A)E Part for the following products: -  Pressure Washer DeWalt DXPW001E -  Pressure...
Last items in stock €39.07
Comments (0)
