DeWalt Spare Parts for Pressure Washer DXPW004E

SKU: DeWalt DXPW004E - 25156
€22.01
VAT included

DeWalt Spare Parts for Pressure Washer DXPW004E

DeWalt original spare parts for to replace broken parts for to fix Cold Water High Pressure Cleaner DXPW004E - 25156

Fix Your Pressure Cleaner. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee
DeWalt Spare Parts for Pressure Washer DXPW004E
  • DeWalt Spare Parts for Pressure Washer DXPW004E
  • DeWalt Spare Parts for Pressure Washer DXPW004E
  • DeWalt Spare Parts for Pressure Washer DXPW004E
  • DeWalt Spare Parts for Pressure Washer DXPW004E
  • DeWalt Spare Parts for Pressure Washer DXPW004E
  • DeWalt Spare Parts for Pressure Washer DXPW004E

DeWalt Spare Parts for Pressure Washer DXPW004E

SKU: DeWalt DXPW004E - 25156 Condition: New
€22.01
VAT included

DeWalt Spare Parts for Pressure Washer DXPW004E

DeWalt original spare parts for to replace broken parts for to fix Cold Water High Pressure Cleaner DXPW004E - 25156

Fix Your Pressure Cleaner. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee
settings 161 spare parts
description 5 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:: AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

148 spare parts

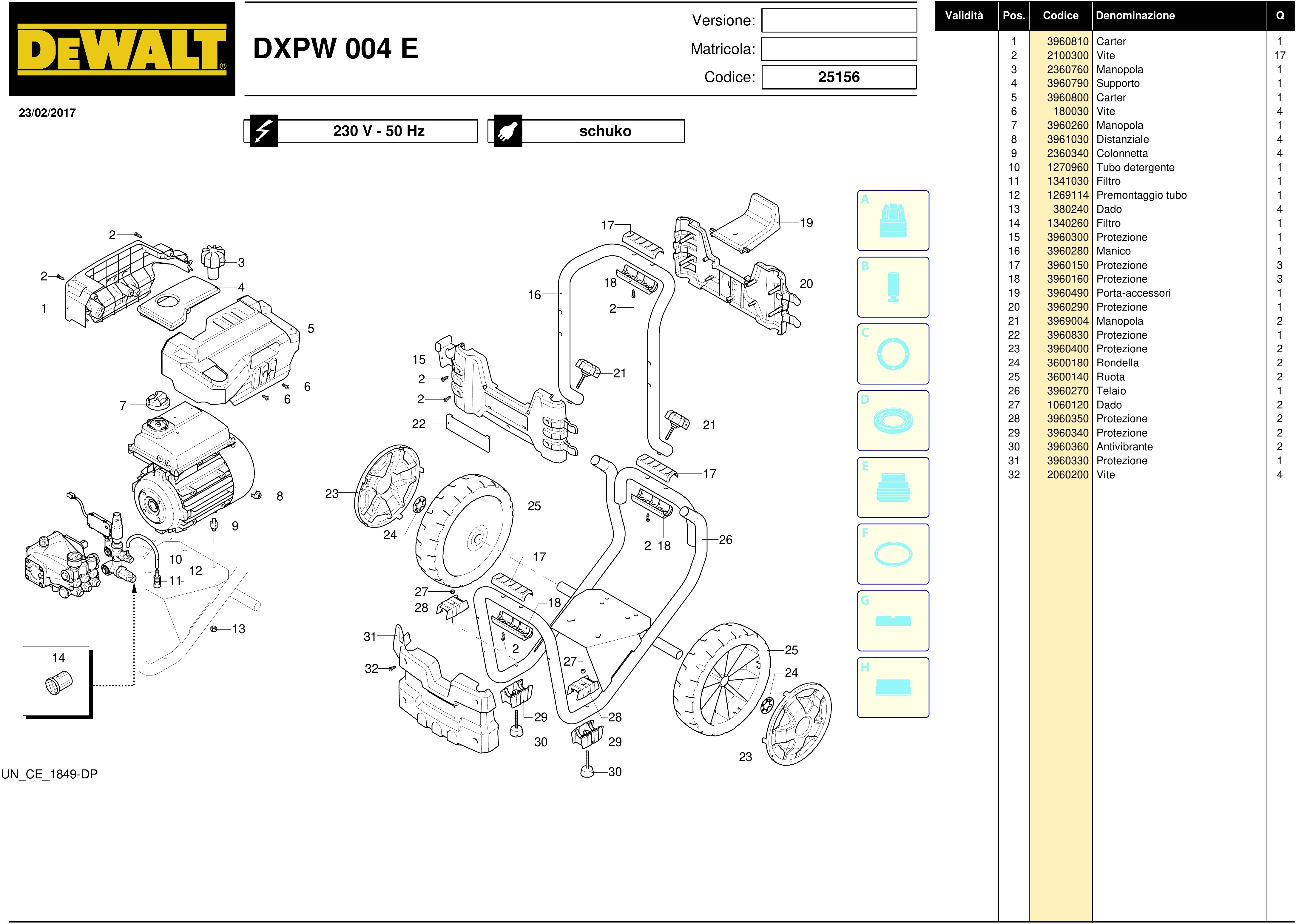

Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 3960810 CASING €22.29
2
screw 2100300 screw €4.72
3
photo_cameraImage coming soon 2360760 Knob €4.14
4
photo_cameraImage coming soon 3960790 SUPPORT €15.28
5
photo_cameraImage coming soon 3960800 CASING €23.32
6
photo_cameraImage coming soon 180030 screw €2.03
7
photo_cameraImage coming soon 3960260 KNOB €4.89
8
photo_cameraImage coming soon 3961030 SPACER €7.88
9
photo_cameraImage coming soon 2360340 BOLT €6.85
10
photo_cameraImage coming soon 1270960 pipe cleaner €4.41
11
Detergent Filter for Pressure Washer Annovi Reverberi 1341030 Detergent Filter for Pressure Washer Annovi Reverberi €14.06
12
photo_cameraImage coming soon 1269114 HOSE SA €11.10
14
Water Filter for Pressure Washers AR Blue Clean and Farmer's Division 1340260 Water Filter for Pressure Washers AR Blue Clean and Farmer's Division €1.52
15
photo_cameraImage coming soon 3960300 GUARD €21.65
16
photo_cameraImage coming soon 3960280 HANDLE €49.26
17
photo_cameraImage coming soon 3960150 GUARD €7.88
18
photo_cameraImage coming soon 3960160 GUARD €7.88
19
photo_cameraImage coming soon 3960490 CARRIER €16.25
20
photo_cameraImage coming soon 3960290 GUARD €21.27
21
photo_cameraImage coming soon 3969004 KNOB €14.57
22
photo_cameraImage coming soon 3960830 GUARD €11.41
23
photo_cameraImage coming soon 3960400 GUARD €15.73
24
photo_cameraImage coming soon 3600180 Washer €2.37
25
photo_cameraImage coming soon 3600140 Wheel €29.14
26
photo_cameraImage coming soon 3960270 FRAME €148.45
27
photo_cameraImage coming soon 1060120 Nut €1.54
28
photo_cameraImage coming soon 3960350 GUARD €8.78
29
photo_cameraImage coming soon 3960340 GUARD €9.42
30
photo_cameraImage coming soon 3960360 DAMPER €18.30
31
photo_cameraImage coming soon 3960330 GUARD €21.59

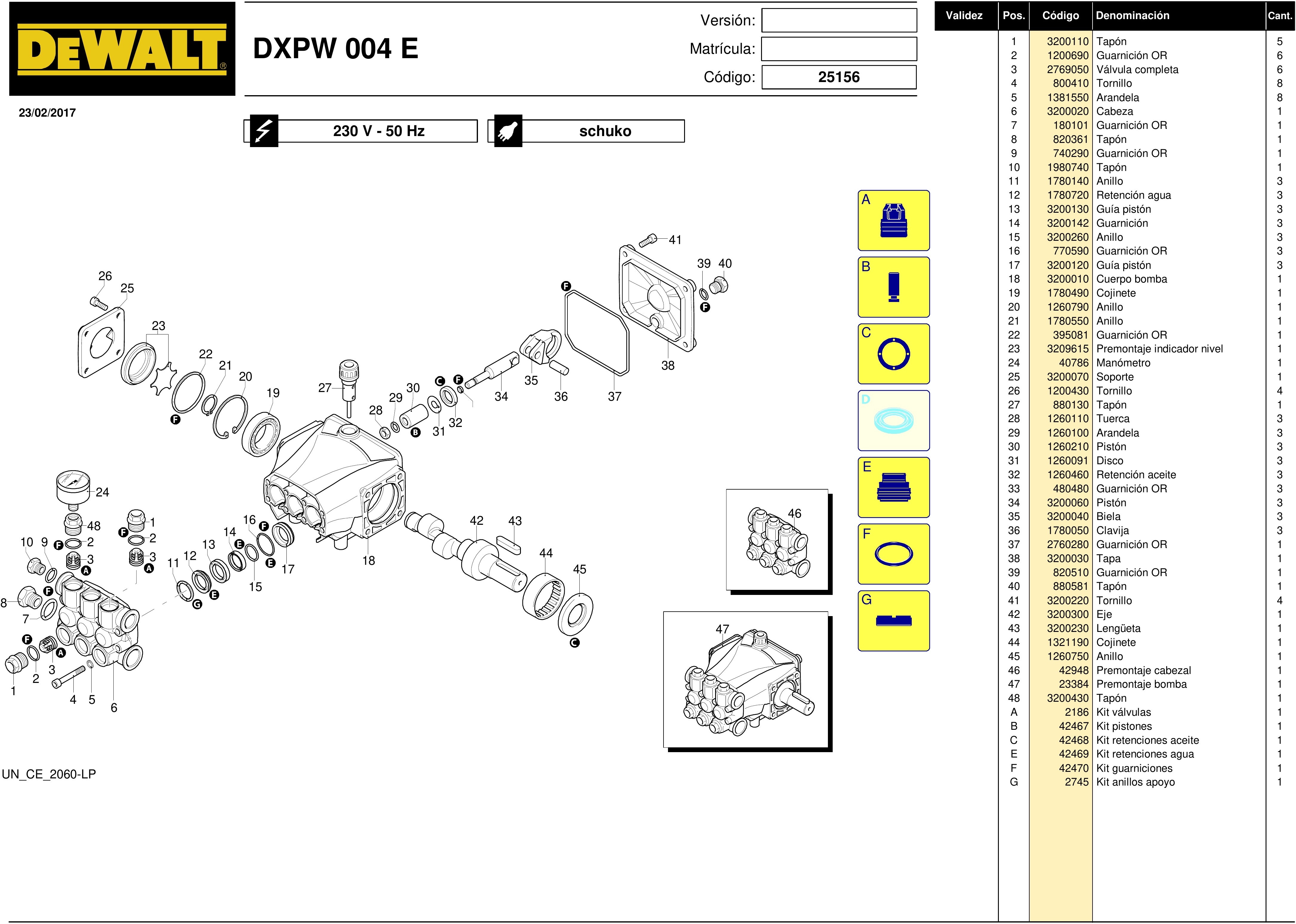

Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
A
photo_cameraImage coming soon 2186 Kit Valves €21.37
G
AR Seal Support Ring Kit 2745 AR Seal Support Ring Kit €3.00
B
photo_cameraImage coming soon 42467 Piston Kit €28.92
C
photo_cameraImage coming soon 42468 Kit Oil Seals €11.58
E
photo_cameraImage coming soon 42469 Kit Kept Water €26.05
F
photo_cameraImage coming soon 42470 Gasket Kit €9.15
1
photo_cameraImage coming soon 3200110 Stopper €8.03
2
photo_cameraImage coming soon 1200690 O-ring €4.26
3
Valve for Pressure Washers AR 780-787-797-810-820-830-840 2769050 Valve for Pressure Washers AR 780-787-797-810-820-830-840 €6.46
4
photo_cameraImage coming soon 800410 Screw €4.60
6
photo_cameraImage coming soon 3200020 Head €68.36
7
photo_cameraImage coming soon 180101 O-Ring €4.73
8
photo_cameraImage coming soon 820361 Stopper €4.41
9
photo_cameraImage coming soon 740290 O-ring €2.67
10
Plug 3/8'' Gas for Pressure Washers AR Blue Clean and Farmer's Division 1980740 Plug 3/8'' Gas for Pressure Washers AR Blue Clean and Farmer's Division €2.77
11
Ring Support for Pressure Washers AR 780-787-797-945-6670-7850 1780140 Ring Support for Pressure Washers AR 780-787-797-945-6670-7850 €0.96
12
photo_cameraImage coming soon 1780720 Tenuta Water €10.97
13
photo_cameraImage coming soon 3200130 Piston Guide €7.86
14
photo_cameraImage coming soon 3200142 Gasket €2.03
16
O-Ring mm 21.75x1.78 for Pressure Washers Annovi & Reverberi Series 5 770590 O-Ring mm 21.75x1.78 for Pressure Washers Annovi & Reverberi Series 5 €0.34
17
photo_cameraImage coming soon 3200120 Piston Guide €7.00
18
photo_cameraImage coming soon 3200010 Pump Housing €71.98
19
Ball Bearing for Pressure Washer DeWalt DXPW001E 1780490 Ball Bearing for Pressure Washer DeWalt DXPW001E €20.36
20
photo_cameraImage coming soon 1260790 Ring €1.36
21
photo_cameraImage coming soon 1780550 Ring €4.87
22
photo_cameraImage coming soon 395081 O-Ring €5.72
23
photo_cameraImage coming soon 3209615 LEVEL €15.89
24
Gauge for Pressure Washers Annovi & Reverberi AR 1003-1003 RLW 40786 Gauge for Pressure Washers Annovi & Reverberi AR 1003-1003 RLW €27.18
25
photo_cameraImage coming soon 3200070 Support €6.38
26
photo_cameraImage coming soon 1200430 Screw €4.64
27
photo_cameraImage coming soon 880130 Stopper €6.67
28
photo_cameraImage coming soon 1260110 Nut €1.65
30
photo_cameraImage coming soon 1260210 Piston €16.88
32
photo_cameraImage coming soon 1260460 oil seal €4.47
33
photo_cameraImage coming soon 480480 O-ring €5.63
34
Piston for Pressure Wahers Annovi & Reverberi AR1003 - AR1005 3200060 Piston for Pressure Wahers Annovi & Reverberi AR1003 - AR1005 €16.12
35
Conrod for Pressure Wahers Annovi & Reverberi AR1003 - AR1005 3200040 Conrod for Pressure Wahers Annovi & Reverberi AR1003 - AR1005 €9.34
36
photo_cameraImage coming soon 1780050 Plug €6.18
37
photo_cameraImage coming soon 2760280 O-Ring €5.06
38
photo_cameraImage coming soon 3200030 Cover €12.79
39
photo_cameraImage coming soon 820510 O-ring €5.63
40
photo_cameraImage coming soon 880581 stopper €7.73
42
Crankshaft for Pressure Waher Annovi & Reverberi AR1003 3200300 Crankshaft for Pressure Waher Annovi & Reverberi AR1003 €94.79
44
photo_cameraImage coming soon 1321190 Bearing €14.57
45
Sealing Ring 25x52x7 for Pressure Washers AR Blue Clean 737-747 1260750 Sealing Ring 25x52x7 for Pressure Washers AR Blue Clean 737-747 €16.90
46
photo_cameraImage coming soon 42948 PRE ASSEMBLY HEAD SA €129.57
47
photo_cameraImage coming soon 23384 Pre-Assembly Pump €392.30
48
photo_cameraImage coming soon 3200430 Stopper €17.49

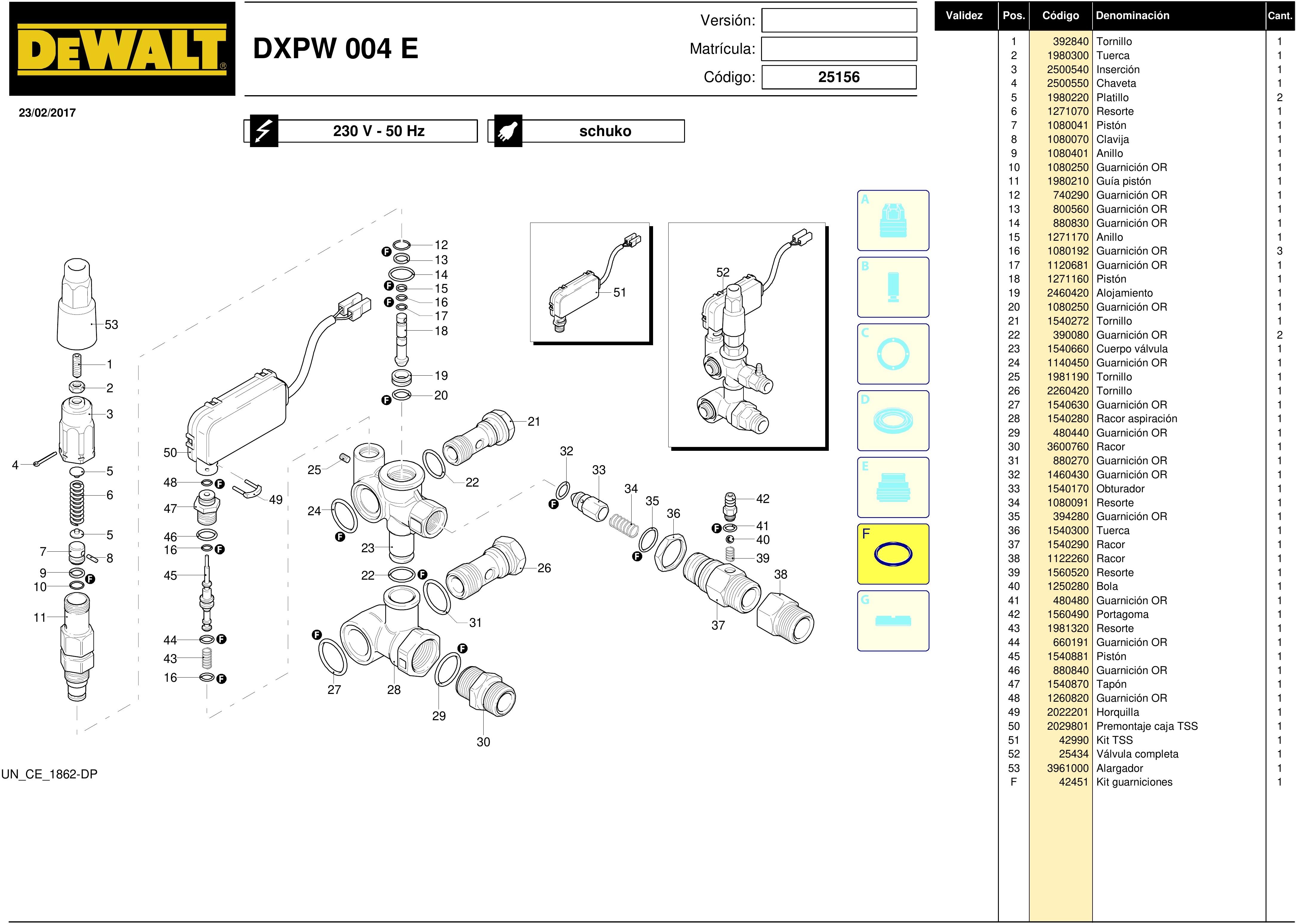

Page 3 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
F
Parts Kit OR for TSS for Pressure Washers AR-BC 767-777 42451 Parts Kit OR for TSS for Pressure Washers AR-BC 767-777 €7.18
2
photo_cameraImage coming soon 1980300 nut €1.58
3
photo_cameraImage coming soon 2500540 Insert €14.20
5
photo_cameraImage coming soon 1980220 disk €2.13
6
AR6640 Piston Guide Spring 1271070 AR6640 Piston Guide Spring €3.01
7
photo_cameraImage coming soon 1080041 piston €12.34
8
photo_cameraImage coming soon 1080070 plug €2.64
9
photo_cameraImage coming soon 1080401 ring €2.13
10
O-Ring 7,66x1,78 for Pressure Washers AR-AR Farmer's Division-Black&Decker 1080250 O-Ring 7,66x1,78 for Pressure Washers AR-AR Farmer's Division-Black&Decker €0.52
11
photo_cameraImage coming soon 1980210 piston guide €15.49
12
photo_cameraImage coming soon 740290 O-ring €2.67
13
photo_cameraImage coming soon 800560 O-ring €1.59
14
O-Ring 15,54x2,62 for Pressure Washers AR-AR Farmer's Division 880830 O-Ring 15,54x2,62 for Pressure Washers AR-AR Farmer's Division €0.38
15
photo_cameraImage coming soon 1271170 ring €2.03
16
photo_cameraImage coming soon 1080192 O-Ring €4.32
18
photo_cameraImage coming soon 1271160 piston €19.89
19
photo_cameraImage coming soon 2460420 Office €7.84
20
O-Ring 7,66x1,78 for Pressure Washers AR-AR Farmer's Division-Black&Decker 1080250 O-Ring 7,66x1,78 for Pressure Washers AR-AR Farmer's Division-Black&Decker €0.52
21
Valve Screw for Pressure Washers Annovi & Reverberi 1540272 Valve Screw for Pressure Washers Annovi & Reverberi €9.30
22
O-Ring for Pressure Washers AR Proliner SV 390080 O-Ring for Pressure Washers AR Proliner SV €0.49
23
photo_cameraImage coming soon 1540660 Valve Body €30.04
24
photo_cameraImage coming soon 1140450 O-Ring €4.25
25
photo_cameraImage coming soon 1981190 screw €1.58
26
Collector Screw for Pressure Washers Annovi & Reverberi 2260420 Collector Screw for Pressure Washers Annovi & Reverberi €8.09
28
photo_cameraImage coming soon 1540280 Collector €13.12
29
O-Ring 17,13x2,62 for Pressure Washers AR 780-787-797-945-6670-7850 480440 O-Ring 17,13x2,62 for Pressure Washers AR 780-787-797-945-6670-7850 €0.45
30
photo_cameraImage coming soon 3600760 COUPLING €19.92
31
O-Ring for Pressure Washers AR6640 880270 O-Ring for Pressure Washers AR6640 €0.42
32
photo_cameraImage coming soon 1460430 O-ring €4.60
33
photo_cameraImage coming soon 1540170 shutter €5.08
33
photo_cameraImage coming soon 480480 O-ring €5.63
34
Spring DE 6,5x1,4x0,5 for Pressure Washer AR BC Series K-ECO 1080091 Spring DE 6,5x1,4x0,5 for Pressure Washer AR BC Series K-ECO €2.34
35
O-Ring 12,42x1,78 for Pressure Washers AR BC 210 - 333 - 353 394280 O-Ring 12,42x1,78 for Pressure Washers AR BC 210 - 333 - 353 €0.53
36
photo_cameraImage coming soon 1540300 Nut €6.39
37
photo_cameraImage coming soon 1540290 COUPLING €18.78
38
photo_cameraImage coming soon 1122260 Junction €9.61
39
Annovi Reverberi Spring for AR747 1560520 Annovi Reverberi Spring for AR747 €1.02
40
photo_cameraImage coming soon 1250280 sphere €2.67
41
photo_cameraImage coming soon 480480 O-ring €5.63
42
photo_cameraImage coming soon 1560490 Hose €7.24
43
Annovi Spring for Pressure Washer AR747 1981320 Annovi Spring for Pressure Washer AR747 €1.54
44
photo_cameraImage coming soon 660191 O-Ring €4.52
45
photo_cameraImage coming soon 1540881 Piston €43.38
46
O-Ring 9,25x1,78 for Pressure Washers AR-AR Farmer's Division-Black&Decker 880840 O-Ring 9,25x1,78 for Pressure Washers AR-AR Farmer's Division-Black&Decker €0.53
47
photo_cameraImage coming soon 1540870 Stopper €13.59
48
photo_cameraImage coming soon 1260820 O-ring €1.59
49
photo_cameraImage coming soon 2022201 fork €3.36
50
photo_cameraImage coming soon 2029801 BOX €21.26
51
photo_cameraImage coming soon 42990 KIT TSS €30.66
52
photo_cameraImage coming soon 25434 Complete Valve €82.86
53
photo_cameraImage coming soon 3961000 EXTENSION €10.13

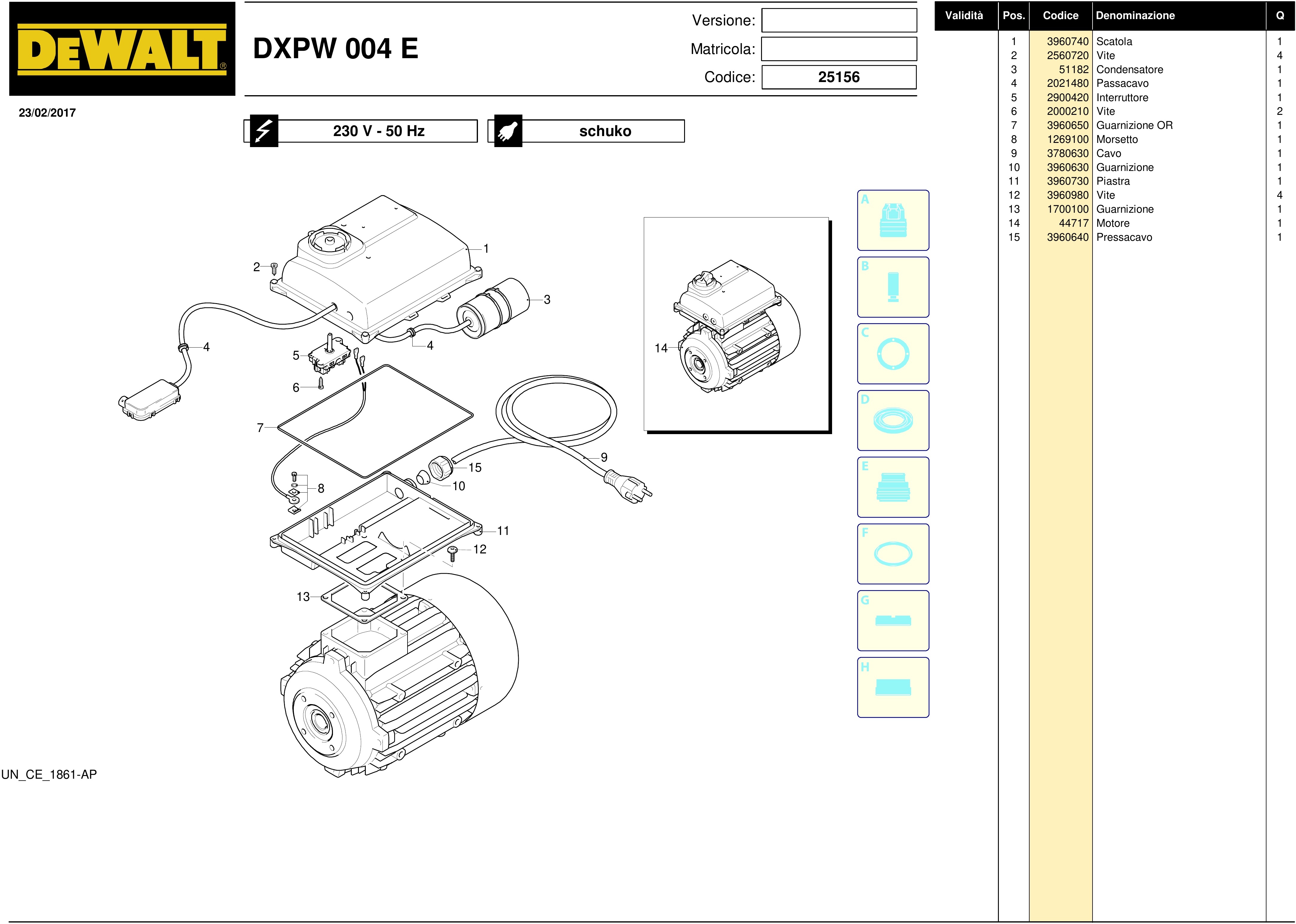

Page 4 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 3960740 BOX €16.73
2
photo_cameraImage coming soon 2560720 Lives €4.72
3
photo_cameraImage coming soon 51182 Capacitor €34.72
4
photo_cameraImage coming soon 2021480 Grommet €4.16
5
photo_cameraImage coming soon 2900420 Switch €15.10
7
photo_cameraImage coming soon 3960650 O RING €4.71
8
Clamp 1269100 Clamp €4.00
9
photo_cameraImage coming soon 3780630 CORDSET €23.04
10
photo_cameraImage coming soon 3960630 GASKET €4.79
11
photo_cameraImage coming soon 3960730 PLATE €15.86
12
photo_cameraImage coming soon 3960980 SCREW €15.72
13
photo_cameraImage coming soon 1700100 GASKET €6.91
14
photo_cameraImage coming soon 44717 MOTOR €463.43
15
photo_cameraImage coming soon 3960640 GLAND €5.59

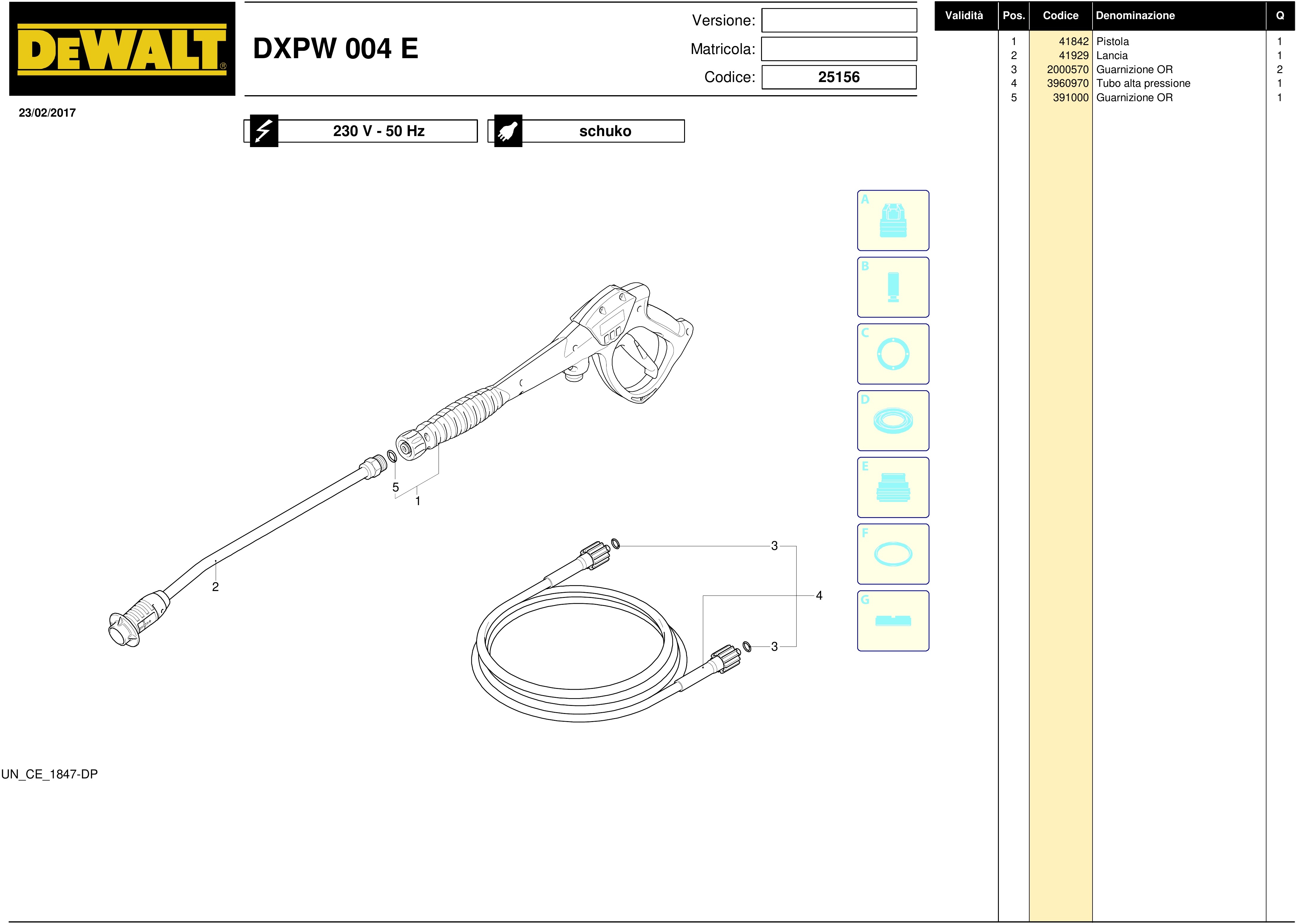

Page 5 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
Trigger Gun for Pressure Washer DeWalt DXPW001E 41842 Trigger Gun for Pressure Washer DeWalt DXPW001E €39.07
2
photo_cameraImage coming soon 41929 EXTENSION €32.08
3
OR 10x2 for Pressure Washer Annovi & Reverberi AR-ARSG HOT 2000570 OR 10x2 for Pressure Washer Annovi & Reverberi AR-ARSG HOT €1.78
4
photo_cameraImage coming soon 3960970 HOSE €67.75
5
photo_cameraImage coming soon 391000 O-Ring €4.73

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

DeWalt Spare Parts for Pressure Washer DXPW004E

Fix Your Pressure Cleaner DXPW004E - 25156. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee

In the following table, look for the model of the Pressure Washer and the respective parts of the code.
DeWalt DXPW004E - 25156

Casing DXPW004E - 25156 Pag.1
# Part Num. Description
1 3960810 CASING
2 2100300 SCREW
3 2360760 KNOB
4 3960790 SUPPORT
5 3960800 CASING
6 180030 SCREW
7 3960260 KNOB
8 3961030 SPACER
9 2360340 BOLT
10 1270960 HOSE
11 1341030 FILTER
12 1269114 HOSE SA
13 380240 NUT
14 1340260 FILTER
15 3960300 GUARD
16 3960280 HANDLE
17 3960150 GUARD
18 3960160 GUARD
19 3960490 CARRIER
20 3960290 GUARD
21 3969004 KNOB
22 3960830 GUARD
23 3960400 GUARD
24 3600180 WASHER
25 3600140 WHEEL
26 3960270 FRAME
27 1060120 NUT
28 3960350 GUARD
29 3960340 GUARD
30 3960360 DAMPER
31 3960330 GUARD
32 2060200 SCREW
Pump DXPW004E - 25156 Pag.2
1 3200110 PLUG
2 1200690 O RING
3 2769050 VALVE
4 800410 SCREW
5 1381550 WASHER
6 3200020 HEAD
7 180101 O RING
8 820361 PLUG
9 740290 O RING
10 1980740 PLUG
11 1780140 RING
12 1780720 SEAL
13 3200130 GUIDE
14 3200142 GASKET
15 3200260 RING
16 770590 O RING
17 3200120 PISTONE GUIDE
18 3200010 BODY PUMP
19 1780490 BEARING
20 1260790 RING
21 1780550 RING
22 395081 O RING
23 3209615 LEVEL
24 40786 PRESSURE GAUGE
25 3200070 SUPPORT
26 1200430 SCREW
27 880130 PLUG
28 1260110 NUT
29 1260100 WASHER
30 1260210 PISTON
31 1260091 PLATE
32 1260460 SEAL
33 480480 O RING
34 3200060 PISTON
35 3200040 CON ROD
36 1780050 PIN
37 2760280 O RING
38 3200030 COVER
39 820510 O RING
40 880581 PLUG
41 3200220 SCREW
42 3200300 CRANKSHAFT
43 3200230 KEY
44 1321190 BEARING
45 1260750 RING
46 42948 PRE ASSEMBLY HEAD SA
47 23384 PRE ASSEMBLY PUMP SA
48 3200430 PLUG
A 2186 VALVE KIT
B 42467 PISTON KIT
C 42468 SEALS KIT
E 42469 SEALS KIT
F 42470 GASKET SET
G 2745 RING
Pump DXPW004E - 25156 Pag.3
1 392840 SCREW
2 1980300 NUT
3 2500540 INSERT
4 2500550 PIN
5 1980220 PLATE
6 1271070 SPRING
7 1080041 PISTON
8 1080070 PIN
9 1080401 RING
10 1080250 O RING
11 1980210 PISTON GUIDE
12 740290 O RING
13 800560 O RING
14 880830 O RING
15 1271170 RING
16 1080192 O RING
17 1120681 O RING
18 1271160 PISTON
19 2460420 SEAT
20 1080250 O RING
21 1540272 SCREW
22 390080 O RING
23 1540660 VALVE BODY
24 1140450 O RING
25 1981190 SCREW
26 2260420 SCREW
27 1540630 O RING
28 1540280 COUPLING
29 480440 O RING
30 3600760 COUPLING
31 880270 O RING
32 1460430 O RING
33 1540170 SHUTTER
34 1080091 SPRING
35 394280 O RING
36 1540300 NUT
37 1540290 COUPLING
38 1122260 COUPLING
39 1560520 SPRING
40 1250280 BALL
41 480480 O RING
42 1560490 CONNECTOR
43 1981320 SPRING
44 660191 O RING
45 1540881 PISTON
46 880840 O RING
47 1540870 PLUG
48 1260820 O RING
49 2022201 FORK
50 2029801 PRE ASSEMBLY TERMINAL BOX
51 42990 KIT TSS
52 25434 VALVE KIT
53 3961000 EXTENSION
F 42451 GASKET SET
Motor DXPW004E - 25156 Pag.4
1 3960740 BOX
2 2560720 SCREW
3 51182 CAPACITOR
4 2021480 GLAND
5 2900420 SWITCH
6 2000210 SCREW
7 3960650 O RING
8 1269100 CLAMP
9 3780630 CORDSET
10 3960630 GASKET
11 3960730 PLATE
12 3960980 SCREW
13 1700100 GASKET
14 44717 MOTOR
15 3960640 GLAND
Accessories DXPW004E - 25156 Pag.5
1 41842 HANDLE SA
2 41929 EXTENSION
3 2000570 O RING
4 3960970 HOSE
5 391000 O RING
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s DeWalt websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to DeWalt brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
DeWalt DXPW004E - 25156
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:
AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS

Specific References

New

Download

Diagram DeWalt DXPW004E

Diagram DeWalt DXPW004E

Download (449.25KB)

You might also like

Annovi Reverberi S.p.A. SKU: 3200300
Crankshaft for Pressure Waher Annovi & Reverberi AR1003 Original Spare Part Annovi & Reverberi, Crankshaft for Pressure Wahers Annovi & Reverberi AR1003 - AR6950 - AR5850 - 930 TSS. Part for the following products: -...
AVAILABLE €94.79
Annovi Reverberi S.p.A. SKU: 41842
Trigger Gun for Pressure Washer DeWalt DXPW001E Genuine spare part DeWalt, Trigger Gun for Pressure Washer DeWalt DXPW001E - DXPW002E - DXPW002(A)E Part for the following products: -  Pressure Washer DeWalt DXPW001E -  Pressure...
Last items in stock €39.07
Annovi Reverberi S.p.A. SKU: 1981320
Annovi Spring for Pressure Washer AR747 Genuine part Annovi Reverberi, TSS Spring DE 8,7 X 15,9 x 1,2 for Pressure Washer AR747 - AR767 - AR780. Part for the Following Products: -  Pressure Washer AR Farmer's...
AVAILABLE €1.54
Annovi Reverberi S.p.A. SKU: 1271070
Annovi Reverberi Piston Guide Spring for Pressure Washer AR6640 Genuine spare part Annovi Reverberi, Piston Guide Spring for Pressure Washers AR747 - AR767 - AR1330. Part for the following products: -  Pressure Washer...
AVAILABLE €3.01
Comments (0)
