Annovi Reverberi S.p.A.

DeWalt Spare Parts for Pressure Washer DXPW001E

SKU: DeWalt DXPW001E - 13674
€10.54
VAT included

DeWalt Spare Parts for Pressure Washer DXPW001E

DeWalt original replacement parts for to replace broken parts for to fix Pressure Washer DXPW001E - 13674.
DeWalt Spare Parts for Pressure Washer DXPW 001 E
  • DeWalt Spare Parts for Pressure Washer DXPW 001 E
  • DeWalt Spare Parts for Pressure Washer DXPW 001 E
  • DeWalt Spare Parts for Pressure Washer DXPW 001 E
  • DeWalt Spare Parts for Pressure Washer DXPW 001 E
  • DeWalt Spare Parts for Pressure Washer DXPW 001 E
Annovi Reverberi S.p.A.

DeWalt Spare Parts for Pressure Washer DXPW001E

SKU: DeWalt DXPW001E - 13674 Condition: New
€10.54
VAT included

DeWalt Spare Parts for Pressure Washer DXPW001E

DeWalt original replacement parts for to replace broken parts for to fix Pressure Washer DXPW001E - 13674.
settings 98 Spare parts
description 4 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:: AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS
Machine Type: Pressure Washer
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
98 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

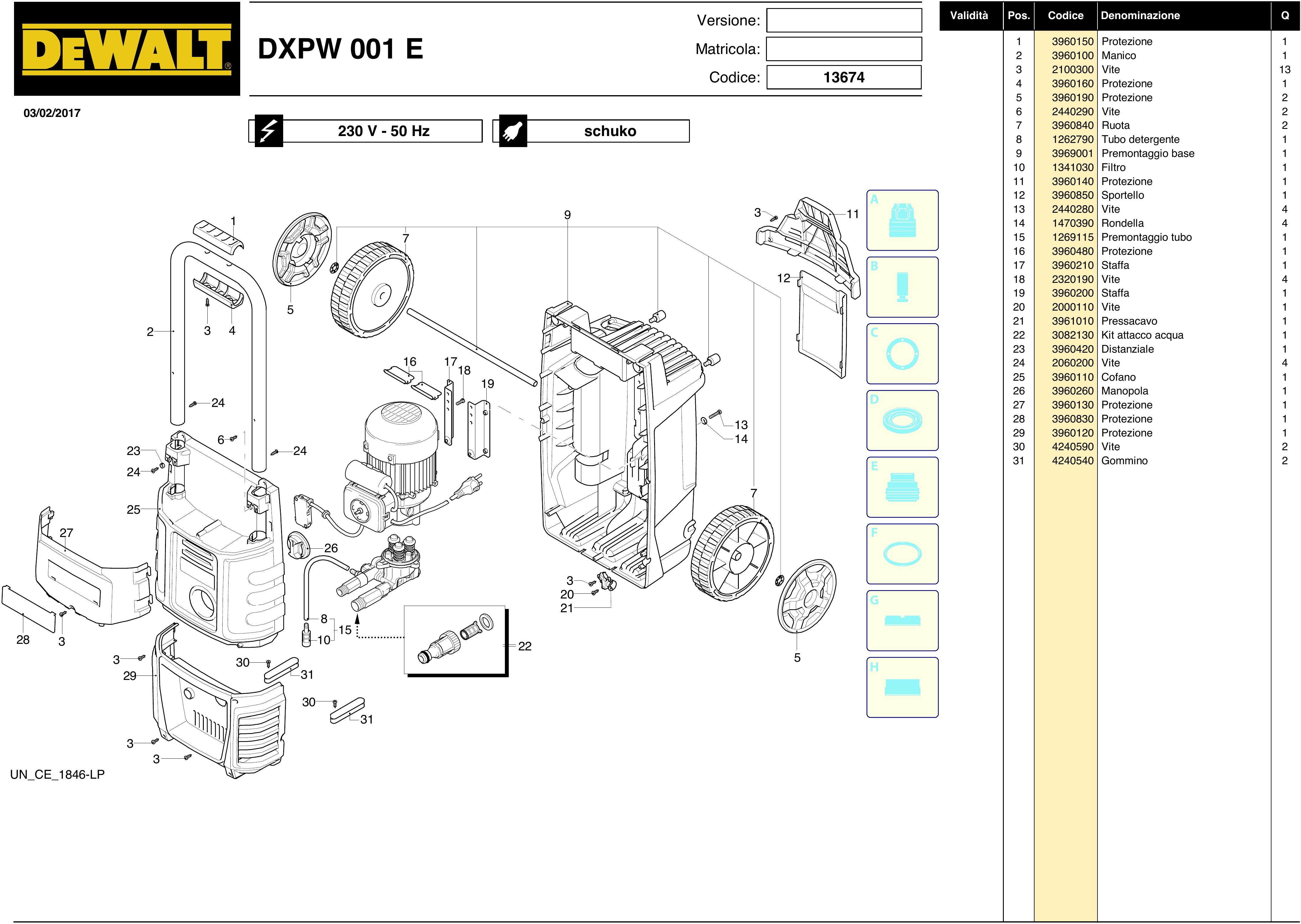

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 3960150 GUARD €7.88
2
 photo_cameraImage coming soon 3960100 HANDLE SA €29.18
3
 screw 2100300 screw €4.72
4
 photo_cameraImage coming soon 3960160 GUARD €7.88
5
 photo_cameraImage coming soon 3960190 GUARD €14.06
6
 photo_cameraImage coming soon 2440290 SCREW €4.72
7
 photo_cameraImage coming soon 3960840 WHEEL €21.84
8
 photo_cameraImage coming soon 1262790 Pipe Cleaner €8.43
9
 photo_cameraImage coming soon 3969001 BASE SA €69.90
10
 Detergent Filter for Pressure Washer Annovi Reverberi 1341030 Detergent Filter for Pressure Washer Annovi Reverberi €14.06
11
 photo_cameraImage coming soon 3960140 GUARD €18.18
12
 photo_cameraImage coming soon 3960850 DOOR €15.15
13
 photo_cameraImage coming soon 2440280 Screw €4.73
14
 photo_cameraImage coming soon 1470390 WASHER €4.72
15
 photo_cameraImage coming soon 1269115 Pre-Assembly Tube €11.20
16
 photo_cameraImage coming soon 3960480 GUARD €7.88
17
 photo_cameraImage coming soon 3960210 BRACKET €18.69
18
 photo_cameraImage coming soon 2320190 screw €1.58
19
 photo_cameraImage coming soon 3960200 BRACKET €18.69
21
 photo_cameraImage coming soon 3961010 GLAND €7.17
22
 Kit Water Inlet for Pressure Washer Blue Clean AR395-490-588-590 3082130 Kit Water Inlet for Pressure Washer Blue Clean AR395-490-588-590 €4.94
23
 photo_cameraImage coming soon 3960420 SPACER €6.91
25
 photo_cameraImage coming soon 3960110 CASING €25.00
26
 photo_cameraImage coming soon 3960260 KNOB €4.89
27
 photo_cameraImage coming soon 3960130 GUARD €18.76
28
 photo_cameraImage coming soon 3960830 GUARD €11.41
29
 photo_cameraImage coming soon 3960120 GUARD €23.39
31
 photo_cameraImage coming soon 4240540 FOOT €8.05
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

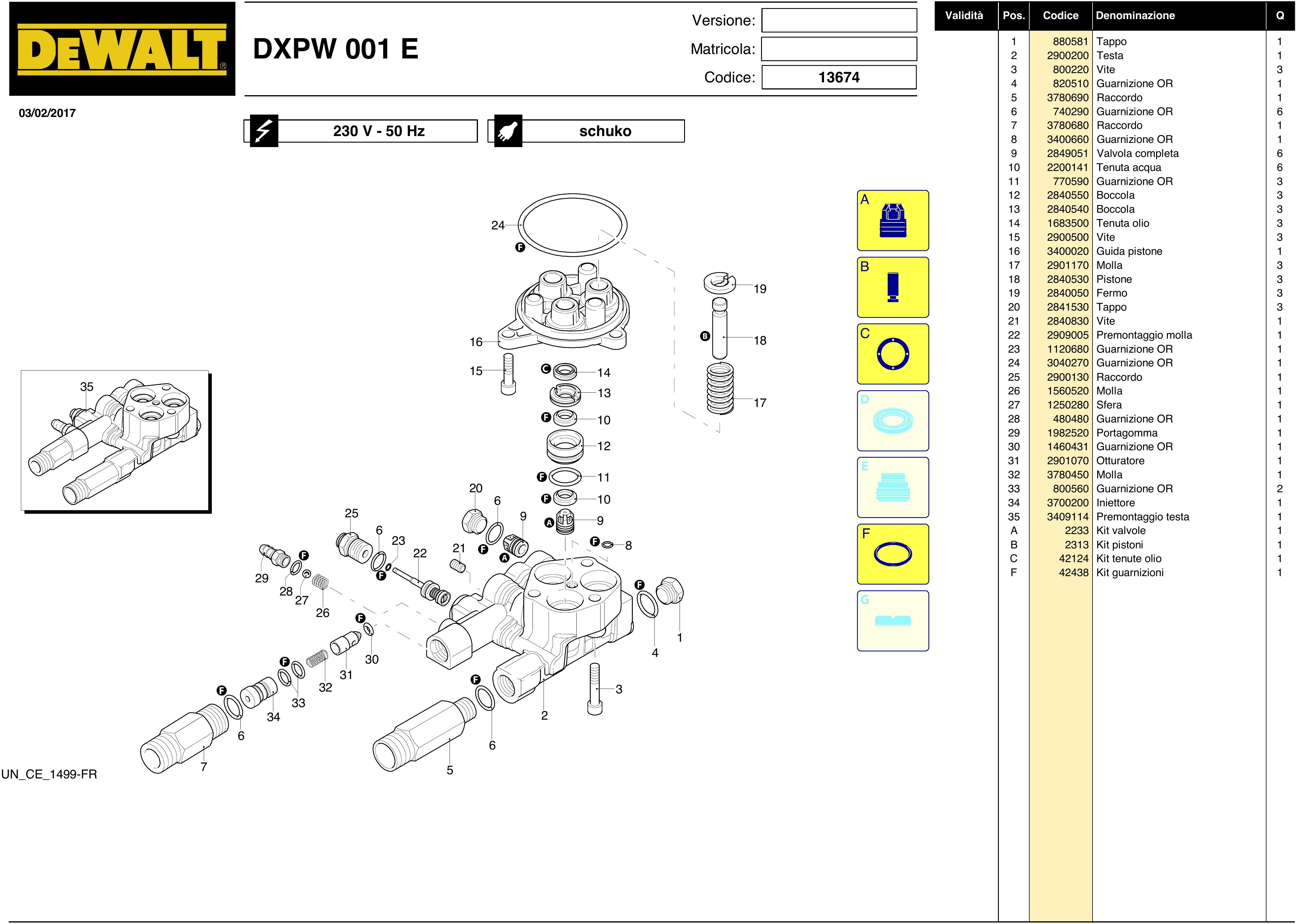

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
A
 photo_cameraImage coming soon 2233 Valve Kit €10.83
B
 photo_cameraImage coming soon 2313 Piston Kit €10.55
C
 photo_cameraImage coming soon 42124 Oil Seals Kit €7.33
F
 photo_cameraImage coming soon 42438 Seal Kit €8.67
1
 photo_cameraImage coming soon 880581 stopper €7.73
2
 photo_cameraImage coming soon 2900200 Top €49.14
3
 photo_cameraImage coming soon 800220 screw €2.26
4
 photo_cameraImage coming soon 820510 O-ring €5.63
5
 photo_cameraImage coming soon 3780690 CONNECTION €22.10
6
 photo_cameraImage coming soon 740290 O-ring €2.67
7
 photo_cameraImage coming soon 3780680 CONNECTION €20.04
8
 DeWalt DXPW001E O RING 3400660 DeWalt DXPW001E O RING €4.74
9
 photo_cameraImage coming soon 2849051 Complete Valve €2.99
10
 O-R mm 12x20 for Pressure Washers AR BC 210 - 333 - 353 2200141 O-R mm 12x20 for Pressure Washers AR BC 210 - 333 - 353 €2.41
11
 O-Ring mm 21.75x1.78 for Pressure Washers Annovi & Reverberi Series 5 770590 O-Ring mm 21.75x1.78 for Pressure Washers Annovi & Reverberi Series 5 €0.34
12
 photo_cameraImage coming soon 2840550 bushing €7.80
13
 photo_cameraImage coming soon 2840540 bushing €3.25
14
 Oil Seal mm 12x2x5/7" for Pressure Washers ARSG 1683500 Oil Seal mm 12x2x5/7" for Pressure Washers ARSG €2.54
15
 photo_cameraImage coming soon 2900500 Screw €2.26
16
 Piston Guide for Pressure Washers Annovi & Reverberi AR588-AR590 3400020 Piston Guide for Pressure Washers Annovi & Reverberi AR588-AR590 €20.19
17
 AR589 Spring 2901170 AR589 Spring €4.38
18
 photo_cameraImage coming soon 2840530 Piston €7.59
19
 AR589 Lock 2840050 AR589 Lock €2.18
20
 photo_cameraImage coming soon 2841530 PLUG €7.43
21
 photo_cameraImage coming soon 2840830 screw €7.24
22
 photo_cameraImage coming soon 2909005 Pre-Assembly Spring €19.23
23
 photo_cameraImage coming soon 1120680 O-Ring €1.54
25
 Pre-assembled Head Brass Fitting for Pressure Washer AR 585 2900130 Pre-assembled Head Brass Fitting for Pressure Washer AR 585 €10.82
26
 Annovi Reverberi Spring for AR747 1560520 Annovi Reverberi Spring for AR747 €1.02
27
 photo_cameraImage coming soon 1250280 sphere €2.67
28
 photo_cameraImage coming soon 480480 O-ring €5.63
29
 photo_cameraImage coming soon 1982520 Hose €6.27
30
 photo_cameraImage coming soon 1460431 O RING €4.53
31
 AR Pressure Washer 585 Shutter 2901070 AR Pressure Washer 585 Shutter €3.84
32
 DeWalt DXPW002E Spring 3780450 DeWalt DXPW002E Spring €2.64
33
 photo_cameraImage coming soon 800560 O-ring €1.59
34
 photo_cameraImage coming soon 3700200 PIPE €14.70
35
 photo_cameraImage coming soon 3409114 HEAD SA €102.30
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

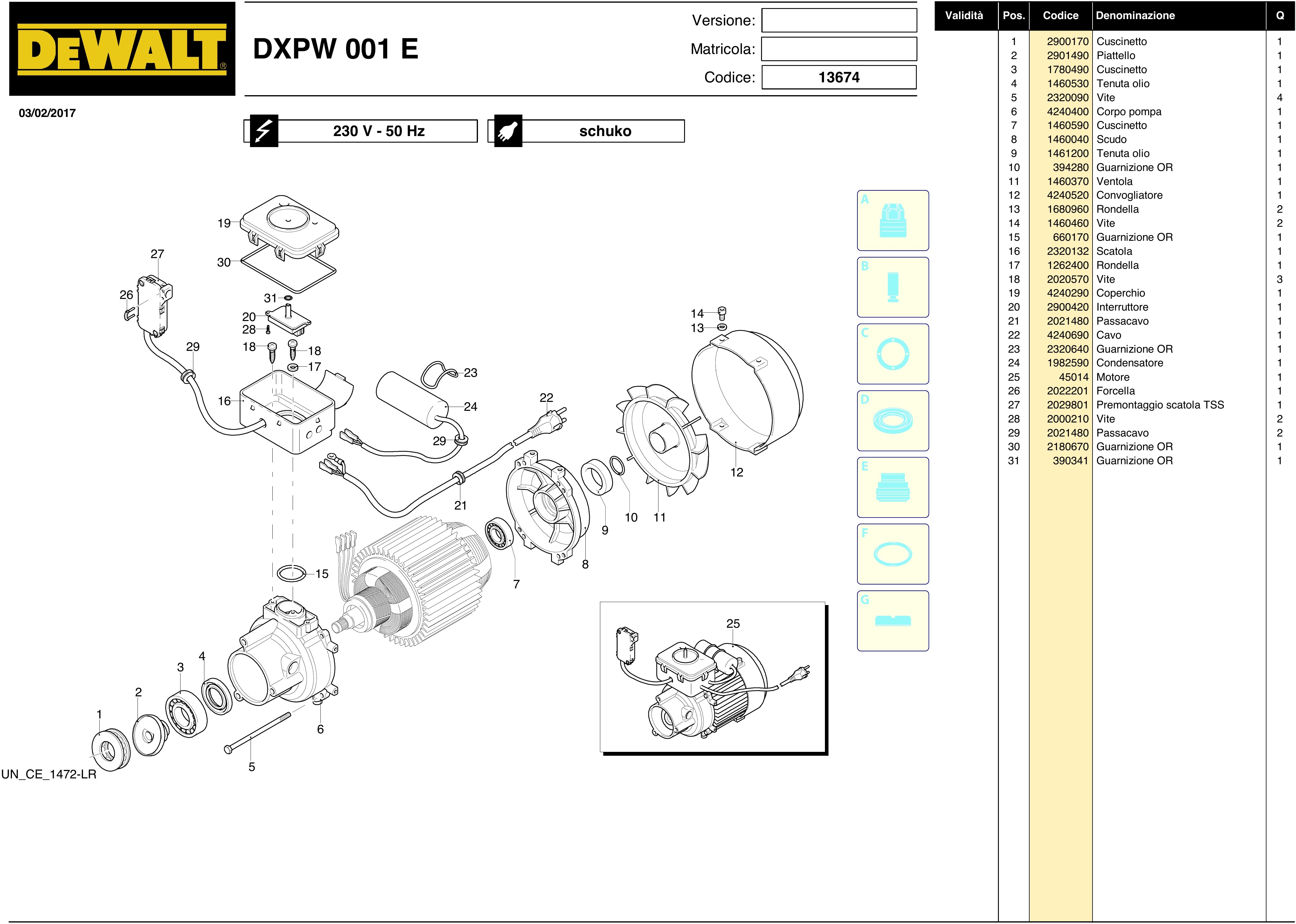

Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 Thrust Bearing for Pressure Washer DeWalt DXPW001E 2900170 Thrust Bearing for Pressure Washer DeWalt DXPW001E €20.36
2
 Plate for Pressure Washer DeWalt DXPW001E 2901490 Plate for Pressure Washer DeWalt DXPW001E €17.95
3
 Ball Bearing for Pressure Washer DeWalt DXPW001E 1780490 Ball Bearing for Pressure Washer DeWalt DXPW001E €20.36
4
 Oil Seal 25x42x7 for Pressure Washer DeWalt DXPW001E 1460530 Oil Seal 25x42x7 for Pressure Washer DeWalt DXPW001E €7.93
6
 photo_cameraImage coming soon 4240400 BODY €23.97
7
 photo_cameraImage coming soon 1460590 bearing €7.15
8
 photo_cameraImage coming soon 1460040 shield €23.19
9
 photo_cameraImage coming soon 1461200 oil seal €1.88
10
 O-Ring 12,42x1,78 for Pressure Washers AR BC 210 - 333 - 353 394280 O-Ring 12,42x1,78 for Pressure Washers AR BC 210 - 333 - 353 €0.53
11
 photo_cameraImage coming soon 1460370 fan €6.01 Not available for order
12
 photo_cameraImage coming soon 4240520 CONVEYOR €13.80
13
 photo_cameraImage coming soon 1680960 washer €1.51
14
 photo_cameraImage coming soon 1460460 screw €1.58
15
 photo_cameraImage coming soon 660170 O-ring €1.81
16
 photo_cameraImage coming soon 2320132 BOX €9.91
17
 photo_cameraImage coming soon 1262400 washer €1.73
18
 photo_cameraImage coming soon 2020570 screw €1.59
19
 photo_cameraImage coming soon 4240290 COVER €9.68
20
 photo_cameraImage coming soon 2900420 Switch €15.10
21
 photo_cameraImage coming soon 2021480 Grommet €4.16
22
 photo_cameraImage coming soon 4240690 POWER CABLE €25.45
23
 photo_cameraImage coming soon 2320640 O-Ring €1.93
24
 photo_cameraImage coming soon 1982590 Capacitor €19.88
26
 photo_cameraImage coming soon 2022201 fork €3.36
27
 photo_cameraImage coming soon 2029801 BOX €21.26
29
 photo_cameraImage coming soon 2021480 Grommet €4.16
30
 photo_cameraImage coming soon 2180670 O RING €3.18
31
 photo_cameraImage coming soon 390341 O-Ring €1.54
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

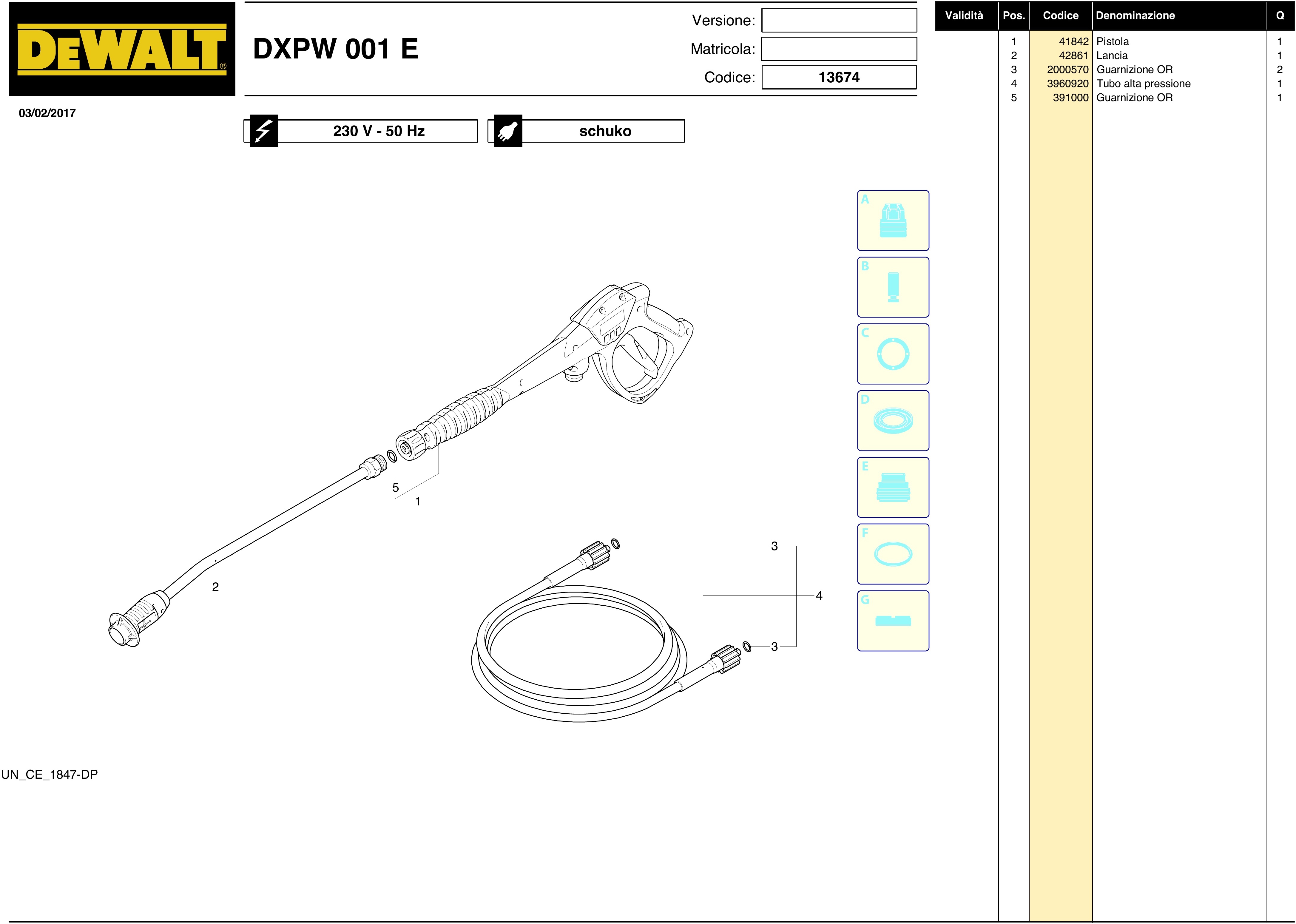

Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 Trigger Gun for Pressure Washer DeWalt DXPW001E 41842 Trigger Gun for Pressure Washer DeWalt DXPW001E €39.07
2
 photo_cameraImage coming soon 42861 LANCE €31.76
3
 OR 10x2 for Pressure Washer Annovi & Reverberi AR-ARSG HOT 2000570 OR 10x2 for Pressure Washer Annovi & Reverberi AR-ARSG HOT €1.78
4
 photo_cameraImage coming soon 3960920 HOSE €61.88
5
 photo_cameraImage coming soon 391000 O-Ring €4.73

Shipping and delivery information will be available shortly.

DeWalt Spare Parts for Pressure Washer DXPW001E

DeWalt original replacement parts for to replace broken parts for to fix Pressure Washer DXPW001E - 13674.

In the following table, look for the model of the Pressure Washer and the respective parts of the code.
DeWalt DXPW001E - 13674

Casing DXPW001E - 13674 Pag.1
# Part Num. Description
1 3960150 GUARD
2 3960100 HANDLE SA
3 2100300 SCREW
4 3960160 GUARD
5 3960190 GUARD
6 2440290 SCREW
7 3960840 WHEEL
8 1262790 HOSE
9 3969001 BASE SA
10 1341030 FILTER
11 3960140 GUARD
12 3960850 DOOR
13 2440280 SCREW
14 1470390 WASHER
15 1269115 HOSE SA
16 3960480 GUARD
17 3960210 BRACKET
18 2320190 SCREW
19 3960200 BRACKET
20 2000110 SCREW
21 3961010 GLAND
22 3082130 COUPLING SA
23 3960420 SPACER
24 2060200 SCREW
25 3960110 CASING
26 3960260 KNOB
27 3960130 GUARD
28 3960830 GUARD
29 3960120 GUARD
30 4240590 SCREW
31 4240540 FOOT
Pump DXPW001E - 13674 Pag.2
1 880581 PLUG
2 2900200 HEAD
3 800220 SCREW
4 820510 O RING
5 3780690 CONNECTION
6 740290 O RING
7 3780680 CONNECTION
8 3400660 O RING
9 2849051 VALVE
10 2200141 SEAL
11 770590 O RING
12 2840550 BUSHING
13 2840540 BUSHING
14 1683500 SEAL
15 2900500 SCREW
16 3400020 PISTON GUIDE
17 2901170 SPRING
18 2840530 PISTON
19 2840050 LOCK
20 2841530 PLUG
21 2840830 SCREW
22 2909005 PRE ASSEMBLY SPRING SA
23 1120680 O RING
24 3040270 O RING
25 2900130 CONNECTION
26 1560520 SPRING
27 1250280 BALL
28 480480 O RING
29 1982520 COUPLING
30 1460431 O RING
31 2901070 SHUTTER
32 3780450 SPRING
33 800560 O RING
34 3700200 PIPE
35 3409114 HEAD SA
A 2233 VALVE KIT
B 2313 PISTON KIT
C 42124 SEALS KIT
F 42438 GASKET SET
Motor DXPW001E - 13674 Pag.3
1 2900170 THRUST BEARING
2 2901490 PLATE
3 1780490 BALL BEARING
4 1460530 OIL SEAL
5 2320090 SCREW
6 4240400 BODY
7 1460590 BEARING
8 1460040 COVER
9 1461200 SEAL
10 394280 O RING
11 1460370 FAN
12 4240520 CONVEYOR
13 1680960 WASHER
14 1460460 SCREW
15 660170 O RING
16 2320132 BOX
17 1262400 WASHER
18 2020570 SCREW
19 4240290 COVER
20 2900420 SWITCH
21 2021480 GLAND
22 4240690 POWER CABLE
23 2320640 O RING
24 1982590 CAPACITOR
25 45014 MOTOR
26 2022201 FORK
27 2029801 BOX
28 2000210 SCREW
29 2021480 GLAND
30 2180670 O RING
31 390341 O RING
Accessories DXPW001E - 13674 Pag.4
1 41842 GUN SA
2 42861 LANCE
3 2000570 O RING
4 3960920 HOSE
5 391000 O RING
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s DeWalt websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to DeWalt brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
DeWalt DXPW001E - 13674
12 Items

Data sheet

Machine Type
Pressure Washer
SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N AR:
AR S/N START WITH ( 1 or 2 ) and have 5 DIGITS

Specific References

New

Download

Diagram DeWalt DXPW001E

Diagram DeWalt DXPW001E

Download (786.89KB)

You might also like

Plate for Pressure Washer DeWalt DXPW001E
Annovi Reverberi S.p.A. SKU: 2901490
Plate for Pressure Washer DeWalt DXPW001E
Plate for Pressure Washer DeWalt DXPW001E Genuine spare part DeWalt, Plate for Pressure Washer DeWalt DXPW001E - DXPW002E - DXPW002(A)E Part for the following products: -  Pressure Washer DeWalt DXPW001E - 13674 -  Pressure Washer...
on 7/10 Business Days Approx €17.95
Details
Thrust Bearing for Pressure Washer DeWalt DXPW001E
Annovi Reverberi S.p.A. SKU: 2900170
Thrust Bearing for Pressure Washer DeWalt DXPW001E
Thrust Bearing for Pressure Washer DeWalt DXPW001E Genuine spare part DeWalt, Thrust Bearing for Pressure Washer DeWalt DXPW001E - DXPW002E - DXPW002(A)E Part for the following products: -  Pressure Washer DeWalt DXPW001E - 13674 -...
on 7/10 Business Days Approx €20.36
Details
Ball Bearing for Pressure Washer DeWalt DXPW001E
Annovi Reverberi S.p.A. SKU: 1780490
Ball Bearing for Pressure Washer DeWalt DXPW001E
Ball Bearing for Pressure Washer DeWalt DXPW001E Genuine spare part DeWalt, Ball Bearing for Pressure Washer DeWalt DXPW001E - DXPW002E - DXPW002(A)E Part for the following products: -  Pressure Washer DeWalt DXPW001E - 13674 -...
on 7/10 Business Days Approx €20.36
Details
Oil Seal 25x42x7 for Pressure Washer DeWalt DXPW001E
Annovi Reverberi S.p.A. SKU: 1460530
Oil Seal 25x42x7 for Pressure Washer DeWalt DXPW001E
Oil Seal 25x42x7 for Pressure Washer DeWalt DXPW001E Genuine spare part DeWalt, Oil Seal 25x42x7 for Pressure Washer DeWalt DXPW001E - DXPW002E - DXPW002(A)E Part for the following products: -  Pressure Washer DeWalt DXPW001E - 13674...
on 7/10 Business Days Approx €7.93
Details
Trigger Gun for Pressure Washer DeWalt DXPW001E
Annovi Reverberi S.p.A. SKU: 41842
Trigger Gun for Pressure Washer DeWalt DXPW001E
Trigger Gun for Pressure Washer DeWalt DXPW001E Genuine spare part DeWalt, Trigger Gun for Pressure Washer DeWalt DXPW001E - DXPW002E - DXPW002(A)E Part for the following products: -  Pressure Washer DeWalt DXPW001E -  Pressure...
on 7/10 Business Days Approx €39.07
Details
DeWalt DXPW002E Spring
DeWalt Power Tools SKU: 3780450
DeWalt DXPW002E Spring
DeWALT Spring Compression for Pressure Washer DXPW002E, Genuine replacement part DeWALT, Spring Compression De.6,5x12x0,5 for Pressure Washer DXPW002E- MPX 160 RG - DXPW001E - DXPW003E. Part for the following items: - DeWalt...
AVAILABLE €2.64
Details
AR Pressure Washer 585 Shutter
Annovi Reverberi S.p.A. SKU: 2901070
AR Pressure Washer 585 Shutter
AR Shutter for Pressure Washer AR 585 Genuine Parts for Annovi Reverberi, non return Valve (Shutter) for Pressure Washer AR585 - MPX 150 HL - MPX 160 RBP - AR589. Part for the following products: - Annovi Reverberi 4590 - 24426 -...
Usually Ships in: 7/10 Business Days Approx. €3.84
Details
AR589 Spring
Annovi Reverberi S.p.A. SKU: 2901170
AR589 Spring
AR Spring for Pressure Washer AR589 Original Spare Part by Annovi Reverberi, Spring for pressure washers AR589 - DXPW002E - DXPW001E - SXFPW30IP-E. Part for the following items: - Annovi Reverberi 589 - 14989 - ARSG PRO CLEAN 150...
AVAILABLE €4.38
Details
AR589
Annovi Reverberi S.p.A. SKU: 2840050
AR589 Lock
AR Lock for Pressure Washer AR589 Original Spare Part by Annovi Reverberi, Lock for pressure washers AR589 - DXPW002E - DXPW001E - SXFPW30IP-E. Part for the following items: - Michelin MPX 200 THO - 25619 - Annovi Reverberi 589 -...
AVAILABLE €2.18
Details
DeWalt DXPW001E O RING
Annovi Reverberi S.p.A. SKU: 3400660
DeWalt DXPW001E O RING
DeWalt O RING for Pressure Washer DXPW001E Genuine spare part DeWalt, O RING for Pressure Washer DeWalt DXPW001E. Part for the following products: -  Pressure Washer DeWalt DXPW001E - 13674 - Code: 3400660
AVAILABLE €4.74
Details
Comments (0)
No customer reviews for the moment.
