Compa-OMS Spare Parts for Band Saw SC1735
€0.11
VAT included
Compa-OMS Spare Parts for Band Saw SC1735
Original spare parts for Compa-OMS for Portable Band Saw SC1735.
Compa-OMS Spare Parts for Band Saw SC1735
€0.11
VAT included
Compa-OMS Spare Parts for Band Saw SC1735
Original spare parts for Compa-OMS for Portable Band Saw SC1735.
settings
20 spare parts
description
2 exploded views
verified_user
Original Product
Manufacturer warranty included
support_agent
Technical Support
Our team helps you choose
Secure and guaranteed payments
20 spare parts

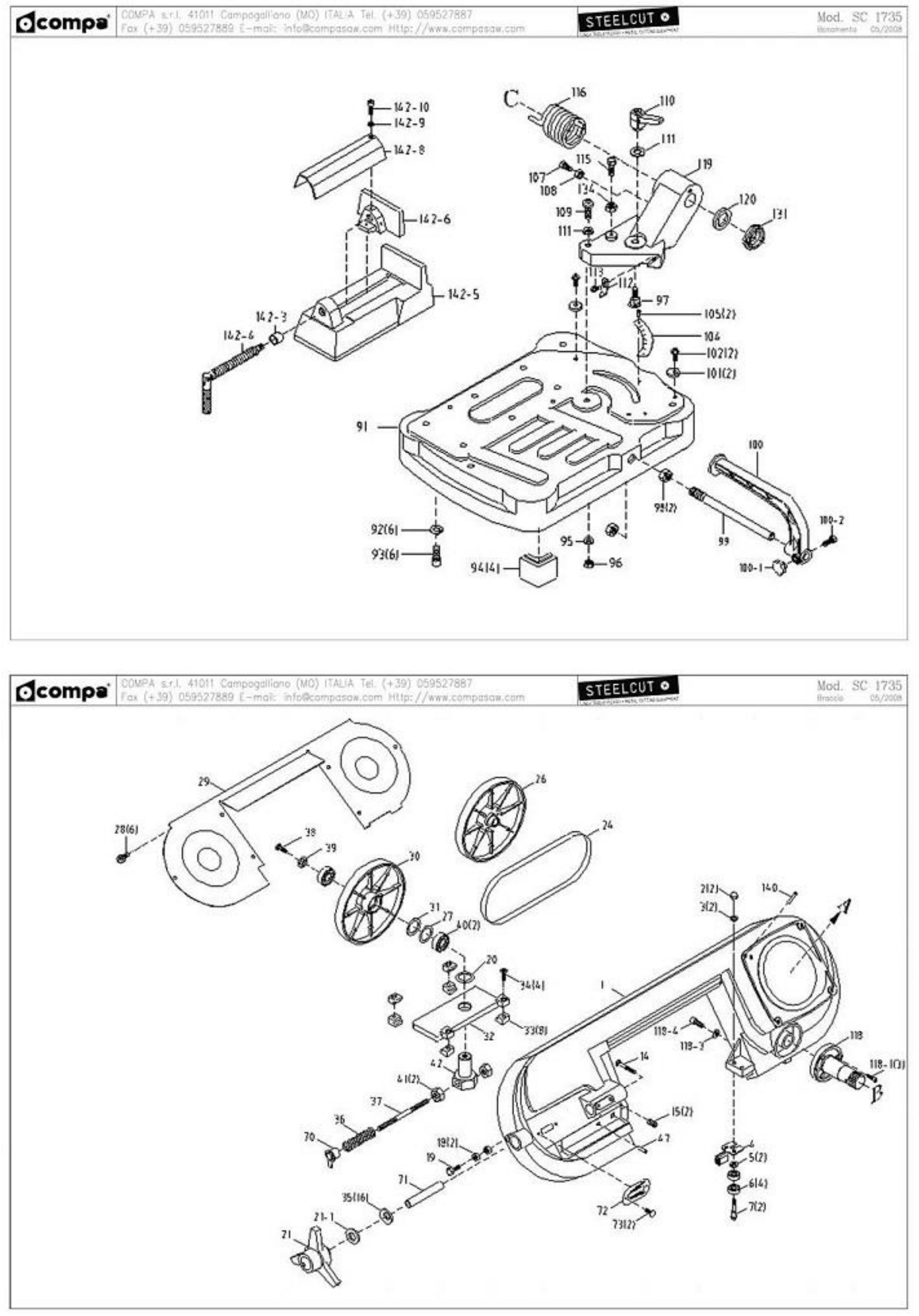

Page 1
zoom_in View exploded
| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
| photo_cameraImage coming soon | 001000 Accessori Motor | €4.63 | ||
|
651418-4 Switch Makita Makita ST115A-40 | €10.80 | ||
|
GD0800C Makita Spare Parts for Die Grinder GD0800C | €11.55 | ||
|
11
|
|
F14650-11 Ratchet Handle for Morticer Fox F14-650 | €12.90 | |
|
20
|
|
010200 Oil Sealing Ring 15x24x5 for Motorpump CM25 | €5.41 | |
|
32
|
|
F14650-32 Inner Connector for Morticer Fox F14-650 | €24.39 | |
|
36
|
|
F14650-36 Outer Connector for Morticer Fox F14-650 | €24.39 | |
|
40
|
|
020200 Spark Plug Joint Ass'y for Motorpumps CM 25-46-80-90 | €4.06 | Not available for order |
|
48
|
|
022030 Recoil Starter Assy for Motorpump CM 25 | €47.97 | Not available for order |
|
90
|
|
050410 Conrod Bushing for Motor CM 25 | €4.06 | Not available for order |
|
101
|
|
100080 Nut M14 Lock Disc for Angle Grinder Flex L 3709 | €9.71 | |
|
143
|
|
150410 Carburator Complete for Motorpump CM25 | €81.84 | |
|
154
|
|
200010 Snail Pump for Motor Pump CM 25 | €30.80 | |
|
180
|
|
220010 Carburator Intake Manifold for Motor Pumps CM 2546 N/UT | €17.37 | Not available for order |
|
189
|
|
240040 Backface Mechanical Seal for Motor Pump CM 25 | €9.35 | |
|
237
|
|
295030 Recoil Starter Hook for Motor Pump CM 25 | €4.44 | Not available for order |
|
272
|
photo_cameraImage coming soon | 310112 Nut M8 H5 UNI | €19.30 | |
|
274
|
photo_cameraImage coming soon | 310114 Flywheel nut | €11.94 | |
|
293
|
|
340010 Fuel Filter for Motor Pumps CM 25-46-80-90 | €2.02 | Not available for order |
Page 2
zoom_in View exploded
| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
59
|
|
F14650-59 Gas Lifting Arm for Morticer Fox F14-650 | €43.74 |
Informazioni sulle spedizioni e consegne saranno disponibili a breve.
Compa-OMS Spare Parts for Band Saw SC1735
Original spare parts for Compa-OMS for Portable Band Saw SC1735.In the following table, look for the model of the Band Saws and their spare part.
| BAND SAW SC 1735 | ||
| # | Part Num. | Description |
| 1 | SC 1735/001 | Frame x SC 1735 (13) |
| 2 | SC 1735/002 | Nut M6 x SC 1735 |
| 3 | SC 1735/003 | Spring washer M6 x SC 1735 |
| 4 | SC 1735/004 | Guide bracket x SC 1735 (13) |
| 5 | SC 1735/005 | Washer x SC 1735 |
| 6 | SC 1735/006 | Bearing x 1735 607-2RS SC (13) |
| 7 | SC 1735/007 | Eccentric shaft SC x 1735 (13) |
| 8 | SC 1735/008 | Knob x SC 1735 |
| 8-1 | SC 1735/008-1 | Washer x SC 1735 23 * 8.5-2 |
| 9 | SC 1735/009 | Adjustable bracket (front) x SC 1735 |
| 10 | SC 1735/010 | Bearing x SC 1735 264-2RS |
| 11 | SC 1735/011 | Pin x SC 1735 d.4x19.8L |
| 12 | SC 1735/012 | Washer x SC 1735 |
| 13 | SC 1735/013 | Blade guard (front) x SC 1735 |
| 14 | SC 1735/014 | Screw cart x SC 1735 M8X40L |
| 15 | SC 1735/015 | Allen screw with hexagon socket |
| 16 | SC 1735/016 | Locking clamp x SC 1735 |
| 17 | SC 1735/017 | Screw flat head Phillips |
| 18 | SC 1735/018 | Hex nut M6 x SC 1735 |
| 19 | SC 1735/019 | Screw T.E. x SC 1735 M6X30L |
| 20 | SC 1735/020 | Washer x SC 1735 |
| 21 | SC 1735/021 | Knob x SC 1735 |
| 21-1 | SC 1735/021-1 | Washer x SC 1735 26 * 10.5-3 |
| 22 | SC 1735/022 | Handle x SC 1735 |
| 22-1 | SC 1735/022-1 | Switch x SC 1735 |
| 23 | SC 1735/023 | Connecting tube x SC 1735 |
| 24 | SC 1735/024 | Lama x 1735 1735x13x0.9 SC 10 / 14T |
| 26 | SC 1735/026 | Driving wheel x SC 1735 |
| 27 | SC 1735/027 | Washer x SC 1735 |
| 28 | SC 1735/028 | Screw flat head Phillips |
| 29 | SC 1735/029 | Rear blade guard x SC 1735 |
| 30 | SC 1735/030 | Idler x SC 1735 |
| 31 | SC 1735/031 | Washer x SC 1735 |
| 32 | SC 1735/032 | Bracket Tension x SC 1735 |
| 33 | SC 1735/033 | Pressure plate x SC 1735 |
| 34 | SC 1735/034 | Screw flat head Phillips |
| 35 | SC 1735/035 | Spring 1735 x SC d.23X12.2X1.5t |
| 36 | SC 1735/036 | Spring 1735 x SC |
| 37 | SC 1735/037 | Bolt x SC 1735 |
| 38 | SC 1735/038 | Screw flat head Phillips |
| 39 | SC 1735/039 | Washer x SC 1735 |
| 40 | SC 1735/040 | Bearing x SC 1735 6204ZZ |
| 41 | SC 1735/041 | Hexagonal nut M10 x SC 1735 |
| 42 | SC 1735/042 | Tree x SC 1735 |
| 45 | SC 1735/045 | Cable SC 1735 x 220 |
| 46-1 | SC 1735/046-1 | Brush x SC 1735 |
| 46-3 | SC 1735/046-3 | Screw flat head Phillips |
| 46-4 | SC 1735/046-4 | Crankcase x SC 1735 |
| 46-5 | SC 1735/046-5 | Screw round head slotted |
| 46-7 | SC 1735/046-7 | Separator SC x 1735 |
| 46-8 | SC 1735/046-8 | Fan x SC 1735 |
| 46-9 | SC 1735/046-9 | Crankcase x SC 1735 |
| 46S | SC 1735/046S | Engine x 1735 SC 220 |
| 47 | SC 1735/047 | Roller pin x SC 1735 d.5X12L |
| 48 | SC 1735/048 | Screw round head slotted |
| 49 | SC 1735/049 | Spring washer x SC 1735 M3 |
| 50 | SC 1735/050 | Washer SC x 1735 M3 |
| 57 | SC 1735/057 | Allen screw with hexagon socket |
| 57-1 | SC 1735/057-1 | Allen screw with hexagon socket |
| 57-2 | SC 1735/057-2 | Allen screw with hexagon socket |
| 58 | SC 1735/058 | Bearing x SC 1735 HK1212 |
| 59 | SC 1735/059 | Washer x SC 1735 |
| 60 | SC 1735/060 | Gear x SC 1735 |
| 61 | SC 1735/061 | Bushing x SC 1735 6200ZZ |
| 62 | SC 1735/062 | Gear x SC 1735 |
| 63 | SC 1735/063 | Key x SC 1735 6X6X20L |
| 64 | SC 1735/064 | Bearing x SC 1735 6205-2RS |
| 65 | SC 1735/065 | Bushing x SC 1735 |
| 67 | SC 1735/067 | Gear x SC 1735 |
| 70 | SC 1735/070 | Marking ring voltage x SC 1735 |
| 71 | SC 1735/071 | Tube x SC 1735 |
| 72 | SC 1735/072 | Indication plate voltage x |
| 73 | SC 1735/073 | Screw round head slotted |
| 91 | SC 1735/091 | Swivel base x SC 1735 |
| 92 | SC 1735/092 | Washer Elatica SC 1735 x M8 |
| 93 | SC 1735/093 | Allen screw with hexagon socket |
| 94 | SC 1735/094 | Trolley x SC 1735 |
| 95 | SC 1735/095 | Spring washer x SC 1735 M10x27x3t |
| 96 | SC 1735/096 | Nut M10 x SC 1735 |
| 97 | SC 1735/097 | Screw cart x SC 1735 |
| 98 | SC 1735/098 | Hex nut x SC 1735 M14xP1.5 |
| 99 | SC 1735/099 | Auction set distance x SC 1735 |
| 100 | SC 1735/100 | Bracket set distance x SC 1735 |
| 100-1 | SC 1735/100-1 | Handle x SC 1735 |
| 100-2 | SC 1735/100-2 | Screw T.E. x SC 1735 M6X30L |
| 101 | SC 1735/101 | Washer x SC 1735 |
| 102 | SC 1735/102 | Screw round head slotted |
| 104 | SC 1735/104 | Indicator degrees x SC 1735 |
| 105 | SC 1735/105 | Rivet x SC 1735 d.2X6L |
| 107 | SC 1735/107 | Screw T.E. x SC 1735 M6x15L |
| 108 | SC 1735/108 | Hex nut M6 x SC 1735 |
| 109 | SC 1735/109 | Allen screw with hexagon socket |
| 110 | SC 1735/110 | Knob x SC 1735 |
| 111 | SC 1735/111 | Washer x sc 1735 M10X27X2t |
| 112 | SC 1735/112 | Washer indicator x SC 1735 |
| 113 | SC 1735/113 | Screw round head slotted |
| 115 | SC 1735/115 | Screw T.E. x SC 1735 M8X20L |
| 116 | SC 1735/116 | Spring 1735 x SC |
| 118 | SC 1735/118 | Tree x SC 1735 |
| 119-1 | SC 1735/118-1 | Allen screw with hexagon socket |
| 118-3 | SC 1735/118-3 | Washer x SC 1735 M10 |
| 118-4 | SC 1735/118-4 | Allen screw with hexagon socket |
| 119 | SC 1735/119 | Swivel arm x SC 1735 |
| 120 | SC 1735/120 | Washer x SC 1735 |
| 122 | SC 1735/122 | Power cable x SC 1735 |
| 123 | SC 1735/123 | Adjusting nut cable x SC 1735 |
| 124 | SC 1735/124 | Screw round head slotted |
| 126S2 | SC 1735/126S | Group switch x SC 1735 |
| 131 | SC 1735/131 | Hex nut x SC 1735 M30XP1.5 |
| 134 | SC 1735/134 | Hexagon nut M8 x SC 1735 |
| 140 | SC 1735/140 | Pin x SC 1735 d.6X20L |
| 142S | SC 1735/142S | Complete vise x SC 1735 |
| 160 | SC 1735/160 | Star washer x SC 1735 M5 |
| 161 | SC 1735/161 | Screw round head slotted |
| 46-10 | SC 1735/46-10 | Screw round head slotted |
| 46-11 | SC 1735/46-11 | Lid for gearbox |
| 46-2S | SC 1735/46-2S | Group motorotore-Tree motorotore- |
| 46-6S | SC 1735/46-6S | Electronic card 1735 |
| 23 | SC 225/023 | Ingraggio tree blade SC225 |
| 22 | SC 225/22 | auction link |
| 25 | SC 225/25 | Handle complete interr. and micro |
| 44 | SC 225/44 | Hydraulic pump SC 225 |
| 80 | SC 225/80 | Group arrest joke (63-64-65-66) |
| 81 | SC 225/81 | Fuck Allen H.14 mm |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Compa-OMS websites, which we consider as reliable.Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice.We strongly recommend using the published information as a basic information subject to Compa-OMS brand review. Please refine the important parameters by the selling assistant when making a purchase.All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
