Compa-OMS Spare Parts for Mitre Saw Blue-line 250-300I
€10.12
VAT included
Compa-OMS Spare Parts for Mitre Saw Blue-line 250-300I
Compa-OMS original spare parts for to replace broken parts for to fix Mitre Saw Blue-line 250 I - Blue-line 300 I.
Compa-OMS Spare Parts for Mitre Saw Blue-line 250-300I
€10.12
VAT included
Compa-OMS Spare Parts for Mitre Saw Blue-line 250-300I
Compa-OMS original spare parts for to replace broken parts for to fix Mitre Saw Blue-line 250 I - Blue-line 300 I.
settings
94 spare parts
description
2 exploded views
verified_user
Original Product
Manufacturer warranty included
support_agent
Technical Support
Our team helps you choose
Secure and guaranteed payments
94 spare parts
Page 1

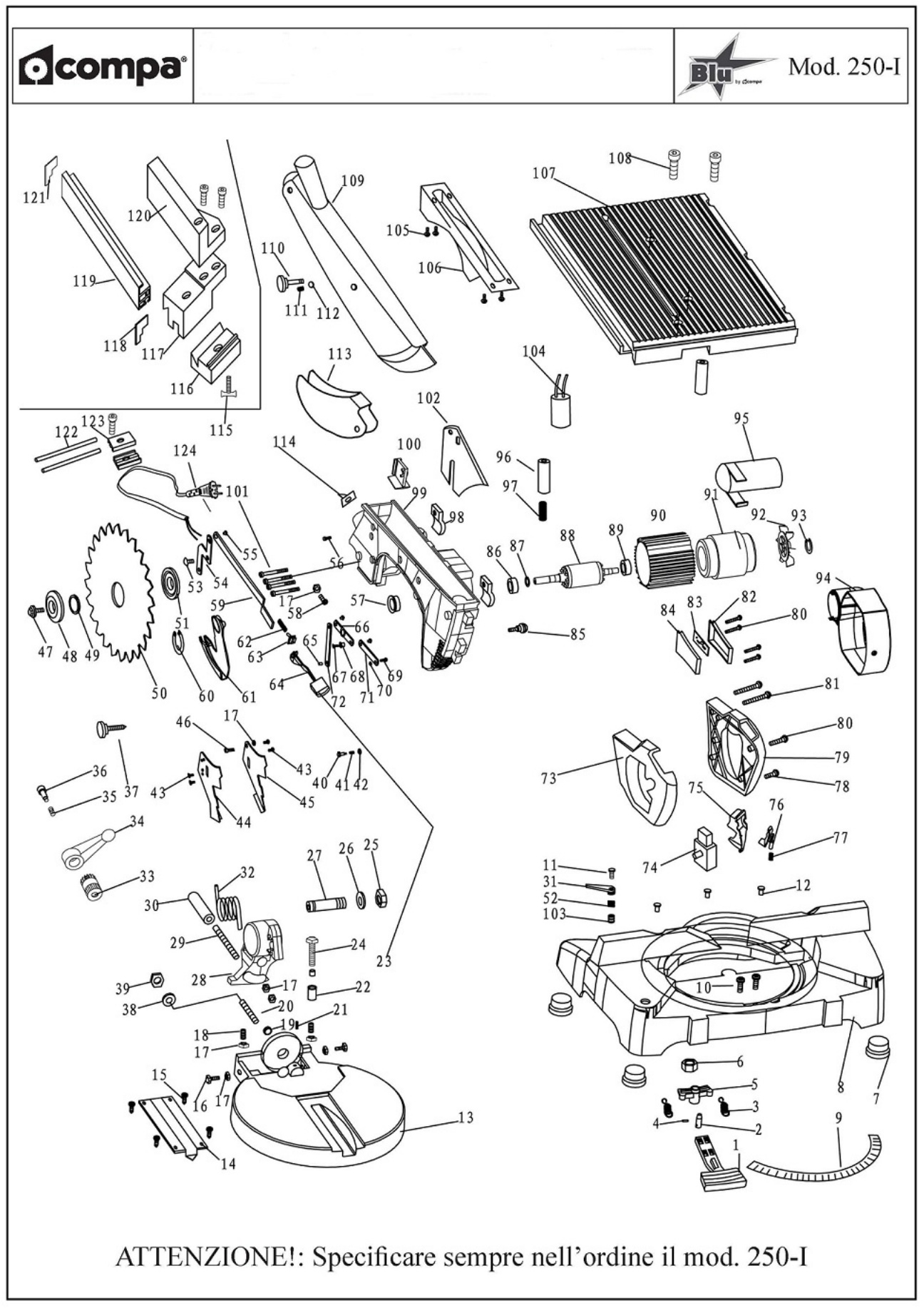

zoom_in View exploded
local_shipping Usually Ships in: 10 BUSYNESS DAYS
Page 2
local_shipping Usually Ships in: 10 BUSYNESS DAYS
Informazioni sulle spedizioni e consegne saranno disponibili a breve.
Compa-OMS Spare Parts for Mitre Saw Blue-line 250-300I
Compa-OMS original spare parts for to replace broken parts for to fix Mitre Saw Blue-line 250 I - Blue-line 300 I.In the following table, look for the model of the Saws and their spare part.
| Mitre Saw BLUE LINE 250 Pag.1 |
||
| # | Part Num. | Description |
| 1 | BL250I.001 | Lever locking carousel |
| 9 | BL250I.009 | Measuring rod for stand |
| 14 | BL250I.014 | Insert table BL250 |
| 28 | BL250I.028 | Support arm BL250 |
| 37 | BL250I.037 | Knob conical tip bloccassio arm |
| 44 | BL250I.044 | conveyor Dx |
| 45 | BL250I.045 | conveyor Left |
| 48 | BL250I.048 | Outer flange BL250I |
| 51 | BL250I.051 | Inner flange BL250I |
| 61 | BL250I.061 | Casing blade |
| 62 | BL250I.062 | Spring release lever BL250I |
| 63 | BL250I.063 | Button release lever BL250I |
| 64 | BL250I.064 | Biella Group release lever BL250I |
| 73 | BL250I.073 | Semi-shell Left handle B250 |
| 74 | BL250I.074 | Switch BL250I / BL300I |
| 79 | BL250I.079 | Semi-shell Dx handle B250 |
| 83 | BL250I.083 | Electronic card BL250I |
| 86 | BL250I.086 | Bearing 6203 ZZ |
| 89 | BL250I.089 | Bearing 6201 ZZ |
| 91 | BL250I.091 | The wound stator BL 250 |
| 92 | BL250I.092 | fan BL250I |
| 94 | BL250I.094 | motor fan cover |
| 96 | BL250I.096 | Column |
| 97 | BL250I.097 | Return spring shelf BL250I |
| 99 | BL250I.099 | P.ta arm blade |
| 102 | BL250I.102 | riving knife |
| 104 | BL250I.104 | condenser |
| 106 | BL250I.106 | Protection undercounter BLUE250 |
| 107 | BL250I.107 | Top shelf Blueline 250 |
| 108 | BL250I.108 | Allen screw M6x16 |
| 109 | BL250I.109 | Protection upper blade |
| 160 | BL250I.160 | Group housing BL250I (61-72-71-66) |
| 161 | BL250I.161 | Group release lever arm BL250I |
| 162 | BL250I.162 | Group complete line BL250I |
| 163 | BL250I.163 | Group accessories (libr, sping, prot.sup |
| Mitre Saw BLUE LINE 300 Pag.2 |
||
| 1 | BL300I.001 | Release lever table |
| 2 | BL300I.002 | Pin positioning table |
| 3 | BL300I.003 | Spring lever table |
| 5 | BL300I.005 | Bushing pin positioning table |
| 7 | BL300I.007 | Rubber feet BL300I |
| 8 | BL300I.008 | Basement worked BLUELINE 300 |
| 9 | BL300I.009 | Scale BL 300I |
| 13 | BL300I.013 | turntable |
| 14 | BL300I.014 | Flat closing carousel |
| 23 | BL300I.023 | Button release arm |
| 28 | BL300I.028 | Support arm BL300I |
| 30 | BL300I.030 | spacer BL300I |
| 32 | BL300I.032 | torsion spring |
| 37 | BL300I.037 | Knob locking arm BL300I |
| 40 | BL300I.040 | Bolt M5 x 26 |
| 41 | BL300I.041 | Spring release crankcase |
| 42 | BL300I.042 | nut M5 |
| 44 | BL300I.044 | Semi conveyor SX BL300I |
| 45 | BL300I.045 | Semi conveyor DX BL300I |
| 47 | BL300I.047 | Brug. f.sega SX |
| 48 | BL300I.048 | Outer flange saw BL300 |
| 49 | BL300I.049 | Reduction ring BL300I |
| 51 | BL300I.051 | Inner flange BL300I |
| 53 | BL300I.053 | Screw fulcrum lever release BL300I |
| 54 | BL300I.054 | Short lever arm unlocking BL300 |
| 59 | BL300I.059 | Long lever arm unlocking BL300 |
| 61 | BL300I.061 | Casing blade BL300I |
| 62 | BL300I.062 | Spring release lever BL300 |
| 63 | BL300I.063 | Button release lever BL300I |
| 64 | BL300I.064 | Release lever arm |
| 73 | BL300I.073 | Handle molding Left tronc. Blue line |
| 74 | BL300I.074 | switch |
| 75 | BL300I.075 | Actuating lever switch |
| 76 | BL300I.076 | Safety button |
| 77 | BL300I.077 | Spring safety button |
| 79 | BL300I.079 | Handle molding Dx tronc. Blue line |
| 82 | BL300I.082 | Arm blade |
| 84 | BL300I.084 | Casing electronic board |
| 88 | BL300I.088 | engine BL300I |
| 90 | BL300I.090 | Motor housing BL300I |
| 91 | BL300I.091 | stator BL300I |
| 92 | BL300I.092 | fan motor |
| 94 | BL300I.094 | Fan cover BL300I |
| 95 | BL300I.095 | condenser |
| 96 | BL300I.096 | Box for details |
| 98 | BL300I.098 | Box for details |
| 99 | BL300I.099 | Return spring shelf BL300I |
| 100 | BL300I.100 | Column shelf BL300I |
| 103 | BL300I.103 | Electronic card Blueline |
| 104 | BL300I.104 | Blue capacitor 250/300-I |
| 106 | BL300I.106 | Lower protection plan BL315I |
| 107 | BL300I.107 | Top shelf Blueline |
| 109 | BL300I.109 | Superior protection shelf |
| 116 | BL300I.116 | Blocc.curs terminal. sq. BL300I |
| 150 | BL300I.150 | Spring for brake |
| 151 | BL300I.151 | Patiglia brake |
| 160 | BL300I.160 | Group levers crankcase BL300 (61-66-71-72) |
| 161 | BL300I.161 | Lever R.63 M8 BL300 |
| 162 | BL300I.162 | Group upper bracket BL300I |
| 163 | BL300I.163 | Complete engine BLUELINE 300I |
| 164 | BL300I.164 | An assembly BL300I |
| 165 | BL300I.165 | Group BL300I release lever (54-59) |
| 166 | BL300I.166 | Kit lever blade guard |
| 307 | BL300I.307 | |
