Compa-OMS Spare Parts for Professional Mitre Saw TC 10
Compa-OMS Original spare parts at attractive prices never seen on the web, we are a licensed service center with a repair service able to quickly solve the maintenance or repair any issues for Professional
Mitre Saw TC 10.

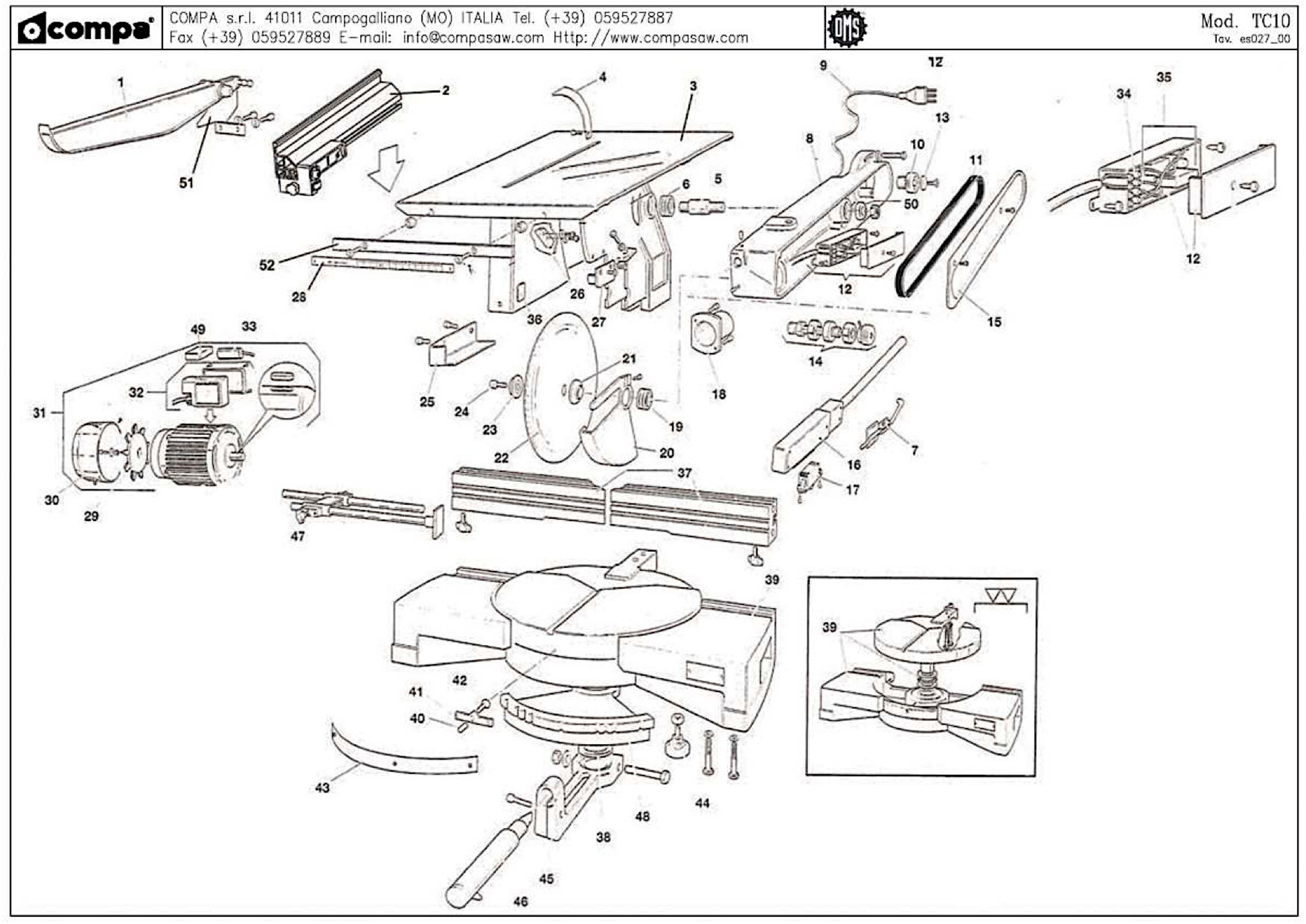

In the following table, look for the model of the Professional Saws and their spare part.
| Professional Mitre Saw TC 10 |
| # |
Description |
Part Num. |
| 1 |
Blade Upper Guard Assy |
KIT23030030COM |
| 1 |
Upper Guard |
23030030 |
| 1 |
Spring locking pin for protection |
23010240 |
| 1 |
Return spring protection |
0335 |
| 1 |
Knob lock protection |
0348 |
| 1 |
Protective inner blade |
23030040 |
| 2 |
upper bracket |
KIT0395 |
| 2 |
Bracket upper shelf |
0365 |
| 2 |
Support bracket |
0386 |
| 2 |
sheet |
0366 |
| 2 |
Knob locking bracket |
23030240 |
| 3 |
fixed arm |
800038-01 |
| 4 |
dividing knife |
800094-01 |
| 5 |
Knuckle pin head |
800171-00 |
| 6 |
Axial bearing 51104 (20 x 35 x 10) |
800289-01 |
| 7 |
Complex lever release |
KIT012001 |
| 7 |
Support release lever |
402448-00 |
| 7 |
Release lever |
402446-00 |
| 7 |
clothespin |
402445-00 |
| 36 |
Stop plate |
402447-00 |
| 8 |
Arm holder TC10 |
800021-00 |
| 9 |
cable |
0216 Mono |
| 10 |
motor pulley |
800174-02 |
| 11 |
Belt POLY - V - J5 - SV.711 |
800121-00 |
| 12 |
Cable Box |
801031-01 |
| 13 |
Washer for pulley |
800187-00 |
| 14 |
Group tree blade
Shaft blade |
KIT005009
800164 02 |
| 14 |
external spacer |
800189 01 |
| 14 |
internal spacer |
800188 01 |
| 14 |
bearing 6203-2Z |
2080 |
| 14 |
driven pulley |
800177-00 |
| 15 |
belt cover |
800081-00 |
| 16 |
handle assembly |
KIT013002 |
| 16 |
Semimpugnatura Left |
800080 02 |
| 16 |
Semimpugnatura tube |
800080-00 |
| 17 |
switch |
800682-00 |
| 18 |
conveyor |
800062-00 |
| 19 |
61904 2RS Bearing housing for Mobile |
801327-00 |
| 20 |
shelter blade |
801310-00LAV |
| 21 |
inner flange |
0944-01LAV |
| 22 |
blade |
vedi accessori |
| 23 |
outer flange |
0944 |
| 24 |
Fixing screw blade |
0228 |
| 25 |
Protection L Left |
801295-01 |
| 26 |
Cam for moving away |
801342-00 |
| 27 |
The Right to Protection |
801294-01 |
| 28 |
nameplate graph |
800249-00 |
| 29 |
fan |
801659-00 |
| 30 |
Fan cover |
801660-00 |
| 31 |
complete engine |
801505-00 |
| 32 |
box capacitor holder |
801287-01 |
| 33 |
condenser |
800090-00 |
| 34 |
Terminal block |
| 35 |
Electronic Board OMS TC10/TC14 |
401622-01 |
| 37 |
couple gibs |
KIT003003 |
| 37 |
Left bracket |
800154 01 |
| 37 |
Right bracket |
800154-00 |
| 37 |
knob M6x15 |
800963-00 |
| 38 |
thrust bearing |
| 38 |
Cage AXK axial 3552 |
800293 02 |
| 38 |
Turntable AS 3552 |
800293 01 |
| 39 |
Stand complete |
KIT001005 |
| 39 |
basement |
800032-00 |
| 39 |
turntable |
800040-00 |
| 39 |
thrust bearing |
800293 02 |
| 40 |
Grain UNI 5923 M8x16 |
| 41 |
nameplate index |
800245-00 |
| 42 |
Locking pawl |
800686-00 |
| 43 |
graduated plate |
800244-00 |
| 44 |
Foot log |
801333-00 |
| 45 |
Overall arm displacement degrees |
800051-00 |
| 46 |
Complete handle displacement degrees |
KIT002001 |
| 46 |
Hose handle |
800052-00LAV |
| 46 |
lever |
800078-00 |
| 46 |
fork |
800127-00 |
| 46 |
tie rod M6 |
800214-00 |
| 46 |
spring |
800099-01 |
| 46 |
fattener |
800139-00 |
| 46 |
selector |
800213 01 |
| 46 |
Cap for tube |
800086-00 |
| 47 |
Full log
rod 012x400 |
KIT004001
800507-00 |
| 47 |
Plastic catch |
800057 01 |
| 47 |
rod 010x300 |
800057 02 |
| 47 |
binoculars |
800058-00 |
| 47 |
knob M6x15 |
800963-00 |
| 48 |
sector grooved |
800054-00 |
| 49 |
rectifier |
801462-00 |
| 50 |
Tapered roller bearing |
800291-01 |
| 51 |
Support superior protection |
801292-01 |
| 52 |
Guide to the upper bracket |
800207-01 |
