| Doublematic 400 Convert |
| 0117 |
Galvanized washer base |
| 0187 |
Autolubrifate bronze bushing 16x18x30 |
| 0222 |
thrust bearing 51100 |
| 0228 |
HEX SOCKET HEAD M10x25 SX Zn |
| 0230 |
Bearing 6305 2RS (mm.25x62x17) |
| 0546 |
Handle snap KP55 M8x50 (0155D50) |
| 0616 |
thrust bearing 51115 x BIG QUALITY |
| 13120640 |
Turntable AS1528 |
| 13150290 |
Locking knob cart d.40-M8x75 |
| 23010110 |
Washer preformed base x 2300 |
| 23010320 |
Index graduated sector 2300/3000/3500 |
| 23010400 |
Bush to get up lever cover 2300 |
| 23020090 |
Rotella x carter saw shelter |
| 35010050 |
Screw Umbrako stem rettif.d.10x80 M8 |
| 35010140 |
Bushing sintered iron 10x16x20 |
| 35010145 |
Sintered bush 10-16-32 |
| 35010295 |
Conveyor Sega Doublematic 350 |
| 35010350 |
Spacer attack micro |
| 35020111 |
Driven pulley d.48x8jf.17x6 L.30 + ffm8 |
| 35020121 |
Motor pulley 3500/4000 Doublematic |
| 35020230 |
Measuring rod by sector 3500 |
| 35020235 |
Dipstick Doublematic DX 350 |
| 35020273 |
Biella pneumatic arm |
| 35020370 |
Pipe nut M16 |
| 35020390 |
Plate for micro descent |
| 35020392 |
Plate for micro descent |
| 35020420 |
Poly-V belt SV. = 914mm Sez.'J '8 nerv. |
| 35020440 |
Screw for Idler 3500/4000 / DOUBLEM |
| 36010060 |
Insert blade carousel DX |
| 36010065 |
Insert blade carousel SX |
| 36010088 |
Stand universal cutting mm.3200 |
| 36010093 |
Foot new Doublematic 350 |
| 36010103 |
Push-button |
| 36010105 |
Plate adjustment button panel |
| 36010110 |
Profile guide sliding keypad |
| 36010115 |
Closing cap profiled Slip. |
| 36010120 |
Slide, polyethylene |
| 36010125 |
Bearing 608 coated nylon |
| 36010148 |
Line translation moving head mm.3200 |
| 36010170 |
spacer |
| 36010181 |
Plate support bracket DX 45ø D350 |
| 36010186 |
Plate support bracket SX 45ø D350 |
| 36010191 |
Plate support bracket DX 90ø D350 |
| 36010196 |
Plate support squdretta SX 90ø D350 |
| 36010200 |
Measuring rod horizontal rotation 350 |
| 36010211 |
Index table rotation again |
| 36010240 |
Base plate locking FIXED |
| 36010288 |
Scroll bar mm.3200 d.50 |
| 36010310 |
Register brass M12x50 conical tip |
| 36010320 |
Spacer block X support brackets |
| 36010470 |
Flyer translation VSI D.160 / 12 01442F |
| 36010570 |
Label prespaziata mod.350 |
| 36010591 |
Front drive pulley (version d.50) |
| 36010601 |
Rear drive pulley (version d.50) |
| 36010611 |
Pulley neutral (version d50) |
| 36010620 |
Flange axis motorized (flyer) |
| 36010630 |
Flange axis crowds |
| 36010661 |
Version spacer bars d.50 |
| 36010681 |
Motorized shaft (vers.barre d.50) |
| 36010691 |
Idler shaft log (vers.barre d.50) |
| 36010700 |
Bearing 6302 -2Z |
| 36010711 |
Eccentric bushing axis motorized |
| 36010720 |
Needle bearing AXK 1528 |
| 36010730 |
Bushing 15x17x15 DU1515 |
| 36015180 |
Holder tube cables d.350 |
| 36030322 |
Handle snap KP-P79 M12x40 BRASS |
| 40010280 |
Lever get up carter 4000 |
| 40010300 |
conveyor 4000 |
| 40010400 |
Pin lever to get up carter |
| 40020041 |
Spacer saw 400 d.40x21,5 |
| 40020400 |
Spacer bar cover 4000 |
| 40020460 |
Dust Strip linear 65mm. |
| 42010050 |
Foot x M16x180 Doublematic |
| 42010070 |
Grain M12x100 stared. scroll bars |
| 42010150 |
Label prespaziata Doublematic |
| 42015094 |
Bearing 6200 2RS |
| 42015095 |
Bridge handle f.p.diam.8 int.117 |
| 42015096 |
Targa buttons RAW BE PAINTED |
| 42015098 |
Support cables fixed base x Doublematic |
| 42015099 |
Cable support mobile base x Doublematic |
| 42015290 |
Attack to support pneumatic clamps Doublematic |
| 42017031 |
Jack fulcrum arm |
| 42017040 |
Plate door stop 90ø vertical |
| 42017090 |
Auction vertical pressure |
| 42017100 |
Support vertical pressure |
| 42017220 |
Raschiabarre |
| 42017460 |
Pulley Vertical x Dublematic |
| 42017470 |
Pulley bolt upright |
| 42017480 |
Spacer vertical axis Doublematic |
| 42017520 |
protective arm |
| 42020080 |
Circlip compensation LMKAS D.72 int. |
| 42025010 |
Bearing 32004X complete with rings |
| 42027120 |
Wall support 4000 / Doublematic |
| 42027150 |
Tree saw Dx x mod. Dublematic |
| 42027155 |
Tree saw left SX 4000 + Dublematic |
| 42027170 |
Handle with hole 01MPV |
| 42037900 |
Chain® 4m (01560AR50) 560A60R50 |
| 42037910 |
Female connection CAT560 (01560AF) |
| 42037920 |
Nipple CAT560 (01560 AM) |
| 40020020 LAV |
Carter worked transmission 4000 |
| 40020030 LAV |
Carter saw protection 4000 / DOUBLE WORKED |
| 40020370 LAV |
Washer stops blade 4000 WORKED |
| 40020380 LAV |
Washer drag blade 4000 LAVORAT |
| 42020030 LAV |
Carter saw protection Doublematic WORKED |
| FIS00042 |
Fork ISO M16x1.5 |
| FIS00050 |
Hinge femm.ISO d.050 c / pin |
| KIT016003 |
Group eccentric bushings c / lever D.MAT.350 |
| VTN00001 |
Venturi TA00330 |
| 0133/001 |
Roller bearing d.4x22 |
| 0542LAV |
Support vise 4000 worked KCL00248 |
| 1008TRIF.FREN |
Mot.HP3 2p V.380 / 50 B14 H90 + brake |
| 35020450 |
Label Security 3500/4000 / DOUBL. ING |
| 35020451 |
Label Security 3500/4000 / DOUBL. |
| 42026010 LAV |
Arm WORKED Dx x mod.DOUBLEMATIC |
| 42026015 LAV |
Arm Worked SX x Doublematic |
| SER 3311 |
Cylinder vertical vice Doublematic |
| SER02327 |
Valve with fittings |
| SER 3283 |
Cylinder horizontal vice Doublematic |

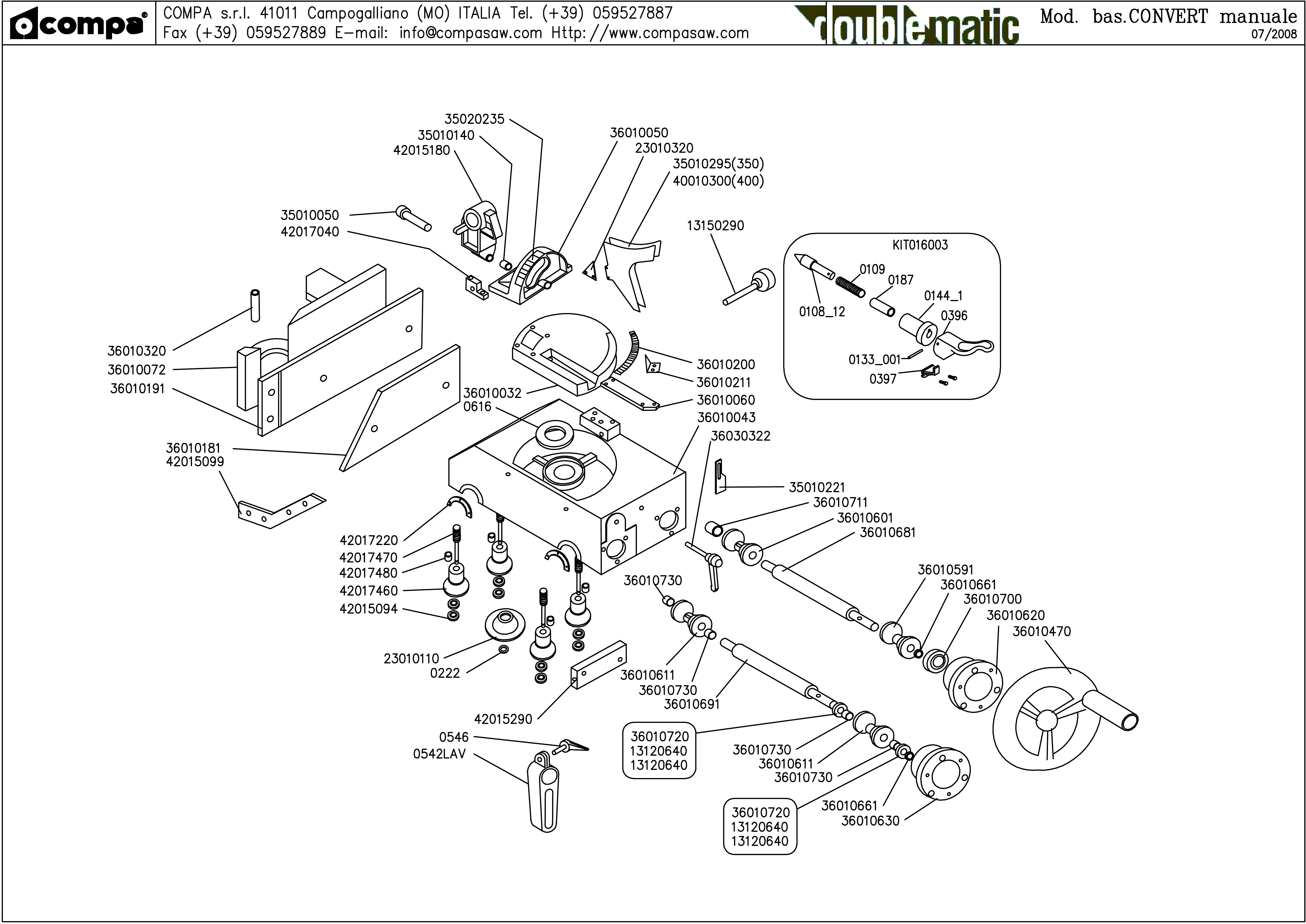

| Doublematic 400 Convert Motorized |
| 0117 |
Galvanized washer bas.to |
| 0187 |
Lubricated bronze bushing 16x18x30 |
| 0222 |
thrust bearing 51100 |
| 0228 |
HEX SOCKET HEAD M10x25 SX Zn |
| 0230 |
Bearing 6305 2RS (mm.25x62x17) |
| 0546 |
Handle snap KP55 M8x50 (0155D50) |
| 0616 |
Reggisp.51115 x BIG QUALITY |
| 13120640 |
Turntable AS1528 |
| 13150290 |
Locking knob cart d.40-M8x75 |
| 23010110 |
Washer Drawn x bas.to 2300 |
| 23010320 |
Index graduated sector 2300/3000/3500 |
| 23010400 |
Bush to get up lever cover 2300 |
| 23020090 |
Rotella x carter saw shelter |
| 35010050 |
Screw Umbrako stem rettif.d.10x80 M8 |
| 35010140 |
Bushing sintered iron 10x16x20 |
| 35010145 |
Sintered bush 10-16-32 |
| 35010295 |
Conveyor Sega Doublematic 350 |
| 35010350 |
Spacer attack micro |
| 35020111 |
Driven pulley d.48x8jf.17x6 L.30 + ffm8 |
| 35020121 |
Motor pulley 3500/4000 Doublematic |
| 35020230 |
Measuring rod by sector 3500 |
| 35020235 |
Dipstick Doublematic DX 350 |
| 35020273 |
Biella pneumatic arm |
| 35020370 |
Pipe nut M16 |
| 35020390 |
Plate for micro descent |
| 35020392 |
Plate for micro descent |
| 35020420 |
Poly-V belt SV. = 914mm Sez.'J '8 nerv. |
| 35020440 |
Screw for Idler 3500/4000 / DOUBLEM |
| 35020450 |
Label Security 3500/4000 / DOUBL. ING |
| 35020451 |
Label Security 3500/4000 / DOUBL. |
| 36010060 |
Insert blade carousel DX |
| 36010065 |
Insert blade carousel SX |
| 36010088 |
Stand universal cutting mm.3200 |
| 36010093 |
Foot new Doublematic 350 |
| 36010103 |
Push-button |
| 36010105 |
Plate adjustment button panel |
| 36010110 |
Profile guide sliding keypad |
| 36010115 |
Closing cap profiled Slip. |
| 36010120 |
Slide, polyethylene |
| 36010125 |
Bearing 608 coated nylon |
| 36010148 |
Line translation moving head mm.3200 |
| 36010170 |
spacer |
| 36010181 |
Plate support bracket DX 45ø D350 |
| 36010186 |
Plate support bracket SX 45ø D350 |
| 36010191 |
Plate support bracket DX 90ø D350 |
| 36010196 |
Plate support squdretta SX 90ø D350 |
| 36010200 |
Measuring rod horizontal rotation 350 |
| 36010211 |
Index table rotation again |
| 36010221 |
Index base offset Mobile Doublemat |
| 36010240 |
Base plate locking FIXED |
| 36010288 |
Scroll bar mm.3200 d.50 |
| 36010310 |
Register brass M12x50 conical tip |
| 36010320 |
Spacer block X support brackets |
| 36010470 |
Flyer translation VSI D.160 / 12 01442F |
| 36010570 |
Label prespaziata mod.350 |
| 36010591 |
Front drive pulley (vers.d.50) |
| 36010601 |
Rear drive pulley (ver.d.50) |
| 36010611 |
Pulley neutral (vers.d50) |
| 36010620 |
Flange axis motorized (flyer) |
| 36010630 |
Flange axis crowds |
| 36010661 |
Version spacer bars d.50 |
| 36010681 |
Motorized shaft (vers.barre d.50) |
| 36010691 |
Tree crowds regist. (Vers.barre d.50) |
| 36010700 |
Bearing 6302 -2Z |
| 36010711 |
Eccentric bushing axis motorized |
| 36010720 |
Needle bearing AXK 1528 |
| 36010730 |
Bushing 15x17x15 DU1515 |
| 36015180 |
Holder tube cables d.350 |
| 36030322 |
Handle snap KP-P79 M12x40 BRASS |
| 40010280 |
Lever get up carter 4000 |
| 40010300 |
conveyor 4000 |
| 40010400 |
Pin lever to get up carter |
| 40020041 |
Spacer saw 400 d.40x21,5 |
| 40020400 |
Spacer bar cover 4000 |
| 40020460 |
Dust Strip linear 65mm. |
| 42010050 |
Foot x M16x180 Doublematic |
| 42010070 |
Grain M12x100 fastening bars scroll |
| 42010150 |
Label prespaziata Doublematic |
| 42015094 |
Bearing 6200 2RS |
| 42015095 |
Bridge handle f.p.diam.8 int.117 |
| 42015096 |
Targa buttons RAW BE PAINTED |
| 42015098 |
Support cables fixed base x Doublematic |
| 42015099 |
Cable support mobile base x Doublematic |
| 42015290 |
Attack to support morse pneu.DOUBLE |
| 42017031 |
Jack fulcrum arm |
| 42017040 |
Plate door stop 90øverticali |
| 42017090 |
Auction vertical pressure |
| 42017100 |
Support vertical pressure |
| 42017220 |
Raschiabarre |
| 42017460 |
Pulley Vertical x Dublematic |
| 42017470 |
Pulley bolt upright |
| 42017480 |
Spacer vertical axis Doublematic |
| 42017520 |
protective arm |
| 42020080 |
Circlip compensation LMKAS D.72 int. |
| 42025010 |
Bearing 32004X complete with rings |
| 42027120 |
Wall support 4000 / Doublematic |
| 42027150 |
Tree saw Dx x mod. Dublematic |
| 42027155 |
Tree saw left SX 4000 + Dublematic |
| 42027170 |
Handle with hole 01MPV |
| 42037900 |
Chain® 4m (01560AR50) 560A60R50 |
| 42037910 |
Female connection CAT560 (01560AF) |
| 42037920 |
Nipple CAT560 (01560 AM) |
| 0208QUALITY |
Bearing 6203 ZZ mm.17x40x12 |
| 1008TRIF.FREN |
Engine HP3 2p V.380 / 50 B14 H90 + brake |
| 36010032 LAV |
Turntable Dx WORKED |
| 36010037 LAV |
Turntable SX WORKED |
| 36010043 LAV |
Mobile stand Dx WORKED |
| 36010048 LAV |
Fixed base SX WORKED |
| 36010050 LAV |
Graduated sector SX WORKED |
| 36010055 LAV |
Graduated sector DX WORKED |
| 36010072 LAV |
Team support DX WORKED |
| 36010077 LAV |
Team support SX WORKED |
| 36030061 LAV |
Intermediate support universal WORKED |
| 40020020 LAV |
Carter worked transmission 4000 |
| 40020030 LAV |
Carter prot.sega 4000 / DOUBLE WORKED |

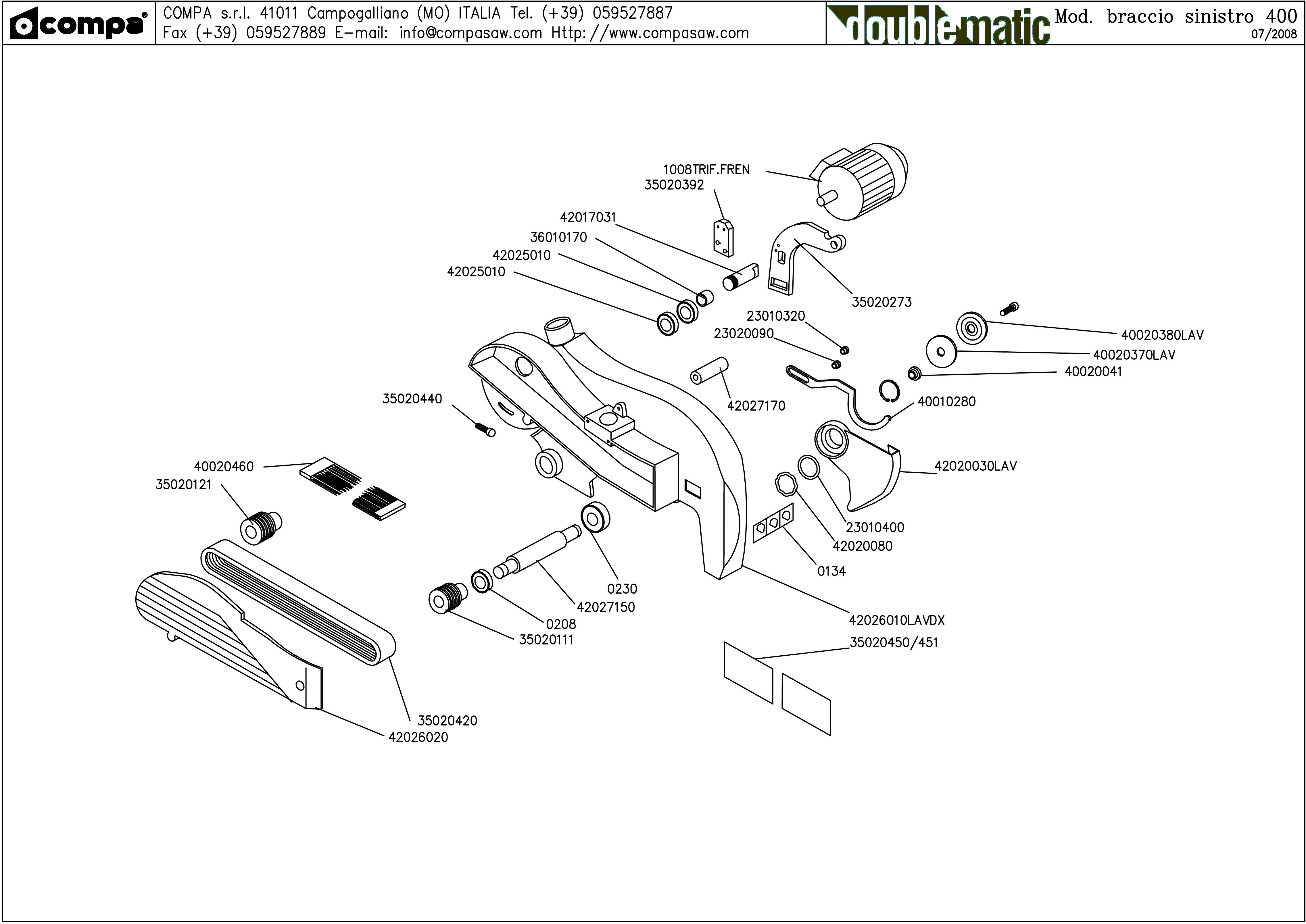

| 40020370 LAV |
Washer stops blade 4000 WORKED |
| 40020380 LAV |
Washer drag blade 4000 LAVORAT |
| 42015180 LAV |
Support arm WORKED Doublematic |
| 42020030 LAV |
Carter prot.sega Doublematic WORKED |
| 42026010 LAV |
Arm WORKED Dx x mod.DOUBLEMATIC |
| 42026015 LAV |
Arm Worked SX x Doublematic |

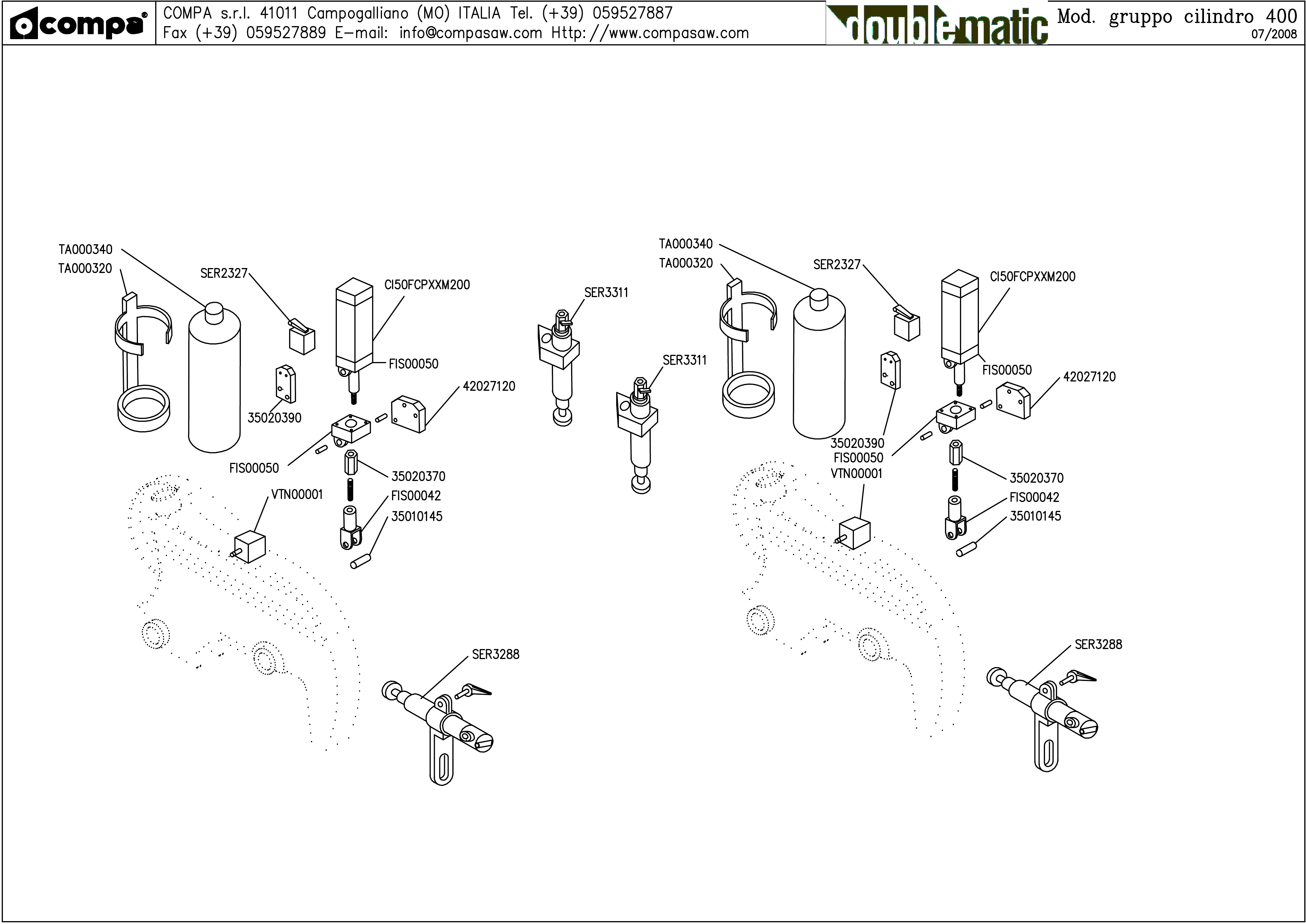

| CI50FCPXXM100 |
Unit ... cylinder coaxial D.50mm C100 NC |
| FIS00042 |
Fork ISO M16x1.5 |
| FIS00050 |
Hinge ISO d.050 c / pin |
| KIT016003 |
Group bocc.eccent.c / lever D.MAT.350 |
| VTN00001 |
Venturi TA00330 |
| 0133/001 |
Roller bearing d.4x22 |

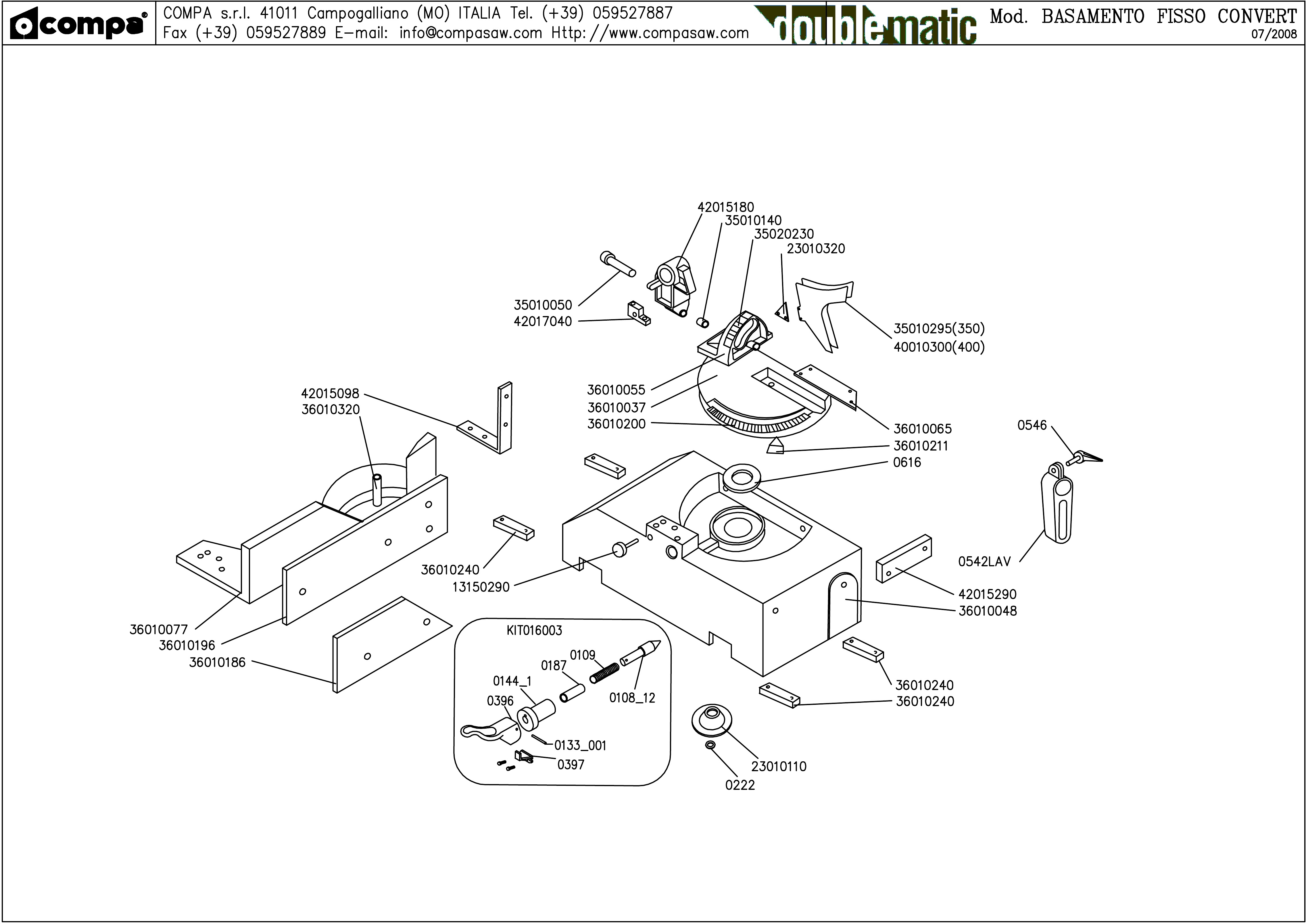

| 0542LAV |
Support vise 4000 worked KCL00248 |
| 42026025 LAV |
Carter transmission arm SX LAV. DOUBLEMA |
| SER 3283 |
Cylinder horizontal vice Doublematic |
| SER 3311 |
Cylinder vertical vice Doublematic |
