Compa-OMS SpareCompa-OMS Spare Parts for Professional Saws Doublematic 400 Standard

SKU: Dublematic 400 Standard
€3.79
VAT included

Compa-OMS Spare Parts for Professional Saws Doublematic 400 Standard

We supply original Compa-OMS spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Super Professional Saws Doublematic 400 Standard - Doublematic 400 Motorizzato.
Compa-OMS SpareCompa-OMS Spare Parts for Professional Saws Doublematic 400 Standard
  • Compa-OMS SpareCompa-OMS Spare Parts for Professional Saws Doublematic 400 Standard
  • Compa-OMS SpareCompa-OMS Spare Parts for Professional Saws Doublematic 400 Standard
  • Compa-OMS SpareCompa-OMS Spare Parts for Professional Saws Doublematic 400 Standard
  • Compa-OMS SpareCompa-OMS Spare Parts for Professional Saws Doublematic 400 Standard
  • Compa-OMS SpareCompa-OMS Spare Parts for Professional Saws Doublematic 400 Standard
  • Compa-OMS SpareCompa-OMS Spare Parts for Professional Saws Doublematic 400 Standard
  • Compa-OMS SpareCompa-OMS Spare Parts for Professional Saws Doublematic 400 Standard
  • Compa-OMS SpareCompa-OMS Spare Parts for Professional Saws Doublematic 400 Standard
  • Compa-OMS SpareCompa-OMS Spare Parts for Professional Saws Doublematic 400 Standard
  • Compa-OMS SpareCompa-OMS Spare Parts for Professional Saws Doublematic 400 Standard
  • Compa-OMS SpareCompa-OMS Spare Parts for Professional Saws Doublematic 400 Standard
  • Compa-OMS SpareCompa-OMS Spare Parts for Professional Saws Doublematic 400 Standard
  • Compa-OMS SpareCompa-OMS Spare Parts for Professional Saws Doublematic 400 Standard

Compa-OMS SpareCompa-OMS Spare Parts for Professional Saws Doublematic 400 Standard

SKU: Dublematic 400 Standard Condition: New
€3.79
VAT included

Compa-OMS Spare Parts for Professional Saws Doublematic 400 Standard

We supply original Compa-OMS spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Super Professional Saws Doublematic 400 Standard - Doublematic 400 Motorizzato.
settings 116 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

116 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
photo_cameraImage coming soon 35010295 Conveyor Sega Doublematic 350 €17.90
photo_cameraImage coming soon 35010350 Spacer attack micro €15.51
photo_cameraImage coming soon 35020450 Label Security 3500/4000 / Doublematic ING €3.58
photo_cameraImage coming soon 35020451 Label sicur.zza 3500/4000 / Doublematic €3.58
photo_cameraImage coming soon 40010300 conveyor 4000 €13.12
photo_cameraImage coming soon 40010400 Pin lever to get up carter €16.58
photo_cameraImage coming soon 42015046 Insert crescent Dx €7.16
photo_cameraImage coming soon 42015086 Flyer Doublematic VSI 442 D.160 €20.28
FIS00042
photo_cameraImage coming soon FIS00042 Fork ISO M16x1.5 €17.78
FIS00050
Hinge ISO D.050 for Mitre Saw Dublematic 400 FIS00050 Hinge ISO D.050 for Mitre Saw Dublematic 400 €31.95
KIT016001
Eccentric with Lever for Miter Saws Compa 300 JE/JET KIT016001 Eccentric with Lever for Miter Saws Compa 300 JE/JET €41.73
photo_cameraImage coming soon SER02327 Valve with fittings €128.91
VTN00001
photo_cameraImage coming soon VTN00001 Venturi TA00330 €40.45
0117
photo_cameraImage coming soon 0117 Galvanized washer bas.to €3.79
0187
photo_cameraImage coming soon 0187 Lubricated bronze bushing 16x18x30 €3.57
0222
Ball Bearing 51100 for Mitre Saws Compa 300/JE-JET 0222 Ball Bearing 51100 for Mitre Saws Compa 300/JE-JET €9.61
0228
photo_cameraImage coming soon 0228 Brug. f. Saw HEX SOCKET HEAD M10x25 SX Zn €4.37
0230
photo_cameraImage coming soon 0230 Bearing 6305 2RS (mm.25x62x17) €8.36
0542LAV
photo_cameraImage coming soon 0542LAV Support vise 4000 worked KCL00248 €39.27
0546
photo_cameraImage coming soon 0546 Handle snap KP55 M8x50 (0155D50) €4.77
1008TRIF.FREN
photo_cameraImage coming soon 1008TRIF.FREN Mot.HP3 2p V.380 / 50 B14 H90 + brake €495.39
23010110
photo_cameraImage coming soon 23010110 Washer dished x bas.to 2300 €3.58
23010320
photo_cameraImage coming soon 23010320 Index graduated sector 2300/3000/3500 €2.38
23010400
Sleeve for Carter Lever Lift for Miter Saw Compa 2300-2301 23010400 Sleeve for Carter Lever Lift for Miter Saw Compa 2300-2301 €4.17
23020090
Wheel Carter Saw Cover for Miter Saw Compa 2300-2301 23020090 Wheel Carter Saw Cover for Miter Saw Compa 2300-2301 €4.17
23020660
Compa Mitre Saw 2300 Spacer 23020660 Compa Mitre Saw 2300 Spacer €4.14
35010050
photo_cameraImage coming soon 35010050 Screw Umbrako stem rettif.d.10x80 M8 €11.92
35010140
photo_cameraImage coming soon 35010140 Bushing 10x16x20 sinterizz.ferro €3.57
35010145
photo_cameraImage coming soon 35010145 Sintered bush 10-16-32 €5.97
35010320
photo_cameraImage coming soon 35010320 Handle snap KP79 M10x90 €7.16
35020111
photo_cameraImage coming soon 35020111 Pul.condotta d.48x8jf.17x6 L.30 + ffm8 €16.70
35020121
Motor Pulley for Mitre Saw Dublematic 400 35020121 Motor Pulley for Mitre Saw Dublematic 400 €23.70
35020273
photo_cameraImage coming soon 35020273 Biella pneumatic arm €27.33
35020370
photo_cameraImage coming soon 35020370 Pipe nut M16 €3.57
35020390
photo_cameraImage coming soon 35020390 Plate for micro descent €5.97
35020392
photo_cameraImage coming soon 35020392 Plate for micro descent €5.97
35020420
Poli-V Belt PJ 914/360J for Mitre Saw Dublematic 400 35020420 Poli-V Belt PJ 914/360J for Mitre Saw Dublematic 400 €45.32
35020440
photo_cameraImage coming soon 35020440 Screw for Idler 3500/4000 / DOUBLEM €4.77
36010088
photo_cameraImage coming soon 36010088 Stand universal cutting mm.3200 €1,910.05
36010093
photo_cameraImage coming soon 36010093 Foot new Doublematic 350 €179.05
36010103
photo_cameraImage coming soon 36010103 Push-button €155.18
36010105
photo_cameraImage coming soon 36010105 Plate adjustment button panel €4.77
36010110
photo_cameraImage coming soon 36010110 Profile guide sliding keypad €113.40
36010115
photo_cameraImage coming soon 36010115 Closing cap profiled Slip. €3.58
36010120
photo_cameraImage coming soon 36010120 Slide, polyethylene €23.87
36010125
photo_cameraImage coming soon 36010125 Bearing 608 coated nylon €5.96
36010148
photo_cameraImage coming soon 36010148 Line translation moving head mm.3200 €155.18
36010170
photo_cameraImage coming soon 36010170 spacer €5.97
36010221
photo_cameraImage coming soon 36010221 Index base offset Mobile Doublemat €15.51
36010288
photo_cameraImage coming soon 36010288 Scroll bar mm.3200 d.50 €928.60
36010310
photo_cameraImage coming soon 36010310 Register brass M12x50 conical tip €7.16
36010570
photo_cameraImage coming soon 36010570 Label prespaziata mod.350 €11.92
36030322
photo_cameraImage coming soon 36030322 Handle snap KP-P79 M12x40 BRASS €17.90
40010280
photo_cameraImage coming soon 40010280 Lever get up carter 4000 €7.16
40020041
photo_cameraImage coming soon 40020041 Spacer saw 400 d.40x21,5 €11.93
40020400
photo_cameraImage coming soon 40020400 Spacer bar cover 4000 €4.77
40020460
photo_cameraImage coming soon 40020460 Dust Strip linear 65mm. €5.97
42010022
photo_cameraImage coming soon 42010022 Insert blade - carousel Doublematic 400 €29.84
42010050
photo_cameraImage coming soon 42010050 Foot x M16x180 Doublematic €16.58
42010060
photo_cameraImage coming soon 42010060 Lunetta stiffening bracket €8.36
42010070
photo_cameraImage coming soon 42010070 Grain M12x100 fastening bars scroll €4.77
42010140
photo_cameraImage coming soon 42010140 Knob THP40 M10x40 €3.58
42010150
photo_cameraImage coming soon 42010150 Label prespaziata Doublematic €28.53
42015047
photo_cameraImage coming soon 42015047 Insert half moon Sx €7.16
42015087
photo_cameraImage coming soon 42015087 Support support X mod.DOUBLEMATIC €7.16
42015090
photo_cameraImage coming soon 42015090 Bearing rollers AXK160200 +2 washers AS €122.82
42015092
photo_cameraImage coming soon 42015092 Bearing 6002 2RS x Doublematic €8.36
42015093
photo_cameraImage coming soon 42015093 DU bush 08 x 08 Doublematic €3.57
42015094
photo_cameraImage coming soon 42015094 Bearing 6200 2RS €8.36
42015095
photo_cameraImage coming soon 42015095 Bridge handle f.p.diam.8 int.117 €4.77
42015096
photo_cameraImage coming soon 42015096 Targa buttons RAW BE PAINTED €11.92
42015098
photo_cameraImage coming soon 42015098 Support cables fixed base x Doublematic €7.16
42015099
photo_cameraImage coming soon 42015099 Cable support mobile base x Doublematic €7.16
42015231
photo_cameraImage coming soon 42015231 Backing Plate DX bracket 90ø €56.09
42015236
photo_cameraImage coming soon 42015236 Backing Plate SX bracket 90ø €56.09
42015240
photo_cameraImage coming soon 42015240 Backing Plate SX bracket 45ø €35.81
42015250
photo_cameraImage coming soon 42015250 Backing Plate DX bracket 45ø €35.81
42015290
photo_cameraImage coming soon 42015290 Attack to support morse pneu.DOUBLE €17.90
42017031
photo_cameraImage coming soon 42017031 Jack fulcrum arm €17.90
42017040
photo_cameraImage coming soon 42017040 Plate door stop 90øverticali €20.28
42017050
photo_cameraImage coming soon 42017050 Dipstick inclination dx €5.97
42017055
photo_cameraImage coming soon 42017055 Dipstick tilt left €5.97
42017060
photo_cameraImage coming soon 42017060 Index table rotation €9.54
42017070
photo_cameraImage coming soon 42017070 Measuring rod horizontal rotation 400 €9.55
42017090
photo_cameraImage coming soon 42017090 Auction vertical pressure €14.20
42017100
photo_cameraImage coming soon 42017100 Support vertical pressure €59.56
42017110
photo_cameraImage coming soon 42017110 Support vertical pressure €29.72
42017220
photo_cameraImage coming soon 42017220 Raschiabarre €5.97
42017310
photo_cameraImage coming soon 42017310 Front bracket brake €19.09
42017320
photo_cameraImage coming soon 42017320 Bracket rear brake €19.09
42017330
photo_cameraImage coming soon 42017330 Spacer locking pneu.base Mobile €8.36
42017340
photo_cameraImage coming soon 42017340 Plate side blocc.base Mobile €17.89
42017410
photo_cameraImage coming soon 42017410 Spacer inside outside €7.16
42017420
photo_cameraImage coming soon 42017420 Front flange x mod. Dublematic €23.87
42017430
photo_cameraImage coming soon 42017430 Rear flange x mod. Dublematic €15.39
42017440
photo_cameraImage coming soon 42017440 Pulley front x mod.Dublematic €29.84
42017450
photo_cameraImage coming soon 42017450 Rear Pulley x mod. Dublematic €41.78
42017460
photo_cameraImage coming soon 42017460 Pulley Vertical x Dublematic €29.84
42017470
photo_cameraImage coming soon 42017470 Pulley bolt upright €20.28
42017480
photo_cameraImage coming soon 42017480 Spacer vertical axis Doublematic €5.97
42017490
photo_cameraImage coming soon 42017490 Right axis movable base €45.36
42017500
photo_cameraImage coming soon 42017500 Left axis crowds mobile base €35.81
42017510
photo_cameraImage coming soon 42017510 Auction locking base DUBLEMATIC €59.68
42017520
photo_cameraImage coming soon 42017520 protective arm €5.97
42020080
photo_cameraImage coming soon 42020080 Ring el. compensation LMKAS D.72 int. €4.77
42025010
photo_cameraImage coming soon 42025010 Bearing 32004X complete with rings €23.87
42027120
photo_cameraImage coming soon 42027120 Wall support 4000 / Doublematic €27.33
42027150
photo_cameraImage coming soon 42027150 Tree saw Dx x mod. Dublematic €57.17
42027155
photo_cameraImage coming soon 42027155 Tree saw left SX 4000 + Dublematic €57.17
42027170
photo_cameraImage coming soon 42027170 Handle with hole 01MPV €4.77
42037900
photo_cameraImage coming soon 42037900 Chain® 4m (01560AR50) 560A60R50 €4.77
42037910
photo_cameraImage coming soon 42037910 Female connection CAT560 (01560AF) €9.55
42037920
photo_cameraImage coming soon 42037920 Nipple CAT560 (01560 AM) €13.12
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
photo_cameraImage coming soon 0117 Galvanized washer bas.to €3.79
photo_cameraImage coming soon 0133/001 Roller bearing d.4x22 €2.01
photo_cameraImage coming soon 0187 Lubricated bronze bushing 16x18x30 €3.57
Ball Bearing 51100 for Mitre Saws Compa 300/JE-JET 0222 Ball Bearing 51100 for Mitre Saws Compa 300/JE-JET €9.61
photo_cameraImage coming soon 0228 Brug. f. Saw HEX SOCKET HEAD M10x25 SX Zn €4.37
photo_cameraImage coming soon 0230 Bearing 6305 2RS (mm.25x62x17) €8.36
photo_cameraImage coming soon 0542LAV Support vise 4000 worked KCL00248 €39.27
photo_cameraImage coming soon 0546 Handle snap KP55 M8x50 (0155D50) €4.77
photo_cameraImage coming soon 1008TRIF.FREN Mot.HP3 2p V.380 / 50 B14 H90 + brake €495.39
photo_cameraImage coming soon 23010110 Washer dished x bas.to 2300 €3.58
photo_cameraImage coming soon 23010320 Index graduated sector 2300/3000/3500 €2.38
Sleeve for Carter Lever Lift for Miter Saw Compa 2300-2301 23010400 Sleeve for Carter Lever Lift for Miter Saw Compa 2300-2301 €4.17
Wheel Carter Saw Cover for Miter Saw Compa 2300-2301 23020090 Wheel Carter Saw Cover for Miter Saw Compa 2300-2301 €4.17
Compa Mitre Saw 2300 Spacer 23020660 Compa Mitre Saw 2300 Spacer €4.14
photo_cameraImage coming soon 35010050 Screw Umbrako stem rettif.d.10x80 M8 €11.92
photo_cameraImage coming soon 35010140 Bushing 10x16x20 sinterizz.ferro €3.57
photo_cameraImage coming soon 35010145 Sintered bush 10-16-32 €5.97
photo_cameraImage coming soon 35010295 Conveyor Sega Doublematic 350 €17.90
photo_cameraImage coming soon 35010320 Handle snap KP79 M10x90 €7.16
photo_cameraImage coming soon 35010350 Spacer attack micro €15.51
photo_cameraImage coming soon 35020111 Pul.condotta d.48x8jf.17x6 L.30 + ffm8 €16.70
Motor Pulley for Mitre Saw Dublematic 400 35020121 Motor Pulley for Mitre Saw Dublematic 400 €23.70
photo_cameraImage coming soon 35020273 Biella pneumatic arm €27.33
photo_cameraImage coming soon 35020370 Pipe nut M16 €3.57
photo_cameraImage coming soon 35020390 Plate for micro descent €5.97
photo_cameraImage coming soon 35020392 Plate for micro descent €5.97
Poli-V Belt PJ 914/360J for Mitre Saw Dublematic 400 35020420 Poli-V Belt PJ 914/360J for Mitre Saw Dublematic 400 €45.32
photo_cameraImage coming soon 35020440 Screw for Idler 3500/4000 / DOUBLEM €4.77
photo_cameraImage coming soon 35020450 Label Security 3500/4000 / Doublematic ING €3.58
photo_cameraImage coming soon 35020451 Label sicur.zza 3500/4000 / Doublematic €3.58
photo_cameraImage coming soon 36010088 Stand universal cutting mm.3200 €1,910.05
photo_cameraImage coming soon 36010093 Foot new Doublematic 350 €179.05
photo_cameraImage coming soon 36010103 Push-button €155.18
photo_cameraImage coming soon 36010105 Plate adjustment button panel €4.77
photo_cameraImage coming soon 36010110 Profile guide sliding keypad €113.40
photo_cameraImage coming soon 36010115 Closing cap profiled Slip. €3.58
photo_cameraImage coming soon 36010120 Slide, polyethylene €23.87
photo_cameraImage coming soon 36010125 Bearing 608 coated nylon €5.96
photo_cameraImage coming soon 36010148 Line translation moving head mm.3200 €155.18
photo_cameraImage coming soon 36010170 spacer €5.97
photo_cameraImage coming soon 36010221 Index base offset Mobile Doublemat €15.51
photo_cameraImage coming soon 36010288 Scroll bar mm.3200 d.50 €928.60
photo_cameraImage coming soon 36010310 Register brass M12x50 conical tip €7.16
photo_cameraImage coming soon 36010570 Label prespaziata mod.350 €11.92
photo_cameraImage coming soon 36030322 Handle snap KP-P79 M12x40 BRASS €17.90
photo_cameraImage coming soon 40010280 Lever get up carter 4000 €7.16
photo_cameraImage coming soon 40010300 conveyor 4000 €13.12
photo_cameraImage coming soon 40010400 Pin lever to get up carter €16.58
photo_cameraImage coming soon 40020041 Spacer saw 400 d.40x21,5 €11.93
photo_cameraImage coming soon 40020400 Spacer bar cover 4000 €4.77
photo_cameraImage coming soon 40020460 Dust Strip linear 65mm. €5.97
photo_cameraImage coming soon 42010022 Insert blade - carousel Doublematic 400 €29.84
photo_cameraImage coming soon 42010050 Foot x M16x180 Doublematic €16.58
photo_cameraImage coming soon 42010060 Lunetta stiffening bracket €8.36
photo_cameraImage coming soon 42010070 Grain M12x100 fastening bars scroll €4.77
photo_cameraImage coming soon 42010140 Knob THP40 M10x40 €3.58
photo_cameraImage coming soon 42010150 Label prespaziata Doublematic €28.53
photo_cameraImage coming soon 42015047 Insert half moon Sx €7.16
photo_cameraImage coming soon 42015087 Support support X mod.DOUBLEMATIC €7.16
photo_cameraImage coming soon 42015090 Bearing rollers AXK160200 +2 washers AS €122.82
photo_cameraImage coming soon 42015092 Bearing 6002 2RS x Doublematic €8.36
photo_cameraImage coming soon 42015093 DU bush 08 x 08 Doublematic €3.57
photo_cameraImage coming soon 42015094 Bearing 6200 2RS €8.36
photo_cameraImage coming soon 42015095 Bridge handle f.p.diam.8 int.117 €4.77
photo_cameraImage coming soon 42015096 Targa buttons RAW BE PAINTED €11.92
photo_cameraImage coming soon 42015098 Support cables fixed base x Doublematic €7.16
photo_cameraImage coming soon 42015099 Cable support mobile base x Doublematic €7.16
photo_cameraImage coming soon 42015231 Backing Plate DX bracket 90ø €56.09
photo_cameraImage coming soon 42015236 Backing Plate SX bracket 90ø €56.09
photo_cameraImage coming soon 42015240 Backing Plate SX bracket 45ø €35.81
photo_cameraImage coming soon 42015250 Backing Plate DX bracket 45ø €35.81
photo_cameraImage coming soon 42015290 Attack to support morse pneu.DOUBLE €17.90
photo_cameraImage coming soon 42017031 Jack fulcrum arm €17.90
photo_cameraImage coming soon 42017040 Plate door stop 90øverticali €20.28
photo_cameraImage coming soon 42017050 Dipstick inclination dx €5.97
photo_cameraImage coming soon 42017055 Dipstick tilt left €5.97
photo_cameraImage coming soon 42017060 Index table rotation €9.54
photo_cameraImage coming soon 42017070 Measuring rod horizontal rotation 400 €9.55
photo_cameraImage coming soon 42017090 Auction vertical pressure €14.20
photo_cameraImage coming soon 42017100 Support vertical pressure €59.56
photo_cameraImage coming soon 42017110 Support vertical pressure €29.72
photo_cameraImage coming soon 42017310 Front bracket brake €19.09
photo_cameraImage coming soon 42017320 Bracket rear brake €19.09
photo_cameraImage coming soon 42017330 Spacer locking pneu.base Mobile €8.36
photo_cameraImage coming soon 42017340 Plate side blocc.base Mobile €17.89
photo_cameraImage coming soon 42017410 Spacer inside outside €7.16
photo_cameraImage coming soon 42017420 Front flange x mod. Dublematic €23.87
photo_cameraImage coming soon 42017430 Rear flange x mod. Dublematic €15.39
photo_cameraImage coming soon 42017440 Pulley front x mod.Dublematic €29.84
photo_cameraImage coming soon 42017450 Rear Pulley x mod. Dublematic €41.78
photo_cameraImage coming soon 42017460 Pulley Vertical x Dublematic €29.84
photo_cameraImage coming soon 42017470 Pulley bolt upright €20.28
photo_cameraImage coming soon 42017480 Spacer vertical axis Doublematic €5.97
photo_cameraImage coming soon 42017490 Right axis movable base €45.36
photo_cameraImage coming soon 42017500 Left axis crowds mobile base €35.81
photo_cameraImage coming soon 42017510 Auction locking base DUBLEMATIC €59.68
photo_cameraImage coming soon 42017520 protective arm €5.97
photo_cameraImage coming soon 42020080 Ring el. compensation LMKAS D.72 int. €4.77
photo_cameraImage coming soon 42025010 Bearing 32004X complete with rings €23.87
photo_cameraImage coming soon 42027120 Wall support 4000 / Doublematic €27.33
photo_cameraImage coming soon 42027150 Tree saw Dx x mod. Dublematic €57.17
photo_cameraImage coming soon 42027155 Tree saw left SX 4000 + Dublematic €57.17
photo_cameraImage coming soon 42027170 Handle with hole 01MPV €4.77
photo_cameraImage coming soon 42037900 Chain® 4m (01560AR50) 560A60R50 €4.77
photo_cameraImage coming soon 42037910 Female connection CAT560 (01560AF) €9.55
photo_cameraImage coming soon 42037920 Nipple CAT560 (01560 AM) €13.12
photo_cameraImage coming soon FIS00042 Fork ISO M16x1.5 €17.78
Hinge ISO D.050 for Mitre Saw Dublematic 400 FIS00050 Hinge ISO D.050 for Mitre Saw Dublematic 400 €31.95
Eccentric with Lever for Miter Saws Compa 300 JE/JET KIT016001 Eccentric with Lever for Miter Saws Compa 300 JE/JET €41.73
photo_cameraImage coming soon VTN00001 Venturi TA00330 €40.45
0208QUALITY
photo_cameraImage coming soon 0208QUALITY Bearing 6203 ZZ mm.17x40x12 €5.97
42040050
photo_cameraImage coming soon 42040050 Gearmotor TV M63 4P.KW 0.25 B14 V230 €442.27

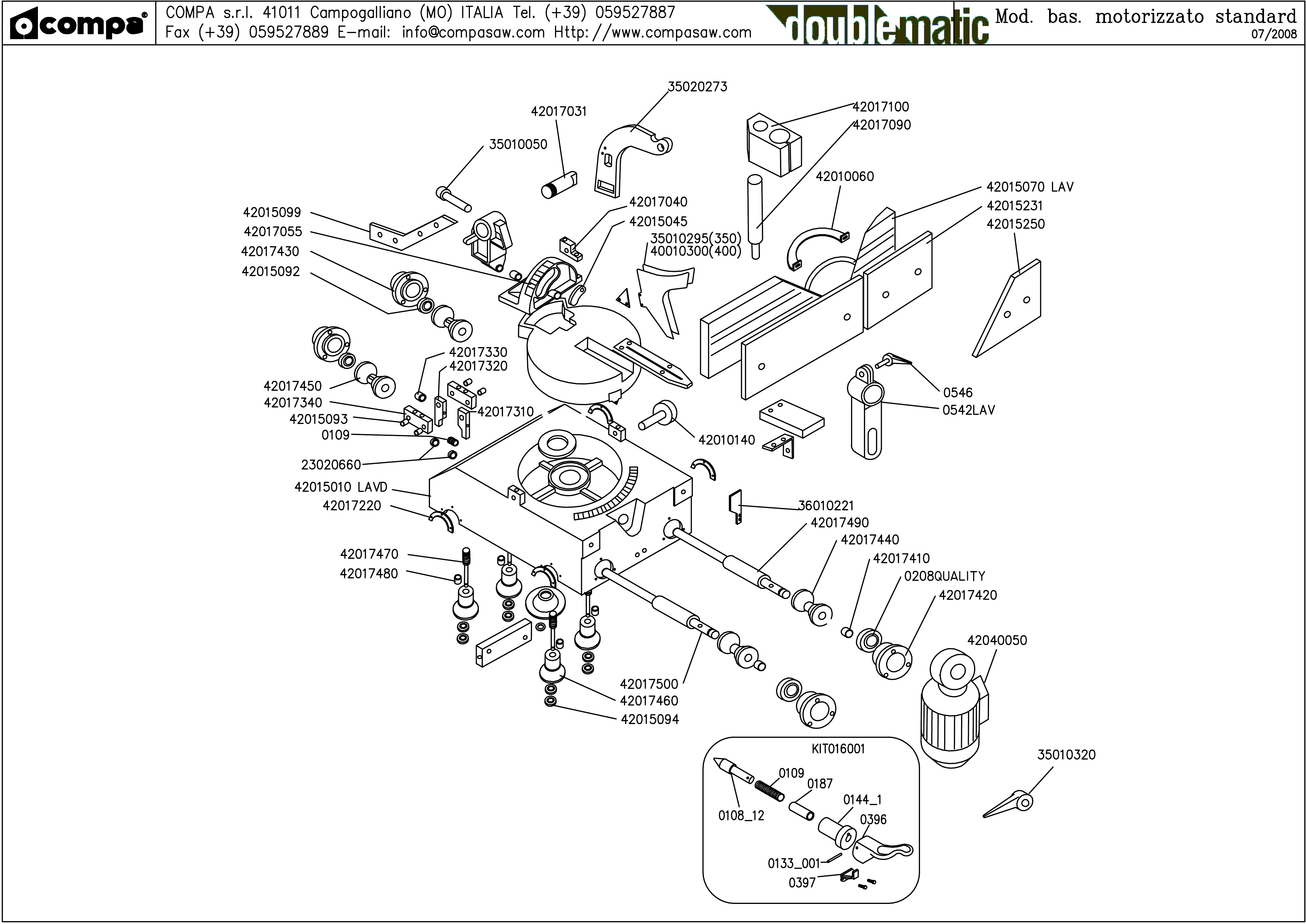

Page 3 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

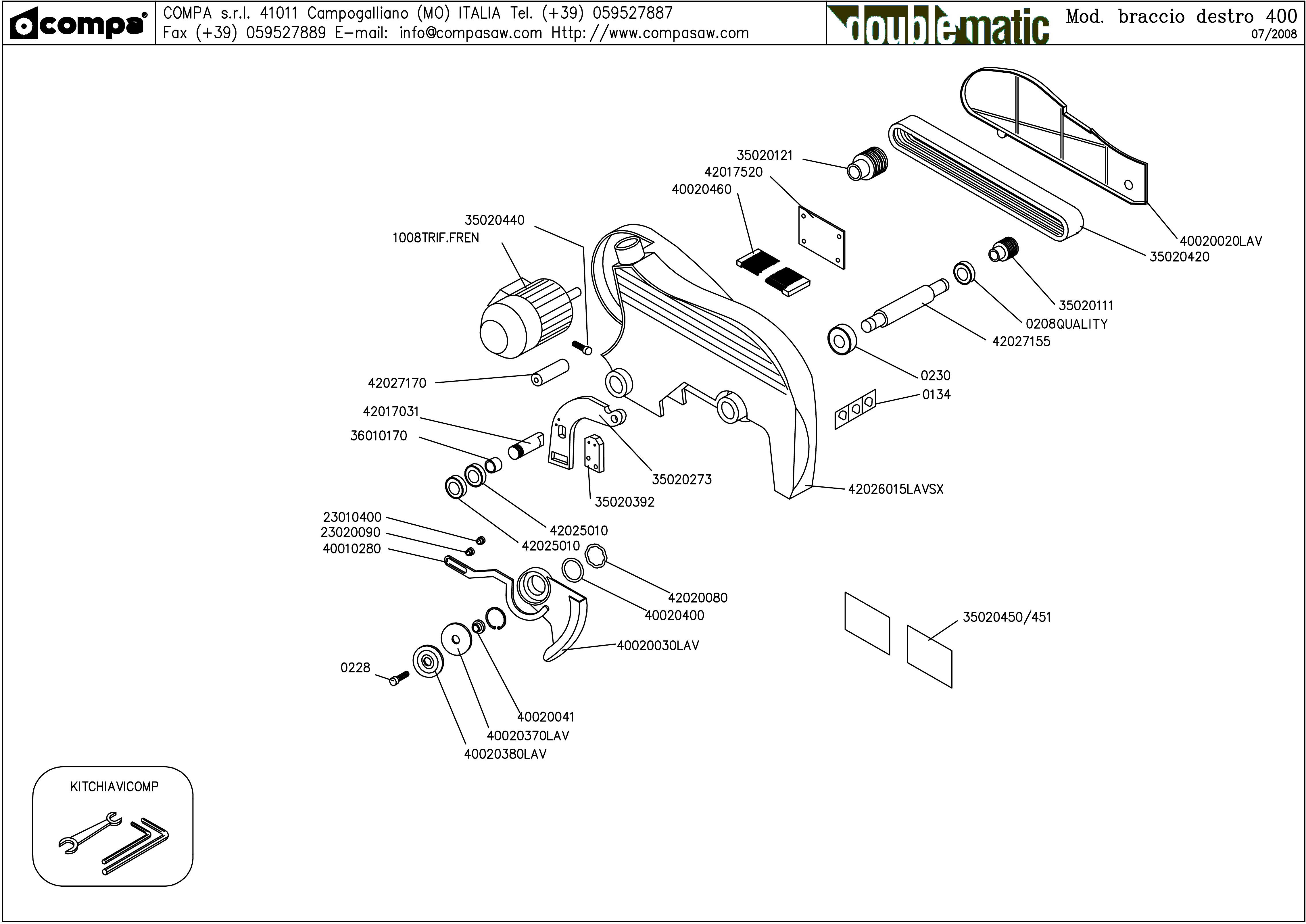

Page 4 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

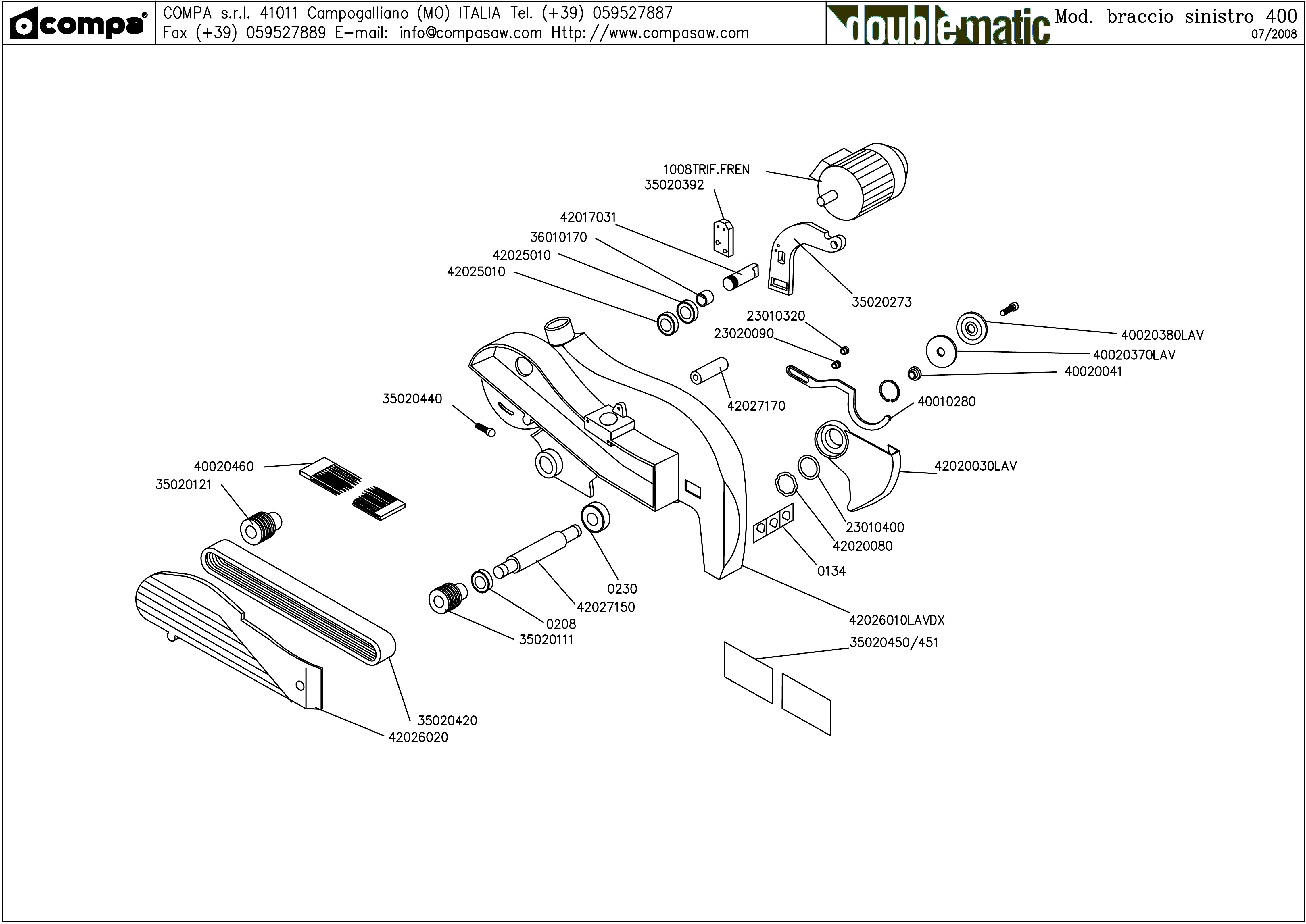

Page 5 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

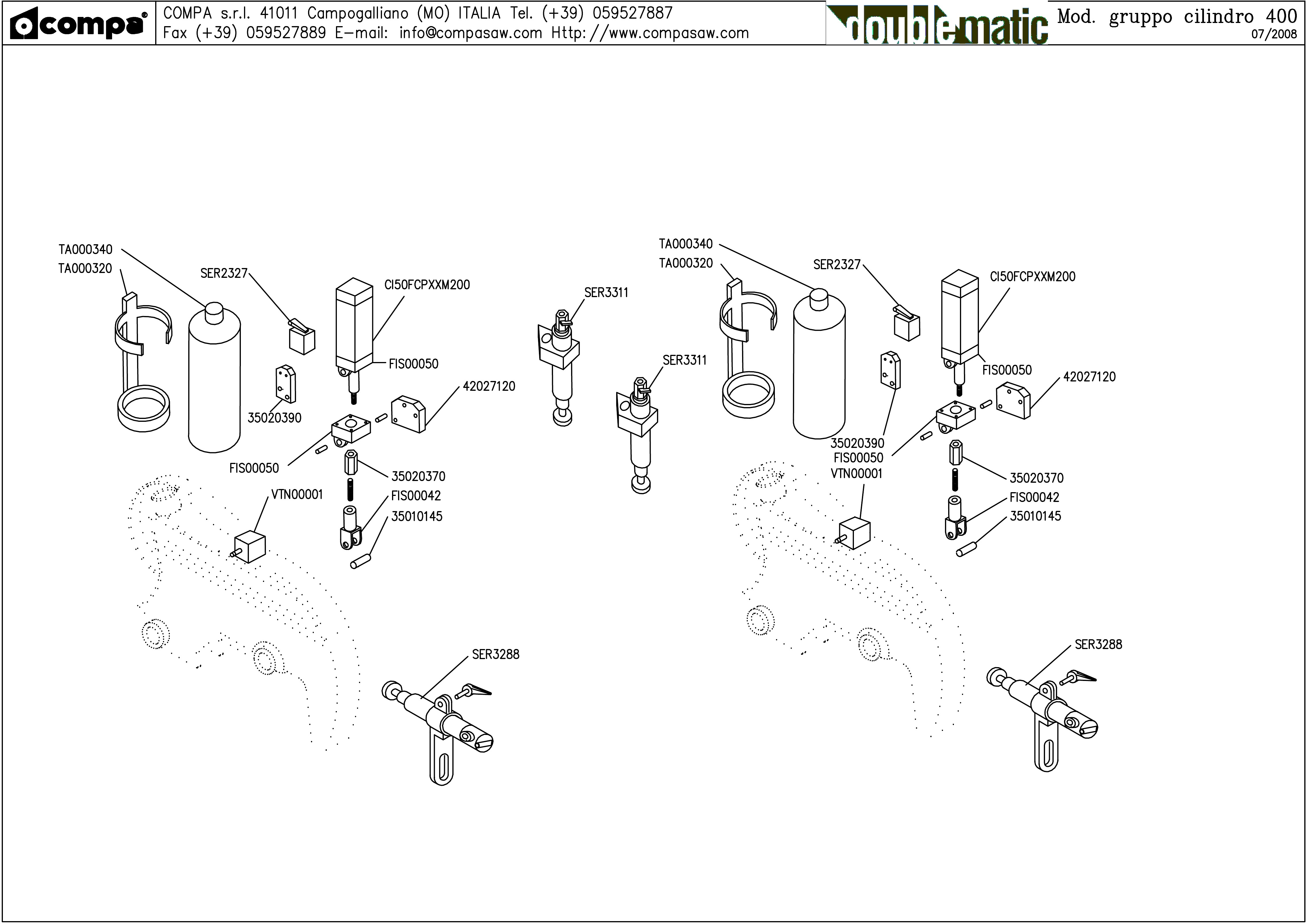

Page 6 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Compa-OMS Spare Parts for Professional Saws Doublematic 400 Standard

We supply original Compa-OMS spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Super Professional Saws Doublematic 400 Standard - Doublematic 400 Motorizzato.

In the following table, look for the model of the Professional Saws and their spare part.
Doublematic 400 Standard Pag.1
Part Num. Description
0117 Galvanized washer base
0187 Lubricated bronze bushing 16x18x30
0222 thrust bearing 51100
0228 HEX SOCKET HEAD M10x25 SX Zn
0230 Bearing 6305 2RS (mm.25x62x17)
0546 Handle snap KP55 M8x50 (0155D50)
23010110 Washer preformed base x 2300
23010320 Index graduated sector 2300/3000/3500
23010400 Bush to get up lever cover 2300
23020090 Rotella x carter saw shelter
23020660 Spring spacer arm stand up 2300
35010050 Screw Umbrako stem rectified d.10x80 M8
35010140 Bushing sintered iron 10x16x20
35010145 Sintered bush 10-16-32
35010295 Conveyor Sega Doublematic 350
35010320 Handle snap KP79 M10x90
35010350 Spacer attack micro
35020111 Driven pulley d.48x8jf.17x6 L.30 + ffm8
35020121 Motor pulley 3500/4000 Doublematic
35020273 Biella pneumatic arm
35020370 Pipe nut M16
35020390 Plate for micro descent
35020392 Plate for micro descent
35020420 Poly-V belt SV. = 914mm Sez.'J '8 nerv.
35020440 Screw for Idler 3500/4000 / DOUBLEM
36010088 Stand universal cutting mm.3200
36010093 Foot new Doublematic 350
36010103 Push-button
36010105 Plate adjustment button panel
36010110 Profile guide sliding keypad
36010115 Closing cap profiled Slip.
36010120 Slide, polyethylene
36010125 Bearing 608 coated nylon
36010148 Line translation moving head mm.3200
36010170 spacer
36010221 Index base offset Mobile Doublemat
36010288 Scroll bar mm.3200 d.50
36010310 Register brass M12x50 conical tip
36010570 Label prespaziata mod.350
36030322 Handle snap KP-P79 M12x40 BRASS
40010280 Lever get up carter 4000
40010300 conveyor 4000
40010400 Pin lever to get up carter
40020041 Spacer saw 400 d.40x21,5
40020400 Spacer bar cover 4000
40020460 Dust Strip linear 65mm.
42010022 Insert blade - carousel Doublematic 400
42010050 Foot x M16x180 Doublematic
42010060 Lunetta stiffening bracket
42010070 Grain M12x100 fastening bars scroll
42010140 Knob THP40 M10x40
42010150 Label prespaziata Doublematic
42015046 Insert crescent Dx
42015047 Insert half moon Sx
42015086 Flyer Doublematic VSI 442 D.160
42015087 Support support X mod.DOUBLEMATIC
42015090 Bearing rollers AXK160200 +2 washers AS
42015092 Bearing 6002 2RS x Doublematic
42015093 DU bush 08 x 08 Doublematic
42015094 Bearing 6200 2RS
42015095 Bridge handle f.p.diam.8 int.117
42015096 Targa buttons RAW BE PAINTED
42015098 Support cables fixed base x Doublematic
42015099 Cable support mobile base x Doublematic
42015231 Backing Plate DX bracket 90ø
42015236 Backing Plate SX bracket 90ø
42015240 Backing Plate SX bracket 45ø
42015250 Backing Plate DX bracket 45ø
42015290 Attack to support morse pneu.DOUBLE
42017031 Jack fulcrum arm
42017040 Plate door stop 90øverticali
42017050 Dipstick inclination dx
42017055 Dipstick tilt left
42017060 Index table rotation
42017070 Measuring rod horizontal rotation 400
42017090 Auction vertical pressure
42017100 Support vertical pressure
42017110 Support vertical pressure
42017220 Raschiabarre
42017310 Front bracket brake
42017320 Bracket rear brake
42017330 Spacer locking pneu.base Mobile
42017340 Plate side blocc.base Mobile
42017410 Spacer inside outside
42017420 Front flange x mod. Dublematic
42017430 Rear flange x mod. Dublematic
42017440 Pulley front x mod.Dublematic
42017450 Rear Pulley x mod. Dublematic
42017460 Pulley Vertical x Dublematic
42017470 Pulley bolt upright
42017480 Spacer vertical axis Doublematic
42017490 Right axis movable base
42017500 Left axis crowds mobile base
42017510 Auction locking base DUBLEMATIC
42017520 protective arm
42020080 Ring el. compensation LMKAS D.72 int.
42025010 Bearing 32004X complete with rings
42027120 Wall support 4000 / Doublematic
42027150 Tree saw Dx x mod. Dublematic
42027155 Tree saw left SX 4000 + Dublematic
42027170 Handle with hole 01MPV
42037900 Chain® 4m (01560AR50) 560A60R50
42037910 Female connection CAT560 (01560AF)
42037920 Nipple CAT560 (01560 AM)
0542LAV Support vise 4000 worked KCL00248
1008TRIF.FREN Engine HP3 2p V.380 / 50 B14 H90 + brake
FIS00042 Fork ISO M16x1.5
FIS00050 Hinge ISO d.050 c / pin
KIT016001 Group eccentric bush c / lever
VTN00001 Venturi TA00330
1008TRIF.FREN Engine HP3 2p V.380 / 50 B14 H90 + brake
35020450 Label Security 3500/4000 / Doublematic ING
35020451 Label sicur.zza 3500/4000 / Doublematic
40020020 LAV Carter worked transmission 4000
40020030 LAV Carter saw protection 4000 / DOUBLE WORKED
40020370 LAV Washer stops blade 4000 WORKED
40020380 LAV Washer drag blade 4000 LAVORAT
42010020 LAV Turntable LAV. X Doublematic
42015010 LAVD WORKED base DX model. Doublematic
42015015 LAVS WORKED base SX model. Doublematic
42015040 LAV Graduated sector WORKED x Doublematic
42015070 LAV Bracket support WORKED mobile base DOU
42015075 LAV Support bracket fixed base WORKED
42015180 LAV Support arm WORKED Doublematic
42020030 LAV Carter prot.sega Doublematic WORKED
42026010 LAV Arm WORKED Dx x mod.DOUBLEMATIC
42026015 LAV Arm Worked SX x Doublematic
SER02327 Valve with fittings
SER 3283 Cylinder horizontal vice Doublematic
SER 3311 Cylinder vertical vice Doublematic
Doublematic 400 Standard Motorized PAg.2
0117 Galvanized washer bas.to
0187 Bushing 16x18x30 autolubrif.bronzo
0222 thrust bearing 51100
0228 HEX SOCKET HEAD M10x25 SX Zn
0230 Bearing 6305 2RS (mm.25x62x17)
0546 Handle snap KP55 M8x50 (0155D50)
23010110 Washer Drawn x bas.to 2300
23010320 Index graduated sector 2300/3000/3500
23010400 Bush to get up lever cover 2300
23020090 Rotella x carter saw shelter
23020660 Spring spacer arm stand up 2300
35010050 Screw Umbrako stem rettif.d.10x80 M8
35010140 Bushing sintered iron 10x16x20
35010145 Sintered bush 10-16-32
35010295 Conveyor Sega Doublematic 350
35010320 Handle snap KP79 M10x90
35010350 Spacer attack micro
35020111 Driven pulley d.48x8jf.17x6 L.30 + ffm8
35020121 Motor pulley 3500/4000 Doublematic
35020273 Biella pneumatic arm
35020370 Pipe nut M16
35020390 Plate for micro descent
35020392 Plate for micro descent
35020420 Poly-V belt SV. = 914mm Sez.'J '8 ribbed
35020440 Screw for Idler 3500/4000 / DOUBLEM
35020450 Label Security 3500/4000 / DOUBL. ING
35020451 Label sicur.zza 3500/4000 / DOUBL.
36010088 Stand universal cutting mm.3200
36010093 Foot new Doublematic 350
36010103 Push-button
36010105 Plate adjustment button panel
36010110 Profile guide sliding keypad
36010115 Closing cap profiled Slip.
36010120 Slide, polyethylene
36010125 Bearing 608 coated nylon
36010148 Line translation moving head mm.3200
36010170 spacer
36010221 Index base offset Mobile Doublemat
36010288 Scroll bar mm.3200 d.50
36010310 Register brass M12x50 conical tip
36010570 Label prespaziata mod.350
36030322 Handle snap KP-P79 M12x40 BRASS
40010280 Lever get up carter 4000
40010300 conveyor 4000
40010400 Pin lever to get up carter
40020041 Spacer saw 400 d.40x21,5
40020400 Spacer bar cover 4000
40020460 Dust Strip linear 65mm.
42010022 Insert blade -giostra Doublematic 400
42010050 Foot x M16x180 Doublematic
42010060 Lunetta stiffening bracket
42010070 Grain M12x100 stared. scroll bars
42010140 Knob THP40 M10x40
42010150 Label prespaziata Doublematic
42015047 Insert half moon Sx
42015087 Support support X mod.DOUBLEMATIC
42015090 Bearing rollers AXK160200 +2 washers AS
42015092 Bearing 6002 2RS x Doublematic
42015093 DU bush 08 x 08 Doublematic
42015094 Bearing 6200 2RS
42015095 Bridge handle f.p.diam.8 int.117
42015096 Targa buttons RAW BE PAINTED
42015098 Support cables fixed base x Doublematic
42015099 Cable support mobile base x Doublematic
42015231 Backing Plate DX bracket 90ø
42015236 Backing Plate SX bracket 90ø
42015240 Backing Plate SX bracket 45ø
42015250 Backing Plate DX bracket 45ø
42015290 Attack to support morse pneu.DOUBLE
42017031 Jack fulcrum arm
42017040 Plate door stop 90øverticali
42017050 Dipstick inclination dx
42017055 Dipstick tilt left
42017060 Index table rotation
42017070 Measuring rod horizontal rotation 400
42017090 Auction vertical pressure
42017100 Support vertical pressure
42017110 Support vertical pressure
42017310 Front bracket brake
42017320 Bracket rear brake
42017330 Spacer locking pneu.base Mobile
42017340 Plate side blocc.base Mobile
42017410 Spacer inside outside
42017420 Front flange x mod. Dublematic
42017430 Rear flange x mod. Dublematic
42017440 Pulley front x mod.Dublematic
42017450 Rear Pulley x mod. Dublematic
42017460 Pulley Vertical x Dublematic
42017470 Pulley bolt upright
42017480 Spacer vertical axis Doublematic
42017490 Right axis movable base
42017500 Left axis crowds mobile base
42017510 Auction locking base DUBLEMATIC
42017520 protective arm
42020080 Ring el. compensation LMKAS D.72 int.
42025010 Bearing 32004X complete with rings
42027120 Wall support 4000 / Doublematic
42027150 Tree saw Dx x mod. Dublematic
42027155 Tree saw left SX 4000 + Dublematic
42027170 Handle with hole 01MPV
42037900 Chain® 4m (01560AR50) 560A60R50
42037910 Female connection CAT560 (01560AF)
42037920 Nipple CAT560 (01560 AM)
42040050 Gearmotor TV M63 4P.KW 0.25 B14 V230
0133/001 Roller bearing d.4x22
0208QUALITY Bearing 6203 ZZ mm.17x40x12
1008TRIF.FREN Engine HP3 2p V.380 / 50 B14 H90 + brake
36030061 LAV Intermediate support universal WORKED
40020020 LAV Carter worked transmission 4000
40020030 LAV Carter prot.sega 4000 / DOUBLE WORKED
40020370 LAV Washer stops blade 4000 WORKED
40020380 LAV Washer drag blade 4000 LAVORAT
42010020 LAV Turntable LAV. X Doublematic
42015010 LAVD WORKED base DX model. Doublematic
42015015 LAVS WORKED base SX mod.DOUBLEMATIC
42015040 LAV Graduated sector WORKED x Doublematic
42015070 LAV Bracket app. WORKED mobile base DOU
42015075 LAV Bracket app.base fixed WORKED
42015180 LAV Support arm WORKED Doublematic
42020030 LAV Carter saw protection Doublematic WORKED
FIS00042 Fork ISO M16x1.5
FIS00050 Hinge ISO d.050 c / pin
KIT016001 Group eccentric bush c / lever
VTN00001 Venturi TA00330
0542LAV Support vise 4000 worked KCL00248
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Compa-OMS websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Compa-OMS brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Dublematic 400 Standard
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Doublematic 400 Standard

Diagram Doublematic 400 Standard

Download (313.19KB)

Diagram Doublematic 400 Stand. M

Diagram Doublematic 400 Stand. M

Download (284.28KB)

You might also like

COMPA TECH-OMS SKU: 23010400
Sleeve for Carter Lever Lift for Miter Saw Compa 2300-2301 Genuine spare Compa-OMS, Sleeve for Lever Lift Carter miter saw  Compa 2300 - 2300XL - 2301 - 2301XL - 2301 MAXIMA - MAXIMA 2301XL. Part for the following items: -...
Last items in stock €4.17
COMPA TECH-OMS SKU: 23020090
Wheel Carter Saw Cover for Miter Saw Compa 2300-2301 Genuine spare Compa-OMS, Wheel Carter Saw Cover for miter saw  Compa 2300 - 2300XL - 2301 - 2301XL - M 4000-S-P SUPER - Doublematic 400. For the following...
AVAILABLE €4.17
COMPA TECH-OMS SKU: 0222
Ball Bearing 51100 for Mitre Saws Compa 300/JE-JET Genuine spare Compa-OMS, Ball Bearing 51100 for Mitre Saws Professional JE 300 - 300 JET - 3500 M SUPER - 3500 S SUPER - 3500 SUPER P - Standard 400 - 400 Convert. - Part for the...
AVAILABLE €9.61
COMPA TECH-OMS SKU: Compa 0228
Lock Blade Bolt for Miter Saws Compa 2300-2301 Original spare Compa-OMS, Cylindrical Head Hex Socket Bolt Left thread for locking blade for miter saws Compa 2300 - 2300XL - 2301 - 2301XL. Part for the following products: - Miter Saw...
Last items in stock €4.37
COMPA TECH-OMS SKU: KIT016001
Eccentric with Lever for Miter Saws Compa 300 JE/JET Genuine spare Compa-OMS, Assembly Eccentric with lever for Mitre Saws Compa 300 JE / JET - Doublematic 400-3500 SUPER P - 4000 S SUPER. Part for the following items:...
Usually Shipped on: 7/10 Business Days Approx. €41.73
COMPA TECH-OMS SKU: FIS00050
Hinge ISO D.050 for Mitre Saw Dublematic 400 Genuine part Compa-OMS, Hinge ISO D.050 with Bolt for Mitre Saws Doublematic 400 Standard - Convert - 3500P - 4000P. Part for the following products: -  Mitre Saw Dublematic 400 Standard -...
AVAILABLE €31.95
COMPA TECH-OMS SKU: 35020121
Motor Pulley for Mitre Saw Dublematic 400 Genuine part Compa-OMS, Motor Pulley for Mitre Saws Dublematic 400 Standard - Convert - 3500P - 4000P. Part for the following products: -  Mitre Saw Dublematic 400 Standard -  Mitre Saw...
AVAILABLE €23.70
COMPA TECH-OMS SKU: 23020660
Compa Mitre Saw 2300 Spring Holder Rod Spacer Original part Compa-OMS, Spring Holder Rod Spacer for Mitre Saws 2300 - 2300 XL - 2301 - 2301 XL - 2301 MAXIMA - 2300 XL MAXIMA - 2301 XL MAXIMA. Spare...
AVAILABLE €4.14
Comments (0)
