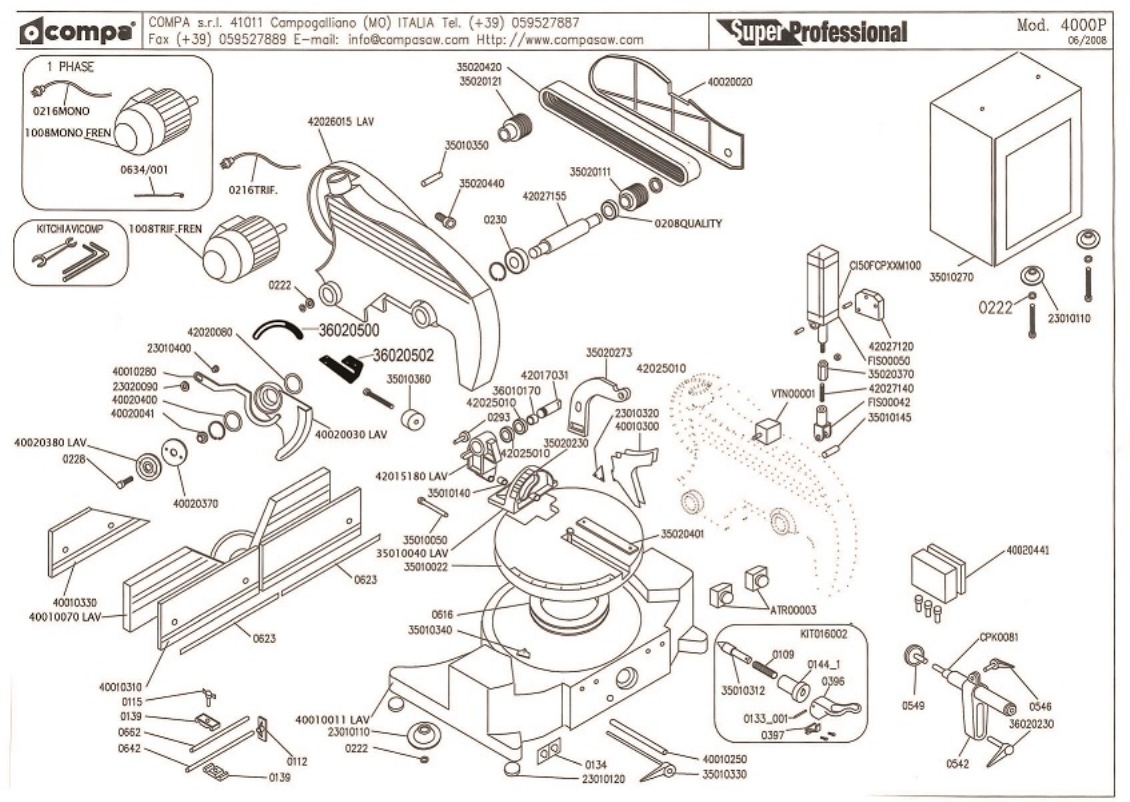

Professional Portable Saws 4000 P SUPER
|
| 0109 |
Spring for eccentric bush |
| 0112 |
Plate for batting stop hole d.10 |
| 0115 |
Wing nut (tumbler serr.CSP M6x25) |
| 0139 |
Couple terminals p.ta auctions arr. |
| 0222 |
thrust bearing 51100 |
| 0230 |
Bearing 6305 2RS (mm.25x62x17) |
| 0293 |
D.30 conical knob M10x60 |
| 0546 |
Handle snap KP55 M8x50 (0155D50) |
| 0549 |
Buffer plastic rod x TPN00002 |
| 0616 |
thrust bearing 51115 x BIG QUALITY |
| 0623 |
335 millimeter aluminum adhesive x3000 3500 2300XL |
| 0642 |
Auction perforated d.10x330 x BIG / 350 |
| 0662 |
Threaded rod stop |
| 23010110 |
Washer Drawn x bas.to 2300 |
| 23010120 |
Rubber foot univ.x 2300 / 1-3000 / 1-3500 |
| 23010320 |
Index graduated sector 2300/3000/3500 |
| 23010400 |
Bush to get up lever cover 2300 |
| 23020090 |
Rotella x carter saw shelter |
| 35010050 |
Screw Umbrako stem rettif.d.10x80 M8 |
| 35010140 |
Bushing 10x16x20 sinterizz.ferro |
| 35010145 |
Sintered bush 10-16-32 |
| 35010330 |
Handle snap LR80 M8x270 |
| 35010340 |
Index table rotation |
| 35010350 |
Spacer attack micro |
| 35010360 |
Spacer blocc.Supporto incl. |
| 35020111 |
Pul.condotta d.48x8jf.17x6 L.30 + ffm8 |
| 35020121 |
Motor pulley 3500/4000 Doublematic |
| 35020230 |
Measuring rod by sector 3500 |
| 35020273 |
Biella pneumatic arm |
| 35020370 |
Pipe nut M16 |
| 35020401 |
Insert turntable |
| 35020420 |
Poly-V belt SV. = 914mm Sez.'J '8 nerv. |
| 35020440 |
Screw for Idler 3500/4000 / DOUBLEM |
| 36010170 |
spacer |
| 36020230 |
Handle snap KP-P79 M10x50 |
| 36020500 |
Cam for micro |
| 36020502 |
Support switch |
| 40010250 |
Spacer for auction blocc.tavola 4000 |
| 40010280 |
Lever get up carter 4000 |
| 40010300 |
conveyor 4000 |
| 40010310 |
Support plate bracket 3500/4000 |
| 40010330 |
Support plate bracket 45ø |
| 40020041 |
Spacer saw 400 d.40x21,5 |
| 40020370 |
Washer stops blade 4000 RAW v.LAV! |
| 40020400 |
Spacer bar cover 4000 |
| 40020441 |
Feeder motor tronc. 3 kW. (NEW) |
| 42017031 |
Jack fulcrum arm |
| 42020080 |
Ring el. compensation LMKAS D.72 int. |
| 42025010 |
Bearing 32004X complete with rings |
| 42025010 |
Bearing 32004X complete with rings |
| 42027140 |
Bar M16 extension cil.movim.teste DOUBL |
| 42027155 |
Tree saw left SX 4000 + Dublematic |
| 0208QUALITY |
Bearing 6203 ZZ mm.17x40x12 |
| 0216TRIF. |
Cable 4x1.5 mt.3 + CEE plug sg.100 |
| 0216MONO |
Cable VVF 3x1 + mt.2 sp.SHUKO FR. |
| 0634/001 |
Cable 4x1.5 cm.146 unsheathed 40 cm. + |
| 1008MONO FREN |
Engine HP3 p.2 220 V. H90 B14 + Brake |
| 1008TRIF.FREN |
Mot.HP3 2p V.380 / 50 B14 H90 + brake |
| 35010040 LAV |
3500 graduated sector worked |
| 40010011 LAV |
Basement 3500-4000 WORKED |
| 40010070 LAV |
Bracket only 4000 worked |
| 40020030 LAV |
Carter saw protection 4000 / DOUBLE WORKED |
| 40020380 LAV |
Washer drag blade 4000 LAVORAT |
| 42015180 LAV |
Support arm WORKED Doublematic |
| 42026015 LAV |
Arm Worked SX x Doublematic |
| ATR00003 |
button |
| CI50FCPXXM100 |
Unit ... cilind.coassiale D.50mm C100 NC |
| FIS00042 |
Fork ISO M16x1.5 |
| FIS00050 |
Hinge femm.ISO d.050 c / pin |
| KIT016002 |
Group bushing etc. c / lever 3500/4000 |
| VTN00001 |
Venturi TA00330 |
| 0133/001 |
Roller bearing d.4x22 |
