Compa-OMS Spare Parts for Mitre Saw Blue 250
Compa-OMS Genuine spare parts or replacements parts for to repair
Mitre Saw BLUE 250.Fix Your Power Tool. All Spares can be supplied at discounted price. Our Spares are Genuine Parts and Come with a Full Guarantee.

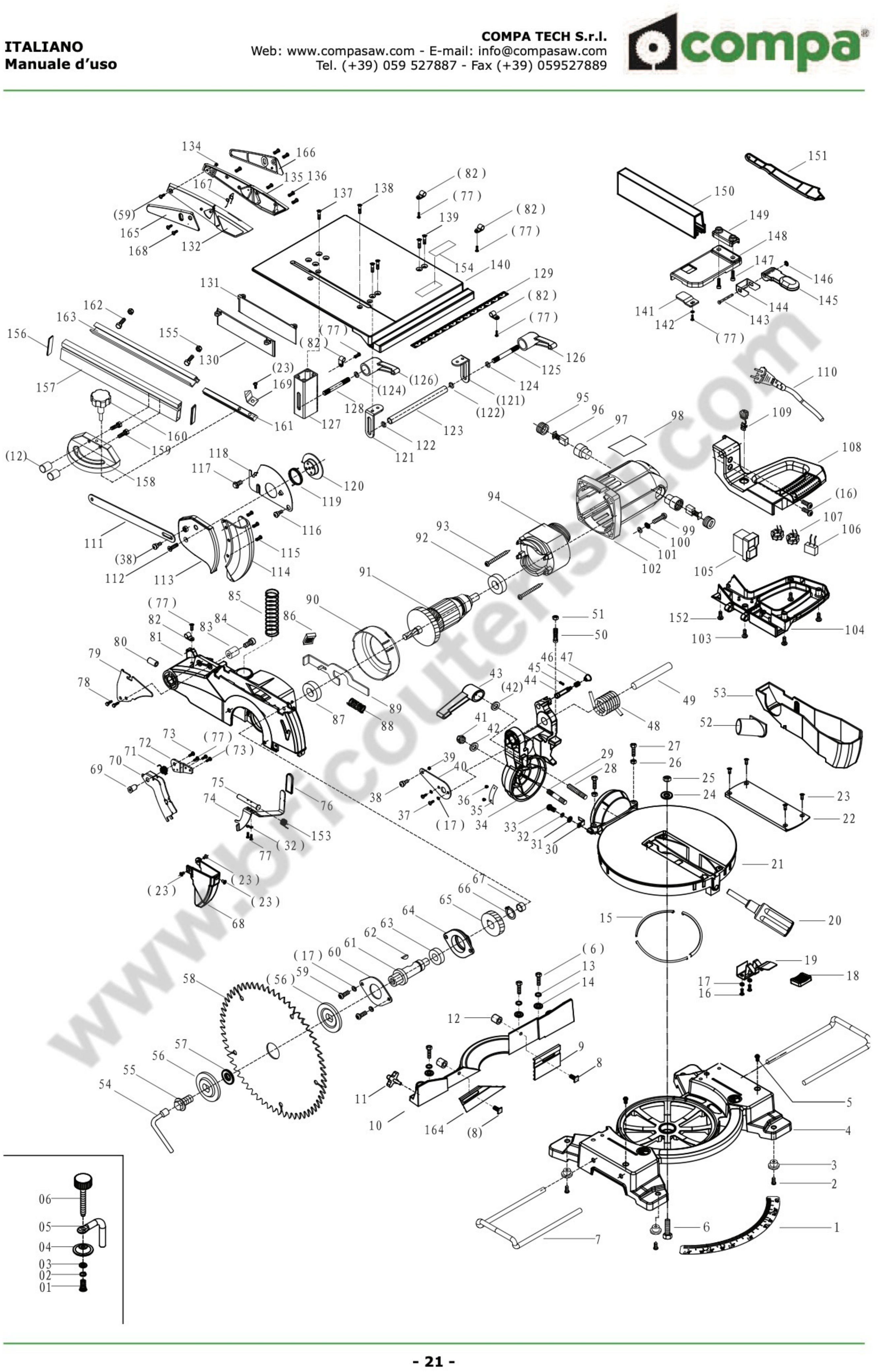

In the following table, look for the model of the Mitre Saws and their spare part.
| Mitre Saw Compa BLUE 250 |
| # |
Part Num. |
Description |
| 1 |
BL250.01.001 |
Graduated scale |
| 3 |
BL250.01.003 |
Foot |
| 4 |
BL250.01.004 |
Aluminum base |
| 15 |
BL250.01.015 |
Table ring |
| 18 |
BL250.01.018 |
Release cap |
| 19 |
BL250.01.019 |
Table release spring |
| 20 |
BL250.01.020 |
Pomello |
| 21 |
BL250.01.021 |
Turning table |
| 22 |
BL250.01.022 |
Table closing cap |
| 34 |
BL250.01.034 |
Arm support |
| 38 |
BL250.01.038 |
M6x1238 screw |
| 43 |
BL250.01.043 |
Maniglia |
| 44 |
BL250.01.044 |
Perno |
| 46 |
BL250.01.046 |
Molla |
| 47 |
BL250.01.047 |
Tappo |
| 48 |
BL250.01.048 |
Arm return spring |
| 49 |
BL250.01.049 |
Pin |
| 53 |
BL250.01.053 |
Undercounter shelter |
| 55 |
BL250.01.055 |
Saw screw M8x18 Sx |
| 56 |
BL250.01.056 |
Blade stop flange |
| 57 |
BL250.01.057 |
Blade reduction washer |
| 60 |
BL250.01.060 |
1.060 flange |
| 61 |
BL250.01.061 |
Bearing |
| 62 |
BL250.01.062 |
Key |
| 63 |
BL250.01.063 |
Bearing |
| 64 |
BL250.01.064 |
Bearing support |
| 65 |
BL250.01.065 |
Gear |
| 67 |
BL250.01.067 |
Reduction bushing |
| 68 |
BL250.01.068 |
Low blade cover |
| 74 |
BL250.01.074 |
Crankcase release lever |
| 75 |
BL250.01.075 |
Crankcase spring lever pin |
| 76 |
BL250.01.076 |
Lever cover |
| 79 |
BL250.01.079 |
Open cut |
| 81 |
BL250.01.081 |
Blade holder arm |
| 85 |
BL250.01.085 |
Upper floor spring |
| 86 |
BL250.01.086 |
Cap |
| 88 |
BL250.01.088 |
Spring |
| 89 |
BL250.01.089 |
Leverage |
| 90 |
BL250.01.090 |
Motor casing ring |
| 91 |
BL250.01.091 |
Armature |
| 94 |
BL250.01.094 |
stator |
| 95 |
BL250.01.095 |
Carbon Brush cap |
| 96 |
BL250.01.096 |
Carbon Brush set |
| 105 |
BL250.01.105 |
Switch |
| 111 |
BL250.01.111 |
Crankcase link rod |
| 121 |
BL250.01.121 |
Upper floor fork |
| 123 |
BL250.01.123 |
Connection pipe |
| 126 |
BL250.01.126 |
Handle |
| 129 |
BL250.01.129 |
Graduated rod |
| 130 |
BL250.01.130 |
Left goniometer team cover |
| 131 |
BL250.01.131 |
Right goniometer team cover |
| 140 |
BL250.01.140 |
Upper work table |
| 141 |
BL250.01.141 |
Pointer |
| 143 |
BL250.01.143 |
Pin |
| 144 |
BL250.01.144 |
Plate |
| 145 |
BL250.01.145 |
Lock Lever |
| 147 |
BL250.01.147 |
Hex Socket Head Screw M8x30 |
| 148 |
BL250.01.148 |
Sliding Plate |
| 149 |
BL250.01.149 |
Bracket |
| 150 |
BL250.01.150 |
Upper bracket |
| 200 |
BL250.01.200 |
Rip Fence Assy (11-19-12-9-8-164-10 |
| 201 |
BL250.01.201 |
Parallel upper square bracket (from 141 to 150) |
| 202 |
BL250.01.202 |
Larger group size 90 + goniometer (from 156 to 161 + 169) |
| 203 |
BL250.01.203 |
Upper Guard Assy (166-134-135-136-167-165-168-132-159) |
| 204 |
BL250.01.204 |
Saw guard casing unit (118-117-112- 113-114-115-116-119-120) |
| 205 |
BL250.01.205 |
Motor casing assembly (95-96-97-98-102) |
| 206 |
BL250.01.206 |
Crankcase movement group |
| 207 |
BL250.01.207 |
Full vertical vice |
