COMPA TECH-OMS

Compa Spare Parts for Vertical Router TV 40

SKU: Compa-OMS TV 40
€7.28
VAT included

Compa Spare Parts for Vertical Router TV 40

Compa-OMS authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for TV 40 Vertical Router 1500 W. h.mm.40 11500/24000 rpm/1'

Compa Spare Parts for Vertical Router TV 40
  • Compa Spare Parts for Vertical Router TV 40
  • Compa Spare Parts for Vertical Router TV 40
COMPA TECH-OMS

Compa Spare Parts for Vertical Router TV 40

SKU: Compa-OMS TV 40 Condition: New
€7.28
VAT included

Compa Spare Parts for Vertical Router TV 40

Compa-OMS authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for TV 40 Vertical Router 1500 W. h.mm.40 11500/24000 rpm/1'

settings 49 Spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:: [email protected]
Machine Type: Router
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
49 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

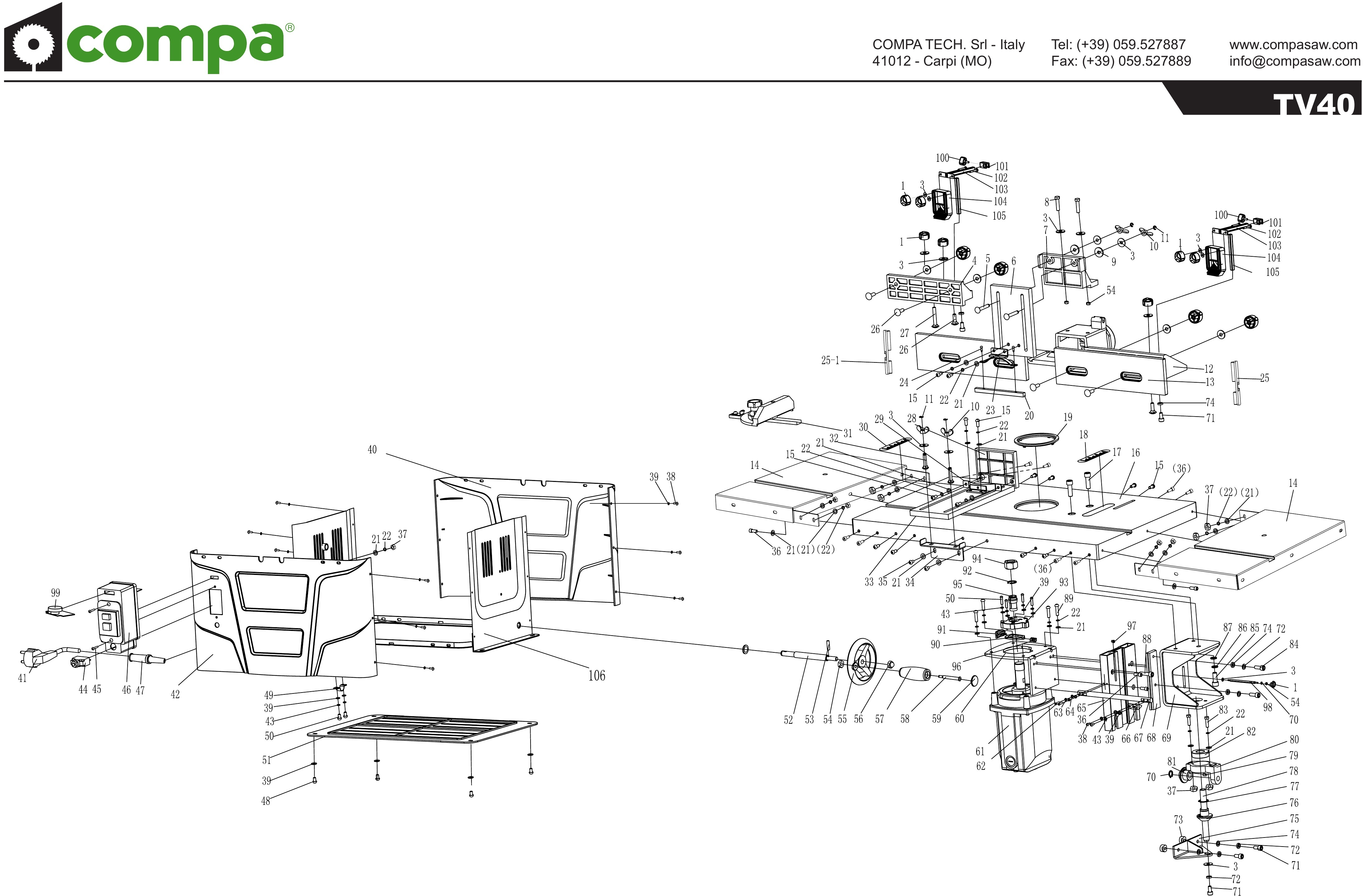

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon TV40.01.001 Knob M6 d.25 €7.08
3
 photo_cameraImage coming soon TV40.01.003 Washer d.6.5 x 18 €1.51
4
 photo_cameraImage coming soon TV40.01.004 Hood Slide €16.40
6
 photo_cameraImage coming soon TV40.01.006 Vertical presser slide €14.72
7
 photo_cameraImage coming soon TV40.01.007 Vertical presser holder €2.90
12
 photo_cameraImage coming soon TV40.01.012 Spindle Toupie' €15.90
13
 photo_cameraImage coming soon TV40.01.013 Bracket €16.53
18
 photo_cameraImage coming soon TV40.01.018 Rod mm DX €2.90
19
 photo_cameraImage coming soon TV40.01.019 Toupie Rings' €14.33
20
 photo_cameraImage coming soon TV40.01.020 Vertical presser shoe €2.90
23
 photo_cameraImage coming soon TV40.01.023 Presser leaf spring €12.01
25
 photo_cameraImage coming soon TV40.01.025 Right bracket head €2.90
25-1
 photo_cameraImage coming soon TV40.01.025-1 Right bracket head €2.90
26
 photo_cameraImage coming soon TV40.01.026 toggle UNI5732 M6x20 €4.29
30
 photo_cameraImage coming soon TV40.01.030 Shaft mm SX €1.51
31
 photo_cameraImage coming soon TV40.01.031 Protractor €23.37
33
 photo_cameraImage coming soon TV40.01.033 Front presser slide €4.29
44
 photo_cameraImage coming soon TV40.01.044 Reset button €19.61
46
 Safety Switch for Vertical Router Compa TV 40 TV40.01.046 Safety Switch for Vertical Router Compa TV 40 €25.93
52
 photo_cameraImage coming soon TV40.01.052 Handwheel axle €4.29
60
 photo_cameraImage coming soon TV40.01.060 Motor Holder €7.08
61
 photo_cameraImage coming soon TV40.01.061 Motor €167.23
67
 photo_cameraImage coming soon TV40.01.067 Index rod €2.90
68
 photo_cameraImage coming soon TV40.01.068 Sled Shoe €2.90
69
 photo_cameraImage coming soon TV40.01.069 Sled holder €19.65
73
 photo_cameraImage coming soon TV40.01.073 Pin 073 €2.90
76
 photo_cameraImage coming soon TV40.01.076 Bevel gear €2.90
78
 photo_cameraImage coming soon TV40.01.078 Lifting screw €5.68
80
 photo_cameraImage coming soon TV40.01.080 Lifting holder set €7.08
81
 photo_cameraImage coming soon TV40.01.081 Bevel gear €2.90
82
 photo_cameraImage coming soon TV40.01.082 Bearing €4.29
90
 photo_cameraImage coming soon TV40.01.090 Shaft anti-rotation sled €9.86
92
 photo_cameraImage coming soon TV40.01.092 Seegeer €2.00
93
 photo_cameraImage coming soon TV40.01.093 Front motor flange €2.90
94
 photo_cameraImage coming soon TV40.01.094 Clamp nut €2.90
95A
 Clamp 12MM TV40.01.095/12 Clamp 12MM €7.95
95
 Clamp 6MM TV40.01.095/6 Clamp 6MM €7.95
96
 photo_cameraImage coming soon TV40.01.096 Spring €2.90
99
 photo_cameraImage coming soon TV40.01.099 Potentiometer €2.90
150
 photo_cameraImage coming soon TV40.01.150 Flyer 55-57-58-59 €7.08
151
 photo_cameraImage coming soon TV40.01.151 Clamp Assy d.6 €14.04
152
 photo_cameraImage coming soon TV40.01.152 Clamp Assy d.8 €14.95
153
 photo_cameraImage coming soon TV40.01.153 Clamp Assy d.10 €14.04
154
 photo_cameraImage coming soon TV40.01.154 Clamp Assy d.12 €14.04
155
 photo_cameraImage coming soon TV40.01.155 Clamp Assy 1/4 (d.6,40) €14.04
156
 photo_cameraImage coming soon TV40.01.156 Clamp Assy 1/2 (d.12.70) €14.04
157
 photo_cameraImage coming soon TV40.01.157 Worktable Outfit Bolt €27.97
158
 photo_cameraImage coming soon TV40.01.158 Vertical presser (7 + 6 + 23 + 20) €21.00
159
 photo_cameraImage coming soon TV40.01.159 Horizontal presser (28 + 29 + 33) €21.00

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Compa Spare Parts for Vertical Router TV 40

Compa-OMS authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for TV 40 Vertical Router 1500 W. h.mm.40 11500/24000 rpm/1'

In the following table, look for the model of the Portable Saws and their spare part.
Compa-OMS TV 40

TV 40 Vertical Router 1500 W. h.mm.40 11500/24000 g./1'
# Part Num. Description
1 TV40.01.001 Knob M6 d.25
3 TV40.01.003 Washer d.6.5 x 18
4 TV40.01.004 Hood Slide
6 TV40.01.006 Vertical presser slide
7 TV40.01.007 Vertical presser holder
12 TV40.01.012 Spindle Toupie'
13 TV40.01.013 Bracket
18 TV40.01.018 Rod mm DX
19 TV40.01.019 Toupie Rings'
20 TV40.01.020 Vertical presser shoe
23 TV40.01.023 Presser leaf spring
25 TV40.01.025 Right bracket head
25-1 TV40.01.025-1 Right bracket head
26 TV40.01.026 toggle UNI5732 M6x20
30 TV40.01.030 Shaft mm SX
31 TV40.01.031 Protractor
33 TV40.01.033 Front presser slide
44 TV40.01.044 Reset button
46 TV40.01.046 Switch
52 TV40.01.052 Handwheel axle
60 TV40.01.060 Motor Holder
61 TV40.01.061 Motor
67 TV40.01.067 Index rod
68 TV40.01.068 Sled Shoe
69 TV40.01.069 Sled holder
73 TV40.01.073 Pin 073
76 TV40.01.076 Bevel gear
78 TV40.01.078 Lifting screw
80 TV40.01.080 Lifting holder set
81 TV40.01.081 Bevel gear
82 TV40.01.082 Bearing
90 TV40.01.090 Shaft anti-rotation sled
92 TV40.01.092 Seegeer
93 TV40.01.093 Front motor flange
94 TV40.01.094 Clamp nut
95 TV40.01.095/6 Clamp D.6MM
95A TV40.01.095/12 Clamp D.12MM
96 TV40.01.096 Spring
99 TV40.01.099 Potentiometer
150 TV40.01.150 Flyer 55-57-58-59
151 TV40.01.151 Clamp Assy d.6
152 TV40.01.152 Clamp Assy d.8
153 TV40.01.153 Clamp Assy d.10
154 TV40.01.154 Clamp Assy d.12
155 TV40.01.155 Clamp Assy 1/4 (d.6,40)
156 TV40.01.156 Clamp Assy 1/2 (d.12.70)
157 TV40.01.157 Worktable Outfit Bolt
158 TV40.01.158 Vertical presser (7 + 6 + 23 + 20)
159 TV40.01.159 Horizontal presser (28 + 29 + 33)
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Compa-OMS websites, which we consider as reliable.Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Compa-OMS brand review. Please refine the important parameters by the selling assistant when making a purchase.All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Compa-OMS TV 40
10 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
Machine Type
Router
MORE INFO:
[email protected]

Specific References

New

Download

Drawing Compa TV 40

Drawing Compa TV 40

Download (288.31KB)
