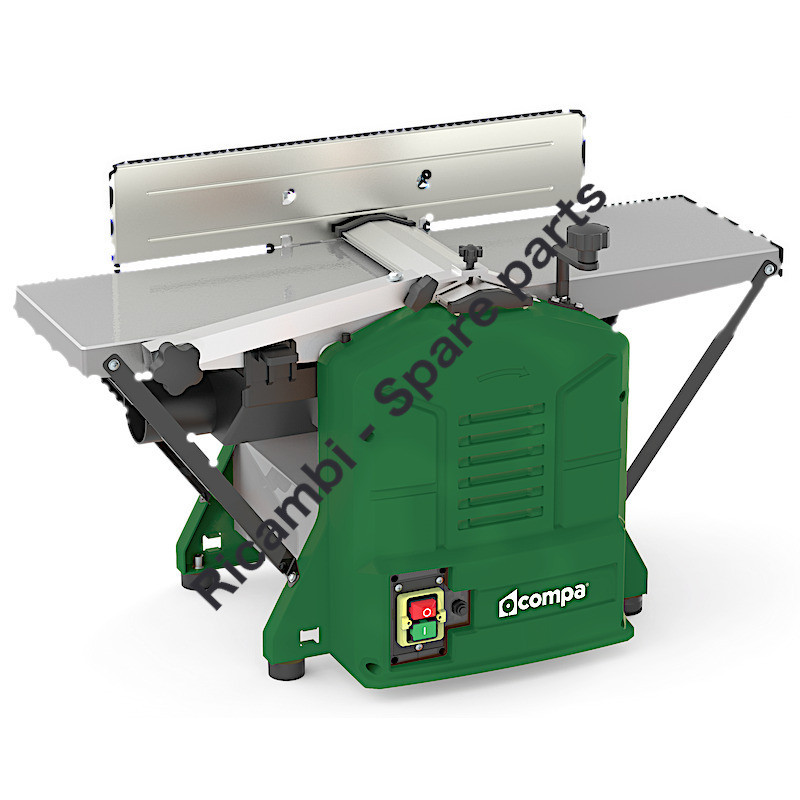

Compa-OMS Spare Parts for Combined machines Mini-KOMPACTA 200/2 V3

SKU: Mini-KOMPACTA 200/2 V3
€0.11
VAT included

Spare Parts for Combined Machines Mini-KOMPACTA 200/2 Version 3

COMPA-OMS authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Combined Surface Tickness Planer Mini-KOMPACTA 200/2 Version 3

Compa-OMS Spare Parts for Combined machines Mini-KOMPACTA 200/2 V3
  • New
  • Out-of-Stock
  • Compa-OMS Spare Parts for Combined machines Mini-KOMPACTA 200/2 V3
  • Compa Mini-KOMPACTA 200/2 V3 Drawing
COMPA TECH-OMS

Compa-OMS Spare Parts for Combined machines Mini-KOMPACTA 200/2 V3

SKU: Mini-KOMPACTA 200/2 V3 Condition: New
€0.11
VAT included

Spare Parts for Combined Machines Mini-KOMPACTA 200/2 Version 3

COMPA-OMS authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Combined Surface Tickness Planer Mini-KOMPACTA 200/2 Version 3

settings 34 Spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
Quantity
Out-of-Stock

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
34 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
5
 photo_cameraImage coming soon K200.122.005 Infeed table €30.63
10
 photo_cameraImage coming soon K200.122.010 Table lifting knob €4.71
18
 photo_cameraImage coming soon K200.122.018 Microswitch insertion key €1.18
25
 photo_cameraImage coming soon K200.122.025 Extraction hood plate €2.35
26
 photo_cameraImage coming soon K200.122.026 Extraction hood €8.25
33
 photo_cameraImage coming soon K200.122.033 Planer shaft flange €3.54
34
 photo_cameraImage coming soon K200.122.034 Bearing 34 €3.54
40
 photo_cameraImage coming soon K200.122.040 Knife holder gib €14.14
42
 photo_cameraImage coming soon K200.122.042 Feed roller €11.79
43
 photo_cameraImage coming soon K200.122.043 Protection sheet metal €5.89
48
 photo_cameraImage coming soon K200.122.048 Side panel.048 €17.68
50
 photo_cameraImage coming soon K200.122.050 Belt 230J (PJ584) €14.14
52
 photo_cameraImage coming soon K200.122.052 Chain 22.052 €11.79
53
 photo_cameraImage coming soon K200.122.053 Pinion 2.053 €9.43
57
 photo_cameraImage coming soon K200.122.057 Tensioning block including 058 €7.08
61
 photo_cameraImage coming soon K200.122.061 Torsion spring €5.89
69
 photo_cameraImage coming soon K200.122.069 Plastic gear wheel €17.68
70
 photo_cameraImage coming soon K200.122.070 Gear 0 €5.89
71
 photo_cameraImage coming soon K200.122.071 Small pinion €7.08
74
 photo_cameraImage coming soon K200.122.074 Primary belt €14.14
77
 photo_cameraImage coming soon K200.122.077 Casing 22.077 €11.79
80
 photo_cameraImage coming soon K200.122.080 Switch €14.14
121
 photo_cameraImage coming soon K200.122.121 Reset button €3.54
134
 photo_cameraImage coming soon K200.122.134 Foot 2.134 €3.54
139
 photo_cameraImage coming soon K200.122.139 Feed roller €11.79
146
 photo_cameraImage coming soon K200.122.146 Table lifting chain €5.89
147
 photo_cameraImage coming soon K200.122.147 Pinion 2.147 €5.89
149
 photo_cameraImage coming soon K200.122.149 Complete motor €123.73
171
 photo_cameraImage coming soon K200.122.171 Planer shaft flange €3.54
174
 photo_cameraImage coming soon K200.122.174 Planer shaft €42.42
179
 photo_cameraImage coming soon K200.122.179 Microswitch cover €2.35
182
 photo_cameraImage coming soon K200.122.182 Microswitch €2.35
183
 photo_cameraImage coming soon K200.122.183 Outfeed table €33.00
200
 photo_cameraImage coming soon K200.122.200 Knife aligner 175+176+177 €30.63

Shipping and delivery information will be available shortly.

Spare Parts for Combined Machines Mini-KOMPACTA 200/2 Version 3

COMPA-OMS authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Combined Surface Tickness Planer Mini-KOMPACTA 200/2 Version 3

In the following table, look for the model of the Combined Machine and their spare part.
Mini-KOMPACTA 200/2 V3

Compa Mini Kompacta 200/2 Versione 3
# Part Num. Description
5 K200.122.005 Infeed table
10 K200.122.010 Table lifting knob
18 K200.122.018 Microswitch insertion key
25 K200.122.025 Extraction hood plate
26 K200.122.026 Extraction hood
33 K200.122.033 Planer shaft flange
34 K200.122.034 Bearing 34
40 K200.122.040 Knife holder gib
42 K200.122.042 Feed roller
43 K200.122.043 Protection sheet metal
48 K200.122.048 Side panel.048
50 K200.122.050 Belt 230J (PJ584)
52 K200.122.052 Chain 22.052
53 K200.122.053 Pinion 2.053
57 K200.122.057 Tensioning block including 058
61 K200.122.061 Torsion spring
69 K200.122.069 Plastic gear wheel
70 K200.122.070 Gear 0
71 K200.122.071 Small pinion
74 K200.122.074 Primary belt
77 K200.122.077 Casing 22.077
80 K200.122.080 Switch
121 K200.122.121 Reset button
134 K200.122.134 Foot 2.134
139 K200.122.139 Feed roller
146 K200.122.146 Table lifting chain
147 K200.122.147 Pinion 2.147
149 K200.122.149 Complete motor
171 K200.122.171 Planer shaft flange
174 K200.122.174 Planer shaft
179 K200.122.179 Microswitch cover
182 K200.122.182 Microswitch
183 K200.122.183 Outfeed table
200 K200.122.200 Knife aligner 175+176+177
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Compa-OMS websites, which we consider as reliable.Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice.We strongly recommend using the published information as a basic information subject to Compa-OMS brand review. Please refine the important parameters by the selling assistant when making a purchase.All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
