Compa-OMS Spare Parts for Band Saw SC1440
€0.11
VAT included
Compa-OMS Spare Parts for Band Saw SC1440

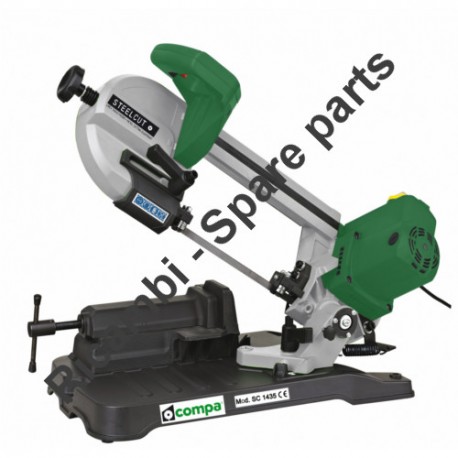

Original spare parts for Compa-OMS for Portable Band Saw SC 1440.
Compa-OMS Spare Parts for Band Saw SC1440
€0.11
VAT included
Compa-OMS Spare Parts for Band Saw SC1440
Original spare parts for Compa-OMS for Portable Band Saw SC 1440.
settings
1 spare part
description
2 exploded views
verified_user
Original Product
Manufacturer warranty included
support_agent
Technical Support
Our team helps you choose
Secure and guaranteed payments
1 spare parts
Page 1

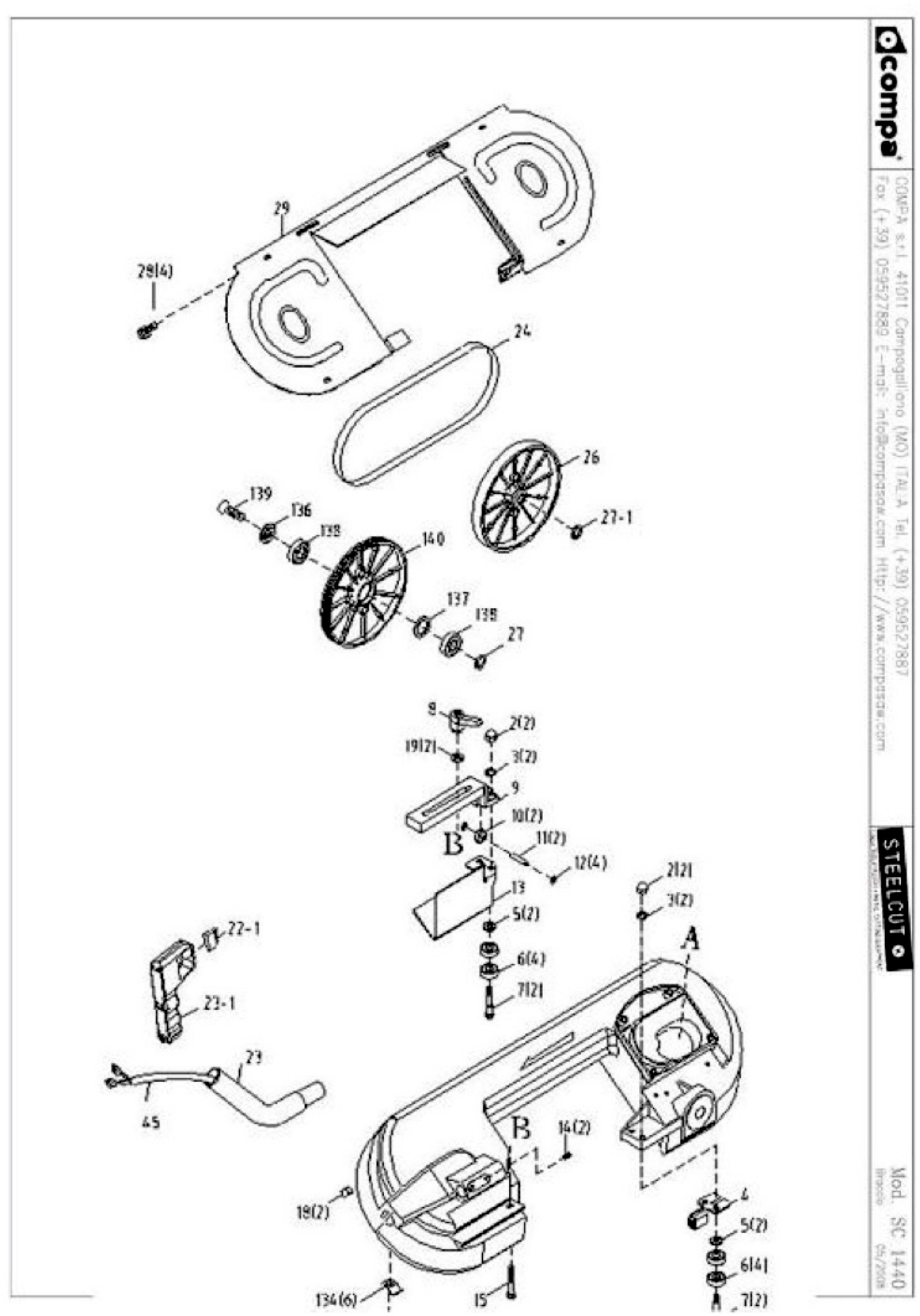

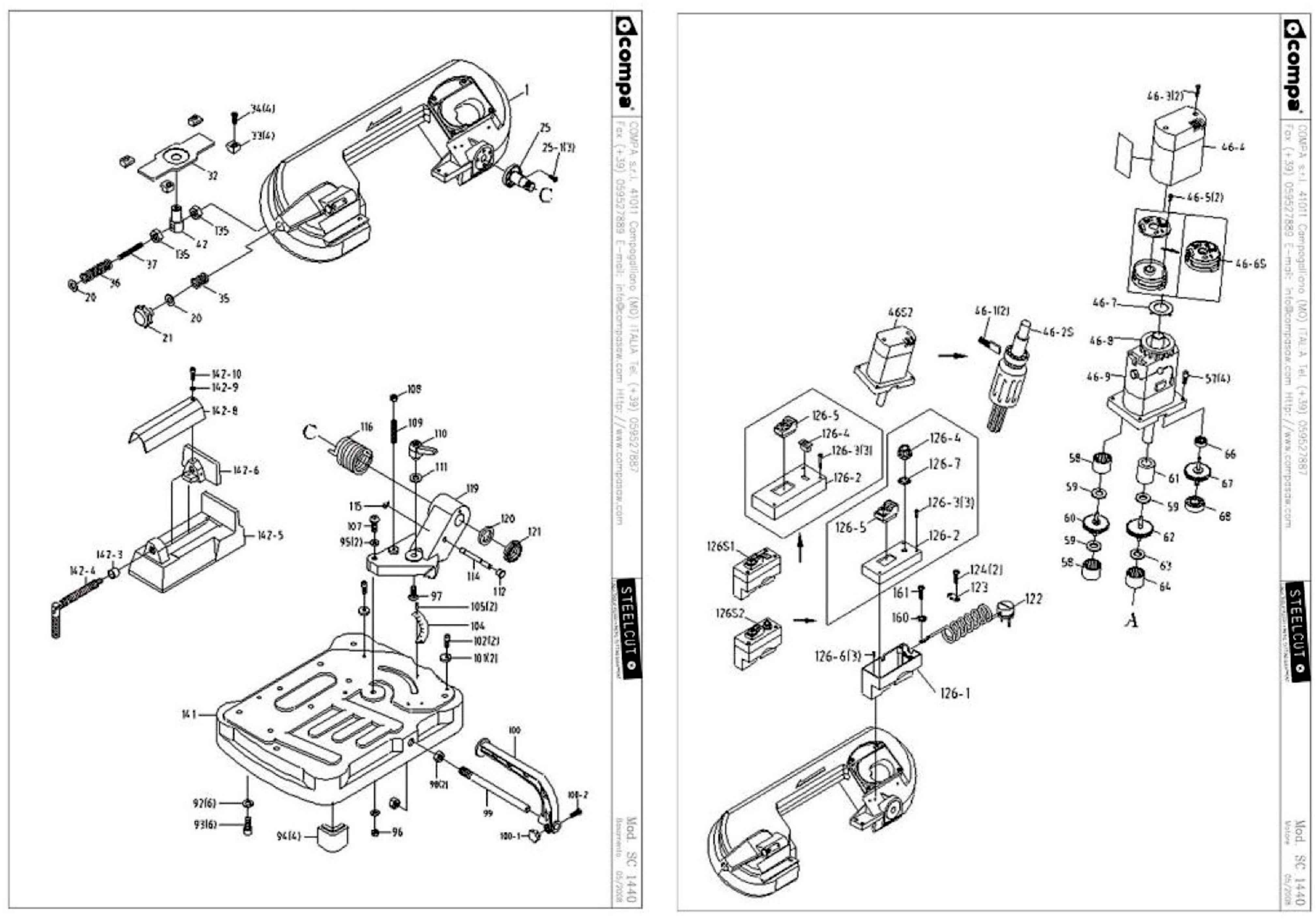

zoom_in View exploded
| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
1
|
photo_cameraImage coming soon | SC1440/001 Telaio | €73.20 |
Shipping and delivery information will be available shortly.
Compa-OMS Spare Parts for Band Saw SC1440
Original spare parts for Compa-OMS for Portable Band Saw SC1440.
In the following table, look for the model of the Band Saws and their spare part.
| BAND SAW SC1440 | ||
| # | Part Num. | Description |
| 1 | SC1440/001 | Frame x SC1440 |
| 2 | SC1440/002 | Nut M6 x SC1440 |
| 3 | SC1440/003 | Spring washer M6 x SC1440 |
| 4 | SC1440/004 | Guide bracket x SC1440 |
| 5 | SC1440/005 | Washer x SC1440 |
| 6 | SC1440/006 | Bearing x SC1440 607-2RS |
| 7 | SC1440/007 | Eccentric shaft x SC1440 |
| 8 | SC1440/008 | knob |
| 9 | SC1440/009 | Adjustable bracket (front) x SC1440 |
| 10 | SC1440/010 | Bearing x SC1440 624-2RS |
| 11 | SC1440/011 | Pin x SC1440 d 4x19.8L |
| 12 | SC1440/012 | Washer x SC1440 |
| 13 | SC1440/013 | Blade guard (front) x SC1440 |
| 14 | SC1440/014 | Screw Hex Socket Head |
| 15 | SC1440/015 | Screw cart x SC1440 M6x30L |
| 17 | SC1440/017 | Screw flat head Phillips |
| 18 | SC1440/018 | SC bracket x 1440 |
| 19 | SC1440/019 | Washer M6 x SC1440 |
| 20 | SC1440/020 | Washer M8 x SC1440 |
| 21 | SC1440/021 | Knob x SC1440 |
| 22-1 | SC1440/022-1 | Switch x SC1440 |
| 23 | SC1440/023 | Connecting tube x SC1440 |
| 23-1 | SC1440/023-1 | Handle SC1440 |
| 24 | SC1440/024 | Lama x SC1440 1440x13x0.65-8 / 12T |
| 25 | SC1440/025 | Fixed shaft x SC1440 |
| 25-1 | SC1440/025-1 | Screw flat head Phillips |
| 26 | SC1440/026 | Driving wheel x SC1440 |
| 27 | SC1440/027 | Washer x SC1440 |
| 27-1 | SC1440/027-1 | Washer SC x 1440 21.8 * 15.2-1 |
| 28 | SC1440/028 | Screw T.E. x SC1440 M5x10L |
| 29 | SC1440/029 | Rear blade guard x SC1440 |
| 32 | SC1440/032 | Bracket Tension x SC1440 |
| 33 | SC1440/033 | Pressure plate x SC1440 |
| 34 | SC1440/034 | Screw flat head Phillips |
| 35 | SC1440/035 | Spring 1440 x SC |
| 36 | SC1440/036 | Spring 1440 x SC |
| 37 | SC1440/037 | Bolt x SC1440 |
| 42 | SC1440/042 | Tree x SC1440 |
| 45 | SC1440/045 | Cable x SC1440 |
| 46-1 | SC1440/046-1 | Brush x SC1440 |
| 46-2 | SC1440/046-2 | Motor mount SC1440 |
| 46-3 | SC1440/046-3 | Screw round head slotted |
| 46-4 | SC1440/046-4 | Crankcase x SC1440 |
| 46-5 | SC1440/046-5 | Screw round head slotted |
| 46-7 | SC1440/046-7 | Separator SC x 1440 |
| 46-8 | SC1440/046-8 | Fan x SC1440 |
| 46-9 | SC1440/046-9 | SC bracket x 1440 |
| 57 | SC1440/057 | Allen screw with hexagon socket x |
| 58 | SC1440/058 | Bearing x SC1440 HK0609 |
| 59 | SC1440/059 | Washer x SC1440 |
| 60 | SC1440/060 | Gear x SC1440 |
| 61 | SC1440/061 | Bushing x SC1440 |
| 62 | SC1440/062 | Gear B x SC1440 |
| 63 | SC1440/063 | Washer x SC1440 |
| 64 | SC1440/064 | Bearing x SC1440 HK0810 |
| 66 | SC1440/066 | Bearing x SC1440 627-2RS |
| 67 | SC1440/067 | Gear C x SC1440 |
| 68 | SC1440/068 | Bearing x SC1440 6202LLU |
| 92 | SC1440/092 | Spring washer M8 x SC1440 |
| 93 | SC1440/093 | Allen screw with hexagon socket x |
| 94 | SC1440/094 | Rubber foot |
| 95 | SC1440/095 | Washer x SC1440 M10x20x2t |
| 96 | SC1440/096 | Nut M10 x SC1440 |
| 97 | SC1440/097 | Screw cart x SC1440 M10x33L |
| 98 | SC1440/098 | Hex nut x SC1440 M14xP1.5 |
| 99 | SC1440/099 | Auction set distance x SC1440 |
| 100 | SC1440/100 | Bracket set distance x SC1440 |
| 100-1 | SC1440/100-1 | Handle x SC1440 |
| 100-2 | SC1440/100-2 | Screw T.E. x SC1440 M6x30L |
| 101 | SC1440/101 | Washer x SC1440 |
| 102 | SC1440/102 | Screw round head slotted |
| 104 | SC1440/104 | Indicator degrees x SC1440 |
| 105 | SC1440/105 | Rivet x SC1440 d.3.3x6L |
| 107 | SC1440/107 | Allen screw with hexagon socket |
| 108 | SC1440/108 | Hex nut M6 x SC1440 |
| 109 | SC1440/109 | Screw Hex Socket Head |
| 110 | SC1440/110 | Knob x SC1440 |
| 111 | SC1440/111 | Washer x SC1440 M10x27x2t |
| 112 | SC1440/112 | Knob with tree x SC1440 |
| 114 | SC1440/114 | Positioning pin x SC1440 |
| 115 | SC1440/115 | Locking ring E x SC1440 E7 |
| 116 | SC1440/116 | Spring 1440 x SC |
| 119 | SC1440/119 | Swivel arm x SC1440 |
| 120 | SC1440/120 | Washer x SC1440 |
| 121 | SC1440/121 | Dado x SC1440 AN02 |
| 122 | SC1440/122 | Power cable x SC1440 |
| 123 | SC1440/123 | Adjusting nut cable x SC1440 |
| 124 | SC1440/124 | Screw round head slotted |
| 126-1 | SC1440/126-1 | Cover x SC1440 |
| 126-2 | SC1440/126-2 | Cover x SC1440 2speed |
| 126-3 | SC1440/126-3 | Screw round head slotted |
| 126-5 | SC1440/126-5 | ON / OFF switch x SC1440 |
| 126-6 | SC1440/126-6 | Screw round head slotted |
| 126S2 | SC1440/126S2 | Group dimmer switch x SC1440 |
| 134 | SC1440/134 | Gland x SC1440 |
| 135 | SC1440/135 | Hexagon nut M8 x SC1440 |
| 136 | SC1440/136 | Locking clamp x SC1440 |
| 137 | SC1440/137 | Washer x SC1440 |
| 138 | SC1440/138 | Bearing x SC1440 6002-2RS |
| 139 | SC1440/139 | Allen screw flat head hex |
| 140 | SC1440/140 | Idler x SC1440 |
| 141 | SC1440/141 | Swivel base x SC1440 |
| 142-3 | SC1440/142-3 | Bushing x SC1440 |
| 142-4 | SC1440/142-4 | Lead screw x SC1440 |
| 142-9 | SC1440/142-9 | Washer M6 x SC1440 |
| 142S | SC1440/142S | Complete vise x SC1440 |
| 160 | SC1440/160 | Star washer x SC1440 M5 |
| 161 | SC1440/161 | Screw round head slotted |
| 46-2S | SC1440/46-2S | Group motorotore-Tree motorotore- |
| 46-S2 | SC1440/46-S2 | Engine x SC1440 220 V |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Compa-OMS websites, which we consider as reliable.Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice.We strongly recommend using the published information as a basic information subject to Compa-OMS brand review. Please refine the important parameters by the selling assistant when making a purchase.All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
