COMPA TECH-OMS

Compa-OMS Spare Parts for Portable Saws SLIDER 305X2B

SKU: Compa-OMS 305X2B
€13.91
VAT included

Compa-OMS Spare Parts for Slider Compound Mitre Saw SLIDER 305X2B

Compa-OMS Original spare parts at the most competitive prices on the web, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance and repair issues for Slider Compound Mitre Saw SLIDER 305X2B.
Compa-OMS Spare Parts for Portable Saws SLIDER 305X2
  • Compa-OMS Spare Parts for Portable Saws SLIDER 305X2
  • Compa-OMS Spare Parts for Portable Saws SLIDER 305X2B
COMPA TECH-OMS

Compa-OMS Spare Parts for Portable Saws SLIDER 305X2B

SKU: Compa-OMS 305X2B Condition: New
€13.91
VAT included

Compa-OMS Spare Parts for Slider Compound Mitre Saw SLIDER 305X2B

Compa-OMS Original spare parts at the most competitive prices on the web, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance and repair issues for Slider Compound Mitre Saw SLIDER 305X2B.
settings 77 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
77 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

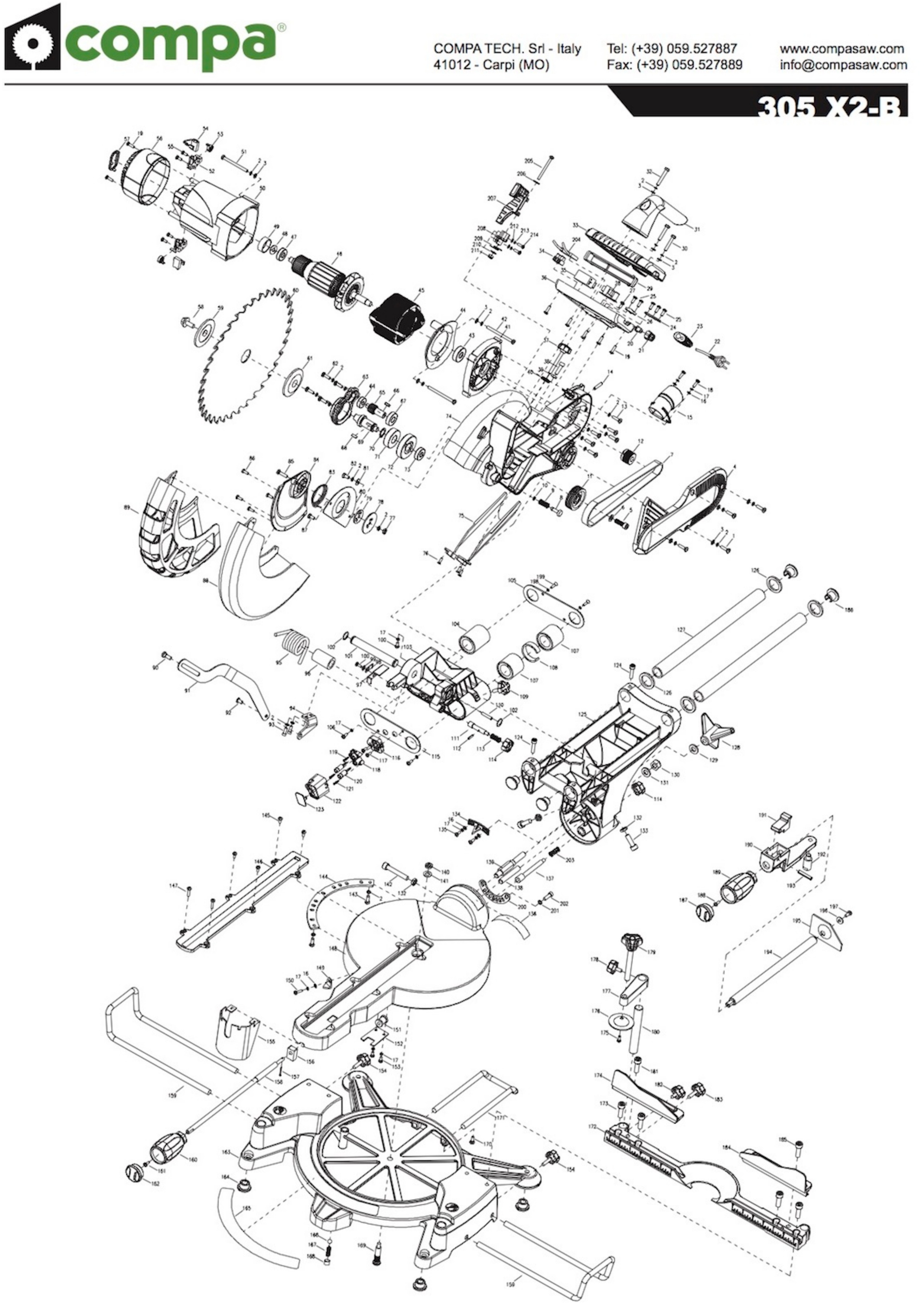

Esploso pagina 1
Pos. Item Price Buy
4
 photo_cameraImage coming soon 305X2-B/004 belt cover €13.12
7
 Poly-V Belt for Mitre Saw Compa SLIDER 305X2B 305X2-B/007 Poly-V Belt for Mitre Saw Compa SLIDER 305X2B €20.25
8
 photo_cameraImage coming soon 305X2-B/008 Pin locking gear €3.57
9
 photo_cameraImage coming soon 305X2-B/009 gear €5.96
11
 Big Pulley for Mitre Saw Compa SLIDER 305X2B 305X2-B/011 Big Pulley for Mitre Saw Compa SLIDER 305X2B €10.50
12
 photo_cameraImage coming soon 305X2-B/012 small Pulley €7.16
20
 photo_cameraImage coming soon 305X2-B/020 switch laser €7.16
21
 photo_cameraImage coming soon 305X2-B/021 laser protection €3.57
28
 photo_cameraImage coming soon 305X2-B/028 Transformer €19.09
31
 photo_cameraImage coming soon 305X2-B/031 handle €9.54
33
 photo_cameraImage coming soon 305X2-B/033 lower handle €14.20
35
 photo_cameraImage coming soon 305X2-B/035 switch €17.90
36
 photo_cameraImage coming soon 305X2-B/036 handle low €14.20
41
 photo_cameraImage coming soon 305X2-B/041 engine support €14.20
43
 photo_cameraImage coming soon 305X2-B/043 bearing €10.01
44
 photo_cameraImage coming soon 305X2-B/044 deflector €4.77
45
 photo_cameraImage coming soon 305X2-B/045 stator €71.50
46
 photo_cameraImage coming soon 305X2-B/046 Rotor with fan €77.46
47
 photo_cameraImage coming soon 305X2-B/047 bearing €7.16
48
 photo_cameraImage coming soon 305X2-B/048 Randella €2.38
49
 photo_cameraImage coming soon 305X2-B/049 Rubber bearing carrier €3.57
50
 photo_cameraImage coming soon 305X2-B/050 Cover plastic motor housing X2-B €17.90
52
 photo_cameraImage coming soon 305X2-B/052 Brush Holder €3.57
53
 photo_cameraImage coming soon 305X2-B/053 Spring for brush €2.38
54
 Compa SLIDER 305X2B Carbon Brush Set 305X2-B/054 Compa SLIDER 305X2B Carbon Brush Set €15.82
56
 photo_cameraImage coming soon 305X2-B/056 Fan cover €7.16
58
 photo_cameraImage coming soon 305X2-B/058 screw fermalama €4.01
59
 photo_cameraImage coming soon 305X2-B/059 bottom flange €7.16
61
 photo_cameraImage coming soon 305X2-B/061 inner flange €9.42
63
 photo_cameraImage coming soon 305X2-B/063 Power shift gear €14.32
64
 photo_cameraImage coming soon 305X2-B/064 Bearing 608 Z €7.16
65
 Speed Gear for Mitre Saw Compa SLIDER 305X2B 305X2-B/065 Speed Gear for Mitre Saw Compa SLIDER 305X2B €20.78
66
 Parallel Key mm 4,13x3,98x16 for Mitre Saw Compa SLIDER 305X2B 305X2-B/066 Parallel Key mm 4,13x3,98x16 for Mitre Saw Compa SLIDER 305X2B €2.77
67
 photo_cameraImage coming soon 305X2-B/067 Bearing 6001 Z €7.16
68
 photo_cameraImage coming soon 305X2-B/068 tongue €2.38
69
 photo_cameraImage coming soon 305X2-B/069 spindle €9.42
70
 photo_cameraImage coming soon 305X2-B/070 clip €2.38
71
 photo_cameraImage coming soon 305X2-B/071 bearing €9.42
72
 photo_cameraImage coming soon 305X2-B/072 gear €17.90
73
 photo_cameraImage coming soon 305X2-B/073 bearing €7.16
75
 photo_cameraImage coming soon 305X2-B/075 Baffle €18.24
78
 Blade Guard Upper Washer for Slider Mitre Saw Compa SLIDER 305X2B 305X2-B/078 Blade Guard Upper Washer for Slider Mitre Saw Compa SLIDER 305X2B €4.87
79
 Blade Guard Lower Washer for Slider Mitre Saw Compa SLIDER 305X2B 305X2-B/079 Blade Guard Lower Washer for Slider Mitre Saw Compa SLIDER 305X2B €3.47
80
 Half Internal Carter for Slider Mitre Saw Compa SLIDER 305X2B 305X2-B/080 Half Internal Carter for Slider Mitre Saw Compa SLIDER 305X2B €13.80
83
 Blade Guard Lower Spring for Slider Mitre Saw Compa SLIDER 305X2B 305X2-B/083 Blade Guard Lower Spring for Slider Mitre Saw Compa SLIDER 305X2B €8.22 Not available for order
84
 Half Esternal Carter for Slider Mitre Saw Compa SLIDER 305X2B 305X2-B/084 Half Esternal Carter for Slider Mitre Saw Compa SLIDER 305X2B €20.78
85
 photo_cameraImage coming soon 305X2-B/085 Bolt €2.38
88
 photo_cameraImage coming soon 305X2-B/088 Carter shelter saw metal x 305 X2 / B €33.42
89
 photo_cameraImage coming soon 305X2-B/089 Carter shelter saw plastic x 305X2 / B €11.93
91
 photo_cameraImage coming soon 305X2-B/091 lever housing €10.01
94
 photo_cameraImage coming soon 305X2-B/094 lever housing €10.01
95
 photo_cameraImage coming soon 305X2-B/095 Spring for miter saw 305 X2-B €19.91
96
 photo_cameraImage coming soon 305X2-B/096 Bushing x 305 miter saw X2-B €4.77
104
 photo_cameraImage coming soon 305X2-B/104 bearing €22.67
107
 photo_cameraImage coming soon 305X2-B/107 bearing €17.90
108
 photo_cameraImage coming soon 305X2-B/108 band €2.38
111
 photo_cameraImage coming soon 305X2-B/111 pin €4.77
112
 photo_cameraImage coming soon 305X2-B/112 plug €4.77
113
 photo_cameraImage coming soon 305X2-B/113 spring €2.38
114
 photo_cameraImage coming soon 305X2-B/114 knob €3.57
128
 photo_cameraImage coming soon 305X2-B/128 knob €9.42
134
 photo_cameraImage coming soon 305X2-B/134 index €2.38
136
 photo_cameraImage coming soon 305X2-B/136 index €11.81
137
 photo_cameraImage coming soon 305X2-B/137 pin €7.16
149
 photo_cameraImage coming soon 305X2-B/149 index €2.38
165
 photo_cameraImage coming soon 305X2-B/165 Index scale €9.42
172
 Lower Fence for Slider Mitre Saw Compa SLIDER 305X2B 305X2-B/172 Lower Fence for Slider Mitre Saw Compa SLIDER 305X2B €41.10
174
 Left Sliding Fence for Slider Mitre Saw Compa SLIDER 305X2B 305X2-B/174 Left Sliding Fence for Slider Mitre Saw Compa SLIDER 305X2B €16.60
182
 Clamping Knob M6x16 for Slider Mitre Saw Compa 305X2B 305X2-B/182 Clamping Knob M6x16 for Slider Mitre Saw Compa 305X2B €6.68
183
 Clamping Knob M6x20 for Slider Mitre Saw Compa 305X2B 305X2-B/183 Clamping Knob M6x20 for Slider Mitre Saw Compa 305X2B €6.82
184
 Right Sliding Fence for Slider Mitre Saw Compa SLIDER 305X2B 305X2-B/184 Right Sliding Fence for Slider Mitre Saw Compa SLIDER 305X2B €16.60
203
 photo_cameraImage coming soon 305X2-B/203 spring €3.57
220
 Blade Housing Guard Ass'y for Mitre Saw Compa SLIDER 305X2B 305X2-B/220 Blade Housing Guard Ass'y for Mitre Saw Compa SLIDER 305X2B €62.67
221
 photo_cameraImage coming soon 305X2-B/221 Knob assembled 157-158-159-160-162 €20.28
222
 photo_cameraImage coming soon 305X2-B/222 Release unit casing (205-214) €17.90
223
 Lower Fence Ass'y for Slider Mitre Saw Compa SLIDER 305X2B 305X2-B/223 Lower Fence Ass'y for Slider Mitre Saw Compa SLIDER 305X2B €48.71
224
 photo_cameraImage coming soon 305X2-B/224 Group Complete laser (116-123) €23.87

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Compa-OMS Spare Parts for Slider Compound Mitre Saw SLIDER 305X2B

Compa-OMS Original spare parts at the most competitive prices on the web, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance and repair issues for Slider Compound Mitre Saw SLIDER 305X2B.

In the following table, look for the model of the Portable Saws and their spare part.
SLIDER 305X2B

MITRE SAW 305 X2B
# Part Num. Description
4 305X2-B/004 belt cover
7 305X2-B/007 belt 6PJ526
8 305X2-B/008 Pin locking gear
9 305X2-B/009 gear
11 305X2-B/011 Big pulley
12 305X2-B/012 small Pulley
20 305X2-B/020 switch laser
21 305X2-B/021 laser protection
28 305X2-B/028 Transformer
31 305X2-B/031 handle
33 305X2-B/033 lower handle
35 305X2-B/035 switch
36 305X2-B/036 handle low
41 305X2-B/041 engine support
43 305X2-B/043 bearing
44 305X2-B/044 deflector
45 305X2-B/045 stator
46 305X2-B/046 Rotor with fan
47 305X2-B/047 bearing
48 305X2-B/048 Randella
49 305X2-B/049 Rubber bearing carrier
50 305X2-B/050 Cover plastic motor housing X2-B
52 305X2-B/052 Brush Holder
53 305X2-B/053 Spring for brush
54 305X2-B/054 Carbon Brush Pair x mod. 305 X2-B
56 305X2-B/056 Fan cover
58 305X2-B/058 screw fermalama
59 305X2-B/059 bottom flange
61 305X2-B/061 inner flange
63 305X2-B/063 Power shift gear
64 305X2-B/064 Bearing 608 Z
65 305X2-B/065 Speed gear
66 305X2-B/066 Parallel Key
67 305X2-B/067 Bearing 6001 Z
68 305X2-B/068 tongue
69 305X2-B/069 spindle
70 305X2-B/070 clip
71 305X2-B/071 bearing
72 305X2-B/072 gear
73 305X2-B/073 bearing
75 305X2-B/075 Baffle
78 305X2-B/078 Washer
79 305X2-B/079 Washer
80 305X2-B/080 Half Internal Carter
83 305X2-B/083 Spring
84 305X2-B/084 Half Esternal Carter
85 305X2-B/085 Bolt
88 305X2-B/088 Carter shelter saw metal x 305 X2 / B
89 305X2-B/089 Carter shelter saw plastic x 305X2 / B
91 305X2-B/091 lever housing
94 305X2-B/094 lever housing
95 305X2-B/095 Spring for miter saw 305 X2-B
96 305X2-B/096 Bushing x 305 miter saw X2-B
104 305X2-B/104 bearing
107 305X2-B/107 bearing
108 305X2-B/108 band
111 305X2-B/111 pin
112 305X2-B/112 plug
113 305X2-B/113 spring
114 305X2-B/114 knob
128 305X2-B/128 knob
134 305X2-B/134 index
136 305X2-B/136 index
137 305X2-B/137 pin
149 305X2-B/149 index
165 305X2-B/165 Index scale
172 305X2-B/172 lower Fence
174 305X2-B/174 Cursor Left miter x 305 X2-B
183 305X2-B/182 Clamping Knob M6X16
183 305X2-B/183 Clamping Knob M6X20
184 305X2-B/184 Right cursor x miter saw 305 X2-B
203 305X2-B/203 spring
220 305X2-B/220 Blade Housing Guard Assy (77-89)
221 305X2-B/221 Knob assembled 157-158-159-160-162
222 305X2-B/222 Release unit casing (205-214)
223 305X2-B/223 Lower Rip Fence Ass'y (172-173-174-181-182
224 305X2-B/224 Group Complete laser (116-123)
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Compa-OMS websites, which we consider as reliable.Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice.We strongly recommend using the published information as a basic information subject to Compa-OMS brand review. Please refine the important parameters by the selling assistant when making a purchase.All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Compa-OMS 305X2B
11 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Compa SLIDER 305X2B

Diagram Compa SLIDER 305X2B

Download (380.62KB)

You might also like

Switch for Portable Saws Slider Compa-OMS 305 X-2T
COMPA TECH-OMS SKU: Compa 305X2T/063
Switch for Portable Saws Slider Compa-OMS 305 X-2T
Switch for Slider Compound Mitre Saw Compa Slider 305 X-2T  Original Spare Part Compa-OMS, Switch for Slider Compound Mitre Saw Slider 305 X-2T  Part for the following products: -  Slider Compound Mitre Saw Slider 305 X-2T  - Code :...
AVAILABLE €41.87
Details
Parallel Key mm 4,13x3,98x16 for Mitre Saw Compa SLIDER 305X2B
COMPA TECH-OMS SKU: 305X2-B/066
Parallel Key mm 4,13x3,98x16 for Mitre Saw Compa SLIDER 305X2B
Parallel Key mm 4,13x3,98x16 for Mitre Saw Compa SLIDER 305X2B Genuine part Compa-OMS, Parallel Woodruff Key mm 4,13x3,98x16 for Mitre Saw Compa SLIDER 305X2B. Part for the following products: -  Mitre Saw Compa SLIDER 305X2B - Code:...
AVAILABLE €2.77
Details
Half Esternal Carter for Slider Mitre Saw Compa SLIDER 305X2B
COMPA TECH-OMS SKU: 305X2-B/084
Half Esternal Carter for Slider Mitre Saw Compa SLIDER 305X2B
Half Esternal Carter for Slider Mitre Saw Compa SLIDER 305X2B Genuine part Compa-OMS, Half Esternal Carter for Slider Compound Mitre Saw Compa SLIDER 305X2B. Part for the following products: -  Slider Compound Mitre Saw Compa SLIDER...
AVAILABLE €20.78
Details
Half Internal Carter for Slider Mitre Saw Compa SLIDER 305X2B
COMPA TECH-OMS SKU: 305X2-B/080
Half Internal Carter for Slider Mitre Saw Compa SLIDER 305X2B
Half Internal Carter for Slider Mitre Saw Compa SLIDER 305X2B Genuine part Compa-OMS, Half Internal Carter for Slider Compound Mitre Saw Compa SLIDER 305X2B. Part for the following products: -  Slider Compound Mitre Saw Compa SLIDER...
AVAILABLE €13.80
Details
Lower Fence for Slider Mitre Saw Compa SLIDER 305X2B
COMPA TECH-OMS SKU: 305X2-B/172
Lower Fence for Slider Mitre Saw Compa SLIDER 305X2B
Lower Fence for Slider Mitre Saw Compa SLIDER 305X2B Genuine part Compa-OMS, Lower Fence for Slider Compound Mitre Saw Compa SLIDER 305X2B. Part for the following products: - Slider Compound Mitre Saw Compa SLIDER...
Last items in stock €41.10
Details
Lower Fence Ass'y for Slider Mitre Saw Compa SLIDER 305X2B
COMPA TECH-OMS SKU: 305X2-B/223
Lower Fence Ass'y for Slider Mitre Saw Compa SLIDER 305X2B
Lower Fence Ass'y for Slider Mitre Saw Compa SLIDER 305X2B Genuine part Compa-OMS, Lower Rip Fence Ass'y for Slider Compound Mitre Saw Compa SLIDER 305X2B. Part for the following products: -  Slider Compound Mitre Saw Compa SLIDER...
on 7/10 Business Days Approx €48.71
Details
Left Sliding Fence for Slider Mitre Saw Compa SLIDER 305X2B
COMPA TECH-OMS SKU: 305X2-B/174
Left Sliding Fence for Slider Mitre Saw Compa SLIDER 305X2B
Left Sliding Fence for Slider Mitre Saw Compa SLIDER 305X2B Genuine replacement part Compa-OMS, Left Sliding Fence for Slider Compound Mitre Saw Compa SLIDER 305X2B. Part for the following products: - Slider Compound Mitre Saw Compa...
Last items in stock €16.60
Details
Right Sliding Fence for Slider Mitre Saw Compa SLIDER 305X2B
COMPA TECH-OMS SKU: 305X2-B/184
Right Sliding Fence for Slider Mitre Saw Compa SLIDER 305X2B
Right Sliding Fence for Slider Mitre Saw Compa SLIDER 305X2B Genuine replacement part Compa-OMS, Right Sliding Fence for Slider Compound Mitre Saw Compa SLIDER 305X2B. Part for the following products: - Slider Compound Mitre Saw Compa...
Last items in stock €16.60
Details
Speed Gear for Mitre Saw Compa SLIDER 305X2B
COMPA TECH-OMS SKU: 305X2-B/065
Speed Gear for Mitre Saw Compa SLIDER 305X2B
Speed Gear for Mitre Saw Compa SLIDER 305X2B Genuine part Compa-OMS, Speed Gear for Slider Compound Mitre Saw Compa SLIDER 305X2B. Part for the following products: -  Slider Compound Mitre Saw Compa SLIDER 305X2B - Code: 305X2-B/065
AVAILABLE €20.78
Details
Big Pulley for Mitre Saw Compa SLIDER 305X2B
COMPA TECH-OMS SKU: 305X2-B/011
Big Pulley for Mitre Saw Compa SLIDER 305X2B
Big Pulley for Mitre Saw Compa SLIDER 305X2B Genuine part Compa-OMS, Big Pulley for Slider Compound Mitre Saw Compa SLIDER 305X2B. Part for the following products: -  Slider Compound Mitre Saw Compa SLIDER...
on 7/10 Business Days Approx €10.50
Details
Clamping Knob M6x16 for Slider Mitre Saw Compa 305X2B
COMPA TECH-OMS SKU: 305X2-B/182
Clamping Knob M6x16 for Slider Mitre Saw Compa 305X2B
Clamping Knob M6x16 for Slider Mitre Saw Compa 305X2B Genuine parts Compa-OMS, Clamping Knob M6x16 for Slider Compound Mitre Saw 305X2B. - Spare parts for the following products: -  Slider Compound Mitre Saw 305X2B - Code: 05X2-B/182
AVAILABLE €6.68
Details
Clamping Knob M6x20 for Slider Mitre Saw Compa 305X2B
COMPA TECH-OMS SKU: 305X2-B/183
Clamping Knob M6x20 for Slider Mitre Saw Compa 305X2B
Clamping Knob M6x20 for Slider Mitre Saw Compa 305X2B Genuine parts Compa-OMS, Clamping Knob M6x20 for Slider Compound Mitre Saw 305X2B. - Spare parts for the following products: -  Slider Compound Mitre Saw 305X2B - Code: 305X2-B/183
AVAILABLE €6.82
Details
Poly-V Belt for Mitre Saw Compa SLIDER 305X2B
COMPA TECH-OMS SKU: 305X2-B/007
Poly-V Belt for Mitre Saw Compa SLIDER 305X2B
Poly-V Belt 6PJ526 for Mitre Saw Compa SLIDER 305X2B Genuine part Compa-OMS, Poly-V Belt 6PJ526 for Slider Compound Mitre Saw Compa SLIDER 305X2B. Part for the following products: -  Slider Compound Mitre Saw Compa SLIDER 305X2B -...
on 7/10 Business Days Approx €20.25
Details
Compa SLIDER 305X2B Carbon Brush Set
COMPA TECH-OMS SKU: 305X2-B/054
Compa SLIDER 305X2B Carbon Brush Set
Compa SLIDER 305X2B Carbon Brush Set Genuine part Compa-OMS, Carbon Brush Set for Slider Compound Mitre Saw Compa SLIDER 305X2B. Part for the following products: -  Slider Compound Mitre Saw Compa SLIDER 305X2B - Code: 305X2-B/054
AVAILABLE €15.82
Details
Comments (0)
