CM Motori Spare Parts for Motor CM 101-125-152 Standard Model

SKU: CM 101-125-152
€4.78
VAT included

CM Motori Spare Parts for Engine CM 101-125-152 Standard Model

CM Motors genuine parts for replacement or repair of engines CM CM 101/125/152 Standard Model.
Cylinder: cast iron pearlitic
Piston: aluminum heat treated with 3 segments
Biella: pressed steel and cemented with two roller cages
Tree: pressed steel and heat treated
CM Motori Spare Parts for Motor CM 101-125-152 Standard Model
  • CM Motori Spare Parts for Motor CM 101-125-152 Standard Model
  • CM Motori Spare Parts for Motor CM 101-125-152 Standard Model

CM Motori Spare Parts for Motor CM 101-125-152 Standard Model

SKU: CM 101-125-152 Condition: New
€4.78
VAT included

CM Motori Spare Parts for Engine CM 101-125-152 Standard Model

CM Motors genuine parts for replacement or repair of engines CM CM 101/125/152 Standard Model.
Cylinder: cast iron pearlitic
Piston: aluminum heat treated with 3 segments
Biella: pressed steel and cemented with two roller cages
Tree: pressed steel and heat treated
settings 79 spare parts

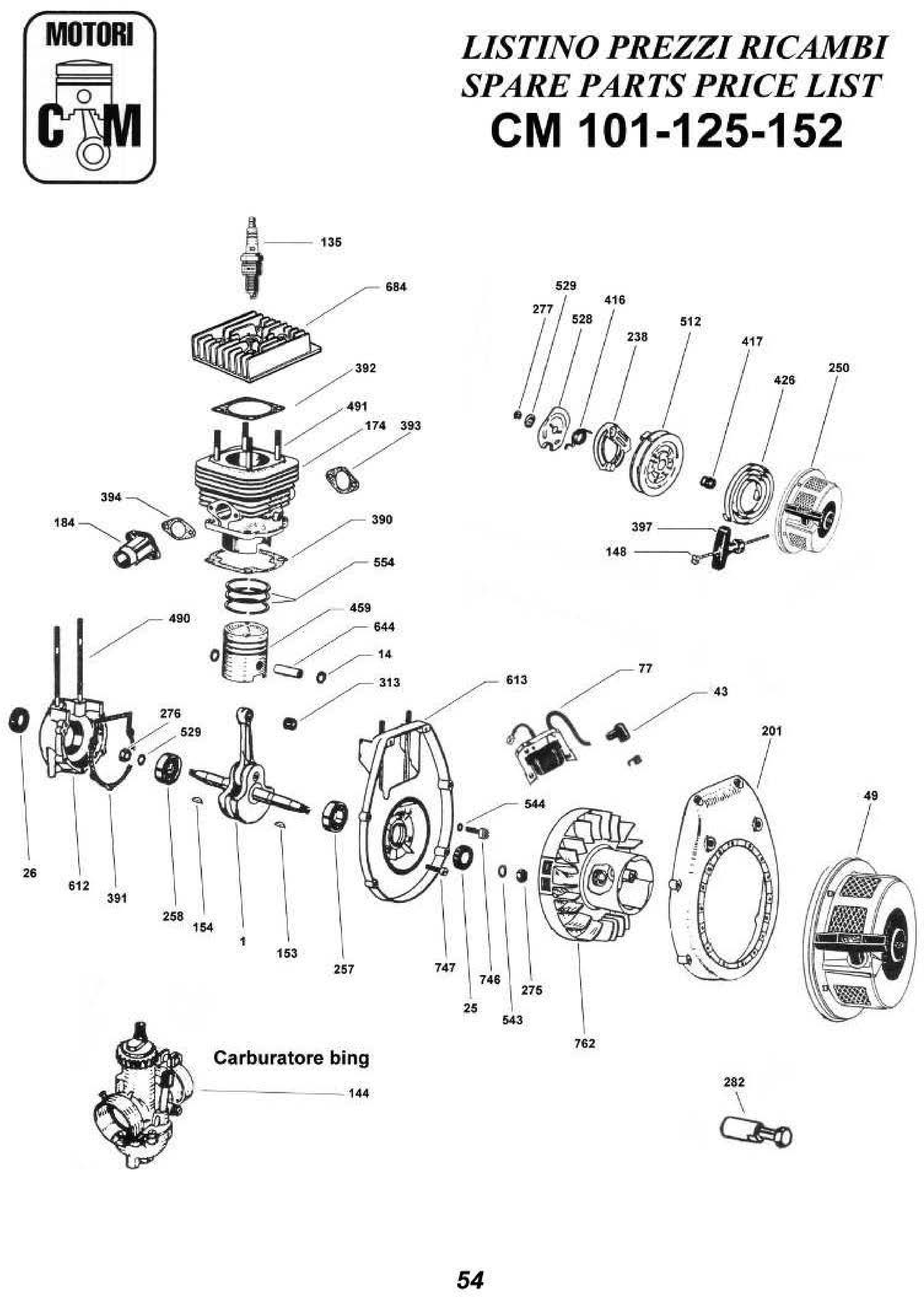

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
AVAILABLE

verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

79 spare parts
Pos. Item Price Buy
photo_cameraImage coming soon 028501 Con Rod Assy CM 101 €67.54 Not available for order
photo_cameraImage coming soon 028502 Con Rod Assy CM 125 €67.54 Not available for order
photo_cameraImage coming soon 028503 Conrod Assy CM 152 €70.45 Not available for order
photo_cameraImage coming soon 150600 Recoil Assy with Housing CM 152 €66.58 Not available for order
photo_cameraImage coming soon 151000 Recoil Assy with Housing CM 101/125 €62.94 Not available for order
photo_cameraImage coming soon 216001 Cylinder Assy CM 101 €165.91 Not available for order
photo_cameraImage coming soon 216002 Cylinder Assy CM 125 €165.91 Not available for order
photo_cameraImage coming soon 216003 Cylinder Assy CM 152 €173.01 Not available for order
photo_cameraImage coming soon 620001 Piston assy CM 101 €44.06 Not available for order
photo_cameraImage coming soon 620002 Piston assy CM 125 €44.59 Not available for order
photo_cameraImage coming soon 620003 Piston Assy CM 152 D. 59 €49.02 Not available for order
Complete Increased Piston for Motor CM 101 620004 Complete Increased Piston for Motor CM 101 €77.25 Not available for order
photo_cameraImage coming soon 620005 Increased piston assy CM 125 €64.63 Not available for order
photo_cameraImage coming soon 620006 Increased piston Assy CM 152 D. 59.5 €53.07 Not available for order
photo_cameraImage coming soon 880435 Tank CM 101/125 €38.11 Not available for order
photo_cameraImage coming soon 880440 Tank CM 152 horizontal shaft €47.77 Not available for order
photo_cameraImage coming soon 880441 Tank CM 152 vertical shaft €45.93 Not available for order
Complete Gaskets Set for Engine CM 101 890100 Complete Gaskets Set for Engine CM 101 €11.48 Not available for order
Complete Gaskets Set for Engine CM 125 890125 Complete Gaskets Set for Engine CM 125 €11.48 Not available for order
photo_cameraImage coming soon 890150 Series gaskets CM 152 €9.09 Not available for order
1
photo_cameraImage coming soon 004500 Crankshaft CM 101/125 €115.80 Not available for order
1
photo_cameraImage coming soon 004600 Crankshaft CM 152 €120.62 Not available for order
25
photo_cameraImage coming soon 010001 Oil Seal CM 101/125 €3.85 Not available for order
25
photo_cameraImage coming soon 010003 Ring oil seal 20x32x7 €3.85 Not available for order
26
photo_cameraImage coming soon 010002 Oil Seal CM 101/125 €3.85 Not available for order
43
Spark Plug Joint Ass'y for Motorpumps CM 25-46-80-90 020200 Spark Plug Joint Ass'y for Motorpumps CM 25-46-80-90 €4.06 Not available for order
77
photo_cameraImage coming soon 035063 Electronic Coil CM 101/125 €48.24 Not available for order
77
photo_cameraImage coming soon 035077 Electronic Coil CM 152 €48.24 Not available for order
144
photo_cameraImage coming soon 150500 Bing Carburetor €85.88 Not available for order
148
photo_cameraImage coming soon 160005 Pulling rope €3.35 Not available for order
154
photo_cameraImage coming soon 170010 Wrenche l.p.f. €1.27 Not available for order
174
photo_cameraImage coming soon 215100 Cylinder CM 101 €121.91 Not available for order
174
photo_cameraImage coming soon 215125 Cylinder CM 125 €121.91 Not available for order
174
photo_cameraImage coming soon 215150 Cylinder CM 152 €121.91 Not available for order
184
photo_cameraImage coming soon 220050 Collector CM 125 €8.17 Not available for order
201
photo_cameraImage coming soon 250010 Air conveyor CM 101/125 €38.68 Not available for order
201
photo_cameraImage coming soon 250011 Air conveyor CM 152 €43.42 Not available for order
238
Recoil Starter Nylon Pawl for Motorpumps CM 80-90 295005 Recoil Starter Nylon Pawl for Motorpumps CM 80-90 €5.03 Not available for order
250
photo_cameraImage coming soon 298130 Recoil cap CM 101/125 €9.28 Not available for order
257
photo_cameraImage coming soon 300003 Bearing 6204 CM 101/125 €10.64 Not available for order
258
photo_cameraImage coming soon 300004 Ball bearing 6303 €15.45 Not available for order
258
photo_cameraImage coming soon 300005 Bearing 6304 €16.37 Not available for order
281
photo_cameraImage coming soon 328001 Bearing puller €28.94 Not available for order
282
photo_cameraImage coming soon 328002 Flywheel puller €24.11 Not available for order
313
photo_cameraImage coming soon 360006 Bottom Conrod roll bearing CM 152 €7.72 Not available for order
390
photo_cameraImage coming soon 410500 Cylinder gasket CM 101/125 €1.27 Not available for order
390
photo_cameraImage coming soon 410600 Cylinder Gasket CM 152 €1.27 Not available for order
391
photo_cameraImage coming soon 410501 Carter gasket CM 101/125 €1.27 Not available for order
391
photo_cameraImage coming soon 410601 Carter Gasket CM 152 €1.27 Not available for order
392
photo_cameraImage coming soon 410502 Head gasket CM 101 €3.85 Not available for order
392
photo_cameraImage coming soon 410504 Head gasket CM 125 €3.85 Not available for order
392
photo_cameraImage coming soon 410602 Head Gasket CM 152 €3.85 Not available for order
393
photo_cameraImage coming soon 410503 Muffler gasket CM 101/125 €2.56 Not available for order
394
photo_cameraImage coming soon 410505 Intake gasket CM 101/125 €1.39 Not available for order
416
photo_cameraImage coming soon 500007 Torsion spring €2.56 Not available for order
459
photo_cameraImage coming soon 620500 Piston naked CM 101 €26.38 Not available for order
459
photo_cameraImage coming soon 620505 Piston naked CM 125 €26.83 Not available for order
459
photo_cameraImage coming soon 620510 Naked Piston CM 152 D. 59 €28.94 Not available for order
490
photo_cameraImage coming soon 680004 Cylinder stud CM 101/125 €2.12 Not available for order
491
photo_cameraImage coming soon 680002 Cylinder Stud CM 152 €1.27 Not available for order
512
photo_cameraImage coming soon 705001 Pulley starter €14.46 Not available for order
528
photo_cameraImage coming soon 740121 Rond. Sagomata aut.  €3.85 Not available for order
543
photo_cameraImage coming soon 740058 Washer D. 17 €1.27 Not available for order
548
photo_cameraImage coming soon 780030 Bing Drain Gasoline €3.85 Not available for order
554
photo_cameraImage coming soon 810500 Segment cylinder CM 101 €5.14 Not available for order
554
photo_cameraImage coming soon 810505 Segment cylinder CM 125 €5.14 Not available for order
554
photo_cameraImage coming soon 810510 Segment D. 59 €5.14 Not available for order
612
photo_cameraImage coming soon 850500 Crankcase l.p.f. CM 101/125 €60.08 Not available for order
612
photo_cameraImage coming soon 850600 Crankcase l.p.f. CM 152 €60.80 Not available for order
613
photo_cameraImage coming soon 850510 The crankcase. Flywheel CM 101/125 €67.54 Not available for order
613
photo_cameraImage coming soon 850610 Crankcase I.V. CM 152 €68.55 Not available for order
644
photo_cameraImage coming soon 895050 Piston pin CM 101 €5.14 Not available for order
644
photo_cameraImage coming soon 895051 Piston pin CM 152 €5.14 Not available for order
644
photo_cameraImage coming soon 895055 Piston pin CM 125 €5.14 Not available for order
684
photo_cameraImage coming soon 920500 Cylinder head CM 101 €24.11 Not available for order
684
photo_cameraImage coming soon 920501 Cylinder head CM 125 €24.11 Not available for order
684
photo_cameraImage coming soon 920600 Head motor CM 152 €26.02 Not available for order
762
photo_cameraImage coming soon 980003 Flywheel CM 101/125 €53.07 Not available for order
762
photo_cameraImage coming soon 980004 Flywheel CM 152 €57.88 Not available for order

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

CM Motori Spare Parts for Engine CM 101-125-152 Standard Model

CM Motori genuine spare parts or replacements parts for to repair Engines CM CM 101/125/152 Standard Model.

In the following table, look for the model of the Motor Pump and the respective parts of the code.
Ordered items will be shipped within 7/10 working days approx.

CM 101-125 Engines Parts
1 004500 Crankshaft CM 101/125
14 009500 Ring pin stop CM 101/125
25 010001 Oil Seal CM 101/125
26 010002 Oil Seal CM 101/125
43 020200 Spark Plug Joint
49 022001 Standard Recoil Assy CM 101/125/152
151000 Recoil Assy with Housing CM 101/125
028501 Con Rod Assy CM 101
028502 Con Rod Assy CM 125
77 035063 Electronic Coil CM 101/125
135 140010 Spark Plug NGK BPMR7A
144 150500 Bing Carburetor
148 160005 Recoil Cable
154 170010 Wrenche l.p.f.
153 170002 Fly Wheel Woodruf Key
174 215100 Cylinder CM 101
174 215125 Cylinder CM 125
216001 Cylinder Assy CM 101
216002 Cylinder Assy CM 125
184 220050 Collector CM 125
201 250010 Air conveyor CM 101/125
238 295005 Recoil Ratchet
258 300004 Ball bearing 6303
250 298130 Recoil cap CM 101/125
257 300003 Bearing 6204 CM 101/125
277 310030 Self-locking nut M6
276 310012 Nut M12
275 310011 Flywheel nut M 16
281 328001 Bearing puller
282 328002 Flywheel puller
313 360040 Bottom Conrod roll bearing CM 101/125
393 410503 Muffler gasket CM 101/125
391 410501 Carter gasket CM 101/125
390 410500 Cylinder gasket CM 101/125
394 410505 Intake gasket CM 101/125
392 410502 Head gasket CM 101
392 410504 Head gasket CM 125
397 425000 Recoil Handle CM 101/125
417 500006 Spring
426 500005 Return spring
416 500007 Torsion spring
620001 Piston assy CM 101
620002 Piston assy CM 125
620004 Increased piston assy CM 101
620005 Increased piston assy CM 125
459 620500 Piston naked CM 101
459 620505 Piston naked CM 125
490 680004 Cylinder stud CM 101/125
512 705001 Recoil Pulley CM 101/125
529 740070 Washer
543 740058 Washer D. 17
544 740080 Washer D. 6,5X9,5
528 740121 Washer
548 780030 Bing Drain Gasoline
554 810500 Segment cylinder CM 101
554 810505 Segment cylinder CM 125
613 850510 The crankcase. Flywheel CM 101/125
612 850500 Crankcase l.p.f. CM 101/125
880435 Tank CM 101/125
890100 Gasket sets CM 101
890125 Gasket sets CM 125
644 895050 Piston pin CM 101
644 895055 Piston pin CM 125
684 920500 Cylinder head CM 101
684 920501 Cylinder head CM 125
746 940012 Bolt 6X25
747 940017 Screw TE 6X25
762 980003 Flywheel CM 101/125
CM 152 Engines Parts
1 004600 Crankshaft CM 152
14 009500 Ring pin stop CM 152
25 010003 Ring oil seal 20x32x7
43 020200 Spark Plug joint
49 022001 Standard Recoil Assy CM 101/125/152
150600 Recoil Assy with Housing CM 152
028503 Conrod Assy CM 152
77 035077 Electronic Coil CM 152
135 140010 Spark Plug
144 150500 Carburetor Bing
148 160005 recoil Cable CM 101/125/152
154 170010 Key l.p.f.
153 170002 Stick flying
174 215150 Cylinder CM 152
216003 Cylinder Assy CM 152
184 220050 Collector CM 152
201 250011 Air conveyor CM 152
238 295005 Ratchet recoil CM 101/125/152
250 298130 Recoil cap CM 101/125/152
257 300003 Bearing 6204
258 300005 Bearing 6304
277 310030 Self-locking nut M6
276 310012 Nut M12
275 310011 Flywheel nut M 16
281 328001 Bearings Puller
282 328002 Flywheel puller
313 360006 Bottom Conrod roll bearing CM 152
391 410601 Carter Gasket CM 152
390 410600 Cylinder Gasket CM 152
394 410505 Intake Manifold Gasket
393 410503 Muffler Gasket
392 410602 Head Gasket CM 152
397 425000 Recoil handle
417 500006 Spring
426 500005 Spring
416 500007 Spring
620003 Piston Assy CM 152 D. 59
620006 Increased piston Assy CM 152 D. 59.5
459 620510 Naked Piston CM 152 D. 59
491 680002 Cylinder Stud CM 152
512 705001 Recoil pulley cable
529 740070 Washer
543 740058 Washer D. 17
544 740080 Washer D. 6,5X9,5
528 740121 Washer
548 780030 Bing drain gasoline tap
554 810510 Segment D. 59
612 850600 Crankcase l.p.f. CM 152
613 850610 Crankcase I.V. CM 152
880440 Tank CM 152 horizontal shaft
880441 Tank CM 152 vertical shaft
890150 Series gaskets CM 152
644 895051 Piston pin CM 152
684 920600 Head motor CM 152
746 940012 Allen bolt 6X25
747 940017 Screw TE 6X25
762 980004 Flywheel CM 152

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s CM Motori snc websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to CM Motori snc brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
CM 101-125-152

Specific References

New

Download

Diagram CM 101-125-152

Diagram CM 101-125-152

Download (89.17KB)

You might also like

Complete Increased Piston for Motor CM 101 Sale
CM snc SKU: 620004
Complete Increased Piston for Motor CM 101 Original parts CM MOTORI, Complete Increased Piston with Piston Rings, Circlip, Plug for CM 101. Parts for the following products: - Engine CM 101 - Code: 620004
Last items in stock €77.25
CM snc SKU: 020200
Spark Plug Joint Ass'y for Motorpumps CM 25-46-80-90  Genuine part CM MOTORI, Spark Plug Joint Ass'y for Motorpumps CM 25-46-80-90 - Motors CM 101-125 - Motors CM 152.  Part for the following products:  - MOTORPUMP CM25  - MOTORPUMP...
AVAILABLE €4.06
Recoil Starter Nylon Pawl for Motorpumps CM 80-90 Sale
CM snc SKU: 295005
Recoil Starter Nylon Pawl for Motorpumps CM 80-90 Genuine spare part CM Motori, Recoil Starter Nylon Pawl for Motorpumps CM 80-90 - Engines CM 101 - 125 - 152 Part for the following products: - Motorpump CM80 - Motorpump CM90 -...
Out-of-Stock €5.03
A.M.A. S.p.A. SKU: BPMR7A
Spark Plug NGK BPMR7A Original parts NGK, Spark Plug BPMR7A - 4626 - Original Quality - Spark Plug - Code : AMA10660
AVAILABLE €4.84
Complete Gaskets Set for Engine CM 101 Sale
CM snc SKU: 890100
Complete Gaskets Set for Engine CM 101 Original parts CM MOTORI, Complete Gaskets Set for Engine CM 101 Parts for the following products: - Engine CM 101 - Code: 890100
AVAILABLE €11.48
Complete Gaskets Set for Engine CM 125 Sale
CM snc SKU: 890125
Complete Gaskets Set for Engine CM 125 Original parts CM MOTORI, Complete Gaskets Set for Engine CM 125 Parts for the following products: - Engine CM 101 - Code: 890125
AVAILABLE €11.48
Comments (0)
