CM Motori Spare Parts for Motor Hoe 5 HP
CM Motori genuine spare parts or replacement parts for to repair Motor Hoe 5 HP M4Z.
In the following table, look for the model of the Motor Hoe and the respective parts of the code.
Items will be shipped within 10 working days approx.

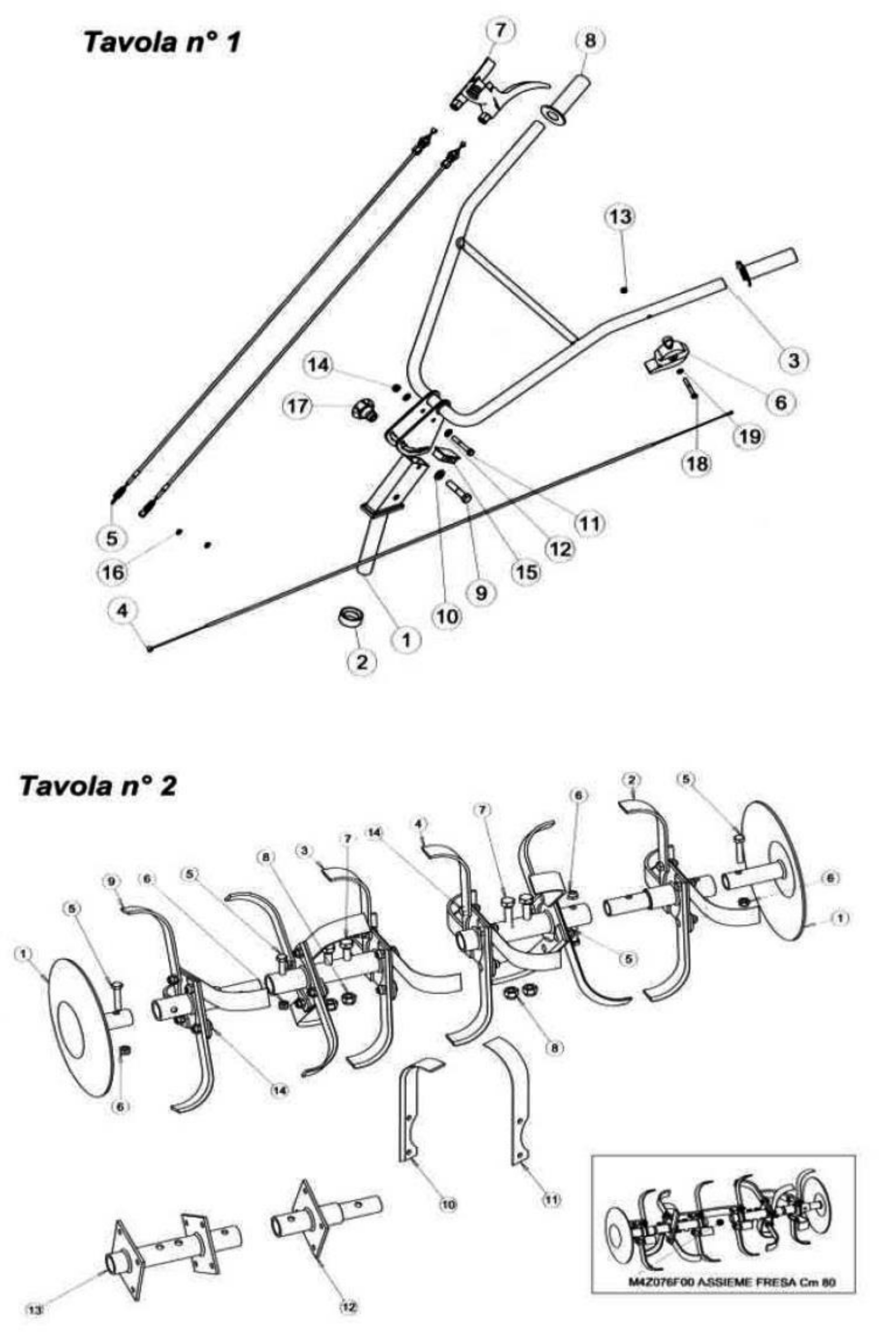

| Motozappa 5 HP - Tab 1 |
| P. |
Codice Art. |
Description |
| 1 |
M4Z036F00 |
SET STEERING |
| 2 |
M4Z022F00 |
SPACER COLUMN |
| 3 |
M4Z038F00 |
SET HANDLEBAR |
| 4 |
M4Z093F00 |
GAS TRANSMISSION CABLE |
| 5 |
M4Z092F00 |
CABLE TRANSMISSION SPEED |
| 6 |
M4Z079F00 |
MANETTINO GAS |
| 7 |
M4Z083F00 |
LEVER DOUBLE RED AND BLACK |
| 8 |
M4Z091F00 |
KNOB |
| 9 |
M4Z382F00 |
SCREW 12 X 55 |
| 10 |
M4Z543F00 |
WASHER 12 X 24 X 2.5 |
| 11 |
M4Z421F00 |
SCREW 8 X 55 |
| 12 |
7401000F00 |
WASHER 8 X 17 X 2 |
| 13 |
3100300F00 |
NUT M6 SELF LOCKING |
| 14 |
3100400F00 |
NUT M8 SELF LOCKING |
| 15 |
M4Z078F00 |
CAP COLUMN |
| 16 |
M4Z042F00 |
DISTANCE CABLE |
| 17 |
M4Z095F00 |
KNOB |
| 18 |
M4Z381F00 |
BOLT M6 X 50 |
| 19 |
7400700F00 |
WASHER 6 X 18 X 2 |
| P. |
Codice Art. |
Description - Tab 2 |
| 1 |
M4Z072F00 |
SET DISC SIDE |
| 2 |
M4Z168F00 |
STELLA GROUP lll C. ZAPPE DX |
| 3 |
M4Z167F00 |
CENTRAL HANDLE WITH BLADES SX |
| 4 |
M4Z166F00 |
CENTRAL HANDLE WITH BLADES DX |
| 5 |
M4Z414F00 |
SCREW 8 X 40 |
| 6 |
3100400F00 |
NUT M8 SELF LOCKING |
| 7 |
M4Z408F00 |
SCREW 10 X 45 |
| 8 |
M4Z503F00 |
NUT MI 0 AUTOB. |
| 9 |
M4Z169F00 |
SET III STAR WITH BLADES SX |
| 10 |
M4Z073F00 |
Spud DX |
| 11 |
M4Z074F00 |
Spud SX |
| 12 |
M4Z071F00 |
SET lll STELLA WITHOUT HOES |
| 13 |
M4Z070F00 |
SET CENTRAL HANDLE WITHOUT HOE |
| 14 |
M4Z450F00 |
SCREW 8 X 22 |
| 15 |
M4Z076F00 |
SET CUTTER DIAMETER 300x800 |

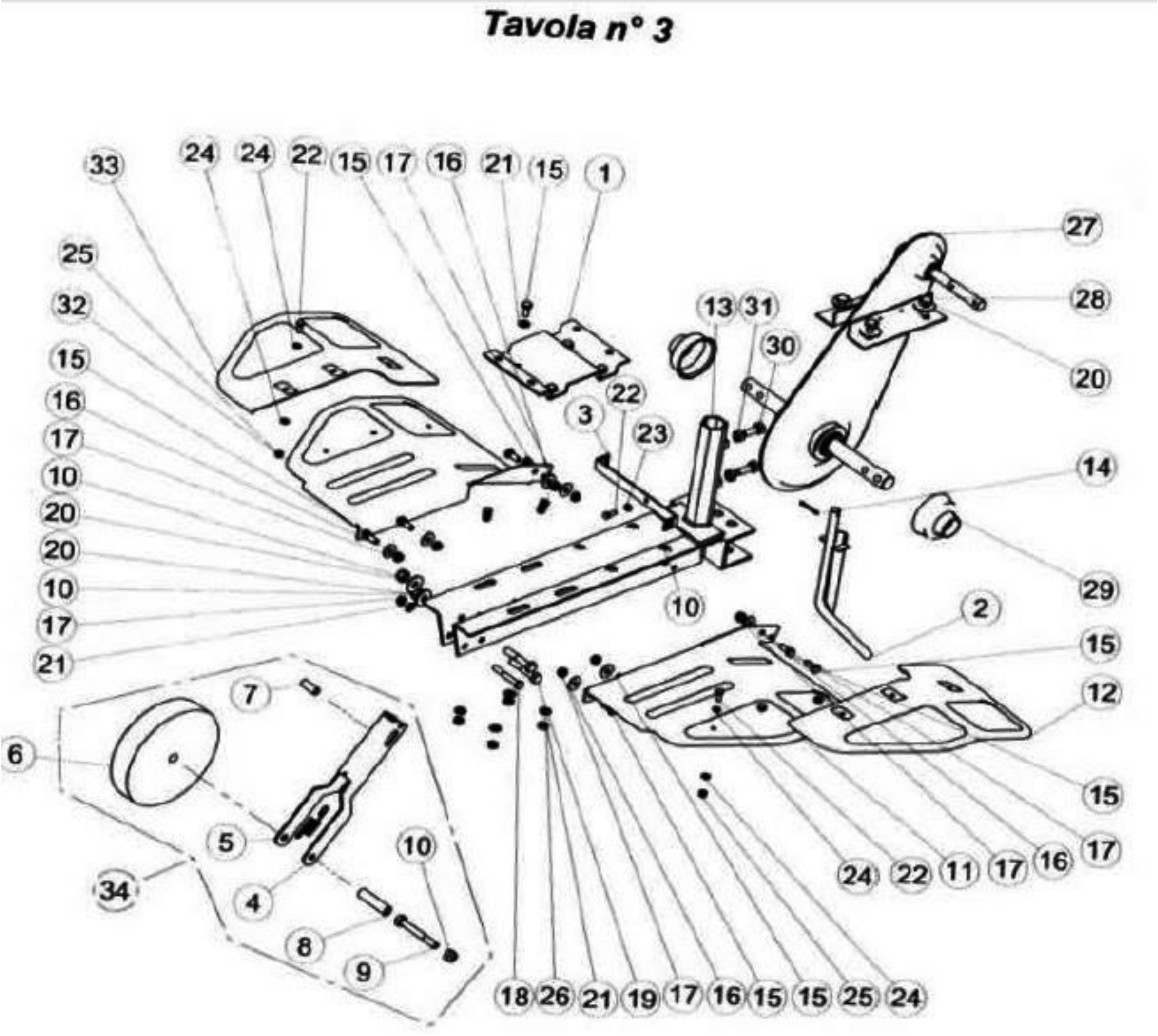

| P. |
Codice Art. |
Description - Tab 3 |
| 1 |
M4Z035F00 |
PLATE ENGINE HOLDER |
| 2 |
M4Z086F00 |
SET SUBSOILER |
| 2 |
M4Z099F00 |
SET LUXURY SUBSOILER |
| 3 |
M4Z060F00 |
BRACKET CARTER |
| 4 |
M4Z084F00 |
WHEEL HOLDER |
| 5 |
M4Z068F00 |
SPRING HOOK WHEEL |
| 6 |
M4Z085F00 |
WHEEL 200x40 |
| 7 |
M4Z065F00 |
PIPE SPRING |
| 8 |
M4Z064F00 |
WHEEL STUD |
| 9 |
M4Z413F00 |
SCREW 10 X 80 |
| 10 |
M4Z504F00 |
NUT M10 SELF |
| 11 |
M4Z051F00 |
INNER LEFT WING |
| 12 |
M4Z056F00 |
OUTER LEFT WING |
| 13 |
M4Z061F00 |
SET FRAME |
| 14 |
M4Z801F00 |
PIN 4 X 30 |
| 15 |
1000900F00 |
SCREW 8 X 20 |
| 16 |
7400900F00 |
WASHER 8 X 24 X 2 |
| 17 |
3100400F00 |
NUT M8 SELF |
| 18 |
M4Z421F00 |
SCREW 8 X 55 |
| 19 |
M4Z443F00 |
BOLT TE 10 X 55 |
| 20 |
7400640F00 |
WASHER 10 X 30 X 2.5 |
| 21 |
7401000F00 |
WASHER 8 X 17 X 2 |
| 22 |
M4Z415F00 |
BOLT 6 X 18 |
| 23 |
3100200F00 |
NUT M6 |
| 24 |
7400700F00 |
WASHER 6 X 18 X 2 |
| 25 |
3100300F00 |
NUT M6 AUTOB. |
| 26 |
3101120F00 |
NORMAL NUT M8 |
| 27 |
M4Z017F00 |
GROUP PAW |
| 28 |
M4Z416F00 |
SCREW 10 X 25 |
| 29 |
M4Z043F00 |
Dustguard |
| 30 |
M4Z440F00 |
SCREW 10 X 30 |
| 31 |
M4Z511F00 |
NUT M10 NORM. |
| 32 |
M4Z052F00 |
INNER RIGHT FENDER |
| 33 |
M4Z055F00 |
OUTER RIGHT FENDER |
| 34 |
M4Z063F00 |
SET WHEEL COMPLETE |
| P. |
Codice Art. |
Description - Tab 4 |
| |
ENGINE |
ENGINE MTZ GEOTEC |
| 1 |
M4Z008F00 |
CARTER DX |
| 2 |
M4Z442F00 |
TSEI SCREW 10 X 40 |
| 3 |
M4Z001F00 |
GEAR Z19 |
| 4 |
M4Z034F00 |
PLATE HOLDER Z38 |
| 5 |
M4Z041F00 |
LEVER R. |
| 6 |
M4Z040F00 |
LEVER M. A. |
| 7 |
M4Z014F00 |
ENGINE PULLEY |
| 8 |
M4Z007F00 |
CARTER SX |
| 9 |
M4Z050F00 |
CENTRAL SET PLATE |
| 10 |
M4Z504F00 |
NUT M10 LOCKING UP |
| 11 |
M4Z015F00 |
DRIVING BELT |
| 12 |
M4Z045F00 |
SPRING SPEED DX |
| 13 |
M4Z046F00 |
SPRING SPEED SX |
| 14 |
M4Z575F00 |
ELASTIC PIN 6 X 40 |
| 15 |
M4Z751F00 |
BELT Z44 |
| 16 |
M4Z752F00 |
BELT 10X1041 SPECIAL |
| 17 |
M4Z013F00 |
DISTANCE LEVER R. |
| 18 |
M4Z010F00 |
DISTANCE LEVER M.A |
| 19 |
M4Z088F00 |
GEAR Z38 |
| 20 |
M4Z651F00 |
SEEGER 12 E |
| 21 |
M4Z009F00 |
PULLEY DIAMETER 250 |
| 22 |
M4Z033F00 |
BUSH CH 30 |
| 23 |
1000900F00 |
SCREW 8 X 20 |
| 24 |
3100400F00 |
NUT M8 SELF |
| 25 |
7400900F00 |
WASHER 8 X 24 X 2 |
| 26 |
7401000F00 |
WASHER 8 X 17 X 2 |
| 27 |
M4Z446F00 |
WHEAT 6 X 10 |
| 28 |
M4Z552F00 |
WASHER 10 X 16 X 2 |
| 29 |
M4Z445F00 |
SCREW 12 X 35 HEAD RIBASS. |
| 30 |
M4Z543F00 |
WASHER 12 X 24 X 2.5 |
| 31 |
M4Z505F00 |
NUT M12 |
| 32 |
M4Z442F00 |
VI-SEI 10 X 40 |
| 33 |
M4Z382F00 |
SCREW 12 X 55 |
| 34 |
7400100F00 |
WASHER 5 X 10 X 1 |
| 35 |
1000800F00 |
SCREW 5 X 10 |
| 36 |
M4Z360F00 |
SCREW 6 X 12 |
| 37 |
M4Z415F00 |
SCREW 6 X 18 |
| 38 |
7400700F00 |
WASHER 6 X 18 X 2 |
| 39 |
3100300F00 |
NUT M6 SELF |
| 40 |
M4Z097F00 |
TENSION |
| 41 |
M4Z415F00 |
WASHER 6 X 12 X 2 |
| 42 |
M2T507F00 |
MEDIUM NUT M6 UNI 5588 |
| 43 |
M4Z444F00 |
PRISONER 6X40 |
| 44 |
M4Z357F00 |
PRISONER 8 X 65 |
| 45 |
3100230F00 |
NUT M8 |
| 46 |
M4Z089F00 |
SET PULLEY R. |
| 47 |
M4Z542F00 |
WASHER 17x30x3 |
| 48 |
M4Z062F00 |
FLANGE MOTOR GEOTEC |
| 49 |
29190199 |
SCREW YOU UNF 5 / 16X1 "24 UNF |
| 50 |
M4Z067F00 |
SPACER SHAFT GEOTEC |
| 51 |
M4Z604F00 |
BEARING 6201 2RS 12x32x10 |
| 52 |
7400900F00 |
FLAT WASHER 8X24X2,5 |
| 53 |
29190198 |
SCREW TE UNF 5 / 16x7 / 8 |
