Ceccato Compressori

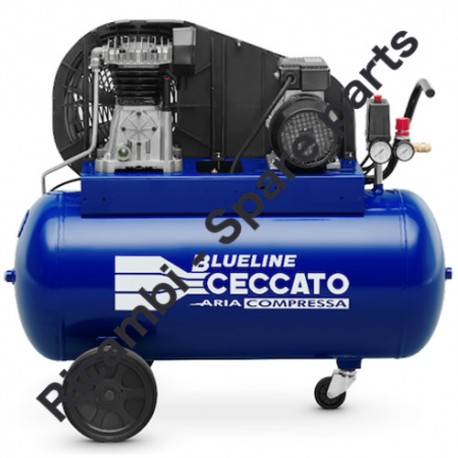

CECCATO BLUELINE 90BC2 Parts

SKU: BLUELINE 90BC2 - 4116023629
€309.89
VAT included

CECCATO BLUELINE 90BC2 - 4116023629 Spare Parts

Rely on our experience and our professionalism, take care of your Air Compressor Ceccato BLUELINE 90BC2 - 4116023629 by choosing only original spare parts. Buy in total safety and pay without worries all spare parts needed for maintenance are Guaranteed Original.

CECCATO BLUELINE 90BC2 Parts
  • CECCATO BLUELINE 90BC2 Parts
  • CECCATO BLUELINE 90BC2 Parts Drawing
  • CECCATO BLUELINE 90BC2 Parts Drawing - 1
Ceccato Compressori

CECCATO BLUELINE 90BC2 Parts

SKU: BLUELINE 90BC2 - 4116023629 Condition: New
€309.89
VAT included

CECCATO BLUELINE 90BC2 - 4116023629 Spare Parts

Rely on our experience and our professionalism, take care of your Air Compressor Ceccato BLUELINE 90BC2 - 4116023629 by choosing only original spare parts. Buy in total safety and pay without worries all spare parts needed for maintenance are Guaranteed Original.

settings 38 Spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:: [email protected]
Machine Type: Air Compressor
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
38 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

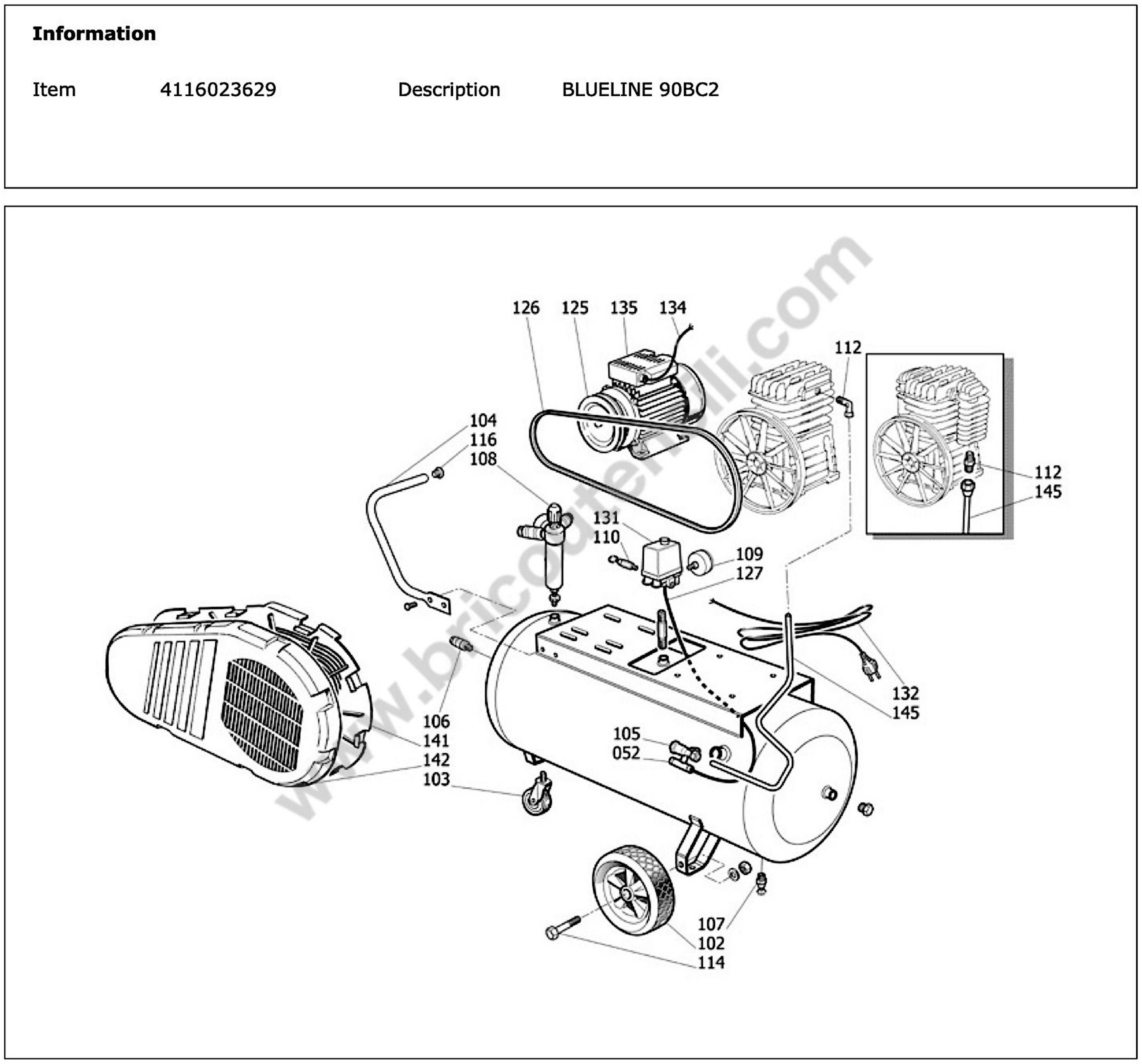

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
099
 pump 4116090644 pump €259.25
100
 photo_cameraImage coming soon 1127090003 Plug -receiver €1.18
102
 photo_cameraImage coming soon 6214347700 Wheel €11.03
103
 ABAC Pivot Wheel D.70 for Air Compressors 6214344300 ABAC Pivot Wheel D.70 for Air Compressors €14.05
104
 photo_cameraImage coming soon 6214343300 Handle €14.32
105
 ABAC Non-Return Valve 3/4" Male 10 mm Tube for Air Compressors 2HP 2236110535 ABAC Non-Return Valve 3/4" Male 10 mm Tube for Air Compressors 2HP €17.99
105
 CECCATO Check Valve 1/2M D.10 Left 2236110860 CECCATO Check Valve 1/2M D.10 Left €25.64
106
 photo_cameraImage coming soon 2236112708 Line valve 1/2” M quick coupling €9.99
106
 Quick Coupling 1/4" M for Air Compressors ABAC - BALMA 6231944100 Quick Coupling 1/4" M for Air Compressors ABAC - BALMA €6.89
107
 photo_cameraImage coming soon 2236111480 Drain tap €11.80
107
 Drain Valve 3/8" for Air Compressors ABAC - BALMA 6210717700 Drain Valve 3/8" for Air Compressors ABAC - BALMA €3.93
108
 Pressure Reducer MICRO 1/4 A 1R for Air Compressors ABAC - BALMA 6214344100 Pressure Reducer MICRO 1/4 A 1R for Air Compressors ABAC - BALMA €24.90
109
 Gauge 50MM for Air Compressors ABAC - BALMA 6214345000 Gauge 50MM for Air Compressors ABAC - BALMA €10.14
110
 ABAC Safety Valve 3/8" 11 Bar for Pump Unit A29B 6210719900 ABAC Safety Valve 3/8" 11 Bar for Pump Unit A29B €7.87
113
 photo_cameraImage coming soon 6214349500 JOINT BIC.10 €1.61
114
 photo_cameraImage coming soon 6214348400 Wheel pin €3.12
116
 photo_cameraImage coming soon 6214344600 Plastic plug €0.52
118
 photo_cameraImage coming soon 2236105466 Fitting €4.41
118
 Fitting 8973036197 Fitting €4.10
125
 photo_cameraImage coming soon 2236106820 Pulley 90 X 1A F.16(9083286) €16.14
125
 photo_cameraImage coming soon 2901320246 Pulley €21.11
126
 V-Belt A53 for Air Compressors ABAC - BALMA 0367102100 V-Belt A53 for Air Compressors ABAC - BALMA €10.07
127
 Rilsan Tube PA6 PE3030UK 6X4 Black 2236112998 Rilsan Tube PA6 PE3030UK 6X4 Black €6.89
131
 Pressure Switch 3/8 + MDR1 for Compressor A29B 50 CM3 2236106647 Pressure Switch 3/8 + MDR1 for Compressor A29B 50 CM3 €35.33
131
 Pressure Switch for Air Compressor MONTECARLO FC2/50 CM 2 6256396900 Pressure Switch for Air Compressor MONTECARLO FC2/50 CM 2 €38.89
132
 photo_cameraImage coming soon 2236106733 Cable €25.14
132
 photo_cameraImage coming soon 6256395100 Cable €29.45
132
 photo_cameraImage coming soon 6256395300 Cord €23.59
135
 photo_cameraImage coming soon 1127380486 Electric motor €237.04
135
 photo_cameraImage coming soon 2236113724 MOTOR HP 2 M V230 50HZ MEC 80 €322.64
136
 photo_cameraImage coming soon 8973036609 Motor Overload €17.86
141
 ABAC B2800 Rear Belt Guard 2236115350 ABAC B2800 Rear Belt Guard €17.42
142
 ABAC B2800 Front Belt Guard 2236115352 ABAC B2800 Front Belt Guard €30.32
142
 photo_cameraImage coming soon 6214343100 Belt guard(Only For Old Productions of B2800&B3800) €26.92
145
 ABAC B2800-100 PLUS CM2 Delivery Pipe 6245575700 ABAC B2800-100 PLUS CM2 Delivery Pipe €13.95
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

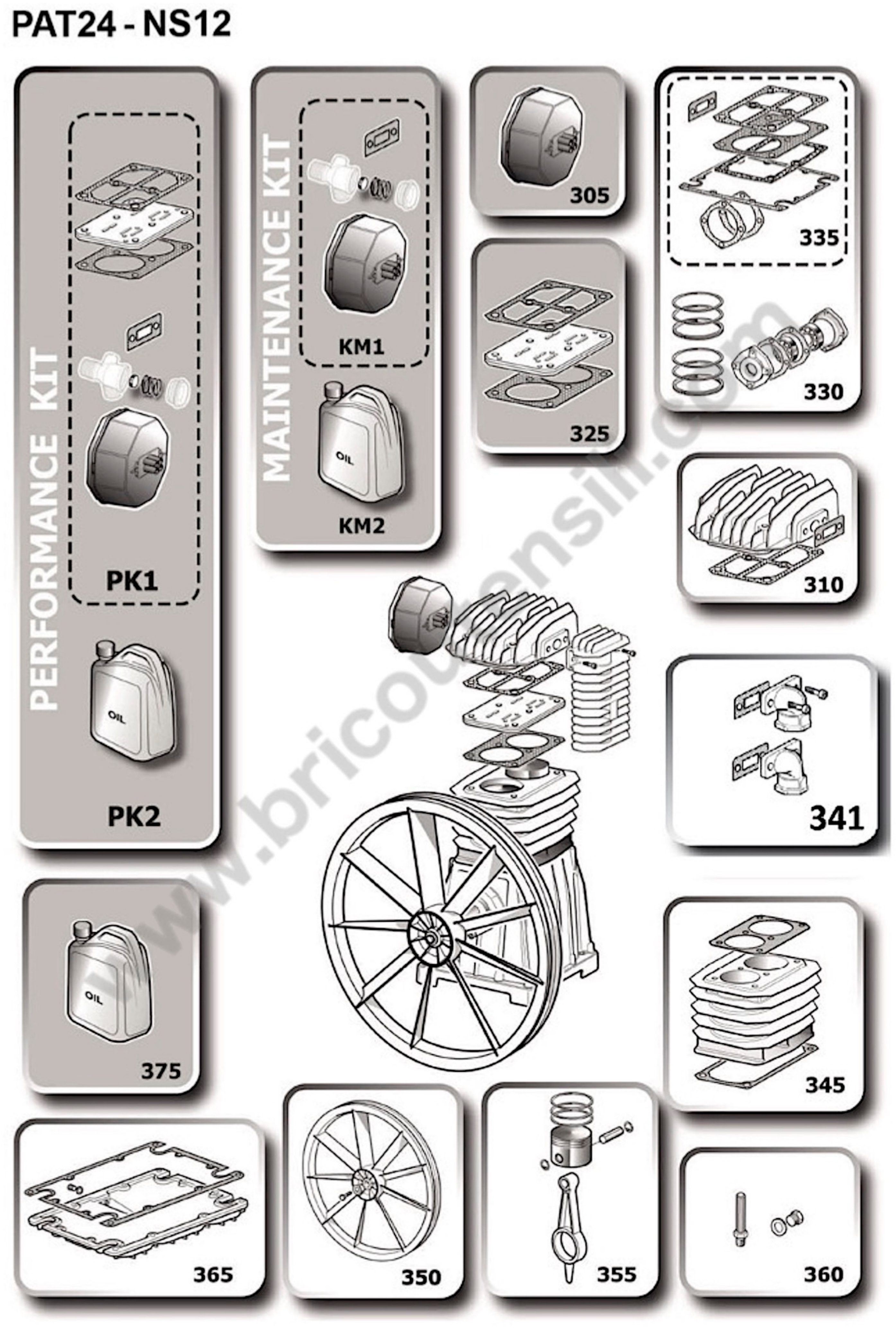

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
305
 ABAC Air Filter for Pump Unit A29B - A39B 2236112735 ABAC Air Filter for Pump Unit A29B - A39B €15.15
305
 Air Filter Kit for Pump Units ABAC PAT24-PAT38 2236112835 Air Filter Kit for Pump Units ABAC PAT24-PAT38 €15.18
310
 Cylinder Head Kit for Pump Unit ABAC A29B 2901325044 Cylinder Head Kit for Pump Unit ABAC A29B €35.92

Shipping and delivery information will be available shortly.

CECCATO BLUELINE 90BC2 - 4116023629 Spare Parts

Rely on our experience and our professionalism, take care of your Air Compressor Ceccato BLUELINE 90BC2 - 4116023629 by choosing only original spare parts. Buy in total safety and pay without worries all spare parts needed for maintenance are Guaranteed Original.

In the following table, look for the spare parts of the ABAC Air Compressor and the corresponding code.
CECCATO BLUELINE 90BC2

CECCATO BLUELINE 90BC2 - 4116023629 Parts List Pag.1
Nr. Item Description End
099 4116090644 Pump PAT24 SPARE GRAY 01/07/21
100 1127090003 Plug -receiver 20/10/19
102 6214347700 Wheel 200x47
103 6214344300 Pivot wheel - front pin
104 6214343300 Handle
105 2236110535 Non return valve
105 2236110860 Non return valve 19/06/13
106 6231944100 Tap
106 2236112708 Tap UNIV COUPLING 1/2+ M 05/11/13
107 2236111480 Drain tap 3/8+M
107 6210717700 Drain tap 3/8+ 17/09/12
108 6214344100 Pressure reducer 30/10/13
109 6214345000 PRESSURE GAUGE 50 REAR 1/4 0/20
110 6210719900 Safety valve
113 6214349500 Fitting
114 6214348400 Wheel pin
116 6214344600 Plug
118 2236105466 Fitting
118 8973036197 Fitting 25/01/17
125 2901320246 Pulley 90 X 1A Hole 19 11/09/12
125 2236111823 Pulley 21/07/19
125 2236106820 Pulley 90 X 1A Hole 16 (9083286) 22/07/12
126 0367102100 Belt A 53
127 2236112998 TUBE PNEUMATIC 6X4 PA6 BLACK
127 2236112998 Rilsan tube 18/12/15
131 2236110614 Pressure switch
131 6256397000 Pressure switch 02/03/03
131 2236106647 Pressure switch 13/03/11
131 2236106647 Pressure switch 28/02/01
131 2236110613 Pressure switch 30/10/13
132 2236106733 Cable
132 6256395100 Cable 20/04/17
132 2236106733 Cable 30/10/13
132 6256395300 Cable 30/10/13
135 1127380486 Motor MEC80 2HP 50HZ 230V
135 2236113724 Motor MEC80 2HP 50HZ 230V 03/11/19
135 2236112951 Motor 07/01/18
135 2236110453 Motor HP2 V230/50 MEC71 22/07/12
135 2236112951 Motor 28/02/18
136 8973036609 TERMICA RESET 10A UN/VEM 07/01/18
141 2236115350 Belt guard
141 2236110471 Belt guard 05/03/17
141 6214345200 Belt guard 31/12/09
142 2236115352 Belt guard
142 6214343100 Belt guard 05/03/17
145 6245575700 Delivery pipe
PAT24 - NS12 Parts List Pag.2
Nr. Item Description End
305 2236112835 Air filter 04/02/15
305 2236112735 Air filter PAT24/38
310 2901325044 Cylinder head kit PAT24/PAT38 01/07/21
325 2236112518 Valve plate kit PAT24/38 01/07/21
330 2901325046 Upgrade kit PAT24/PAT38 01/07/21
335 2901325045 Joints kit PAT24/PAT38 01/07/21
340 2901325047 Aftercooler kit 06/10/14
341 2236112795 Female connection kit 01/07/21
345 2236112434 Cylinder kit 01/07/21
350 2901325048 Flywheel kit PAT24 01/07/21
355 2236111619 Conrod-piston kit LP
360 2901325049 Oil level kit 01/07/21it
365 2236112437 Crankcase cover kit 01/07/21
375 1630020700 Oil can 01/07/21
KM1 8973037864 Maintenance kit A29B/A29B-0/A39B/A39B-0 01/07/21
KM2 1630020700 Oil can 01/07/21
PK1 8973037657 PERFORMANCE KIT per gruppi pompanti A29B/A29B-0/A39B/A39B-0 01/07/21
PK2 6215715800 ALTAIR PLUS OIL 5L 01/07/21
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s CECCATO websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to CECCATO brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
BLUELINE 90BC2 - 4116023629
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
Machine Type
Air Compressor
MORE INFO:
[email protected]

Specific References

New

Download

CECCATO BLUELINE 90BC2 Drawing

CECCATO BLUELINE 90BC2 Drawing

Download (913.8KB)
