Ceccato Compressori

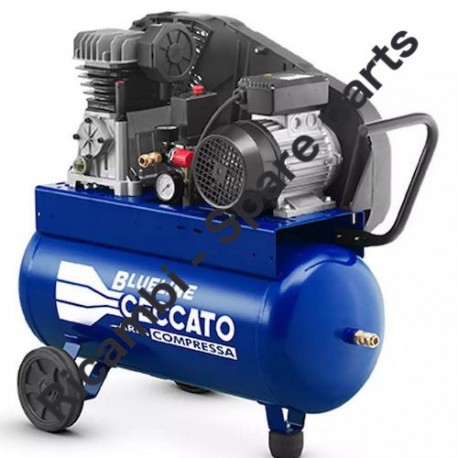

CECCATO BLUELINE 25BC2 Spare Parts

SKU: BLUELINE 25BC2 4116024579
€263.88
VAT included

CECCATO BLUELINE 25BC2 Spare Parts

Rely on our experience and our professionalism, take care of your Air Compressor Ceccato BLUELINE 25BC2 - PAT24 - NS12 - 4116024579 by choosing only original spare parts. Buy in total safety and pay without worries all spare parts needed for maintenance are Guaranteed Original.
CECCATO BLUELINE 25BC2 Spare Parts
  • CECCATO BLUELINE 25BC2 Spare Parts
  • CECCATO BLUELINE 25BC2 Spare Parts Diagram
  • CECCATO BLUELINE 25BC2 Spare Parts Diagram - 1
Ceccato Compressori

CECCATO BLUELINE 25BC2 Spare Parts

SKU: BLUELINE 25BC2 4116024579 Condition: New
€263.88
VAT included

CECCATO BLUELINE 25BC2 Spare Parts

Rely on our experience and our professionalism, take care of your Air Compressor Ceccato BLUELINE 25BC2 - PAT24 - NS12 - 4116024579 by choosing only original spare parts. Buy in total safety and pay without worries all spare parts needed for maintenance are Guaranteed Original.
settings 56 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
47 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

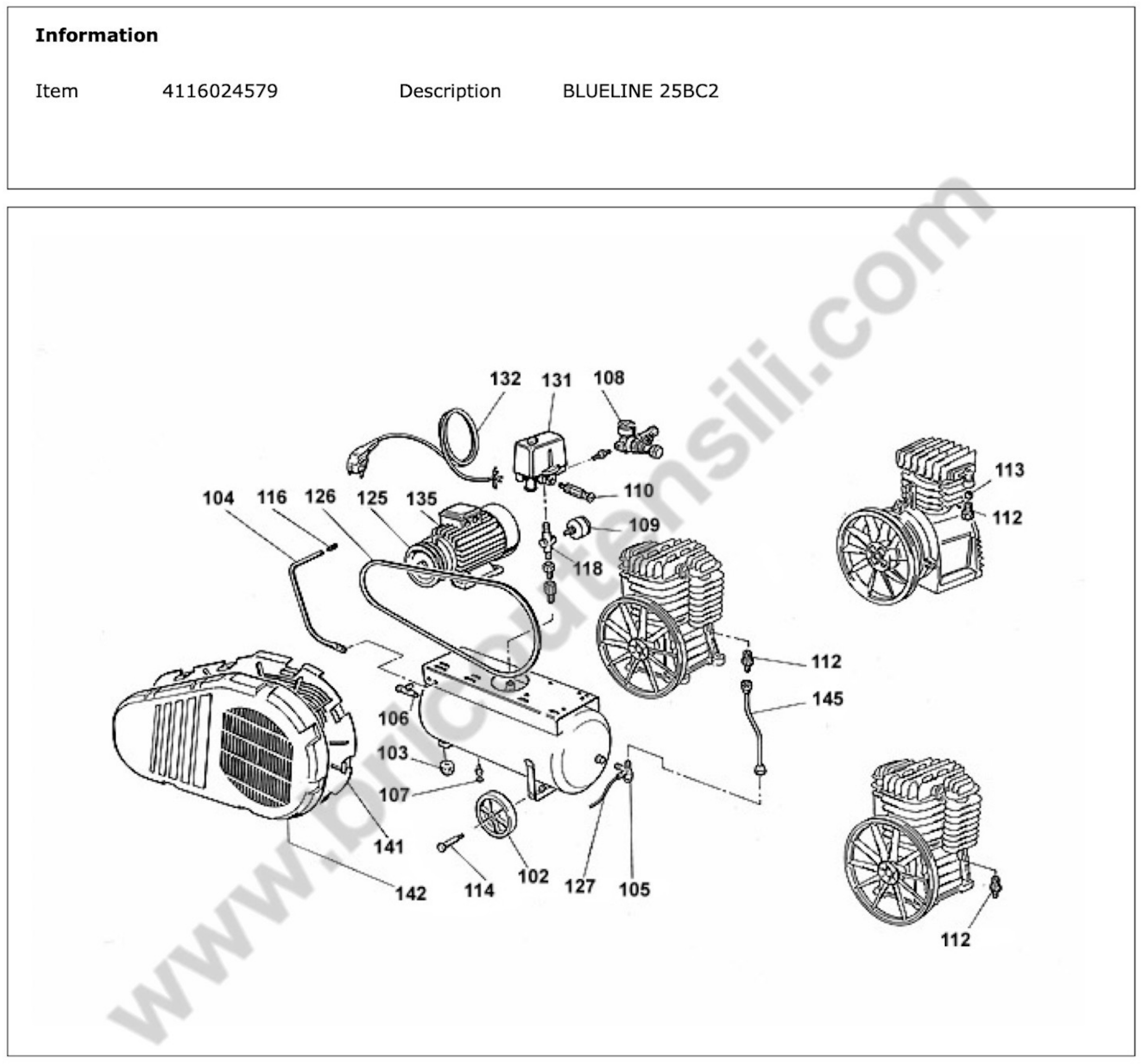

Esploso pagina 1
Pos. Item Price Buy
099
 photo_cameraImage coming soon 4116090295 Pump €256.20
102
 photo_cameraImage coming soon 6214347200 Fix Wheel 120 Ø 15 €16.91
103
 photo_cameraImage coming soon 6214345400 Pivot wheel - front pin €4.78
104
 photo_cameraImage coming soon 6214343300 Handle €14.32
105
 Non Return Valve 1/2" M for Air Compressor Montecarlo FC2/50 CM 2 6210718900 Non Return Valve 1/2" M for Air Compressor Montecarlo FC2/50 CM 2 €15.49
106
 photo_cameraImage coming soon 2236112708 Line valve 1/2” M quick coupling €10.63
106
 Quick Coupling 1/4" M for Air Compressors ABAC - BALMA 6231944100 Quick Coupling 1/4" M for Air Compressors ABAC - BALMA €11.00
107
 photo_cameraImage coming soon 2236111480 Drain tap €12.14
107
 Drain Valve 3/8" for Air Compressors ABAC - BALMA 6210717700 Drain Valve 3/8" for Air Compressors ABAC - BALMA €4.32
108
 Pressure Reducer Micro 1/4" A for Compressor Montecarlo FC2/50 CM 2 2236105548 Pressure Reducer Micro 1/4" A for Compressor Montecarlo FC2/50 CM 2 €22.83
108
 Pressure Reducer MICRO 1/4 A 1R for Air Compressors ABAC - BALMA 6214344100 Pressure Reducer MICRO 1/4 A 1R for Air Compressors ABAC - BALMA €24.90
109
 Gauge 50MM for Air Compressors ABAC - BALMA 6214345000 Gauge 50MM for Air Compressors ABAC - BALMA €12.35
110
 ABAC Safety Valve 3/8" 11 Bar for Pump Unit A29B 6210719900 ABAC Safety Valve 3/8" 11 Bar for Pump Unit A29B €12.35
112
 photo_cameraImage coming soon 6214349700 Fitting €1.93
114
 ABAC Wheel Pin D.15MM 6214348000 ABAC Wheel Pin D.15MM €2.52
118
 photo_cameraImage coming soon 6275613400 Fitting €13.42
125
 photo_cameraImage coming soon 2236106820 Pulley 90 X 1A F.16(9083286) €16.14
125
 photo_cameraImage coming soon 2901320246 Pulley €21.11
126
 V-Belt A53 for Air Compressors ABAC - BALMA 0367102100 V-Belt A53 for Air Compressors ABAC - BALMA €10.07
127
 Rilsan Tube PA6 PE3030UK 6X4 Black 2236112998 Rilsan Tube PA6 PE3030UK 6X4 Black €4.48
127
 photo_cameraImage coming soon 6245578000 Rilsan tube €15.98
131
 Pressure Switch 3/8 + MDR1 for Compressor A29B 50 CM3 2236106647 Pressure Switch 3/8 + MDR1 for Compressor A29B 50 CM3 €43.51
132
 photo_cameraImage coming soon 2236106733 Cable €25.14
132
 photo_cameraImage coming soon 6256395100 Cable €21.81
135
 photo_cameraImage coming soon 1127380486 Electric motor €237.04
135
 photo_cameraImage coming soon 2236113724 MOTOR HP 2 M V230 50HZ MEC 80 €322.64
136
 photo_cameraImage coming soon 8973036609 Motor Overload €17.86
141
 ABAC B2800 Rear Belt Guard 2236115350 ABAC B2800 Rear Belt Guard €31.37
142
 ABAC B2800 Front Belt Guard 2236115352 ABAC B2800 Front Belt Guard €33.24
142
 photo_cameraImage coming soon 6214343100 Belt guard(Only For Old Productions of B2800&B3800) €26.92
145
 photo_cameraImage coming soon 6245576100 Delivery pipe B2800I/27 €9.02
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

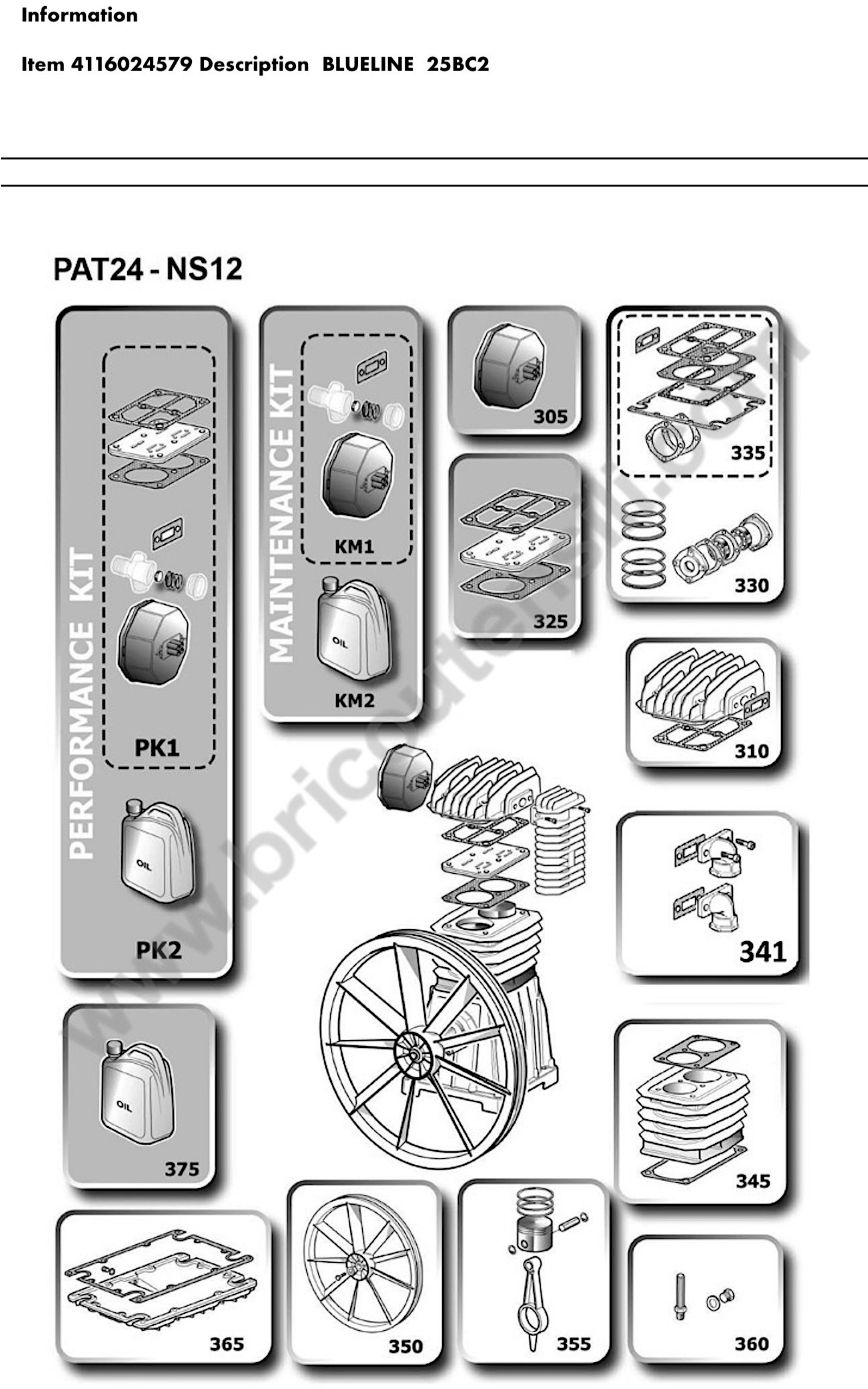

Esploso pagina 2
Pos. Item Price Buy
PK1
 Performance Kit for Pump Units ABAC PAT24-PAT38 8973037657 Performance Kit for Pump Units ABAC PAT24-PAT38 €65.74
KM1
 ABAC Maintenance Kit for Pump Unit A29B - A39B 8973037864 ABAC Maintenance Kit for Pump Unit A29B - A39B €22.13
305
 ABAC Air Filter for Pump Unit A29B - A39B 2236112735 ABAC Air Filter for Pump Unit A29B - A39B €15.15
305
 Air Filter Kit for Pump Units ABAC PAT24-PAT38 2236112835 Air Filter Kit for Pump Units ABAC PAT24-PAT38 €16.99
310
 Cylinder Head Kit for Pump Unit ABAC A29B 2901325044 Cylinder Head Kit for Pump Unit ABAC A29B €71.50
325
 Valve Plate Kit for Pump Unit ABAC A29B 2236112518 Valve Plate Kit for Pump Unit ABAC A29B €46.73
330
 ABAC Upgrade Kit for Pump Unit A29B - A39B 2901325046 ABAC Upgrade Kit for Pump Unit A29B - A39B €48.54
335
 ABAC Gasket Kit for Pump Unit A29 2901325045 ABAC Gasket Kit for Pump Unit A29 €38.15
340
 ABAC PAT24-PAT38 Aftercooler Kit 2901325047 ABAC PAT24-PAT38 Aftercooler Kit €35.94
341
 photo_cameraImage coming soon 2236112795 Female connection kit €63.65
345
 photo_cameraImage coming soon 2236112434 CYLINDER KIT PAT24 €70.17
350
 Flywheel Kit for Pump Unit A29B 2901325048 Flywheel Kit for Pump Unit A29B €59.59
355
 ABAC Conrod Piston Kit Ass'y for Pump Unit PAT24 - A29 - NS12 2236111619 ABAC Conrod Piston Kit Ass'y for Pump Unit PAT24 - A29 - NS12 €56.70
360
 photo_cameraImage coming soon 2901325049 OIL LEVEL KIT €16.26
365
 photo_cameraImage coming soon 2236112437 BOTTOM CRANKCASE COVER KIT PAT 24 €27.80
375
 photo_cameraImage coming soon 1630020700 ALTAIR PRO 1L €16.34

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

CECCATO BLUELINE 25BC2 Spare Parts

Rely on our experience and our professionalism, take care of your Air Compressor Ceccato BLUELINE 25BC2 - PAT24 - NS12 - 4116024579 by choosing only original spare parts. Buy in total safety and pay without worries all spare parts needed for maintenance are Guaranteed Original.

In the following table, look for the spare parts of the ABAC Air Compressor and the corresponding code.
CECCATO BLUELINE 25BC2

Ceccato BLUELINE 25BC2 - PAT24 - NS12 - 4116024579 Spare Parts Pag.1
# Part Num. Description
099 4116090295 Pump PAT24 - NS12 SPAREPART GREY - 4116090644
102 6214347200 Wheel 120 X 38 HOLE 15,8
103 6214345400 Pivot wheel - front pin
104 6214343300 Handle
105 6210718900 Non return valve
106 6231944100 QUICK RELEASE COUPLING
106 2236112708 UNIVERSAL QUICK COUPL.1/2+M
107 2236111480 Drain tap 3/8+M
107 6210717700 Drain tap
108 6214344100 Pressure reducer 1/4 A 1R
108 2236105548 PRESS.REDUCT.MICRO1/4-A-CHN12B
109 6214345000 Gauge 50REAR 1/4 0/20
110 6210719900 Safety valve 3/8 TA-W 11B
112 6214349700 Fitting 3/8+ HOLE 10
113 6214349500 Fitting JOINT BIC.10
114 6214348000 Wheel pin
116 6214344600 Plug 17/20 RA20
118 6275613400 GAUGE SUPPORT
125 2901320246 Pulley D90-1A H19+DOWEL KIT
125 2236106820 Pulley 90 X 1A F.16(9083286)
125 2236111823 Pulley
126 0367102100 Belt A 53
127 2236112998 TUBE PNEUMATIC 6X4 PA6 BLACK
127 6245578000 Rilsan tube
131 2236110614 Pressure switch
131 2236110613 Pressure switch
131 2236106647 Pressure switch 3/8+ MDR1
132 2236106733 Cable 1500X3G1 SCHUKO
132 6256395100 Cable 3G1,5 L=2000 SCHUKO H07R
135 1127380486 Motor MEC80 2HP 50HZ 230V
135 2236113724 Motor MEC80 2HP 50HZ 230V
135 2236112951 Motor
135 2236110453 Motor
135 2236112951 Motor
136 8973036609 Star-delta starter TERMICA RESET 10A UN/VEM
141 2236115350 REAR PLASTIC BELT GUARD B2800
141 2236110471 Belt guard
141 6214345200 Belt guard
142 2236115352 FRONTAL PLASTIC BG 2800-3800
142 6214343100 FRONT BELT GUARD B 2800/3800
145 6245576100 Delivery pipe B2800I/27
Kit PAT24 - NS12 Pag.2
# Part Num. Description
305 2236112835 Air filter V.2 PAT24/38
305 2236112735 Air filter PAT24/38
310 2901325044 Cylinder head kit PAT24/PAT38
325 2236112518 Valve plate kit PAT24/38
330 2901325046 Upgrade kit PAT24/PAT38
335 2901325045 Joints kit PAT24/PAT38
340 2901325047 Aftercooler kit PAT24/PAT38
341 2236112795 Female connection kit Ask Quote
345 2236112434 Cylinder kit PAT24
350 2901325048 Flywheel kit PAT24
355 2236111619 Conrod-piston kit LP PAT24
360 2901325049 Oil level kit PAT24/PAT38
365 2236112437 KIT CRANK.COVER BOTTOM PAT24
375 1630020700 Altair Pro - Piston Compressor Oil - 1 liter
KM1 8973037864 KIT PERFORMANCE LIGHT PAT24/38
KM2 ORDER OIL SEPARATELY
PK1 8973037657 KIT PERFORMANCE PAT24/PAT38
PK2 ORDER OIL SEPARATELY
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s CECCATO websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to CECCATO brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
