Castor Spare Parts for Chain Saw CJ 300

Name: Castor Spare Parts for Chain Saw CJ 300
Brand: GGP Italy
SKU: Castor CJ 300
Availability: InStock

SKU: Castor CJ 300

€4.02

VAT included

Castor Spare Parts for Chain Saw CJ 300

CASTOR authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Chain Saw CJ 300.

Castor CJ 300

142 spare parts

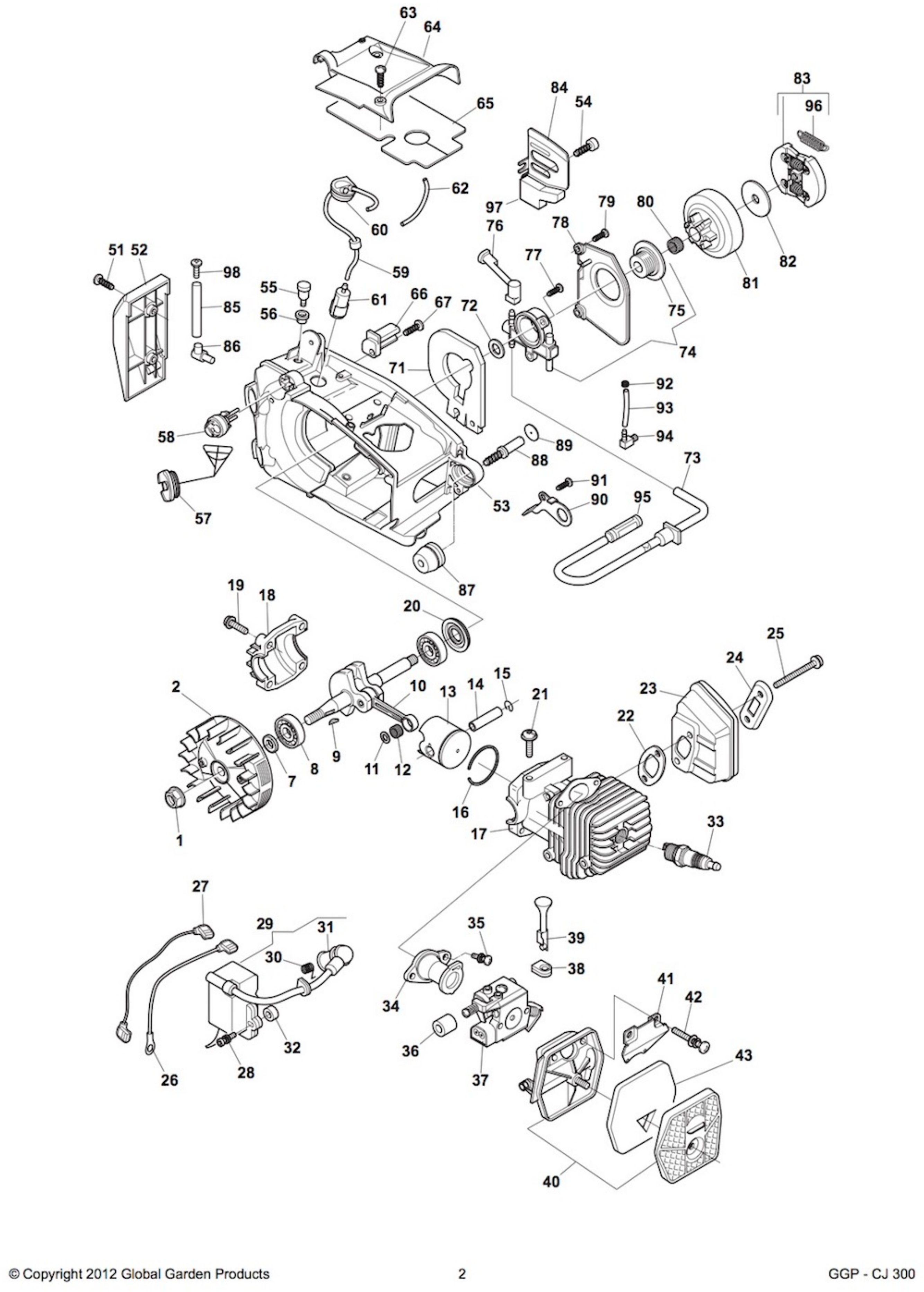

Page 1 View exploded Usually Ships in: 10/15 BUSINESS DAYS

Pos.		Item	Price
1		123120008/0 Flyweel Nut M8×1 for Chainsaws Alpina A 305-C 25-A 2500	€1.88
2		183880005/0 Flywheel Ass’y for Chainsaw Castor CJ 300	€33.11
7		119035162/0 Oil Seal 12x22x5 for Chainsaw Alpina A 305-C 25-A 2500	€5.61
8		114215219/0 Crankshaft Bearing for Chainsaws Alpina A 305-C 25-A 2500	€6.34
9	Image coming soon	123072005/0 Flywheel Key	€1.57
10		123020030/0 Crankshaft for Chainsaw Alpina A 305	€34.93
11		123652505/0 Piston Pin Needle Bearing Washer for Chainsaw Alpina A 305-C 25-A 2500	€2.98
12		123235008/0 Piston Pin Needle Bearing for Chainsaw Alpina A 305-C 25-A 2500	€5.71
13		123590012/0 Piston for Chainsaw Alpina A 305-C 25-A 2500	€12.62
14		123760006/0 Piston Pin for Chainsaw Alpina A 305-C 25-A 2500	€3.18
15		123202006/0 Circlip for Chainsaw Alpina A 305-C 25-A 2500	€1.55
16		123204014/0 Piston Ring for Chainsaw Alpina A 305-C 25-A 2500	€5.41
17	Image coming soon	183070007/0 CYLINDER ASSY	€34.24
18	Image coming soon	123082006/0 Stabilizer	€5.08
20		119035163/0 Oil Seal 12x28x6 for Chainsaw Alpina A 305-C 25-A 2500	€5.41
21		123878081/0 Srew TX M5X18 for Hedgetrimmer Alpina H 60	€1.92
22		123280067/0 Muffler Gasket for Chainsaw Alpina A 305-C 25-A 2500	€1.76
23	Image coming soon	183740018/0 MUFFLER	€15.57
24	Image coming soon	6995251 PLATE	€1.27
25	Image coming soon	123878078/0 Screw	€1.53
26	Image coming soon	6995210 Earth Cable	€7.10
27	Image coming soon	6995227 Stop Wire	€7.38
28	Image coming soon	123878079/0 Screw	€1.47
29	Image coming soon	183044001/0 ELECTRONIC COIL	€22.11
30		6995022 Spark Plug Spring for Chainsaws Alpina A 305-C 25-A 2500	€1.69
31	Image coming soon	6995066 Spark Plug Cover	€5.41
32		123160063/0 Ignition Coil Spacer for Chainsaw Alpina A 305	€1.55
34		123073516/0 Hose Air Collector for Chainsaws Alpina A 305-C 25-A 2500	€7.83
36	Image coming soon	6995212 Gasket	€1.34
37		123054034/0 Carburator Walbro for Chainsaw Alpina A 305	€82.90
38		123275025/0 Air Lever Grommet for Chainsaw Alpina A 305-C 25-A 2500	€1.62
39		123315093/0 Air Lever for Chainsaw Alpina A 305-C 25-A 2500	€2.14
40		183040000/0 Air Filter Base + Cover for Chainsaws Alpina C 25 - A 2500	€5.88
41	Image coming soon	123543002/0 Plate	€2.97
42	Image coming soon	123878086/0 Screw	€1.82
43		123220014/0 Air Filter for Chainsaw Alpina A 305-C 25-A 2500	€2.91
51	Image coming soon	123878008/0 Screw	€1.53
52	Image coming soon	123600075/0 FRONT COVER	€4.79
53		118802270/0 Crankase for Chainsaw Alpina A 305-Castor CJ 300	€32.80
54	Image coming soon	6995187 Screw	€1.47
55		183875003/0 Breather Valve Assy for Chainsaws Alpina A 305-C 25-A 2500	€4.65
56		123275024/0 Breather Valve Grommet for Chainsaws Alpina A 305-C 25-A 2500	€1.92
57		183790010/0 Cap Ass'Y for Chainsaw Alpina C 25	€3.49
58		123018001/0 Primer Pump for Chainsaw Alpina A 305	€6.14
59		123867019/0 Fuel Pipe for Chainsaw Alpina A 305-C 25-A 2500	€4.64
60		123650004/0 Grommet for Chainsaw Alpina A 305-C 25-A 2500	€4.19
61		183520007/0 Fuel Pickup Assy for Chainsaw Alpina A 305-C 25-A 2500	€5.67
62		123867020/0 Oil Pipe for Chainsaw Alpina A 305-C 25-A 2500	€2.67
64	Image coming soon	123109580/0 UPPER COVER	€3.18
65	Image coming soon	123600072/0 Guard	€2.53
66		123202007/0 Chain Guard for Chainsaws Alpina A 305-C 25-A 2500	€3.89
67		123878093/0 Screw 06.06.105 - RDC for Chainsaws Alpina A 305-C 25-A 2500	€1.92
71		123600073/0 Oil Pump Sponge Protection for Chainsaws Alpina A 305 - C 25	€2.59
72		123652506/0 Washer for Chainsaw Alpina A 305-C 25-A 2500	€1.55
73		123867020/0 Oil Pipe for Chainsaw Alpina A 305-C 25-A 2500	€2.67
74		183594508/0 Oil Pump for Chainsaw Alpina A 305-C 25-A 2500	€22.47
75		123878083/0 Worm Screw for Chainsaw Alpina A 305-C 25-A 2500	€4.64
76		123867024/0 Oil Pipe for Chainsaw Alpina A 305-C 25-A 2500	€1.55
77		123878084/0 Oil Pump Block Screw for Chainsaw Alpina A 305-C 25-A 2500	€1.55
78		123109577/0 Oil Pump Cover for Chainsaw Alpina C 25	€1.55
79		123878080/0 Oil Pump Cover Screw for Chainsaw Alpina A 305-C 25-A 2500	€1.62
80		123235009/0 Clutch Druum Needle Bearing for Chainsaw Alpina A 305-C 25-A 2500	€5.25
81		123050007/0 Clutch Drum 3/8'' for Chainsaw Alpina C 25-A 2500	€16.77
81		123050008/0 Clutch Drum 1/4'' for Chainsaw Alpina A 305 - Castor CJ 300	€16.61
82		123657011/0 Washer Clutch for Chainsaw Alpina A 305-C 25-A 2500	€1.98
83		183215008/0 Clutch for Chainsaw Alpina A 305-C 25-A 2500	€12.00
84		123311009/0 Lower Bar Plate for Chainsaws Alpina A 305-C 25-A 2500	€2.51
85		118800255/0 Oil Ingoing Tube for Chainsaw Alpina A 305-C 25-A 2500	€1.92
86	Image coming soon	118801162/0 Nozzle	€1.77
87		123275027/0 Damper for Chainsaw Alpina A 305-C 25-A 2500	€2.98
88		123878093/0 Screw 06.06.105 - RDC for Chainsaws Alpina A 305-C 25-A 2500	€1.92
89	Image coming soon	123790022/0 Cap	€1.47
90	Image coming soon	123208412/0 Clamp	€1.82
91		123878080/0 Oil Pump Cover Screw for Chainsaw Alpina A 305-C 25-A 2500	€1.62
92	Image coming soon	123206852/0 Fair Led	€1.47
93		123867018/0 Oil Tube for Chainsaw Alpina A 305-C 25-A 2500	€1.92
94		123650005/0 Hose Junction for Chainsaw Alpina A 305-C 25-A 2500	€1.55
95		123220013/0 Oil Fiter for Chainsaws Alpina A 305-C 25-A 2500	€2.67
96		123430593/0 Clutch Spring for Chainsaws Alpina A 305-C 25-A 2500	€3.54
97		123600074/0 Oil Seal Sponge Protection for Chainsaws Alpina A 305 - C 25	€1.55

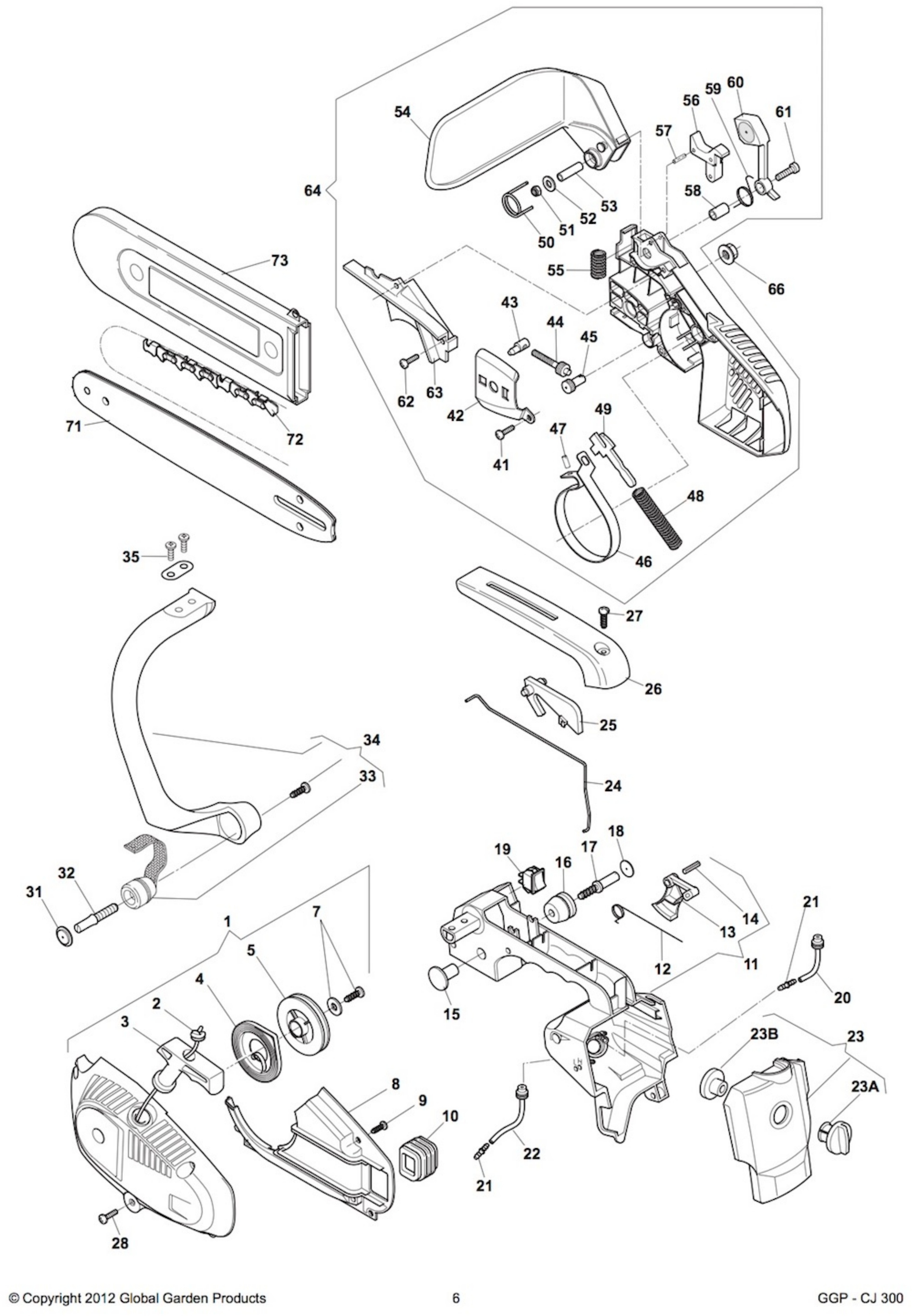

Page 2 View exploded Usually Ships in: 10/15 BUSINESS DAYS

Pos.		Item	Price
1		118801168/0 Starter Assembly White for Chainsaw Alpina C 25	€25.13
1	Image coming soon	118801169/0 STARTER ASSY,RED	€22.91
1	Image coming soon	183058037/0 STARTER ASSY, YELLOW	€24.07
2	Image coming soon	123234005/0 Starter Rope \| Starter Cord	€1.59
3		123300013/0 Starter Handle for Chainsaw Alpina A 305	€1.78
4		123430594/0 Recoil Starter Spring for Chainsaw Alpina A 305-C 25-A 2500	€5.17
5		123604011/0 Starter Pulley for Chainsaw Alpina C 25	€5.17
7	Image coming soon	123878087/0 Screw	€1.39
8	Image coming soon	123107504/0 Air Conveyor	€4.65
9	Image coming soon	123878088/0 Screw	€1.53
10		123275026/0 Conveyor Grommet for Chainsaws Alpina A 305-C 25-A 2500	€3.60
11		183300023/0 Handle Assembly for Chainsaw Alpina C 25	€32.52
12		123430599/0 Trigger Torsion Rod Spring for Chainsaws Alpina A 305-C 25-A 2500	€2.98
13		123315095/0 Throttle Lever for Chainsaws Alpina A 305-C 25-A 2500	€2.39
14	Image coming soon	123510098/0 Elastic Pin	€1.82
15	Image coming soon	123790021/0 Cap	€1.53
16		123275027/0 Damper for Chainsaw Alpina A 305-C 25-A 2500	€2.98
17		123878093/0 Screw 06.06.105 - RDC for Chainsaws Alpina A 305-C 25-A 2500	€1.92
18	Image coming soon	123790022/0 Cap	€1.47
19		118800202/0 Stop Switch for Chainsaws Alpina A 3700-C 38	€2.51
20		123867021/0 Fuel Tube for Chainsaw Alpina A 305-C 25-A 2500	€2.01
21		123650005/0 Hose Junction for Chainsaw Alpina A 305-C 25-A 2500	€1.55
22		123867022/0 Fuel Pipe for Chainsaw Alpina A 305-C 25-A 2500	€1.92
23A		123593507/0 Air Cleaner Cover Knob for Chainsaw Alpina A 305	€6.83
23B		123657012/0 Air Cleaner Cover Knob Washer for Chainsaw Alpina A 305	€1.55
23	Image coming soon	183090013/0 REAR COVER	€4.71
24		123835002/0 Throttle Rod for Chainsaws Alpina A 305-C 25-A 2500	€3.29
25		123315096/0 Safety Lever for Chainsaw Alpina A 305-C 25-A 2500	€1.95
26	Image coming soon	123109579/0 HANDLE, UPPER PART	€3.32
27	Image coming soon	123878008/0 Screw	€1.53
28	Image coming soon	123878008/0 Screw	€1.53
31	Image coming soon	123790022/0 Cap	€1.47
32		123878093/0 Screw 06.06.105 - RDC for Chainsaws Alpina A 305-C 25-A 2500	€1.92
33		123275027/0 Damper for Chainsaw Alpina A 305-C 25-A 2500	€2.98
34		183105000/0 Handle for Chainsaw Alpina A 305-C 25-A 2500	€11.91
35	Image coming soon	123657014/0 Washer	€3.57
41	Image coming soon	123878088/0 Screw	€1.53
42		123311010/0 Bar Plate for Chainsaws Alpina A 305-C 25-A 2500	€3.89
43		123796008/0 Nut Chain Tensioner for Chainsaw Alpina A 305-C 25-A 2500	€1.78
44		123878092/0 Screw Chain Tensioner for Chainsaw Alpina A 305-C 25-A 2500	€2.64
45		123510097/0 Gear Chain Tensioner for Chainsaw Alpina A 305-C 25-A 2500	€2.98
46		123448005/0 Brake Band for Chainsaws Alpina A 305 - C 25 - A 2500	€3.85
47		123665004/0 Brake Band Needle for Chainsaws Alpina A 305 - C 25 - A 2500	€1.55
48		123430598/0 Brake Band Spring for Chainsaws Alpina A 305 - C 25 - A 2500	€3.60
49		123315094/0 Brake Band Lever for Chainsaws Alpina A 305 - C 25 - A 2500	€2.67
50	Image coming soon	123430595/0 Spring	€1.82
51	Image coming soon	123120009/0 Nut	€1.39
52	Image coming soon	123657013/0 Washer	€1.55
53	Image coming soon	123044219/0 Bushing	€1.47
54		123455009/0 Hand Gard for Chainsaw Alpina C 25-A 2500	€9.16
55	Image coming soon	123430597/0 Spring	€1.33
56		183315052/0 Brake Release Lever Ass'y for Chainsaws Alpina A 305	€4.42
57	Image coming soon	123665003/0 Needle	€1.47
58	Image coming soon	123044220/0 Bushing	€1.53
59		123430596/0 Balance Weigth Spring for Chainsaws Alpina A 305-C 25-A 2500	€0.88
63	Image coming soon	123109578/0 Brake Spring Cover	€1.53
64	Image coming soon	118801170/0 CLUTCH HOUSING WHITE	€21.82
64		118802734/0 Clutch Housing for Chainsaw Castor CP 300	€39.28
64		123059036/1 Clutch Housing for Chainsaw Castor CJ 300	€39.28
66	Image coming soon	123120010/0 Nut	€1.68
71		123900360/0 Bar 10” (25 cm) 3/8” .050” (1.3 mm) for Chainsaw Alpina A 305	€16.90
72	Image coming soon	1519-9110-02 CHAIN LOOP 10"-3/8"-0,050"-40E (ALPINA)	€17.27

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Castor Spare Parts for Chain Saw CJ 300

CASTOR

authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Chain Saw CJ 300.

In the following table, look for the model of the Chain Saw and the respective parts of the code.

Chain Saw CJ 300 - Engine Pag.1
#	Part Num.	Description
1	123120008/0	NUT
2	183880005/0	FLYWHEEL ASSY
7	119035162/0	SEAL RING
8	114215219/0	BALL BEARING
9	123072005/0	FLYWHEED KEY
10	123020030/0	CRANKSHAFT
11	123652505/0	WASHER
12	123235008/0	NEEDLE BEARING
13	123590012/0	PISTON
14	123760006/0	PISTON PIN
15	123202006/0	CIRCLIP
16	123204014/0	PISTON RING
17	183070007/0	CYLINDER ASSY
18	123082006/0	STABILIZER
19	123878076/0	SCREW
20	119035163/0	SEAL RING
21	123878081/0	SCREW
22	123280067/0	MUFFLER GASKET
23	183740018/0	MUFFLER
24	6995251	PLATE
25	123878078/0	SCREW
26	6995210	EARTH CABLE
27	6995227	STOP WIRE
28	123878079/0	SCREW
29	183044001/0	ELECTRONIC COIL
30	6995022	SPARK PLUG SPRING
31	6995066	SPARK PLUG COVER
32	123160063/0	SPACER
34	123073516/0	SPARK PLUG
35	123878077/0	INTAKE MANIFOLD ASSY
36	6995212	SCREW
37	123054034/0	GASKET
38	123275025/0	CARBURETTOR
39	123315093/0	GROMMET
40	183040000/0	CHOKE LEVER ROD
41	123543002/0	AIR FILTER SUPPORT + COVER
42	123878086/0	SCREW
43	123220014/0	AIR FILTER
51	123878008/0	SCREW
52	123600075/0	FRONT COVER
53	118802270/0	CRANKASE ASS.Y
54	6995187	SCREW
55	183875003/0	BREATHER VALVE ASSY
56	123275024/0	GROMMET
57	183790010/0	CAP ASS'Y
58	123018001/0	AIR PURGE
59	123867019/0	PIPE
60	123650004/0	GROMMET
61	183520007/0	FUEL PICKUP ASSY
62	123867020/0	PIPE
63	123878082/0	SCREW
64	123109580/0	UPPER COVER
65	123600072/0	GUARD
66	123202007/0	CHAIN GUARD
67	123878093/0	SCREW
65	123600072/0	GUARD
66	123202007/0	CHAIN GUARD
67	123878093/0	SCREW
71	123600073/0	GASKET
72	123652506/0	WASHER
73	123867020/0	PIPE
74	183594508/0	OIL PUMP ASSY
75	123878083/0	WORM SCREW
76	123867024/0	PIPE
77	123878084/0	SCREW
78	123109577/0	OIL PUMP COVER
79	123878080/0	SCREW
80	123235009/0	NEEDLE BEARING
81	123050007/0	DRUM ASS'Y, CLUTCH 3/8"
81	123050008/0	DRUM ASS'Y, CLUTCH 1/4"
82	123657011/0	SPROCKET WASHER
83	183215008/0	CLUTCH ASS.Y
84	123311009/0	PLATE
85	118800255/0	OIL INGOING TUBE
86	118801162/0	SUCTION JET
87	123275027/0	SHOCK ABSORBER
88	123878093/0	SCREW
89	123790022/0	CAP
90	123208412/0	CLAMP
91	123878080/0	SCREW
92	123206852/0	FAIR LED
93	123867018/0	PIPE
94	123650005/0	PIPE CONNECTION
95	123220013/0	FUEL PICKUP ASSY
96	123430593/0	SPRING
97	123600074/0	GUARD
Chain Saw CJ 300 - Housing Pag.2
1	183058037/0	STARTER ASSY, YELLOW
1	118801168/0	STARTER ASSY, WHITE
1	118801169/0	STARTER ASSY,RED
2	123234005/0	STARTER CORD
3	123300013/0	STARTER HANDLE
4	123430594/0	STARTER SPRING
5	123604011/0	STARTER PULLEY
7	123878087/0	SCREW
8	123107504/0	AIR CONVEYOR
9	123878088/0	SCREW
10	123275026/0	GROMMET
11	183300023/0	HANDLE ASSY
12	123430599/0	SPRING
13	123315095/0	THROTTLE LEVER
14	123510098/0	ELASTIC PIN
15	123790021/0	CAP
16	123275027/0	SHOCK ABSORBER
17	123878093/0	SCREW
18	123790022/0	CAP
19	118800202/0	SWITCH
20	123867021/0	PIPE
21	123650005/0	PIPE CONNECTION
22	123867022/0	PIPE
23	183090013/0	REAR COVER
23A	123593507/0	KNOB
23B	123657012/0	BUSH
24	123835002/0	THROTTLE ROD
25	123315096/0	SAFETY LEVER
26	123109579/0	HANDLE, UPPER PART
27	123878008/0	SCREW
28	123878008/0	SCREW
31	123790022/0	CAP
32	123878093/0	SCREW
33	123275027/0	SHOCK ABSORBER
34	183105000/0	HANDLE
35	123657014/0	PLATE
41	123878088/0	SCREW
42	123311010/0	BAR PLATE
43	123796008/0	NUT
44	123878092/0	SCREW
45	123510097/0	PIN
46	123448005/0	BRAKE BAND
47	123665004/0	NEEDLE
48	123430598/0	SPRING
49	123315094/0	LEVER
50	123430595/0	SPRING
51	123120009/0	NUT
52	123657013/0	WASHER
53	123044219/0	BUSHING
54	123455009/0	HAND GUARD
55	123430597/0	SPRING
56	183315052/0	BRAKE RELEASE LEVER ASS'Y
57	123665003/0	NEEDLE
58	123044220/0	BUSHING
59	123430596/0	SPRING
63	123109578/0	BRAKE COVER
64	123059036/1	CLUTCH HOUSING YELLOW
64	118801170/0	CLUTCH HOUSING WHITE
64	118802734/0	CLUTCH HOUSING RED
66	123120010/0	NUT
71	123900360/0	Bar 10"-3/8"-0,050"
72	1519-9110-02	Chain 10"-3/8"-0,050"-40E

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Castor websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Castor brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Reference Castor CJ 300

Available 12 Items

Data sheet

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:: STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS

Specific References

Condition New

Download

Diagram Castor CJ 300

Download (508.56KB)

HiKOKI Power Tools Italia S.p.a. SKU: 123050008/0

Clutch Drum 1/4'' for Chainsaw Alpina A 305 - Castor CJ 300

Clutch Drum 1/4'' for Chainsaw Alpina A 305 - Castor CJ 300 Original parts Alpina, Clutch Drum 1/4'' for Chainsaw Alpina A 305 - Castor CJ 300. Part for the following products: - Chainsaw Alpina A 305/202510020-2017 - Chainsaw Castor...

Last items in stock €16.61

Cart (0)

Subcategories

Subcategories

Subcategories

Power Tools Spare Parts

Garden Spare Parts

Air Compressor Spare Parts

Protezione & Edilizia

Impianti & Utensili

Casa & Giardino

Castor Spare Parts for Chain Saw CJ 300

Castor Spare Parts for Chain Saw CJ 300

Castor Spare Parts for Chain Saw CJ 300

Castor Spare Parts for Chain Saw CJ 300

Castor Spare Parts for Chain Saw CJ 300

Data sheet

Specific References

Download

Diagram Castor CJ 300

You might also like
