Castelgarden Spare Parts for Engine Lawnmower XC 48 GSW4

SKU: XC 48 GSW4 (2014) 295496843/C13
€139.21
VAT included

Castelgarden Spare Parts for Engine Lawnmower XC 48 GSW4

We supply original CASTELGARDEN spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Engine Lawnmower XC 48 GSW4 (2014) - 295496843/C13.

XC 48 GSW4 (2014) 295496843/C13
Castelgarden Spare Parts for Engine Lawnmower XC 48 GSW4
  • Castelgarden Spare Parts for Engine Lawnmower XC 48 GSW4
  • Castelgarden Spare Parts for Engine Lawnmower XC 48 GSW4
  • Castelgarden Spare Parts for Engine Lawnmower XC 48 GSW4
  • Castelgarden Spare Parts for Engine Lawnmower XC 48 GSW4
  • Castelgarden Spare Parts for Engine Lawnmower XC 48 GSW4
  • Castelgarden Spare Parts for Engine Lawnmower XC 48 GSW4
  • Castelgarden Spare Parts for Engine Lawnmower XC 48 GSW4
  • Castelgarden Spare Parts for Engine Lawnmower XC 48 GSW4
  • Castelgarden Spare Parts for Engine Lawnmower XC 48 GSW4
  • Castelgarden Spare Parts for Engine Lawnmower XC 48 GSW4
  • Castelgarden Spare Parts for Engine Lawnmower XC 48 GSW4
  • Castelgarden Spare Parts for Engine Lawnmower XC 48 GSW4
  • Castelgarden Spare Parts for Engine Lawnmower XC 48 GSW4
GGP Italy

Castelgarden Spare Parts for Engine Lawnmower XC 48 GSW4

SKU: XC 48 GSW4 (2014) 295496843/C13 Condition: New
€139.21
VAT included

Castelgarden Spare Parts for Engine Lawnmower XC 48 GSW4

We supply original CASTELGARDEN spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Engine Lawnmower XC 48 GSW4 (2014) - 295496843/C13.

XC 48 GSW4 (2014) 295496843/C13
settings 202 spare parts
description 12 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:: STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
199 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

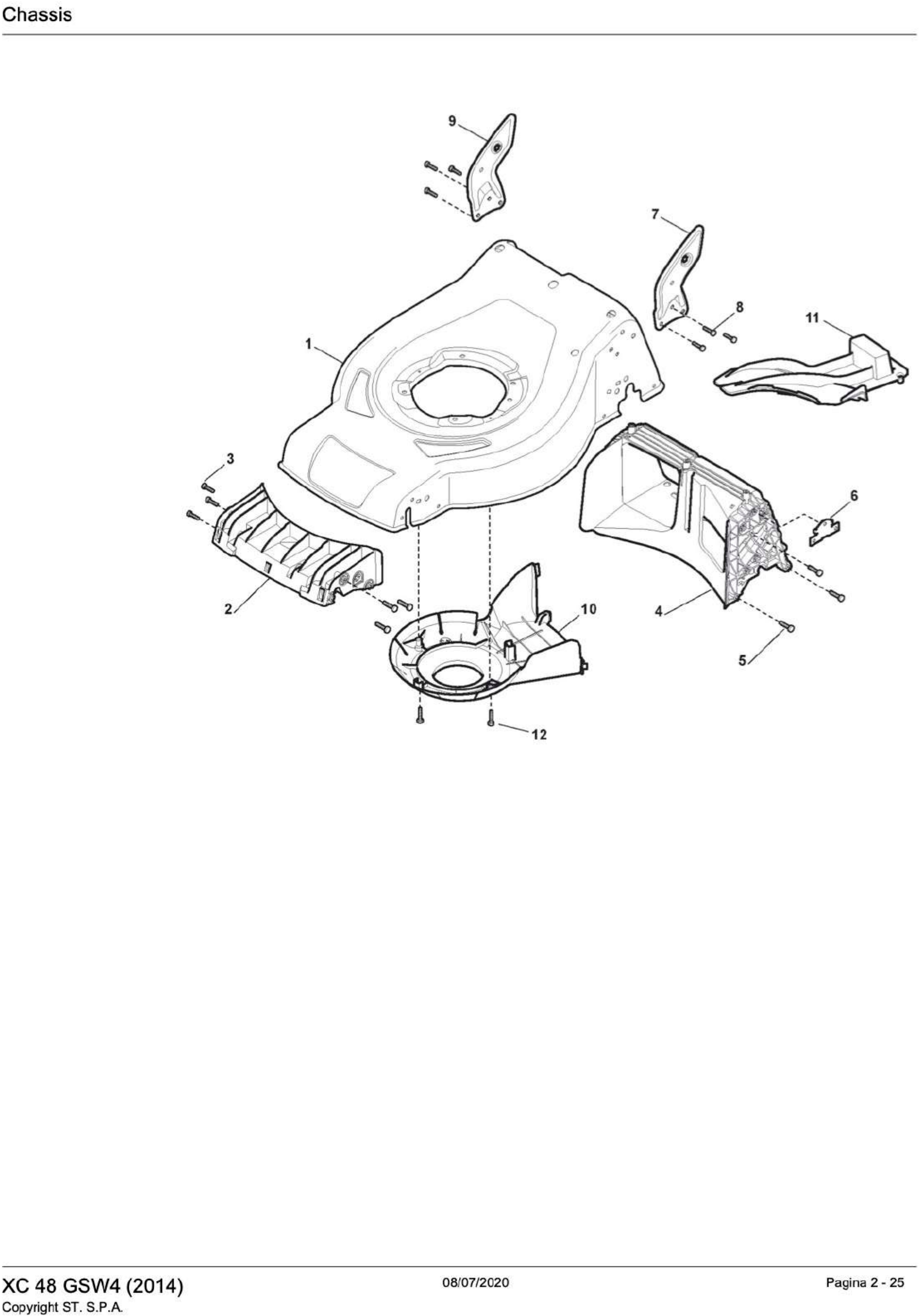

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 381004548/0 Red Chassis €109.89
2
 photo_cameraImage coming soon 322108301/0 Front Conveyor Assy €13.31
2
 photo_cameraImage coming soon 322108301/1 Front Conveyor Assy €14.96
3
 photo_cameraImage coming soon 112728699/0 Screw €1.66
4
 photo_cameraImage coming soon 322108302/0 Rear Conveyor Assy €22.05
6
 photo_cameraImage coming soon 322545213/0 Plate €2.04
7
 photo_cameraImage coming soon 381005139/0 Left Bracket €6.75
8
 Screw TCB Torx M6x20 for Lawnmower Cutting Height Adjustment 112727801/0 Screw TCB Torx M6x20 for Lawnmower Cutting Height Adjustment €1.74
9
 photo_cameraImage coming soon 381005137/0 Right Bracket €6.75
10
 photo_cameraImage coming soon 322060242/0 Belt Protection €14.13
11
 Alpina BL 460 SB Mulching Plug Cruiser 48 322140239/0 Alpina BL 460 SB Mulching Plug Cruiser 48 €11.88
12
 photo_cameraImage coming soon 112728530/0 Screw €1.60
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

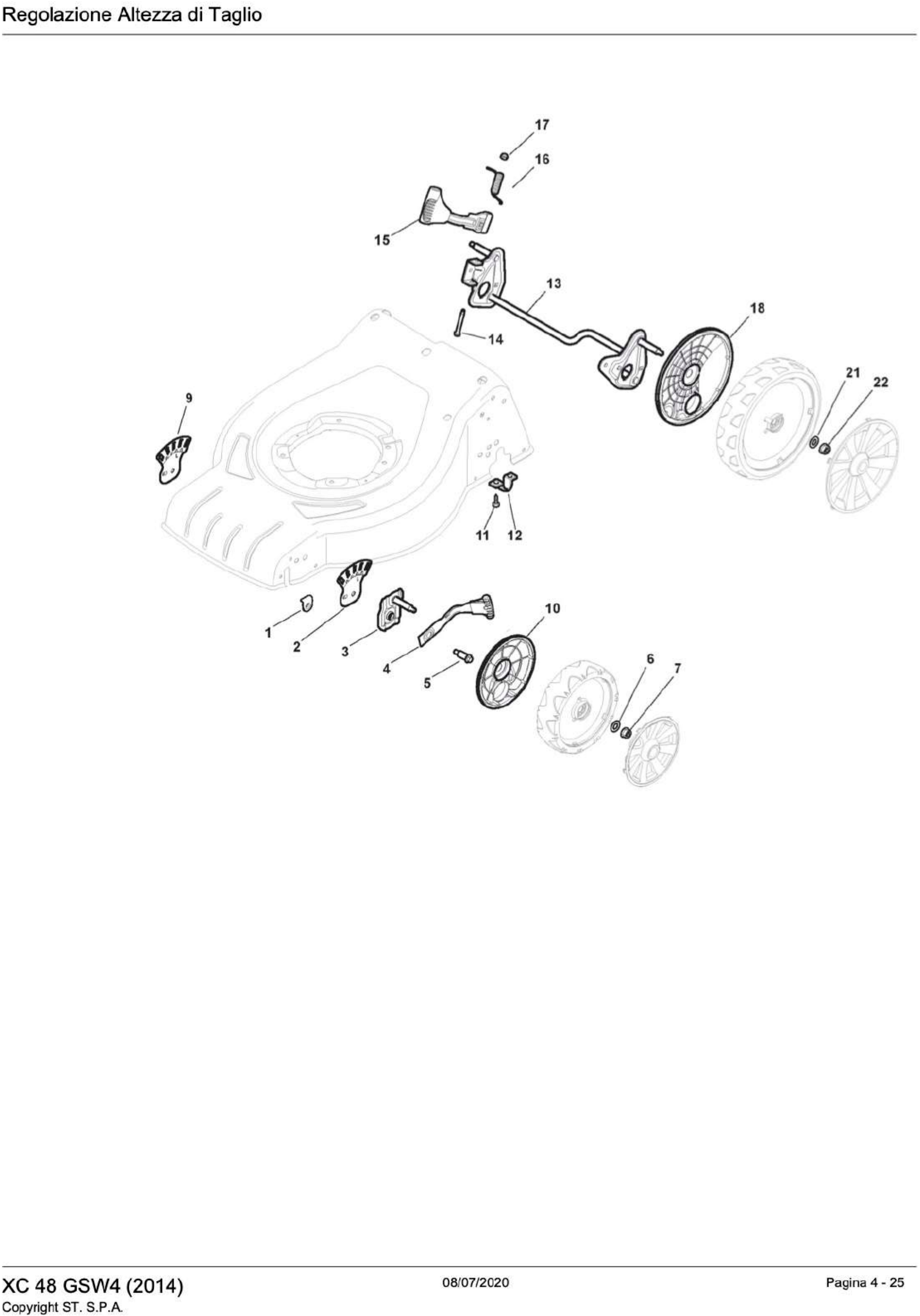

Esploso pagina 2
Pos. Item Price Buy
1
 photo_cameraImage coming soon 322545189/0 Plate €1.65
2
 photo_cameraImage coming soon 322735597/0 Left Height Adjustment €2.20
2
 photo_cameraImage coming soon 322735597/1 Sector, Height Adjustment €2.58
2
 photo_cameraImage coming soon 322735611/0 Height Adjustment Sector From S/N 20BA2WBH058856 €2.46
3
 photo_cameraImage coming soon 381005141/0 Wheel Support €9.84
3
 photo_cameraImage coming soon 381005159/0 Wheel Support €12.01
3
 photo_cameraImage coming soon 381005253/0 Wheel Support €10.18
3
 photo_cameraImage coming soon 381005265/0 Wheel Support From S/N 20BA2WBH056550 €10.18
4
 photo_cameraImage coming soon 381003354/0 Lever, Height Adjustment €7.10
5
 photo_cameraImage coming soon 122519811/0 Pin €1.65
6
 photo_cameraImage coming soon 112521350/0 Washer €1.74
7
 photo_cameraImage coming soon 112155000/0 Nut €1.66
9
 photo_cameraImage coming soon 322735595/0 Sector, Height Adjustment L. €2.81
9
 photo_cameraImage coming soon 322735595/1 Sector, Height Adjustment €2.89
9
 photo_cameraImage coming soon 322735609/0 Height Adjust Sector From S/N 20BA2WBH064330 €2.46
10
 photo_cameraImage coming soon 322600247/0 Protection, Wheel €4.40
11
 photo_cameraImage coming soon 112728698/0 Screw €1.66
12
 photo_cameraImage coming soon 322545152/0 Plate €1.66
13
 photo_cameraImage coming soon 381302817/0 Rear Wheel Axle €31.54
13
 photo_cameraImage coming soon 381302817/1 Rear Wheel Axle From S/N 20BA2WBH061217 €27.76
14
 Alpina AL3 46 B Pin 122534131/0 Alpina AL3 46 B Pin €1.65
15
 photo_cameraImage coming soon 381003357/0 Wheels Rear Adj. Lever €13.51
16
 photo_cameraImage coming soon 122446192/0 Spring €2.20
17
 photo_cameraImage coming soon 112154510/0 Nut €1.66
18
 photo_cameraImage coming soon 322600205/0 Wheel Protection To 31-August-2014 €2.99
18
 photo_cameraImage coming soon 322600205/1 Protection, Wheel €3.72
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

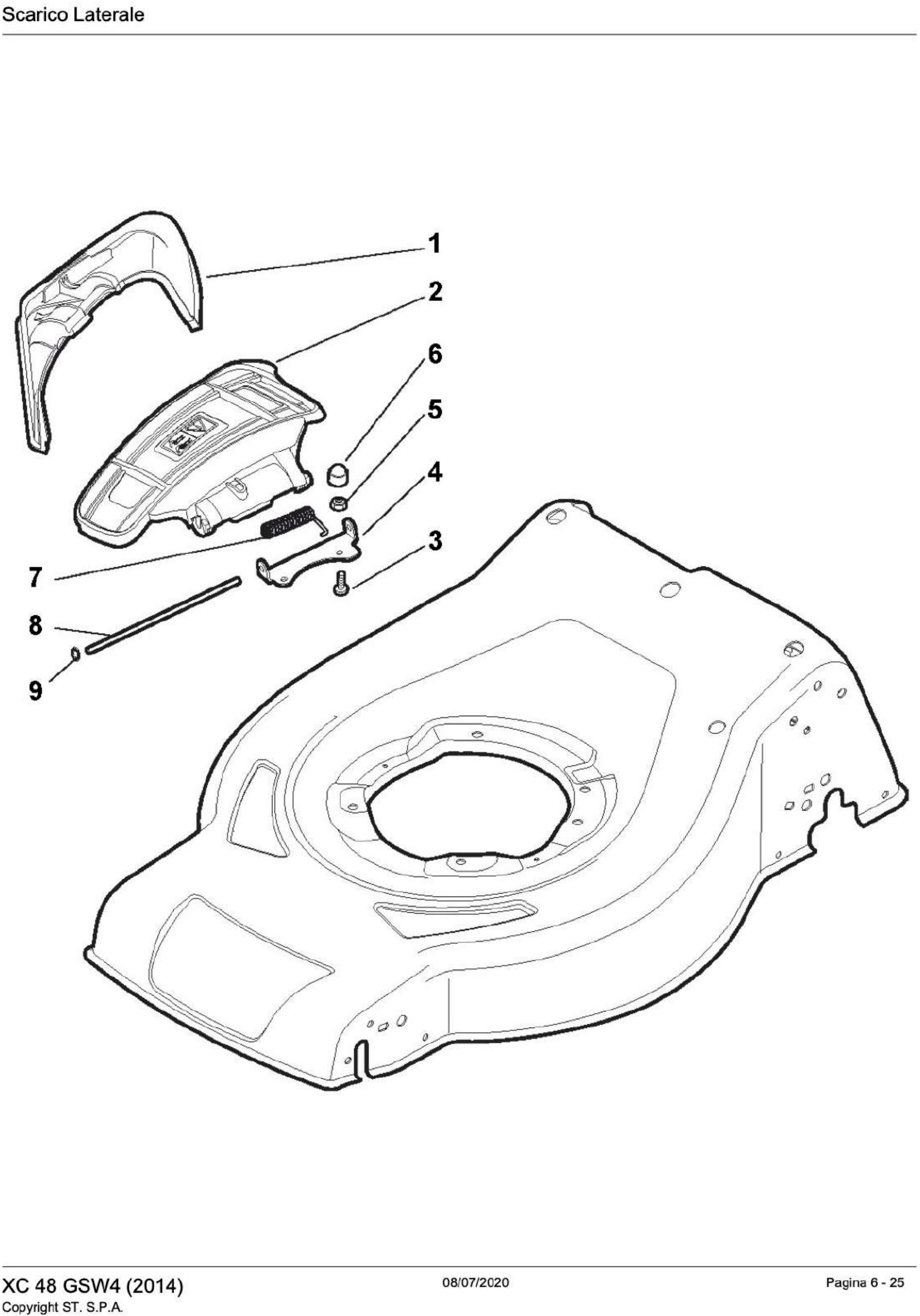

Esploso pagina 3
Pos. Item Price Buy
1
 photo_cameraImage coming soon 322108295/0 Side Conveyor €8.10
1
 photo_cameraImage coming soon 322108309/0 Rear Conveyor Black; From 01-September-2011 To 31-August-2014 €8.30
1
 Alpina Conveyor for BL 510 SHQ 322108309/1 Alpina Conveyor for BL 510 SHQ €11.56
2
 photo_cameraImage coming soon 322600238/0 Exit Protection To 31-August-2014 €4.87
2
 photo_cameraImage coming soon 322600314/0 Guard €5.96
3
 photo_cameraImage coming soon 112727803/0 Screw €1.66
4
 photo_cameraImage coming soon 322806639/0 Fulcro pin €2.54
6
 photo_cameraImage coming soon 118203853/0 Hood €2.84
7
 photo_cameraImage coming soon 122450456/0 Spring €3.38
8
 photo_cameraImage coming soon 122517869/0 Pin €3.16
8
 photo_cameraImage coming soon 122517869/1 Pin €3.86
9
 photo_cameraImage coming soon 112604896/0 Crown Fixator €1.66
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

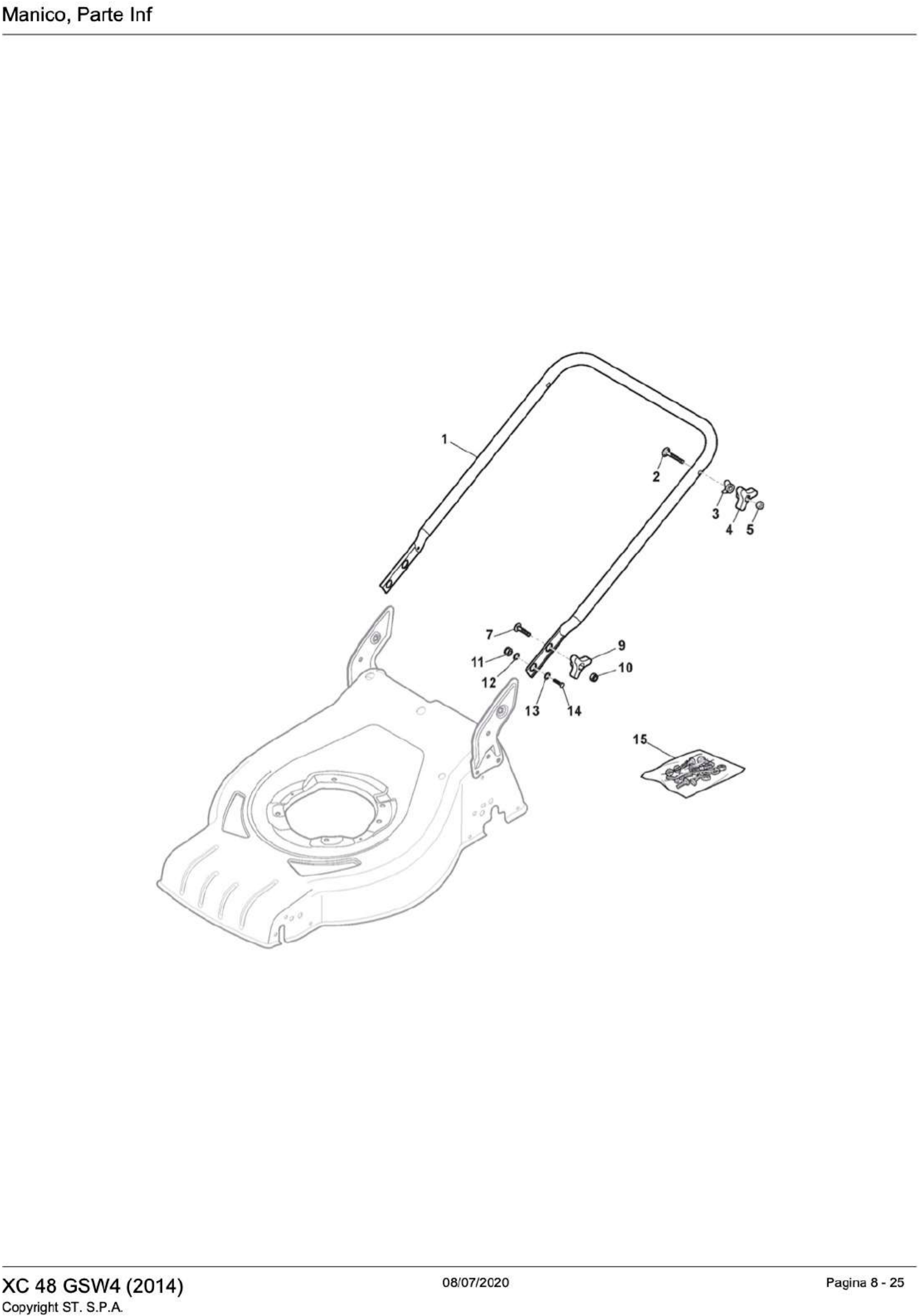

Esploso pagina 4
Pos. Item Price Buy
1
 photo_cameraImage coming soon 381006737/0 Handle Lower Part €26.23
2
 photo_cameraImage coming soon 112819110/0 Screw €1.66
3
 photo_cameraImage coming soon 122671651/0 Washer €2.11
4
 3 Spoke Handwheel for Lawnmower Alpina FL 46 LMG 122399900/0 3 Spoke Handwheel for Lawnmower Alpina FL 46 LMG €2.82
5
 photo_cameraImage coming soon 112293200/0 Nut €1.74
7
 photo_cameraImage coming soon 112818900/0 Screw €1.66
13
 photo_cameraImage coming soon 112369500/0 Elastic Washer €1.67
14
 photo_cameraImage coming soon 112760605/0 Screw €3.52
15
 photo_cameraImage coming soon 381008691/0 Outfit, Screws €8.86
Page 5 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

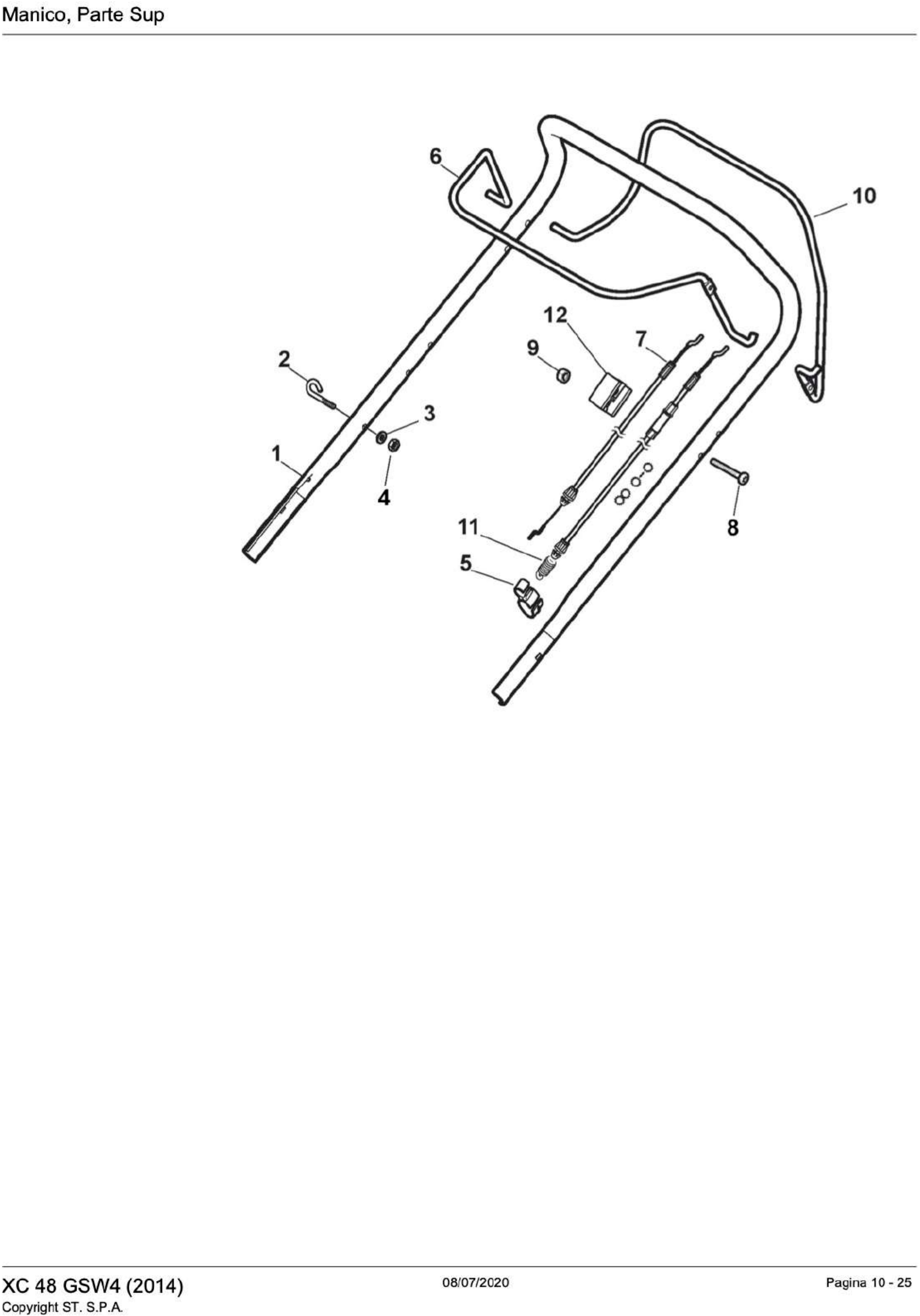

Esploso pagina 5
Pos. Item Price Buy
1
 photo_cameraImage coming soon 381006739/0 Handle, Upper Part To 31-August-2011;Black without Sponge €19.67
1
 photo_cameraImage coming soon 381006739/1 Handle, Upper Part €19.67
1
 photo_cameraImage coming soon 381006739/2 Handle, Upper Part Black without Sponge;From 01-September-2011 To 31-August-2017 €24.91
1
 photo_cameraImage coming soon 381006745/0 Handle, Upper Part with Sponge To 31-August-2011;Black with Sponge €27.20
1
 photo_cameraImage coming soon 381006745/1 Handle, Upper Part with sponge handgrip €40.01
1
 photo_cameraImage coming soon 381006745/2 Handle, Upper Part with Sponge Black with Sponge;From 01-September-2017 To 31-August-2018 €37.12
1
 photo_cameraImage coming soon 381006745/3 Handle, Upper Part with Sponge Black with Sponge;From 01-september-2018 €41.74
2
 photo_cameraImage coming soon 122430313/0 Guide Spring €4.06
3
 photo_cameraImage coming soon 112521330/0 Washer €1.70
5
 Cable Clip for Petrol Lawnmower Alpina AL3 46 B - AL5 51 G 118390020/0 Cable Clip for Petrol Lawnmower Alpina AL3 46 B - AL5 51 G €1.85
6
 Engine Brake Lever for Self Propelled Lawnmower Alpina AL3 46 B 181003363/1 Engine Brake Lever for Self Propelled Lawnmower Alpina AL3 46 B €16.33
7
 photo_cameraImage coming soon 181030056/0 Cable, Thread Engine Brake €13.77
8
 photo_cameraImage coming soon 112727783/0 Screw €1.83
10
 photo_cameraImage coming soon 181003364/0 Cable Rear Drive €15.08
11
 photo_cameraImage coming soon 381030051/0 Cable Rear Drive €20.27
12
 photo_cameraImage coming soon 322551640/0 Plate €7.99
12
 Cable Plate for Lawn Mower DINO 47 322551685/0 Cable Plate for Lawn Mower DINO 47 €7.97
Page 6 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

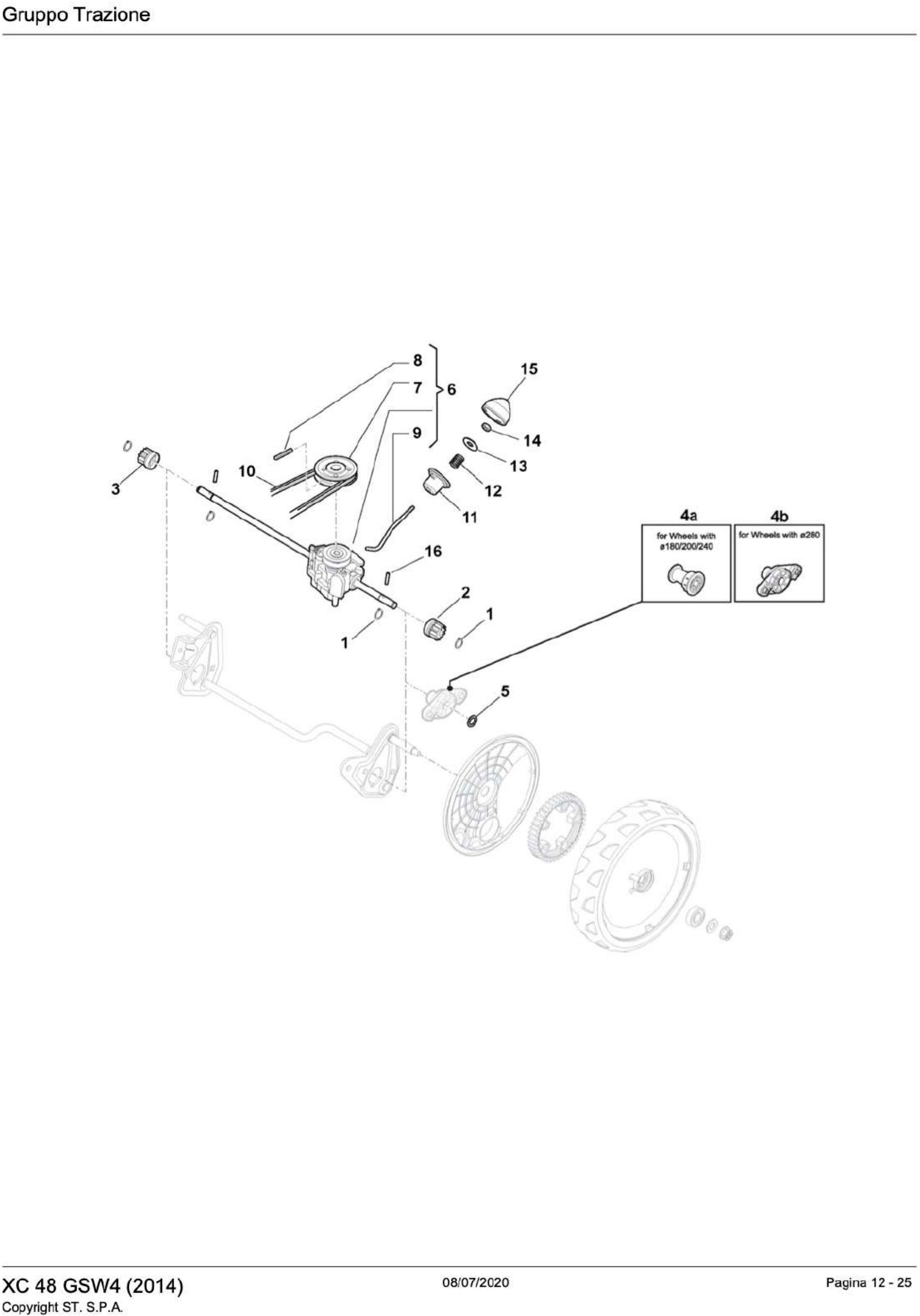

Esploso pagina 6
Pos. Item Price Buy
1
 Seeger D.12 for Self Propelled Lawnmower Alpina BL 510 SHQ 112608600/0 Seeger D.12 for Self Propelled Lawnmower Alpina BL 510 SHQ €1.58
2
 Drive Gear Left Side for Self Propelled Lawnmower Dolmar PM5150S 122570120/1 Drive Gear Left Side for Self Propelled Lawnmower Dolmar PM5150S €10.25
3
 Drive Gear Right Side for Self Propelled Lawnmower Dolmar PM5150S 122570110/1 Drive Gear Right Side for Self Propelled Lawnmower Dolmar PM5150S €10.25
4a
 Axle Bush for Self Propelled Lawnmower Alpina BL 460 SB 322042066/0 Axle Bush for Self Propelled Lawnmower Alpina BL 460 SB €3.66
5
 photo_cameraImage coming soon 112521371/0 Washer €1.66
6
 Trasmission Gear Box for Self Propelled Lawnmower Alpina BL 460 SB 181003092/0 Trasmission Gear Box for Self Propelled Lawnmower Alpina BL 460 SB €114.62
7
 photo_cameraImage coming soon 122601904/0 Pulley To 31-august-2013 €6.79
7
 photo_cameraImage coming soon 122601909/0 Pulley €7.00
8
 photo_cameraImage coming soon 112645705/0 Elastic pin ø5X32 €1.61
9
 photo_cameraImage coming soon 122033283/0 Adjustment Rod €4.77
10
 photo_cameraImage coming soon 135063800/0 Trapezoidal Belt €9.73
11
 photo_cameraImage coming soon 122041957/1 Bushing €1.66
12
 photo_cameraImage coming soon 122450063/0 Spring €1.66
13
 photo_cameraImage coming soon 322680009/0 Washer €1.81
15
 photo_cameraImage coming soon 122110230/0 Hub Cover €1.66
16
 Gear Box Pin for Self Propelled Lawnmover Alpina BL 510 SHQ 122753000/0 Gear Box Pin for Self Propelled Lawnmover Alpina BL 510 SHQ €1.72
Page 7 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

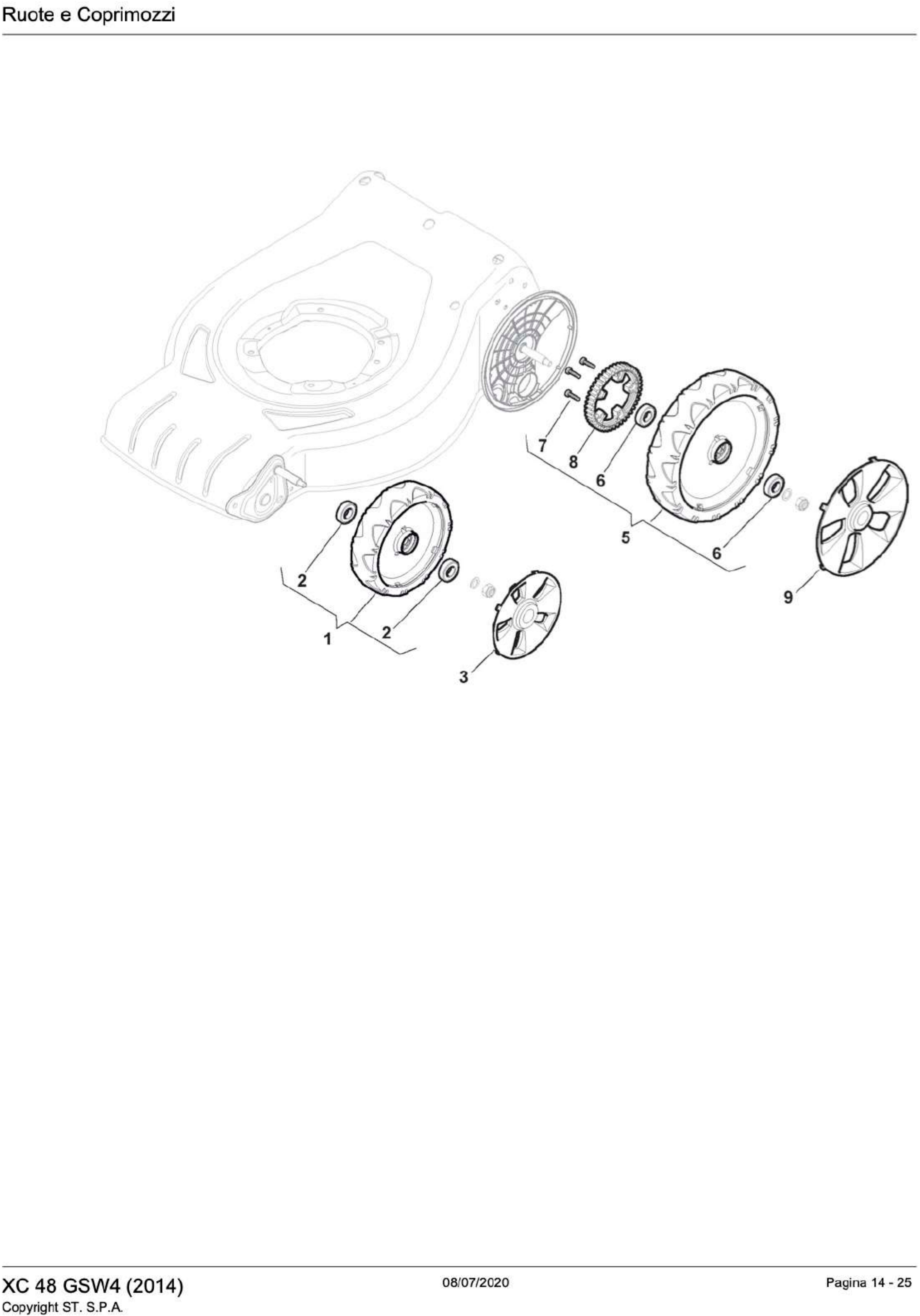

Esploso pagina 7
Pos. Item Price Buy
1
 photo_cameraImage coming soon 381007455/0 Wheel - Short Long To 31-August-2012 €12.93
1
 photo_cameraImage coming soon 381007455/1 Wheel - Long Hub €15.88
2
 photo_cameraImage coming soon 119216035/0 Bearing €4.51
3
 photo_cameraImage coming soon 322110636/0 Hub Cap Grey €2.73
5
 photo_cameraImage coming soon 381007467/0 Wheel To 31-August-2012 €24.22
5
 photo_cameraImage coming soon 381007467/1 Wheel From 01-September-2012 €24.22
7
 Alpina AL3 46 SG Screw 112728706/0 Alpina AL3 46 SG Screw €1.65
8
 Alpina BL 460 SB Wheel Crown 322120117/0 Alpina BL 460 SB Wheel Crown €5.04
9
 Alpina BL 460 SB Hub Cap Grey 322110637/0 Alpina BL 460 SB Hub Cap Grey €3.60

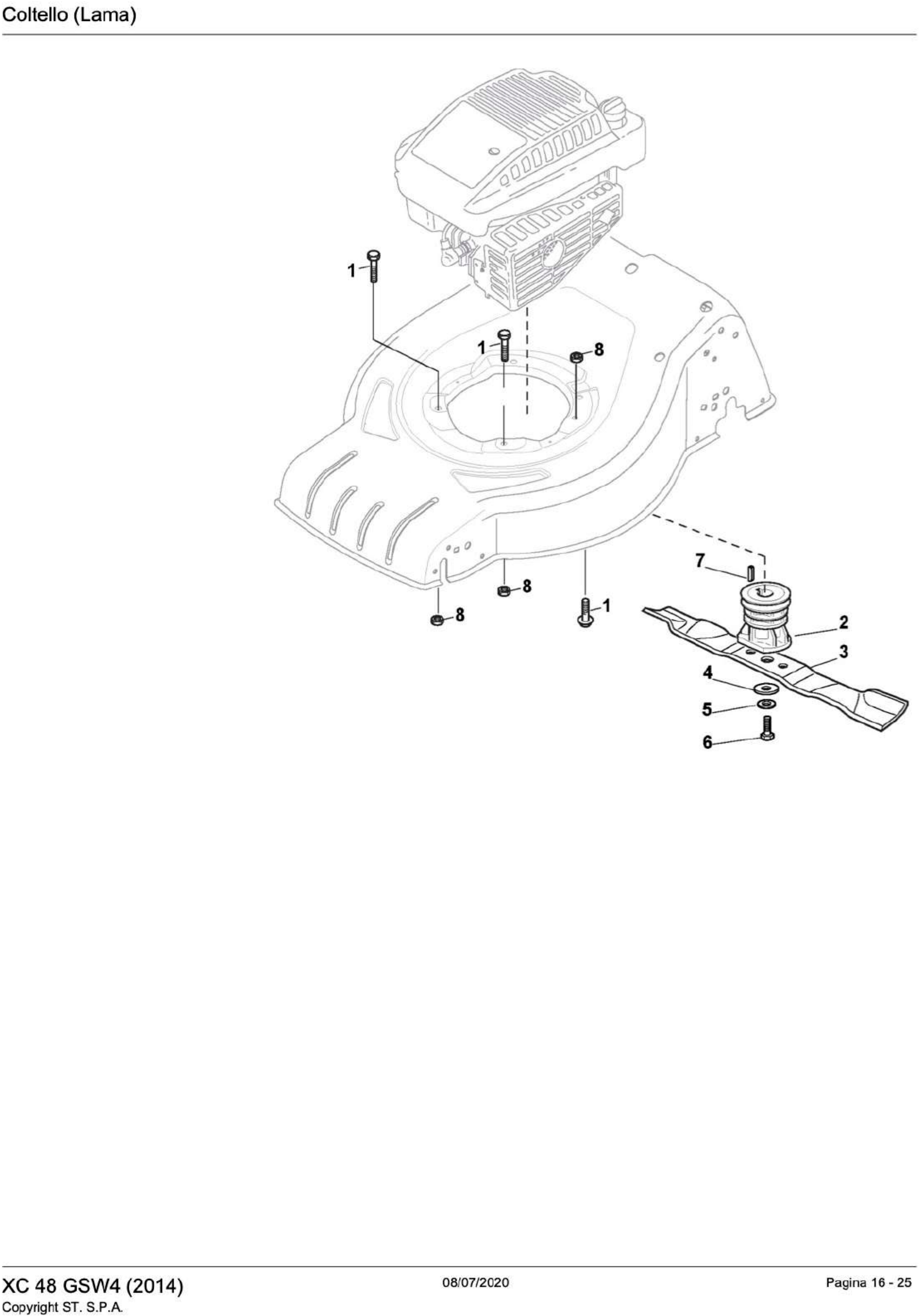

Page 8 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 8
Pos. Item Price Buy
1
 Telf-Form Screw 3/8"x 1"1/4 for Lawnmower Alpina BL 510 SHQ 112735108/1 Telf-Form Screw 3/8"x 1"1/4 for Lawnmower Alpina BL 510 SHQ €2.19
2
 photo_cameraImage coming soon 122465607/3 Hub With Pulley, Crankshaft Ø 22.2 €13.91
3
 photo_cameraImage coming soon 181004346/3 Blade €14.00
3
 photo_cameraImage coming soon 181004460/0 MULCHING BLADE L=459.5 €13.91
4
 Alpina Washer M 10 for BL 510 SHQ 112523080/0 Alpina Washer M 10 for BL 510 SHQ €1.59
4
 photo_cameraImage coming soon 322680021/0 Washer €1.38
5
 Spring Washe for Self Propelled Lawnmower Alpina AL3 46 B 112508125/0 Spring Washe for Self Propelled Lawnmower Alpina AL3 46 B €1.72
6
 Hex-Head Screw 3/8" X 2" for Lawnmowers Alpina - Stiga 112735698/0 Hex-Head Screw 3/8" X 2" for Lawnmowers Alpina - Stiga €1.92
7
 Woodruff Key for Petrol Lawnmower Alpina AL3 46 SBQ 112139100/0 Woodruff Key for Petrol Lawnmower Alpina AL3 46 SBQ €2.09
8
 photo_cameraImage coming soon 112154210/0 Nut €1.78
Page 9 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

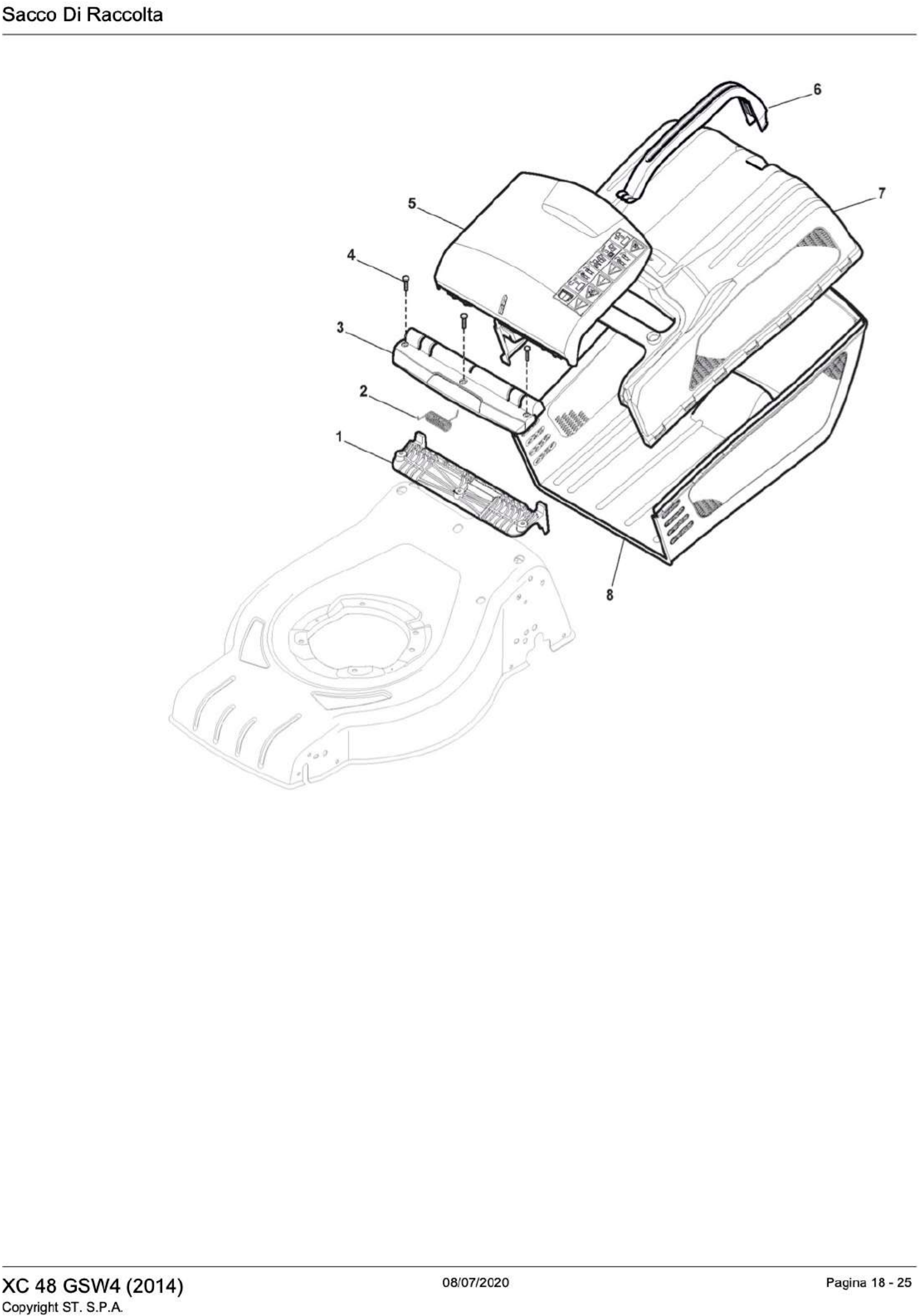

Esploso pagina 9
Pos. Item Price Buy
1
 photo_cameraImage coming soon 322785331/0 Black Stone Guard Support €7.10
2
 photo_cameraImage coming soon 122450464/0 Spring €1.96
3
 photo_cameraImage coming soon 322109557/0 Stone Guard Supp. Cover Grey €24.62
5
 photo_cameraImage coming soon 322600216/0 Stone Guard Grey To 31-august-2011 €12.59
5
 photo_cameraImage coming soon 322600216/1 Stone Guard, Grey €13.29
6
 photo_cameraImage coming soon 322393645/0 Bag Handle Gray €4.93
7
 photo_cameraImage coming soon 322486263/0 Bag Upper Side Gray Top To 31-August-2016 €37.01
8
 photo_cameraImage coming soon 322486267/0 Bag Lower Side Gray To 31-August-2016 €23.78

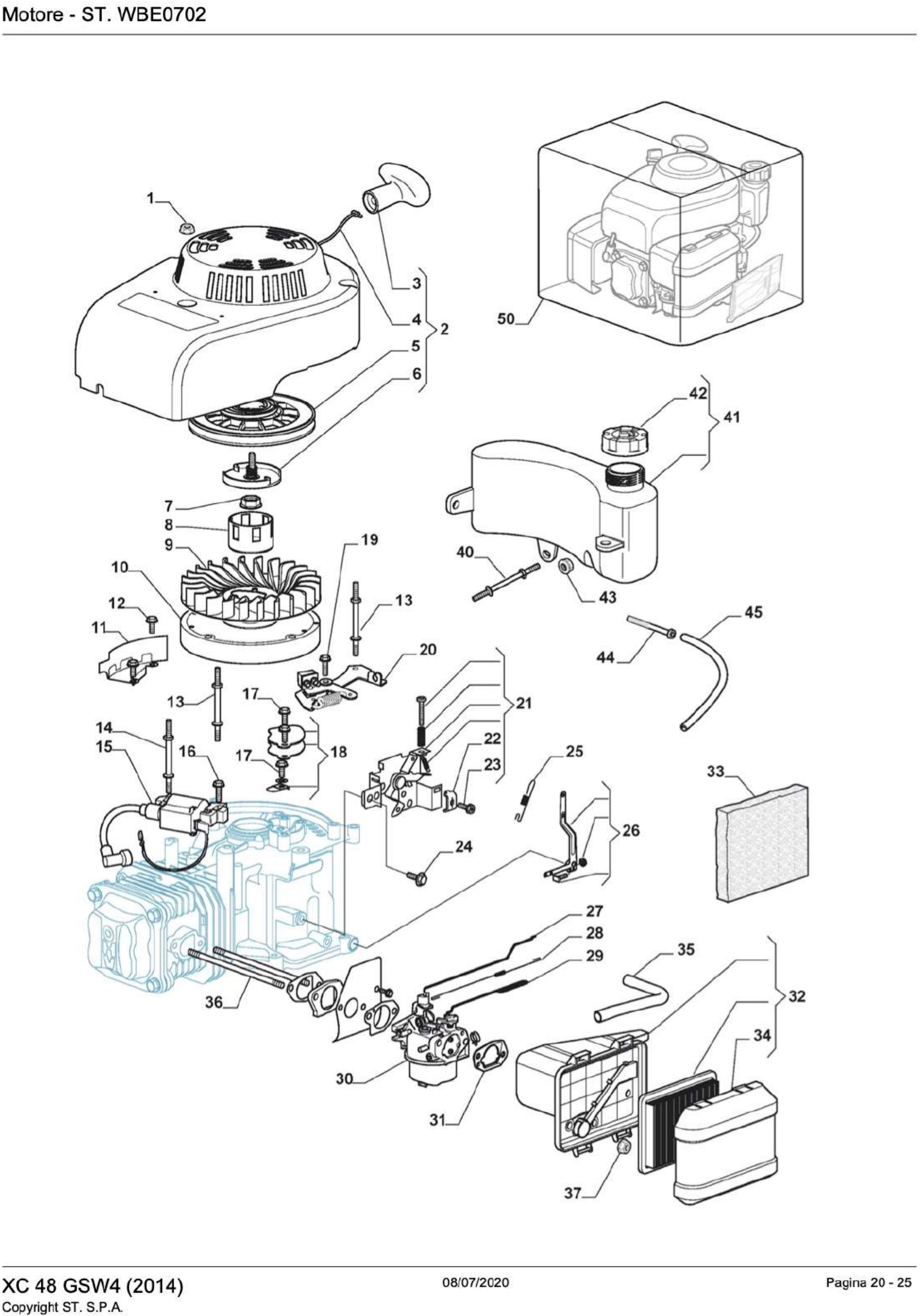

Page 10 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 10
Pos. Item Price Buy
1
 photo_cameraImage coming soon 112292102/0 Nut €1.86
2
 photo_cameraImage coming soon 118550276/1 Starter Assy €51.51
3
 photo_cameraImage coming soon 118550274/0 Starter Handle €15.05
4
 photo_cameraImage coming soon 118550779/0 Starting Rope €7.18
5
 photo_cameraImage coming soon 118550778/0 Starter Pulley €27.11
6
 photo_cameraImage coming soon 118550275/0 Starter Pawl Set €12.03
7
 photo_cameraImage coming soon 118550336/0 Nut €6.07
8
 photo_cameraImage coming soon 118550335/0 Starter Cup €19.67
9
 photo_cameraImage coming soon 118550254/0 Flywheel Fan €20.20
10
 photo_cameraImage coming soon 118550253/0 Flywheel Ass.Y €80.31
11
 photo_cameraImage coming soon 118550774/0 Guard €7.39
12
 photo_cameraImage coming soon 112791213/1 Screw €1.62
13
 photo_cameraImage coming soon 118550302/0 Stud Bolt €5.76
14
 photo_cameraImage coming soon 118550301/0 Stud Bolt €6.43
15
 photo_cameraImage coming soon 118550255/0 Electronic Coil €43.51
16
 photo_cameraImage coming soon 112791500/0 Screw €1.64
17
 photo_cameraImage coming soon 112790500/0 Screw €1.58
18
 photo_cameraImage coming soon 118550378/0 Gasket Assy €19.28
20
 photo_cameraImage coming soon 118550376/0 Flywheel Brake Assy €30.37
21
 photo_cameraImage coming soon 118550259/0 Remote Control Assy €20.96
22
 photo_cameraImage coming soon 118550337/0 Casing Clamp €10.63
23
 photo_cameraImage coming soon 118550338/0 Screw €6.87
25
 photo_cameraImage coming soon 118550260/0 Spring €3.86
26
 photo_cameraImage coming soon 118550266/0 Arm Governor Assy €12.77
27
 photo_cameraImage coming soon 118550397/0 Governor Link €2.81
28
 photo_cameraImage coming soon 118550263/0 Spring €2.82
29
 photo_cameraImage coming soon 118550264/0 Choke Control Rod €3.35
30
 Carburator for Engine Lawnmower Alpina AL5 51 G 118550390/0 Carburator for Engine Lawnmower Alpina AL5 51 G €82.22
31
 photo_cameraImage coming soon 118550738/0 Air Filter Gasket €6.13
32
 photo_cameraImage coming soon 118550737/0 Air Cleaner Assy €22.40
33
 photo_cameraImage coming soon 118550452/0 Air filter €7.28
34
 photo_cameraImage coming soon 118550739/0 Air Cleaner Cover €7.39
35
 photo_cameraImage coming soon 118550377/0 Breather Fule Pipe €4.30
36
 photo_cameraImage coming soon 118550298/0 Stud Bolt €5.92
40
 photo_cameraImage coming soon 118550315/0 Stud Bolt €7.53
41
 photo_cameraImage coming soon 118550316/0 Fuel Tank €43.64
42
 Tank Cap for Engine Alpina WBE0701 118550339/1 Tank Cap for Engine Alpina WBE0701 €14.82
44
 photo_cameraImage coming soon 118550314/0 Fuel Filter €4.41
45
 Fuel Pipe for Engine GGP WBE0701 118550340/0 Fuel Pipe for Engine GGP WBE0701 €8.23
50
 photo_cameraImage coming soon 118550407/0 Complete engine €189.20

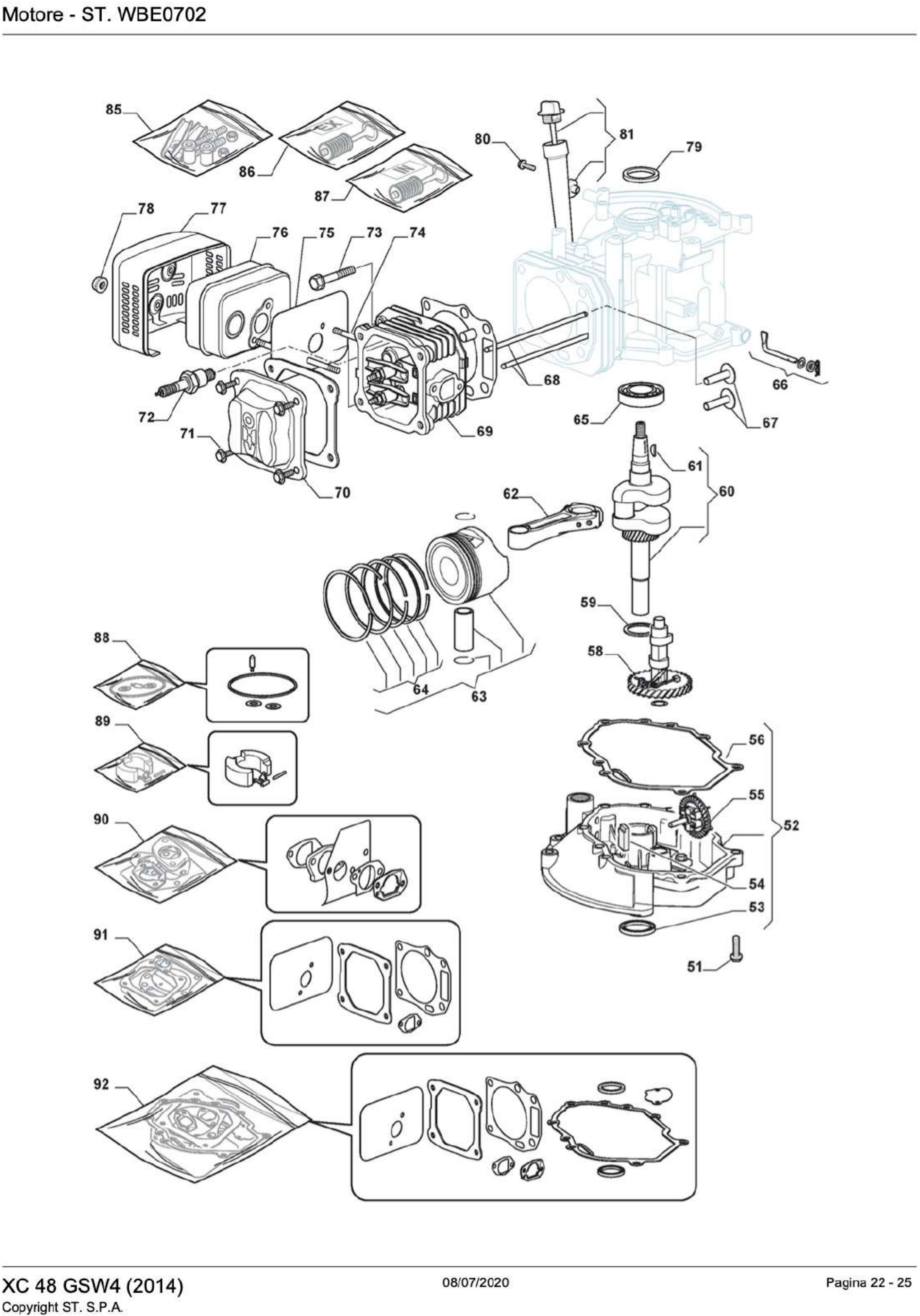

Page 11 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 11
Pos. Item Price Buy
51
 photo_cameraImage coming soon 112674550/0 Screw €1.58
52
 photo_cameraImage coming soon 118550382/0 Crankcase Assembly €103.54
53
 photo_cameraImage coming soon 118550379/0 Oil Seal €6.76
54
 photo_cameraImage coming soon 118550775/0 Grommet €2.09
55
 photo_cameraImage coming soon 118550312/0 Speed Governor Assy €14.52
56
 photo_cameraImage coming soon 118550380/1 Crankcase Gasket €16.29
58
 photo_cameraImage coming soon 118550271/0 Camshaft assy €31.68
59
 photo_cameraImage coming soon 118550283/0 Washer €3.44
60
 photo_cameraImage coming soon 118550385/0 Crankshaft €90.61
61
 photo_cameraImage coming soon 118550288/0 Woodruff Key €6.20
62
 photo_cameraImage coming soon 118550284/0 Connecting Rod Assy €39.11
63
 photo_cameraImage coming soon 118550387/0 Piston assembly €36.66
64
 photo_cameraImage coming soon 118550384/0 Piston Rings Assembly €16.42
65
 photo_cameraImage coming soon 118550280/0 Ball Bearing €22.85
66
 photo_cameraImage coming soon 118550308/0 Shaft, Governor Arm Assy €7.11
67
 photo_cameraImage coming soon 118550291/0 Valve Lifter Assy €9.73
68
 photo_cameraImage coming soon 118550289/0 Push Rods Assy €7.22
69
 photo_cameraImage coming soon 118550244/0 Cylinder Head Assy €109.89
70
 photo_cameraImage coming soon 118550296/1 Cover Comp., Head €12.22
72
 Spark Plug Champion RC12YC 9400-0244-00 Spark Plug Champion RC12YC €6.06
73
 photo_cameraImage coming soon 118550297/0 Screw €6.13
75
 photo_cameraImage coming soon 118550270/0 Muffler Gasket €11.58
76
 photo_cameraImage coming soon 118550269/0 Muffler €33.78
77
 photo_cameraImage coming soon 118550268/1 Muffler Guard €30.72
79
 photo_cameraImage coming soon 118550300/0 Oil Seal €7.25
81
 photo_cameraImage coming soon 118550311/0 Oil Filler Assy €20.98
85
 photo_cameraImage coming soon 118550273/0 Valve Arm Set €12.92
86
 photo_cameraImage coming soon 118550294/0 Exhaust Valve Assy €21.62
87
 photo_cameraImage coming soon 118550292/0 Intake Valve Assy €20.67
88
 photo_cameraImage coming soon 118550389/0 Kit Repair €9.37
89
 photo_cameraImage coming soon 118550388/0 Kit Repair, Carburettor €12.84
90
 photo_cameraImage coming soon 118550743/0 Gasket Carburettor Assy €17.30
91
 photo_cameraImage coming soon 118550405/0 Cylinder Head Gaskets Assembly €24.41
92
 photo_cameraImage coming soon 118550741/0 Engine Gaskets Assembly €36.15

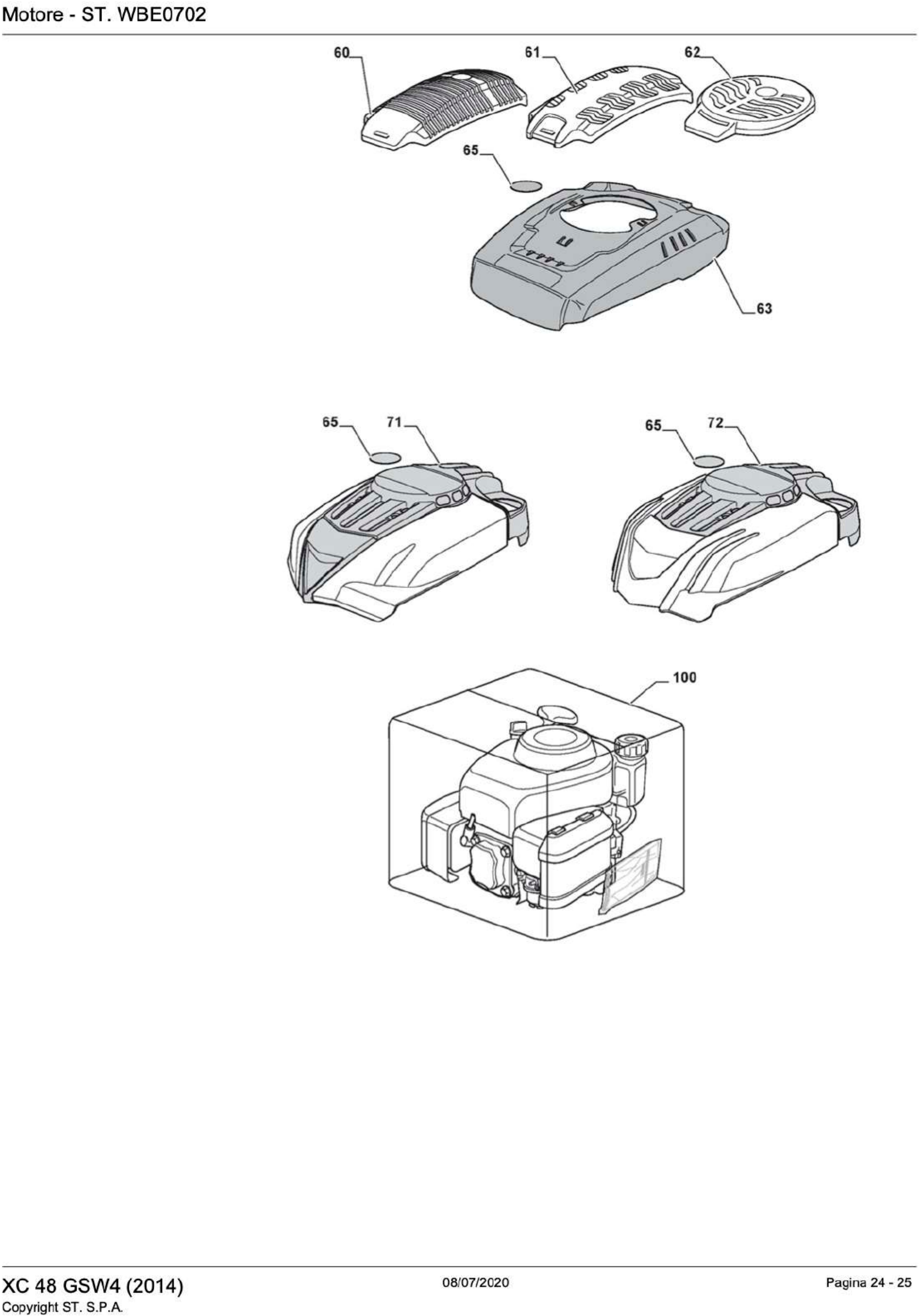

Page 12 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 12
Pos. Item Price Buy
60
 photo_cameraImage coming soon 322055452/0 Capottina Nera €15.52
61
 photo_cameraImage coming soon 322055450/0 Cover, Black €17.52
62
 photo_cameraImage coming soon 322055439/0 Capottina Nera €15.52
63
 photo_cameraImage coming soon 322055463/1 Cover €20.60
71
 photo_cameraImage coming soon 381002068/0 Cover €24.98
72
 photo_cameraImage coming soon 381002067/0 Cover €23.88

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Castelgarden Spare Parts for Engine Lawnmower XC 48 GSW4

We supply original CASTELGARDEN spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Engine Lawnmower XC 48 GSW4 (2014) - 295496843/C13.

In the following table, look for the model of the Brushcutter and the respective parts of the code.
XC 48 GSW4 (2014) 295496843/C13

Castelgarden Lawnmower XC 48 GSW4 (2014) - 295496843/C13
Chassis Pag.1
# Part Num. Description
1 381004548/0 Red chassis
2 322108301/0 Front conveyor To 31-August-2011
2 322108301/1 Front conveyor From 01-September-2011
3 112728699/0 Screw
4 322108302/0 Rear conveyor
5 112728699/0 Screw
6 322545213/0 plate
7 381005139/0 Left bracket
8 112727801/0 Lives
9 381005137/0 Right bracket
10 322060242/0 Belt Carter
11 322140239/0 Mulching Deflector Cruiser 48
12 112728530/0 Screw
Cutting Height Adjust Pag.2
1 322545189/0 plate
2 322735597/0 Left Height Adjustment Sector To 31-August-2011
2 322735597/1 Height Adjustment Sector From 01-September-2011
To S/N 20BA2WBH058855
2 322735611/0 Height Adjustment Sector From S/N 20BA2WBH058856
3 381005141/0 Wheel Support To S/N SK6810777
3 381005159/0 Wheel Support From S/N SK6614968 To S/N 19GA2WBH002978
3 381005253/0 Wheel Support From S/N 20AA2WBH020538 To S/N 20BA2WBH056549
3 381005265/0 Wheel Support From S/N 20BA2WBH056550
4 381003354/0 Height Adjust Lever
5 122519811/0 Pin
6 112521350/0 Washer
7 112155000/0 Nut
9 322735595/0 Right Height Adjust Sector To 31-August-2011
9 322735595/1 Height Adjust Sector From 01-September-2011 To S/N 20BA2WBH064329
9 322735609/0 Height Adjust Sector From S/N 20BA2WBH064330
10 322600247/0 Wheel Protection As Optional
11 112728698/0 Screw
12 322545152/0 plate
13 381302817/0 Rear Wheel Axle To S/N 20BA2WBH061216
13 381302817/1 Rear Wheel Axle From S/N 20BA2WBH061217
14 122534131/0 Pin
15 381003357/0 Height Adjust Lever To S/N 20BA2WBH076280
15 381003357/1 Height Adjust Lever From S/N 20BA2WBH076281
16 122446192/0 Spring
17 112154510/0 Nut
18 322600205/0 Wheel Protection To 31-August-2014
18 322600205/1 Wheel Protection From 01-September-2014
21 112521350/0 Washer
22 112155000/0 Nut
Side Exaust Pag.3
1 322108295/0 Side Exit Conveyor Black To 31-August-2011
1 322108309/0 Black Rear Conveyor From 01-September-2011 To 31-August-2014
1 322108309/1 Black Rear Conveyor From 01-September-2014
2 322600238/0 Exit Protection To 31-August-2014
2 322600314/0 Protection Released From 01-September-2014
3 112727803/0 Screw
4 322806639/0 Fulcrum pin
5 112154510/0 Nut
6 118203853/0 Cover
7 122450456/0 Spring
8 122517869/0 Pin To 31-August-2014
8 122517869/1 Pin From 01-September-2014
9 112604896/0 Crown Fixator
Handle Lower Side Pag.4
1 381006737/0 Handle, Lower Part Black Black
2 112819110/0 Screw
3 122671651/0 Washer
4 122399900/0 Black Knob Black
5 112293200/0 Nut
7 112818900/0 Screw
9 122399900/0 Black Knob Black
10 112293200/0 Nut
11 112155000/0 Nut
12 112521350/0 Washer
13 112369500/0 Elastic disc
14 112760605/0 Screw
15 381008691/0 Black screws
Handle Upper Side Pag.5
1 381006739/0 Handle, Upper Black without Sponge To 31-August-2011
1 381006739/1 Handle, Upper Black without Sponge From 01-September-2011
To 31-August-2017
1 381006739/2 Handle, Upper Black without Sponge From 01-September-2017
1 381006745/0 Handle, Upper Part. With Black Sponge handle with Sponge
To 31-August-2011
1 381006745/1 Handle, Upper Part with sponge handle Black with Sponge
From 01-September-2013 To 31-August-2017
1 381006745/2 Handle, Upper Part with sponge handle Black with Sponge
From 01-September-2017 To 31-August-2018
1 381006745/3 Handle, Upper Part Black with sponge handle Black with Sponge
From 01-September-2018
2 122430313/0 Guide Spring Not used on Electric Start Models
3 112521330/0 Not used washer on Electric Start Models
4 112154510/0 Nut Not used on Electric Start Models
5 118390020/0 Cable clip
6 181003363/0 Motor Brake Lever Black To 31-August-2010
6 181003363/1 Motor Brake Lever Black From 01-September-2010
7 181030056/0 Motor Brake Cable
8 112727783/0 screw
9 112154510/0 Nut
10 181003364/0 Black Traction Control Lever
11 381030051/0 Traction Control Cable
12 322551640/0 Cable fixing plate To S/N 20AA2WBH066503
12 322551685/0 Cable fixing plate ø22 From S/N 20AA2WBH066504
Traction Assy Pag.6
1 112608600/0 Seeger
2 122570120/1 Ratched Wheel Left
3 122570110/1 Ratched Wheel Right
4a 322042066/0 Bushing For wheels ø180 / 200/240
5 112521371/0 Washer
6 181003092/0 Traction assy
7 122601904/0 Pulley To 31-August-2013
7 122601909/0 Pulley From 01-September-2013
8 112645705/0 Elastic pin ø5X32
9 122033283/0 Adjust rod
10 135063800/0 V- belt
11 122041957/1 Bushing
12 122450063/0 Spring
13 322680009/0 Washer
14 112154510/0 Nut
15 122110230/0 Hubcap
16 122753000/0 Plug
Wheels + Hub Cover Pag.7
1 381007455/0 Wheel - Short Long To 31-August-2012
1 381007455/1 Wheel - Short Long From 01-September-2012
2 119216035/0 Bearing
3 322110636/0 Gray hubcap
5 381007467/0 Wheel To 31-August-2012
5 381007467/1 Wheel From 01-September-2012
6 119216035/0 Ball Bearing
7 112728706/0 Screw
8 322120117/0 Wheel Crown
9 322110637/0 Gray hubcap
Blade Pag.8
1 112735108/1 Screw
2 122465607/3 Hub With Pulley, Drive Shaft Ø 22.2
3 181004346/3 Left Blade Mulching To 31-August-2015
3 181004460/0 Blade Mulching From 01-September-2015
4 112523080/0 Washer To 31-August-2015
4 322680021/0 Washer From 01-September-2015
5 112508125/0 Spring Washer
6 112735698/0 Screw
7 112139100/0 Tab
8 112154210/0 Nut
Grass Bag Pag.9
1 322785331/0 Stones Guard Support Black
2 122450464/0 Spring
3 322109557/0 Stones cover, Gray ( New code 381008163/0 )
4 112728699/0 Screw
5 322600216/0 stone guards Gray To 31-August-2011
5 322600216/1 Stone Guard Gray From 01-September-2011
6 322393645/0 Bag Handle Gray
7 322486263/0 Bag Upper Side Gray Top To 31-August-2016
8 322486267/0 Bag Lower Side Gray To 31-August-2016
ENGINE - ST. WBE0702 Pag.10
1 112292102/0 Nut
2 118550276/1 Starter assembly
3 118550274/0 Starter handle
4 118550779/0 Starter rope
5 118550778/0 Starter Pulley
6 118550275/0 Starter Pawl Kit
7 118550336/0 Nut
8 118550335/0 Starter cup
9 118550254/0 Flywheel fan
10 118550253/0 Flywheel assy
11 118550774/0 Guard
12 112791213/1 Screw
13 118550302/0 Stud
14 118550301/0 Stud
15 118550255/0 Electronic Ignition coil
16 112791500/0 Screw
17 112790500/0 Screw
18 118550378/0 Oil Vent Gasket Assembly
19 112791500/0 Screw
20 118550376/0 Flywheel Brake Assembly
21 118550259/0 Throttle control
22 118550337/0 Cable clip
23 118550338/0 Screw
24 112791213/1 Screw
25 118550260/0 Spring
26 118550266/0 Throttle Control Lever
27 118550397/0 Throttle rod
28 118550263/0 Spring
29 118550264/0 Air Control Lever
30 118550390/0 Carburetor
31 118550738/0 Air filter gasket
32 118550737/0 Air filter assembly
33 118550452/0 Air filter
34 118550739/0 Air filter cover
35 118550377/0 Vent Pipe
36 118550298/0 Stud
37 112292102/0 Nut
40 118550315/0 Stud
41 118550316/0 Gas tank
42 118550339/1 Tank cap
43 112292102/0 Nut
44 118550314/0 Fuel filter
45 118550340/0 Fuel pipe
50 118550407/0 Complete engine
ENGINE - ST. WBE0702 Pag.11
51 112674550/0 Screw
52 118550382/0 Crankcase Assembly
53 118550379/0 Sealing ring
54 118550775/0 grommet
55 118550312/0 Regulator assembly
56 118550380/1 Crankcase Gasket
58 118550271/0 Camshaft
59 118550283/0 Washer
60 118550385/0 Cranck shaft
61 118550288/0 Flywheel key
62 118550284/0 Link Rod Assembly
63 118550387/0 Piston assembly
64 118550384/0 Piston Rings Assembly
65 118550280/0 Ball bearing
66 118550308/0 Governor Shaft Assembly
67 118550291/0 Valve lifter assembly
68 118550289/0 Tappet Rods Assembly
69 118550244/0 Cylinder Head Assembly
70 118550296/1 Valves cover
71 112791213/1 Screw
72 9400-0244-00 Spark Plug
73 118550297/0 Screw
74 118550298/0 STUD
75 118550270/0 MUFFLER GASKET
76 118550269/0 MUFFLER
77 118550268/1 MUFFLER Guard
78 112292102/0 Nut
79 118550300/0 oil Seal
80 112674550/0 Screw
81 118550311/0 Oil Level Cap Assembly
85 118550273/0 Valves Barbell Set
86 118550294/0 Exhaust Valve Assembly
87 118550292/0 Intake valve assembly
88 118550389/0 Repair kit
89 118550388/0 Carburettor Repair Kit
90 118550743/0 Carburettor Gasket Kits
91 118550405/0 Cylinder Head Gaskets Assembly
92 118550741/0 Engine Gaskets Assembly
ENGINE - ST. WBE0702 Pag.12
60 322055452/0 Black Cover
61 322055450/0 Black Cover
62 322055439/0 Black Cover
63 322055463/1 hood
65 322820078/0 Plug
71 381002068/0 hood
72 381002067/0 hood
100 118550407/0 Engine Assembly
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Castelgarden websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Castelgarden brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
XC 48 GSW4 (2014) 295496843/C13
11 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:
STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS

Specific References

New

Download

Drawing Castelgarden XC 48 GSW4

Drawing Castelgarden XC 48 GSW4

Download (755.87KB)

You might also like

Fuel Cap Ass'y for Engine Alpina M150
GGP Italy SKU: 118550001/0
Fuel Cap Ass'y for Engine Alpina M150
Fuel Cap Ass'y for Engine Alpina M150 Original replacement part Alpina, Fuel Cap Ass'y for Engines Alpina M150 - SV150. Part for the following products: -  Engine Alpina M150...
Last items in stock €6.01
Details
Carburator for Engine Lawnmower Alpina AL5 51 G
GGP Italy SKU: 118550390/0
Carburator for Engine Lawnmower Alpina AL5 51 G
Carburator for Engine Lawnmower Alpina AL5 51 G Original replacement part Alpina, Carburator for Engine Lawnmower Alpina AL5 51 G. Part for the following products: - ...
Last items in stock €82.22
Details
Cylinder Head Ass'y for Engine Alpina M150 - SV150
GGP Italy SKU: 118550360/0
Cylinder Head Ass'y for Engine Alpina M150 - SV150
Cylinder Head Ass'y for Engine Alpina M150 - SV150 Original replacement part Alpina, Cylinder Head Ass'y for Engines Alpina M150 - SV150 - Lawnmover Castelgarden 142 G. Part for the following products: -  Engine Alpina M150 -  Engine...
Last items in stock €28.13
Details
Ignition Coil Ass'y for Engines Alpina M150 - SV150
GGP Italy SKU: 118550126/0
Ignition Coil Ass'y for Engines Alpina M150 - SV150
Ignition Coil Ass'y for Engines Alpina M150 - SV150 Original replacement part Alpina, Ignition Coil Ass'y for Engines Alpina M150 - SV150 - Lawnmower FL 46 LMG - awnmower 142 G. Part for the following products: - Engine M150...
Last items in stock €51.49
Details
Oil Breath Gasket Assembly for Engines Alpina M150 - SV150
GGP Italy SKU: 118550364/0
Oil Breath Gasket Assembly for Engines Alpina M150 - SV150
Oil Breath Gasket Assembly for Engines Alpina M150 - SV150 Original replacement part Alpina, Oil Breath Gasket Assembly for Engines Alpina M150 - SV150 - Lawnmower FL 46 LMG - awnmower 142 G. Part for the following products: - Engine...
Last items in stock €12.64
Details
Muffler Gasket for Engines Alpina M150 - SV150
GGP Italy SKU: 118550028/0
Muffler Gasket for Engines Alpina M150 - SV150
Muffler Gasket for Engines Alpina M150 - SV150 Original replacement part Alpina, Muffler Gasket for Engines Alpina M150 - SV150 - Lawnmower FL 46 LMG - awnmower 142 G. Part for the following products: - Engine M150...
Last items in stock €5.12
Details
Recoil Starter Cup for Engines Alpina M150 - SV150
GGP Italy SKU: 118550140/0
Recoil Starter Cup for Engines Alpina M150 - SV150
Recoil Starter Cup for Engines Alpina M150 - SV150 Original replacement part Alpina, Recoil Starter Cup for Engines Alpina M150 - SV150 - Lawnmower FL 46 LMG - awnmower 142 G. Part for the following products: - Engine M150...
AVAILABLE €5.53
Details
Piston Ring Ass'y for Engines Alpina M150 - SV150
GGP Italy SKU: 118550358/0
Piston Ring Ass'y for Engines Alpina M150 - SV150
Piston Ring Ass'y for Engines Alpina M150 - SV150 Original replacement part Alpina, Piston Ring Ass'y for Engines Alpina M150 - SV150 - Lawnmower FL 46 LMG - awnmower 142 G. Part...
Last items in stock €23.23
Details
Woodruff Key for Petrol Lawnmower Alpina AL3 46 SBQ
GGP Italy SKU: 112139100/0
Woodruff Key for Petrol Lawnmower Alpina AL3 46 SBQ
Woodruff Key for Petrol Lawnmower Alpina AL3 46 SBQ Original replacement part Alpina, Woodruff Key 4x6,5 D.16 UNI6606 C40 for Petrol Lawnmowers AL3 46 SBQ - NTL 534 WTR/Q - BL 460 SB - AL3 51 SBQ....
on 7/10 Business Days Approx. €2.09
Details
Fuel Pipe for Engine GGP WBE0701
GGP Italy SKU: 118550340/0
Fuel Pipe for Engine GGP WBE0701
Fuel Pipe for Engine GGP WBE0701 Original spare part Alpina, Fuel Pipe for Engine GGP WBE0701 - ST. S.P.A. OM55 (2008) Part for the following products: -  Engine GGP WBE0701 118550408/0_110004WBE0701 - Code : 118550340/0
on 7/10 Business Days Approx €8.23
Details
Telf-Form Screw 3/8"x 1"1/4 for Lawnmower Alpina BL 510 SHQ
GGP Italy SKU: 112735108/1
Telf-Form Screw 3/8"x 1"1/4 for Lawnmower Alpina BL 510 SHQ
Telf-Form Screw 3/8"x 1"1/4 for Lawnmower Alpina BL 510 SHQ Original part Alpina, Telf-Form Screw 3/8"x 1"1/4 UNC I.F., for Self-Propelled Lawnmower BL 510 SHQ - AL3 51 SBQ - AL4 51 SBQ - BL 510 SBQ. Part for the following products: -...
on 7/10 Business Days Approx €2.19
Details
Cable Plate for Lawn Mower DINO 47
GGP Italy SKU: 322551685/0
Cable Plate for Lawn Mower DINO 47
Cable Plate for Lawn Mower DINO 47 Original spare part Alpina, Cable Plate ø22 From S/N 20AA2WBH066504 for Lawn Mower DINO 47 - BL 450. Parts for the following products: -  LAWNMOWER CASTELGARDEN XC 48 GSW4 - L AWNMOWER ALPINA BL 460...
Last items in stock €7.97
Details
Tank Cap for Engine Alpina WBE0701
GGP Italy SKU: 118550339/1
Tank Cap for Engine Alpina WBE0701
Tank Cap for Engine Alpina WBE0701 Original replacement part Alpina, Tank Cap for Engine GGP WBE0701 - Lawnmower XC 48 GSW4 - AL5 51 G - BL 460 - HW531 PD - S481 PD ES. Part for the...
Last items in stock €14.82
Details
Alpina BL 460 SB Mulching Plug [Cruiser]
GGP Italy SKU: 322140239/0
Alpina BL 460 SB Mulching Plug Cruiser 48
Alpina BL 460 SB Mulching Plug [Cruiser 48] Original replacement part Alpina, Mulching Plug [Cruiser] forLawnmowers BL 460 SB - AL3 46 B - G - E - SG. Part for the following products: -  Lawnmower...
on 7/10 Business Days Approx €11.88
Details
Alpina Conveyor for BL 510 SHQ
GGP Italy SKU: 322108309/1
Alpina Conveyor for BL 510 SHQ
Alpina Conveyor for Lawnmower BL 510 SHQ Original part Alpina, Black Rear Conveyor for Lawnmowers BL 510 SHQ - AL3 46 SBQ - FL 46 SQH. Part for the following products: -  Lawnmower Alpina BL 510 SHQ - 295546934 - ...
Last items in stock €11.56
Details
Alpina AL3 46 B Pin
GGP Italy SKU: 122534131/0
Alpina AL3 46 B Pin
Alpina Lawnower AL3 46 B Pin Genuine replacement part Alpina, Rear Rod lever Pin for Lawnower AL3 46 B - AL5 51 G. Part for the following products: -  Lawnmower Alpina AL3 46...
AVAILABLE €1.65
Details
Alpina BL 460 SB Hub Cap Grey
GGP Italy SKU: 322110637/0
Alpina BL 460 SB Hub Cap Grey
Alpina Lawnower BL 460 SB Hub Cap Grey Genuine replacement part Alpina, Avio Hub Cap Grey D=240 for Lawnower BL 460 SB - AL3 46 SG. Part for the following products: -  Lawnmower Alpina BL 460 SB -...
Last items in stock €3.60
Details
Alpina BL 460 SB Wheel Crown
GGP Italy SKU: 322120117/0
Alpina BL 460 SB Wheel Crown
Alpina Lawnower BL 460 SB Wheel Crown Genuine replacement part Alpina, Wheel Crown for Lawnower BL 460 SB - AL3 46 SG. Part for the following products: -  Lawnower Alpina BL 460 SB - 295492124 - ...
Last items in stock €5.04
Details
Comments (0)
