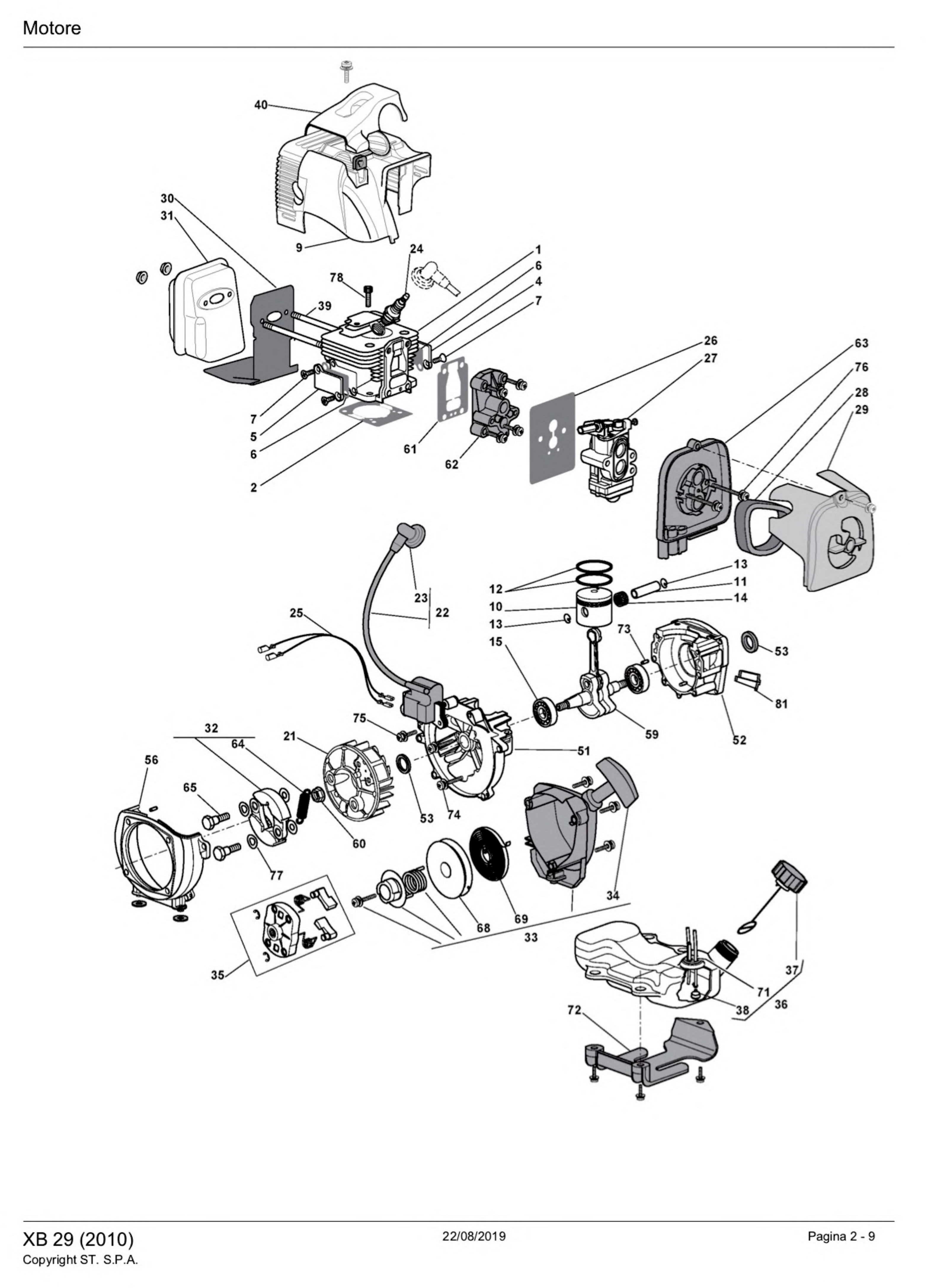

Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 123071010/0 Cylinder €151.37
2
 photo_cameraImage coming soon 123280030/0 Cylinder gasket €5.76
4
 photo_cameraImage coming soon 123109539/0 Cover €3.82
5
 photo_cameraImage coming soon 123109540/0 Cover €3.82
6
 photo_cameraImage coming soon 123280032/0 Gasket €1.59
7
 photo_cameraImage coming soon 123878054/0 Screw €2.03
10
 photo_cameraImage coming soon 123590004/0 Piston €28.91
11
 photo_cameraImage coming soon 123760001/0 Piston pin €6.10
12
 photo_cameraImage coming soon 123204007/0 Piston ring €10.51
13
 photo_cameraImage coming soon 123202002/0 Circlip €2.51
14
 photo_cameraImage coming soon 123235003/0 Neddle Bearing €10.26
15
 photo_cameraImage coming soon 114215215/0 Ball bearing €9.84
21
 photo_cameraImage coming soon 123880005/0 Flywheel €97.79
22
 photo_cameraImage coming soon 123044008/0 Electronic Coil €217.76
23
 photo_cameraImage coming soon 123053002/0 Spark Plug Cover €6.96
24
 photo_cameraImage coming soon 3210024 Spark Plug CJ7Y €6.54
25
 photo_cameraImage coming soon 183065021/0 Earth Cable €7.08
26
 photo_cameraImage coming soon 123280033/0 Carburetor Manifold Gasket €4.40
27
 photo_cameraImage coming soon 123054022/0 Carburetor €167.76
28
 photo_cameraImage coming soon 123220009/0 Air filter €5.18
30
 photo_cameraImage coming soon 123280028/0 Muffler gasket €8.97
31
 photo_cameraImage coming soon 183740006/0 Muffler €59.61
32
 photo_cameraImage coming soon 183215005/0 Clutch Assy €44.86
33
 photo_cameraImage coming soon 183058034/0 Starter Assy €76.37
34
 photo_cameraImage coming soon 123300007/0 Starter handle €5.42
35
 photo_cameraImage coming soon 123082002/0 Goodwill Cup Ass €13.47
36
 photo_cameraImage coming soon 183733005/0 Tank Assy €73.22
37
 photo_cameraImage coming soon 183790008/0 Fuel Cap €25.86
38
 photo_cameraImage coming soon 183520004/0 Intake Filter €29.63
39
 photo_cameraImage coming soon 123878061/0 Screw €6.37
40
 photo_cameraImage coming soon 323109571/0 Red Spark Guard €19.06
51
 photo_cameraImage coming soon 123685005/0 Engine Cover, Clutch Side €58.16
52
 photo_cameraImage coming soon 123685004/0 Engine Cover, Starter Side €51.60
53
 photo_cameraImage coming soon 119035160/0 Sealing ring €4.40
56
 photo_cameraImage coming soon 123208410/0 Transm.Support Case €56.00
59
 photo_cameraImage coming soon 123020026/0 Crankshaft €290.03
60
 photo_cameraImage coming soon 123120005/0 Nut €1.25
61
 photo_cameraImage coming soon 123280052/0 Cylinder Manifold Gasket €7.52
62
 photo_cameraImage coming soon 123073513/0 Intake manifold €11.08
63
 photo_cameraImage coming soon 123040002/0 Air Filter Base €12.05
64
 photo_cameraImage coming soon 123430586/0 Spring €6.02
65
 photo_cameraImage coming soon 123878059/0 Screw €6.79
68
 photo_cameraImage coming soon 123604008/0 Starter Pulley €10.76
69
 photo_cameraImage coming soon 123430589/0 Spring €12.59
71
 photo_cameraImage coming soon 123275022/0 Grommet Ass.Y €4.64
72
 photo_cameraImage coming soon 123784005/0 Protection €17.22
73
 photo_cameraImage coming soon 123753002/0 Plug €1.56
74
 photo_cameraImage coming soon 123878066/0 Screw €2.10
77
 photo_cameraImage coming soon 123657010/0 Washer €1.31
81
 photo_cameraImage coming soon 123109559/0 Guard €2.62

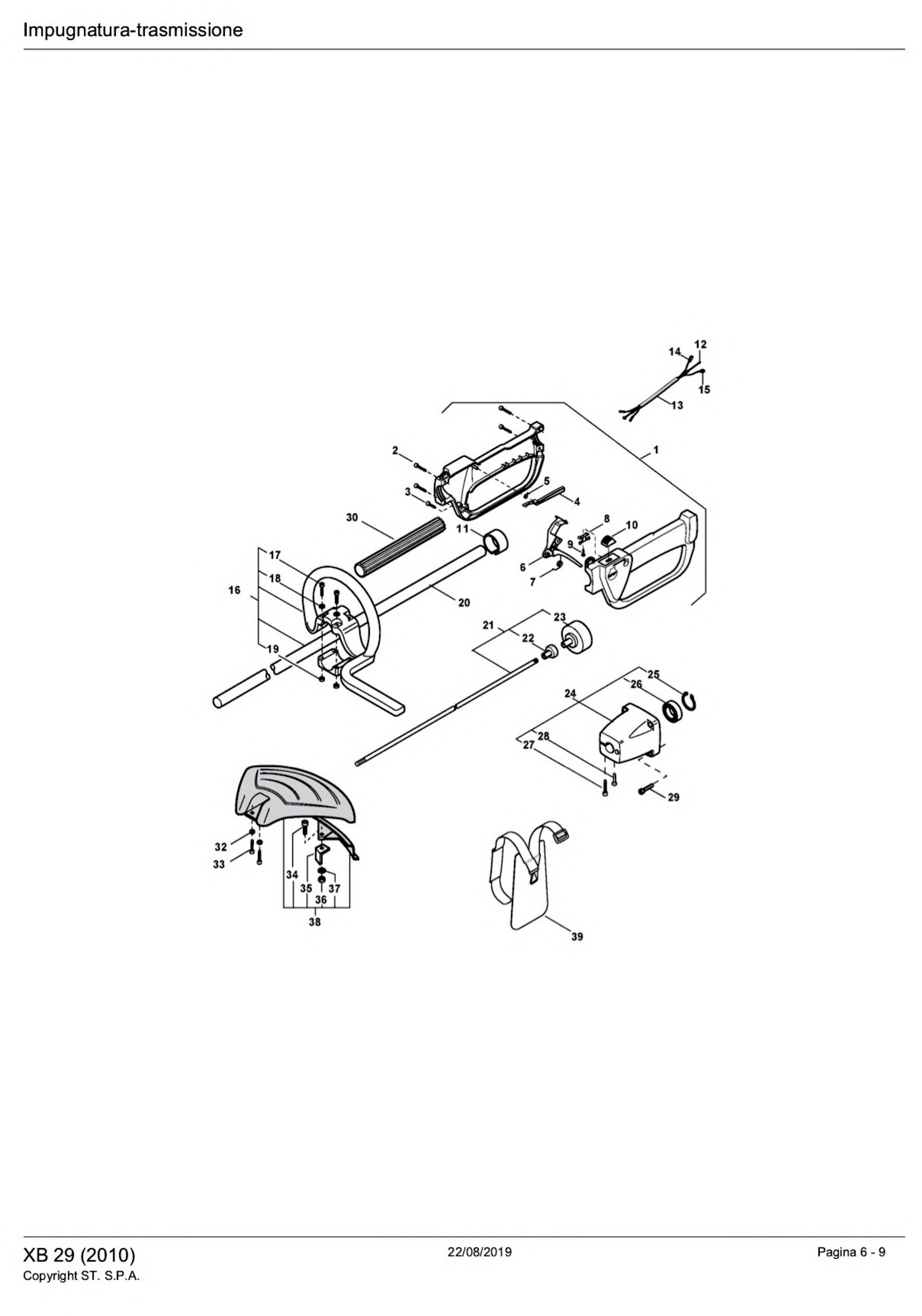

Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 3L8562620/1 Rear Handle Assembly €23.52
2
 photo_cameraImage coming soon 2123030 Screw €1.37
3
 photo_cameraImage coming soon 2123100 Screw €1.34
4
 photo_cameraImage coming soon 3743475 Safety Lever €2.83
5
 photo_cameraImage coming soon 3654300 Spring €1.37
6
 Throttle Lever for Brushcutter Alpina BJ 335 3743465 Throttle Lever for Brushcutter Alpina BJ 335 €10.38
7
 photo_cameraImage coming soon 1L3654270/1 Spring €1.37
9
 photo_cameraImage coming soon 2123070 Screw €1.34
10
 photo_cameraImage coming soon 3749270 Knob €1.34
12
 photo_cameraImage coming soon 4252540 Wire Ass.Y €2.96
13
 photo_cameraImage coming soon 3786030 Wire Sheath €9.05
16
 photo_cameraImage coming soon 8563590 Front Handle Assy €19.19
17
 Srew TX M5X30 2009 for Brushcutter Alpina TB 250 J 2135050 Srew TX M5X30 2009 for Brushcutter Alpina TB 250 J €1.57
18
 photo_cameraImage coming soon 2312090 Flat washer €1.41
19
 photo_cameraImage coming soon 2412030 Nut €1.37
20
 photo_cameraImage coming soon 8251211 Transmission Pipe Ass €39.06
22
 photo_cameraImage coming soon 3642221 Bearing Hub €2.09
24
 photo_cameraImage coming soon 8561600 Support Transmission Assy €34.18
25
 photo_cameraImage coming soon 3353080 Seeger Ring €1.37
26
 photo_cameraImage coming soon 3112170 Ball Bearing €2.45
28
 photo_cameraImage coming soon 2123150 Screw €2.64
29
 photo_cameraImage coming soon 2135160 Screw €1.37
30
 photo_cameraImage coming soon 323170000/0 Spacer €1.37
32
 photo_cameraImage coming soon 2312150 Washer €1.52
33
 photo_cameraImage coming soon 2135060 Screw €1.44
34
 Srew TX M5X20 2009 for Brushcutter Alpina TB 250 J 2135030 Srew TX M5X20 2009 for Brushcutter Alpina TB 250 J €1.57
35
 photo_cameraImage coming soon 3615000 Wire Knife €9.02
36
 photo_cameraImage coming soon 112154330/0 Nut €1.74
37
 photo_cameraImage coming soon 2312150 Washer €1.52
38
 Safety Cover Ass'y for Brushcutter Alpina STAR 55 DP 3L8563570/1 Safety Cover Ass'y for Brushcutter Alpina STAR 55 DP €27.20
39
 photo_cameraImage coming soon 4253460 Harness €15.96

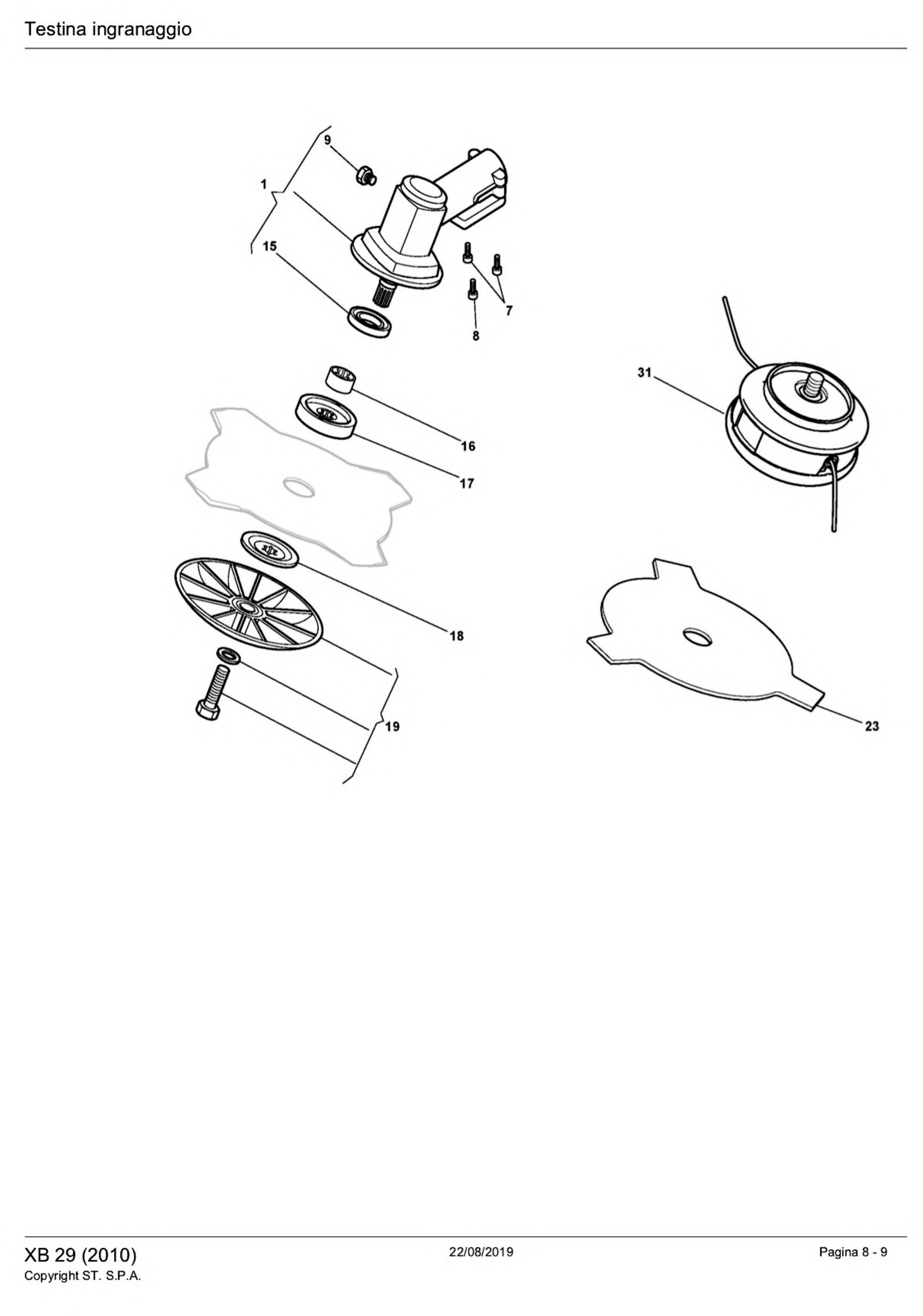

Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 3L4252770/2 Head Ø24Mm €75.22
7
 Srew TX M5X30 2009 for Brushcutter Alpina TB 250 J 2135050 Srew TX M5X30 2009 for Brushcutter Alpina TB 250 J €1.57
8
 photo_cameraImage coming soon 2653090 Screw €1.49
15
 photo_cameraImage coming soon 3121180 Sealing ring €3.45
16
 photo_cameraImage coming soon 3660680 Collar €1.62
17
 photo_cameraImage coming soon 3641650 Upper flange €7.86
18
 photo_cameraImage coming soon 3612650 Lower flange €5.60
19
 photo_cameraImage coming soon 4560610 Stabilizer €8.99
23
 photo_cameraImage coming soon 6031172 Disc 3 Tips €8.61
31
 photo_cameraImage coming soon 4353240/1 2 Hedges Nylon Head €21.01

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Castelgarden Spare Parts for Brushcutter XB 29

Castelgarden genuine spare parts or replacement parts for to repair Engine Brush Cutter XB 29/283720003/08-2010.

In the following table, look for the model of the Brushcutter and the respective parts of the code.
Engine Brush Cutter XB 29/283720003/08-2010

Engine Brush Cutter XB 29/283720003/08-2010
Engine Pag.1
# Part Num. Description
1 123071010/0 Cylinder
2 123280030/0 Cylinder gasket
4 123109539/0 Cover
5 123109540/0 Cover
6 123280032/0 Gasket
7 123878054/0 Screw
9 123106024/0 Red Cylinder Cap
10 123590004/0 Piston
11 123760001/0 Piston pin
12 123204007/0 Piston ring
13 123202002/0 Circlip
14 123235003/0 Neddle Bearing
15 114215215/0 Ball bearing
21 123880005/0 Flywheel
22 123044008/0 Electronic Coil
23 123053002/0 Spark cap
24 3210024 Spark plug
25 183065021/0 Earth Cable
26 123280033/0 Carburetor Manifold Gasket
27 123054022/0 Carburetor
28 123220009/0 Air filter
29 183090005/0 Air filter cover
30 123280028/0 Muffler gasket
31 183740006/0 Muffler
32 183215005/0 Clutch Assy
33 183058034/0 Starter Assy
34 123300007/0 Starter handle
35 123082002/0 Goodwill Cup Ass
36 183733005/0 Tank Assy
37 183790008/0 Fuel Cap
38 183520004/0 Intake Filter
39 123878061/0 Screw
40 323109571/0 Red Spark Guard
51 123685005/0 Engine Cover, Clutch Side
52 123685004/0 Engine Cover, Starter Side
53 119035160/0 Sealing ring
56 123208410/0 Transm.Support Case
59 123020026/0 Crankshaft
60 123120005/0 Nut
61 123280052/0 Cylinder Manifold Gasket
62 123073513/0 Intake manifold
63 123040002/0 Air Filter Base
64 123430586/0 Spring
65 123878059/0 Screw
68 123604008/0 Starter Pulley
69 123430589/0 Spring
71 123275022/0 Grommet Ass.Y
72 123784005/0 Protection
73 123753002/0 Plug
74 123878066/0 Screw
75 123878064/0 Screw
76 123878065/0 Screw
77 123657010/0 Washer
78 123878063/0 Lives
81 123109559/0 Guard
Handle-Trasmission Pag.2
1 3L8562620/1 Rear Handle Assy
2 2123030 Screw
3 2123100 Screw
4 3743475 Safety Lever
5 3654300 Spring
6 3743465 Throttle lever
7 1L3654270/1 Spring
8 3612710 Stop plate
9 2123070 Screw
10 3749270 Knob
11 3749910 Reduction
12 4252540 Throttle Cable
13 3786030 Wire sheath
14 123065022/0 Wire
15 123065023/0 Earth Cable
16 8563590 Front Handle Assy
17 2135050 Screw
18 2312090 Washer
19 2412030 Nut
20 8251211 Transmission Pipe Ass
21 4251410 Transmission shaft ass
22 3642221 Bearing Hub
23 3L4121881/1 Drum Clutch Assy
24 8561600 Support Transmission Assy
25 3353080 Seeger ring
26 3112170 Ball bearing
27 2123140 Screw
28 2123150 Screw
29 2135160 Screw
30 323170000/0 Spacer
32 2312150 Washer
33 2135060 Screw
34 2135030 Screw
35 3615000 Line Cutter
36 112154330/0 Nut
37 2312150 Washer
38 3L8563570/1 Safety Cover Assy
39 4253460 Harness
Gear Case Pag.3
1 3L4252770/2 Head Ø24Mm
7 2135050 Screw
8 2653090 Screw
9 2653460 Screw
15 3121180 Sealing ring
16 3660680 Collar
17 3641650 Upper flange
18 3612650 Lower flange
19 4560610 Stabilizer
23 6031172 Disc 3 Tips
31 4353240/1 2 Wire Head
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Castelgarden websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Castelgarden brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
XB 29/283720003/08-2010
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:
STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS

Specific References

New

Download

Diagram Castelgarden XB 29

Diagram Castelgarden XB 29

Download (369.24KB)

You might also like

Srew TX M5X20 2009 for Brushcutter Alpina TB 250 J
GGP Italy SKU: 2135030
Srew TX M5X20 2009 for Brushcutter Alpina TB 250 J
Srew TX M5X20 2009 for Brushcutter Alpina TB 250 J Original parts Alpina, Srew TX M5X20 2009 for Brushcutters Alpina TB 250 J/286120100-13-2017 - B 26 J/287120100-15-2017 Part for the following products: - Brushcutter Alpina TB 250...
AVAILABLE €1.57
Details
Srew TX M5X30 2009 for Brushcutter Alpina TB 250 J
GGP Italy SKU: 2135050
Srew TX M5X30 2009 for Brushcutter Alpina TB 250 J
Srew TX M5X30 2009 for Brushcutter Alpina TB 250 J Original parts Alpina, Srew TX M5X30 2009 for Brushcutters Alpina TB 250 J/286120100-13-2017 - B 26 J/287120100-15-2017 Part for the following products: - Brushcutter Alpina TB 250...
AVAILABLE €1.57
Details
Throttle Lever for Brushcutter Alpina BJ 335
GGP Italy SKU: 3743465
Throttle Lever for Brushcutter Alpina BJ 335
Throttle Lever for Brushcutter Alpina BJ 335 Original part Alpina, Throttle Lever for Brushcutters BJ 335 - BJC 325 - STAR 55 F PROFI - POWER 41 F - XB 29. Part for the following products:...
AVAILABLE €10.38
Details
Safety Cover Ass'y for Brushcutter Alpina STAR 55 DP
HiKOKI Power Tools Italia S.p.a. SKU: 3L8563570/1
Safety Cover Ass'y for Brushcutter Alpina STAR 55 DP
Safety Cover Ass'y for Brushcutter Alpina STAR 55 DP Genuine replacement part Alpina, Safety Cover Assembly for Brushcutters STAR 55 DP - STAR 55 F PROFI - STAR 41 - TB 435 H - Castor POWER 41 F...
Last items in stock €27.20
Details
Comments (0)
