Castelgarden Spare Parts for XC 48 S Lawn Mower
€0.12
VAT included
Castelgarden Spare Parts for Lawn Mower XC 48 S
We are Distributors of Original CASTELGARDEN Spare Parts and an authorized service center. We guarantee low prices and a professional repair service capable of advising you on the purchase of the most suitable spare part to quickly solve any maintenance and repair problem for the Lawn Mower XC 48 S/2L0482843/C22.
Castelgarden Spare Parts for XC 48 S Lawn Mower
€0.12
VAT included
Castelgarden Spare Parts for Lawn Mower XC 48 S
We are Distributors of Original CASTELGARDEN Spare Parts and an authorized service center. We guarantee low prices and a professional repair service capable of advising you on the purchase of the most suitable spare part to quickly solve any maintenance and repair problem for the Lawn Mower XC 48 S/2L0482843/C22.
settings
202 Spare parts
description
12 exploded views
verified_user
Original Product
Manufacturer warranty included
support_agent
Technical Support
Our team helps you choose
Secure and guaranteed payments
202 spare parts
Page 1
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
Page 2
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
Page 3
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
1
|
photo_cameraImage coming soon | 112735410/0 Screw | €1.54 | |
|
2
|
photo_cameraImage coming soon | 322226296/0 Front Panel Black Castelgarden for lawn mower | €8.26 | |
|
3
|
photo_cameraImage coming soon | 322055524/1 Insert | €3.78 | |
|
4
|
photo_cameraImage coming soon | 322393742/1 Handle | €7.09 |
Page 4
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
1
|
photo_cameraImage coming soon | 381006785/0 Handle, Lower Part Black | €25.51 | |
|
2
|
photo_cameraImage coming soon | 112155000/0 Self-Locking Nut M8 | €1.54 | |
|
3
|
photo_cameraImage coming soon | 112521350/0 Washer | €1.54 | |
|
4
|
photo_cameraImage coming soon | 112369500/0 Elastic Disc | €1.40 | |
|
5
|
photo_cameraImage coming soon | 112760605/0 Screw | €3.38 | |
|
6
|
photo_cameraImage coming soon | 381008691/0 Screws Outfit | €8.56 | |
|
7
|
photo_cameraImage coming soon | 133320504/0 Cable Clamp | €1.96 | |
|
8
|
photo_cameraImage coming soon | 118390020/0 Cable Clamp | €1.82 |
Page 5
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
Page 6
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
Page 7
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
1
|
photo_cameraImage coming soon | 322108309/1 Side Discharge Chute | €11.36 | |
|
3
|
photo_cameraImage coming soon | 112727803/0 Screw | €1.54 | |
|
4
|
photo_cameraImage coming soon | 322806659/0 Fulcrum Pin | €0.01 | |
|
5
|
photo_cameraImage coming soon | 112154510/0 Self-Locking Nut M6 | €1.54 | |
|
6
|
photo_cameraImage coming soon | 118203853/0 Cap | €2.66 | |
|
7
|
photo_cameraImage coming soon | 122450456/1 Spring | €3.23 | |
|
8
|
photo_cameraImage coming soon | 122517869/1 Pin | €3.78 | |
|
9
|
photo_cameraImage coming soon | 112604896/0 Crown Fastener | €1.54 | |
|
10
|
photo_cameraImage coming soon | 122517876/0 Pin | €1.40 | |
|
11
|
photo_cameraImage coming soon | 322783013/0 Safety Catch | €0.01 | |
|
12
|
photo_cameraImage coming soon | 122450493/0 Spring | €1.33 | |
|
13
|
photo_cameraImage coming soon | 381008161/1 Side Discharge Assembly | €11.48 |
Page 8
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
Page 9
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
Page 10
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
Page 11
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
Page 12
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
1
|
photo_cameraImage coming soon | 118552685/1 Complete Engine ST140 Castelgarden for lawn mower | €267.13 | |
|
2
|
photo_cameraImage coming soon | 322055629/0 Grey Engine Cover Castelgarden for lawn mower | €3.78 | |
|
3
|
photo_cameraImage coming soon | 322055630/0 Cover, Yellow Castelgarden for lawn mower | €6.44 | |
|
4
|
photo_cameraImage coming soon | 322055627/0 Grey Engine Cover Castelgarden for lawn mower | €5.04 | |
|
11
|
photo_cameraImage coming soon | 1111-9234-01 Engine oil, SAE 30 - 0.6 L | €0.00 | Not available for order |
|
11
|
photo_cameraImage coming soon | 1111-9237-01 Do not use for Italian Market Castelgarden for lawn mower | €0.00 | Not available for order |
|
11
|
photo_cameraImage coming soon | 1111-9244-01 Engine oil, SAE 30 - 0.6 L Castelgarden for lawn mower | €7.98 | |
|
12
|
photo_cameraImage coming soon | 1111-9235-01 Do not use for Italian Market | €0.00 | Not available for order |
|
13
|
photo_cameraImage coming soon | 1111-9236-01 Engine oil, SAE 30 - 1.4 L | €0.00 | Not available for order |
|
13
|
photo_cameraImage coming soon | 1111-9238-01 Do not use for Italian Market Castelgarden for lawn mower | €0.00 | Not available for order |
|
13
|
photo_cameraImage coming soon | 1111-9245-01 Engine oil, SAE 30 - 1.4 L Castelgarden for lawn mower | €15.96 | |
|
15
|
photo_cameraImage coming soon | 1111-9301-01 Engine Service Kit Castelgarden for lawn mower | €32.18 |
Shipping and delivery information will be available shortly.
Castelgarden Spare Parts for Lawn Mower XC 48 S
We are Distributors of original CASTELGARDEN spare parts and an authorized service center. We guarantee low prices and a professional repair service able to advise you on purchasing the most suitable spare part to quickly solve any maintenance and repair problem for the Lawn Mower XC 48 S/2L0482843/C22.
| Lawn Mower XC 48 S/2L0482843/C22 | ||
|---|---|---|

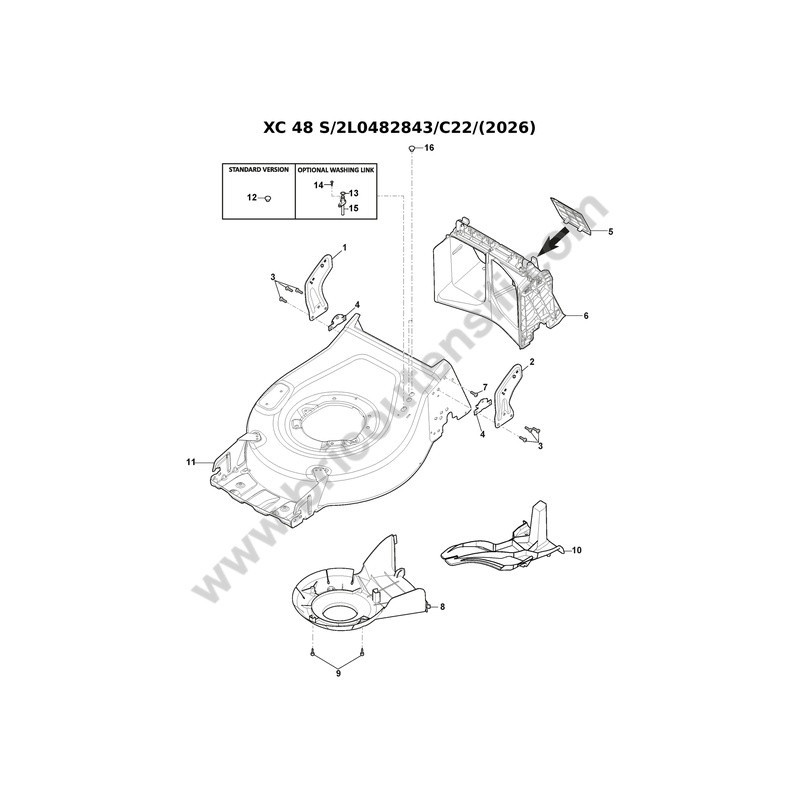

| Chassis Pag.1 | ||
| # | Part Num. | Description |
| 1 | 381005195/2 | Right Bracket |
| 2 | 381005197/2 | Left Bracket |
| 3 | 112727802/0 | Screw |
| 4 | 322545213/0 | Plate |
| 5 | 322600310/0 | Door |
| 6 | 322108329/0 | Rear Chute |
| 7 | 112728697/0 | Self-threading Screw Torx PT K50x16 |
| 8 | 322060242/2 | Belt Cover |
| 9 | 112728903/0 | Screw |
| 10 | 322140250/0 | Mulching Deflector |
| 11 | 381005035/0 | Grey Deck |
| 12 | 322820077/1 | Cap |
| 13 | 119035000/0 | O-Ring |
| 14 | 112728450/0 | Screw |
| 15 | 322034002/0 | Washing Connection |
| 16 | 118737886/0 | Cap |
| Cutting Height Adjustment Pag.2 | ||
| # | Part Num. | Description |
| 1 | 381302935/1 | Front Axle |
| 2 | 322785305/1 | Support |
| 3 | 112728697/0 | Self-threading Screw Torx PT K50x16 |
| 4 | 322869733/1 | Height Adjustment Control Rod |
| 5 | 122519823/0 | Pin |
| 6 | 112000930/0 | Benzing Ring ø6 |
| 7 | 122450494/0 | Spring |
| 8 | 381302851/1 | Rear Axle |
| 9 | 381003356/1 | Height Adjustment Lever |
| 10 | 122534131/0 | Pin |
| 11 | 122446192/0 | Spring |
| 12 | 112154510/0 | Self-locking Nut M6 |
| 13 | 322785500/0 | Support |
| 14 | 181003140/0 | Drive Unit |
| 15 | 122753000/0 | Pin |
| 16 | 122570110/1 | Right Pinion |
| 17 | 122570120/1 | Left Pinion |
| 18 | 112608600/0 | Circlip |
| 19 | 322042066/0 | Bushing |
| 20 | 112521371/0 | Washer |
| 22 | 135063790/0 | V-Belt |
| 22 | 135063800/0 | V-Belt |
| 23 | 122430254/0 | Spring |
| 23 | 122430260/0 | Spring |
| 24 | 322778473/1 | Bracket |
| 25 | 112728699/0 | Screw |
| 30 | 122601909/0 | Pulley |
| Mask Pag.3 | ||
| # | Part Num. | Description |
| 1 | 112735410/0 | Screw |
| 2 | 322226296/0 | Front Panel Black |
| 3 | 322055524/1 | Insert |
| 4 | 322393742/1 | Handle |
| Handle, Lower Part Pag.4 | ||
| # | Part Num. | Description |
| 1 | 381006785/0 | Handle, Lower Part Black |
| 2 | 112155000/0 | Self-locking Nut M8 |
| 3 | 112521350/0 | Washer |
| 4 | 112369500/0 | Spring Washer |
| 5 | 112760605/0 | Screw |
| 6 | 381008691/0 | Screws Outfit |
| 7 | 133320504/0 | Cable Fastener |
| 8 | 118390020/0 | Cable Fastener |
| Handle, Upper Part Pag.5 | ||
| # | Part Num. | Description |
| 1 | 381007571/2 | Upper Handle Black with rubber grip |
| 2 | 122430313/0 | Guide Spring |
| 3 | 112521330/0 | Flat Washer - M6x12x1.6 |
| 4 | 112154510/0 | Self-locking Nut M6 |
| 5 | 118390020/0 | Cable Fastener |
| 6 | 181003363/1 | Engine Brake Lever Black |
| 7 | 181030054/0 | Engine Brake Cable |
| 8 | 112727783/0 | Screw |
| 9 | 112154510/0 | Self-locking Nut M6 |
| 10 | 181003364/0 | Drive Control Lever |
| 11 | 381030172/0 | Drive Control Cable |
| 12 | 322551685/0 | Cable Fixing Plate ø22 |
| Wheels and Hub Caps Pag.6 | ||
| # | Part Num. | Description |
| 1 | 381007416/3 | Wheel Ø 200 |
| 2 | 119216035/0 | Bearing |
| 3 | 322110643/0 | Grey Hub Cap |
| 4 | 112521350/0 | Washer |
| 5 | 112155000/0 | Self-locking Nut M8 |
| 5 | 112293203/0 | Flanged Nut |
| 6 | 381007416/3 | Wheel Ø 200 |
| 7 | 112728706/0 | Self-threading Screw Torx PT K40x16 |
| 8 | 322120114/0 | Ring Gear |
| 9 | 322110643/0 | Grey Hub Cap |
| 10 | 322600145/0 | Wheel Protection |
| 11 | 322600239/0 | Wheel Protection |
| Side Discharge Pag.7 | ||
| # | Part Num. | Description |
| 1 | 322108309/1 | Side Discharge Chute |
| 3 | 112727803/0 | Screw |
| 4 | 322806659/0 | Fulcrum Pin |
| 5 | 112154510/0 | Self-locking Nut M6 |
| 6 | 118203853/0 | Cap |
| 7 | 122450456/1 | Spring |
| 8 | 122517869/1 | Pin |
| 9 | 112604896/0 | Crown Fastener |
| 10 | 122517876/0 | Pin |
| 11 | 322783013/0 | Safety Catch |
| 12 | 122450493/0 | Spring |
| 13 | 381008161/1 | Side Discharge Assembly |
| Blade Pag.8 | ||
| # | Part Num. | Description |
| 1 | 112735108/1 | Screw |
| 2 | 122465608/3 | Hub with Pulley, Crankshaft Ø 25 |
| 3 | 181004346/3 | Left Mulching Blade |
| 4 | 122160400/0 | Spring Washer |
| 5 | 112523080/0 | Washer |
| 6 | 112735698/0 | Screw |
| 7 | 112139150/0 | Key, Crankshaft Ø 25 |
| Grass Catcher Pag.9 | ||
| # | Part Num. | Description |
| 1 | 322486497/0 | Door |
| 2 | 322486496/0 | Grass Catcher, Upper Part |
| 3 | 322486150/1 | Grass Catcher, Lower Right Part |
| 3 | 322486434/0 | Grass Catcher, Lower Right Part |
| 4 | 322486151/1 | Grass Catcher, Lower Left Part |
| 4 | 322486435/0 | Grass Catcher, Lower Left Part |
| 5 | 122450479/0 | Spring |
| 6 | 122517884/0 | Pin |
| 7 | 322600355/1 | Stone Guard Black |
| 8 | 322109594/0 | Stone Guard Fulcrum Support Black |
| 9 | 112728697/0 | Self-threading Screw Torx PT K50x16 |
| 10 | 381008735/0 | Plastic Pin Outfit |
| Engine - Carburetor, Tank - ST 140 Pag.10 | ||
| # | Part Num. | Description |
| 2 | 112292102/0 | Nut |
| 3 | 118552628/0 | Starter Assembly |
| 4 | 118551619/0 | Starter Handle |
| 5 | 118550779/0 | Starter Rope |
| 6 | 118551621/0 | Starter Spring |
| 7 | 118551620/0 | Starter Pulley |
| 8 | 118551626/0 | Spring |
| 9 | 118551622/0 | Starter Pawl |
| 10 | 118551625/0 | Spring |
| 11 | 118551623/0 | Cover |
| 13 | 118551624/0 | Pulley Pin |
| 14 | 118552710/0 | Air Shroud |
| 15 | 118550907/0 | Pin |
| 16 | 118550906/0 | Pin |
| 17 | 112791500/0 | Screw - TE M6x25 |
| 18 | 118552707/0 | Electronic Coil |
| 20 | 118550658/0 | Spark Plug |
| 21 | 112789000/0 | Screw |
| 22 | 118551456/0 | Choke Control |
| 23 | 118551459/0 | Rod |
| 24 | 118551352/0 | Retainer |
| 25 | 118552808/0 | Carburetor |
| 26 | 118550930/0 | Stud Bolt |
| 27 | 118550929/0 | Gasket |
| 28 | 118552513/0 | Thermal Spacer |
| 29 | 118550927/0 | Gasket |
| 30 | 118550924/0 | Gasket |
| 31 | 118551461/0 | Air Cleaner Assembly |
| 32 | 118550946/0 | Filter Element |
| 33 | 118550945/0 | Filter Element |
| 34 | 118550944/0 | Air Filter Cover |
| 35 | 112292102/0 | Nut |
| 36 | 118551481/0 | Fuel Pipe |
| 37 | 118550918/0 | Hose Clamp |
| 38 | 118550314/0 | Fuel Filter |
| 39 | 118552735/0 | Tank |
| 40 | 118550943/1 | Tank Cap |
| 42 | 118550920/0 | Breather Tube |
| 43 | 118550933/0 | Throttle Control Lever |
| 44 | 118552715/0 | Plate |
| 45 | 112789000/0 | Screw |
| 46 | 118552831/0 | Spring |
| 47 | 118550805/0 | Screw |
| 48 | 118550806/0 | Nut |
| 49 | 118550925/0 | Throttle Rod |
| 50 | 118550898/0 | Muffler Gasket |
| 51 | 118552703/0 | Muffler |
| 52 | 112792425/0 | Screw |
| Engine - Piston, Crankshaft - ST 140 Pag.11 | ||
| # | Part Num. | Description |
| 1 | 118550336/0 | Nut |
| 2 | 118552833/0 | Starter Cup |
| 3 | 118552827/0 | Flywheel Fan |
| 4 | 118552834/0 | Flywheel Assembly |
| 5 | 118552644/0 | Flywheel Brake Assembly |
| 6 | 118550911/0 | Spring |
| 7 | 118551277/0 | Bolt |
| 8 | 9959-0620-16 | Flanged Screw TE M6x20 |
| 9 | 112789000/0 | Screw |
| 10 | 118550904/0 | Cover |
| 11 | 118550903/0 | Oil Breather Gasket |
| 12 | 118550902/0 | Valve |
| 13 | 118552835/0 | Oil Seal |
| 14 | 118552825/0 | Crankcase |
| 15 | 118552717/0 | Crankshaft Assembly |
| 16 | 118550288/0 | Flywheel Key |
| 17 | 118552533/0 | Gear Wheel |
| 18 | 118552716/0 | Camshaft |
| 19 | 118551460/0 | Governor Assembly |
| 20 | 118552541/0 | Governor Shaft |
| 21 | 118550666/0 | Washer |
| 22 | 118550935/0 | Oil Seal |
| 23 | 118550856/0 | Cotter Pin |
| 24 | 118552654/0 | Oil Seal |
| 25 | 118552713/1 | Crankcase |
| 26 | 118552712/0 | Oil Cap Assembly |
| 27 | 118551535/0 | Bolt |
| 28 | 118552646/0 | Screw |
| 29 | 118552528/0 | Valve Cover |
| 30 | 118550892/0 | Gasket |
| 31 | 118552826/0 | Valve Rocker Arm Set |
| 32 | 118552593/0 | Plate |
| 33 | 118550895/0 | Retainer |
| 34 | 118550896/0 | Spring |
| 35 | 118552838/0 | Intake + Exhaust Valve Assembly |
| 36 | 118550291/0 | Valve Lifter Assembly |
| 37 | 118550912/0 | Push Rod |
| 38 | 118552551/0 | Piston |
| 39 | 118552553/0 | Piston Ring Set |
| 40 | 118550915/0 | Piston Pin |
| 41 | 118550914/0 | Circlip |
| 42 | 118552807/0 | Connecting Rod Assembly |
| 43 | 118551117/0 | Gasket |
| 44 | 112789000/0 | Screw |
| 46 | 118552706/0 | Plate |
| 47 | 118552708/0 | Plate |
| Complete Engine, Engine Cover - ST 140 Pag.12 | ||
| # | Part Num. | Description |
| 1 | 118552685/1 | Complete Engine ST140 |
| 2 | 322055629/0 | Grey Engine Cover |
| 3 | 322055630/0 | Cover, Yellow |
| 4 | 322055627/0 | Grey Engine Cover |
| 11 | 1111-9234-01 | Do not use for the Italian Market |
| 11 | 1111-9237-01 | Do not use for the Italian Market |
| 11 | 1111-9244-01 | Engine Oil, SAE 30 - 0.6 L |
| 12 | 1111-9235-01 | Do not use for the Italian Market |
| 13 | 1111-9236-01 | Do not use for the Italian Market |
| 13 | 1111-9238-01 | Do not use for the Italian Market |
| 13 | 1111-9245-01 | Engine Oil, SAE 30 - 1.4 L |
| 15 | 1111-9301-01 | Engine Service Kit |
All technical product information in this catalog is based on information taken from official sources, including the manufacturer Castelgarden's websites, which we consider reliable. Unfortunately, even official documents can contain errors or printing mistakes - we cannot confirm that all this data is accurate and truly represents the facts. Most manufacturers reserve the right to change product characteristics or supplement descriptions without prior notice. It is strongly recommended to use the published information as basic information subject to review by the Castelgarden brand. Please clarify important parameters with a sales assistant at the time of purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or reproduction (in whole or in part) without reference to the original page is prohibited.
2L0482843/C22-2026
Data sheet
- SHIPPING IN
- Usually Ships in 10/15 BUSINESS DAYS
- CHECK ITEM CODE OR S/N
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- Machine Type
- Lawn Mowers
Specific References
Comments (0)
No customer reviews for the moment.
