Castelgarden Spare Parts for Lawnmower XC 53 S

We are distributors of original CASTELGARDEN spare parts and an authorized service center. We guarantee low prices and a professional repair service capable of advising you on purchasing the most suitable spare part to quickly resolve any maintenance and repair issue with your Lawnmower XC 53 S/2L0536843/C22.

Lawnmower XC 53 S/2L0536843/C22

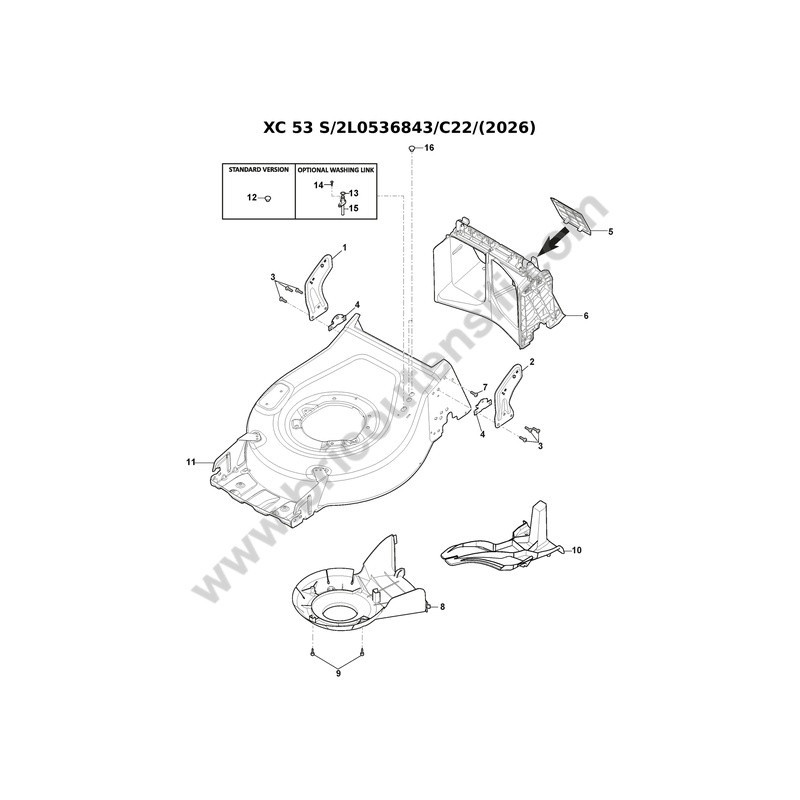

Castelgarden XC 53 S Drawing
  • Out-of-Stock

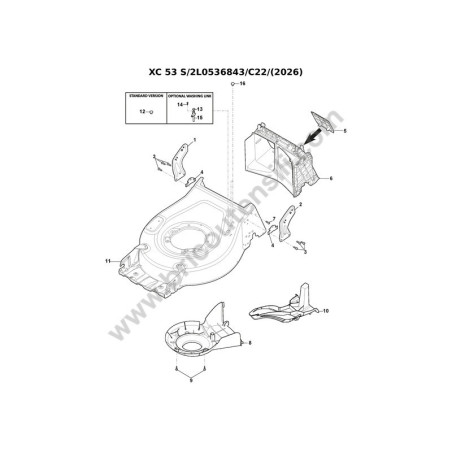

  • Castelgarden XC 53 S Drawing
  • Castelgarden XC 53 S Drawing - 1
  • Castelgarden XC 53 S Drawing - 2
  • Castelgarden XC 53 S Drawing - 3
  • Castelgarden XC 53 S Drawing - 4
  • Castelgarden XC 53 S Drawing - 5
  • Castelgarden XC 53 S Drawing - 6
  • Castelgarden XC 53 S Drawing - 7
  • Castelgarden XC 53 S Drawing - 8
  • Castelgarden XC 53 S Drawing - 9
  • Castelgarden XC 53 S Drawing - 10
  • Castelgarden XC 53 S Drawing - 11
  • Castelgarden XC 53 S Drawing - 12

Castelgarden Spare Parts for XC 53 S Lawnmower

SKU: 2L0536843/C22-ST1-2026
€0.12
VAT included

Castelgarden Spare Parts for Lawnmower XC 53 S

We are distributors of original CASTELGARDEN spare parts and an authorized service center. We guarantee low prices and a professional repair service capable of advising you on purchasing the most suitable spare part to quickly resolve any maintenance and repair issue with your Lawnmower XC 53 S/2L0536843/C22.

Lawnmower XC 53 S/2L0536843/C22

settings 202 Spare parts
description 12 exploded views
picture_as_pdf Download Exploded PDF
Quantity
Out-of-Stock

SHIPPING IN: Usually Ships in 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
Machine Type: Lawn Mowers
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

202 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
Image coming soon 381005195/2 Right Bracket €7.22
2
Image coming soon 381005197/2 Left Bracket €7.22
3
Image coming soon 112727802/0 Screw €1.54
4
Image coming soon 322545213/0 Plate €1.96
5
Door 322600310/0 Door €5.04
6
Rear Conveyor 322108329/0 Rear Conveyor €20.06
7
Image coming soon 112728697/0 Screw - Self-Threading Torx PT K50x16 €1.54
8
Image coming soon 322060250/1 Belt Guard €10.78
9
Image coming soon 112728903/0 Screw €1.40
10
Image coming soon 322140251/0 Mulching Deflector €13.44
11
Image coming soon 381005618/0 Grey Chassis €197.18
12
Image coming soon 322820077/1 Cap €1.54
13
Image coming soon 119035000/0 O-Ring €5.04
14
Image coming soon 112728450/0 Screw €1.54
15
Image coming soon 322034002/0 Washing Connection €1.67
16
Image coming soon 118737886/0 Cap €1.15
Page 2 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
Image coming soon 381302947/0 Front Wheel Axle €29.44
2
Image coming soon 322785305/1 Support €2.66
3
Image coming soon 112728697/0 Screw - Self-Threading Torx PT K50x16 €1.54
4
Image coming soon 322869735/0 Height Adjustment Control Rod €15.56
5
Image coming soon 122519823/0 Pin €2.24
6
Image coming soon 112000930/0 Benzing Ring ø6 €1.54
7
Image coming soon 122450494/0 Spring €4.77
8
Image coming soon 381302849/1 Rear Wheel Axle €50.46
9
Image coming soon 381003458/1 Height Adjustment Lever €10.78
10
Image coming soon 122534131/0 Pin €1.54
11
Image coming soon 122446192/0 Spring €2.12
12
Image coming soon 112154510/0 Self-Locking Nut M6 €1.54
13
Image coming soon 322785500/0 Support €1.82
14
Image coming soon 181003140/0 Drive Unit €66.64
15
Image coming soon 122753000/0 Pin €1.54
16
Right Pinion 122570133/0 Right Pinion €8.09
17
Image coming soon 122570134/0 Left Pinion €7.50
18
Image coming soon 112608600/0 Seeger €1.54
19
Image coming soon 322042067/0 Bushing €4.20
20
Image coming soon 112521371/0 Washer €1.54
22
Image coming soon 135063801/0 V-Belt €8.98
23
Image coming soon 122430254/0 Spring €4.06
24
Image coming soon 322778473/1 Bracket €2.12
25
Image coming soon 112728699/0 Screw €1.54
28
Image coming soon 112728697/0 Screw - Self-Threading Torx PT K50x16 €1.54
30
Image coming soon 122601909/0 Pulley €5.61
Page 3 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
Image coming soon 112735410/0 Screw €1.54
2
Image coming soon 322226279/0 Black Front Cover €29.04
2
Image coming soon 322226314/0 Red Front Cover Castelgarden for lawn mower €9.17
2
Image coming soon 322226318/0 Black Front Cover Castelgarden for lawn mower €11.98
3
Image coming soon 322055524/1 Insert €3.78
4
Image coming soon 322393742/1 Handle €7.09
Page 4 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
Image coming soon 381006785/0 Handle, Lower Part Black €25.51
2
Image coming soon 112155000/0 Self-Locking Nut M8 €1.54
3
Image coming soon 112521350/0 Washer €1.54
4
Image coming soon 112369500/0 Elastic Disc €1.40
5
Image coming soon 112760605/0 Screw €3.38
6
Image coming soon 381008691/0 Screws Outfit €8.56
7
Image coming soon 133320504/0 Cable Clamp €1.96
8
Image coming soon 118390020/0 Cable Clamp €1.82
Page 5 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
Image coming soon 381007571/2 Upper Handle Black with rubber grip €39.26
2
Image coming soon 122430313/0 Guide Spring €3.92
3
Image coming soon 112521330/0 Flat Washer - M6x12x1,6 €1.54
4
Image coming soon 112154510/0 Self-Locking Nut M6 €1.54
5
Image coming soon 118390020/0 Cable Clamp €1.82
6
Image coming soon 181003363/1 Black Engine Brake Lever €14.86
7
Image coming soon 181030087/0 Engine Brake Cable €13.37
8
Image coming soon 112727783/0 Screw €1.67
9
Image coming soon 112154510/0 Self-Locking Nut M6 €1.54
10
Image coming soon 181003364/0 Drive Control Lever €15.14
11
Image coming soon 381030172/0 Drive Control Cable €34.01
12
Image coming soon 322551685/0 Cable Fixing Plate ø22 €7.50
Page 6 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
Image coming soon 381007416/3 Wheel Ø 200 Castelgarden for lawn mower €17.53
2
Image coming soon 119216035/0 Bearing €3.50
3
Image coming soon 322110643/0 Grey Hub Cap €2.53
4
Image coming soon 112521350/0 Washer €1.54
5
Image coming soon 112155000/0 Self-Locking Nut M8 €1.54
5
Image coming soon 112293203/0 Flanged Nut Castelgarden for lawn mower €1.16
6
Image coming soon 381007417/3 Wheel Ø 280 €37.78
8
Image coming soon 112728706/0 Screw - Self-Threading Torx PT K40x16 €1.54
9
Image coming soon 322110644/0 Grey Hub Cap €3.38
10
Image coming soon 322600145/0 Wheel Protection €1.67
11
Image coming soon 322600240/0 Wheel Protection €5.33
12
Image coming soon 381007472/2 Wheel €37.78
Page 7 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
Image coming soon 322108309/1 Side Discharge Chute €11.36
2
Image coming soon 381008161/1 Side Discharge Assembly €11.48
3
Image coming soon 112727803/0 Screw €1.54
4
Image coming soon 322806659/0 Fulcrum Pin €0.01
5
Image coming soon 112154510/0 Self-Locking Nut M6 €1.54
6
Image coming soon 118203853/0 Cap €2.66
7
Image coming soon 122450456/1 Spring €3.23
8
Image coming soon 122517869/1 Pin €3.78
9
Image coming soon 112604896/0 Crown Fastener €1.54
10
Image coming soon 122517876/0 Pin €1.40
11
Image coming soon 322783013/0 Safety Catch €0.01
12
Image coming soon 122450493/0 Spring €1.33
Page 8 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
Image coming soon 112735108/1 Screw €2.12
2
Image coming soon 122465608/3 Hub With Pulley, Crankshaft Ø 25 Castelgarden for lawn mower €9.19
3
Image coming soon 1111-9293-01 Blade €24.00
3
Image coming soon 181004459/0 Blade Castelgarden for lawn mower €16.09
4
Image coming soon 122160400/0 Elastic Disc €1.82
5
Image coming soon 112523080/0 Washer €1.54
6
Image coming soon 112735698/0 Screw €1.82
7
Image coming soon 112139150/0 Key, Crankshaft Ø 25 €2.12
Page 9 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
Image coming soon 322486497/0 Door €1.54
2
Image coming soon 322486496/0 Grass Catcher, Upper Part €30.84
3
Image coming soon 322486150/1 Grass Catcher, Lower Right Part €21.02
3
Image coming soon 322486434/0 Grass Catcher, Lower Right Part Castelgarden for lawn mower €23.13
4
Image coming soon 322486151/1 Grass Catcher, Lower Left Part €21.46
4
Image coming soon 322486435/0 Grass Catcher, Lower Left Part Castelgarden for lawn mower €23.13
5
Image coming soon 122450479/0 Spring €3.38
6
Image coming soon 122517884/0 Pin €5.04
7
Image coming soon 322600355/1 Black Stone Guard €12.20
8
Image coming soon 322109594/0 Black Stone Guard Fulcrum Support €6.03
9
Image coming soon 112728697/0 Screw - Self-Threading Torx PT K50x16 €1.54
10
Image coming soon 381008735/0 Plastic Pin Kit €2.24
Page 10 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS
Pos. Item Price Buy
2
Image coming soon 112292102/0 Nut €1.67
3
Image coming soon 118551468/0 Starter Ass.y €72.19
4
Image coming soon 118551619/0 Starter Handle €8.97
5
Image coming soon 118550779/0 Starter Rope €7.16
6
Image coming soon 118551621/0 Starter Spring €10.10
7
Image coming soon 118551620/0 Starter Pulley €15.42
8
Image coming soon 118551626/0 Spring €2.39
9
Image coming soon 118551622/0 Starter Pawl €2.94
10
Image coming soon 118551625/0 Spring €3.07
11
Image coming soon 118551623/0 Cover €7.86
13
Image coming soon 118551624/0 Pulley Pin €4.20
14
Image coming soon 118551788/0 Air Shroud €39.26
15
Image coming soon 118550907/0 Pin €5.17
16
Image coming soon 118550906/0 Pin €4.77
17
Image coming soon 112791500/0 Screw - TE M6x25 €1.54
18
Image coming soon 118551474/0 Electronic Coil €49.35
20
Image coming soon 1111-9206-01 Spark Plug (Rc12Yc) €5.28
21
Image coming soon 112789000/0 Screw €1.54
22
Image coming soon 118551456/0 Choke Control €23.55
23
Image coming soon 118551459/0 Rod €8.34
24
Image coming soon 118551352/0 Retainer €3.66
25
Image coming soon 118552610/0 Carburetor €69.99
26
Image coming soon 118552545/0 Stud €13.25
27
Image coming soon 118550929/0 Gasket €1.54
28
Image coming soon 118552513/0 Thermal Spacer €3.92
29
Image coming soon 118550927/0 Gasket €4.77
30
Image coming soon 118551124/0 Gasket €4.77
31
Image coming soon 118551462/0 Air Cleaner Assembly €33.65
33
Image coming soon 118550257/0 Air Filter €11.58
34
Image coming soon 118551463/0 Air Cleaner Cover €23.97
35
Image coming soon 112292102/0 Nut €1.67
36
Image coming soon 118551480/1 Fuel Pipe €6.32
37
Hose Clamp 118550918/0 Hose Clamp €1.54
38
Image coming soon 118550314/0 Fuel Filter €4.34
39
Image coming soon 118552819/0 Fuel Tank €42.05
40
Image coming soon 118550943/1 Fuel Tank Cap €6.32
41
Image coming soon 112791400/0 Screw - TE M6x20 €1.40
42
Image coming soon 118551479/0 Breather Tube €7.64
43
Image coming soon 118550933/0 Throttle Control Lever €6.17
45
Image coming soon 118552542/0 Bracket €18.23
46
Image coming soon 118551458/0 Spring €1.82
49
Image coming soon 118551457/0 Throttle Rod €7.58
50
Image coming soon 118550898/0 Muffler Gasket €2.39
51
Image coming soon 118551465/0 Muffler €32.23
52
Image coming soon 118552544/0 Stud €8.71
53
Image coming soon 118551466/0 Muffler Guard €23.69
54
Image coming soon 118550806/0 Nut €1.54
Page 11 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
Image coming soon 118550336/0 Nut €6.03
2
Image coming soon 118552833/0 Starter Cup €5.71
3
Image coming soon 118552827/0 Flywheel Fan €17.64
4
Image coming soon 118552834/0 Flywheel Assembly €25.25
5
Image coming soon 118551277/0 Bolt €1.33
6
Image coming soon 112791500/0 Screw - TE M6x25 €1.54
7
Image coming soon 118552643/0 Flywheel Brake Ass.y €26.52
8
Image coming soon 118551522/0 Spring €2.39
9
Image coming soon 118550300/0 Oil Seal €7.22
10
Image coming soon 118552823/0 Crankcase €82.36
11
Image coming soon 112735699/0 Screw €1.40
12
Image coming soon 118552526/0 Cover €6.53
13
Image coming soon 118552527/0 Gasket €3.93
14
Image coming soon 112790500/0 Screw €1.96
15
Image coming soon 118552516/0 Gear €6.44
16
Image coming soon 118552583/0 Crankshaft Assembly €107.92
17
Image coming soon 118552533/0 Gear Castelgarden for lawn mower €12.38
18
Image coming soon 118551448/0 Camshaft €36.43
19
Image coming soon 112789000/0 Screw €1.54
20
Image coming soon 118551460/0 Governor Assembly €16.36
21
Image coming soon 118552541/0 Governor Shaft €3.12
22
Image coming soon 118550935/0 Oil Seal €4.51
23
Image coming soon 118550856/0 Cotter Pin €1.46
24
Image coming soon 118552654/0 Oil Seal €2.85
25
Image coming soon 118552569/1 Crankcase €92.73
26
Image coming soon 118551117/0 Gasket €7.86
27
Image coming soon 112791500/0 Screw - TE M6x25 €1.54
28
Image coming soon 118552647/0 Screw €0.00 Not available for order
29
Image coming soon 118552577/0 Valve Cover €5.72
30
Image coming soon 118552828/0 Gasket €4.44
31
Image coming soon 118550893/0 Valve Rocker Arm Set €13.12
32
Image coming soon 118552593/0 Plate €4.09
33
Image coming soon 118550895/0 Retainer €4.51
34
Image coming soon 118550896/0 Spring €2.79
35
Image coming soon 118552838/0 Intake + Exhaust Valve Ass.y €15.10
36
Image coming soon 118551449/0 Valve Lifter €9.59
37
Image coming soon 118551251/0 Push Rod €4.06
38
Image coming soon 118552551/0 Piston €31.28
39
Image coming soon 118552553/0 Piston Ring Set €26.11
40
Image coming soon 118550915/0 Piston Pin €5.33
41
Image coming soon 118550914/0 Pin Retainer €1.54
42
Image coming soon 118551446/0 Connecting Rod Assembly €37.86
43
Image coming soon 112791500/0 Screw - TE M6x25 €1.54
44
Image coming soon 118551444/0 Oil Level Tube Assembly €12.61
45
Image coming soon 118550288/0 Flywheel Key €6.17
Page 12 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
Image coming soon 118552806/1 Complete Engine - WBE 170 OHV €276.66
2
Image coming soon 322055631/0 Grey Cowling €3.78
3
Image coming soon 322055632/0 Shroud, Yellow €6.72
4
Image coming soon 322055628/0 Grey Cowling €5.04
11
Image coming soon 1111-9234-01 Engine oil, SAE 30 - 0.6 L €0.00 Not available for order
11
Image coming soon 1111-9237-01 10W-30 4 stroke oil 0,6 lt €0.00 Not available for order
11
Image coming soon 1111-9244-01 Engine oil, SAE 30 - 0.6 L Castelgarden for lawn mower €7.98
12
Image coming soon 1111-9235-01 SAE 30 4 STROKE OIL 1 LT €0.00 Not available for order
13
Image coming soon 1111-9236-01 Engine oil, SAE 30 - 1.4 L €0.00 Not available for order
13
Image coming soon 1111-9238-01 10W-30 4 STROKE OIL 1,4 L €0.00 Not available for order
13
Image coming soon 1111-9245-01 Engine oil, SAE 30 - 1.4 L Castelgarden for lawn mower €15.96
15
Image coming soon 1111-9289-01 Engine Service Kit €29.50

Shipping and delivery information will be available shortly.

Castelgarden Spare Parts for Lawnmower XC 53 S

We are distributors of genuine CASTELGARDEN spare parts and an authorized service center. We guarantee low prices and a professional repair service able to advise you on purchasing the most suitable spare part to quickly solve any maintenance and repair issue with your Lawnmower XC 53 S/2L0536843/C22.

Lawnmower XC 53 S/2L0536843/C22

Lawnmower XC 53 S/2L0536843/C22
Chassis Pag.1
# Part Num. Description
1 381005195/2 Right Bracket
2 381005197/2 Left Bracket
3 112727802/0 Screw
4 322545213/0 Plate
5 322600310/0 Door
6 322108329/0 Rear Chute
7 112728697/0 Screw - Self-tapping Torx PT K50x16
8 322060250/1 Belt Guard
9 112728903/0 Screw
10 322140251/0 Mulching Deflector
11 381005618/0 Grey Deck
12 322820077/1 Plug
13 119035000/0 O-Ring
14 112728450/0 Screw
15 322034002/0 Washing Connection
16 118737886/0 Cap
Cutting Height Adjustment Pag.2
# Part Num. Description
1 381302947/0 Front Wheels Axle
2 322785305/1 Support
3 112728697/0 Screw - Self-tapping Torx PT K50x16
4 322869735/0 Height Adjustment Control Rod
5 122519823/0 Pin
6 112000930/0 Benzing Ring ø6
7 122450494/0 Spring
8 381302849/1 Rear Wheels Axle
9 381003458/1 Height Adjustment Lever
10 122534131/0 Pin
11 122446192/0 Spring
12 112154510/0 Self-Locking Nut M6
13 322785500/0 Support
14 181003140/0 Drive Unit
15 122753000/0 Pin
16 122570133/0 Right Pinion
17 122570134/0 Left Pinion
18 112608600/0 Seeger
19 322042067/0 Bushing
20 112521371/0 Washer
22 135063801/0 V-Belt
23 122430254/0 Spring
24 322778473/1 Bracket
25 112728699/0 Screw
28 112728697/0 Screw - Self-tapping Torx PT K50x16
30 122601909/0 Pulley
Front Mask Pag.3
# Part Num. Description
1 112735410/0 Screw
2 322226279/0 Red Front Cover
2 322226314/0 Red Front Cover
2 322226318/0 Black Front Cover
3 322055524/1 Insert
4 322393742/1 Handle
Handle, Lower Part Pag.4
# Part Num. Description
1 381006785/0 Lower Handle, Black
2 112155000/0 Self-Locking Nut M8
3 112521350/0 Washer
4 112369500/0 Spring Washer
5 112760605/0 Screw
6 381008691/0 Screws Outfit
7 133320504/0 Cable Clamp
8 118390020/0 Cable Clamp
Handle, Upper Part Pag.5
# Part Num. Description
1 381007571/2 Upper Handle, Black with rubber grip
2 122430313/0 Guide Spring
3 112521330/0 Flat Washer - M6x12x1.6
4 112154510/0 Self-Locking Nut M6
5 118390020/0 Cable Clamp
6 181003363/1 Engine Brake Lever, Black
7 181030087/0 Engine Brake Cable
8 112727783/0 Screw
9 112154510/0 Self-Locking Nut M6
10 181003364/0 Drive Control Lever
11 381030172/0 Drive Control Cable
12 322551685/0 Cable Fastening Plate ø22
Wheels and Hub Caps Pag.6
# Part Num. Description
1 381007416/3 Wheel Ø 200
2 119216035/0 Bearing
3 322110643/0 Grey Hub Cap
4 112521350/0 Washer
5 112155000/0 Self-Locking Nut M8
5 112293203/0 Flanged Nut
6 381007417/3 Wheel Ø 280
8 112728706/0 Screw - Self-tapping Torx PT K40x16
9 322110644/0 Grey Hub Cap
10 322600145/0 Wheel Guard
11 322600240/0 Wheel Guard
12 381007472/2 Wheel
Side Discharge Pag.7
# Part Num. Description
1 322108309/1 Side Discharge Chute
2 381008161/1 Side Discharge Ass.y
3 112727803/0 Screw
4 322806659/0 Fulcrum Pin
5 112154510/0 Self-Locking Nut M6
6 118203853/0 Cap
7 122450456/1 Spring
8 122517869/1 Pin
9 112604896/0 Crown Fastener
10 122517876/0 Pin
11 322783013/0 Safety Latch
12 122450493/0 Spring
Blade Pag.8
# Part Num. Description
1 112735108/1 Screw
2 122465608/3 Hub With Pulley, Crankshaft Ø 25
3 1111-9293-01 Mulching Blade (STIGA Pack)
3 181004459/0 Blade
4 122160400/0 Spring Washer
5 112523080/0 Washer
6 112735698/0 Screw
7 112139150/0 Key, Crankshaft Ø 25
Grass Catcher Pag.9
# Part Num. Description
1 322486497/0 Door
2 322486496/0 Grass Catcher, Upper Part
3 322486150/1 Grass Catcher, Lower Right Part
3 322486434/0 Grass Catcher, Lower Right Part
4 322486151/1 Grass Catcher, Lower Left Part
4 322486435/0 Grass Catcher, Lower Left Part
5 122450479/0 Spring
6 122517884/0 Pin
7 322600355/1 Stone Guard, Black
8 322109594/0 Stone Guard Fulcrum Support, Black
9 112728697/0 Screw - Self-tapping Torx PT K50x16
10 381008735/0 Plastic Pin Kit
Engine - Carburetor, Fuel Tank - ST 170 Pag.10
# Part Num. Description
2 112292102/0 Nut
3 118551468/0 Starter Ass.y
4 118551619/0 Starter Handle
5 118550779/0 Starter Rope
6 118551621/0 Starter Spring
7 118551620/0 Starter Pulley
8 118551626/0 Spring
9 118551622/0 Starter Pawl
10 118551625/0 Spring
11 118551623/0 Cover
13 118551624/0 Pulley Pin
14 118551788/0 Air Shroud
15 118550907/0 Pin
16 118550906/0 Pin
17 112791500/0 Screw - TE M6x25
18 118551474/0 Electronic Coil
20 1111-9206-01 Spark Plug (Rc12Yc)
21 112789000/0 Screw
22 118551456/0 Choke Control
23 118551459/0 Rod
24 118551352/0 Retainer
25 118552610/0 Carburetor
26 118552545/0 Stud Bolt
27 118550929/0 Gasket
28 118552513/0 Thermal Spacer
29 118550927/0 Gasket
30 118551124/0 Gasket
31 118551462/0 Air Filter Ass.y
33 118550257/0 Air Filter
34 118551463/0 Air Filter Cover
35 112292102/0 Nut
36 118551480/1 Fuel Hose
37 118550918/0 Hose Clamp
38 118550314/0 Fuel Filter
39 118552819/0 Fuel Tank
40 118550943/1 Fuel Tank Cap
41 112791400/0 Screw - TE M6x20
42 118551479/0 Breather Pipe
43 118550933/0 Throttle Control Lever
45 118552542/0 Bracket
46 118551458/0 Spring
49 118551457/0 Throttle Rod
50 118550898/0 Muffler Gasket
51 118551465/0 Muffler
52 118552544/0 Stud Bolt
53 118551466/0 Muffler Guard
54 118550806/0 Nut
Engine - Piston, Crankshaft - ST 170 Pag.11
# Part Num. Description
1 118550336/0 Nut
2 118552833/0 Starter Cup
3 118552827/0 Flywheel Fan
4 118552834/0 Flywheel Ass.y
5 118551277/0 Bolt
6 112791500/0 Screw - TE M6x25
7 118552643/0 Flywheel Brake Ass.y
8 118551522/0 Spring
9 118550300/0 Oil Seal
10 118552823/0 Crankcase
11 112735699/0 Screw
12 118552526/0 Cover
13 118552527/0 Gasket
14 112790500/0 Screw
15 118552516/0 Plate
16 118552583/0 Crankshaft Ass.y
17 118552533/0 Gear
18 118551448/0 Camshaft
19 112789000/0 Screw
20 118551460/0 Governor Ass.y
21 118552541/0 Governor Shaft
22 118550935/0 Oil Seal
23 118550856/0 Cotter Pin
24 118552654/0 Oil Seal
25 118552569/1 Crankcase
26 118551117/0 Gasket
27 112791500/0 Screw - TE M6x25
28 118552647/0 Screw
29 118552577/0 Valve Cover
30 118552828/0 Gasket
31 118550893/0 Valve Rocker Arm Set
32 118552593/0 Plate
33 118550895/0 Retainer
34 118550896/0 Spring
35 118552838/0 Intake + Exhaust Valve Ass.y
36 118551449/0 Tappet
37 118551251/0 Push Rod
38 118552551/0 Piston
39 118552553/0 Piston Ring Set
40 118550915/0 Piston Pin
41 118550914/0 Pin Retainer
42 118551446/0 Connecting Rod Ass.y
43 112791500/0 Screw - TE M6x25
44 118551444/0 Oil Dipstick Tube Ass.y
45 118550288/0 Flywheel Key
Complete Engine, Engine Cover - ST 170 Pag.12
# Part Num. Description
1 118552806/1 Complete Engine - WBE 170 OHV
2 322055631/0 Grey Engine Cover
3 322055632/0 Shroud, Yellow
4 322055628/0 Grey Engine Cover
11 1111-9234-01 Do not use for Italian Market
11 1111-9237-01 Do not use for Italian Market
11 1111-9244-01 Engine oil, SAE 30 - 0.6 L
12 1111-9235-01 Do not use for Italian Market
13 1111-9236-01 Do not use for Italian Market
13 1111-9238-01 Do not use for Italian Market
13 1111-9245-01 Engine oil, SAE 30 - 1.4 L
15 1111-9289-01 Engine Service Kit

All technical product information in this catalog is based on information taken from official sources, including the Castelgarden manufacturer's websites, which we believe to be reliable. Unfortunately, even official documents may contain errors or misprints - we are unable to confirm that all of this data is accurate and truly represents the facts. Most manufacturers reserve the right to change product specifications or complete descriptions without prior notice. We strongly recommend using the published information as basic information subject to review by the Castelgarden brand. Please clarify important parameters with a sales assistant at the time of purchase. All contents included in this catalog are the intellectual property of www.bricoutensili.com. Any publication or reproduction (in whole or in part) without reference to the original page is strictly prohibited.

2L0536843/C22-ST1-2026

Data sheet

Machine Type
Lawn Mowers
SHIPPING IN
Usually Ships in 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

Download

XC_53_S-2026

Catalogo PDF Castelgarden

Download (2.37MB)
Comments (0)
No customer reviews for the moment.
