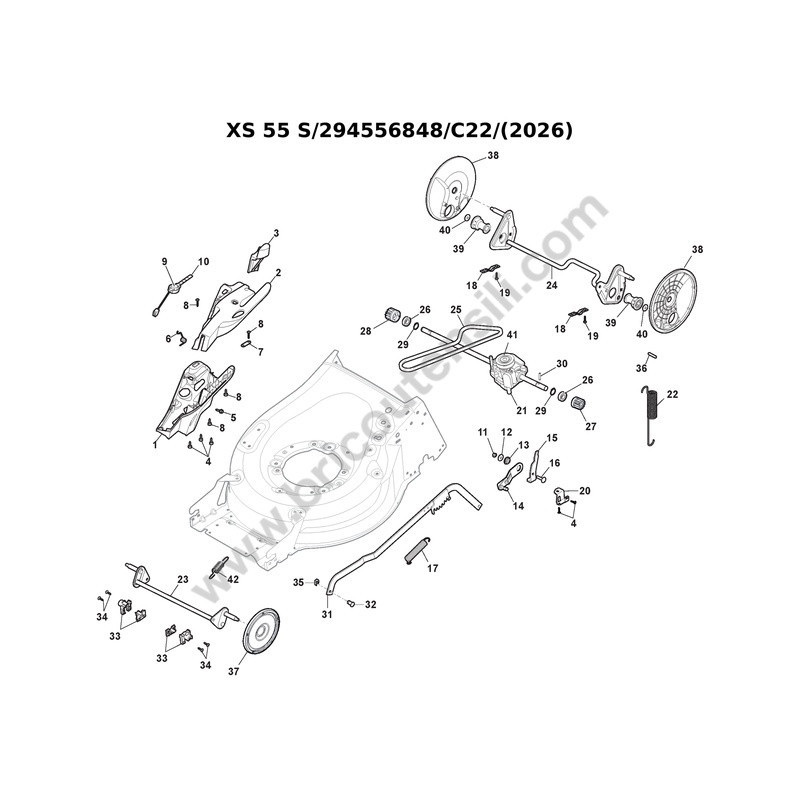

Page 1
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
1
|
|
322055264/0 Lower Cover | €8.13 | |
|
2
|
|
322055265/0 Upper Cover | €8.26 | |
|
3
|
|
322602026/0 Button | €3.92 | |
|
4
|
|
112728699/0 Screw | €1.54 | |
|
5
|
|
125943004/0 Screw | €1.82 | |
|
6
|
|
122450477/0 Spring | €1.82 | |
|
7
|
|
322981471/1 Plate | €1.54 | |
|
8
|
|
112728697/0 Screw - Self-Threading Torx PT K50x16 | €1.54 | |
|
9
|
|
322602027/0 Lens | €1.82 | |
|
10
|
|
322602028/0 Indicator | €1.54 | |
|
11
|
|
112154510/0 Self-Locking Nut M6 | €1.54 | |
|
12
|
|
112523040/0 Flat Washer - M4x18x1,6 | €1.54 | |
|
13
|
|
122517873/0 Pin | €2.94 | |
|
14
|
|
381003475/0 Height Adjustment Lever | €0.00 | Not available for order |
|
14
|
|
381003475/1 Height Adjustment Lever Castelgarden for lawn mower | €0.00 | Not available for order |
|
14
|
|
381003475/2 Height Adjustment Lever Castelgarden for lawn mower | €8.63 | |
|
15
|
|
322778475/0 Bracket | €2.79 | |
|
16
|
|
112815270/0 Screw | €1.54 | |
|
17
|
|
122450480/0 Spring | €2.39 | |
|
18
|
|
322545152/0 Plate | €1.54 | |
|
19
|
|
112728697/0 Screw - Self-Threading Torx PT K50x16 | €1.54 | |
|
20
|
|
322778473/0 Bracket | €0.00 | Not available for order |
|
20
|
|
322778473/1 Bracket | €2.12 | |
|
21
|
|
181003114/0 Drive Unit | €0.00 | Not available for order |
|
22
|
|
122450478/0 Spring | €8.83 | |
|
23
|
|
381302883/0 Front Wheel Axle | €0.00 | Not available for order |
|
23
|
|
381302883/1 Front Wheel Axle Castelgarden for lawn mower | €32.23 | |
|
24
|
|
381302891/0 Rear Wheel Axle | €0.00 | Not available for order |
|
24
|
|
381302891/1 Rear Wheel Axle Castelgarden for lawn mower | €0.00 | Not available for order |
|
25
|
|
135063902/1 Belt Castelgarden for lawn mower | €9.46 | |
|
26
|
|
119216035/0 Bearing | €3.50 | |
|
27
|
|
122570110/1 Right Pinion | €7.36 | |
|
27
|
|
322570138/0 Right Pinion Castelgarden for lawn mower | €0.00 | Not available for order |
|
28
|
|
122570120/1 Left Pinion | €7.36 | |
|
28
|
|
322570139/0 Left Pinion Castelgarden for lawn mower | €0.00 | Not available for order |
|
29
|
|
112608600/0 Seeger | €1.54 | |
|
30
|
|
122753000/0 Pin | €1.54 | |
|
31
|
|
381002046/0 Wheel Control Rod | €0.00 | Not available for order |
|
31
|
|
381002046/1 Wheel Control Rod Castelgarden for lawn mower | €54.67 | |
|
32
|
|
122519820/0 Pin | €2.12 | |
|
33
|
|
322785305/0 Support | €0.00 | Not available for order |
|
33
|
|
322785305/1 Support | €2.66 | |
|
34
|
|
112728697/0 Screw - Self-Threading Torx PT K50x16 | €1.54 | |
|
35
|
|
112436050/0 Plate | €1.82 | |
|
36
|
|
112645708/0 Pin | €0.01 | |
|
37
|
|
322600247/0 Wheel Protection | €0.00 | Not available for order |
|
38
|
|
322600205/1 Wheel Protection | €0.00 | Not available for order |
|
39
|
|
322042068/0 Bushing | €0.00 | Not available for order |
|
40
|
|
112521371/0 Washer | €1.54 | |
|
41
|
|
122601909/0 Pulley | €5.61 | |
|
42
|
|
122450481/0 Front Axle Lift Spring | €3.07 |
Page 2
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
1
|
|
322500113/0 Comb | €9.53 | |
|
2
|
|
112728697/0 Screw - Self-Threading Torx PT K50x16 | €1.54 | |
|
3
|
|
112728904/0 Screw | €1.54 | |
|
4
|
|
322055524/0 Insert | €0.00 | Not available for order |
|
4
|
|
322055524/1 Insert | €3.78 | |
|
5
|
|
322226217/0 Red Front Plate | €17.46 | |
|
5
|
|
322226221/0 Black Front Plate Castelgarden for lawn mower | €17.46 | |
|
5
|
|
322226242/0 Red Front Plate Castelgarden for lawn mower | €17.46 | |
|
6
|
|
322393742/0 Handle | €7.16 | |
|
6
|
|
322393742/1 Handle | €7.09 | |
|
7
|
|
381004779/0 Grey Chassis | €0.01 | |
|
7
|
|
381004794/0 Red Chassis Castelgarden for lawn mower | €0.00 | Not available for order |
|
7
|
|
381004856/0 Grey Chassis Castelgarden for lawn mower | €238.31 |
Page 3
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
1
|
|
381007559/0 Handle, Upper Part | €138.78 | |
|
2
|
|
122430313/0 Guide Spring | €3.92 | |
|
3
|
|
112521330/0 Flat Washer - M6x12x1,6 | €1.54 | |
|
4
|
|
112154510/0 Self-Locking Nut M6 | €1.54 | |
|
5
|
|
322806644/0 Protection | €2.39 | |
|
6
|
|
112523000/1 Washer | €1.54 | |
|
7
|
|
112727812/0 Screw | €1.54 | |
|
8
|
|
322680017/0 Washer | €1.96 | |
|
9
|
|
122131750/0 Nut | €1.96 | |
|
10
|
|
322399835/0 Black Knob | €1.96 | |
|
11
|
|
381003253/0 Quick Release Lever | €0.00 | Not available for order |
|
11
|
|
381103359/1 Quick Release Lever Castelgarden for lawn mower | €5.04 | |
|
12
|
|
381030108/0 Drive Cable | €20.06 | |
|
13
|
|
181003437/0 Black Engine Brake Lever | €40.46 | |
|
14
|
|
181003438/0 Black Drive Control Lever | €0.00 | Not available for order |
|
14
|
|
181003438/1 Black Drive Control Lever Castelgarden for lawn mower | €33.65 | |
|
15
|
|
181030053/0 Engine Brake Cable | €0.00 | Not available for order |
|
16
|
|
112727784/0 Screw | €1.40 | |
|
17
|
|
322551639/0 Cable Fixing Plate ø25 | €14.37 | |
|
17
|
|
322551684/0 Cable Fixing Plate ø25 Castelgarden for lawn mower | €8.83 | |
|
18
|
|
112154510/0 Self-Locking Nut M6 | €1.54 |
Page 4
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
1
|
|
119216035/0 Bearing | €3.50 | |
|
2
|
|
381007416/2 Wheel Ø 200 | €17.53 | |
|
2
|
|
381007416/3 Wheel Ø 200 Castelgarden for lawn mower | €17.53 | |
|
3
|
|
322110643/0 Grey Hub Cap | €2.53 | |
|
4
|
|
381007417/3 Wheel Ø 280 | €37.78 | |
|
5
|
|
322110644/0 Grey Hub Cap | €3.38 | |
|
6
|
|
112728706/0 Screw - Self-Threading Torx PT K40x16 | €1.54 | |
|
7
|
|
322120115/0 Driving Gear | €37.78 | Not available for order |
|
8
|
|
122170845/0 Spacer | €0.01 | |
|
9
|
|
381007472/2 Wheel | €37.78 |
Page 5
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
1
|
|
322108315/0 Conveyor | €11.77 | |
|
3
|
|
122450456/1 Spring | €3.23 | |
|
4
|
|
112604896/0 Crown Fastener | €1.54 | |
|
5
|
|
112727803/0 Screw | €1.54 | |
|
6
|
|
322806659/0 Fulcrum Pin | €0.01 | |
|
7
|
|
112154510/0 Self-Locking Nut M6 | €1.54 | |
|
8
|
|
122517869/1 Pin | €3.78 | |
|
9
|
|
118203853/0 Cap | €2.66 | |
|
10
|
|
122517876/0 Pin | €1.40 | |
|
11
|
|
322783013/0 Safety Catch | €0.01 | |
|
12
|
|
122450493/0 Spring | €1.33 | |
|
13
|
|
381008162/1 Side Discharge Assembly | €18.93 |
Page 6
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
1
|
|
381005195/2 Right Bracket | €7.22 | |
|
2
|
|
381005197/2 Left Bracket | €7.22 | |
|
3
|
|
112727801/0 Screw | €1.39 | |
|
4
|
|
322545213/0 Plate | €1.96 | |
|
6
|
|
381102204/1 Rear Conveyor Assembly | €26.97 | |
|
7
|
|
112728904/0 Screw | €1.54 | |
|
8
|
|
322060271/2 Mulching Guard | €11.48 | |
|
9
|
|
112735645/0 Screw | €1.82 | |
|
10
|
|
112154510/0 Self-Locking Nut M6 | €1.54 | |
|
11
|
|
112815205/0 Screw | €1.54 | |
|
12
|
|
112521330/0 Flat Washer - M6x12x1,6 | €1.54 | |
|
13
|
|
119035000/0 O-Ring | €5.04 | |
|
14
|
|
112728697/0 Screw - Self-Threading Torx PT K50x16 | €1.54 | |
|
15
|
|
322034002/0 Washing Connection | €1.67 | |
|
16
|
|
322140246/0 Deflector | €13.31 | |
|
18
|
|
122042073/0 Bushing | €1.67 |
Page 7
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
1
|
|
1111-9180-01 Hub With Pulley, Crankshaft Ø 25 | €9.19 | |
|
1
|
|
122465608/3 Hub With Pulley, Crankshaft Ø 25 Castelgarden for lawn mower | €9.19 | |
|
2
|
|
181004464/0 Blade | €17.64 | |
|
3
|
|
122160400/0 Elastic Disc | €1.82 | |
|
4
|
|
112523080/0 Washer | €1.54 | |
|
5
|
|
112735698/0 Screw | €1.82 | |
|
6
|
|
112139150/0 Key, Crankshaft Ø 25 | €2.12 | |
|
7
|
|
112735108/1 Screw | €2.12 |
Page 8
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
1
|
|
181006411/0 Bag Frame | €0.00 | Not available for order |
|
1
|
|
181006411/1 Bag Frame Castelgarden for lawn mower | €13.18 | |
|
2
|
|
322557177/0 Plate | €1.54 | |
|
3
|
|
112728697/0 Screw - Self-Threading Torx PT K50x16 | €1.54 | |
|
4
|
|
122517884/0 Pin | €5.04 | |
|
5
|
|
181102349/0 Fabric Bag | €42.05 | |
|
6
|
|
381486039/0 Bag, Upper Part Black | €28.04 | |
|
7
|
|
122450479/0 Spring | €3.38 | |
|
8
|
|
322600308/0 Black Stone Guard | €14.15 | |
|
9
|
|
322109569/0 Black Stone Guard Fulcrum Support | €4.64 | |
|
10
|
|
322486424/0 Indicator | €1.96 |
Page 9
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
Page 10
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
Page 11
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
1
|
|
118552676/1 Complete Engine, WBE 200 | €276.66 | |
|
2
|
|
322055631/0 Grey Cowling | €3.78 | |
|
3
|
|
322055632/0 Shroud, Yellow | €6.72 | |
|
4
|
|
322055628/0 Grey Cowling | €5.04 | |
|
11
|
|
1111-9234-01 Engine oil, SAE 30 - 0.6 L | €0.00 | Not available for order |
|
11
|
|
1111-9237-01 10W-30 4 stroke oil 0,6 lt | €0.00 | Not available for order |
|
11
|
|
1111-9244-01 Engine oil, SAE 30 - 0.6 L Castelgarden for lawn mower | €7.98 | |
|
12
|
|
1111-9235-01 SAE 30 4 STROKE OIL 1 LT | €0.00 | Not available for order |
|
13
|
|
1111-9236-01 Engine oil, SAE 30 - 1.4 L | €0.00 | Not available for order |
|
13
|
|
1111-9238-01 10W-30 4 STROKE OIL 1,4 L | €0.00 | Not available for order |
|
13
|
|
1111-9245-01 Engine oil, SAE 30 - 1.4 L Castelgarden for lawn mower | €15.96 | |
|
15
|
|
1111-9289-01 Engine Service Kit | €29.50 |
Shipping and delivery information will be available shortly.
Castelgarden Spare Parts for Lawn Mower XS 55 S
We are distributors of original CASTELGARDEN spare parts and an authorized service center. We guarantee low prices and a professional repair service capable of advising you on the purchase of the most suitable spare part to quickly solve any maintenance and repair issue for your Lawn Mower XS 55 S/294556848/C22.
| Lawn Mower XS 55 S/294556848/C22 | ||
|---|---|---|
| Chassis And Cutting Height Adjustment Pag.1 | ||
| # | Part Num. | Description |
| 1 | 322055264/0 | Lower Cover |
| 2 | 322055265/0 | Upper Cover |
| 3 | 322602026/0 | Button |
| 4 | 112728699/0 | Screw |
| 5 | 125943004/0 | Screw |
| 6 | 122450477/0 | Spring |
| 7 | 322981471/1 | Plate |
| 8 | 112728697/0 | Screw - Self-Tapping Torx PT K50x16 |
| 9 | 322602027/0 | Lens |
| 10 | 322602028/0 | Indicator |
| 11 | 112154510/0 | Self-Locking Nut M6 |
| 12 | 112523040/0 | Flat Washer - M4x18x1,6 |
| 13 | 122517873/0 | Pin |
| 14 | 381003475/0 | Height Adjustment Lever |
| 14 | 381003475/1 | Height Adjustment Lever |
| 14 | 381003475/2 | Height Adjustment Lever |
| 15 | 322778475/0 | Bracket |
| 16 | 112815270/0 | Screw |
| 17 | 122450480/0 | Spring |
| 18 | 322545152/0 | Plate |
| 19 | 112728697/0 | Screw - Self-Tapping Torx PT K50x16 |
| 20 | 322778473/0 | Bracket |
| 20 | 322778473/1 | Bracket |
| 21 | 181003114/0 | Drive Unit |
| 22 | 122450478/0 | Spring |
| 23 | 381302883/0 | Front Wheel Axle |
| 23 | 381302883/1 | Front Wheel Axle |
| 24 | 381302891/0 | Rear Wheel Axle |
| 24 | 381302891/1 | Rear Wheel Axle |
| 25 | 135063902/1 | Belt |
| 26 | 119216035/0 | Bearing |
| 27 | 122570110/1 | Right Pinion |
| 27 | 322570138/0 | Right Pinion |
| 28 | 122570120/1 | Left Pinion |
| 28 | 322570139/0 | Left Pinion |
| 29 | 112608600/0 | Circlip |
| 30 | 122753000/0 | Pin |
| 31 | 381002046/0 | Wheel Control Rod |
| 31 | 381002046/1 | Wheel Control Rod |
| 32 | 122519820/0 | Pin |
| 33 | 322785305/0 | Support |
| 33 | 322785305/1 | Support |
| 34 | 112728697/0 | Screw - Self-Tapping Torx PT K50x16 |
| 35 | 112436050/0 | Plate |
| 36 | 112645708/0 | Pin |
| 37 | 322600247/0 | Wheel Protection |
| 38 | 322600205/1 | Wheel Protection |
| 39 | 322042068/0 | Bushing |
| 40 | 112521371/0 | Washer |
| 41 | 122601909/0 | Pulley |
| 42 | 122450481/0 | Front Axle Lift Spring |
| Front Mask Pag.2 | ||
| # | Part Num. | Description |
| 1 | 322500113/0 | Comb |
| 2 | 112728697/0 | Screw - Self-Tapping Torx PT K50x16 |
| 3 | 112728904/0 | Screw |
| 4 | 322055524/0 | Insert |
| 4 | 322055524/1 | Insert |
| 5 | 322226217/0 | Red Front Plate |
| 5 | 322226221/0 | Black Front Plate |
| 5 | 322226242/0 | Red Front Plate |
| 6 | 322393742/0 | Handle |
| 6 | 322393742/1 | Handle |
| 7 | 381004779/0 | Red Chassis |
| 7 | 381004794/0 | Red Chassis |
| 7 | 381004856/0 | Grey Chassis |
| Handle, Upper Part Pag.3 | ||
| # | Part Num. | Description |
| 1 | 381007559/0 | Handle, Upper Part |
| 2 | 122430313/0 | Guide Spring |
| 3 | 112521330/0 | Flat Washer - M6x12x1,6 |
| 4 | 112154510/0 | Self-Locking Nut M6 |
| 5 | 322806644/0 | Protection |
| 6 | 112523000/1 | Washer |
| 7 | 112727812/0 | Screw |
| 8 | 322680017/0 | Washer |
| 9 | 122131750/0 | Nut |
| 10 | 322399835/0 | Black Knob |
| 11 | 381003253/0 | Quick Release Lever |
| 11 | 381103359/1 | Quick Release Lever |
| 12 | 381030108/0 | Drive Cable |
| 13 | 181003437/0 | Black Engine Brake Lever |
| 14 | 181003438/0 | Black Drive Control Lever |
| 14 | 181003438/1 | Black Drive Control Lever |
| 15 | 181030053/0 | Engine Brake Cable |
| 16 | 112727784/0 | Screw |
| 17 | 322551639/0 | Cable Fixing Plate ø25 |
| 17 | 322551684/0 | Cable Fixing Plate ø25 |
| 18 | 112154510/0 | Self-Locking Nut M6 |
| Wheels and Hubcaps Pag.4 | ||
| # | Part Num. | Description |
| 1 | 119216035/0 | Bearing |
| 2 | 381007416/2 | Wheel Ø 200 |
| 2 | 381007416/3 | Wheel Ø 200 |
| 3 | 322110643/0 | Grey Hubcap |
| 4 | 381007417/3 | Wheel Ø 280 |
| 5 | 322110644/0 | Grey Hubcap |
| 6 | 112728706/0 | Screw - Self-Tapping Torx PT K40x16 |
| 7 | 322120115/0 | Drive Crown |
| 8 | 122170845/0 | Spacer |
| 9 | 381007472/2 | Wheel |
| Side Discharge Pag.5 | ||
| # | Part Num. | Description |
| 1 | 322108315/0 | Conveyor |
| 3 | 122450456/1 | Spring |
| 4 | 112604896/0 | Crown Retainer |
| 5 | 112727803/0 | Screw |
| 6 | 322806659/0 | Fulcrum Pin |
| 7 | 112154510/0 | Self-Locking Nut M6 |
| 8 | 122517869/1 | Pin |
| 9 | 118203853/0 | Cap |
| 10 | 122517876/0 | Pin |
| 11 | 322783013/0 | Safety Latch |
| 12 | 122450493/0 | Spring |
| 13 | 381008162/1 | Side Discharge Assembly |
| Belt Housing Pag.6 | ||
| # | Part Num. | Description |
| 1 | 381005195/2 | Right Bracket |
| 2 | 381005197/2 | Left Bracket |
| 3 | 112727801/0 | Screw |
| 4 | 322545213/0 | Plate |
| 6 | 381102204/1 | Rear Conveyor Assembly |
| 7 | 112728904/0 | Screw |
| 8 | 322060271/2 | Mulching Guard |
| 9 | 112735645/0 | Screw |
| 10 | 112154510/0 | Self-Locking Nut M6 |
| 11 | 112815205/0 | Screw |
| 12 | 112521330/0 | Flat Washer - M6x12x1,6 |
| 13 | 119035000/0 | O-Ring |
| 14 | 112728697/0 | Screw - Self-Tapping Torx PT K50x16 |
| 15 | 322034002/0 | Washing Connector |
| 16 | 322140246/0 | Deflector |
| 18 | 122042073/0 | Bushing |
| Blade Pag.7 | ||
| # | Part Num. | Description |
| 1 | 1111-9180-01 | Blade Hub (Ø 25) |
| 1 | 122465608/3 | Hub With Pulley, Crankshaft Ø 25 |
| 2 | 181004464/0 | Blade |
| 3 | 122160400/0 | Elastic Disc |
| 4 | 112523080/0 | Washer |
| 5 | 112735698/0 | Screw |
| 6 | 112139150/0 | Key, Crankshaft Ø 25 |
| 7 | 112735108/1 | Screw |
| Grass Catcher Pag.8 | ||
| # | Part Num. | Description |
| 1 | 181006411/0 | Bag Frame |
| 1 | 181006411/1 | Bag Frame |
| 2 | 322557177/0 | Plate |
| 3 | 112728697/0 | Screw - Self-Tapping Torx PT K50x16 |
| 4 | 122517884/0 | Pin |
| 5 | 181102349/0 | Fabric Bag |
| 6 | 381486039/0 | Bag, Upper Part Black |
| 7 | 122450479/0 | Spring |
| 8 | 322600308/0 | Black Stone Guard |
| 9 | 322109569/0 | Black Stone Guard Fulcrum Support |
| 10 | 322486424/0 | Indicator |
| Engine - Carburetor, Tank - ST 200 Pag.9 | ||
| # | Part Num. | Description |
| 2 | 118552651/0 | Nut |
| 3 | 118552821/0 | Starter Assembly |
| 4 | 118551619/0 | Starter Handle |
| 5 | 118550779/0 | Starter Rope |
| 6 | 118551621/0 | Starter Spring |
| 7 | 118551620/0 | Starter Pulley |
| 8 | 118551626/0 | Spring |
| 9 | 118551622/0 | Starter Pawl |
| 10 | 118551625/0 | Spring |
| 11 | 118551623/0 | Cover |
| 13 | 118551624/0 | Pulley Pin |
| 14 | 118551788/0 | Air Shroud |
| 15 | 118550907/0 | Pin |
| 16 | 118550906/0 | Pin |
| 17 | 112791500/0 | Screw - TE M6x25 |
| 18 | 118551474/0 | Electronic Coil |
| 20 | 1111-9206-01 | Spark Plug (Rc12Yc) |
| 21 | 112789000/0 | Screw |
| 22 | 118551456/0 | Choke Control |
| 23 | 118551459/0 | Rod |
| 24 | 118551352/0 | Retainer |
| 25 | 118552611/0 | Carburetor |
| 26 | 118552545/0 | Stud |
| 27 | 118552539/0 | Gasket |
| 28 | 118552540/0 | Heat Insulator |
| 29 | 118550927/0 | Gasket |
| 30 | 118551124/0 | Gasket |
| 31 | 118551462/0 | Air Filter Assembly |
| 33 | 118550257/0 | Air Filter |
| 34 | 118551463/0 | Air Filter Cover |
| 35 | 112292102/0 | Nut |
| 36 | 118551480/1 | Fuel Hose |
| 37 | 118550918/0 | Hose Clamp |
| 38 | 118550314/0 | Fuel Filter |
| 39 | 118552819/0 | Fuel Tank |
| 40 | 118551455/0 | Tank Cap |
| 41 | 112791400/0 | Screw - TE M6x20 |
| 42 | 118551479/0 | Breather Pipe |
| 43 | 118550933/0 | Throttle Control Lever |
| 45 | 118552542/0 | Bracket |
| 46 | 118551458/0 | Spring |
| 49 | 118551457/0 | Throttle Rod |
| 50 | 118550898/0 | Muffler Gasket |
| 51 | 118552543/0 | Muffler |
| 52 | 118552544/0 | Stud |
| 53 | 118551466/0 | Muffler Guard |
| 54 | 118550806/0 | Nut |
| Engine - Piston, Crankshaft - ST 200 Pag.10 | ||
| # | Part Num. | Description |
| 1 | 118550336/0 | Nut |
| 2 | 118552833/0 | Starter Cup |
| 3 | 118552827/0 | Flywheel Fan |
| 4 | 118552834/0 | Flywheel Assembly |
| 5 | 118551277/0 | Bolt |
| 6 | 112791500/0 | Screw - TE M6x25 |
| 7 | 118551521/0 | Flywheel Brake Assembly |
| 8 | 118551522/0 | Spring |
| 9 | 118552836/0 | Seal Ring |
| 10 | 118552824/0 | Crankcase |
| 11 | 112735699/0 | Screw |
| 12 | 118552526/0 | Cover |
| 13 | 118552527/0 | Gasket |
| 14 | 112790500/0 | Screw |
| 15 | 118552516/0 | Plate |
| 16 | 118552584/0 | Crankshaft Assembly |
| 17 | 118552533/0 | Toothed Wheel |
| 18 | 118551448/0 | Camshaft |
| 19 | 112789000/0 | Screw |
| 20 | 118551460/0 | Governor Assembly |
| 21 | 118552541/0 | Governor Shaft |
| 22 | 118550935/0 | Seal Ring |
| 23 | 118550856/0 | Cotter Pin |
| 24 | 118550379/0 | Seal Ring |
| 25 | 118552569/1 | Crankcase |
| 26 | 118551117/0 | Gasket |
| 27 | 118551535/0 | Bolt |
| 28 | 118552646/0 | Screw |
| 29 | 118552528/0 | Valve Cover |
| 30 | 118550892/0 | Gasket |
| 31 | 118550893/0 | Valve Rocker Arm Set |
| 32 | 118552536/0 | Plate |
| 33 | 118550895/0 | Retainer |
| 34 | 118550896/0 | Spring |
| 35 | 118552666/0 | Intake + Exhaust Valve Assembly |
| 36 | 118550291/0 | Valve Lifter Assembly |
| 37 | 118551251/0 | Push Rod |
| 38 | 118552552/0 | Piston Assembly |
| 39 | 118551527/0 | Piston Ring Set |
| 40 | 118550915/0 | Piston Pin |
| 41 | 118550914/0 | Pin Retainer |
| 42 | 118552532/0 | Connecting Rod Assembly |
| 43 | 112791500/0 | Screw - TE M6x25 |
| 44 | 118551444/0 | Oil Dipstick Tube Assembly |
| 45 | 118550288/0 | Flywheel Key |
| Complete Engine, Engine Cover - ST 200 Pag.11 | ||
| # | Part Num. | Description |
| 1 | 118552676/1 | Complete Engine, WBE 200 |
| 2 | 322055631/0 | Grey Hood |
| 3 | 322055632/0 | Shroud, Yellow |
| 4 | 322055628/0 | Grey Hood |
| 11 | 1111-9234-01 | Do not use for Italian Market |
| 11 | 1111-9237-01 | Do not use for Italian Market |
| 11 | 1111-9244-01 | Engine Oil, SAE 30 - 0.6 L |
| 12 | 1111-9235-01 | Do not use for Italian Market |
| 13 | 1111-9236-01 | Do not use for Italian Market |
| 13 | 1111-9238-01 | Do not use for Italian Market |
| 13 | 1111-9245-01 | Engine Oil, SAE 30 - 1.4 L |
| 15 | 1111-9289-01 | Engine Service Kit |
All technical product information in this catalog is based on information taken from official sources, including the Castelgarden manufacturer's websites, which we believe to be reliable. Unfortunately, even official documents may contain errors or misprints - we are unable to confirm that all of this data is accurate and truly represents the facts. Most manufacturers reserve the right to modify product specifications or supplement descriptions without prior notice. We strongly recommend using the published information as basic information subject to review by the Castelgarden brand. Please clarify important parameters with a sales assistant at the time of purchase. All contents included in this catalog are the intellectual property of www.bricoutensili.com. Any publication or reproduction (in whole or in part) without a reference to the source page is strictly prohibited.
294556848/C22-ST1-2026
Data sheet
- Machine Type
- Lawn Mowers
- SHIPPING IN
- Usually Ships in 10/15 BUSINESS DAYS
- CHECK ITEM CODE OR S/N
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
Specific References
Comments (0)
No customer reviews for the moment.
