Castelgarden Spare Parts for Chaisaw XC 41 (2009) 222516003/04

SKU: XC 41 (2009) 222516003/04
€0.52
VAT included

Castelgarden Spare Parts for Chaisaw XC 41 (2009) 222516003/04

Distribution and Sale at attractive prices of CASTELGARDEN Original Spare Parts. We guarantee low prices and a professional Assistance and repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Chaisaw XC 41 (2009) 222516003/04.

XC 41 (2009) 222516003/04
Castelgarden Spare Parts for Chaisaw XC 41 (2009) 222516003/04
  • Castelgarden Spare Parts for Chaisaw XC 41 (2009) 222516003/04
  • Castelgarden Spare Parts for Chaisaw XC 41 (2009) 222516003/04
  • Castelgarden Spare Parts for Chaisaw XC 41 (2009) 222516003/04
  • Castelgarden Spare Parts for Chaisaw XC 41 (2009) 222516003/04
  • Castelgarden Spare Parts for Chaisaw XC 41 (2009) 222516003/04
  • Castelgarden Spare Parts for Chaisaw XC 41 (2009) 222516003/04
  • Castelgarden Spare Parts for Chaisaw XC 41 (2009) 222516003/04

Castelgarden Spare Parts for Chaisaw XC 41 (2009) 222516003/04

SKU: XC 41 (2009) 222516003/04 Condition: New
€0.52
VAT included

Castelgarden Spare Parts for Chaisaw XC 41 (2009) 222516003/04

Distribution and Sale at attractive prices of CASTELGARDEN Original Spare Parts. We guarantee low prices and a professional Assistance and repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Chaisaw XC 41 (2009) 222516003/04.

XC 41 (2009) 222516003/04
settings 123 spare parts
description 7 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:: STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

100 spare parts
Pos. Item Price Buy
5
photo_cameraImage coming soon 3121071 Seal ring 5a €4.49
5
photo_cameraImage coming soon 3121072 Seal ring 5b €7.93

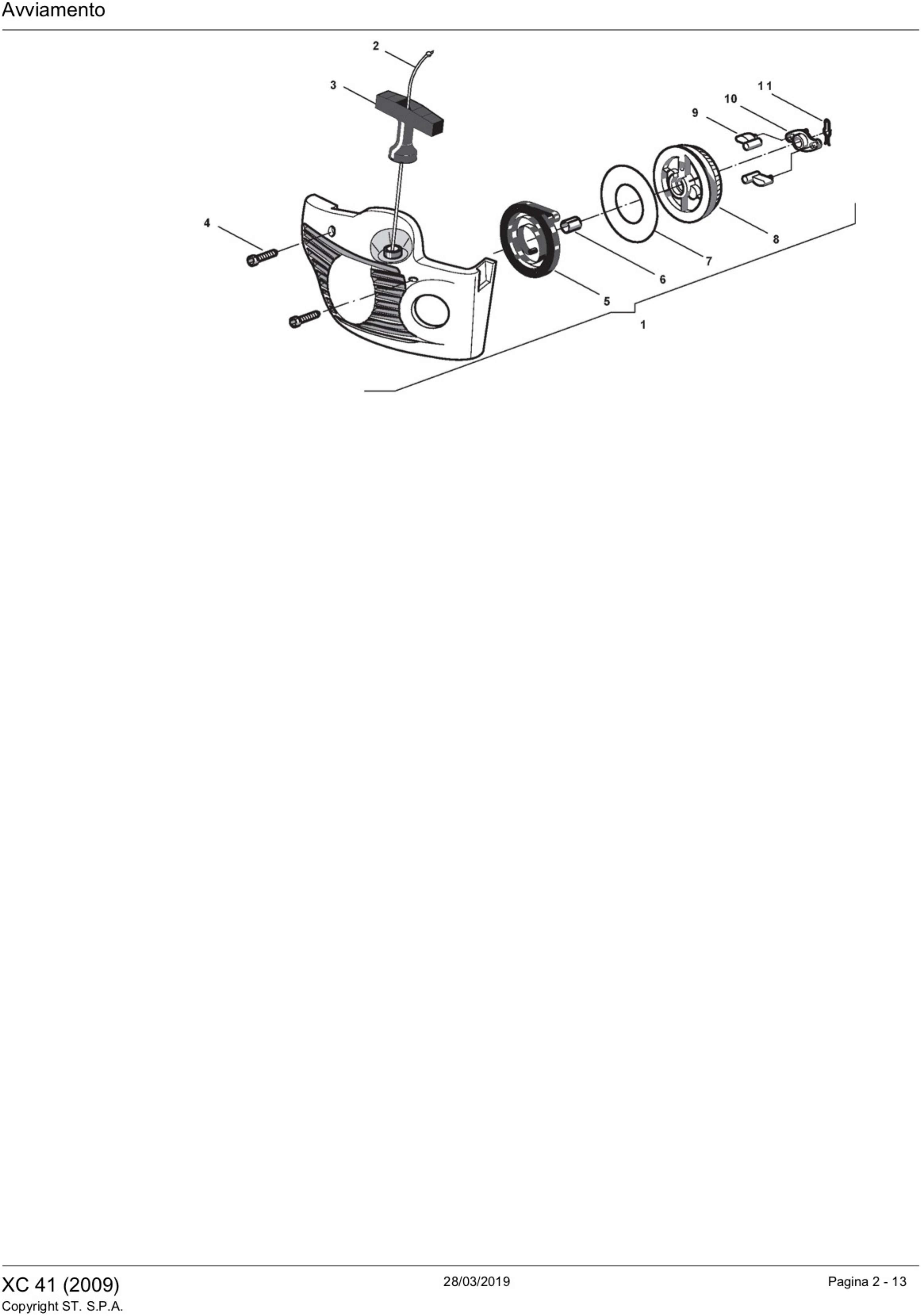

Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 4252600 Starter Carter Assembly Yellow €50.03
1
photo_cameraImage coming soon 4252603 Starter Carter Assembly Red €43.94
2
photo_cameraImage coming soon 3784030 Starter Cord €2.13
3
photo_cameraImage coming soon 3750067 Starter Handle €2.29
4
photo_cameraImage coming soon 2123030 Screw €1.37
5
photo_cameraImage coming soon 4611480 Starter Spring €8.86
6
photo_cameraImage coming soon 3623590 Bushing €1.30
7
photo_cameraImage coming soon 3723640 Disc €4.01
8
Petrol Tank for Brushcutters Valex Tucson 52LC 3750130 Petrol Tank for Brushcutters Valex Tucson 52LC €26.41
10
photo_cameraImage coming soon 3750140 TANK HOSE €11.21

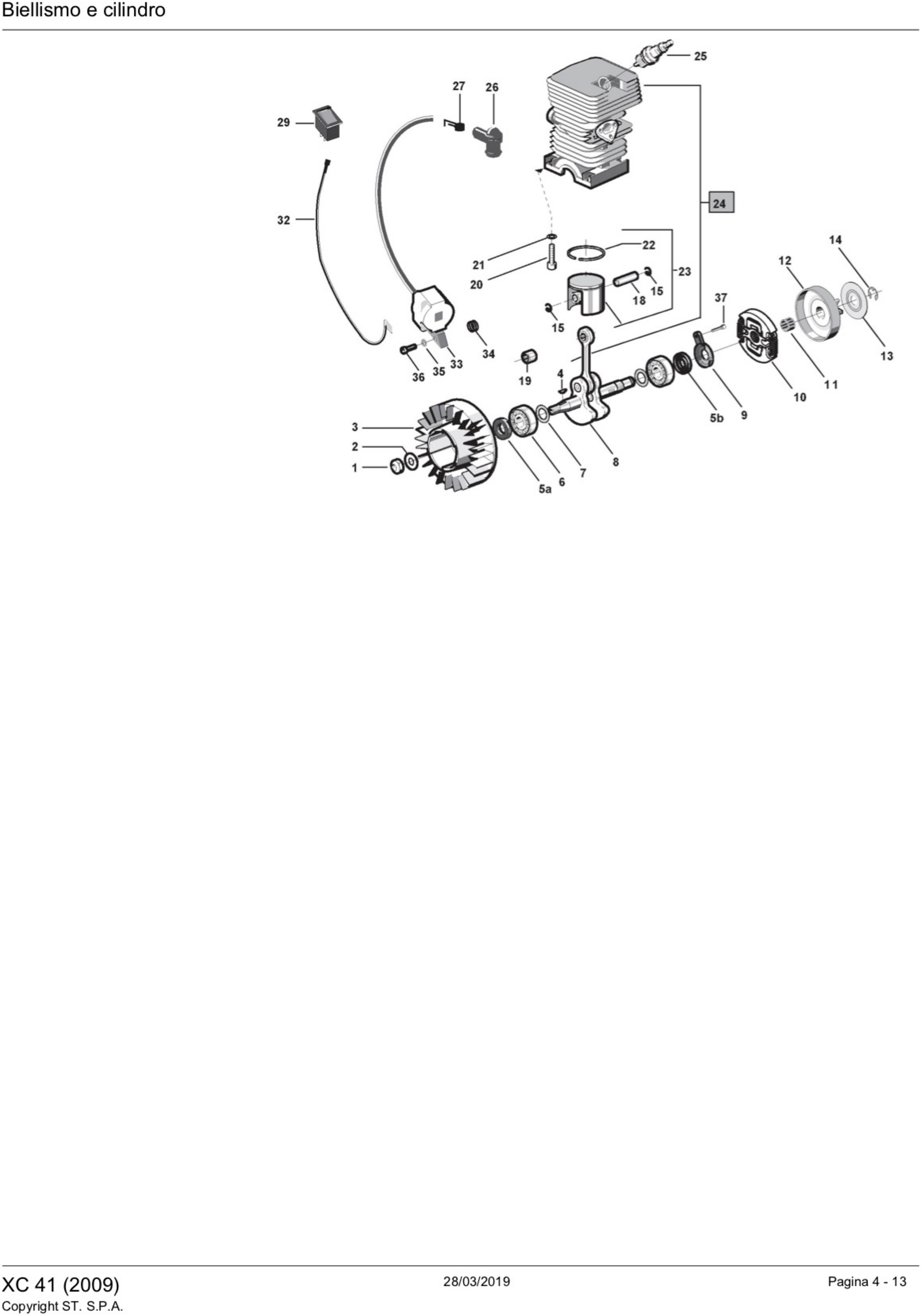

Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
3
photo_cameraImage coming soon 3L4541210/1 Flywheel From 01-september-2005 €43.60
3
photo_cameraImage coming soon 4541210 Flywheel To 31-august-2005 €45.86
4
photo_cameraImage coming soon 3151010 Flywheel Key €1.37
5
photo_cameraImage coming soon 3121071 Seal ring 5a €4.49
5
photo_cameraImage coming soon 3121072 Seal ring 5b €7.93
6
photo_cameraImage coming soon 3112030 Ball Bearing €15.71
8
photo_cameraImage coming soon 4251960/1 Crankshaft €68.23
11
photo_cameraImage coming soon 3114190 Roller Cage €7.87
12
Clutch Drum .325'' for Chainsaw Castor CP 410 4122070 Clutch Drum .325'' for Chainsaw Castor CP 410 €23.43
13
Pinion Washer for Chainsaw Alpina P 365 3612620 Pinion Washer for Chainsaw Alpina P 365 €1.41 Not available for order
14
Benzing Ring mm 8 for Lawnmower Alpina BL 380 E 112000955/0 Benzing Ring mm 8 for Lawnmower Alpina BL 380 E €1.50
15
Circlip for Chainsaw Alpina P 365 3356050 Circlip for Chainsaw Alpina P 365 €1.42
18
photo_cameraImage coming soon 3158260 Piston pin €7.32
19
photo_cameraImage coming soon 3116100 Needle Bearing €11.01
20
Srew TX M5X20 2009 for Brushcutter Alpina TB 250 J 2135030 Srew TX M5X20 2009 for Brushcutter Alpina TB 250 J €1.57
21
photo_cameraImage coming soon 2330020 Washer €1.34
22
photo_cameraImage coming soon 3123220 Piston Ring Ø 39 €5.00
23
photo_cameraImage coming soon 3L8541360/1 Piston Assy €85.11
24
photo_cameraImage coming soon 3L8541370/1 Cylinder - Piston Assy €143.56
25
photo_cameraImage coming soon 3210024 Spark Plug CJ7Y €6.54
26
photo_cameraImage coming soon 4252550 Spark Plug cap €7.90
27
photo_cameraImage coming soon 3657050 Spark Plug Spring €4.02
29
photo_cameraImage coming soon 3210970 Stop Switch €2.47
33
photo_cameraImage coming soon 3L3211350/1 Electronic coil €59.91
34
photo_cameraImage coming soon 3654480 Spring €1.30

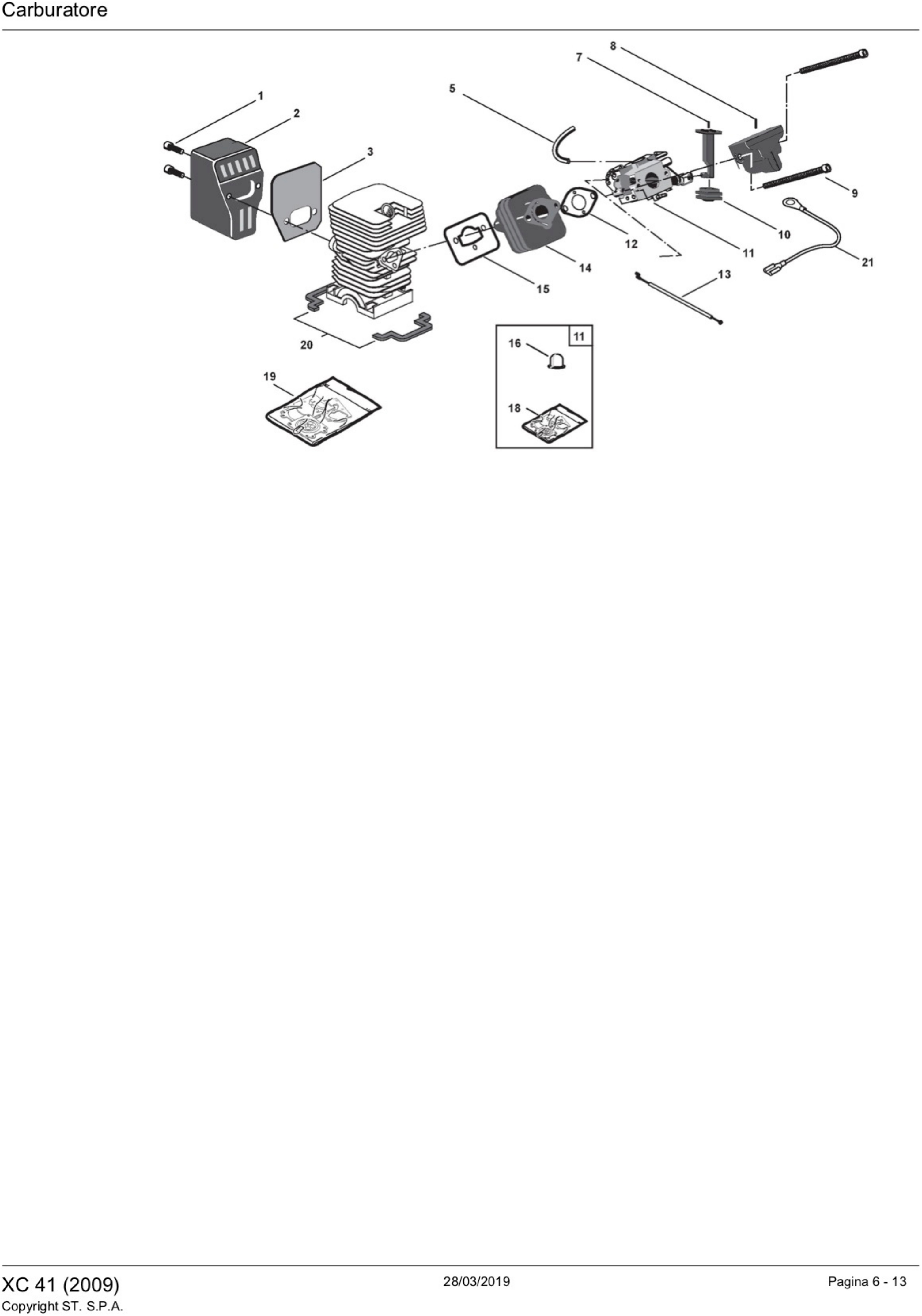

Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
1
Srew TX M5X18 2009 for Brushcutter Alpina TB 250 J 2135040 Srew TX M5X18 2009 for Brushcutter Alpina TB 250 J €1.57
2
photo_cameraImage coming soon 4122040 Muffler Assy €36.28
3
photo_cameraImage coming soon 3724270 Muffler gasket €3.91
5
photo_cameraImage coming soon 3786130 Tube €7.90
8
photo_cameraImage coming soon 8744781 Intake Manifold Assy €17.79
9
photo_cameraImage coming soon 2135210 Screw €2.00
10
photo_cameraImage coming soon 3745650 Air Lever Grommet €3.42
11
photo_cameraImage coming soon 123054003/2 Carburetor €95.12
12
photo_cameraImage coming soon 3724160 Heath Block €2.07
14
Chainsaw Alpina P 365 Intake Manifold 3750180 Chainsaw Alpina P 365 Intake Manifold €14.09 Not available for order
15
Cylinder Manifold Gasket for Chainsaw Alpina P 365 3724300 Cylinder Manifold Gasket for Chainsaw Alpina P 365 €14.75
16
photo_cameraImage coming soon 3744740 Air Purge Pump €13.51
18
Diaphragm Gasket Set for Chainsaw Alpina A 3700-C 38 8724091 Diaphragm Gasket Set for Chainsaw Alpina A 3700-C 38 €25.13
20
photo_cameraImage coming soon 3721560 Cylinder gasket €2.16

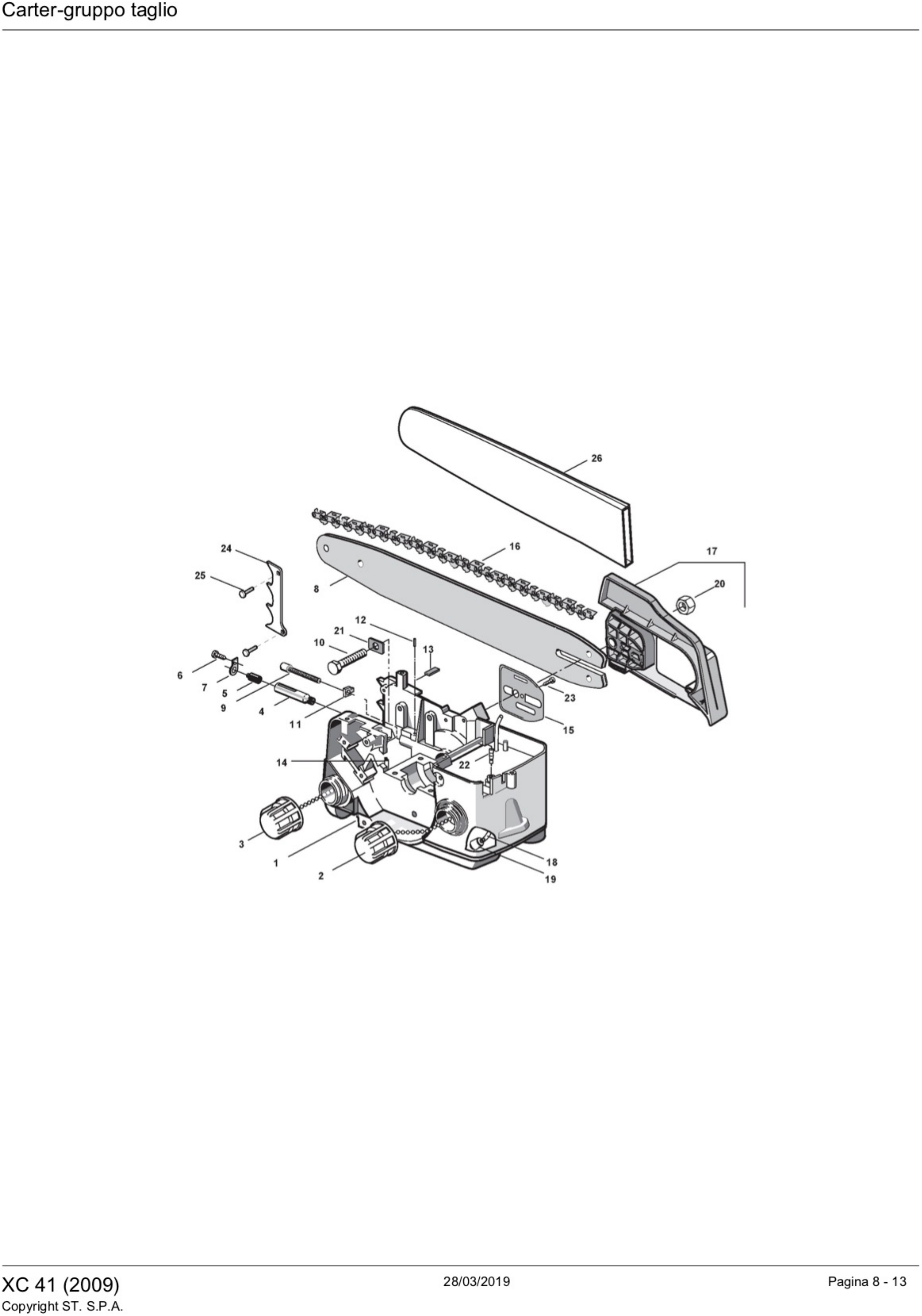

Page 4 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
2
photo_cameraImage coming soon 4252630 Oil Cap Assembly €7.63
3
photo_cameraImage coming soon 4252630 Oil Cap Assembly €7.63
4
Oil Pump Ass'y for Chainsaw Alpina P 365 4252220 Oil Pump Ass'y for Chainsaw Alpina P 365 €37.48
7
photo_cameraImage coming soon 3614810 Retainer €1.30
8
Bar 16” 325” .050” (1.3 mm) for Chainsaw Castelgarden XC 41 323900107/0 Bar 16” 325” .050” (1.3 mm) for Chainsaw Castelgarden XC 41 €43.71
9
photo_cameraImage coming soon 2653470 Screw €1.30
10
photo_cameraImage coming soon 123878001/0 Screw €3.11
11
photo_cameraImage coming soon 3641970 Chain Tightener €4.03
13
photo_cameraImage coming soon 3614930 Insert €1.82
14
photo_cameraImage coming soon 3L4353090/1 Oil Breath Tube Ass.y €4.91
15
photo_cameraImage coming soon 323311002/0 Bar Plate €4.86
16
photo_cameraImage coming soon 4113711 16inch chain €24.46
17
photo_cameraImage coming soon 4252590 Yellow clutch carter assembly €23.52
17
photo_cameraImage coming soon 4252593 Red Clutch Carter Assembly €16.70
18
photo_cameraImage coming soon 3786050 Fuel Line €2.19
19
photo_cameraImage coming soon 4253290 Intake Filter Ass.y €13.26
20
photo_cameraImage coming soon 2670270 Nut €2.81
21
photo_cameraImage coming soon 323650100/0 Screw €2.00
22
photo_cameraImage coming soon 4253680 Breather Valve Ass.y €3.83
23
Self-Thread Screw 4x10 for Chainsaw Alpina P 660 2123060 Self-Thread Screw 4x10 for Chainsaw Alpina P 660 €1.41
24
photo_cameraImage coming soon 323026000/0 Spike €6.90
25
photo_cameraImage coming soon 2123100 Screw €1.34
26
photo_cameraImage coming soon 4181307 Chain Cover €5.78

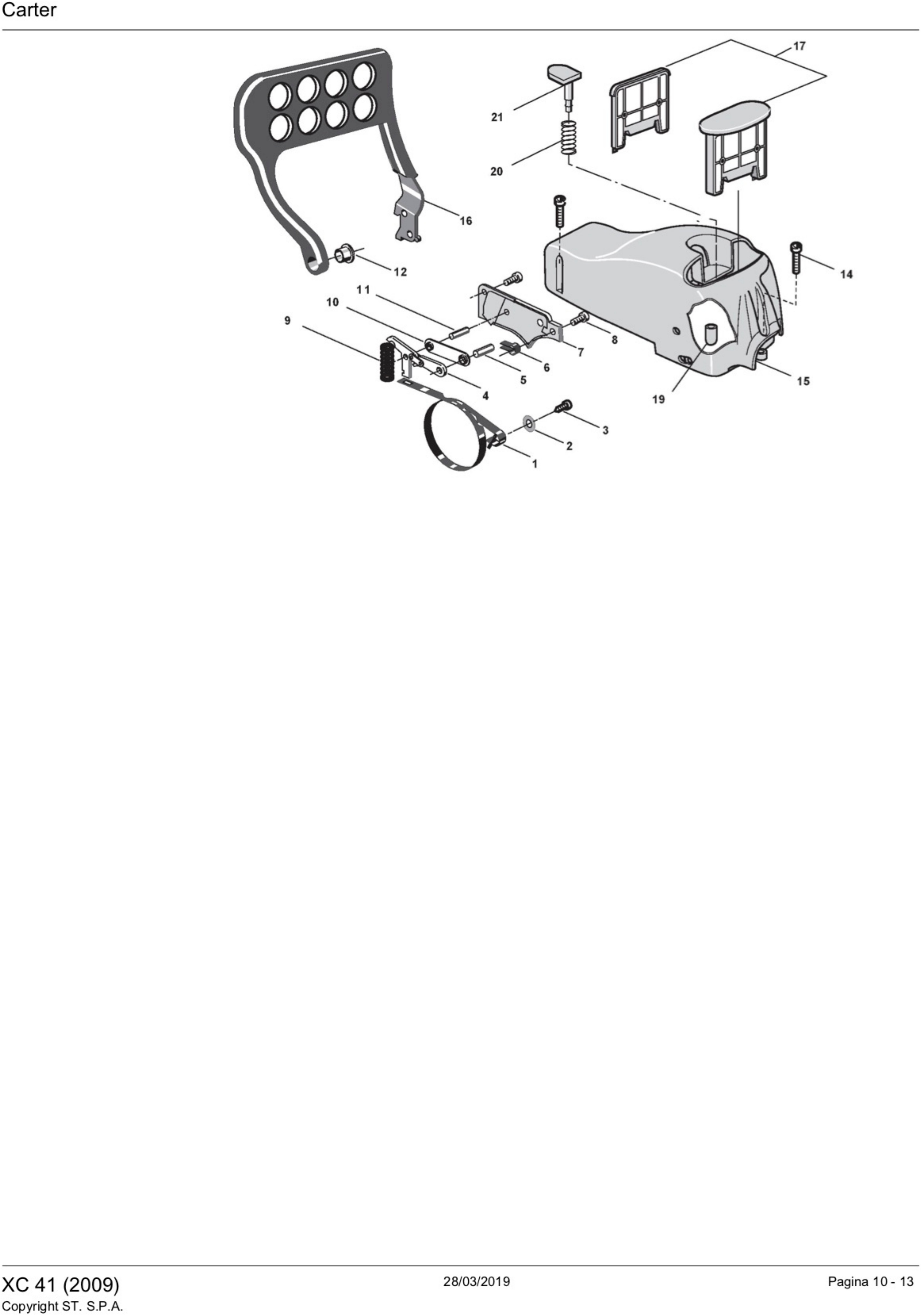

Page 5 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 3614740 Brake band €7.34
2
photo_cameraImage coming soon 2312100 Washer €1.50
3
Self-Thread Screw 4x10 for Chainsaw Alpina P 660 2123060 Self-Thread Screw 4x10 for Chainsaw Alpina P 660 €1.41
4
photo_cameraImage coming soon 4252310 Chain Brake Lever €16.11
6
photo_cameraImage coming soon 3614780 Spring €3.21
8
photo_cameraImage coming soon 2123100 Screw €1.34
9
photo_cameraImage coming soon 3654420 Brake Spring €1.76
10
photo_cameraImage coming soon 3614490 Brake sheet €3.21
14
photo_cameraImage coming soon 2123030 Screw €1.37
15
photo_cameraImage coming soon 4252610 cylinder cover Yellow €20.42
16
photo_cameraImage coming soon 4563770 Paramano C / Insert €26.20
17
photo_cameraImage coming soon 8781610 Air filter €12.16
19
photo_cameraImage coming soon 3750450 Primer Button Cap €2.30
20
photo_cameraImage coming soon 3654430 Spring €1.30
21
photo_cameraImage coming soon 3750440 Button €3.25

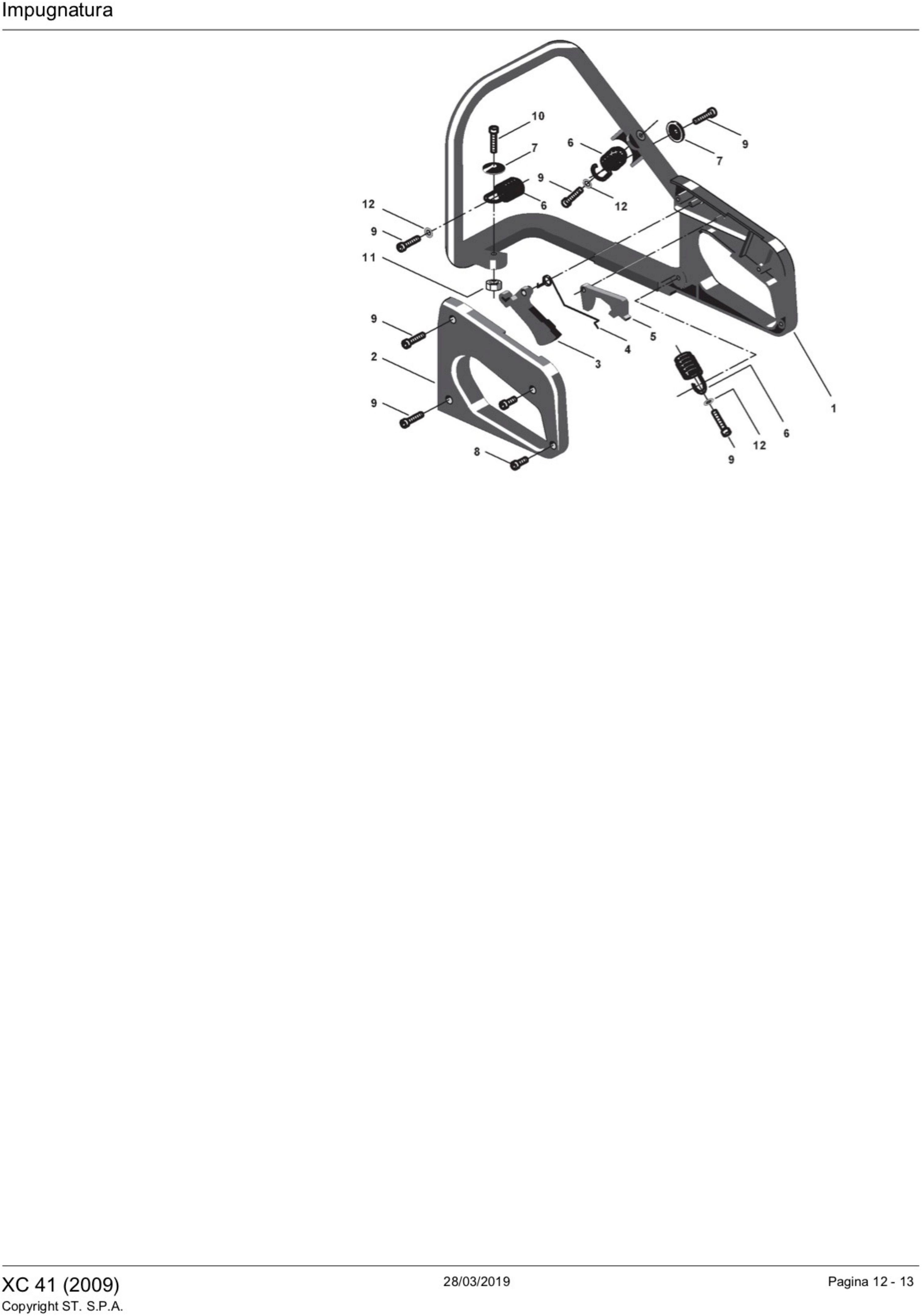

Page 6 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 4563750 Handle - Handrail €46.84
2
photo_cameraImage coming soon 4563760 Handle Cover €6.91
3
photo_cameraImage coming soon 3743587 Throttle Lever For Cable €3.32
4
photo_cameraImage coming soon 1L3654440/1 Spring €2.23
5
photo_cameraImage coming soon 3743597 Safety Lever €1.72
6
photo_cameraImage coming soon 3654400 Spring €5.81
7
photo_cameraImage coming soon 3614800 Washer €1.92
8
photo_cameraImage coming soon 2123100 Screw €1.34
10
Srew TX M5X18 2009 for Brushcutter Alpina TB 250 J 2135040 Srew TX M5X18 2009 for Brushcutter Alpina TB 250 J €1.57
11
photo_cameraImage coming soon 2432040 Nut €1.41
12
photo_cameraImage coming soon 2312090 Flat washer €1.41

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Castelgarden Spare Parts for Chaisaw XC 41 (2009) 222516003/04

Distribution and Sale at attractive prices of CASTELGARDEN Original Spare Parts. We guarantee low prices and a professional Assistance and repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Chaisaw XC 41 (2009) 222516003/04.

In the following table, look for the model of the Chaisaw and the respective parts of the code.
XC 41 (2009) 222516003/04

CHAINSAW CASTELGARDEN XC 41 (2009) 222516003/04 PAG.1
# Part Num. Description
1 4252600 Starter Carter Assembly Yellow
1 4252603 Starter Carter Assembly Red
2 3784030 Starter rope
3 3750067 Starter handle
4 2123030 Screw
5 4611480 Starter Spring
6 3623590 Bushing
7 3723640 Starter Spring Disc
8 3750130 Starter Pulley
9 3750080 Starter Link
10 3750140 Starter Hook Guide
11 3657480 Locking
CASTELGARDEN XC 41 (2009) 222516003/04 PAG.2
1 2432050 Nut
2 2312080 Washer
3 3L4541210/1 Flywheel From 01-september-2005
3 4541210 Flywheel To 31-august-2005
4 3151010 Flywheel key
5 3121071 Seal ring
5 3121072 Seal ring
6 3112030 Ball bearing
7 3614480 Washer
8 4251960/1 Crankshaft
9 3750311 Oil Pump Cover - DISCONTINUED
10 3L4252200/1 Clutch Drum assembly
11 3114190 Needle Bearing
12 4122070 Clutch Drum
13 3612620 Pinion Washer - DISCONTINUED
14 112000955/0 Benzing ring
15 3356050 Circlip
18 3158260 Piston pin
19 3116100 Needle Bearing
20 2135030 Screw
21 2330020 Washer
22 3123220 Piston Ring Ø 39
23 3L8541360/1 Piston assembly
24 3L8541370/1 Cylinder - Piston assembly
25 3210024 Spark Plug
26 4252550 Spark Plug Cap
27 3657050 Spark Plug Spring
29 3210970 Stop switch
32 3211380 Earth Cable
33 3L3211350/1 Electronic Coil
34 3654480 Spring
35 2321150 Washer
36 2123140 Screw
37 2123020 Screw
CASTELGARDEN XC 41 (2009) 222516003/04 PAG.3
1 2135040 Screw
2 4122040 Muffler assembly
3 3724270 Muffler gasket
5 3786130 Tube
7 3743640 Air Lever
8 8744781 Intake Manifold Assembly
9 2135210 Screw
10 3745650 Air Lever Grommet
11 123054003/2 Carburetor
12 3724160 Manifold Thermal Spacer Gasket
13 4252480 Throttle Cable Cw/ Sheath
14 3750180 Intake manifold
15 3724300 Cylinder Manifold Gasket
16 3744740 Primer
18 8724091 Carburetor Gaskets Membranes-Kit
19 8724300 Gaskets Set
20 3721560 Cylinder gasket
21 3211690 Earth cable
CASTELGARDEN XC 41 (2009) 222516003/04 PAG.4
2 4252630 Oil cap assembly
3 4252630 Oil cap assembly
4 4252220 Oil Pump Assembly
5 3744790 grommet - DISCONTINUED
6 2123020 Screw
7 3614810 Plate
8 323900107/0 16inch bar
9 2653470 Screw
10 123878001/0 Screw
11 3641970 Chain Tightener
12 3741360 Cap Oil / Delivery
13 3614930 Bar Base Insert
14 3L4353090/1 Oil Breath Hose Assembly
15 323311002/0 Bar Base Plate
16 4113711 16inch chain
17 4252590 Clutch Housing Assembly Yellow
17 4252593 Clutch Housing Assembly Red
18 3786050 Fuel Filter Hose
19 4253290 Fuel Filter
20 2670270 Nut
21 323650100/0 Screw
22 4253680 Tank Breath Valve Assembly
23 2123060 Screw
24 323026000/0 Spiked Bumper
25 2123100 Screw
26 4181307 13inch Bar cover
CASTELGARDEN XC 41 (2009) 222516003/04 PAG.5
1 3614740 Brake Band
2 2312100 Washer
3 2123060 Screw
4 4252310 Brake Link Lever
5 3180500 roller
6 3614780 Spring
8 2123100 Screw
9 3654420 Brake Spring
10 3614490 Brake Plate
11 3180510 roller
12 3614330 Bush - DISCONTINUED
14 2123030 Screw
15 4252610 cylinder cover Yellow
15 4252613 cylinder cover Red
16 4563770 Handguard w / Insert
17 8781610 Air filter
19 3750450 Primer Button Cap
20 3654430 Spring
21 3750440 Button
CASTELGARDEN XC 41 (2009) 222516003/04 PAG.6
1 4563750 Grip-Handrail
2 4563760 Handle cover
3 3743587 Throttle Lever For Cable
4 1L3654440/1 Throttle and Safety Lever Spring 360-41
5 3743597 Safety Lever
6 3654400 Spring
7 3614800 Washer
8 2123100 Screw
9 2123031 Screw
10 2135040 Screw
11 2432040 Nut
12 2312090 WASHER

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Castelgarden websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Castelgarden brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
XC 41 (2009) 222516003/04
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:
STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS

Specific References

New

Download

Drawing Castelgarden XC 41 2009

Drawing Castelgarden XC 41 2009

Download (711.21KB)

You might also like

A.M.A. S.p.A. SKU: 123051000/0
Spark Plug Champion RZ7C Original replacement part CHAMPION, Spark Plug RZ7C - T10 - Original Quality - Spark Plug Copper Plus - Code : 123051000/0
AVAILABLE €7.83
HiKOKI Power Tools Italia S.p.a. SKU: 123044003/0
Ignition Coil for Chainsaw Alpina A 350 Original replacement part Alpina, Ignition Coil 9288-310801 - RDC 2009 for Chainsaw Alpina  A 350 - P352 - A400 - Castor CP 3540 - Castelgarden XC 350 - XC 400. Part for the following products:...
Last items in stock €41.67
HiKOKI Power Tools Italia S.p.a. SKU: 123120006/0
Chain Bar Nut for Chainsaws Alpina A 350 - A 400 Original part Alpina, Chain Bar Nut for Chainsaws Alpina A 350 - A 400 - CASTOR CP 3540 - CASTELGARDEN XC 350 - XC 400. Part for the following products: -  Chainsaw ALPINA A 350 (2011)...
AVAILABLE €1.42
GGP Italy SKU: 4252220
Oil Pump Ass'y for Chainsaw Alpina P 365 Original part Alpina, Oil Pump Ass'y for Chainsaws Alpina P 365 - Stiga - SP 340 - Castor CP 410 - 411 - Castelgarden - XC 41. Part for the following products: -  Chainsaw Stiga - SP 340 -...
Last items in stock €37.48
GGP Italy SKU: 112000955/0
Benzing Ring mm 8 for Lawnmower Alpina BL 380 E Original replacement part Alpina, Benzing Ring mm 8 for Electric Lawnmowers BL 380 E - E 380 - BL 320 E. Part for the following products: - Electric Lawnmower BL 380 E - Electric...
AVAILABLE €1.50
GGP Italy SKU: 4122070
Clutch Drum .325'' for Chainsaw Castor CP 410 Original parts Castor, Clutch Drum .325'' TEET 7 + Needle Bearing 101410, for Chainsaws Castor CP 410 - CP 411 - Castelgarden XC 41. Part for the following products: -  Chainsaw CP 410 16...
Last items in stock €23.43
GGP Italy SKU: 3356050
Circlip for Chainsaw Alpina P 365 Original part Alpina, Piston Pin Circlip for Chainsaws Alpina P 365 - Castor CP 410 - 411 - Castelgarden - XC 41. Part for the following products: -  Chainsaw Alpina P 365 -  Chainsaw Castor CP 410...
on 7 Business Days Approx €1.42
A.M.A. S.p.A. SKU: 323900107/0
Bar 16” 325” .050” (1.3 mm) for Chainsaw Castelgarden XC 41 Original replacement part Alpina, Guide Bar 16” (40 cm) 325” .050” (1.3 mm) for Chainsaw Castelgarden XC 41 - Castor CP 411 Part for the following products: -  Chainsaw XC 41...
AVAILABLE €43.71
GGP Italy SKU: 3612620
Pinion Washer for Chainsaw Alpina P 365 Original part Alpina, Pinion Washer for Chainsaws Alpina P 365 - Stiga - SP 340 - Castor CP 410 - 411 - Castelgarden - XC 41. Part for the following products: -  Chainsaw Stiga - SP 340 -...
Out-of-Stock €1.41
GGP Italy SKU: 3724300
Cylinder Manifold Gasket for Chainsaw Alpina P 365 Original part Alpina, Cylinder Manifold Gasket for Chainsaws Alpina P 365 - Stiga - SP 340 - Castor CP 410 - 411 - Castelgarden - XC 41....
Last items in stock €14.75
GGP Italy SKU: 3750180
Chainsaw Alpina P 365 Intake Manifold Original part Alpina, Intake Manifold (Thermal Flange) for Chainsaws Alpina P 365 - Stiga - SP 340 - Castor CP 410 - 411 - Castelgarden - XC 41. Part...
Available in 7/10 days €14.09
Comments (0)
