Castelgarden Spare Parts for Chaisaw XC 350

SKU: XC 350 - 222014003/09-2011
€1.41
VAT included

Castelgarden Spare Parts for Chaisaw XC 350

Distribution and Sale at attractive prices of CASTELGARDEN Original Spare Parts. We guarantee low prices and a professional Assistance and repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Chaisaw XC 350/222014003/09-2011.
Castelgarden Spare Parts for Chaisaw XC 350
  • Castelgarden Spare Parts for Chaisaw XC 350
  • Castelgarden Spare Parts for Chaisaw XC 350
  • Castelgarden Spare Parts for Chaisaw XC 350

Castelgarden Spare Parts for Chaisaw XC 350

SKU: XC 350 - 222014003/09-2011 Condition: New
€1.41
VAT included

Castelgarden Spare Parts for Chaisaw XC 350

Distribution and Sale at attractive prices of CASTELGARDEN Original Spare Parts. We guarantee low prices and a professional Assistance and repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Chaisaw XC 350/222014003/09-2011.
settings 66 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10/15 Business Days Approx

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:: STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

52 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 183878032/0 SCREW €1.42
2
photo_cameraImage coming soon 183070002/0 CYLINDER PISTOR ASSY €72.59
3
photo_cameraImage coming soon 183590002/0 PISTON ASSY €28.34
4
photo_cameraImage coming soon 183303509/0 PISTON RING €7.71
5
photo_cameraImage coming soon 183275300/0 SHORT BLOCK ENGINE €88.06
6
photo_cameraImage coming soon 119035154/0 SEAL RING €2.62
7
photo_cameraImage coming soon 119035155/0 SEAL RING €1.90
9
photo_cameraImage coming soon 183303508/0 CILYNDER GASKET ASSY €29.91
11
photo_cameraImage coming soon 123235002/0 NEEDLE BEARING €3.45
12
photo_cameraImage coming soon 2432040 Nut €1.41
13
photo_cameraImage coming soon 123140056/0 DEFLECTOR €5.21
14
photo_cameraImage coming soon 183740001/0 MUFFLER ASSY €50.65
16
Ignition Coil for Chainsaw Alpina A 350 123044003/0 Ignition Coil for Chainsaw Alpina A 350 €41.67
17
photo_cameraImage coming soon 183880003/0 FLYWHEEL ASSY €20.97
18
photo_cameraImage coming soon 112154200/0 NUT €1.37
19
photo_cameraImage coming soon 123072000/0 FLYWHEEL KEY €2.05
20
Spark Plug Champion RZ7C 123051000/0 Spark Plug Champion RZ7C €7.83
21
photo_cameraImage coming soon 123073504/0 INTAKE MANIFOLD €3.32
22
photo_cameraImage coming soon 123054017/0 CARBURETTOR €82.17
23
photo_cameraImage coming soon 123073505/0 INTAKE MANIFOLD ASSY €5.70
25
Air Filter 9183-311201 for Chainsaw Alpina A 350 123220004/0 Air Filter 9183-311201 for Chainsaw Alpina A 350 €3.52 Not available for order
27
photo_cameraImage coming soon 183594504/0 OIL PUMP 118550607/0 + 118550606/0 €23.01
28
photo_cameraImage coming soon 123878030/0 Worm €4.75
29
photo_cameraImage coming soon 123235001/0 NEEDLE BEARING €4.83
30
photo_cameraImage coming soon 123050004/0 Clutch Drum €16.91
31
photo_cameraImage coming soon 123657008/0 WASHER €2.92
32
photo_cameraImage coming soon 183215002/0 CLUTCH ASS.Y €11.91
33
photo_cameraImage coming soon 3657050 Spark Plug Spring €4.02
34
photo_cameraImage coming soon 3748880 Spark plug cap €2.58
35
photo_cameraImage coming soon 123057004/0 CRANKASE €19.25
36
photo_cameraImage coming soon 183303510/0 CHAIN GUARD €5.07
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
41
photo_cameraImage coming soon 183300014/0 HANDLE ASSY €74.91
42
photo_cameraImage coming soon 123303001/0 SWITCH €2.56
43
Oil Tank Cap for Chainsaws Alpina A 350 - A 400 183790005/0 Oil Tank Cap for Chainsaws Alpina A 350 - A 400 €6.40
44
Intake Filter for Chainsaws Alpina A 350 - A 400 183520001/0 Intake Filter for Chainsaws Alpina A 350 - A 400 €6.43
46
photo_cameraImage coming soon 123315069/0 THROTTLE LEVER €1.58
49
photo_cameraImage coming soon 123315070/0 SAFETY LEVER €1.49
50
photo_cameraImage coming soon 6980242 Air Purge Pump €6.11
51
photo_cameraImage coming soon 123065020/0 EARTH CABLE €1.54
52
photo_cameraImage coming soon 123065021/0 STOP WIRE €1.66
54
photo_cameraImage coming soon 3749437 STARTER HANDLE €2.52
56
photo_cameraImage coming soon 123105002/0 HANDLE €20.39
57
photo_cameraImage coming soon 123087015/0 CYLINDER COVER RED €13.65
58
photo_cameraImage coming soon 123593504/0 KNOB €2.48
59
photo_cameraImage coming soon 123160053/0 BUSHING €3.25
62
photo_cameraImage coming soon 183059011/0 CLUTCH HO.W/BR.ASSY RED €41.20
63
Chain Bar Nut for Chainsaws Alpina A 350 - A 400 123120006/0 Chain Bar Nut for Chainsaws Alpina A 350 - A 400 €1.42
64
photo_cameraImage coming soon 123900350/0 Guide Bar 14""" €40.97
65
photo_cameraImage coming soon 4113703 Chain 14" €18.80
66
photo_cameraImage coming soon 4181297 Chain Cover €3.78
69
Starter Cup for Chainsaws Alpina A 350 - A 400 123445267/0 Starter Cup for Chainsaws Alpina A 350 - A 400 €4.41
70
photo_cameraImage coming soon 123878108/0 SCREW €1.63

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Castelgarden Spare Parts for Chaisaw XC 350

Distribution and Sale at attractive prices of CASTELGARDEN Original Spare Parts. We guarantee low prices and a professional Assistance and repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Chaisaw XC 350/222014003/09-2011.

In the following table, look for the model of the Chaisaw and the respective parts of the code.
XC 350 - 222014003/09-2011

Chaisaw XC 350/222014003/09-2011

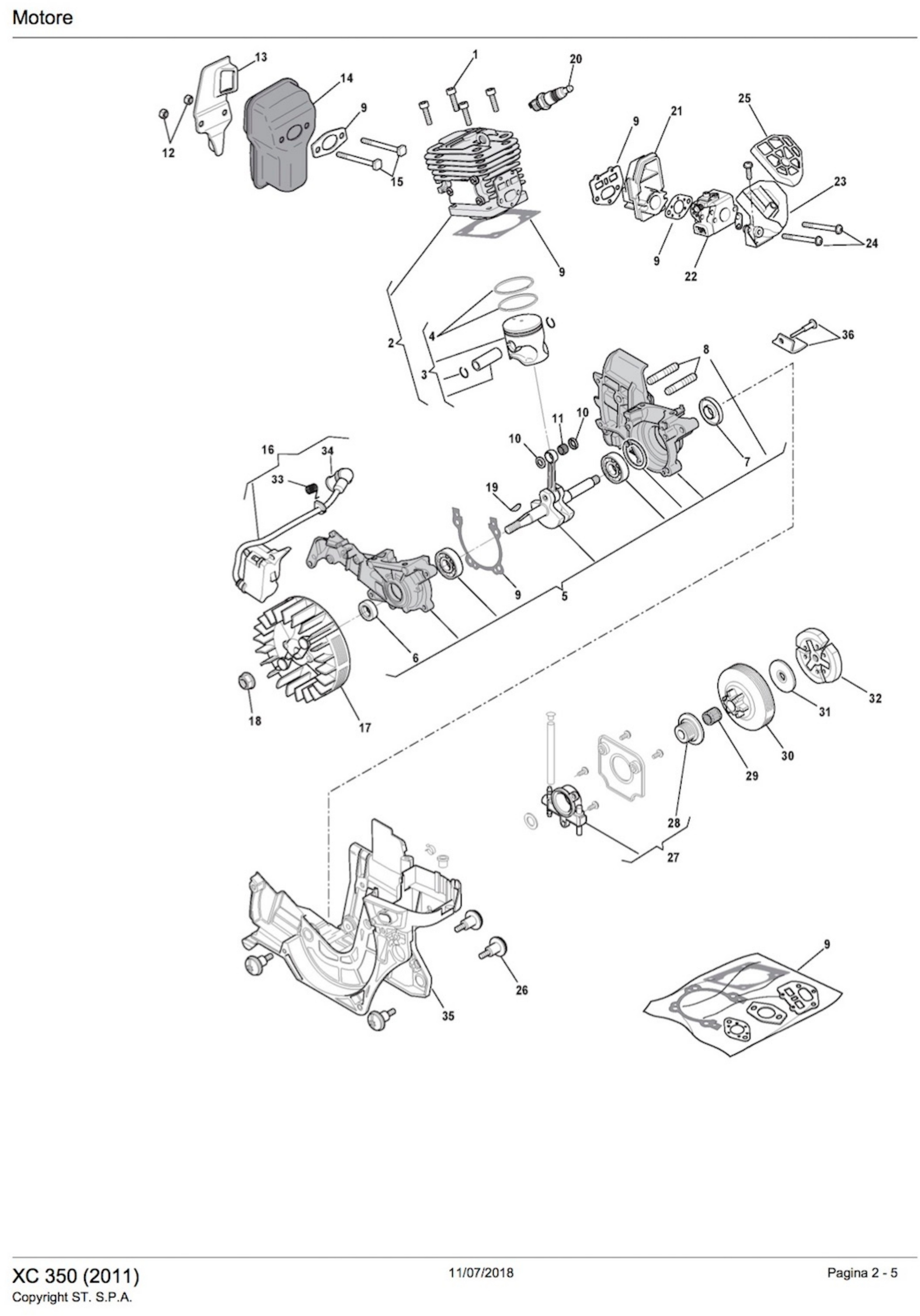

Engine Pag.1
# Part Num. Description
1 183878032/0 Screw
2 183070002/0 Cylinder Pistor Assy
3 183590002/0 Piston Assy
4 183303509/0 Piston Ring
5 183275300/0 Short Block Engine
6 119035154/0 Seal Ring
7 119035155/0 Seal Ring
8 123878031/0 Screw
9 183303508/0 Cilynder Gasket Assy
10 123652504/0 Washer
11 123235002/0 Needle Bearing
12 2432040 Nut
13 123140056/0 Deflector
14 183740001/0 Muffler Assy
15 123878028/0 Screw
16 123044003/0 Electronic Coil
17 183880003/0 Flywheel Assy
18 112154200/0 Nut
19 123072000/0 Flywheel Key
20 123051000/0 Spark Plug
21 123073504/0 Intake Manifold
22 123054017/0 Carburettor
23 123073505/0 Intake Manifold Assy
24 123878019/0 Screw
25 123220004/0 Air Filter - NO LONGER AVAILABLE
26 123878033/0 Screw
27 183594504/0 Oil Pump 118550607/0 + 118550606/0
28 123878030/0 Worm
29 123235001/0 Needle Bearing
30 123050004/0 Clutch Drum
31 123657008/0 Washer
32 183215002/0 Clutch Ass.Y
33 3657050 Spark Plug Spring
34 3748880 Spark Plug Cover
35 123057004/0 Crankase
36 183303510/0 Stop Chain

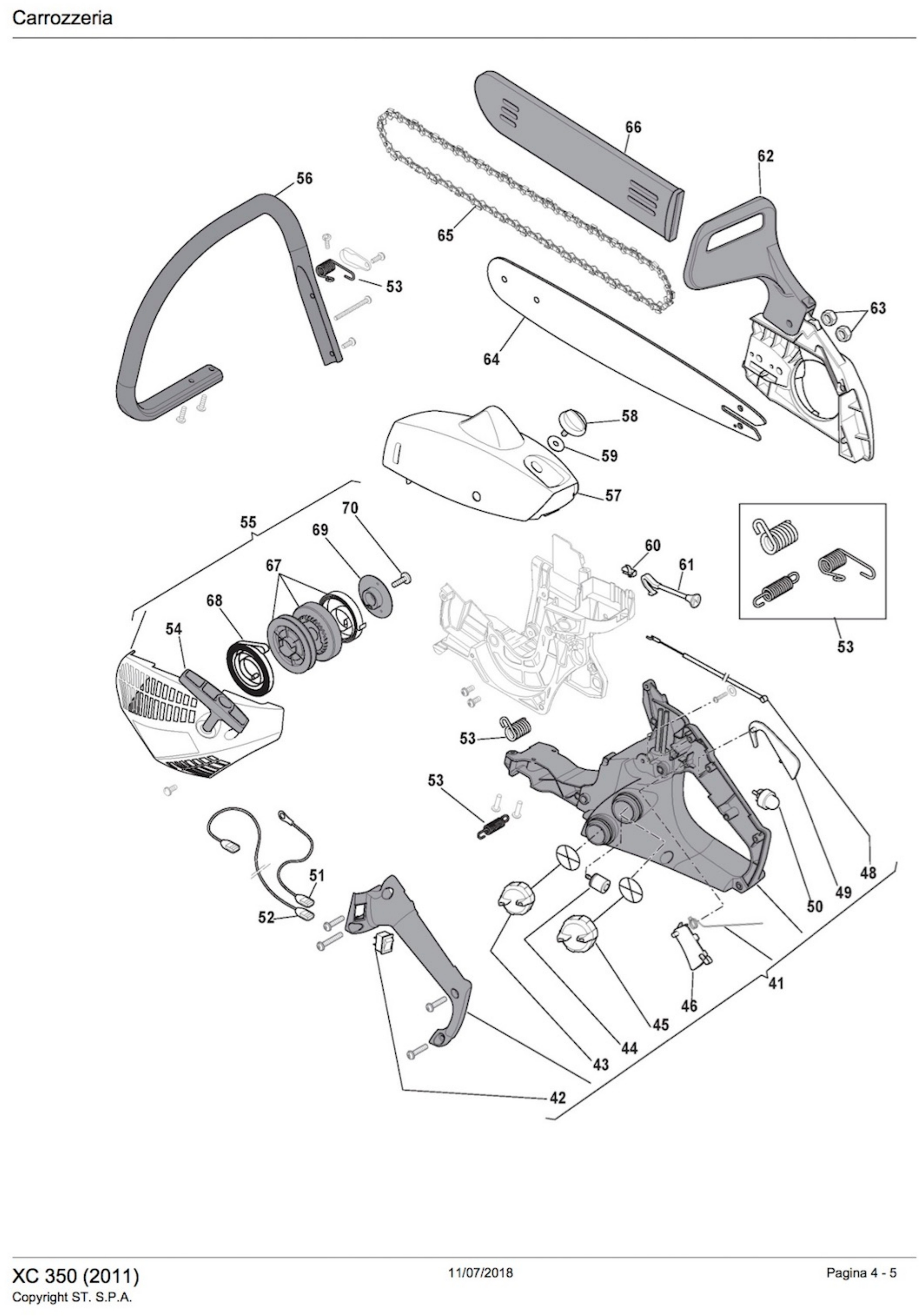

Housing Pag.2
41 183300014/0 Handle Assy
42 123303001/0 Switch
43 183790005/0 Oil Tank Cap
44 183520001/0 Intake Filter
45 183790004/0 Fuel Tank-Cap Ass.Y
46 123315069/0 Throttle Lever
48 123066010/0 Cable, Trottle
49 123315070/0 Safety Lever
50 6980242 Primer
51 123065020/0 Earth Cable
52 123065021/0 Stop Wire
53 183430550/0 Shock Absorber Spring Assy
54 3749437 Starter Handle
55 183058016/0 Starter Assy Red
55 183058016/1 Starter Assy Black
56 123105002/0 Handle
57 123087015/0 Cylinder Cover Red
58 123593504/0 Knob
59 123160053/0 Bushing
60 123202001/0 Grommet
61 123315068/0 Choke Lever
62 183059011/0 Clutch Ho. W/Br. Assy Red
63 123120006/0 Nut
64 123900350/0 Guide Bar 14"""
65 4113703 Chain 14"
66 4181297 Chain Cover
67 183604000/0 Starter Pulley
68 123430604/0 Starter Spring
69 123445267/0 Starter Cup
70 123878108/0 Screw

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Castelgarden websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Castelgarden brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
XC 350 - 222014003/09-2011
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:
STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS

Specific References

New

Download

Diagram Castelgarden XC 350

Diagram Castelgarden XC 350

Download (432.47KB)
