Castelgarden Spare Parts for Chaisaw XC 27 PC

SKU: XC27PC - 223010103/06-2011
€1.60
VAT included

Castelgarden Spare Parts for Chaisaw XC 27 PC

Castelgarden Original spare parts sourced from the manufacturer, at the lowest price on the web, with after-sales service, for to make maintenance or repair broken parts for Chaisaw XC 27 PC/223010103/06-2011.

Chaisaw XC 27 PC/223010103/06-2011
Castelgarden Spare Parts for Chaisaw XC 27 PC
  • Castelgarden Spare Parts for Chaisaw XC 27 PC
  • Castelgarden Spare Parts for Chaisaw XC 27 PC
  • Castelgarden Spare Parts for Chaisaw XC 27 PC
GGP Italy

Castelgarden Spare Parts for Chaisaw XC 27 PC

SKU: XC27PC - 223010103/06-2011 Condition: New
€1.60
VAT included

Castelgarden Spare Parts for Chaisaw XC 27 PC

Castelgarden Original spare parts sourced from the manufacturer, at the lowest price on the web, with after-sales service, for to make maintenance or repair broken parts for Chaisaw XC 27 PC/223010103/06-2011.

Chaisaw XC 27 PC/223010103/06-2011
settings 129 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10/15 Business Days Approx

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:: STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
129 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

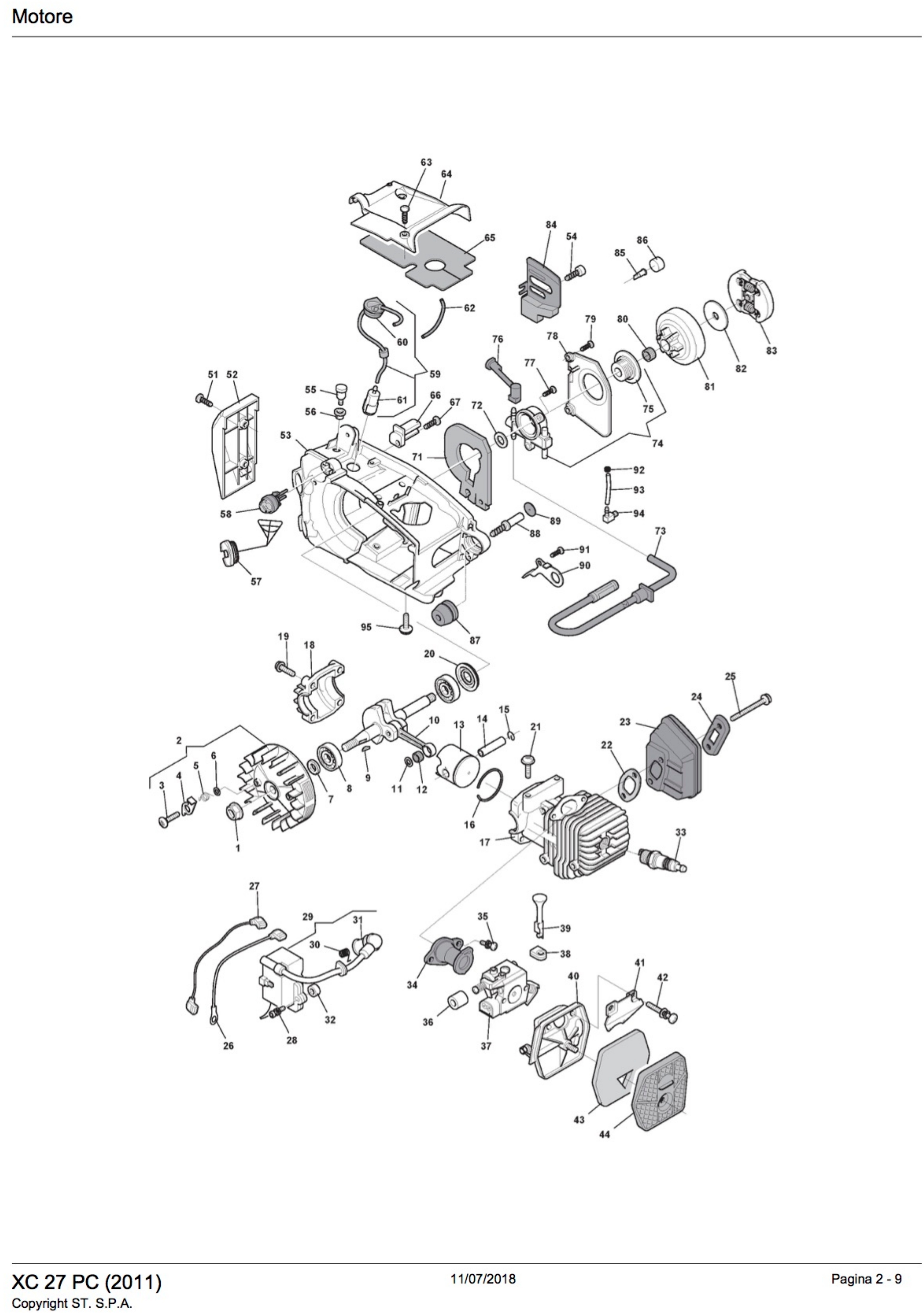

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
2
 photo_cameraImage coming soon 6995207 Flywheel Assy €51.03
4
 photo_cameraImage coming soon 6995208 Flywheel Starter Hook €5.15
5
 photo_cameraImage coming soon 6995250 Flywheel Spring €1.37
6
 photo_cameraImage coming soon 6995225 Washer €1.22
7
 photo_cameraImage coming soon 6995247 Seal Ring €5.72
8
 photo_cameraImage coming soon 6995170 Ball Bearing €9.75
9
 photo_cameraImage coming soon 6995018 Flywheel Key €1.41
10
 photo_cameraImage coming soon 6995202 Crankshaft €93.92
11
 photo_cameraImage coming soon 6995169 Washer €1.62
12
 photo_cameraImage coming soon 6995237 Needle Bearing €12.59
13
 photo_cameraImage coming soon 6995200 Piston €27.58
14
 photo_cameraImage coming soon 6995172 Piston Pin €3.26
15
 photo_cameraImage coming soon 6995171 Circlip €1.24
16
 photo_cameraImage coming soon 6995201 Piston Ring €10.13
17
 photo_cameraImage coming soon 6995245 Cylinder Assy €122.53
18
 photo_cameraImage coming soon 6995186 Stabilizer €31.01
19
 photo_cameraImage coming soon 6995252 Screw €1.42
20
 photo_cameraImage coming soon 6995248 Seal Ring €6.72
21
 photo_cameraImage coming soon 6995229 Screw €1.37
22
 photo_cameraImage coming soon 6995185 Muffler Gasket €1.43
23
 photo_cameraImage coming soon 6995246 Muffler €15.80
24
 photo_cameraImage coming soon 6995251 PLATE €1.27
25
 photo_cameraImage coming soon 6995182 Screw €1.24
26
 photo_cameraImage coming soon 6995210 Earth Cable €7.10
27
 photo_cameraImage coming soon 6995227 Stop Wire €7.38
28
 photo_cameraImage coming soon 6995234 Screw €1.24
29
 Ignition Coil Ass'y for Chainsaw Alpina PR 270 6995209 Ignition Coil Ass'y for Chainsaw Alpina PR 270 €88.56
30
 Spark Plug Spring for Chainsaws Alpina A 305-C 25-A 2500 6995022 Spark Plug Spring for Chainsaws Alpina A 305-C 25-A 2500 €1.69
31
 photo_cameraImage coming soon 6995066 Spark Plug Cover €5.41
32
 photo_cameraImage coming soon 6995238 Bushing €2.88
33
 photo_cameraImage coming soon 3210024 Spark Plug CJ7Y €6.54
34
 Intake Manifold Ass'y for Chainsaw Alpina PR 270 6995183 Intake Manifold Ass'y for Chainsaw Alpina PR 270 €30.70
36
 photo_cameraImage coming soon 6995212 Gasket €1.34
37
 photo_cameraImage coming soon 6995244 Carburettor €72.63
38
 photo_cameraImage coming soon 6995214 Grommet €1.81
39
 photo_cameraImage coming soon 6995213 Choke Lever Rod €2.32
40
 photo_cameraImage coming soon 6995243 Air Filter Support €5.72
41
 photo_cameraImage coming soon 6995211 Plate €3.77
43
 photo_cameraImage coming soon 6995217 Air Filter €2.56
44
 photo_cameraImage coming soon 6995216 Air Cleaner Cover €12.15
51
 photo_cameraImage coming soon 123878008/0 Screw €1.53
52
 photo_cameraImage coming soon 6995175 Front Cover €8.74
53
 Crankcase Assy RED for Chainsaw Castelgarden XC 27 P 6995239 Crankcase Assy RED for Chainsaw Castelgarden XC 27 P €75.50
54
 photo_cameraImage coming soon 6995187 Screw €1.47
55
 photo_cameraImage coming soon 6995221 Breather Valve Ass.Y €24.34
56
 photo_cameraImage coming soon 6995232 Grommet €1.34
57
 photo_cameraImage coming soon 6995193 Cap Ass’Y €7.42
58
 photo_cameraImage coming soon 6995228 Air Purge €16.87
59
 photo_cameraImage coming soon 6995188 Grommet Ass.Y €14.10
60
 photo_cameraImage coming soon 6995189 Grommet €5.78
61
 photo_cameraImage coming soon 6995174 Fuel Pickup Assy €6.28
62
 photo_cameraImage coming soon 6995190 Tube €1.88
63
 photo_cameraImage coming soon 123878008/0 Screw €1.53
64
 photo_cameraImage coming soon 6995249 Upper Cover €3.20
65
 photo_cameraImage coming soon 6995194 Guard €3.44
66
 photo_cameraImage coming soon 6995180 Chain Guard €1.75
67
 photo_cameraImage coming soon 6995179 Screw €1.24
71
 photo_cameraImage coming soon 6995204 Gasket €1.24
72
 photo_cameraImage coming soon 6995223 Washer €2.64
73
 photo_cameraImage coming soon 6995191 Filter Intank Assy With Pipe €12.87
74
 Oil Pump + Worm Screw Ass'y for Chainsaw Alpina PR 270 383594507/0 Oil Pump + Worm Screw Ass'y for Chainsaw Alpina PR 270 €65.16
75
 photo_cameraImage coming soon 323878075/0 Female Screw €14.13
76
 photo_cameraImage coming soon 6995205 Tube €3.14
77
 photo_cameraImage coming soon 6995008 Screw €1.41
78
 photo_cameraImage coming soon 6995206 Cover Pump €7.67
79
 photo_cameraImage coming soon 123878008/0 Screw €1.53
80
 photo_cameraImage coming soon 6995230 Needle Bearing €8.09
81
 photo_cameraImage coming soon 6995178 Drum Ass’Y, Clutch 1/4” €49.90
82
 photo_cameraImage coming soon 6995203 Sprocket Washer €2.70
83
 photo_cameraImage coming soon 6995177 Clutch Ass.Y €32.94
84
 photo_cameraImage coming soon 6995241 Plate €9.25
85
 photo_cameraImage coming soon 6995220 Valve €2.00
86
 photo_cameraImage coming soon 6995192 Gasket €2.56
87
 photo_cameraImage coming soon 323275005/0 Shock Absorber €8.69
88
 photo_cameraImage coming soon 123878007/0 Screw €3.45
89
 photo_cameraImage coming soon 323790006/0 Cap €1.31
90
 photo_cameraImage coming soon 6995219 Clamp €2.70
93
 photo_cameraImage coming soon 6995184 Tube €1.68
94
 photo_cameraImage coming soon 6995235 Tube Connection €1.31
95
 photo_cameraImage coming soon 6995181 Screw €1.29
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

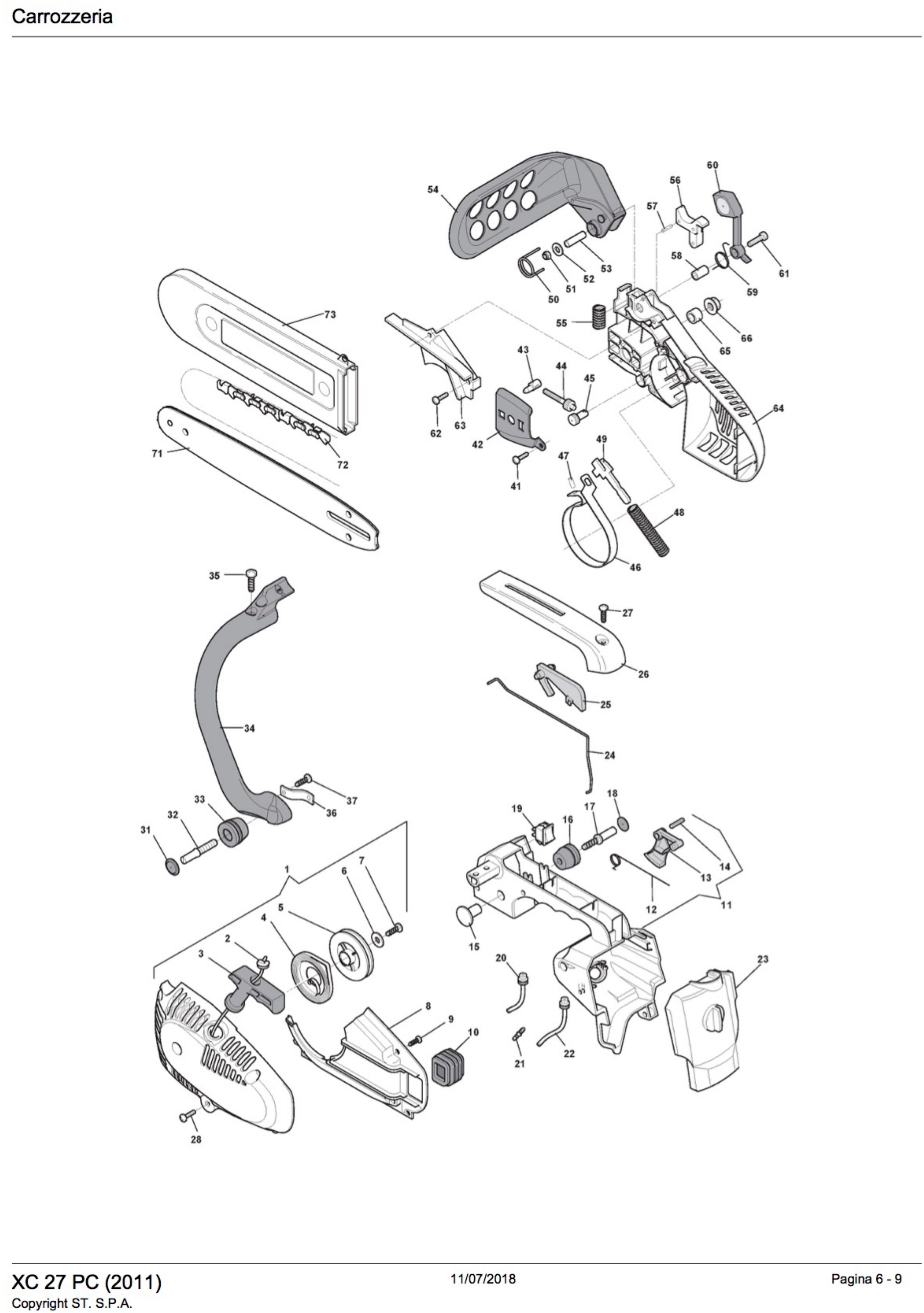

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 383058008/0 Starter Assy Red €49.02
2
 photo_cameraImage coming soon 123234000/0 Starter Cord €4.32
3
 photo_cameraImage coming soon 3750067 Starter Handle €2.29
4
 photo_cameraImage coming soon 123430557/0 Starter Spring €14.86
5
 photo_cameraImage coming soon 323604001/0 Starter Pulley €6.22
6
 photo_cameraImage coming soon 123657002/0 Washer €1.48
8
 photo_cameraImage coming soon 323107501/0 Air Conveyor €5.56
9
 photo_cameraImage coming soon 123878008/0 Screw €1.53
10
 photo_cameraImage coming soon 323275004/0 Grommet €5.09
11
 Handle Complete for Chainsaw Castor TR 270 6995240 Handle Complete for Chainsaw Castor TR 270 €37.10
12
 photo_cameraImage coming soon 6995114 Spring €1.42
13
 photo_cameraImage coming soon 6995134 Throttle Lever €4.65
14
 photo_cameraImage coming soon 6995016 Elastic Pin €1.41
15
 photo_cameraImage coming soon 6995196 Cap €2.55
16
 photo_cameraImage coming soon 323275005/0 Gommino Antivibrante  €8.58
17
 photo_cameraImage coming soon 123878007/0 Screw  €3.34
18
 photo_cameraImage coming soon 323790006/0 Cap €1.20
19
 photo_cameraImage coming soon 6995226 Switch €2.40
20
 photo_cameraImage coming soon 6995198 Tube €1.81
21
 photo_cameraImage coming soon 6995199 Tube Connection €1.24
22
 photo_cameraImage coming soon 6995197 Tube €2.12
23
 photo_cameraImage coming soon 6995218 Rear Cover €14.80
24
 photo_cameraImage coming soon 6995215 Throttle Rod €5.21
25
 photo_cameraImage coming soon 6995135 Safety Lever €2.07
26
 photo_cameraImage coming soon 6995195 Handle, Upper Part €4.01
27
 photo_cameraImage coming soon 123878008/0 Screw €1.53
28
 photo_cameraImage coming soon 123878008/0 Screw €1.53
31
 photo_cameraImage coming soon 323790006/0 Cap €1.20
32
 photo_cameraImage coming soon 123878007/0 Screw  €3.34
33
 photo_cameraImage coming soon 323275005/0 Gommino Antivibrante  €8.58
34
 photo_cameraImage coming soon 323105000/0 Handle €6.88
35
 photo_cameraImage coming soon 123878010/0 Screw  €0.44
36
 photo_cameraImage coming soon 123200001/0 Plate €1.56
37
 photo_cameraImage coming soon 123878010/0 Screw  €0.44
41
 photo_cameraImage coming soon 123878009/0 Screw  €0.44
42
 photo_cameraImage coming soon 323311003/0 Bar Plate €9.71
43
 photo_cameraImage coming soon 123796004/0 Nut €14.71
44
 photo_cameraImage coming soon 123878005/0 Screw €20.91
45
 photo_cameraImage coming soon 123510093/0 Pin €38.51
46
 photo_cameraImage coming soon 323448001/0 Brake Band €10.51
47
 photo_cameraImage coming soon 123665001/0 Pin €6.41
48
 photo_cameraImage coming soon 123430561/0 Spring €6.10
49
 photo_cameraImage coming soon 323315061/0 Lever €7.64
51
 photo_cameraImage coming soon 123120000/0 Nut €1.87
52
 photo_cameraImage coming soon 123657003/0 Washer €1.70
54
 photo_cameraImage coming soon 323455005/0 Hand Guard €10.53
55
 photo_cameraImage coming soon 123430559/0 Spring €3.53
56
 photo_cameraImage coming soon 383315050/0 Chain Brake Lever €20.51
58
 photo_cameraImage coming soon 123044207/0 Bushing €1.84
59
 photo_cameraImage coming soon 123430558/0 Spring €1.93
60
 photo_cameraImage coming soon 323080000/0 Balance Weigth €5.08
62
 photo_cameraImage coming soon 123878009/0 Screw  €0.44
63
 photo_cameraImage coming soon 323109515/0 Brake Cover €11.20
64
 photo_cameraImage coming soon 323059009/0 Clutch Cover Red €14.01
65
 photo_cameraImage coming soon 3641380 Bushing €2.70
66
 Chain Bar Nut for Chainsaw Castor TR 270 2670120 Chain Bar Nut for Chainsaw Castor TR 270 €1.42
71
 photo_cameraImage coming soon 123900301/0 Guide Bar 10" €69.01
72
 photo_cameraImage coming soon 4113760 Chain 10" €22.29
73
 photo_cameraImage coming soon 323085000/0 Chain Cover €25.35

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Castelgarden Spare Parts for Chaisaw XC 27 PC

Castelgarden Original spare parts sourced from the manufacturer, at the lowest price on the web, with after-sales service, for to make maintenance or repair broken parts for Chaisaw XC 27 PC/223010103/06-2011.

In the following table, look for the model of the Chaisaw and the respective parts of the code.
Chaisaw XC 27 PC/223010103/06-2011
Chaisaw XC 27 PC/223010103/06-2011
Engine Pag.1
# Part Num. Description
1 6995173 Nut
2 6995207 Flywheel Assy
3 6995224 Screw
4 6995208 Flywheel Starter Hook
5 6995250 Flywheel Spring
6 6995225 Washer
7 6995247 Seal Ring
8 6995170 Ball Bearing
9 6995018 Flywheel Key
10 6995202 Crankshaft
11 6995169 Washer
12 6995237 Needle Bearing
13 6995200 Piston
14 6995172 Piston Pin
15 6995171 Washer, Piston Pin
16 6995201 Piston Ring
17 6995245 Cylinder Assy
18 6995186 Stabilizer
19 6995252 Screw
20 6995248 Seal Ring
21 6995229 Screw
22 6995185 Muffler Gasket
23 6995246 Muffler
24 6995251 Plate
25 6995182 Screw
26 6995210 Earth Cable
27 6995227 Stop Wire
28 6995234 Screw
29 6995209 Electronic Ignition Coil
30 6995022 Spark Plug Spring
31 6995066 Spark Plug Cover
32 6995238 Bushing
33 3210024 Spark Plug
34 6995183 Intake Manifold Assy
35 6995167 Screw
36 6995212 Gasket
37 6995244 Carburettor
38 6995214 Grommet
39 6995213 Choke Lever Rod
40 6995243 Air Filter Support
41 6995211 Screw
42 6995168 Plate
43 6995217 Air Filter
44 6995216 Air Cleaner Cover
51 123878008/0 Screw
52 6995175 Front Cover
53 6995239 Crankase Ass.Y
54 6995187 Screw
55 6995221 Breather Valve Ass.Y
56 6995232 Grommet
57 6995193 Cap Ass'Y
58 6995228 Air Purge
59 6995188 Grommet Ass.Y
60 6995189 Grommet
61 6995174 Fuel Pickup Assy
62 6995190 Tube
63 123878008/0 Screw
64 6995249 Upper Cover
65 6995194 Guard
66 6995180 Chain Guard
67 6995179 Screw
71 6995204 Gasket
72 6995223 Washer
73 6995191 Filter Intank Assy With Pipe
74 383594507/0 Oil Pump Assy
75 323878075/0 Female Screw
76 6995205 Tube
77 6995008 Screw
78 6995206 Cover Pump
79 123878008/0 Screw
80 6995230 Needle Bearing
81 6995178 Drum Ass'Y, Clutch 3/8"
82 6995203 Sprocket Washer
83 6995177 Clutch Ass.Y
84 6995241 Plate
85 6995220 Valve
86 6995192 Gasket
87 323275005/0 Shock Absorber
88 123878007/0 Screw
89 323790006/0 Cap
90 6995219 Clamp
91 123878009/0 Screw
92 6995231 Fair Led
93 6995184 Tube
94 6995235 Tube Connection
95 6995181 Screw
Housing Pag.2
1 383058008/0 Starter Assy Red
2 123234000/0 Starter Cord
3 3750067 Starter Handle
4 123430557/0 Starter Spring
5 323604001/0 Starter Pulley
6 123657002/0 Washer
7 123878010/0 Screw
8 323107501/0 Air Conveyor
9 123878008/0 Screw
10 323275004/0 Grommet
11 6995240 Handle Assy
12 6995114 Spring
13 6995134 Throttle Lever
14 6995016 Pin
15 6995196 Cap
16 323275005/0 Shock Absorber
17 123878007/0 Screw
18 323790006/0 Cap
19 6995226 Switch
20 6995198 Tube
21 6995199 Tube Connection
22 6995197 Tube
23 6995218 Rear Cover
24 6995215 Throttle Rod
25 6995135 Safety Lever
26 6995195 Handle, Upper Part
27 123878008/0 Screw
28 123878008/0 Screw
31 323790006/0 Cap
32 123878007/0 Screw
33 323275005/0 Shock Absorber
34 323105000/0 Handle
35 123878010/0 Screw
36 123200001/0 Plate
37 123878010/0 Screw
41 123878009/0 Screw
42 323311003/0 Bar Plate
43 123796004/0 Bar Adjusting Block
44 123878005/0 Screw
45 123510093/0 Pin
46 323448001/0 Brake Band
47 123665001/0 Pin
48 123430561/0 Spring
49 323315061/0 Lever
50 123430560/0 Spring
51 123120000/0 Nut
52 123657003/0 Washer
53 123044206/0 Bushing
54 323455005/0 Hand Guard
55 123430559/0 Spring
56 383315050/0 Chain Brake Lever
57 123665000/0 Roller
58 123044207/0 Bushing
59 123430558/0 Spring
60 323080000/0 Balance Weigth
61 123878006/0 Screw
62 123878009/0 Screw
63 323109515/0 Brake Cover
64 323059009/0 Clutch Housing Red
65 3641380 Bushing
66 2670120 Nut
71 123900301/0 Guide Bar 10"
72 4113760 Chain 10"
73 323085000/0 Chain Cover
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Castelgarden websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Castelgarden brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
XC27PC - 223010103/06-2011
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:
STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS

Specific References

New

Download

Diagram Castelgarden XC 27 PC

Diagram Castelgarden XC 27 PC

Download (461.24KB)

You might also like

Spark Plug Spring for Chainsaws Alpina A 305-C 25-A 2500
GGP Italy SKU: 6995022
Spark Plug Spring for Chainsaws Alpina A 305-C 25-A 2500
Spark Plug Spring for Chainsaws Alpina A 305-C 25-A 2500 Original parts Alpina, Spark Plug Spring for Chainsaws Alpina A 305 - C 25 - A 2500 - Castor TR270 - CJ 300. Part for the following products: - Chainsaw Alpina A...
AVAILABLE €1.69
Details
Chain Bar Nut for Chainsaw Castor TR 270 Sale
GGP Italy SKU: 2670120
Chain Bar Nut for Chainsaw Castor TR 270
Chain Bar Nut for Chainsaw Castor TR 270 Genuine part Castor, Chain Bar Nut 40-4570540600 2009 for Chainsaws Castor TR 270 - PR 270 - SPR 270 - SPR 270C - SPR 280. Part for the following products: - Chainsaw Castor TR 270 - Chainsaw...
AVAILABLE €1.42
Details
Handle Complete for Chainsaw Castor TR 270
GGP Italy SKU: 6995240
Handle Complete for Chainsaw Castor TR 270
Handle Complete for Chainsaw Castor TR 270 Original replacement part Alpina, Handle Complete for Chainsaws Castor TR 270 - Castelgarden XC 27 P - XC 27 PC. Part for the following products: - Chainsaw Castor TR 270/223010001-06-2012 -...
Last items in stock €37.10
Details
Oil Pump + Worm Screw Ass'y for Chainsaw Alpina PR 270
GGP Italy SKU: 383594507/0
Oil Pump + Worm Screw Ass'y for Chainsaw Alpina PR 270
Oil Pump + Worm Screw Ass'y for Chainsaw Alpina PR 270 Original part Alpina, Oil Pump + Worm Screw Ass'y ZENOAH for ChainsawS PR 270 - PR 270C - Castelgarden XC 27 P - XC 27 PC. Part for the following products: -  Chainsaw PR 270 C...
on 7/10 Business Days Approx €65.16
Details
Ignition Coil Ass'y for Chainsaw Alpina PR 270
GGP Italy SKU: 6995209
Ignition Coil Ass'y for Chainsaw Alpina PR 270
Ignition Coil Ass'y for Chainsaw Alpina PR 270 Original part Alpina, Electronic Ignition Coil Ass'y for Chainsaws PR 270 - PR 270C - Castelgarden XC 27 P - XC 27 PC. Part for the following products: -  Chainsaw PR 270 C (2012)...
Last items in stock €88.56
Details
Crankcase Assy RED for Chainsaw Castelgarden XC 27 P
GGP Italy SKU: 6995239
Crankcase Assy RED for Chainsaw Castelgarden XC 27 P
Crankcase Assy RED for Chainsaw Castelgarden XC 27 P Original replacement part Alpina, Crankcase Assy RED for Chainsaws XC 27 P - XC 27 PC - PR 270 C - TR 270 Part for the following products: -  Motosega TR 270/223010001-06-2012 -...
Last items in stock €75.50
Details
Intake Manifold Ass'y for Chainsaw Alpina PR 270
GGP Italy SKU: 6995183
Intake Manifold Ass'y for Chainsaw Alpina PR 270
Intake Manifold Ass'y for Chainsaw Alpina PR 270 Original part Alpina, Intake Manifold Ass'y 2841-06011 R-2009 for Chainsaws PR 270 - PR 270C - Castelgarden XC 27 P - XC 27 PC. Part for the...
Last items in stock €30.70
Details
Comments (0)
